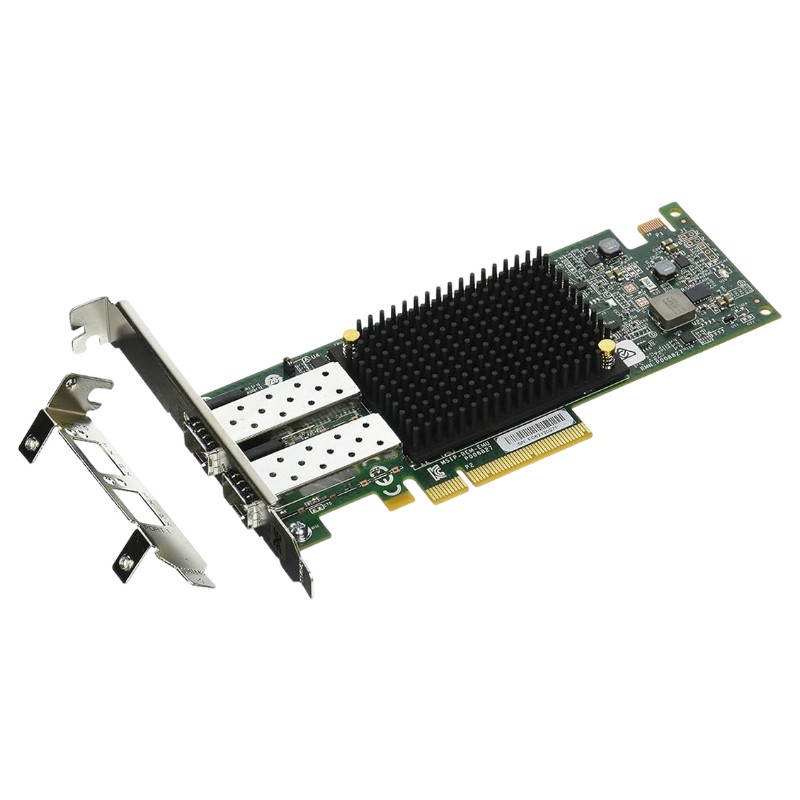

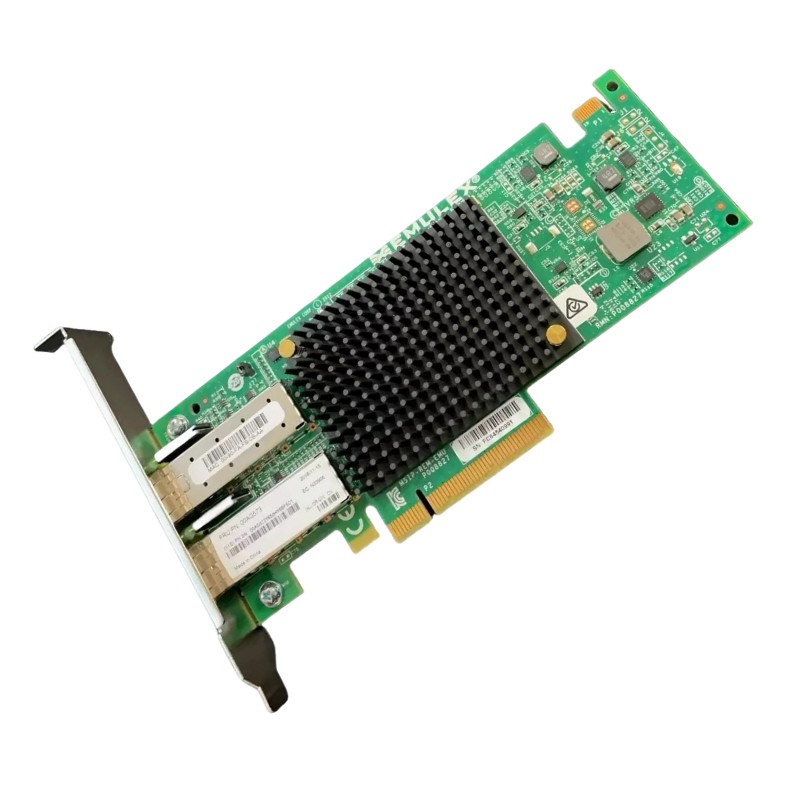

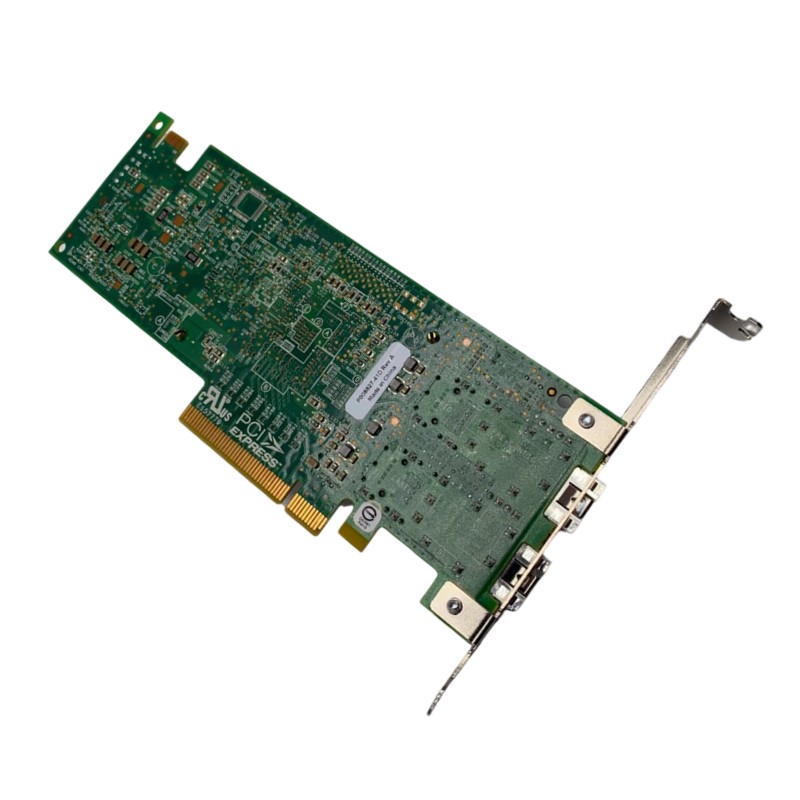

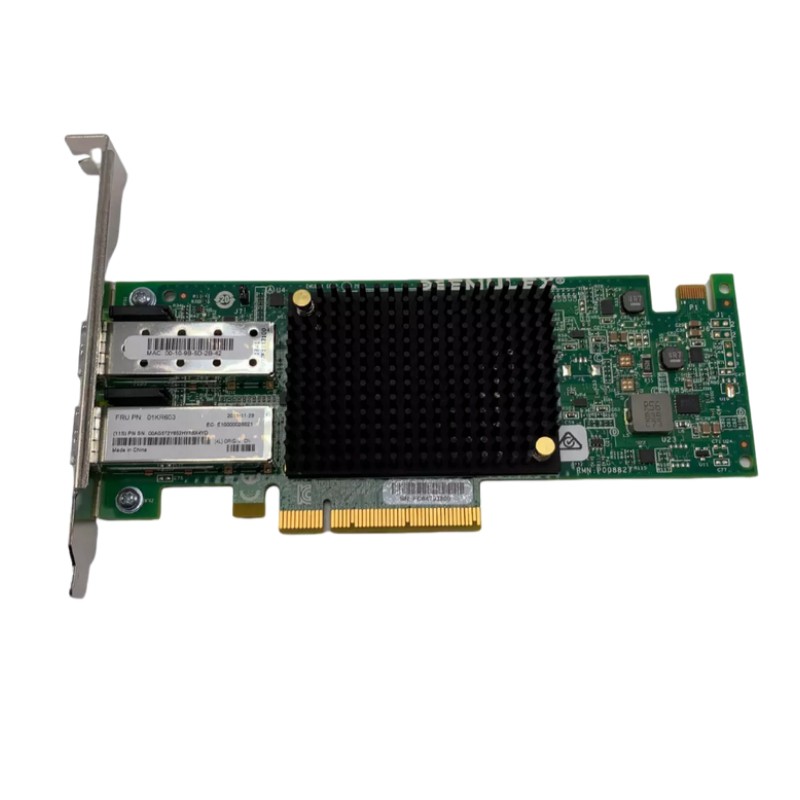

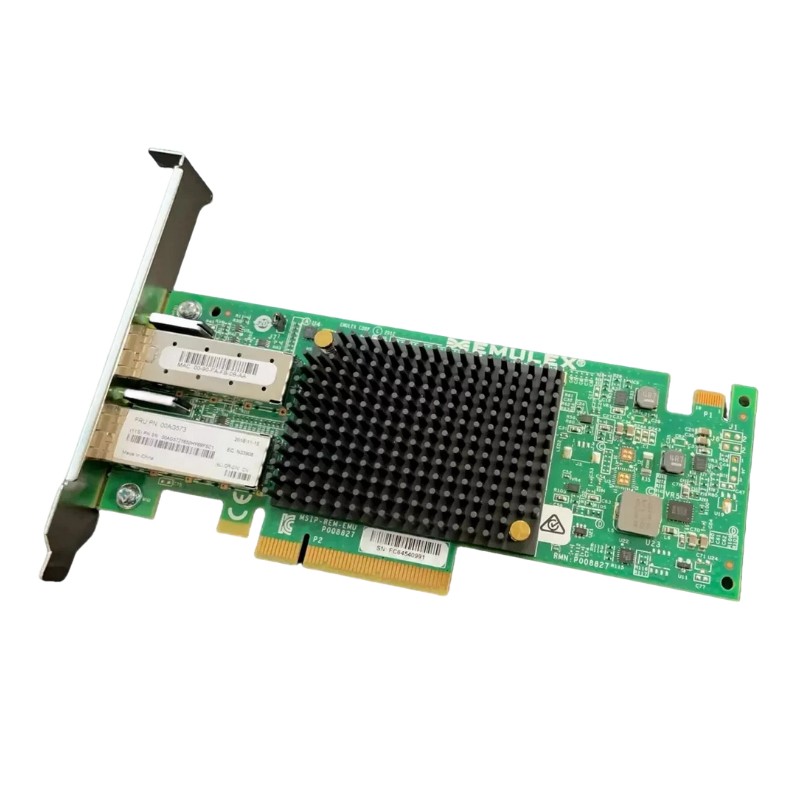

01KR603 Lenovo Emulex VFA5.2 10Gbps SFP+ PCIe 3.0 X8 Network Adapters

The Lenovo 01KR603 Emulex VFA5.2 Network Adapters are equipped with a cutting-edge 10Gbps SFP+ interface, offering exceptional speed and performance. This advanced interface enables users to achieve lightning-fast data transfer rates, making it ideal for high-bandwidth applications and demanding workloads. With a throughput of 10 Gigabits per second, this interface ensures that data is transmitted quickly and efficiently, allowing for seamless connectivity and enhanced productivity.

Main Specifications

• Manufacturer: Lenovo
• Part Number: 01KR603
• Product Type: Dual-Port Network Adapter

Technical Specifications

• Bus Type: PCI Express 3.0 x8
• Port Configuration: 2 x 10Gb Ethernet / FCoE
• Form Factor: Compact Plug-in Card, Low Profile
• Cabling Medium: Fibre Channel
• Supported Protocols: 10 Gigabit Ethernet, FCoE, iSCSI
• Transfer Speed: 10 Gbps
• Capacity: 128 per port
• Transport Protocols: TCP/IP, UDP/IP

Compliance & Standards

• IEEE 802.1q VLAN Tagging
• IEEE 802.3x Flow Control
• IEEE 802.3ad Link Aggregation (LACP)
• IEEE 802.3ae 10 Gigabit Ethernet
• IEEE 802.3p Priority Tagging
• IEEE 802.1ab LLDP
• IEEE 802.1qbb Priority Flow Control
• IEEE 802.1qaz Enhanced Transmission Selection
• IEEE 802.1qbg Virtual Bridging

Compatibility

• NextScale NX360 M5 (5465)
• System x3500 M5 (5464)
• System x3550 M5 (5463)
• System x3650 M5 (5462)
• System x3750 M4 (8753)
• System x3850 X6 (6241)
• System x3950 X6 (6241)

Key Advantages

• High-speed 10Gbps connectivity for demanding workloads
• Flexible support for Ethernet, FCoE, and iSCSI environments
• Broad OS compatibility across Windows, Linux, and VMware platforms
• Compliance with multiple IEEE standards ensuring reliability
• Optimized for Lenovo enterprise servers delivering seamless integration

Understanding of Lenovo 01KR603 SFP+ Network Adapter

The Lenovo 01KR603 Emulex VFA5.2 10Gbps SFP+ PCIe 3.0 x8 Network Adapter is a high-performance enterprise-class networking solution designed to support modern data center environments, cloud infrastructures, virtualization deployments, and mission-critical business applications. Built on advanced Emulex Virtual Fabric Adapter technology, this adapter provides exceptional throughput, low latency communication, and reliable connectivity for demanding workloads. The adapter leverages PCI Express 3.0 x8 bandwidth capabilities to ensure efficient data movement between servers and network resources while supporting scalable deployment strategies across enterprise infrastructures.

Designed to accommodate organizations that require robust network connectivity, the Lenovo 01KR603 adapter integrates seamlessly into compatible Lenovo server platforms while delivering consistent and predictable performance. The combination of 10Gbps Ethernet connectivity and SFP+ optical flexibility enables data center administrators to deploy customized networking configurations that align with operational requirements, distance limitations, and infrastructure growth plans.

Enterprise-Class Emulex VFA5.2 Technology

The Emulex VFA5.2 technology embedded within the Lenovo 01KR603 adapter introduces advanced networking capabilities that enhance overall infrastructure efficiency. Virtual Fabric Adapter architecture is engineered to optimize traffic management, reduce processing overhead, and support converged networking environments where multiple data streams coexist across shared infrastructure resources.

The adapter's hardware acceleration capabilities help reduce CPU utilization by offloading networking functions directly to the adapter hardware. This approach allows server processors to dedicate more resources to application execution, database processing, virtualization tasks, and computational workloads while maintaining high-speed network communication.

Hardware-Based Network Processing

Dedicated networking processors integrated within the adapter manage packet handling, traffic prioritization, checksum calculations, segmentation functions, and protocol processing. By performing these operations directly on the adapter, organizations can achieve enhanced application responsiveness and improved server efficiency across a wide range of enterprise workloads.

The intelligent processing architecture contributes to reduced latency and increased throughput consistency, particularly in environments characterized by high transaction volumes, large-scale virtualization deployments, and intensive storage networking operations.

10GBPS Ethernet Connectivity Performance

The Lenovo 01KR603 Emulex VFA5.2 adapter supports 10 Gigabit Ethernet connectivity, delivering significantly greater bandwidth compared to traditional Gigabit Ethernet adapters. This increased network capacity enables organizations to accommodate growing data volumes, support bandwidth-intensive applications, and maintain efficient communication between servers, storage systems, and network infrastructure components.

With a theoretical maximum throughput of 10 gigabits per second, the adapter is suitable for high-performance computing clusters, virtualized environments, software-defined infrastructures, private cloud deployments, and enterprise storage networks. The enhanced bandwidth reduces network bottlenecks and supports faster data transfers across critical business systems.

Optimized Data Throughput

High-speed Ethernet connectivity allows organizations to transfer large files, database transactions, backup data, and virtual machine workloads with greater efficiency. The adapter's architecture is optimized to sustain demanding traffic patterns while maintaining consistent performance under varying workload conditions.

Organizations implementing big data analytics, real-time processing applications, content delivery platforms, and enterprise resource planning systems can benefit from the adapter's ability to support sustained network throughput with minimal performance degradation.

Support for High-Bandwidth Applications

Applications requiring substantial network resources can take advantage of the adapter's advanced throughput capabilities. These applications may include virtualization platforms, video processing systems, cloud computing environments, storage area networks, business intelligence workloads, and enterprise collaboration platforms.

The ability to support simultaneous high-bandwidth operations helps ensure that critical applications maintain reliable network access even during peak utilization periods.

SFP+ Interface Flexibility

The Lenovo 01KR603 network adapter incorporates SFP+ connectivity, providing organizations with flexibility in selecting optical transceivers and cabling solutions that best match their infrastructure requirements. The modular nature of SFP+ technology allows administrators to deploy networking configurations tailored to specific distances, performance objectives, and environmental conditions.

SFP+ interfaces support various optical modules and direct attach copper solutions, enabling cost-effective deployment strategies while preserving future upgrade flexibility. Organizations can adapt network connectivity as infrastructure requirements evolve without replacing the underlying network adapter.

Optical Connectivity Advantages

Optical networking technologies provide reliable communication over extended distances while maintaining signal integrity and minimizing electromagnetic interference. The adapter's support for optical SFP+ modules enables deployment across enterprise data centers, campus environments, and interconnected facilities.

Fiber optic connectivity contributes to enhanced network reliability, improved security characteristics, and greater deployment versatility compared to conventional copper-based networking solutions.

Direct Attach Copper Compatibility

For short-distance connectivity within racks or adjacent equipment cabinets, the adapter can utilize compatible direct attach copper solutions. These configurations offer cost-effective connectivity while preserving 10Gbps performance characteristics and reducing deployment complexity.

PCI Express 3.0 x8 Interface Benefits

The PCI Express 3.0 x8 interface serves as the foundation for efficient communication between the Lenovo 01KR603 adapter and host server systems. PCIe 3.0 technology delivers substantial bandwidth capacity, enabling the adapter to support full 10Gbps network performance without creating internal system bottlenecks.

The x8 lane configuration provides ample bandwidth resources for high-throughput networking operations while supporting advanced features such as virtualization acceleration, traffic management, and hardware offloading functions.

High-Speed Host Connectivity

PCIe 3.0 technology improves data transfer efficiency between network hardware and server memory subsystems. This enhanced communication pathway supports rapid packet processing and minimizes delays associated with network transactions.

Organizations deploying high-performance applications benefit from the adapter's ability to leverage available PCIe bandwidth efficiently, ensuring optimal utilization of both network and server resources.

Reduced System Bottlenecks

The combination of PCIe 3.0 architecture and x8 connectivity helps eliminate performance constraints that may occur with lower-bandwidth expansion interfaces. This capability is particularly valuable in environments characterized by intensive network utilization and demanding application workloads.

Virtualization Optimization Features

Modern enterprise environments increasingly rely on virtualization technologies to maximize hardware utilization, improve operational efficiency, and simplify infrastructure management. The Lenovo 01KR603 Emulex VFA5.2 adapter includes features specifically designed to support virtualized workloads and cloud computing environments.

Advanced virtualization capabilities enable efficient network resource allocation across multiple virtual machines while maintaining security, isolation, and performance consistency. These features contribute to improved scalability and simplified infrastructure administration.

Virtual Machine Network Acceleration

The adapter supports technologies that enhance network performance within virtualized environments by reducing software overhead and improving traffic handling efficiency. Virtual machines benefit from optimized communication paths that contribute to lower latency and higher throughput.

Organizations operating large virtualization clusters can leverage these capabilities to maintain predictable application performance while supporting increasing virtual machine densities.

Scalable Virtual Infrastructure

As virtualization environments expand, networking infrastructure must accommodate growing traffic volumes and increasing complexity. The Lenovo 01KR603 adapter is engineered to support scalable deployments while maintaining reliable connectivity and efficient resource utilization.

Data Center Deployment Advantages

The Lenovo 01KR603 adapter is well suited for modern data center environments where performance, reliability, and scalability are critical operational requirements. Its enterprise-focused design aligns with the demands of contemporary computing infrastructures, including private cloud environments, hybrid cloud deployments, and software-defined data centers.

By providing high-speed connectivity and advanced networking capabilities, the adapter helps organizations optimize infrastructure performance while supporting long-term growth objectives.

Support for Converged Infrastructure

Converged infrastructure architectures integrate computing, networking, and storage resources into unified management frameworks. The adapter's advanced capabilities support these environments by delivering reliable connectivity and efficient traffic handling across multiple workload categories.

This approach enables organizations to simplify infrastructure management while improving resource utilization and operational efficiency.

Cloud Computing Readiness

Cloud environments require networking solutions capable of supporting dynamic workloads, multi-tenant architectures, and scalable resource allocation models. The Lenovo 01KR603 adapter provides the performance characteristics necessary to support cloud-based operations effectively.

Advanced Network Reliability Features

Reliability remains a critical consideration in enterprise networking environments where downtime can significantly impact business operations. The Lenovo 01KR603 Emulex VFA5.2 adapter incorporates technologies designed to promote stable operation, consistent performance, and dependable connectivity.

These reliability-focused capabilities help organizations maintain continuous access to critical applications and network services while minimizing disruptions caused by connectivity issues.

Error Detection and Traffic Integrity

Advanced error management mechanisms contribute to data integrity and reliable packet transmission across network infrastructures. These capabilities help identify and address communication anomalies while maintaining efficient network operations.

Consistent traffic integrity supports applications that depend on accurate and uninterrupted data exchange, including transactional systems, storage environments, and business-critical workloads.

Server Integration

The Lenovo 01KR603 Emulex VFA5.2 network adapter is designed to integrate efficiently with compatible Lenovo server platforms and enterprise computing environments. Its standardized PCIe form factor simplifies installation while supporting flexible deployment options across a variety of server configurations.

The adapter's enterprise-oriented architecture enables organizations to standardize networking infrastructure components and simplify ongoing management processes.

Flexible Infrastructure Deployment

Whether deployed in rack servers, virtualization hosts, application servers, storage systems, or cloud infrastructure platforms, the adapter provides consistent performance and reliable connectivity. This flexibility supports diverse workload requirements while simplifying procurement and deployment planning.

Future-Ready Networking Architecture

Organizations seeking scalable networking solutions can benefit from the adapter's support for modern Ethernet standards, virtualization technologies, and advanced infrastructure architectures. Its combination of 10Gbps performance, SFP+ flexibility, PCIe 3.0 efficiency, and enterprise-grade reliability makes the Lenovo 01KR603 Emulex VFA5.2 10Gbps SFP+ PCIe 3.0 x8 Network Adapter a valuable component for contemporary data center and enterprise networking deployments.
