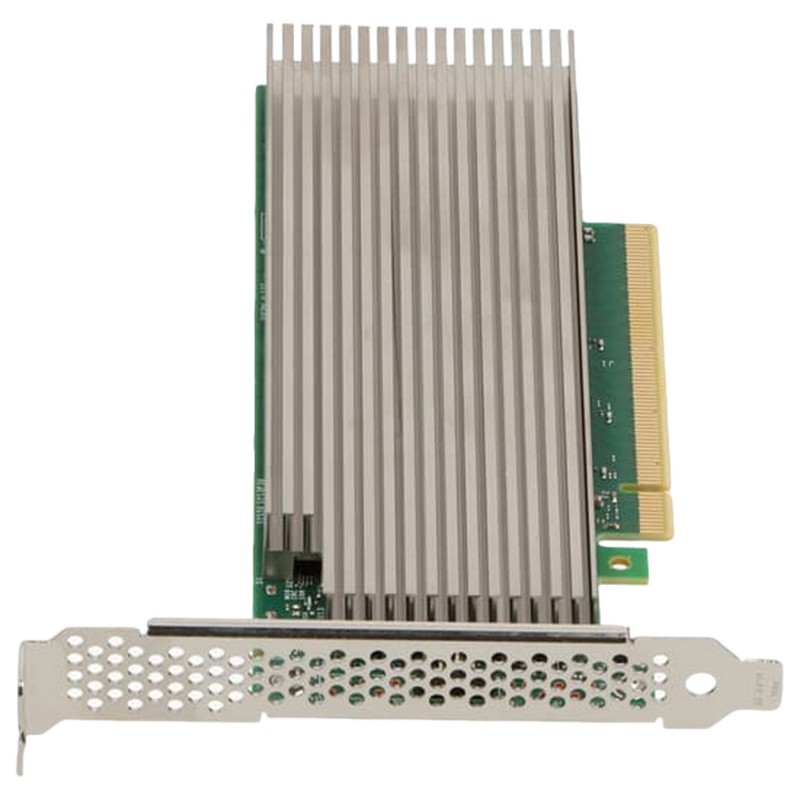

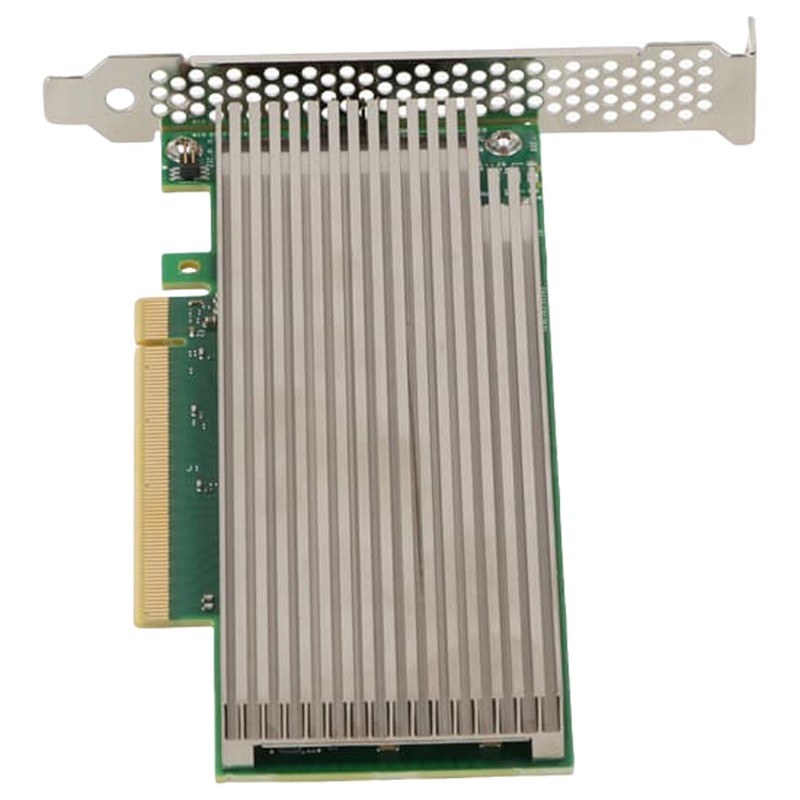

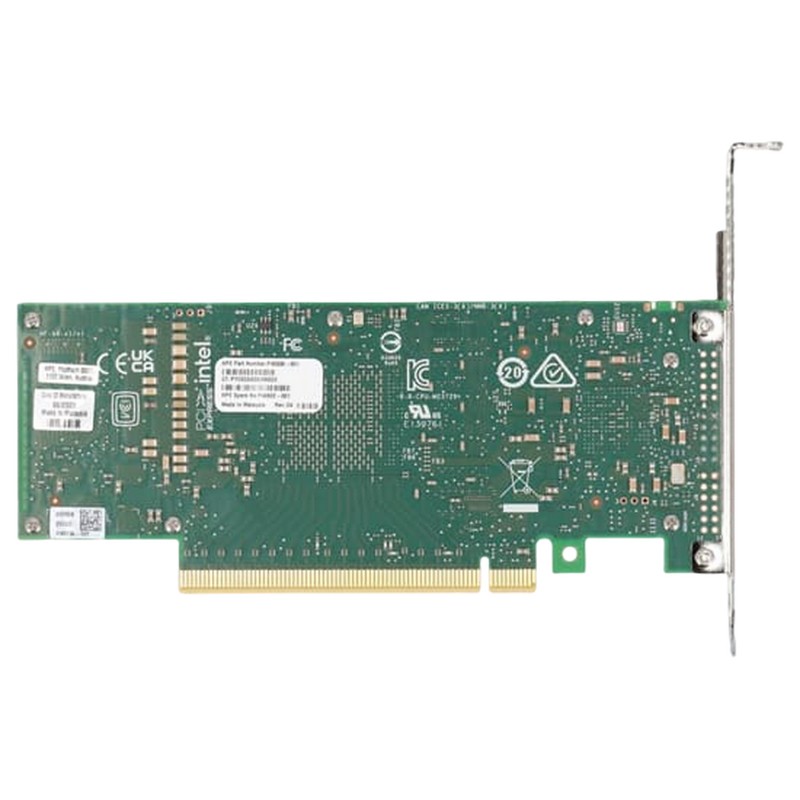

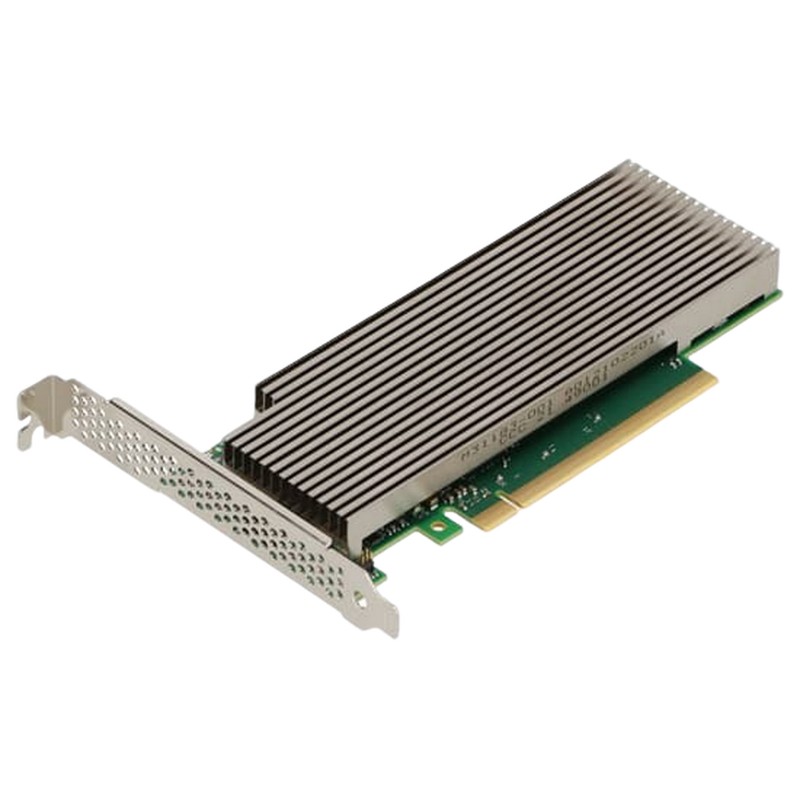

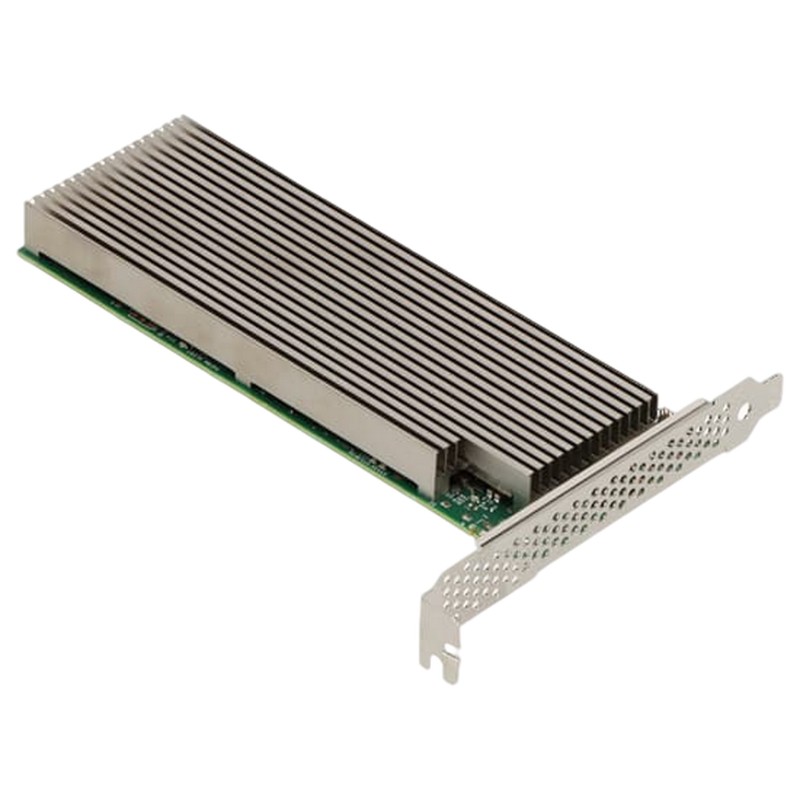

03GX771 Lenovo Intel Vran Acc100 Pcie Adapter

03GX771
Hover on image to enlarge

Brief Overview of 03GX771

Lenovo Intel Vran Accelerator Acc100 Pcie Adapter - 03GX771. Factory-Sealed New in Original Box (FSB) with 3-Year Replacement Warranty
QR Code of 03GX771 Lenovo Intel Vran Acc100 Pcie Adapter
$903.15
$662.00
You save: $241.15 (27%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPN03GX771Availability✅ In StockProcessing TimeUsually ships same day ManufacturerLenovo Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Lenovo 03GX771 Intel VRAN Accelerator Acc100 PCIe Adapter

 Specifications

  • Manufacturer: Lenovo
  • Part Number: 03GX771
  • Bus Type / Bus Width: PCIe 3.0 x16
  • Accelerator: Intel VRAN Dedicated Accelerator Acc100
  • Dimensions: 6.67 in x 2.70 in (169 mm x 69 mm)

FEC Acceleration Features

LDPC FEC for 3GPP 5G

  • LDPC Encoder/Decoder
  • Code Block CRC Generation and Checking
  • Rate Matching / De-matching
  • HARQ Buffer Management

Turbo FEC for 3GPP 4G

  • Turbo Encoder/Decoder
  • Code Block CRC Generation and Checking
  • Rate Matching / De-matching

Load Balancing and Hardware Features

  • Queue Manager (QMGR) supports load balancing
  • Uplink and Downlink block requests managed based on bandwidth allocation and priority

Manageability and Monitoring

SMBus and Communication

  • SMBus operates at up to 1 Mbps
  • Supports PLDM 2.1 over MCTP over SMBus

Sensor and Threshold Monitoring

  • Voltage Sensors: Monitors all primary and secondary adapter voltages
  • Temperature Sensors: Monitors adapter, DDR, and bracket ambient temperatures
  • Power Sensor: Monitors overall board power
  • Warning/Fatal Thresholds: Customizable thresholds for warnings and fatal errors

Emergency Shutdown

  • Hardware-based emergency shutdown for temperature or voltage overloads

Power Consumption

  • Power: 53W

Thermal and Airflow Specifications

Thermal Conditions

  • 55°C - 550 LFM: Operational conditions
  • 61°C - 650 LFM: Maximum airflow for cooling

Supported Operating Systems and Software

  • Interface available via DPDK BBDEV library and APIs
  • Compatible with FlexRAN Software Reference Architecture
  • Supports Linux OS

Other Features

Intel Vran Acc100

Boost Performance and Efficiency

The Lenovo 03GX771 Pcie Adapter is equipped with the cutting-edge Intel Vran Acc100 technology, which offers a range of benefits to users. This feature plays a crucial role in boosting performance and efficiency, making it an essential component for any high-performance computing system.

Accelerated Virtualized Networks

The Intel Vran Acc100 technology enables accelerated virtualized networks, allowing for improved network performance and reduced latency. With this feature, users can experience faster data transfer rates, ensuring smooth and uninterrupted data flows across their networks.

Enhanced Workload Optimization

By leveraging the power of Intel Vran Acc100, the Lenovo 03GX771 Pcie Adapter optimizes workloads efficiently. It enables workload consolidation, reducing the need for multiple physical servers by virtualizing network functions. This consolidation leads to cost savings, as fewer physical servers are required to handle the same workload.

Seamless Scalability

Flexibility and scalability are crucial for any modern computing system. The Intel Vran Acc100 technology allows for seamless scalability by enabling users to dynamically allocate network resources according to their needs. This feature ensures that network resources are utilized optimally, regardless of fluctuations in demand.

Improved Data Security

Enhanced Network Isolation

Data security is a top priority for businesses and organizations. With the Intel Vran Acc100 technology, the Lenovo 03GX771 Pcie Adapter provides enhanced network isolation capabilities. This feature allows users to isolate sensitive data and applications within secure virtual environments, protecting them from potential security breaches.

Reduced Attack Surface

By utilizing the Intel Vran Acc100 technology, the Lenovo 03GX771 Pcie Adapter reduces the attack surface within a network. This feature helps minimize the risk of unauthorized access and potential security threats. With a reduced attack surface, businesses can ensure that their critical data and applications remain protected.

Advanced Traffic Monitoring

The Intel Vran Acc100 technology includes advanced traffic monitoring capabilities, allowing users to gain deeper insights into their network traffic. This feature enables real-time monitoring and analysis of network data, helping users identify potential security issues or performance bottlenecks. With this information, businesses can take proactive measures to address any network vulnerabilities or optimize their network performance.

Seamless Network Management

Centralized Network Control

The Lenovo 03GX771 Pcie Adapter, with its Intel Vran Acc100 technology, offers centralized network control capabilities. This feature allows administrators to manage the entire network infrastructure from a single interface, simplifying network management tasks. With centralized control, businesses can streamline their network operations and ensure consistent configurations across all devices.

Efficient Resource Allocation

With the Intel Vran Acc100 technology, resource allocation becomes more efficient and dynamic. Administrators can allocate network resources based on real-time demands, ensuring optimal utilization and performance. This capability leads to improved productivity and reduced operational costs by efficiently managing network resources.

Simplified Troubleshooting

Troubleshooting network issues can be time-consuming and challenging. The Intel Vran Acc100 technology simplifies troubleshooting by providing detailed insights into network performance and traffic patterns. Administrators can quickly identify and resolve issues, minimizing downtime and ensuring uninterrupted business operations.

Conclusion

The Lenovo 03GX771 Pcie Adapter with its Intel Vran Acc100 feature offers numerous benefits in terms of performance, efficiency, data security, and network management. By leveraging this cutting-edge technology, users can experience accelerated virtualized networks, enhanced workload optimization, improved data security, and seamless network management. With the Lenovo 03GX771 Pcie Adapter, businesses can optimize their computing systems and stay ahead in today's competitive digital landscape.
