Product Overview

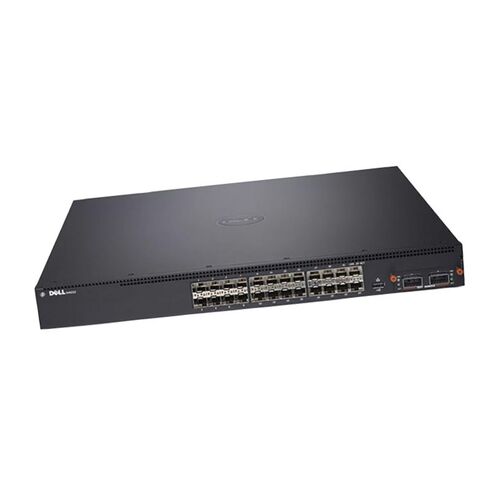

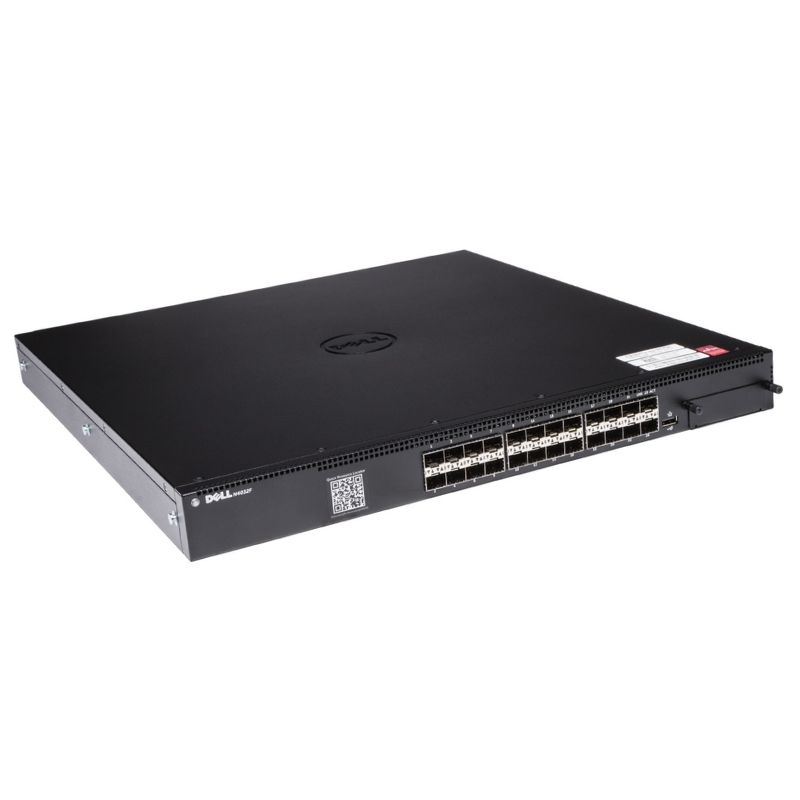

DELL 05KGDH Networking N4032f Switch - 24 Ports L3 Managed Stackable
Key Features
- Device Type: 24-Port L3 Managed Stackable Switch
- Form Factor: 1U Rack-Mountable Enclosure
- Network Subtype: 10 Gigabit Ethernet
- Ports: 24 x 10 Gigabit SFP+
Performance Specifications
- Switching Fabric Bandwidth: 640 Gbps
- Forwarding Performance: 476 Mpps
Capacity Overview
- MAC Address Capacity: 131,072 entries
- Static IPv4 Routes: 1,024
- Static IPv6 Routes: 1,024
- Dynamic IPv4 Routes: 8,160
- Dynamic IPv6 Routes: 4,096
- Maximum Member Ports Per LAG: 8
- Maximum Dynamic Ports Per Switch Stack: 144
- LAG Groups: 128
- Priority Queues Per Port: 8
- OSPF Routes: 8,160
- RIP Routes: 512
- ECMP Next Hops Per Route: 4
- Supported VLANs: 4,094
- Maximum VLAN Interfaces With ACLs Applied: 24
Advanced Features
The DELL N4032f Switch boasts a wide range of advanced features for enhanced performance and security:
- Layer 3 and Layer 2 Switching Capabilities
- MDI/MDI-X Support and Auto-Negotiation
- Port Mirroring for Effective Traffic Analysis
- Broadcast Storm Control for Network Stability
- Quality of Service (QoS) for Traffic Management
- Dynamic ARP Inspection (DAI) for Enhanced Security
- Access Control List (ACL) Support for Fine-Grained Access Management
- Remote Switch Port Analyzer (RSPAN) Capability
Compliance and Standards
This switch complies with a comprehensive set of standards, ensuring interoperability and reliability:
- Compliant with IEEE 802.2, 802.3, 802.3u, 802.3z, 802.1d, 802.1q, and more
- ANSI/TIA-1057 Compliance
- Supports LACP and various routing protocols
Remote Management Capabilities
Management of the DELL N4032f Switch is streamlined through several remote management protocols:
- SNMP (Simple Network Management Protocol)
- RMON (Remote Monitoring)
- SSH (Secure Shell) for Secure Remote Access
- HTTP for Web-Based Management

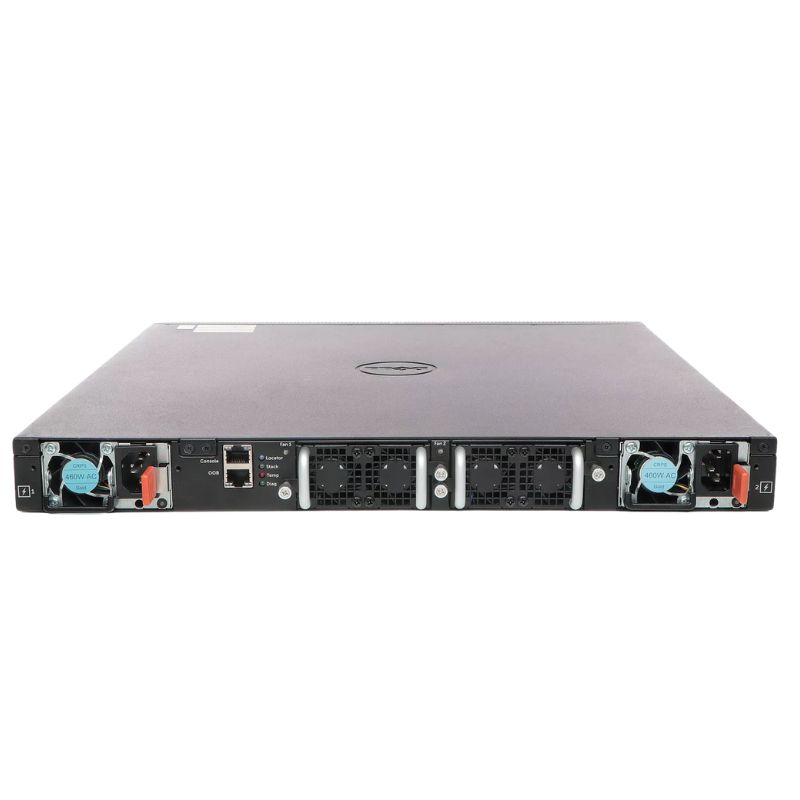

Power Redundancy Features
This networking switch includes robust power redundancy options to maintain uptime and reliability.
Ports
The Dell N4032F Network Switch is equipped with 24 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and scalable networking solution. With 24 ports, users can connect multiple devices such as computers, servers, printers, and IP phones to the network without the need for additional switches.
Increased Connectivity
Having 24 ports allows businesses to expand their network and accommodate more devices as their needs grow. This ensures that there is enough connectivity for all the devices in the office, preventing bottlenecks and network congestion.
Whether it's connecting workstations for employees, setting up a server room, or establishing a dedicated network for IP phones, the 24 ports of the Dell N4032F Network Switch provide ample connectivity options.
Improved Efficiency
The abundance of ports in the Dell N4032F Network Switch enables businesses to optimize their workflow and improve efficiency. Employees can connect directly to the network without the hassle of sharing ports or using additional devices.
With each device having its dedicated port, data transfers can occur simultaneously without any interruptions or slowdowns. This ensures smooth collaboration and seamless communication within the organization.
Flexibility in Network Design
The 24 ports of the Dell N4032F Network Switch allow for greater flexibility in designing the network infrastructure. Businesses can create separate VLANs (Virtual Local Area Networks) to segregate traffic based on departments, security levels, or specific requirements.
This flexibility enables efficient management of resources and ensures that sensitive data remains secure by isolating it from other parts of the network. It also helps in optimizing network performance by prioritizing bandwidth for critical applications or services.
Scalability for Future Growth
The Dell N4032F Network Switch's 24 ports provide scalability for future growth. As businesses expand and add more devices to their network, the switch can accommodate the increased demand without requiring replacement or additional hardware.
This scalability saves businesses both time and money by eliminating the need for frequent upgrades. It allows organizations to focus on their growth strategies and ensures that their network infrastructure can keep up with evolving technology requirements.
Port Type
The Dell N4032F Network Switch features 10 Gigabit SFP+ ports, offering high-speed connectivity and enhanced performance for demanding network applications. These ports are designed to handle large amounts of data and provide a reliable and efficient network experience.
High-Speed Data Transfer
With 10 Gigabit SFP+ ports, the Dell N4032F Network Switch allows for lightning-fast data transfer speeds. This is especially beneficial for businesses that deal with large files or require real-time communication, such as video conferencing or data-intensive applications.
By leveraging the high-speed capabilities of the 10 Gigabit SFP+ ports, businesses can significantly reduce data transfer times, improving overall productivity and user experience.
Enhanced Performance
The 10 Gigabit SFP+ ports of the Dell N4032F Network Switch enable high-performance networking, providing a stable and reliable connection for critical applications. This is particularly important in industries such as finance, healthcare, or media where a delay in data transmission can have significant consequences.
By utilizing the enhanced performance of these ports, businesses can ensure that their network can handle the demands of modern applications and services, minimizing latency and maximizing productivity.
Future-Proofing
The inclusion of 10 Gigabit SFP+ ports in the Dell N4032F Network Switch future-proofs the network infrastructure. As technology advances and the need for higher data transfer speeds increases, businesses can rest assured that their switch is capable of handling these demands.
Investing in a network switch with 10 Gigabit SFP+ ports not only provides immediate benefits but also ensures compatibility with future networking standards, preventing the need for premature hardware upgrades.
Features
The Dell N4032F Network Switch boasts several key features that make it an excellent choice for businesses seeking high-performance, scalable, and easy-to-manage networking solutions. The following features set it apart from other switches on the market:
High-Performance Networking
The Dell N4032F Network Switch is designed to deliver high-performance networking capabilities, ensuring that businesses can leverage the full potential of their network infrastructure. With its advanced hardware and software components, the switch can handle heavy network traffic and data-intensive applications without compromising performance.
Whether it's transferring large files, streaming high-definition media, or running bandwidth-intensive applications, users can rely on the Dell N4032F Network Switch to provide a stable and efficient network experience.
Scalable and Flexible
Scalability and flexibility are essential factors for any business when choosing a network switch. The Dell N4032F Network Switch offers both these features, allowing businesses to adapt to changing network requirements easily.
With support for Virtual Local Area Networks (VLANs) and link aggregation, businesses can create logical networks within their physical infrastructure, allowing for efficient resource allocation and enhanced security.
Easy to Manage
The Dell N4032F Network Switch incorporates user-friendly management tools that simplify the administration and maintenance of the network. It features a web-based graphical user interface (GUI) that allows network administrators to configure and monitor the switch easily.
Additionally, the switch supports industry-standard management protocols such as SNMP (Simple Network Management Protocol) and CLI (Command Line Interface), providing flexibility and compatibility with existing network management systems.
Reliable
Reliability is paramount when it comes to networking equipment, and the Dell N4032F Network Switch delivers on this aspect. With redundant power supplies and hot-swappable fans, the switch ensures continuous operation even in the event of a component failure.
Furthermore, the switch's built-in security features protect against unauthorized access and ensure that data remains confidential. Features like Access Control Lists (ACLs) and Secure Shell (SSH) encryption provide an additional layer of security to safeguard sensitive information.
In conclusion, the Dell N4032F Network Switch offers 24 ports, 10 Gigabit SFP+ ports, and a range of features that make it an ideal choice for businesses seeking a high-performance, scalable, easy-to-manage, and reliable networking solution. Whether it's expanding connectivity, improving efficiency, or future-proofing the network infrastructure, this switch caters to the needs of businesses of all sizes.
