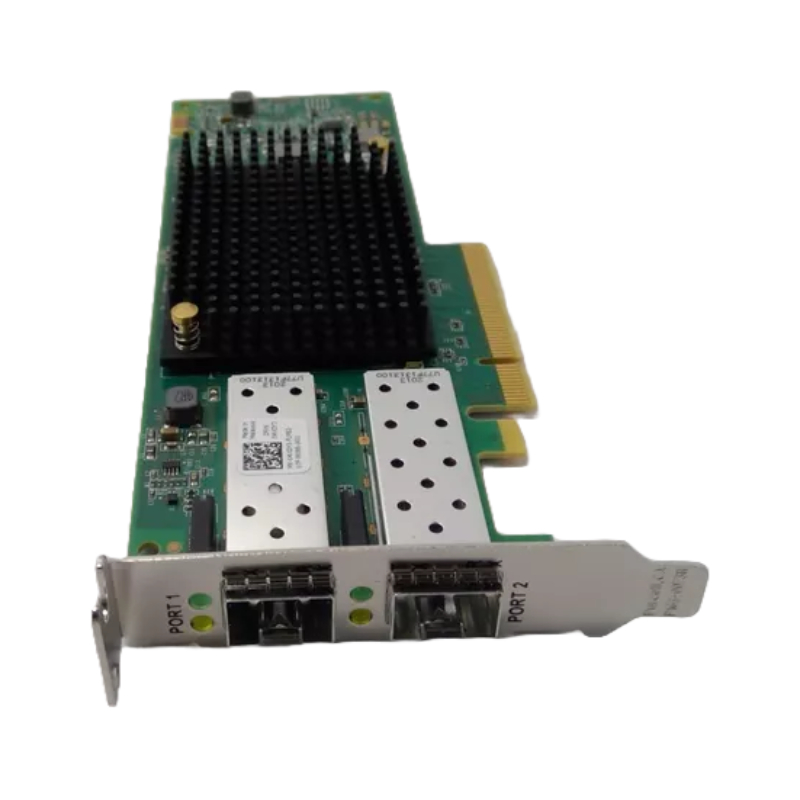

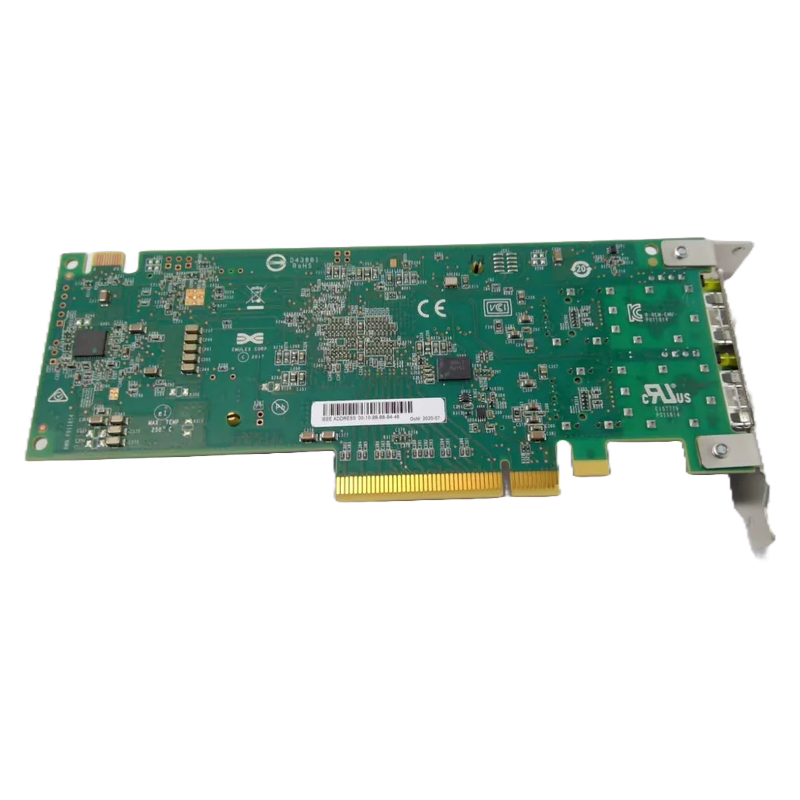

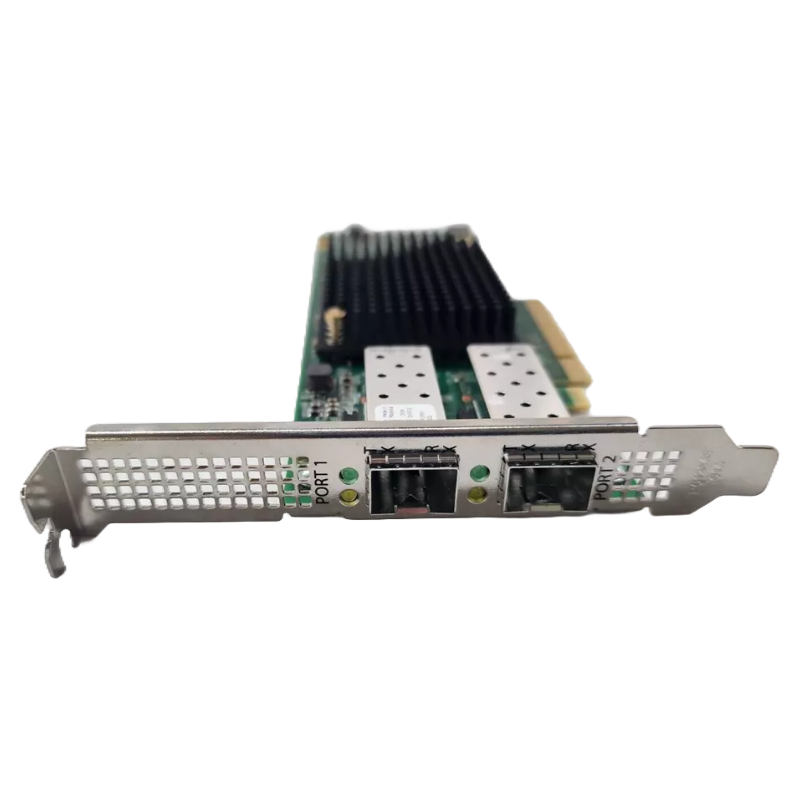

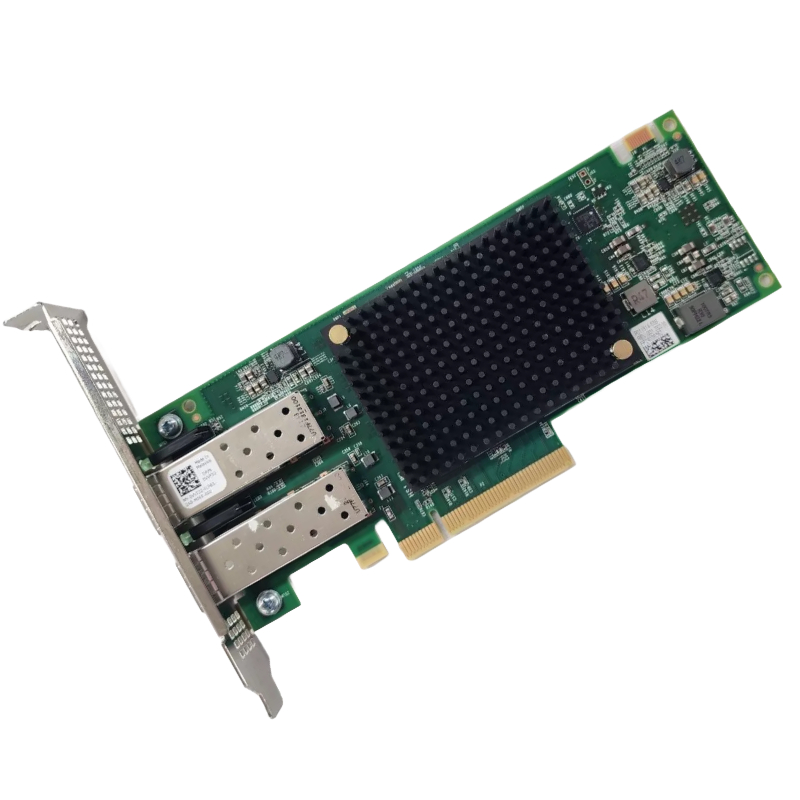

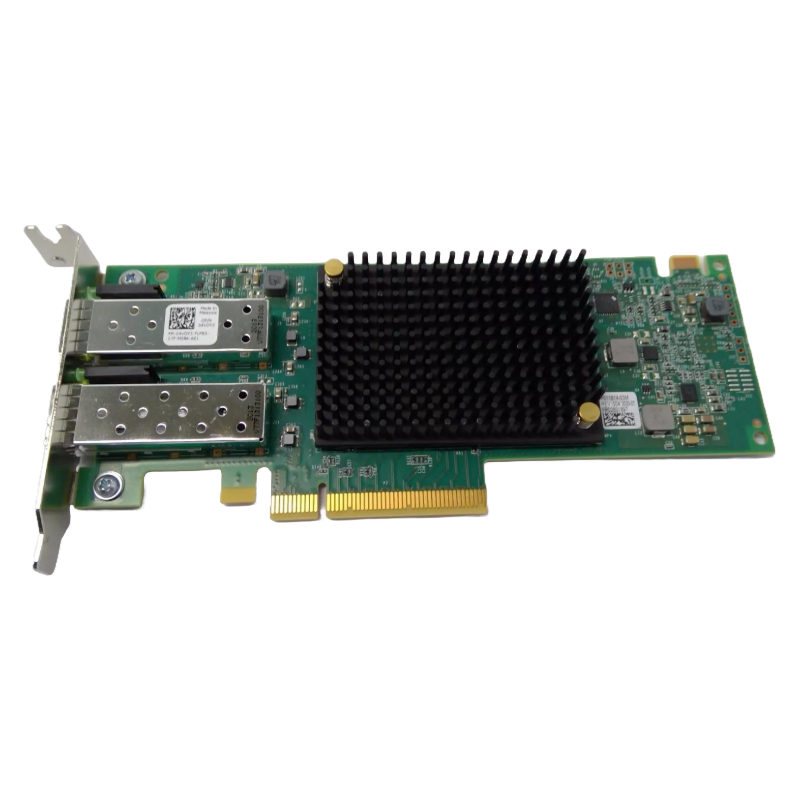

Product Overview of 1PGVY Dell 32GB Host Bus Adapter
Key Details
- Brand: Dell
- Model Number: 1PGVY
- Type of Device: Host Bus Adapter
Dimensions
- Form Factor: Low Profile PCIe Card
- Dimensions: 167.64mm x 68.91mm (6.60" x 2.71")
Technical Capabilities
- Generation: Gen 7 (64/32 GFC)
- Port Count: Dual Ports
- Host Bus Type: PCIe Gen4 x8
- I/O Controller: XE601
Cable Compatibility
- Supports fiber optic cables ranging from 0.5m to 100m at 64GFC/32GFC (OM4/MMF and OM5/MMF)
- Up to 70m with OM3/MMF at 64GFC/32GFC
- Supports singlemode fiber connections up to 10km (at 32GFC/16GFC) using Emulex-approved longwave transceivers
Optical Specifications
Data Rates
- 28.05 Gb/s (3200 Mb/s), 14.025 Gb/s (1600 Mb/s), 8.5 Gb/s (800 Mb/s) (auto-detect)
Connector Type
- Optics with LC-type connectors
Environmental Requirements
Operating Conditions
- Temperature Range: 0°C to 55°C (32°F to 131°F)
- Humidity: 5% to 95% non-condensing
Storage Conditions
- Temperature Range: -20°C to 85°C (-4°F to 185°F)
Software and OS Compatibility
- Microsoft Windows
- Oracle Linux (with Unbreakable Enterprise Kernel)
- Oracle Solaris
- Red Hat Enterprise Linux
- SUSE® Linux Enterprise Server
- VMware vSphere
Additional Support
- Further assistance and software updates are available from OEMs and partners
Overview of the 1PGVY Dell Fiber Channel Host Bus Adapter
The 1PGVY Dell LPE35002-M2 Emulex 32GB Dual Port PCI-E GEN4 X8 Fiber Channel Host Bus Adapter is a high-performance solution designed to offer superior connectivity and data transfer capabilities in high-demand IT environments. Ideal for enterprise storage solutions, this advanced fiber channel host bus adapter is engineered to support 32GB of bandwidth, dual ports, and PCI-E GEN4 X8 interface. It is tailored for organizations requiring faster and more reliable storage networks, ensuring seamless communication between servers and storage systems.
Key Features and Specifications
The 1PGVY Dell LPE35002-M2 Emulex adapter is packed with cutting-edge features, making it one of the most sought-after solutions in modern data centers. Below are the key specifications:
- 32GB Dual Port Connectivity: The dual-port configuration allows for increased data throughput and redundancy, ensuring that if one port fails, the other maintains network operations without disruption.
- PCI-E GEN4 X8 Interface: Offering 16 GT/s data transfer speed, PCI-E GEN4 provides substantial bandwidth, which is essential for handling large-scale applications and massive data workloads.
- Low Latency: With Emulex's advanced technology, this fiber channel adapter reduces latency, improving the performance of enterprise storage and high-performance computing environments.
- Compatibility: This adapter is fully compatible with various Dell PowerEdge servers, ensuring seamless integration into existing server infrastructure.
- Energy-Efficient: The design prioritizes energy savings while maintaining high performance, lowering operational costs without sacrificing reliability.
Ideal Use Cases for the 1PGVY Dell LPE35002-M2
Given its high bandwidth, reliability, and cutting-edge features, the 1PGVY Dell LPE35002-M2 Emulex 32GB Dual Port PCI-E GEN4 X8 Fiber Channel Host Bus Adapter is ideal for the following use cases:
- Data Centers: High-demand environments requiring maximum uptime, low latency, and fault-tolerant systems will benefit from the dual-port design and exceptional data throughput.
- Enterprise Storage Networks: This adapter is perfect for storage area networks (SANs) where the performance of networked storage systems is paramount for smooth and efficient operations.
- Cloud Environments: Supporting virtualization and cloud platforms, it can handle large data loads and ensure that cloud infrastructure remains responsive and efficient.
- High-Performance Computing: For organizations running resource-intensive applications like big data analytics, scientific simulations, and AI modeling, the 32GB bandwidth is essential for minimizing delays.
Understanding Fiber Channel Technology
Fiber Channel (FC) is a high-speed network technology designed to connect servers and storage devices in a storage area network (SAN). As a key enabler of modern data center architectures, Fiber Channel supports high-speed data transfer, high availability, and scalability, which makes it the technology of choice for critical workloads. The 1PGVY Dell LPE35002-M2 takes full advantage of Fiber Channel’s capabilities, offering dual-port redundancy and high throughput over long distances.
Benefits of Fiber Channel in Enterprise Systems
There are numerous advantages of using Fiber Channel in enterprise environments:
- High-Speed Data Transfers: Fiber Channel supports speeds of up to 32Gbps, allowing organizations to transfer large amounts of data rapidly, reducing wait times and boosting operational efficiency.
- Scalability: As businesses grow, the need for a scalable storage network becomes crucial. Fiber Channel SANs scale easily without compromising performance, ensuring that additional storage devices can be integrated smoothly.
- Improved Reliability: Built-in redundancy and fault tolerance make Fiber Channel networks extremely reliable, providing continuous operations even in the event of hardware failures.
- Low Latency: Fiber Channel’s architecture is designed for minimal latency, making it an ideal solution for real-time applications where delays cannot be tolerated.
Integrating the 1PGVY Dell LPE35002-M2 into Your Infrastructure
Integrating the 1PGVY Dell LPE35002-M2 Emulex 32GB Dual Port PCI-E GEN4 X8 Fiber Channel Host Bus Adapter into your existing IT infrastructure can significantly enhance the performance of your storage and networking systems. Whether you’re deploying it for a small-to-medium business or a large-scale enterprise network, the integration process is straightforward, ensuring a seamless transition without disruptions.
Hardware Requirements
To integrate the 1PGVY Dell LPE35002-M2 into your system, ensure that your server has the required PCI-E GEN4 X8 slots and supports dual-port fiber channel adapters. Additionally, your data center should have Fiber Channel-compatible storage devices such as disk arrays and switches. The 1PGVY adapter’s hardware specifications allow it to fit into various server configurations, ensuring compatibility with many modern data center solutions.
Software Setup and Configuration
Once the hardware is in place, the next step is configuring the software to ensure optimal performance. Dell provides robust management software for configuring and monitoring the adapter’s status, including its dual ports, connection speeds, and error management. The adapter is compatible with popular operating systems, such as Linux, Windows Server, and VMware, allowing it to integrate seamlessly into various enterprise environments.
Key Software Features:
- Centralized Management: Manage all fiber channel ports and adapters through a single interface, simplifying administrative tasks.
- Diagnostics and Monitoring: Continuous monitoring tools to ensure the health of the adapter and identify potential issues before they impact performance.
- Firmware and Driver Updates: Automatic firmware and driver updates ensure the adapter stays compatible with the latest advancements in PCI-E and Fiber Channel technology.
Performance Benefits
Utilizing the 1PGVY Dell LPE35002-M2 Emulex 32GB Dual Port PCI-E GEN4 X8 Fiber Channel Host Bus Adapter delivers remarkable performance benefits in terms of data transfer speeds, reduced latency, and increased reliability. The dual-port configuration allows for failover protection, ensuring network uptime even during hardware failures, while the 32GB bandwidth ensures your server can handle the most demanding workloads without lag.
Improved Data Throughput
With a maximum bandwidth of 32GB, the 1PGVY adapter offers high data throughput, reducing bottlenecks commonly seen in high-volume environments. This makes it especially useful for organizations handling large datasets or performing resource-intensive tasks, such as virtualization, database management, and cloud computing.
Optimized for High Availability
Reliability is essential in mission-critical environments. The dual-port nature of the 1PGVY Dell LPE35002-M2 provides automatic failover in case of a port failure, preventing system downtime and ensuring continuous operation. Additionally, the fiber channel technology’s inherent robustness contributes to long-term stability and uptime in enterprise storage networks.
Enhanced Scalability for Growing Businesses
As your business grows and your storage needs increase, the 1PGVY Dell LPE35002-M2 scales effortlessly. With support for multiple adapters and the ability to connect to larger SANs, it is the perfect solution for growing enterprises looking to expand their IT infrastructure without overhauling their existing systems.
Comparing the 1PGVY Dell LPE35002-M2 with Other Fiber Channel Adapters
When evaluating fiber channel adapters, it’s essential to consider factors such as speed, compatibility, and reliability. The 1PGVY Dell LPE35002-M2 stands out in its category due to its PCI-E GEN4 X8 interface, providing superior data transfer speeds compared to older adapters. Additionally, its 32GB bandwidth and dual-port design make it a more reliable and scalable option for businesses that require high-performance storage networking solutions.
Choose the 1PGVY Dell LPE35002-M2
While there are many fiber channel adapters on the market, the 1PGVY Dell LPE35002-M2 offers the best combination of speed, reliability, and value for money. It is particularly suitable for businesses that demand high-performance storage networks and cannot afford downtime. Its compatibility with Dell servers further ensures smooth integration into existing infrastructures.
