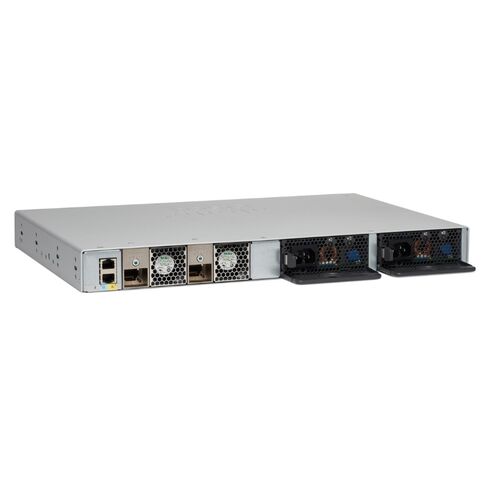

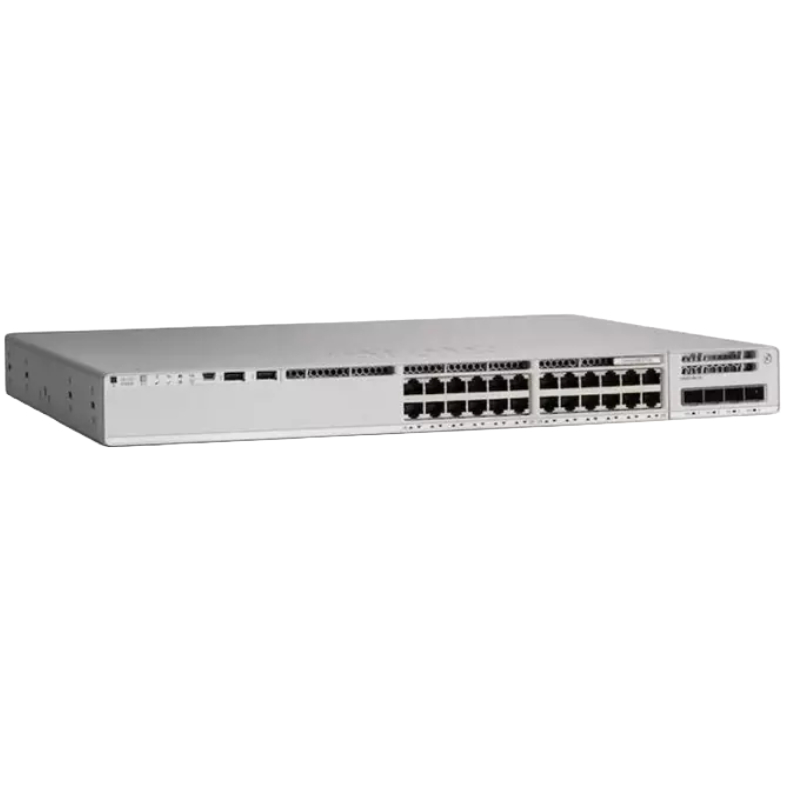

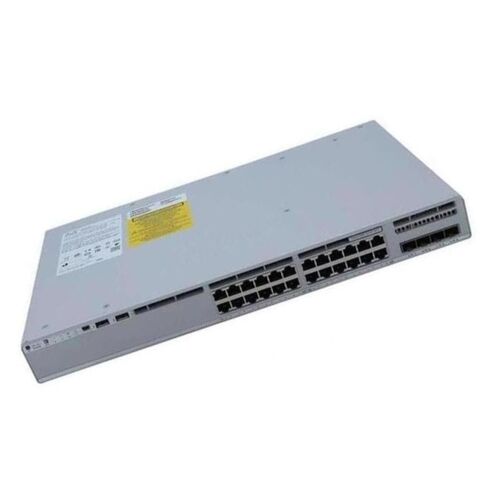

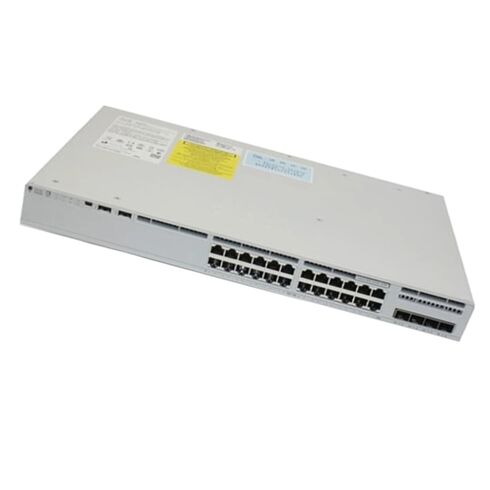

C9200-24PXG-E Cisco 24 Ports Layer 3 Ethernet Switch

Enterprise-Grade Switching Built for Modern Networks

The Cisco Catalyst 9200-24PXG-E is engineered to support evolving enterprise infrastructures that demand speed, resilience, and intelligent control. Designed as a fully managed Layer 3 access switch, this model blends multi-gigabit connectivity, advanced routing, and robust power delivery into a compact rack-mounted form factor. It is purpose-built for organizations upgrading to Wi-Fi 6, IP-based collaboration, and high-performance edge deployments.

Main Specification

• Manufacturer: Cisco
• Part Number: C9200-24PXG-E
• Device Type: Ethernet Switch

Technical Interfaces

• 8 multi-gigabit RJ-45 Ethernet ports
• 16 Gigabit Ethernet PoE+ RJ-45 ports
• Dedicated network stacking port
• Separate management LAN port
• RJ-45 console interface for local access

Flexible Port Architecture with Multi-Gigabit Advantage

• 8 RJ-45 ports supporting 100 Mbps, 1G, 2.5G, 5G, and up to 10G speeds
• 16 RJ-45 ports operating at 10/100/1000 Mbps with PoE+
• Optimized for bandwidth-intensive endpoints such as Wi-Fi 6 access points and IP cameras

Power over Ethernet Plus for Edge Devices

• Total PoE budget of up to 370 watts
• Supports IP phones, wireless access points, surveillance systems, and IoT endpoints
• Reduces cabling complexity and external power requirements

Throughput, Capacity, and Packet Processing

• Switching capacity of 272 Gbps for standalone operation
• Up to 352 Gbps when deployed in a stacked configuration
• Forwarding rate reaching 214.28 million packets per second
• Stacking bandwidth of 80 Gbps using Cisco StackWise-80 technology

Advanced Table Sizes and Network Scale

• MAC address table supporting 16,000 entries
• IPv4 route support up to 11,000 entries
• IPv6 routing table capacity of 1,500 entries
• Up to 1,024 VLANs and 512 switched virtual interfaces

Enhanced Traffic Handling

• Jumbo frame support up to 9,198 bytes
• Packet buffer size of 6 MB for traffic bursts
• Eight hardware QoS queues per port for precise traffic prioritization

Supported Routing and Multicast Protocols

• OSPF, IS-IS, EIGRP, RIP v1/v2, and RIPng
• OSPFv3 and EIGRP for IPv6
• PIM-SM, PIM-SSM, MSDP, and multicast scalability up to 1,000 entries
• Policy-based routing for granular traffic control

High Availability and Gateway Redundancy

• HSRP and VRRP for fault-tolerant gateway services
• Fast convergence for minimized downtime

Integrated Security Capabilities

• 128-bit AES encryption for secure management traffic
• MACsec support for encrypted link-layer communication
• First Hop Security and Control Plane Protection
• Security Group Tag caching for scalable policy enforcement

Advanced Monitoring and Analytics

• Flexible NetFlow for traffic visibility and analysis
• SPAN, RSPAN, and enhanced monitoring options
• Embedded Event Manager for automated responses

Quality of Service and Traffic Optimization

• DiffServ and DSCP classification
• Class of Service and committed information rate support
• Shaped Round Robin scheduling for predictable performance

Automation Protocols

• SNMP v1, v2c, and v3 with RMON support
• CLI access alongside NETCONF and RESTCONF APIs
• YANG data models for automation and orchestration
• Full IPv4 and IPv6 management compatibility

Supported IEEE Standards

• IEEE 802.3, 802.3u, 802.3ab, and 802.3bz
• IEEE 802.1Q, 802.1D, 802.1W, and 802.1S
• IEEE 802.1X for port-based authentication
• IEEE 802.3af and 802.3at for PoE compliance

Memory, Storage, and Power Design

• 2 GB RAM for smooth multitasking and routing operations
• 4 GB flash memory for firmware and configuration storage
• Internal hot-plug power supply with optional redundancy
• AC input range of 100–240V at 50–60 Hz

Overview of Cisco Catalyst 24-port Enterprise-Class Switch

The Cisco C9200-24PXG-E Catalyst 9200 24-port 8xmGig PoE+ Network Essentials Switch is designed to deliver a resilient, scalable, and intelligent access-layer foundation for organizations that demand performance consistency and simplified operations. Built on the Catalyst 9200 platform, this model integrates advanced switching silicon with enterprise-grade software capabilities, enabling reliable connectivity for data, voice, and video traffic across demanding network environments. The architecture supports high throughput, low latency, and predictable forwarding behavior, which are essential for businesses adopting cloud applications, collaboration tools, and high-density wireless deployments.

This switch provides a balanced combination of hardware performance and software-driven intelligence. The inclusion of mGig technology allows for seamless integration with next-generation access points and devices without the need for costly recabling. By supporting multigigabit Ethernet speeds on select ports, the platform ensures that infrastructure investments remain protected as bandwidth requirements continue to grow. The overall design emphasizes operational continuity, offering features that reduce downtime and streamline network management.

Advanced Port Configuration and Multigigabit Capability

The Cisco C9200-24PXG-E features 24 Ethernet ports, including 8 multigigabit ports capable of supporting higher throughput over existing cabling. This capability is particularly valuable for organizations deploying Wi-Fi 6 and Wi-Fi 6E access points that require increased bandwidth beyond traditional Gigabit Ethernet. By enabling speeds that scale beyond 1 Gbps, the switch ensures optimal performance without the need to overhaul cabling infrastructure.

Each port is engineered to provide consistent performance under load, supporting simultaneous data streams with minimal congestion. The multigigabit ports dynamically negotiate speed based on connected devices, ensuring compatibility with a wide range of endpoints. This flexibility allows network administrators to deploy high-performance devices where needed while maintaining standard connectivity elsewhere, optimizing resource utilization across the network.

Power over Ethernet Plus for Unified Connectivity

Power over Ethernet Plus functionality is a core feature of the Cisco C9200-24PXG-E, enabling the switch to deliver both data and power over a single Ethernet cable. This capability simplifies deployment for IP phones, wireless access points, surveillance cameras, and other PoE-enabled devices. By centralizing power delivery, organizations can reduce the need for separate power sources, resulting in cleaner installations and lower infrastructure costs.

The PoE+ implementation supports intelligent power management, ensuring that connected devices receive appropriate power levels based on demand. The switch monitors power consumption in real time, allowing administrators to allocate resources efficiently and avoid overload scenarios. This approach enhances reliability while supporting a growing ecosystem of connected devices across enterprise environments.

Efficient Power Allocation and Monitoring

Power management within the Cisco C9200-24PXG-E is designed to be both granular and adaptive. Administrators can configure power budgets, prioritize critical devices, and monitor usage patterns through integrated management tools. This level of control ensures that essential services remain operational even during peak demand, reinforcing network stability and uptime.

Network Essentials Software and Intelligent Features

The Network Essentials software license included with the Cisco C9200-24PXG-E provides a comprehensive set of features that address the core needs of enterprise access-layer networking. This software package delivers robust Layer 2 and Layer 3 functionality, supporting secure segmentation, efficient traffic forwarding, and simplified configuration. By leveraging Cisco’s proven operating system, the switch benefits from consistent updates and long-term support.

Intelligent automation features reduce the complexity of network deployment and ongoing management. Administrators can implement standardized configurations, enforce policies, and quickly adapt to changing requirements. The software-driven approach enhances agility while maintaining the reliability expected from enterprise-grade networking equipment.

Layer 2 and Layer 3 Capabilities

The Cisco C9200-24PXG-E supports a rich set of Layer 2 features, including VLAN segmentation, spanning tree protocols, and link aggregation. These capabilities enable efficient traffic management and redundancy, ensuring uninterrupted connectivity even in the event of link failures. Layer 3 functionality further enhances the switch’s versatility by supporting static routing and inter-VLAN routing at the access layer.

This combination of features allows organizations to design flexible network topologies that scale with business growth. By handling routing closer to the edge, the switch reduces latency and optimizes traffic flows, contributing to improved application performance and user experience.

Security Integration at the Access Layer

Security is deeply integrated into the Cisco C9200-24PXG-E, with features designed to protect both the network and connected devices. Access control mechanisms such as port security and authentication protocols help ensure that only authorized users and devices can connect. These measures are essential for maintaining compliance and safeguarding sensitive data.

The switch also supports segmentation strategies that isolate traffic based on roles or functions, reducing the risk of lateral movement in the event of a security incident. By implementing security at the access layer, organizations can establish a strong first line of defense while maintaining operational efficiency.

Performance, Reliability, and High Availability

The Cisco Catalyst 9200 series is engineered to deliver consistent performance under demanding conditions, and the C9200-24PXG-E is no exception. High-capacity switching fabric and efficient packet processing ensure that traffic is forwarded with minimal delay, even during peak usage periods. This reliability is critical for supporting real-time applications such as voice and video communications.

High availability features are integrated into the platform to minimize downtime and maintain service continuity. Redundant components and intelligent failover mechanisms help ensure that the network remains operational in the face of hardware or link failures. These capabilities make the switch well suited for mission-critical environments where uptime is paramount.

Resilient Design for Continuous Operation

The physical and logical design of the Cisco C9200-24PXG-E emphasizes resilience. Robust hardware components are paired with software features that detect and respond to issues proactively. This combination reduces the likelihood of service disruptions and simplifies troubleshooting when issues arise.

By supporting rapid recovery mechanisms, the switch enables networks to adapt quickly to changes and maintain consistent performance. This resilience is particularly valuable for organizations with distributed locations or high availability requirements.

Quality of Service for Application Prioritization

Quality of Service capabilities within the Cisco C9200-24PXG-E allow administrators to prioritize critical traffic and ensure predictable performance for key applications. By classifying and managing traffic flows, the switch helps prevent congestion and maintain service levels for latency-sensitive workloads.

This level of control is essential for modern networks that support a mix of applications with varying performance requirements. By aligning network behavior with business priorities, organizations can deliver a superior user experience while optimizing resource utilization.

Automation and Visibility

The Cisco C9200-24PXG-E is designed to simplify network management through intuitive tools and automation capabilities. Centralized management platforms provide visibility into network performance, device status, and configuration consistency. This transparency enables administrators to make informed decisions and respond quickly to potential issues.

Automation features streamline repetitive tasks, reducing the risk of configuration errors and freeing up IT resources for strategic initiatives. By leveraging policy-based management, organizations can maintain consistent network behavior across multiple locations and devices.

Scalability and Future-Ready Design

The Cisco C9200-24PXG-E is built with scalability in mind, supporting evolving business requirements and technological advancements. The inclusion of multigigabit ports ensures compatibility with next-generation devices, while robust software support enables ongoing feature enhancements. This future-ready design protects infrastructure investments and supports long-term growth.

As organizations adopt new applications and expand their networks, the switch provides the flexibility needed to adapt without compromising performance or reliability. This adaptability is a key advantage for businesses operating in dynamic environments.

Support for High-Density Wireless Deployments

The increasing adoption of high-density wireless networks places significant demands on the access layer. The Cisco C9200-24PXG-E addresses these challenges by providing the bandwidth and power required to support advanced wireless access points. This capability ensures consistent performance for users across a wide range of devices and applications.

By enabling seamless integration with wireless infrastructure, the switch supports mobility, collaboration, and productivity in modern workplaces. This alignment with wireless trends reinforces its value as a foundational networking solution.

Long-Term Investment Protection

Investment protection is a central consideration in the design of the Cisco C9200-24PXG-E. The platform’s hardware capabilities and software support ensure that it remains relevant as networking standards evolve. By accommodating higher speeds and advanced features, the switch reduces the need for frequent upgrades.

This approach allows organizations to plan for the future with confidence, knowing that their network infrastructure can adapt to changing demands while maintaining operational efficiency.

Use Cases Across Enterprise Environments

The versatility of the Cisco C9200-24PXG-E makes it suitable for a wide range of enterprise environments, including corporate offices, educational institutions, healthcare facilities, and retail locations. Its combination of performance, security, and manageability supports diverse applications and workloads.

By addressing the unique requirements of different industries, the switch enables organizations to deliver reliable connectivity and support mission-critical operations. This adaptability underscores its role as a comprehensive access-layer solution.
