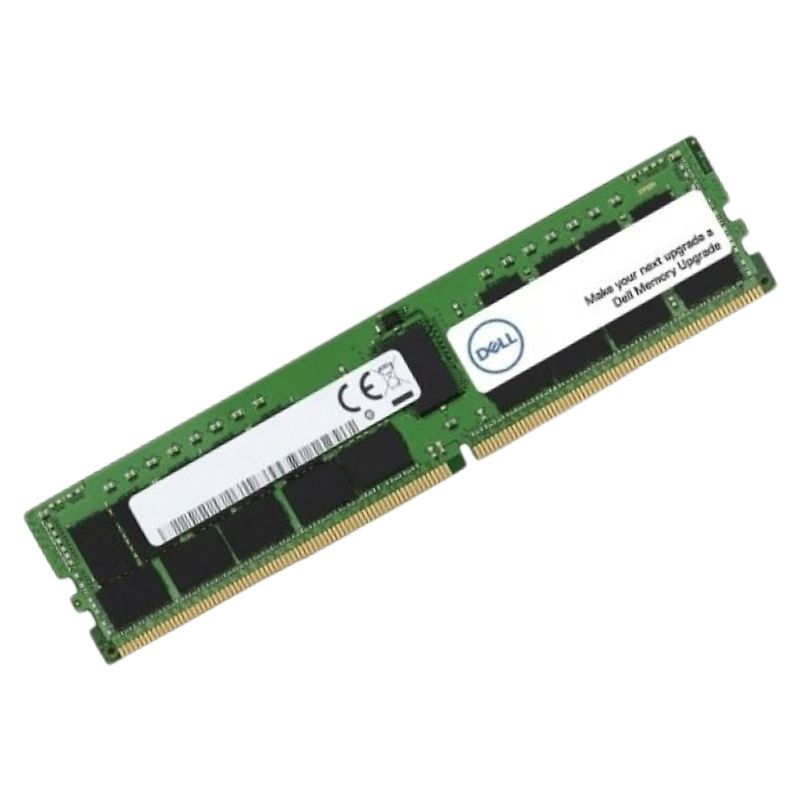

370-BCQL Dell 256GB DDR5 4800MT/s Pc5-38400 ECC Memory.

Understanding Server Memory: The Role of DDR5 ECC RDIMMs

Server memory represents a critical component in modern data centers, workstations, and enterprise computing environments. Unlike standard desktop memory, server memory is engineered for maximum reliability, error correction, and continuous operation under heavy loads. The Dell 370-BCQL 256GB DDR5-4800MT/s module exemplifies this specialized category, providing the foundation for stable and high-performance computing in mission-critical applications.

Comparing Memory Types: ECC RDIMM vs. UDIMM vs. LRDIMM

Unbuffered DIMMs (UDIMMs)

Common in desktop and consumer systems, UDIMMs lack a register between the memory controller and DRAM chips. While they offer lower latency, they place a higher electrical load on the memory controller, limiting the total number of modules that can be installed in a system and the maximum achievable capacity.

Registered DIMMs (RDIMMs)

RDIMMs, like the Dell 370-BCQL, are the standard for most server applications. The register buffers command, address, and control signals, allowing for greater memory capacity and scalability. This makes them ideal for servers requiring large amounts of reliable RAM.

Load-Reduced DIMMs (LRDIMMs)

LRDIMMs utilize a memory buffer (iBO) that buffers both the data lines and the command/address lines. This further reduces the electrical load compared to RDIMMs, enabling the highest possible memory capacities and densities in multi-socket servers. They are typically used in maximum-memory configurations.

The DDR5 Revolution: Next-Generation Server Performance

DDR5 memory represents a significant architectural leap forward from its DDR4 predecessor, delivering substantial improvements in speed, capacity, efficiency, and reliability. The Dell 370-BCQL operates at a data rate of 4800MT/s (Mega Transfers per second), which is a baseline speed for DDR5, already outperforming most DDR4 modules.

Key Architectural Advancements in DDR5

Dual Sub-Channel Architecture

Unlike DDR4's single 72-bit data channel (64-bit data + 8-bit ECC), each DDR5 DIMM is divided into two independent 40-bit sub-channels (32-bit data + 8-bit ECC per sub-channel). This allows for more efficient data access patterns, reducing latency and improving overall memory controller efficiency by handling two concurrent memory access commands.

On-DIMM Power Management (PMIC)

DDR5 modules integrate a Power Management Integrated Circuit (PMIC) directly onto the DIMM. This decentralizes power delivery, moving it from the motherboard to the memory module itself. The PMIC enables more granular power control, better power integrity, and improved voltage regulation, which is crucial for the stable operation of high-density modules like the 256GB Dell 370-BCQL.

Increased Burst Length and Prefetch

DDR5 features a Burst Length of 16 (BL16) and a prefetch of 16n, doubling that of DDR4 (BL8, 8n prefetch). This means the memory can fetch and transmit 64 bytes of data in a single burst, which is the size of a typical CPU cache line, resulting in more efficient data transfer and better alignment with modern processor architectures.

DDR5 Speed and Timing Specifications

The "DDR5 4800MT/s" specification indicates the module performs 4.8 billion data transfers per second. With a 64-bit (8-byte) wide interface, this translates to a peak theoretical bandwidth of 38.4 GB/s per module (4800 MT/s * 8 Bytes / 1000). The "PC5-38400" designation is the module's bandwidth rating in MB/s (approximately 38,400 MB/s). These specifications ensure compatibility and performance in servers designed for DDR5 technology.

Form Factor and Physical Design

The module adheres to the standard 288-pin DIMM form factor used by DDR5. A key notch differentiates it physically from DDR4 modules, preventing accidental insertion into an incompatible motherboard. The inclusion of ECC requires additional DRAM chips (typically x4 or x8 organization) to provide the extra bits for error correction. The green PCB and Dell-branded label ensure it meets Dell's stringent quality and compatibility standards.

Example Configuration for a Dual-Processor System

In a two-socket server with 16 memory slots (8 per CPU), a balanced configuration using eight 256GB Dell 370-BCQL modules would involve populating four slots per processor, likely one DIMM per channel across all eight channels, resulting in a total system memory of 2 Terabytes (8 x 256GB).

Targeted Applications and Workloads

In-Memory Databases (e.g., SAP HANA, Redis)

These applications store entire datasets in RAM for ultra-low latency access. The massive 256GB capacity of a single Dell 370-BCQL module allows for building systems with terabytes of memory, enabling larger, more complex databases to reside entirely in memory, drastically accelerating transaction times and analytics.

High-Performance Computing (HPC) and CAE

Computational Fluid Dynamics (CFD), Finite Element Analysis (FEA), and other simulation workloads require immense amounts of memory to hold complex models and datasets. The high bandwidth of DDR5-4800 memory accelerates computation times, while ECC ensures the integrity of long-running calculations.

Virtualization and Cloud Infrastructure

Server consolidation through virtualization (VMware vSphere, Microsoft Hyper-V) is memory-intensive. High-density modules like the 370-BCQL allow a single physical host to support a greater number of virtual machines, improving hardware utilization and reducing total cost of ownership (TCO) for data centers.

Big Data Analytics and AI/ML

Processing massive datasets in frameworks like Apache Spark or training large machine learning models requires substantial memory bandwidth and capacity. The DDR5 architecture directly addresses these needs, allowing data scientists and analysts to work with larger datasets more efficiently.

Benefits of Choosing the Dell 370-BCQL 256GB DDR5 Module

Uncompromising Data Integrity with ECC

The primary benefit of ECC memory is its ability to maintain data accuracy. It can automatically detect and correct single-bit errors (Single Error Correction - SEC) and detect multi-bit errors (Double Error Detection - DED). In a server environment where uptime is critical and data corruption can have catastrophic consequences, ECC is not a luxury but a necessity.

Enhanced Scalability and Maximum Capacity

The 256GB capacity per module is a game-changer for memory-intensive applications. It enables system builders to achieve extremely high total memory configurations (e.g., 4TB, 8TB, or more in a single server) without requiring an excessive number of DIMM slots, which saves space, power, and complexity.

Improved Performance and Power Efficiency

DDR5's 4800MT/s speed provides a immediate performance uplift over previous generations. Furthermore, the lower operating voltage of 1.1V translates to reduced power consumption per gigabyte transferred. When multiplied across dozens of modules in a data center, this efficiency leads to significant savings on electricity and cooling costs, contributing to a lower Total Cost of Ownership (TCO).

Dell Quality and Reliability Assurance

As a genuine Dell part, the 370-BCQL module undergoes rigorous testing and validation to ensure seamless operation within Dell PowerEdge servers. This minimizes compatibility issues and ensures long-term reliability. Using certified Dell memory also protects your system warranty and provides access to Dell's technical support.
