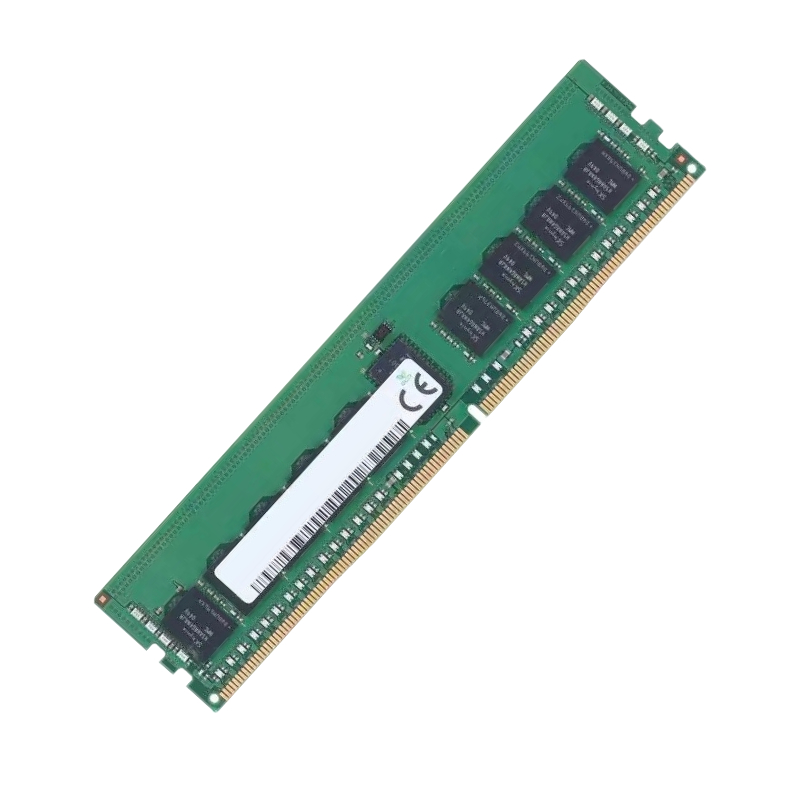

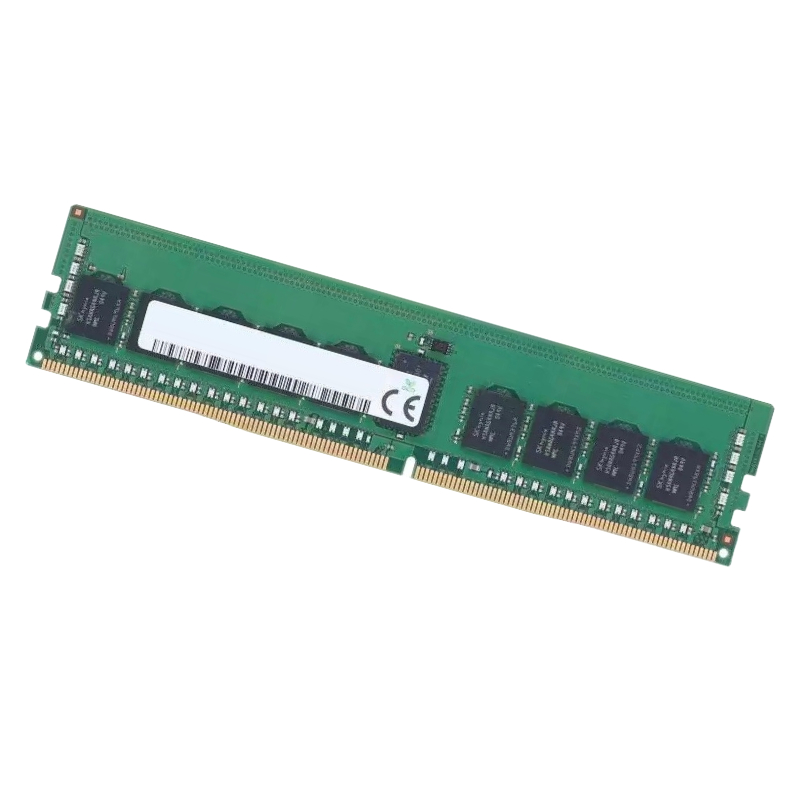

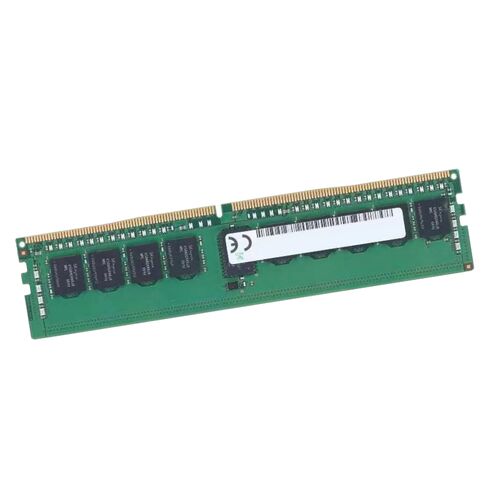

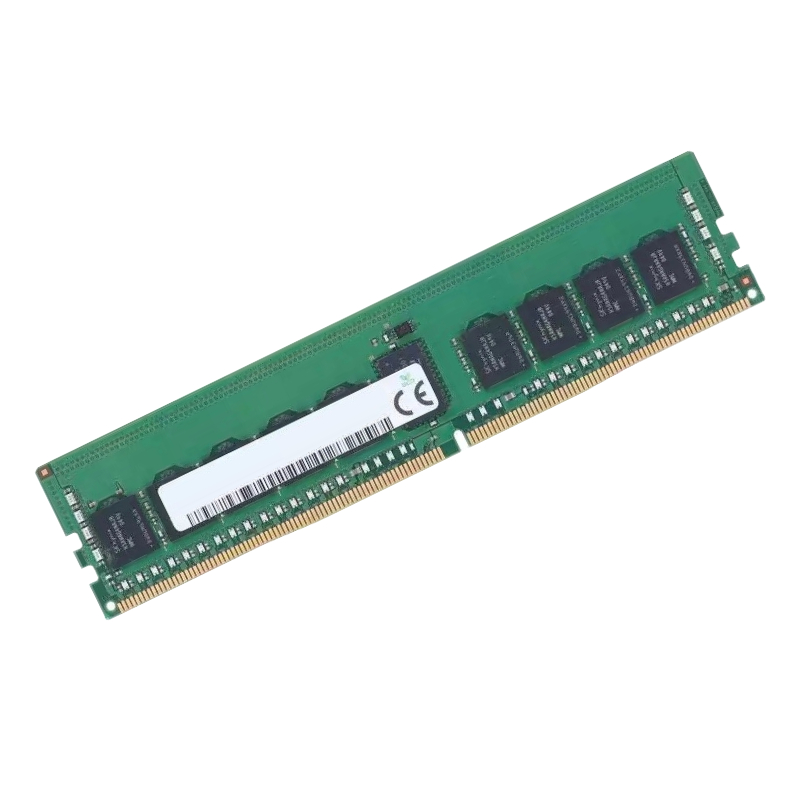

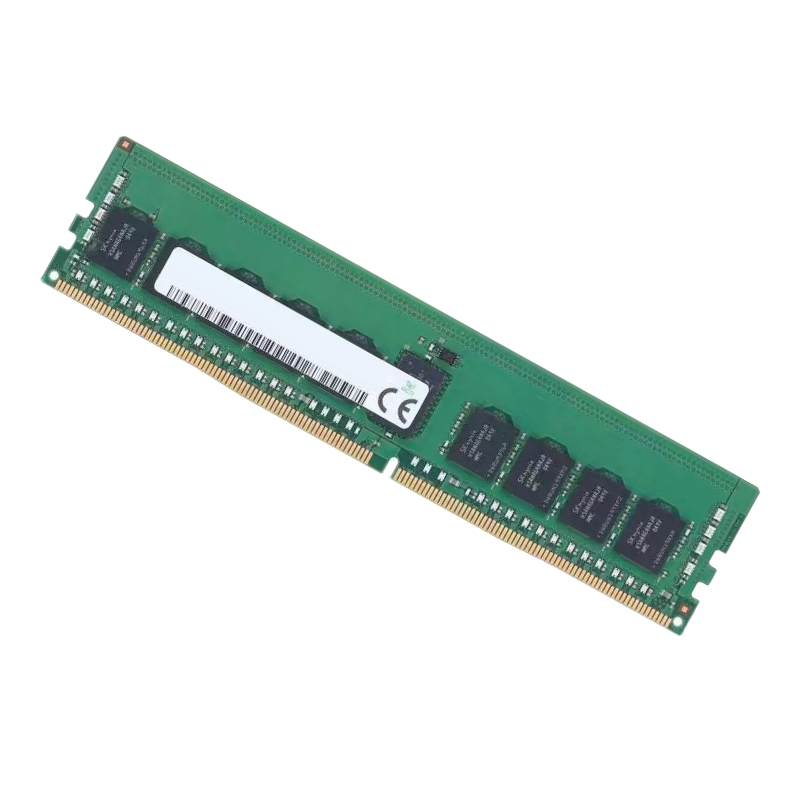

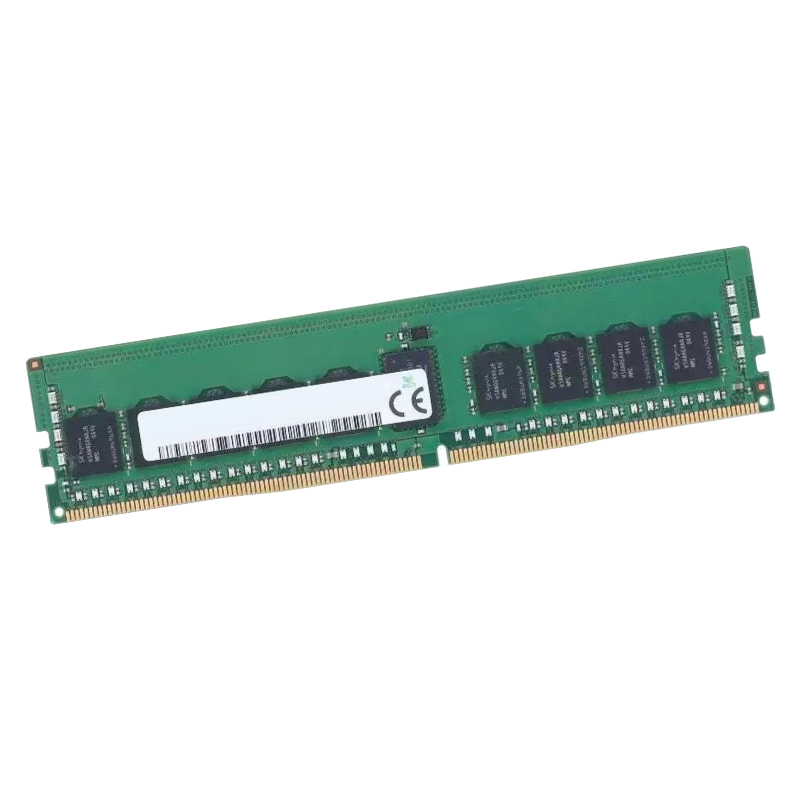

370-BCQV Dell 16GB DDR5 5600MHz Pc5-44800 1rx8 Ecc Registered 1.1v Cl46 SDRAM 288-pin RDIMM RAM

Understanding Server Memory: The Dell 370-BCQV 16GB RDIMM

Server memory represents a critical component in modern data infrastructure, demanding higher standards of reliability, performance, and data integrity compared to standard desktop memory. The Dell 370-BCQV 16GB DDR5 RDIMM embodies these requirements, engineered specifically for the rigorous demands of server environments where uptime and data accuracy are paramount. This memory module is not merely an upgrade but a fundamental building block for servers handling everything from enterprise databases and virtualization to high-performance computing and cloud services.

The Evolution to DDR5 in Server Environments

The transition from DDR4 to DDR5 technology marks a significant leap forward in memory architecture. For servers, this evolution translates to substantial gains in bandwidth, improved power efficiency, and enhanced reliability features. The Dell 370-BCQV leverages this new standard, operating at 5600 Megatransfers per second (MT/s), a speed that significantly outpaces previous-generation DDR4 modules commonly capped at 3200 MT/s. This increased data rate directly impacts application performance, reduces latency for data-intensive tasks, and improves overall system responsiveness under heavy loads.

Server Memory Differs from Consumer RAM

Unlike consumer-grade memory designed for personal computers, server memory like the 370-BCQV is built with enterprise-grade components and undergoes more rigorous testing and validation. The primary differentiators include Error-Correcting Code (ECC) for data integrity, Registered (buffered) design for signal stability in large memory configurations, and higher endurance ratings to withstand 24/7 operation. These features, while adding minimal cost, provide exponential returns in system stability and data protection for business-critical operations.

Key Specifications and Architecture

Delving into the technical specifications of the Dell 370-BCQV reveals the engineering precision behind its performance. Each specification is carefully calibrated to work in harmony with compatible Dell PowerEdge servers and other enterprise systems designed for this memory type.

Decoding the Naming Convention: PC5-44800

The "PC5-44800" designation is the module's classification under JEDEC standards. The "PC5" indicates it is a DDR5 module, while the "44800" refers to the theoretical peak transfer rate in megabytes per second (MB/s). This is calculated by multiplying the module's data rate (5600 MT/s) by 8 bytes (the width of the data bus). Thus, 5600 * 8 = 44,800 MB/s. This massive bandwidth is a key reason for the performance uplift in servers utilizing DDR5 memory.

Understanding CAS Latency (CL46) in Servers

CAS Latency (CL) is the number of clock cycles between a READ command and the moment data is available. A CL46 rating means a delay of 46 cycles. While a higher CL number might seem like a disadvantage compared to lower-latency consumer RAM, it's a trade-off for achieving higher clock speeds and greater stability in multi-module server configurations. At 5600 MT/s, the actual time delay in nanoseconds is competitive, and the benefits of increased bandwidth far outweigh the marginal latency increase for most server workloads.

The Significance of 1.1V Operating Voltage

Operating at 1.1V, the Dell 370-BCQV is significantly more power-efficient than DDR4 modules, which typically run at 1.2V. This 8% reduction in voltage, when scaled across a server with multiple processors and dozens of memory modules, results in substantial power savings and reduced heat output. Lower heat generation contributes to better system stability, allows for denser configurations, and reduces cooling costs in the data center, directly impacting the Total Cost of Ownership (TCO).

Critical Server Features: ECC and RDIMM Architecture

The core features that define server-grade memory are ECC and Registered design. These are not mere buzzwords but foundational technologies that prevent data corruption and ensure system stability.

Error-Correcting Code (ECC) Memory: Protecting Your Data

ECC is a non-negotiable feature for any server handling critical data. It works by adding extra bits (e.g., 8 bits for every 64 bits of data) to form a checksum. When data is read from memory, the ECC logic recalculates the checksum and compares it to the stored value. If a single-bit error (a "soft error" caused by cosmic rays, electrical noise, etc.) is detected, it is automatically corrected on the fly without any interruption to the system. This prevents silent data corruption that could lead to application crashes, database errors, or corrupted calculations.

Beyond Single-Bit Correction: On-Die ECC

DDR5 introduces a second layer of error correction with On-Die ECC. This is an internal function within the DRAM chip itself that corrects bit errors before they are seen by the system-level ECC. This two-tiered approach (On-Die ECC + traditional ECC) significantly improves the reliability and longevity of the memory subsystem, making it far more resilient than previous generations.

Registered DIMM (RDIMM): Enabling Large Memory Configurations

An RDIMM incorporates a memory register (or buffer) located between the memory controller and the DRAM chips. This register buffers the command, address, and clock signals, reducing the electrical load on the memory controller.

Performance Impact and Real-World Applications

The upgrade to a high-performance DDR5 RDIMM like the 370-BCQV has a tangible impact on a wide array of server workloads, from raw computational tasks to complex data serving.

Bandwidth-Intensive Workloads

Applications that constantly move large blocks of data benefit immensely from the 44,800 MB/s bandwidth of this module.

Virtualization and High-Density VMs

In virtualized environments (VMware vSphere, Microsoft Hyper-V, Proxmox), the memory subsystem is a critical resource. Higher memory bandwidth allows Virtual Machines (VMs) to access data faster, reducing "ready time" and improving the performance of applications running inside the VMs. This enables higher VM density per host without sacrificing performance, leading to better hardware utilization and consolidation.

In-Memory Databases

Platforms like SAP HANA, Oracle Database In-Memory, and Redis hold entire datasets in RAM. The speed of the Dell 370-BCQV directly translates to faster query processing, real-time analytics, and quicker transaction times, as data access latency is the primary bottleneck for these applications.
