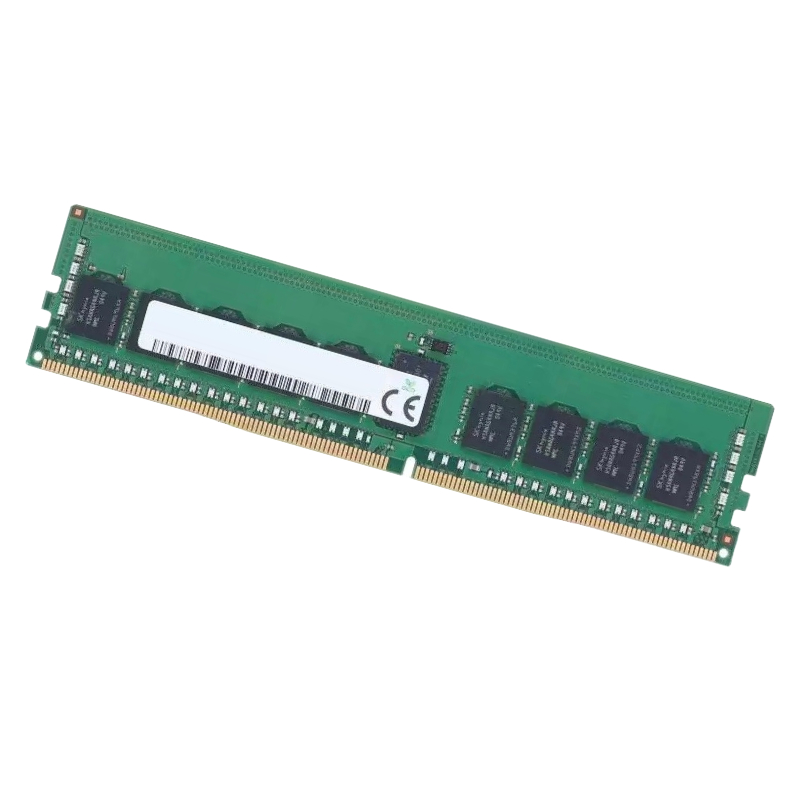

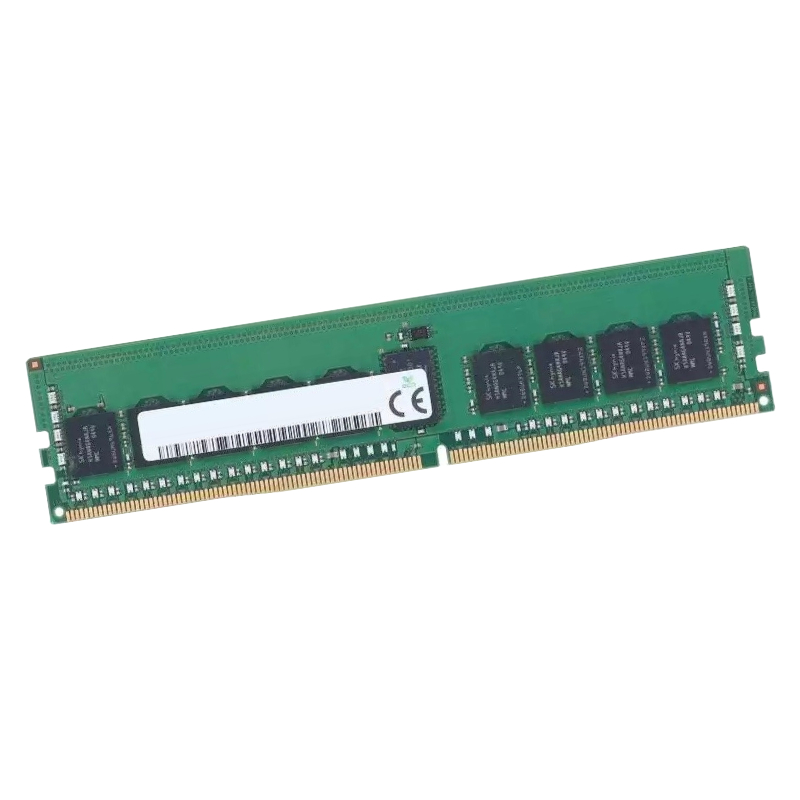

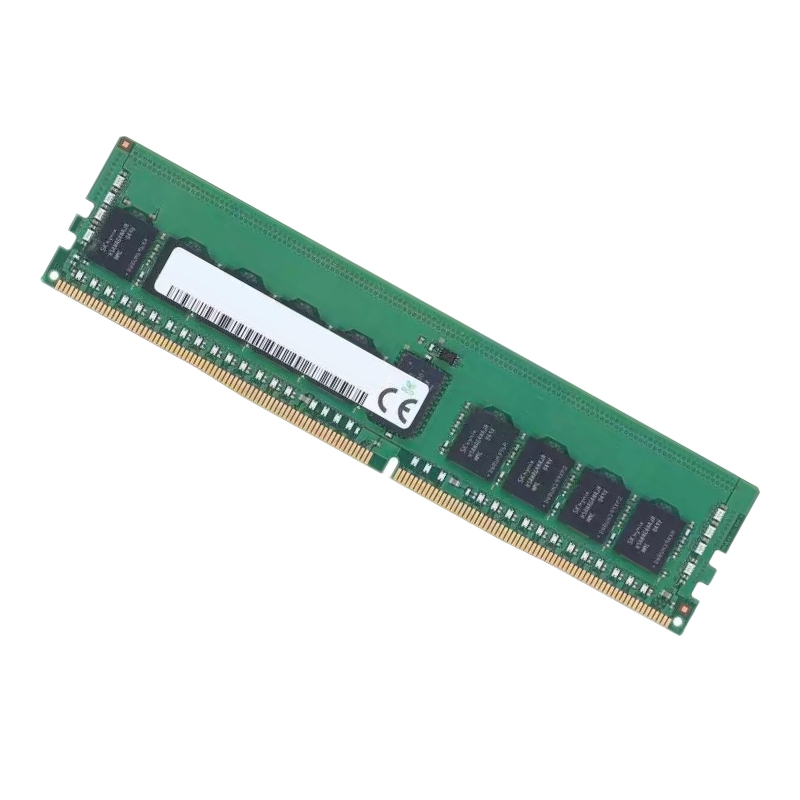

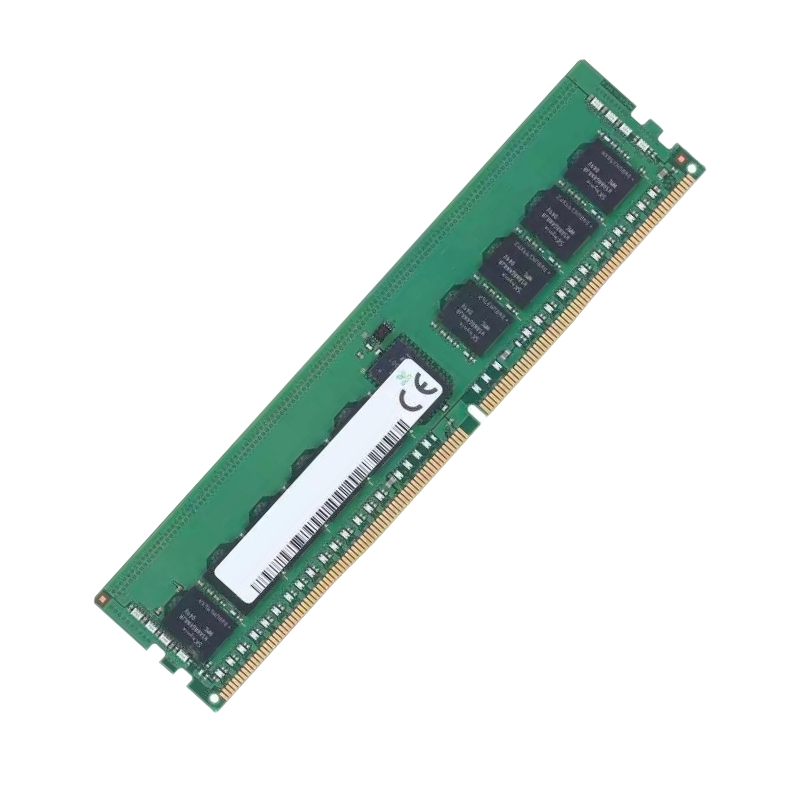

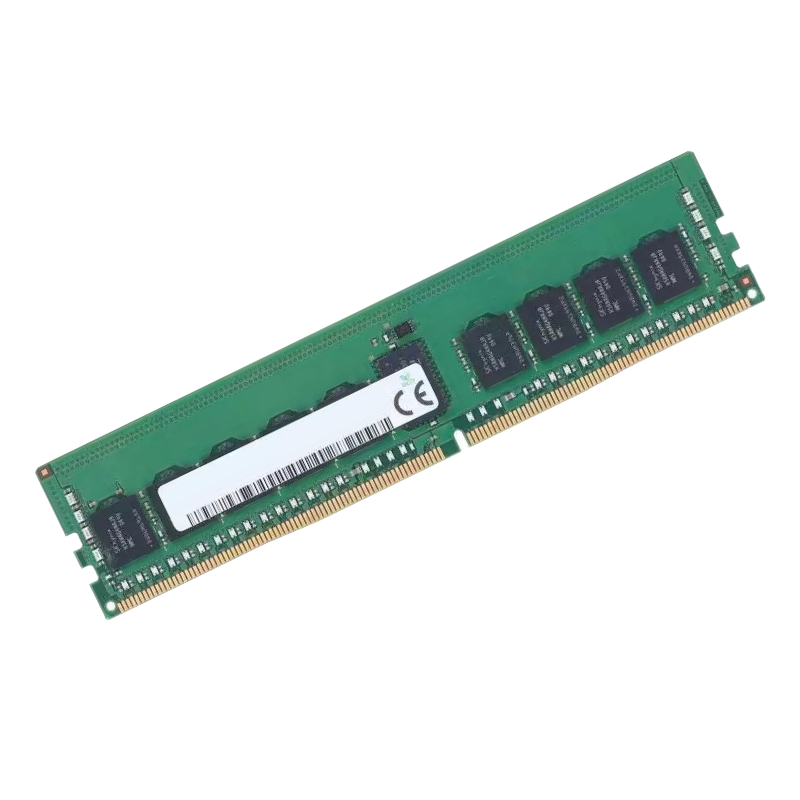

370-BDBN Dell 16GB DDR5 6400MHz PC5-51200 1rx8 Ecc Registered 1.1v Cl52 SDRAM 288-pin RDIMM RAM

Understanding the Dell 370-BDBN 16GB DDR5 Server Memory

The Dell 370-BDBN represents a significant advancement in server memory technology, featuring 16GB of DDR5 RAM operating at 6400MHz. This specific memory module is engineered for enterprise-level servers requiring exceptional performance, reliability, and error correction capabilities. As part of Dell's certified components lineup, this memory module ensures seamless compatibility and optimal performance within Dell PowerEdge server systems and other compatible enterprise hardware.

Key Specifications at a Glance

This memory module boasts impressive technical specifications that place it at the forefront of server memory technology. With a PC5-51200 designation indicating its data transfer rate of 51200 MB/s, this module significantly outperforms previous DDR4 generations. The 1.1v operating voltage represents improved power efficiency, while the CL52 latency rating ensures responsive performance even under heavy server workloads.

Detailed Technical Breakdown

Memory Capacity and Configuration

The 16GB capacity of the Dell 370-BDBN makes it suitable for a wide range of server applications, from virtualized environments to database management systems. The 1rx8 configuration refers to the memory's physical organization, specifically indicating a single rank of memory with eight internal banks. This configuration optimizes memory access patterns and contributes to the module's overall performance characteristics in multi-module installations.

Clock Speed and Data Transfer Rates

Operating at 6400MHz, this DDR5 module delivers substantially higher bandwidth compared to previous memory generations. The effective data rate of 6400MT/s (mega transfers per second) enables the module to handle massive datasets and multiple simultaneous requests with minimal latency. This high-speed operation is particularly beneficial for memory-intensive applications such as in-memory databases, scientific computing, and high-traffic web servers.

DDR5 Technology: Revolutionizing Server Memory Performance

The Evolution from DDR4 to DDR5

DDR5 memory technology represents a quantum leap forward from DDR4, offering substantial improvements in nearly every performance metric. While DDR4 modules typically operated between 1600-3200MHz, DDR5 starts at 4800MHz and scales upward, with the Dell 370-BDBN operating at an impressive 6400MHz. This speed increase translates directly to improved application performance, faster data processing, and enhanced overall system responsiveness.

Architectural Improvements in DDR5

The DDR5 architecture introduces several key innovations that differentiate it from previous generations. The implementation of two independent 40-bit data channels (32 data bits with 8 ECC bits each) per module effectively doubles the available bandwidth compared to DDR4's single 72-bit channel. This architectural enhancement allows for more efficient data transfer and improved concurrent access patterns in server environments.

Power Management Innovations

One of the most significant advancements in DDR5 technology is the integration of power management directly on the memory module. The Dell 370-BDBN features an onboard voltage regulator that converts the server's main power supply to the precise 1.1v required for operation. This distributed power management system reduces electrical noise, improves signal integrity, and enables more stable operation at high frequencies.

Performance Benefits in Enterprise Environments

In practical terms, the transition to DDR5 memory with modules like the Dell 370-BDBN delivers tangible performance benefits across various enterprise workloads. Database applications experience reduced query times, virtualization platforms support higher densities of virtual machines, and data analytics workloads complete processing tasks significantly faster. The increased bandwidth directly translates to improved throughput for memory-bound applications.

ECC and Registered DIMM Technology: Ensuring Data Integrity

Error Correcting Code (ECC) Memory Explained

The Dell 370-BDBN incorporates Error Correcting Code technology, a critical feature for enterprise server environments where data integrity is paramount. ECC memory detects and corrects single-bit memory errors in real-time, preventing data corruption and system crashes that could result from soft errors. This capability is especially important in mission-critical applications where even minor data corruption could have significant consequences.

How ECC Protects Your Data

ECC functionality works by adding extra bits to each word of memory, creating a checksum that validates data integrity with each read operation. When the memory controller reads data, it recalculates the checksum and compares it to the stored value. If a single-bit error is detected, the memory controller automatically corrects it before the data is processed by the CPU. This continuous monitoring and correction happens transparently without impacting system performance.

Registered DIMM (RDIMM) Architecture

The "Registered" designation in RDIMM indicates the presence of a register between the memory module and the memory controller. This register buffers command and address signals, reducing the electrical load on the memory controller and enabling support for higher memory capacities per channel. For the Dell 370-BDBN, this means improved signal integrity and stability, particularly important in systems with multiple memory modules installed.

Benefits of RDIMM in Server Configurations

Registered memory modules offer several advantages in server environments. By reducing the electrical load on the memory controller, RDIMMs allow servers to support more memory modules per channel while maintaining signal integrity. This capability is essential for building high-memory configurations required for memory-intensive applications like in-memory databases, large virtualization deployments, and high-performance computing clusters.

Performance Characteristics and Real-World Applications

Bandwidth and Latency Analysis

The Dell 370-BDBN's 6400MHz operating frequency and PC5-51200 rating translate to a theoretical peak bandwidth of 51.2 GB/s per module. This substantial bandwidth improvement over previous generations directly benefits memory-intensive applications. Meanwhile, the CAS Latency of 52 cycles, while numerically higher than DDR4 timings, represents a smaller absolute time delay due to the much higher clock frequency, resulting in responsive performance.

Application Performance Scenarios

In database server applications, the Dell 370-BDBN enables faster query processing and improved transaction throughput. For virtualization hosts, the high bandwidth supports greater virtual machine density and improved performance during consolidation scenarios. High-performance computing applications benefit from the reduced data transfer times, while in-memory analytics platforms experience significantly improved processing speeds for large datasets.

Power Efficiency and Thermal Characteristics

Operating at just 1.1v, the Dell 370-BDBN represents a significant improvement in power efficiency compared to DDR4 modules that typically operated at 1.2v. This reduced voltage translates to lower power consumption and reduced heat generation, important considerations in densely populated server racks. The module includes thermal sensors that monitor operating temperature and can communicate with the system management controller to ensure optimal thermal conditions.

Thermal Management Features

The Dell 370-BDBN incorporates advanced thermal management characteristics suitable for enterprise environments. While many server modules rely on airflow from system fans for cooling, the efficient design of this DDR5 module ensures stable operation even under sustained heavy workloads. The reduced power consumption directly correlates to lower heat output, contributing to overall system stability and reliability.

Comparative Analysis with Alternative Memory Technologies

DDR5 vs. DDR4: Performance and Efficiency Comparison

When compared to DDR4 memory, the Dell 370-BDBN offers substantial improvements across multiple dimensions. The increased bandwidth directly translates to better performance for memory-intensive workloads, while the reduced power consumption improves energy efficiency. The architectural enhancements in DDR5, including better bank grouping and burst length optimizations, further contribute to the performance advantage over DDR4 technology.

Cost-Performance Considerations

While DDR5 modules like the Dell 370-BDBN typically command a price premium over DDR4 alternatives, the performance per watt and performance per dollar metrics often favor DDR5 in demanding server applications. The increased efficiency and reduced power consumption can contribute to lower total cost of ownership in large-scale deployments, particularly in environments with high electricity costs or limited cooling capacity.

ECC RDIMM vs. Other Memory Types

Compared to unbuffered (UDIMM) or load-reduced (LRDIMM) memory, ECC RDIMMs strike an optimal balance between performance, capacity, and cost for most enterprise applications. While LRDIMMs support higher maximum capacities, they typically introduce additional latency. UDIMMs, while lower in latency, don't support the same capacity scaling. The Dell 370-BDBN's RDIMM implementation provides the ideal compromise for general-purpose server workloads.
