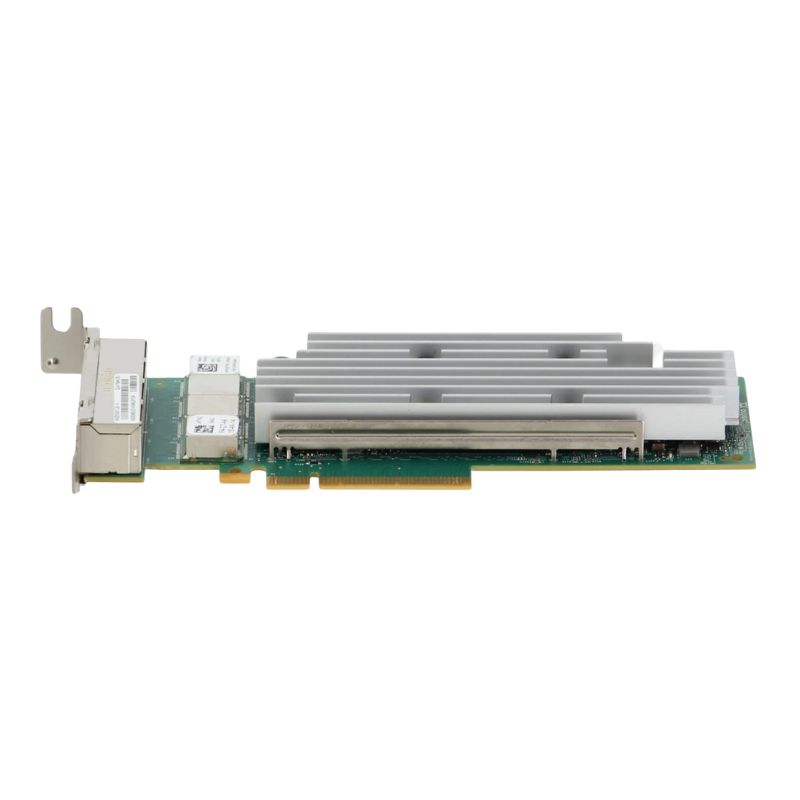

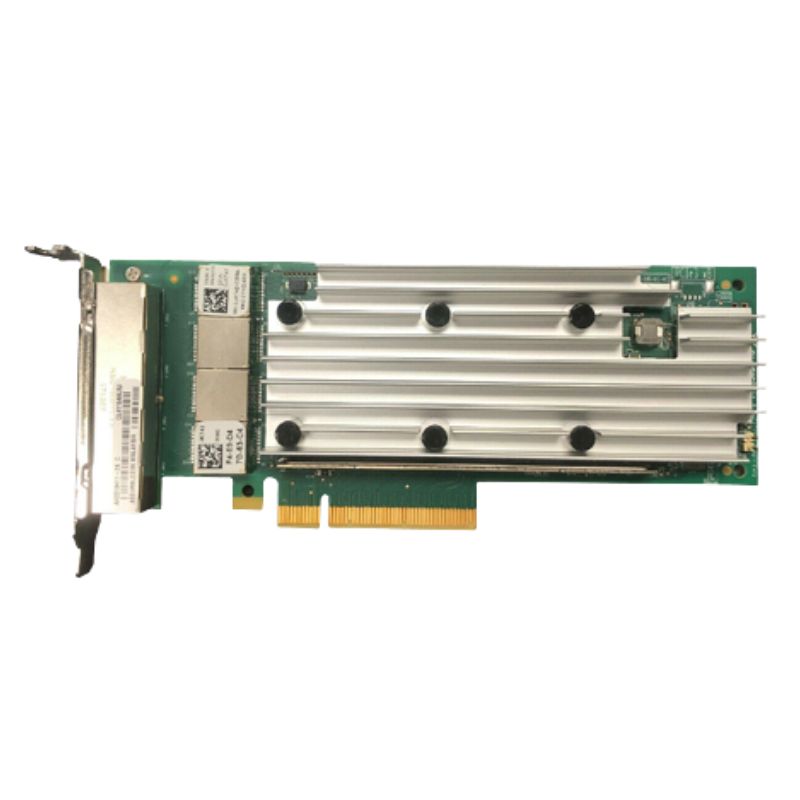

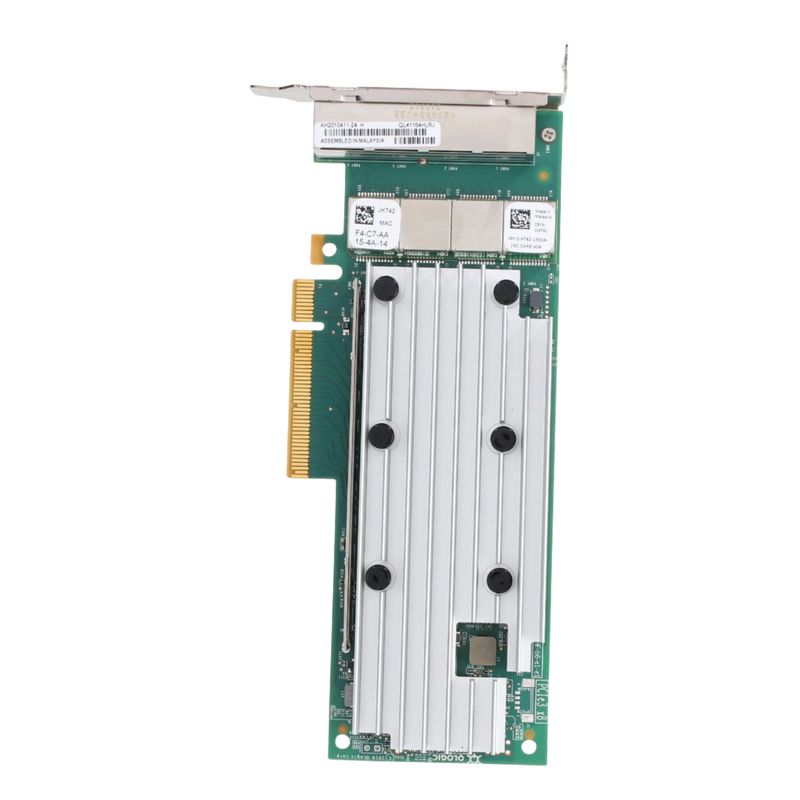

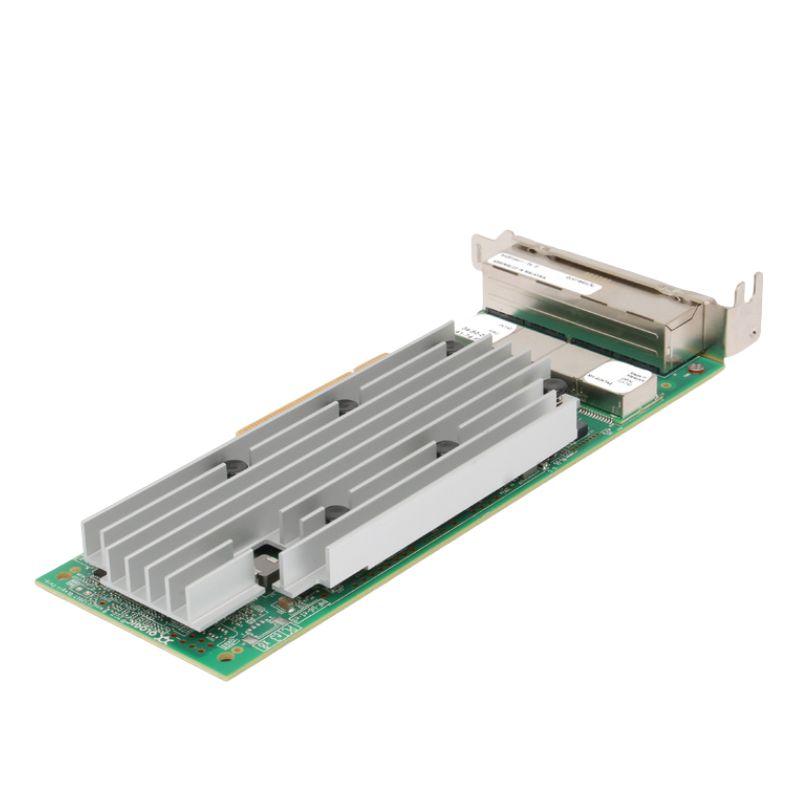

540-BCHD Dell Quad Port 10GB SFP+ PCI-E Converged Network Adapter

Dell 540-BCHD 4 Port 10Gb SFP+ Converged Network Adapter

High-Performance Server Networking Solution

The Dell 540-BCHD Quad Port 10Gb SFP+ PCIe Converged Network Adapter is engineered to deliver ultra-fast and reliable data communication for enterprise-level server environments. Designed for scalability and efficiency, it supports high-bandwidth workloads and virtualization-heavy infrastructures.

Key Product Highlights

• Manufacturer: Dell
• Part Number / SKU: 540-BCHD
• Device Type: Converged Network Adapter
• Port Configuration: Quad Port (4 Ports)
• Usage: Enterprise Server Networking

Technical Architecture and Interface Details

Connectivity and Host Integration

Built with PCI Express (PCIe) host interface, this adapter ensures seamless integration into compatible Dell PowerEdge servers. The wired Ethernet technology guarantees stable and consistent data transmission for mission-critical applications.

Interface Specifications

• Host Interface: PCIe
• Connectivity Type: Wired Ethernet
• Internal Component: Yes
• Supported Protocol: Ethernet

Fiber and Port Configuration

This network adapter is equipped with four high-speed SFP+ fiber optic ports, enabling enhanced flexibility and efficient data transfer across multiple channels simultaneously.

Port and Connector Features

• Fiber Ports: 4
• Connector Type: SFP+
• Optical Compatibility: High-speed fiber networking

Performance Capabilities and Speed

10 Gigabit Ethernet Efficiency

Designed for demanding workloads, the Dell 540-BCHD supports up to 10 Gigabit Ethernet per port, delivering a maximum transfer rate of 10,000 Mbit/s. This ensures smooth handling of data-intensive operations such as virtualization, cloud computing, and large-scale storage access.

Bandwidth and Data Transfer

• Maximum Speed: 10 Gbps per port
• Total Throughput: High-performance multi-channel bandwidth
• Optimized for low-latency networking environments

Compatibility with Dell Server Infrastructure

Supported PowerEdge and PowerVault Systems

The adapter is designed to work seamlessly with a wide range of Dell enterprise servers and storage systems, ensuring broad deployment flexibility across data centers.

Compatible Systems Include

• Dell PowerEdge R840
• Dell PowerEdge R640
• Dell PowerEdge R740
• Dell PowerEdge R740XD
• Dell PowerEdge R440
• Dell PowerEdge R940xa
• Dell PowerEdge R940
• Dell PowerEdge R540
• Dell PowerVault NX3240

Dell 540-BCHD Quad Port 10Gb SFP+ PCI-E CNA Overview

The Dell 540-BCHD Quad Port 10Gb SFP+ PCI-E Converged Network Adapter represents a high-performance networking solution designed for enterprise-grade data centers, cloud infrastructures, virtualization environments, and high-throughput computing workloads. Built to deliver exceptional bandwidth efficiency, scalability, and low-latency data transfer, this converged network adapter (CNA) integrates multiple networking functionalities into a single PCI Express card. It supports four independent 10 Gigabit SFP+ ports, making it ideal for organizations that require high-density network connectivity with optimized server I/O consolidation.

This network adapter is engineered for compatibility with Dell PowerEdge servers and other enterprise systems that support PCIe-based expansion. It is widely deployed in environments where network performance, redundancy, and virtualization support are critical requirements. By combining Ethernet, iSCSI, and Fibre Channel over Ethernet (FCoE) capabilities, it reduces hardware complexity while improving operational efficiency.

Key Architectural Design and Engineering Features

High-Speed Quad Port 10Gb SFP+ Interface

The adapter includes four SFP+ (Small Form-Factor Pluggable Plus) ports, each capable of delivering up to 10Gbps throughput. This allows for a combined potential bandwidth of 40Gbps per adapter, significantly enhancing server-to-network communication capacity. The SFP+ interface supports both direct attach copper (DAC) cables and optical transceivers, offering flexibility in deployment across short-range and long-range networking scenarios.

Scalability and Port Aggregation

Network administrators can configure link aggregation (LACP) to combine multiple ports into a single logical channel. This improves redundancy and increases throughput for data-intensive applications such as virtualization clusters, distributed storage systems, and cloud-native applications.

PCI Express Interface Architecture

The Dell 540-BCHD adapter utilizes a high-bandwidth PCIe interface, typically PCIe Gen3 or equivalent depending on server compatibility. This ensures that the adapter can handle full 10Gbps line-rate traffic across all ports without bottlenecking at the system bus level. The PCIe architecture also allows for lower latency packet processing and improved CPU offloading capabilities.

Lane Configuration and Throughput Efficiency

With multiple PCIe lanes dedicated to data transmission, the adapter ensures efficient handling of simultaneous network streams. This is especially critical in environments running virtual machines, containerized applications, or storage-heavy workloads.

Converged Networking Capabilities

Integration of Ethernet, iSCSI, and FCoE

One of the primary advantages of the Dell 540-BCHD Converged Network Adapter is its ability to consolidate multiple networking protocols into a single hardware interface. This includes traditional Ethernet traffic, iSCSI for IP-based storage access, and Fibre Channel over Ethernet (FCoE) for SAN connectivity. By combining these technologies, the adapter reduces the need for separate NICs and HBAs, simplifying infrastructure design.

Storage Over IP Optimization

With iSCSI acceleration support, the adapter offloads storage-related processing from the host CPU. This results in improved storage throughput and reduced latency, making it suitable for database servers, virtualization hosts, and enterprise storage clusters.

FCoE Support for Unified Fabric

The inclusion of FCoE allows organizations to unify their storage and network fabrics, reducing cabling complexity and hardware costs. This unified approach improves manageability and scalability in large data center environments.

Enterprise Use Cases and Deployment Scenarios

Virtualization Environments

The Dell 540-BCHD adapter is widely used in virtualization platforms such as VMware ESXi, Microsoft Hyper-V, and KVM-based systems. Its multi-port architecture enables efficient virtual machine traffic distribution and reduces network congestion in dense virtual environments.

VM Network Segmentation

Each SFP+ port can be assigned to different virtual switches or VLANs, enabling secure and isolated network segmentation for multi-tenant environments. This enhances security and performance in cloud hosting infrastructures.

Cloud Data Centers

In cloud computing environments, scalability and redundancy are essential. The quad-port design of this adapter allows cloud providers to build resilient network topologies with failover capabilities and load balancing mechanisms.

High Availability Configurations

Administrators can configure redundant network paths to ensure uninterrupted service delivery even in the event of a port or switch failure. This is critical for mission-critical applications and SaaS platforms.

High-Performance Computing (HPC)

HPC clusters rely on ultra-low latency and high bandwidth communication between compute nodes. The Dell 540-BCHD adapter supports these requirements by providing consistent 10Gbps connectivity per port with minimal overhead.

Performance Optimization and Tuning

TCP/IP Offloading Features

The adapter supports advanced offloading capabilities such as TCP segmentation offload (TSO), large receive offload (LRO), and checksum offloading. These features reduce CPU utilization and improve overall system performance.

Interrupt Moderation and Coalescing

By adjusting interrupt moderation settings, administrators can balance latency and throughput depending on application requirements. This is particularly useful in environments where both real-time processing and bulk data transfer are required.

Receive Side Scaling (RSS)

RSS enables the distribution of network processing across multiple CPU cores, improving parallel processing efficiency. This is essential for modern multi-core server architectures running high-traffic applications.

Network Connectivity and Cabling Options

SFP+ Optical Transceivers

The adapter supports a variety of SFP+ modules, including short-range (SR) and long-range (LR) optical transceivers. This flexibility allows deployment across different distances within data centers or campus networks.

Direct Attach Copper (DAC) Cables

For short-range connections, DAC cables provide a cost-effective and low-latency solution. These cables are widely used for rack-to-rack or intra-rack server connections.

Structured Cabling Best Practices

Proper cable management is essential for maintaining optimal airflow and reducing signal interference. Using labeled and organized cabling systems ensures easier maintenance and troubleshooting.

Security Features and Network Protection

Hardware-Based Offloading Security

The adapter includes hardware-level processing that helps mitigate CPU-based attack vectors by offloading network tasks. This reduces exposure to certain types of denial-of-service (DoS) attacks.

VLAN Tagging and Segmentation

Support for IEEE 802.1Q VLAN tagging enables secure segmentation of network traffic, ensuring that sensitive data is isolated within designated virtual networks.

Quality of Service (QoS)

QoS features allow prioritization of critical traffic such as storage or VoIP data, ensuring consistent performance even under heavy network load conditions.
