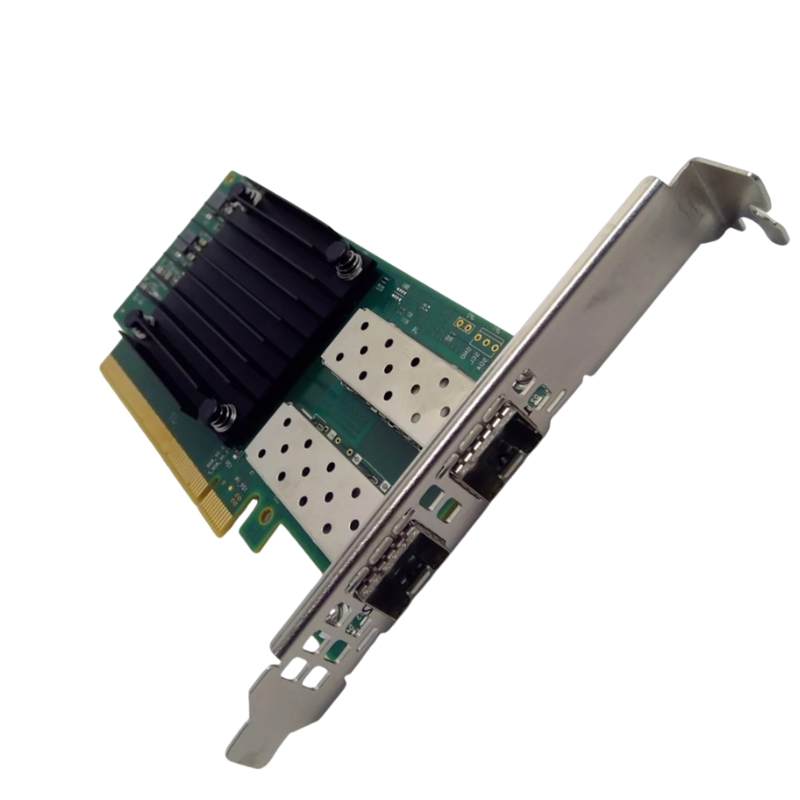

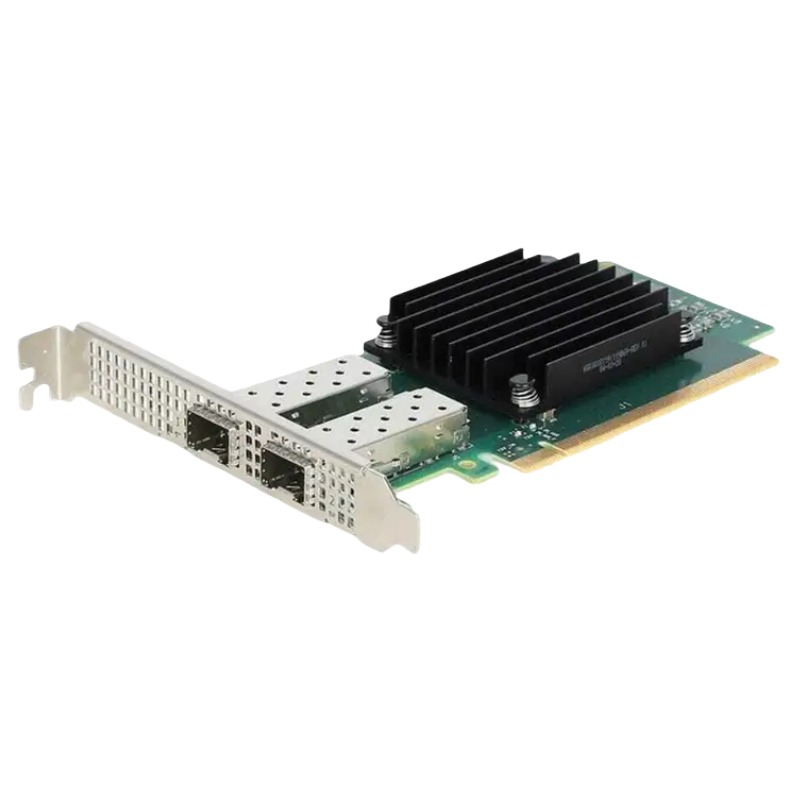

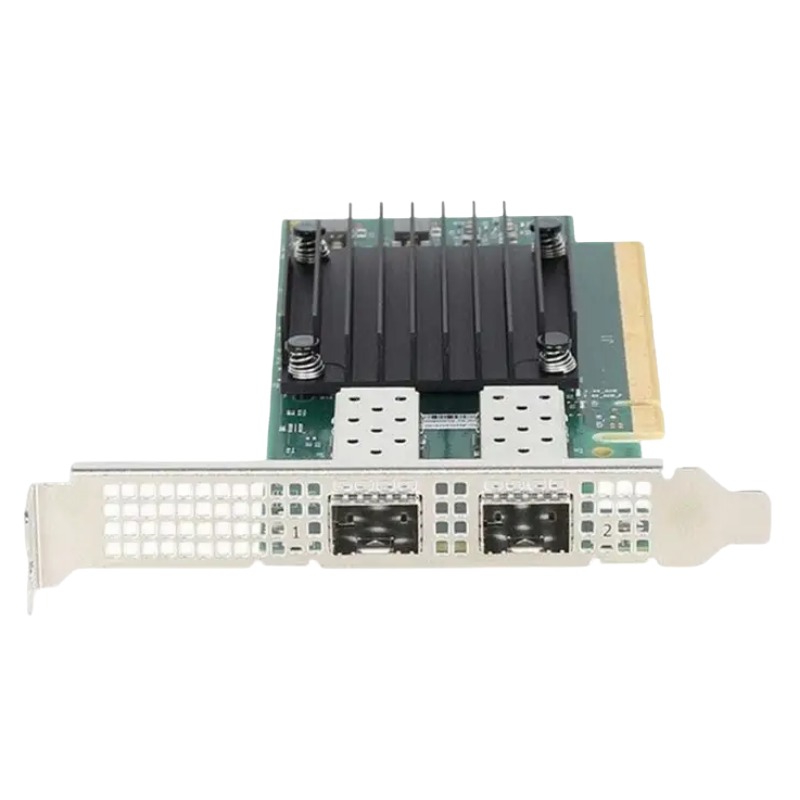

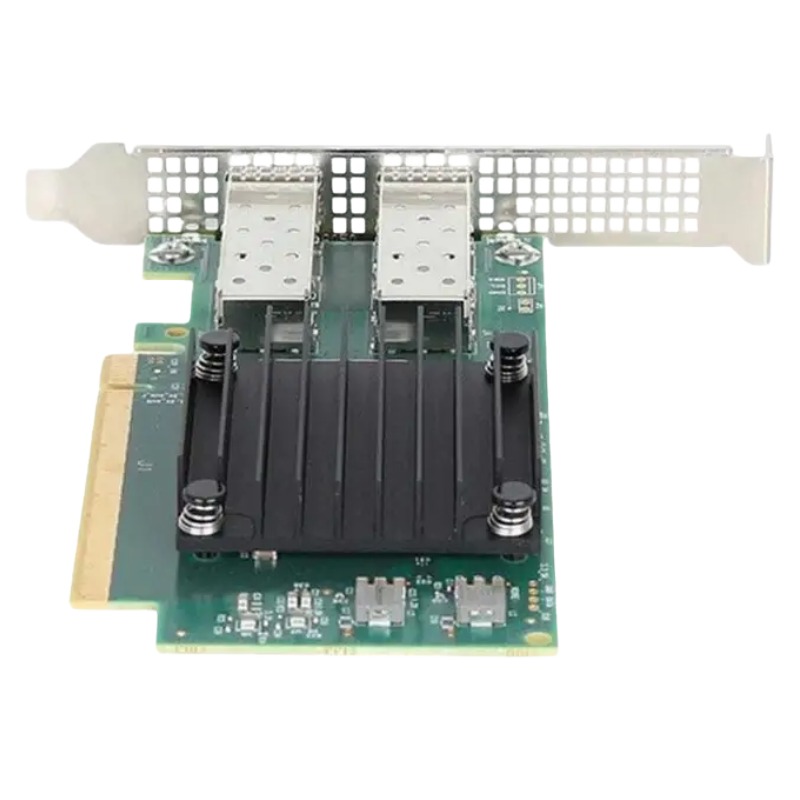

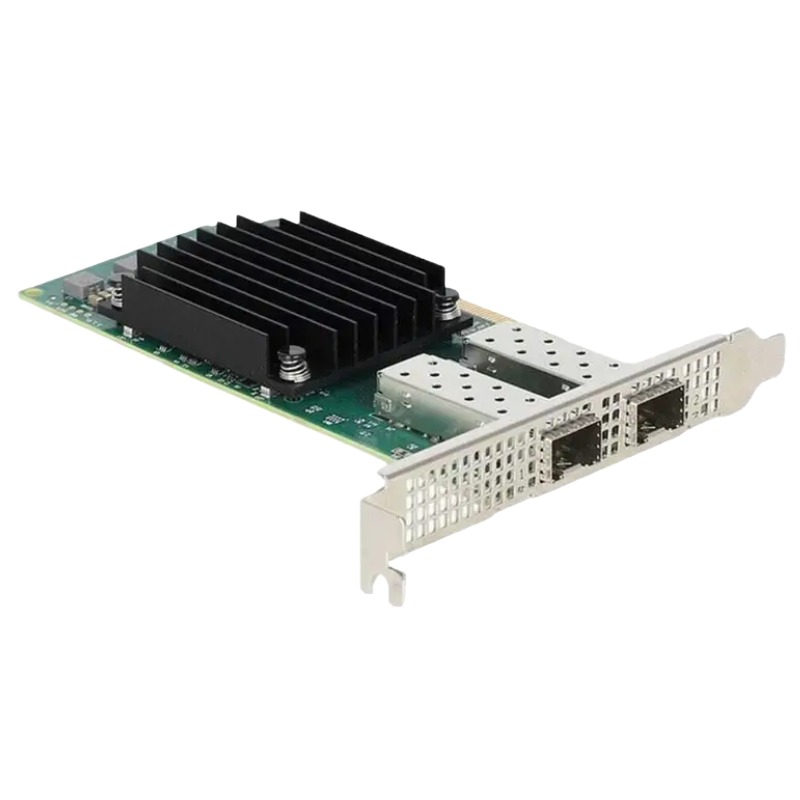

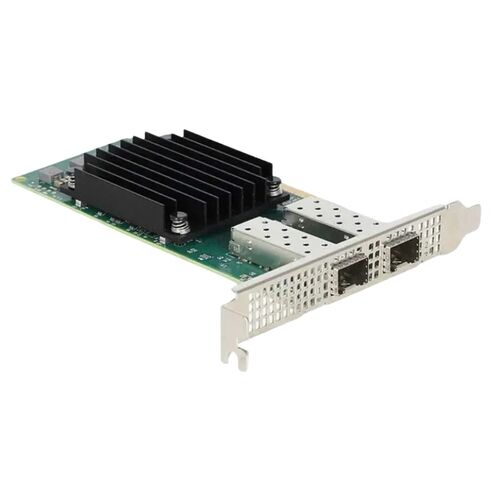

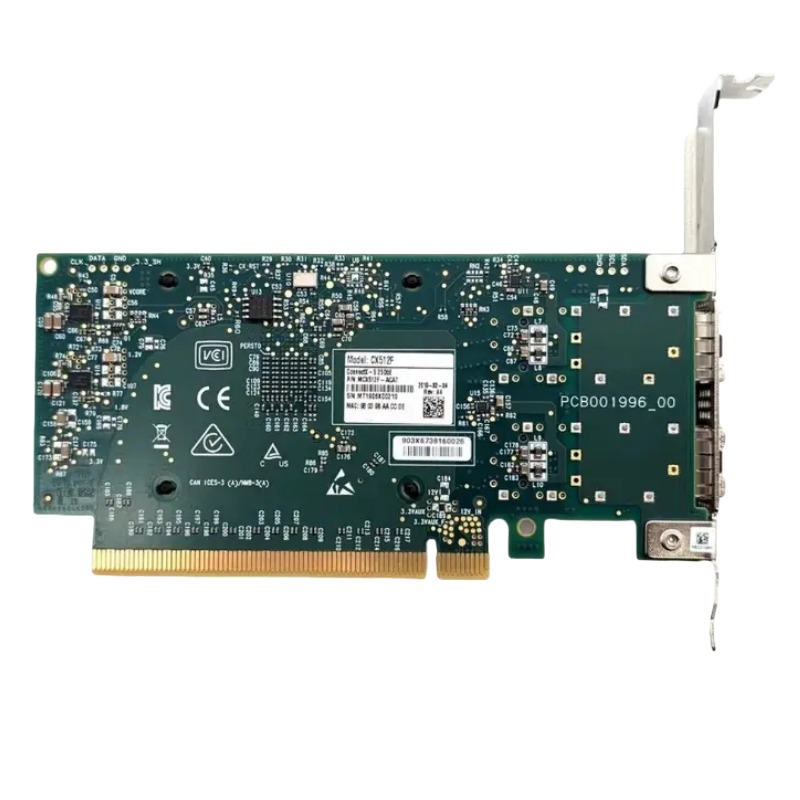

540-BCNI Dell 25GBE Dual-port SFP 28 Network Interface Card

Dell 540-BCNI 25GbE 2-Port SFP28 PCIe 3.0 x16 Interface Card

The Dell 540-BCNI ConnectX-5 EN is a high-performance dual-port 25 Gigabit Ethernet network interface card (NIC) engineered for modern enterprise data centers. Designed to deliver ultra-low latency, high throughput, and advanced virtualization capabilities, this PCIe Gen3 x16 adapter is ideal for cloud infrastructure, high-performance computing (HPC), storage networking, and next-generation enterprise workloads.

General Specifications

• Manufacturer: Dell
• Part Number: 540-BCNI
• Product Type: Network Adapter / NIC
• Adapter Architecture: Dual-Port Ethernet Interface Card
• Interface Standard: PCI Express Gen 3 x16
• Port Type: SFP28 (25GbE per port)

Dual-Port Architecture Advantages

• Simultaneous high-speed data transmission on two ports
• Improved redundancy and failover support
• Load balancing for optimized network performance
• Enhanced scalability for enterprise networks

Key Performance Benefits

• Up to 25Gbps bandwidth per port
• Low latency packet processing
• High-efficiency data streaming
• Improved application responsiveness
• Ideal for high-speed storage and compute networks

PCIe Interface Benefits

• High-speed host-to-network communication
• Reduced latency for data transfer operations
• Efficient handling of large data workloads
• Stable and scalable server integration

Network Protocols

• TCP/IP for reliable data communication
• UDP/IP for low-latency transmission
• iSCSI for storage networking integration

IEEE Networking Standards Support

High-Speed Ethernet Standards

• IEEE 802.3by – 25Gb Ethernet
• IEEE 802.3ae – 10Gb Ethernet compatibility
• IEEE 802.3ap – Backplane Ethernet support
• IEEE 802.3az – Energy Efficient Ethernet (EEE)

Traffic Management and QoS Standards

• IEEE 802.1Q – VLAN tagging
• IEEE 802.1p – Traffic prioritization (QoS)
• IEEE 802.1Qbb – Priority Flow Control (PFC)
• IEEE 802.1Qaz – Enhanced Transmission Selection (ETS)
• IEEE 802.1Qau – Congestion Notification
• IEEE 802.1QBG – Edge Virtual Bridging

Aggregation and Time Synchronization

• IEEE 802.3ad / 802.1AX – Link Aggregation Control Protocol (LACP)
• IEEE 1588v2 – Precision Time Protocol (PTP)

Latency Optimization Features

• Hardware-based packet processing
• Reduced CPU overhead
• Accelerated network virtualization support
• Efficient traffic offloading mechanisms

Virtualization Features

• SR-IOV (Single Root I/O Virtualization)
• Efficient virtual machine network isolation
• Enhanced multi-tenant performance
• Improved workload distribution across virtual systems

Power Efficiency Benefits

• Reduced energy usage during low traffic periods
• Optimized power distribution in data centers
• Lower operational costs
• Improved thermal efficiency

Dell 540-BCNI Dual-Port SFP28 PCIe Interface Card Overview

The Dell 540-BCNI ConnectX-5 EN 25GbE Dual-Port SFP28 PCIe 3.0 x16 Network Interface Card represents a high-performance networking solution engineered for enterprise data centers, cloud infrastructures, virtualization environments, and high-throughput computing workloads. Built on advanced Mellanox ConnectX-5 Ethernet architecture, this network interface card (NIC) delivers ultra-low latency, enhanced packet processing efficiency, and scalable bandwidth performance suitable for modern server ecosystems requiring 25 Gigabit Ethernet connectivity.

Designed specifically for Dell PowerEdge servers and compatible enterprise hardware platforms, this adapter supports dual-port SFP28 connectivity, allowing organizations to maximize network redundancy, throughput aggregation, and workload balancing. The PCIe 3.0 x16 interface ensures high-speed communication between the server motherboard and the network adapter, reducing bottlenecks and enhancing overall system responsiveness in demanding enterprise environments.

Enterprise-Class Networking Architecture and Design

Advanced Mellanox ConnectX-5 EN Technology Foundation

At the core of the Dell 540-BCNI NIC lies the Mellanox ConnectX-5 EN controller architecture, a widely adopted networking technology known for delivering exceptional performance in Ethernet-based infrastructures. This architecture supports advanced offload capabilities, reducing CPU utilization and allowing servers to allocate more processing power to application-level workloads rather than network packet handling tasks.

The ConnectX-5 EN platform enhances data processing efficiency through intelligent packet steering, hardware acceleration, and adaptive routing capabilities. This results in improved throughput consistency, reduced latency spikes, and optimized bandwidth utilization across multiple virtual machines and containerized workloads.

Dual-Port SFP28 Connectivity for Flexible Network Scaling

The dual-port SFP28 interface design enables seamless integration of 25GbE optical or DAC (Direct Attach Copper) transceivers, offering flexible deployment options across different network topologies. This dual-port configuration supports link aggregation, failover redundancy, and load balancing strategies that are essential in mission-critical IT environments.

Each SFP28 port is capable of delivering up to 25GbE throughput, ensuring a combined potential bandwidth capacity that supports data-intensive workloads such as distributed storage systems, virtualization clusters, real-time analytics platforms, and cloud-native application architectures.

PCIe 3.0 x16 Interface and System Integration

High-Bandwidth PCI Express Connectivity

The PCIe 3.0 x16 interface plays a crucial role in enabling high-speed data exchange between the NIC and the host system. With multiple lanes dedicated to data transmission, this interface ensures that network traffic flows efficiently without creating bottlenecks at the hardware level. This is particularly important for environments running high-performance computing applications or large-scale virtualization clusters.

The enhanced bandwidth provided by PCIe 3.0 x16 allows the Dell 540-BCNI adapter to fully utilize its dual 25GbE ports without performance degradation, ensuring consistent throughput even under peak network loads.

Optimized Server Compatibility and Deployment

The Dell 540-BCNI NIC is optimized for integration with Dell PowerEdge servers, ensuring seamless hardware compatibility and firmware alignment. This tight integration reduces configuration complexity and enhances system stability, making it a preferred choice for IT administrators managing enterprise data center infrastructure.

Its standardized form factor and enterprise-grade design ensure that it can be deployed in rack-mounted servers, blade systems, and high-density computing environments without requiring extensive hardware modification.

Performance Optimization for Modern Data Centers

Low-Latency Packet Processing Capabilities

One of the key strengths of the Dell 540-BCNI ConnectX-5 EN NIC is its ability to deliver ultra-low latency packet processing. This is essential for latency-sensitive applications such as financial trading platforms, real-time data analytics, high-frequency transaction systems, and distributed database synchronization.

The hardware-based acceleration mechanisms embedded within the NIC reduce packet processing overhead, allowing data to move efficiently between the network and server memory with minimal delay. This ensures consistent response times even under heavy traffic conditions.

Enhanced Throughput for High-Density Workloads

In modern data center environments, workload density continues to increase as organizations adopt virtualization, containerization, and hybrid cloud architectures. The Dell 540-BCNI NIC addresses these challenges by providing scalable throughput that supports multiple concurrent virtual machines and application instances.

Its ability to handle large volumes of small and large packet flows ensures that both north-south and east-west traffic within data centers is processed efficiently, improving overall network performance and reliability.

Virtualization and Cloud Infrastructure Support

SR-IOV and Virtual Function Acceleration

The Dell 540-BCNI NIC supports advanced virtualization features such as Single Root I/O Virtualization (SR-IOV), enabling multiple virtual machines to directly access physical network resources with minimal hypervisor intervention. This reduces latency and increases network efficiency in virtualized environments.

By offloading network processing tasks to hardware-based virtual functions, the NIC enhances performance consistency across virtual workloads and ensures equitable bandwidth distribution among virtual instances.

Cloud-Native Application Optimization

Cloud-native architectures require highly scalable and flexible networking solutions capable of handling microservices communication, container orchestration, and distributed system workloads. The Dell 540-BCNI ConnectX-5 EN NIC provides the necessary bandwidth and low-latency characteristics to support Kubernetes clusters, OpenStack deployments, and hybrid cloud environments.

Its efficient packet processing engine ensures smooth inter-service communication, reducing network congestion and improving application responsiveness in dynamic cloud infrastructures.

Reliability, Redundancy, and Enterprise Stability

Aggregation and Failover Support

The dual-port configuration of the Dell 540-BCNI NIC enables advanced network redundancy strategies such as link aggregation and automatic failover. This ensures uninterrupted connectivity even in the event of a port or cable failure, which is critical for maintaining service availability in enterprise environments.

Network administrators can configure redundant paths to ensure continuous data flow and minimize downtime risks, thereby improving overall system resilience.

Thermal Efficiency and Power Optimization

Engineered for data center efficiency, the NIC incorporates optimized thermal management and power-efficient circuitry design. This helps reduce energy consumption while maintaining peak performance levels, making it suitable for large-scale deployments where power efficiency directly impacts operational costs.

Security and Data Protection Features

Hardware-Based Security Acceleration

Security is a critical aspect of modern networking infrastructure, and the Dell 540-BCNI NIC integrates hardware-based security acceleration features to support encrypted traffic processing without impacting performance. This ensures secure data transmission across internal and external network boundaries.

By offloading cryptographic operations to dedicated hardware components, the NIC reduces CPU load while maintaining high levels of data protection for enterprise communication channels.

Secure Virtualization Environment Support

The NIC enhances security in virtualized environments by isolating virtual functions and ensuring secure traffic segmentation between different workloads. This reduces the risk of cross-VM data leakage and strengthens overall system integrity in multi-tenant environments.

Deployment Scenarios and Use Cases

High-Performance Computing and Analytics

The Dell 540-BCNI ConnectX-5 EN NIC is widely used in high-performance computing clusters where rapid data exchange and low latency are critical. Applications such as scientific simulations, machine learning training, and big data analytics benefit significantly from its high bandwidth capabilities.

Enterprise Storage and Data Replication

In storage-intensive environments, the NIC supports fast data replication, backup operations, and distributed storage communication. Its high throughput ensures minimal delay during large-scale data transfers, improving storage efficiency and system reliability.

Virtual Desktop Infrastructure and Cloud Hosting

Virtual desktop infrastructure (VDI) platforms rely heavily on stable and high-speed networking. The Dell 540-BCNI NIC ensures smooth user experiences by maintaining consistent connectivity and reducing latency in remote desktop sessions and hosted applications.

Advanced Networking Features and Capabilities

Intelligent Traffic Management

The NIC incorporates intelligent traffic management features that optimize packet flow based on workload demands. This ensures that critical applications receive priority bandwidth allocation while maintaining overall network balance.

Scalable Architecture for Future Expansion

As enterprise networks continue to evolve, scalability becomes essential. The Dell 540-BCNI NIC is designed to support future network expansion without requiring significant infrastructure changes, making it a long-term investment for organizations planning growth in their IT environments.

Integration with Modern IT Ecosystems

Compatibility with Software-Defined Networking

Software-defined networking (SDN) environments benefit from the flexibility and programmability offered by the Dell 540-BCNI NIC. It supports dynamic network configuration changes, enabling administrators to adapt network behavior in real time based on application requirements.

Support for Containerized Infrastructure

In containerized environments, networking efficiency is crucial for maintaining microservices communication. The NIC ensures low-latency packet delivery and high throughput, which are essential for container orchestration platforms and distributed application architectures.
