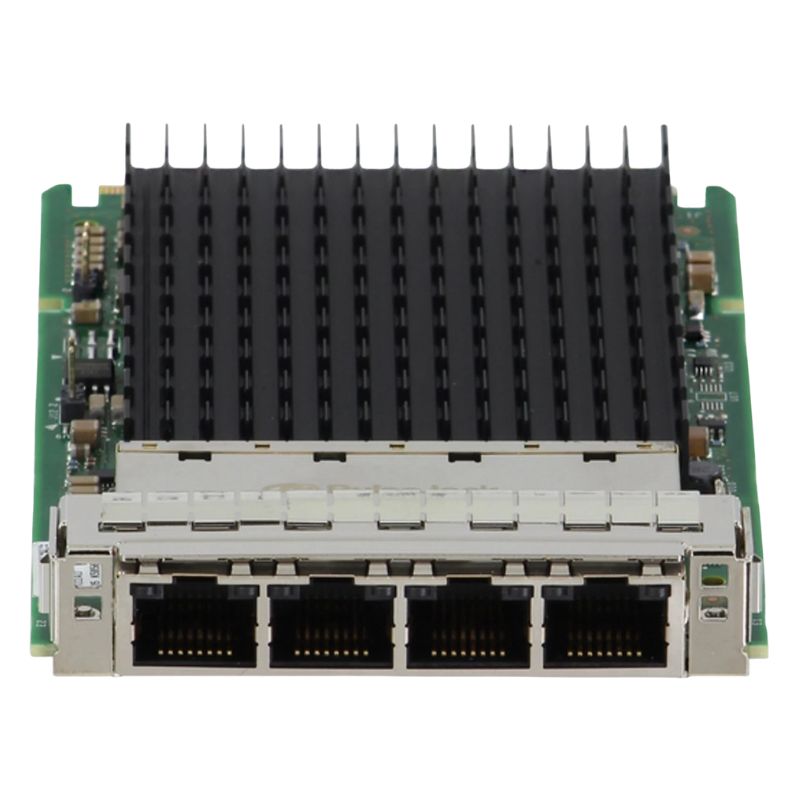

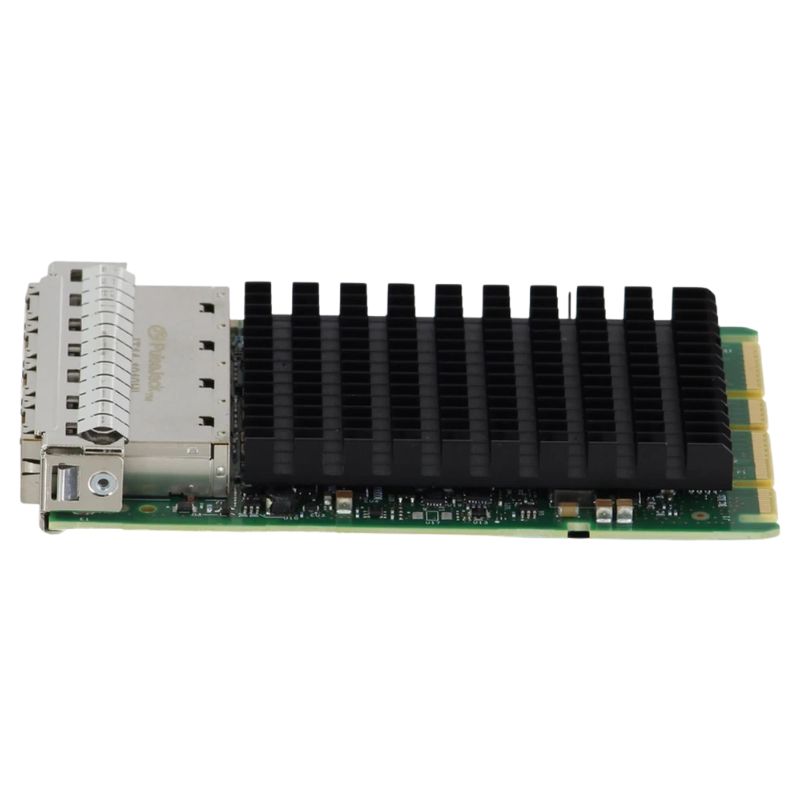

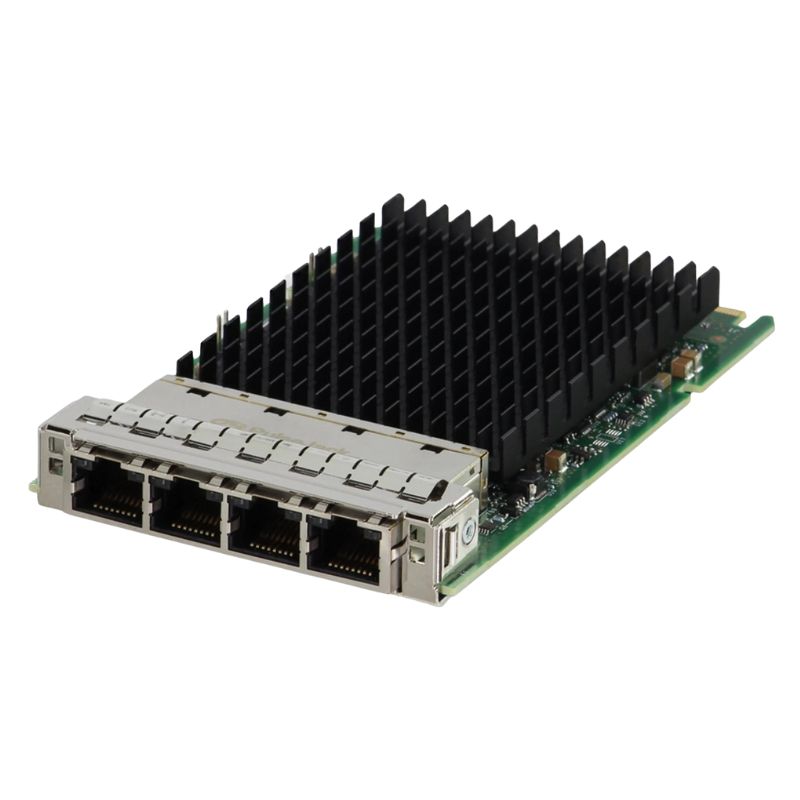

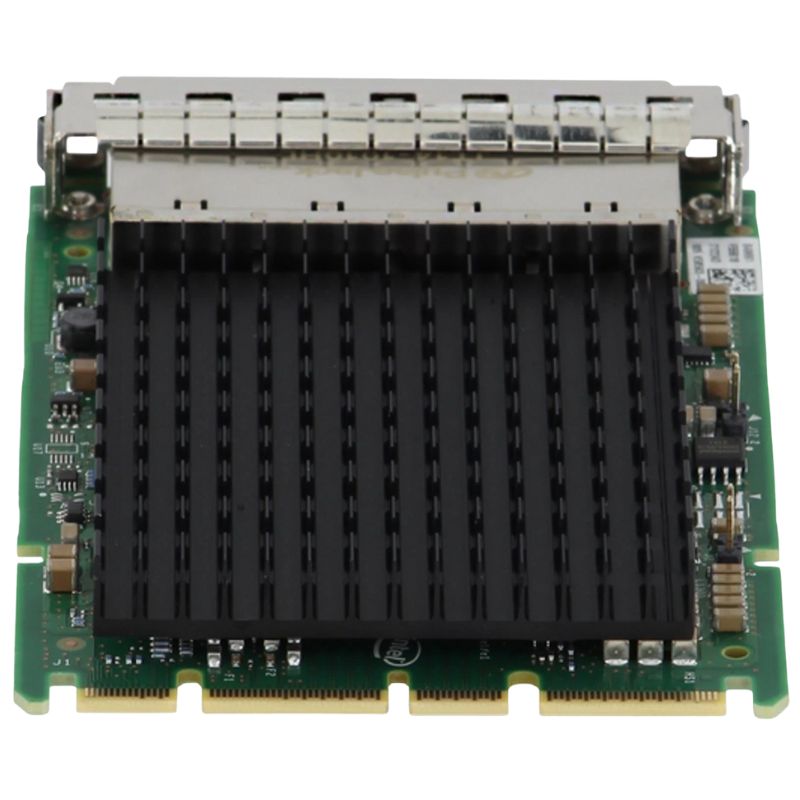

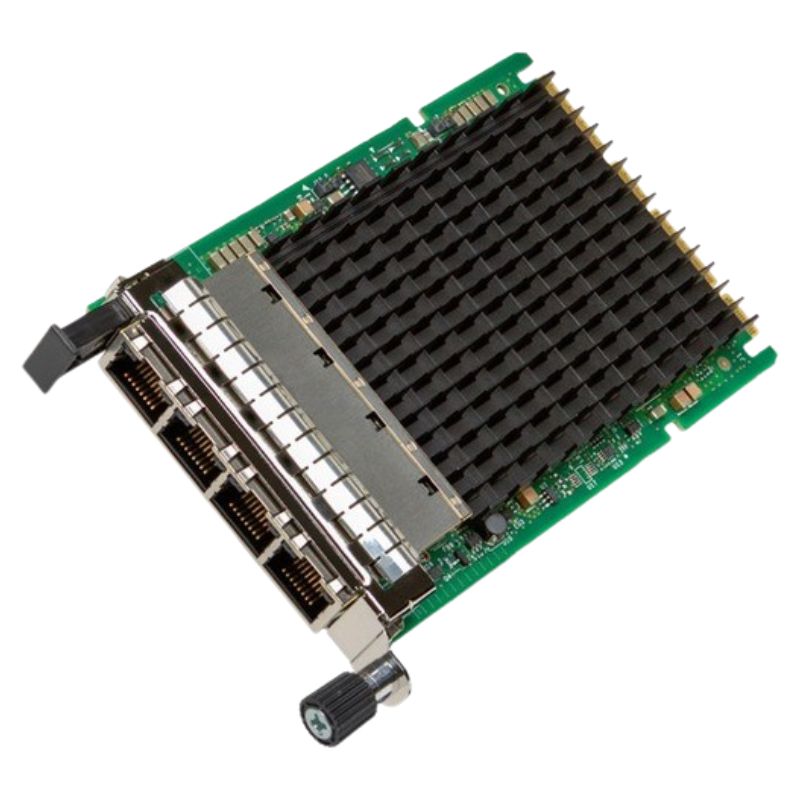

540-BCSI Dell X710T4LOCPV3 4 Ports Network Adapter PCI-E 10 Gigabit Ethernet

Details of Dell 4 Ports Network Adapter

The Dell 540-BCSI X710T4LOCPV3 4-Port Network Adapter is a high-performance enterprise-grade connectivity solution designed to deliver reliable multi-gigabit Ethernet speeds. With PCI Express 3.0 compatibility and advanced compliance standards, this adapter ensures seamless integration into modern server infrastructures.

Main Information

• Brand: Dell
• Part Number: 540-BCSI
• Device Type: Network Adapter

Technical Specifications

• Form Factor: Plug-in Card
• Interface (Bus) Type: PCI Express 3.0 x8
• PCI Specification Revision: PCIe 3.0

Port Configuration

• Ports: 100M/1G/2.5G/5G/10 Gigabit Ethernet x 4
• Data Link Protocols: 100Mb LAN, GigE, 2.5 GigE, 5 GigE, 10 GigE
• Data Transfer Rate: Up to 10Gbps

Network Protocol Support

• Transport Protocols: iSCSI, NFS
• Compliant Standards: IEEE 802.1as, IEEE 802.3az

Physical Characteristics

• Size (WxDxH): 4.5 in x 3 in

Compatibility

Dell PowerEdge Systems

• Optimized for enterprise-grade Dell PowerEdge servers
• Supports high-density networking environments
• Ideal for virtualization, cloud, and database workloads

Dell 540-BCSI 4 Ports PCIE 10GB Network Adapter Overview

The Dell 540-BCSI Intel X710T4LOCPV3 4 Ports Network Adapter PCI-E 10 Gigabit Ethernet represents a high-performance enterprise-grade networking solution designed for modern data center environments, cloud infrastructures, virtualization platforms, and high-bandwidth computing systems. Built on Intel’s advanced Ethernet controller architecture, this adapter delivers multi-port 10GbE connectivity that enhances scalability, throughput, and network efficiency across demanding workloads. It is engineered to meet the requirements of server-class deployments where stable, low-latency, and high-throughput networking is essential for mission-critical operations.

Enterprise Networking Category and Positioning

In the enterprise networking hardware category, this network adapter belongs to the advanced 10 Gigabit Ethernet PCI Express interface segment, which is widely used in servers requiring superior bandwidth aggregation and low latency communication. The Dell 540-BCSI Intel X710T4LOCPV3 is positioned for environments where traditional Gigabit Ethernet becomes a bottleneck, especially in virtualization clusters, storage area networks, and high-performance computing infrastructures.

This category of network adapters plays a critical role in bridging compute resources with storage systems and external networks. With four independent 10GbE ports, it enables parallel data flow, reducing congestion and improving workload distribution across multiple virtual machines or application services.

Architecture and Hardware Design of Dell 540-BCSI

PCI Express Interface Foundation

The adapter utilizes a PCI Express interface designed for high-speed data transfer between the motherboard and network controller. PCIe ensures that the bandwidth capabilities of the 10 Gigabit Ethernet ports are fully utilized without internal bottlenecks. The architecture supports efficient packet processing and minimizes CPU overhead, allowing server processors to focus on application-level tasks rather than network processing.

The integration of PCIe lanes in this adapter ensures compatibility with a wide range of Dell PowerEdge servers and enterprise-class systems, making it suitable for both new deployments and infrastructure upgrades.

Intel X710 Controller Technology

At the core of the Dell 540-BCSI Intel X710T4LOCPV3 lies the Intel X710 Ethernet controller, which is widely recognized for its advanced networking capabilities. This controller is optimized for data center environments and supports intelligent offloading features that significantly reduce CPU utilization during heavy network traffic conditions.

The controller architecture is built to handle large-scale packet processing, ensuring smooth operation even in environments with thousands of concurrent connections. Its design supports modern networking protocols and enhances throughput consistency across all four ports.

Quad-Port 10 Gigabit Ethernet Configuration

One of the defining features of this category is the quad-port configuration. The Dell 540-BCSI Intel X710T4LOCPV3 includes four independent 10GbE ports, enabling a total potential bandwidth of up to 40Gbps when fully utilized in aggregated or distributed configurations.

Each port operates independently, allowing administrators to assign dedicated network paths for different workloads such as storage traffic, virtual machine migration, management traffic, and application data flow. This segmentation improves performance predictability and reduces network contention.

Thermal Efficiency and Physical Design

The hardware design of the adapter is optimized for enterprise thermal environments. Efficient heat dissipation mechanisms ensure stable performance during sustained high-load operations. The compact form factor allows integration into dense server configurations where airflow management is critical.

The engineering focus on thermal stability ensures that the adapter maintains consistent throughput without throttling, even in high-temperature data center conditions.

Reliability and Component Durability

Enterprise network adapters like this model are designed with long-term reliability in mind. The components are selected for durability under continuous operation, which is essential in 24/7 data center environments. The hardware is tested for resilience under variable network loads, ensuring consistent performance over extended deployment cycles.

Key Capabilities of Dell 540-BCSI Intel X710T4LOCPV3

High Throughput Networking Performance

The adapter supports 10 Gigabit Ethernet speeds per port, enabling extremely high throughput for data-intensive applications. In aggregated configurations, it is capable of handling large-scale data transfers required for virtualization clusters, database replication, and cloud computing workloads.

The performance scalability of this adapter ensures that network infrastructure does not become a limiting factor in system performance, particularly in environments where large datasets are transferred between storage and compute nodes.

Low Latency Communication Optimization

Latency reduction is a key requirement in enterprise networking, and the Dell 540-BCSI Intel X710T4LOCPV3 is engineered to minimize packet transmission delays. The architecture optimizes packet processing pathways, ensuring that data travels efficiently between endpoints.

This low-latency behavior is particularly important for financial applications, real-time analytics platforms, and high-frequency data processing systems where microsecond-level delays can impact performance outcomes.

Advanced Offloading Capabilities

The adapter supports multiple hardware offloading features that reduce CPU workload and improve system efficiency. These offloading mechanisms include checksum processing, segmentation handling, and interrupt moderation, all of which contribute to optimized system performance.

By shifting network processing tasks from the CPU to the network controller, the system achieves higher application throughput and improved multitasking capabilities.

Virtualization and Cloud Infrastructure Support

Virtualization environments benefit significantly from the capabilities of the Dell 540-BCSI Intel X710T4LOCPV3. The adapter supports advanced virtualization technologies that enable efficient distribution of network resources across multiple virtual machines.

In cloud infrastructure deployments, the adapter provides consistent bandwidth allocation and ensures that virtual workloads remain isolated and performant. This is particularly important in multi-tenant environments where resource sharing must be carefully controlled.

Virtual Machine Density Optimization

The multi-port configuration allows higher virtual machine density by distributing network traffic across multiple channels. This reduces congestion and ensures that each virtual machine receives stable network performance even during peak workloads.

The adapter’s architecture ensures that virtualization overhead is minimized, contributing to improved overall system efficiency.

SR-IOV and Hardware Virtualization Support

Single Root Input/Output Virtualization support enables the adapter to allocate physical network resources directly to virtual machines. This reduces hypervisor overhead and improves network performance for virtualized workloads.

SR-IOV also enhances security by isolating network traffic between virtual machines, ensuring data integrity and reducing the risk of interference.

Data Center Applications and Use Cases

The Dell 540-BCSI Intel X710T4LOCPV3 is widely deployed in enterprise data centers where high-speed networking is essential. It is used in server clusters, storage networks, virtualization farms, and cloud computing infrastructures.

In storage environments, the adapter supports high-speed data replication and backup operations, ensuring that large datasets are transferred efficiently without network congestion.

Cloud Computing Environments

Cloud platforms rely on high-bandwidth networking to support distributed workloads. This adapter enables seamless communication between compute nodes, storage systems, and orchestration layers, improving cloud service reliability and performance.

High Performance Computing Clusters

In HPC environments, the adapter supports fast inter-node communication, which is critical for scientific simulations, machine learning workloads, and large-scale data processing tasks.

Compatibility and Integration in Server Systems

The Dell 540-BCSI Intel X710T4LOCPV3 is designed for seamless integration into Dell server ecosystems as well as other enterprise-grade hardware platforms that support PCIe expansion. Its driver support ensures compatibility with major operating systems used in data centers.

The adapter integrates smoothly into existing networking infrastructure, allowing organizations to upgrade bandwidth capabilities without redesigning their entire network architecture.

Operating System Support and Drivers

The network adapter supports a wide range of enterprise operating systems, ensuring flexibility in deployment. Driver optimization ensures stable performance across different platforms and workload types.

Switch and Network Infrastructure Compatibility

This adapter is compatible with modern 10GbE switches and networking equipment, enabling seamless integration into high-speed enterprise networks. It supports standard Ethernet protocols, ensuring interoperability across diverse infrastructure environments.

Security and Network Protection Features

Security is an essential aspect of enterprise networking, and the Dell 540-BCSI Intel X710T4LOCPV3 includes hardware-level features that enhance data protection and network integrity. These features help secure data transmission and reduce vulnerabilities in network communication.

The adapter supports secure packet processing and advanced filtering mechanisms that help protect against unauthorized access and network-based threats.

Data Integrity and Packet Validation

Packet validation mechanisms ensure that data transmitted across the network remains accurate and uncorrupted. This is essential for critical applications where data integrity must be maintained at all times.

Deployment Scenarios and Industry Applications

This category of network adapter is used across multiple industries including finance, telecommunications, healthcare, cloud services, and enterprise IT infrastructure. Each industry benefits from its high bandwidth, reliability, and virtualization capabilities.

In financial systems, it supports real-time trading platforms. In healthcare environments, it ensures fast access to large medical imaging datasets. In telecommunications, it supports high-volume data routing and traffic management.

Performance Optimization and Configuration Strategies

Optimizing the performance of the Dell 540-BCSI Intel X710T4LOCPV3 involves configuring network segmentation, load balancing, and virtualization settings. Proper configuration ensures maximum utilization of all four 10GbE ports.

Network administrators often design traffic distribution strategies to separate storage, management, and application traffic across different ports, improving efficiency and reducing congestion.

Bandwidth Aggregation Techniques

Link aggregation allows multiple ports to be combined into a single logical connection, increasing total available bandwidth and improving redundancy. This ensures continuous network availability even in case of individual port failures.
