540-BDIE Dell Mellanox Cx422a Connectx-4 Dual Port 10/25GB Adapter

540-BDIE Dell Mellanox CX422A ConnectX-4 RNDC Adapter Overview

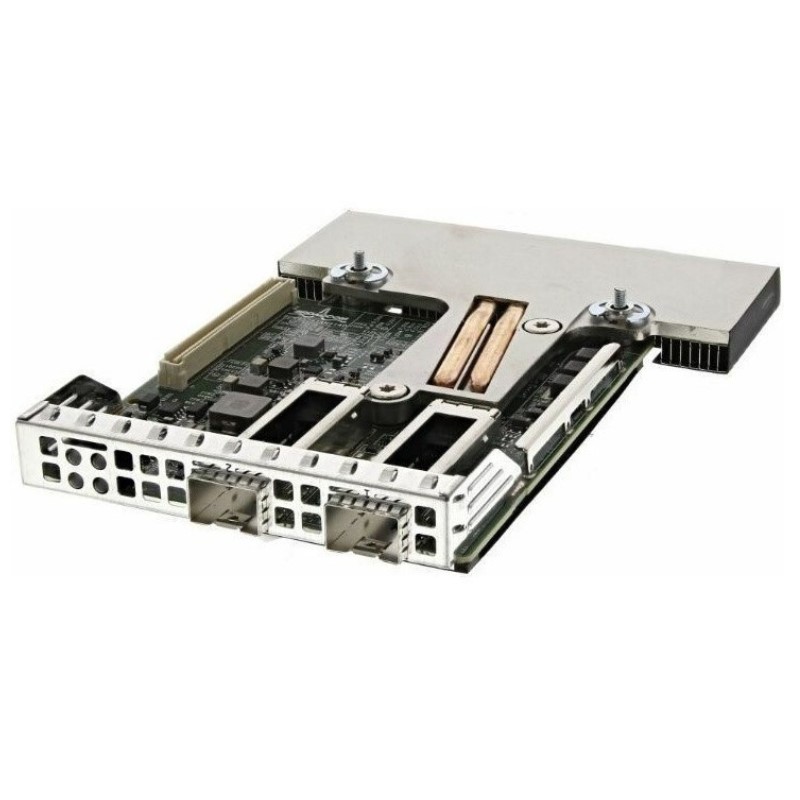

The 540-BDIE Dell Mellanox CX422A ConnectX-4 Dual Port 10/25GB RNDC Adapter is an advanced network interface card designed for high-throughput, low-latency data transmission in enterprise data centers. Built with Mellanox’s ConnectX-4 architecture, it provides robust connectivity options with dual 10/25 Gigabit Ethernet ports. As part of Dell’s server-compatible adapter series, this model ensures seamless integration into Dell PowerEdge environments with support for the RNDC (rack network daughter card) slot, making it ideal for modular deployments.

RNDC Form Factor Benefits

RNDC, or Rack Network Daughter Card, provides a streamlined form factor for network interface cards to be integrated into rack servers. With the 540-BDIE Mellanox CX422A RNDC adapter, system integrators benefit from reduced cabling complexity, improved airflow, and simplified upgrades. The RNDC architecture ensures hardware-level integration with Dell PowerEdge systems, allowing administrators to replace or upgrade network adapters without occupying PCIe slots.

Optimized for Dell PowerEdge Servers

This dual-port 10/25GbE card is purpose-built for Dell's 13th and 14th generation PowerEdge servers, such as the R640, R740, R730xd, R540, and others. Dell’s firmware alignment ensures that the Mellanox CX422A adapter is recognized and fully manageable via iDRAC and Lifecycle Controller, enhancing visibility and automation within IT operations.

Compatibility Highlights

• Compatible with Dell R640, R740, R540, and other RNDC-enabled servers
• Supports PCIe Gen3 interfaces via internal server architecture
• Validated firmware for iDRAC management
• Certified for use with various Linux and Windows Server editions

Performance and Throughput Capabilities

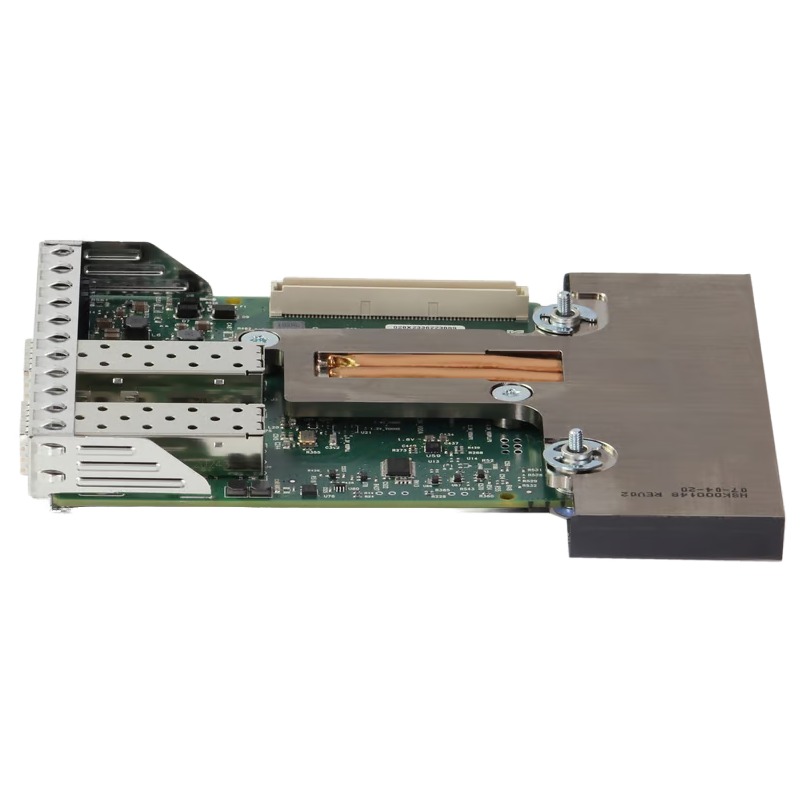

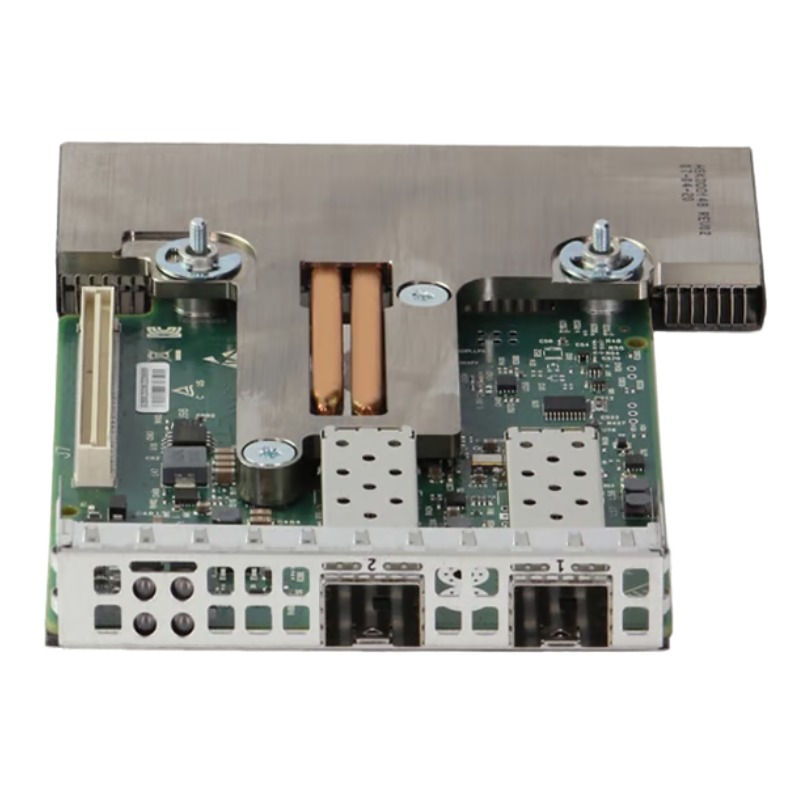

The 540-BDIE Mellanox CX422A ConnectX-4 network adapter features two SFP28 ports, each capable of 10 or 25 Gigabit Ethernet connectivity. Utilizing PCI Express Gen3 x8 bandwidth, it provides ample headroom for high-performance computing applications, virtualized environments, and storage traffic.

25GbE Support and Use Cases

25 Gigabit Ethernet is rapidly becoming the new standard for data center connectivity, offering better performance per dollar than legacy 10GbE solutions. The 540-BDIE supports both 10GbE and 25GbE, enabling a smooth transition path for enterprises upgrading their infrastructure. It supports applications such as high-speed storage (NVMe over Fabrics), virtualization platforms (VMware, Hyper-V), and large-scale web hosting.

Bandwidth Utilization

With a total throughput of up to 50Gbps across both ports, the ConnectX-4 RNDC adapter supports line-rate traffic and zero-packet loss even under high-demand workloads. It is ideal for data center bridging, RoCEv2 (RDMA over Converged Ethernet), and kernel bypass technologies such as DPDK.

Key Performance Features

• Support for RDMA over Converged Ethernet (RoCEv2)
• Large Receive Offload (LRO), TSO, and checksum offload
• Low-latency architecture with full line-rate performance
• SR-IOV support for enhanced virtualization

Advanced Features of Mellanox ConnectX-4 Technology

Mellanox’s ConnectX-4 technology offers next-generation capabilities, enabling enhanced networking features beyond traditional NICs. With intelligent offloads, hardware accelerations, and scalable architecture, this adapter is more than just a standard network card—it's a performance enabler.

Virtualization Support

The 540-BDIE Dell Mellanox CX422A excels in virtual environments. It supports Single Root I/O Virtualization (SR-IOV), enabling direct assignment of network resources to virtual machines, drastically improving throughput and reducing CPU load. This feature is highly valued in hyper-converged infrastructure (HCI) deployments and virtual desktop infrastructure (VDI) applications.

NVGRE and VXLAN Offloads

Offload capabilities such as NVGRE and VXLAN help reduce overhead from encapsulated traffic in overlay networks. These features offload the encapsulation and decapsulation tasks to the adapter, freeing CPU cycles and boosting efficiency in software-defined networks (SDN).

Network Telemetry and Monitoring

Advanced diagnostic and telemetry support gives data center administrators granular control and visibility. Features like precision time-stamping, packet tracing, and flow sampling contribute to proactive performance management and issue resolution.

Security and Reliability

The Dell 540-BDIE Mellanox CX422A RNDC adapter includes enterprise-grade security features such as secure boot, firmware validation, and secure firmware updates. These ensure that the network infrastructure maintains integrity and resists unauthorized changes.

Secure Boot and Firmware Management

Secure Boot mechanisms ensure the adapter boots with verified firmware, preventing malicious code injection at the hardware level. Dell OpenManage and iDRAC platforms offer centralized firmware deployment and lifecycle management, maintaining consistent compliance across server fleets.

Resilience in Enterprise Environments

Enterprise workloads demand high reliability. The CX422A adapter provides fault-tolerant features such as adaptive routing, load balancing, and support for bonded interfaces, ensuring redundancy and continued operation even in partial network failure scenarios.

Diagnostic and Failure Recovery Tools

• Firmware-level error logging
• Live firmware rollback support
• Enhanced device-level diagnostics through Dell iDRAC
• Predictive failure analysis and alerting

Energy Efficiency and Data Center Optimization

Data center operators face constant pressure to reduce power usage while maintaining performance. The 540-BDIE RNDC adapter from Mellanox is engineered with energy efficiency in mind, using advanced power management features and intelligent offloads that minimize CPU overhead and thermal footprint.

Adaptive Power Management

This RNDC adapter intelligently scales power consumption based on traffic patterns, idling during low activity while ramping up during data bursts. Its efficient heat dissipation contributes to lower cooling costs and allows tighter server rack densities.

Compliance with Environmental Standards

Compliant with RoHS and WEEE directives, the CX422A adapter adheres to modern environmental guidelines. Its energy-efficient design supports extended uptime while minimizing environmental impact, aligning with green data center initiatives.

Operational Cost Benefits

• Lower total cost of ownership through power savings
• Reduced heat generation minimizes HVAC strain
• Improved rack density from RNDC space savings
• Longer lifespan due to reduced thermal cycling

Driver and Firmware Integration

Dell provides unified driver packages that integrate seamlessly into major operating systems, including Windows Server, RHEL, Ubuntu, and VMware ESXi. Mellanox firmware updates are accessible via Dell’s support portal or automated through Lifecycle Controller.

IDRAC and Lifecycle Controller Support

With full iDRAC compatibility, administrators can view adapter health, update firmware remotely, and monitor real-time traffic without third-party software. Lifecycle Controller simplifies deployment with automated driver detection and installation during OS deployment.

Tools for Network Engineers

• Mellanox NEO for automated provisioning and configuration
• ETHTOOL and MLX tools for Linux environments
• NIC partitioning and bandwidth control via Dell OMSA
• Cloud management platform integrations

Use Case Scenarios and Deployment Models

The 540-BDIE Dell Mellanox CX422A is suitable for a wide range of applications in data centers, cloud infrastructure, high-performance computing (HPC), and virtualized enterprise networks. Its scalability and performance make it a future-proof choice for evolving IT needs.

Hyper-Converged Infrastructure (HCI)

HCI platforms benefit from the low latency and high bandwidth offered by the CX422A. With RoCEv2 support, it enables storage and compute traffic to converge over Ethernet, reducing the need for dedicated storage networks.

Cloud-Scale Networking

In cloud-native environments, the adapter supports containerized workloads, SDN, and NFV platforms. It enables consistent performance under heavy east-west traffic, critical for microservices and Kubernetes architectures.

Enterprise Databases and Analytics

• Oracle RAC and SQL Server deployments
• High-throughput for data warehousing and ETL operations
• Supports fast node-to-node replication
• Accelerates NoSQL and big data platforms like Hadoop and Spark

Market Comparison and Competitive Advantages

Compared to other 10/25GbE adapters in the market, the 540-BDIE Dell Mellanox CX422A stands out with its RNDC integration, firmware compatibility, and performance tuning options. It competes effectively against Intel X710, Broadcom NetXtreme-E, and other Mellanox models.

The Mellanox Over Intel or Broadcom

Mellanox’s reputation for low-latency, high-throughput adapters makes it a go-to for high-demand environments. With ConnectX-4, customers gain better RDMA support, deeper integration with storage and compute, and lower CPU usage under load compared to most alternatives.

Pricing and Value Considerations

Though premium in cost, the CX422A provides long-term ROI through enhanced performance, reduced energy costs, and compatibility with future data center architectures. Its flexibility in 10GbE and 25GbE environments ensures it meets both current and future network requirements.
