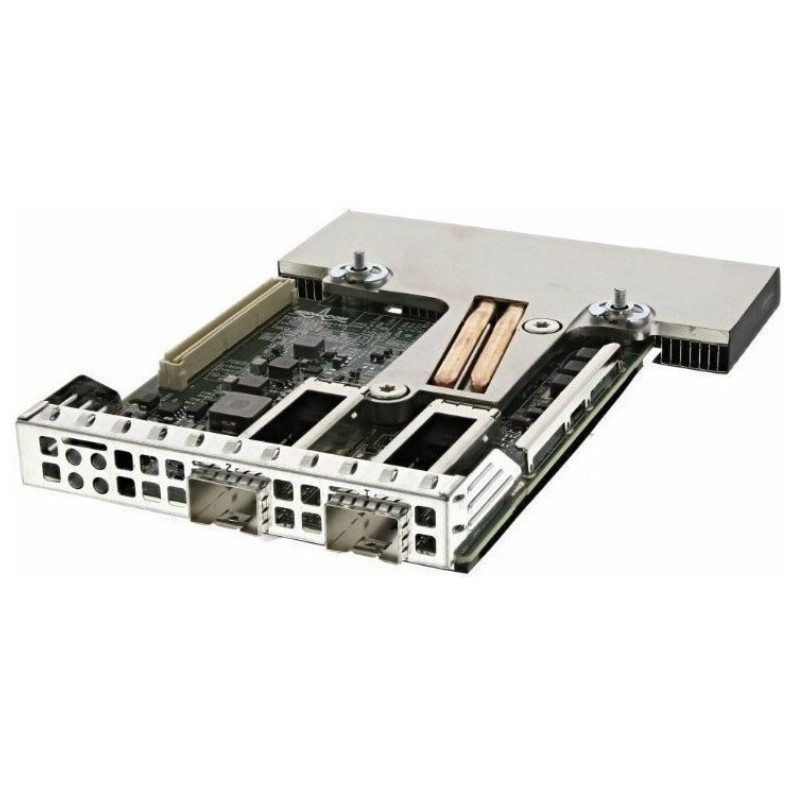

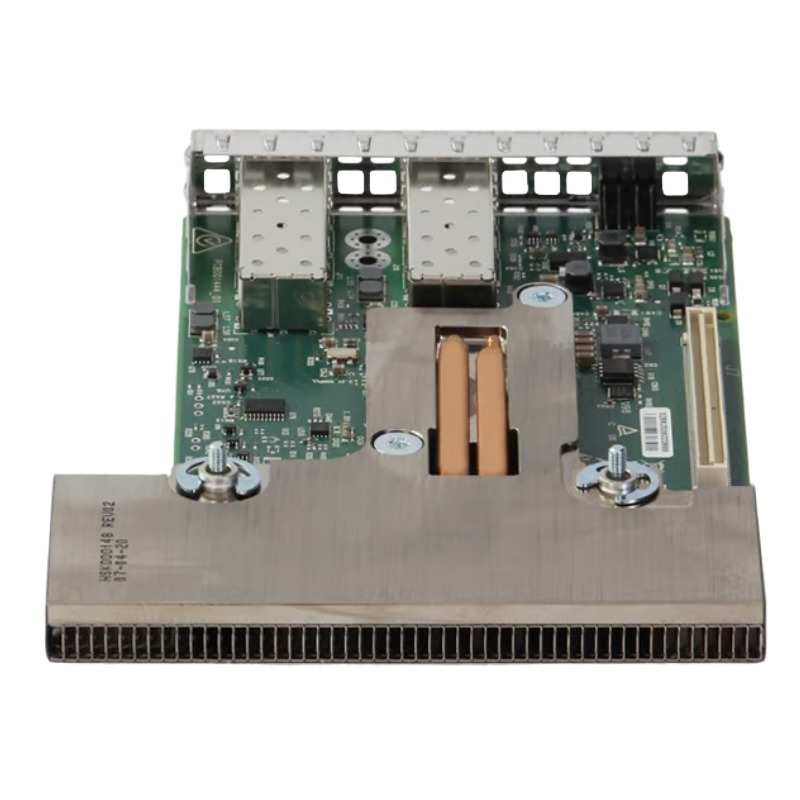

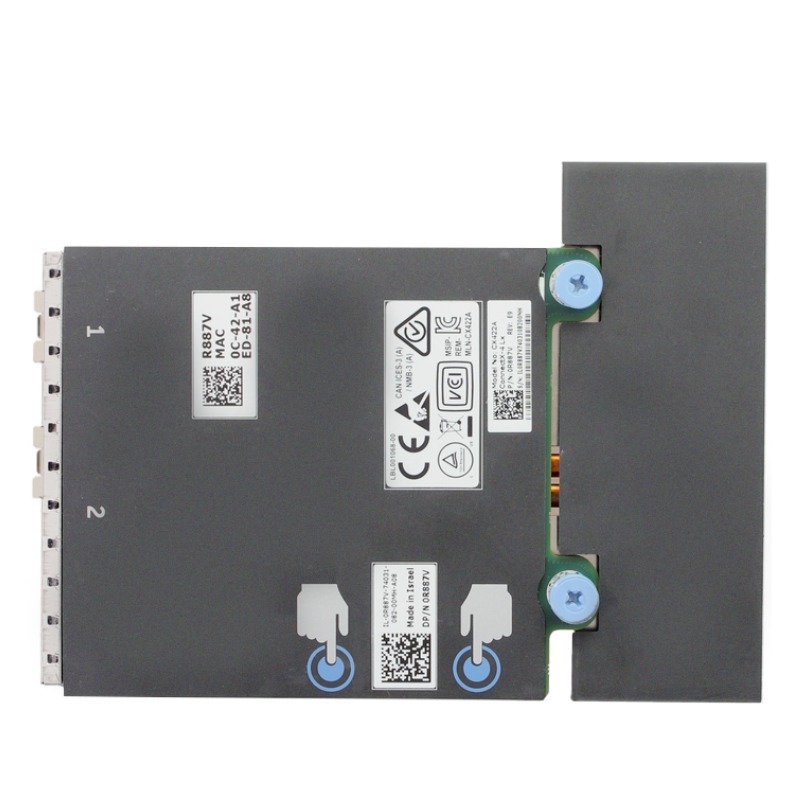

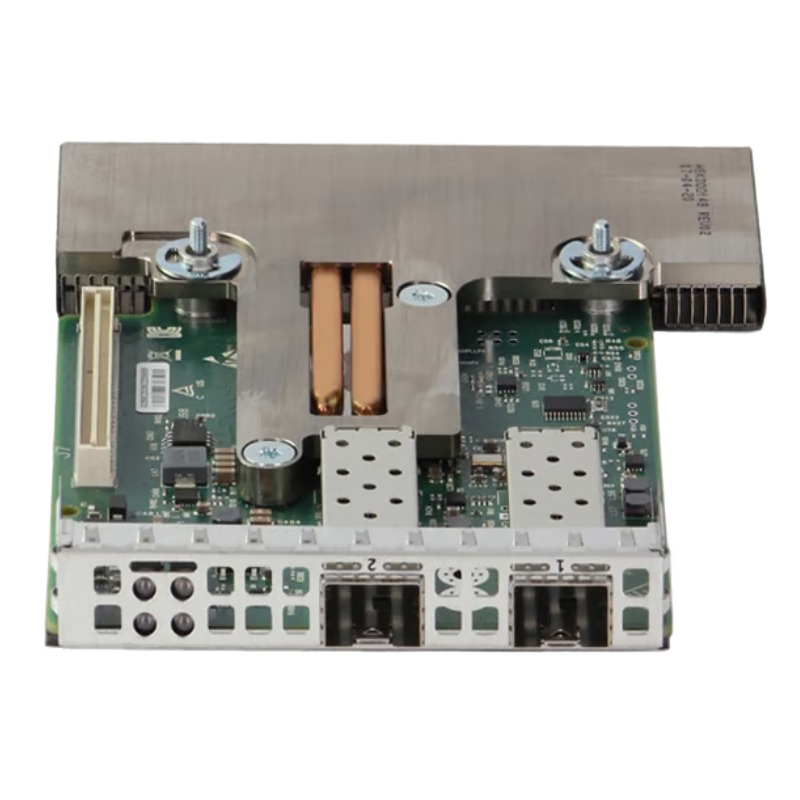

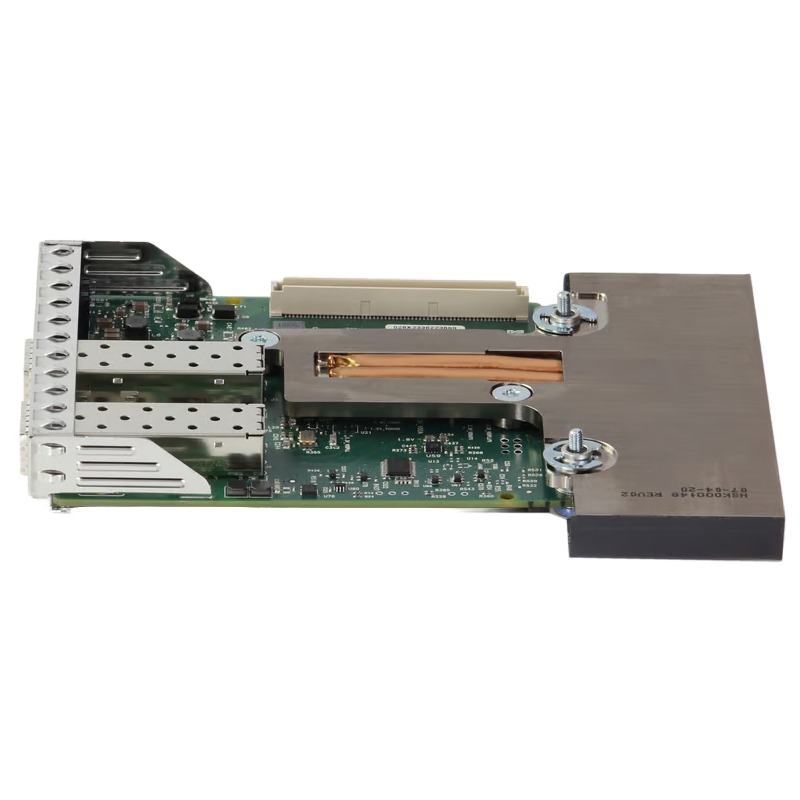

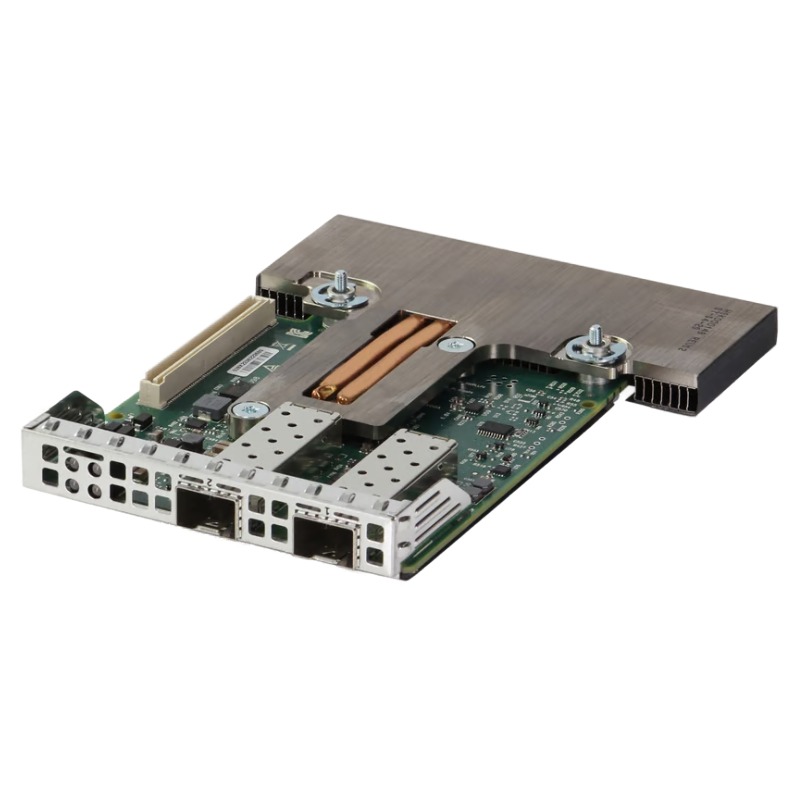

540-BDIL Dell Mellanox Cx422a Connectx-4 Lx En Dual Port 10GB/25GB Adapter

Dell 540-BDIL Mellanox ConnectX-4 Lx Network Adapter

High-Performance Dual-Port 10GbE/25GbE RNDC Networking Solution

The Dell 540-BDIL Mellanox ConnectX-4 Lx is a premium-grade network interface card designed to deliver ultra-fast connectivity for enterprise servers and data center environments. Built to support dual-port high-speed Ethernet communication, it ensures efficient data handling, reduced latency, and improved system throughput.

Key Product Highlights

• Manufacturer: Dell
• Part Number / SKU: 540-BDIL
• Product Category: Network Adapter / RNDC Interface Card
• Port Configuration: Dual Port (2 Ports)
• Form Factor: Daughter Card Design

Advanced Technical Specifications

Connectivity & Performance Features

Engineered for modern cloud and enterprise workloads, this adapter supports both 10 Gigabit and 25 Gigabit Ethernet speeds, making it ideal for scalable networking infrastructures.

• Data Transfer Rate: Up to 25GbE high-speed transmission
• Network Protocol: Ethernet standard compliance
• Device Type: High-performance network interface card (NIC)
• Interface Type: RNDC (Rack Network Daughter Card)

Port Architecture & Expansion Capability

The dual-port configuration enhances redundancy and load balancing, ensuring uninterrupted data flow in mission-critical environments.

• 2 independent high-speed network ports
• Supports Small Form-Factor Pluggable (SFP28) transceiver slots
• Optimized for fiber and high-bandwidth networking setups

Design & Integration Benefits

Space-Efficient Daughter Card Layout

The compact daughter card design allows seamless integration into compatible Dell server systems without occupying excessive internal space, improving hardware efficiency and airflow management.

• Compact and server-optimized architecture
• Easy installation in supported Dell infrastructures
• Enhanced thermal performance for continuous workloads

Enterprise-Level Reliability Features

Built for demanding IT environments, this adapter ensures stable connectivity and long-term durability under heavy network traffic conditions.

• Designed for 24/7 data center operation
• Stable performance under high bandwidth usage
• Reliable failover support with dual-port redundancy

Dell 540-BDIL Dual Port 10GbE/25GbE RNDC Adapter Overview

The Dell 540-BDIL Mellanox ConnectX-4 Lx RNDC Adapter is a high-performance network interface solution designed for modern data centers that demand ultra-low latency, high bandwidth, and efficient packet processing. Built on the Mellanox ConnectX-4 Lx architecture, this dual-port adapter supports both 10 Gigabit Ethernet (10GbE) and 25 Gigabit Ethernet (25GbE) speeds, making it a flexible and scalable choice for enterprise environments transitioning between networking generations. As a rack-level network daughter card (RNDC), it integrates seamlessly into compatible Dell servers, optimizing throughput and reducing CPU overhead while enabling advanced networking features for virtualization, cloud computing, and storage workloads.

This category of networking adapter is widely used in enterprise data centers, high-performance computing (HPC) clusters, and cloud service infrastructures where reliable high-speed connectivity is critical. The Dell 540-BDIL model stands out due to its combination of Mellanox engineering excellence and Dell system integration validation, ensuring stability, compatibility, and optimized firmware support within Dell PowerEdge server ecosystems.

Core Architecture and Technology Foundation

Mellanox ConnectX-4 Lx Architecture

At the heart of the Dell 540-BDIL adapter lies the Mellanox ConnectX-4 Lx controller architecture, a widely recognized platform in enterprise networking. This architecture is designed to deliver high packet rates while minimizing CPU utilization through hardware offloading capabilities. The ConnectX-4 Lx supports advanced features such as RDMA over Converged Ethernet (RoCE), hardware-based virtualization acceleration, and intelligent traffic management.

The architecture is optimized for balanced performance between cost efficiency and high throughput, making it particularly suitable for organizations upgrading from 1GbE infrastructure to higher-speed 10GbE or 25GbE environments. It ensures that workloads such as distributed databases, virtual machine migration, and cloud-native applications operate with minimal network bottlenecks.

Dual-Port Network Interface Design

The dual-port configuration of the Dell 540-BDIL adapter provides redundancy, load balancing, and link aggregation capabilities. Each port can operate independently or be combined using Link Aggregation Control Protocol (LACP) for increased bandwidth and failover protection. This design enhances network resilience in mission-critical environments where downtime is not acceptable.

With two high-speed ports, administrators can segment traffic between different workloads or use one port for storage traffic and another for general data traffic, improving overall efficiency and network organization.

PCIe Interface Integration

The adapter typically operates over a PCI Express (PCIe) interface, ensuring high-speed communication between the network controller and the host system. PCIe bandwidth ensures that the full potential of 10GbE or 25GbE connections is realized without internal bottlenecks. This tight integration is essential for achieving low-latency communication in performance-sensitive applications.

Performance Capabilities and Network Efficiency

10GbE and 25GbE Flexibility

One of the most important features of the Dell 540-BDIL Mellanox ConnectX-4 Lx adapter is its ability to support both 10GbE and 25GbE speeds. This flexibility allows organizations to deploy the same hardware across different stages of network evolution. Enterprises can start with 10GbE infrastructure and later upgrade to 25GbE without replacing network adapters, reducing total cost of ownership.

Low Latency Packet Processing

Low latency is a critical requirement in modern data centers, especially for financial services, real-time analytics, and cloud computing environments. The ConnectX-4 Lx architecture minimizes packet processing delays by offloading network tasks from the CPU to dedicated hardware engines. This reduces jitter and ensures consistent response times across high traffic loads.

High Throughput Optimization

The adapter is engineered for sustained high throughput, supporting large-scale data transfers and parallel processing workloads. It is particularly effective in environments where multiple virtual machines or containers generate heavy east-west traffic within a data center. The ability to maintain stable throughput under load makes it suitable for hyperscale environments.

Advanced Networking Features

RDMA over Converged Ethernet (RoCE)

Remote Direct Memory Access (RDMA) over Converged Ethernet is one of the standout features supported by the Dell 540-BDIL adapter. RoCE allows direct memory-to-memory data transfer between servers without involving the CPU, significantly reducing latency and improving efficiency.

This capability is especially valuable for distributed storage systems, high-performance computing clusters, and machine learning workloads where rapid data exchange is essential. By eliminating unnecessary CPU overhead, RoCE improves overall system scalability.

Virtualization Acceleration

The adapter supports hardware offloads for virtualization technologies such as SR-IOV (Single Root Input/Output Virtualization). This allows multiple virtual machines to share a single physical network interface while maintaining near-native performance. Each virtual function operates independently, improving isolation and security in multi-tenant environments.

SR-IOV Benefits

SR-IOV enhances network efficiency by reducing hypervisor overhead. Virtual machines can directly access network resources, resulting in lower latency and higher throughput compared to traditional virtual switching mechanisms.

Overlay Network Offloading

Modern cloud environments rely heavily on overlay networking technologies such as VXLAN and NVGRE. The Dell 540-BDIL adapter provides hardware offloading for these encapsulation protocols, reducing CPU utilization and improving packet processing speed in virtualized environments.

Enterprise Data Center Applications

Cloud Infrastructure Deployments

In cloud environments, scalability and efficiency are critical. The Dell 540-BDIL Mellanox ConnectX-4 Lx adapter is widely used in private and hybrid cloud infrastructures where workload distribution, high availability, and rapid scaling are essential. Its dual-port design ensures redundancy while enabling flexible traffic management across distributed systems.

High-Performance Computing (HPC)

HPC environments require extremely fast interconnects to support scientific simulations, AI model training, and complex computational tasks. The RDMA capabilities of this adapter make it suitable for minimizing communication delays between compute nodes, thereby improving cluster efficiency.

Storage Networking

Modern storage architectures such as software-defined storage (SDS) and hyper-converged infrastructure (HCI) benefit significantly from high-speed networking. The adapter ensures fast access to distributed storage systems, reducing bottlenecks and improving data replication performance.

Virtual Desktop Infrastructure (VDI)

In VDI deployments, multiple users access centralized virtual desktops simultaneously. The adapter ensures smooth user experiences by providing consistent bandwidth and low latency, even under heavy concurrent loads.
