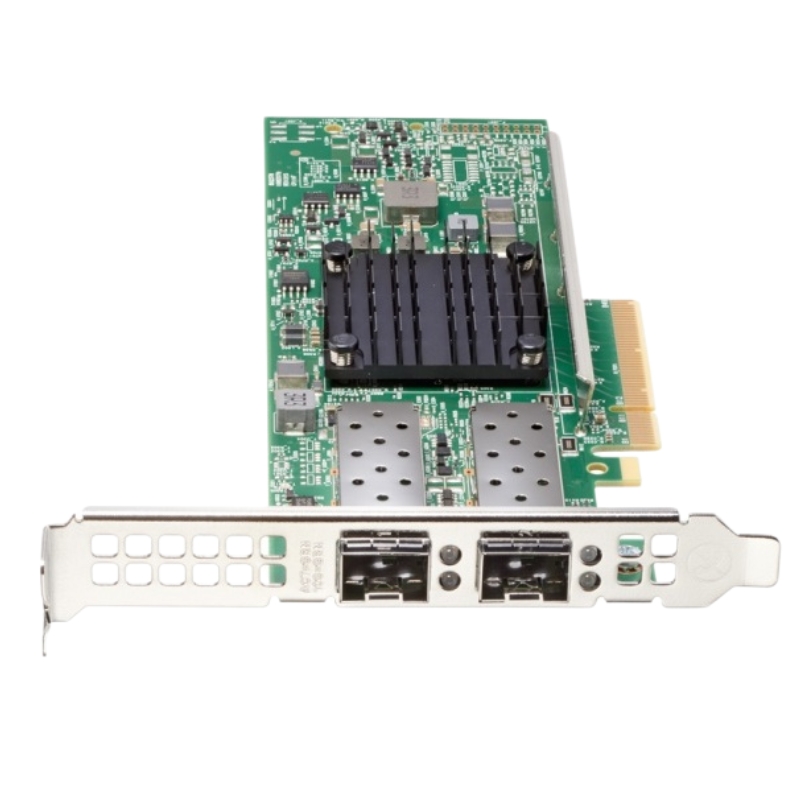

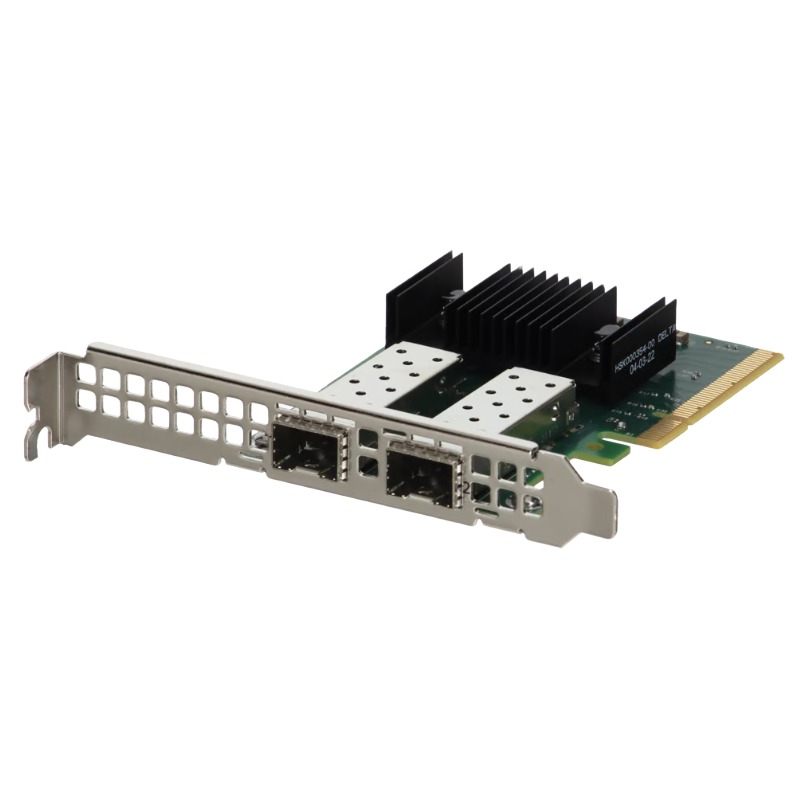

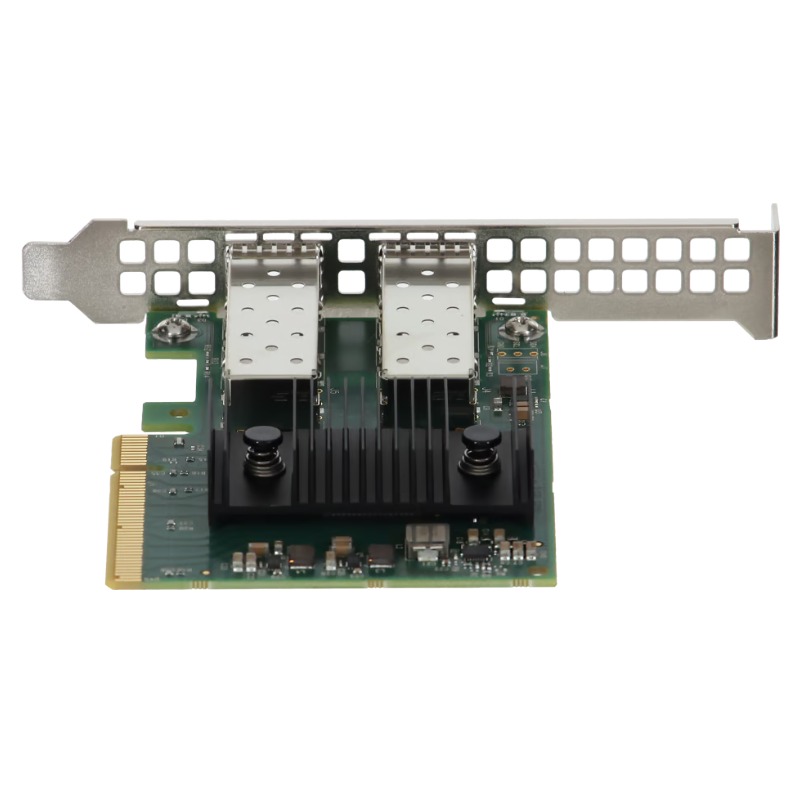

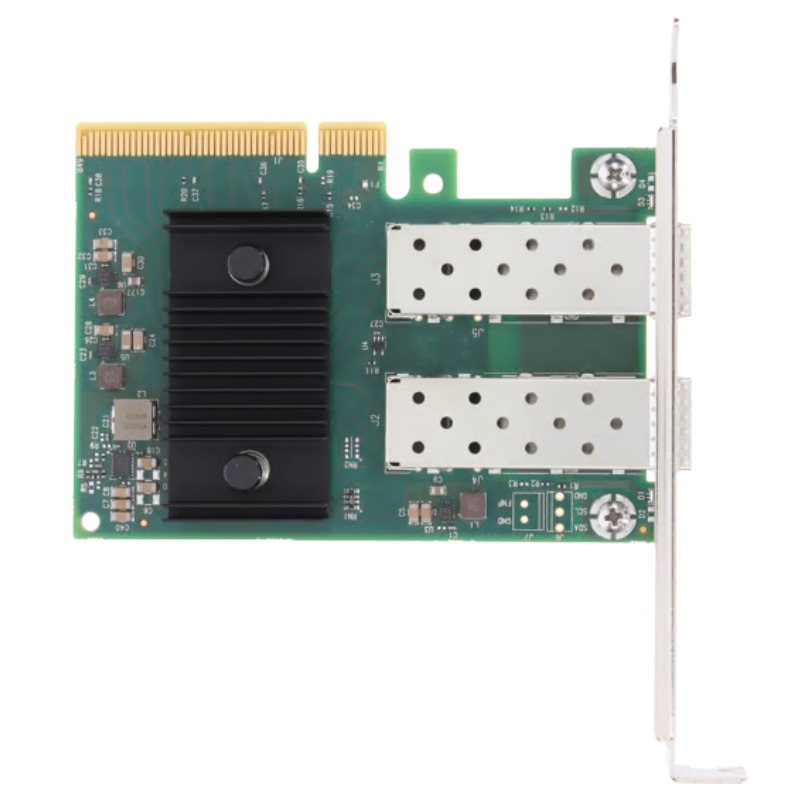

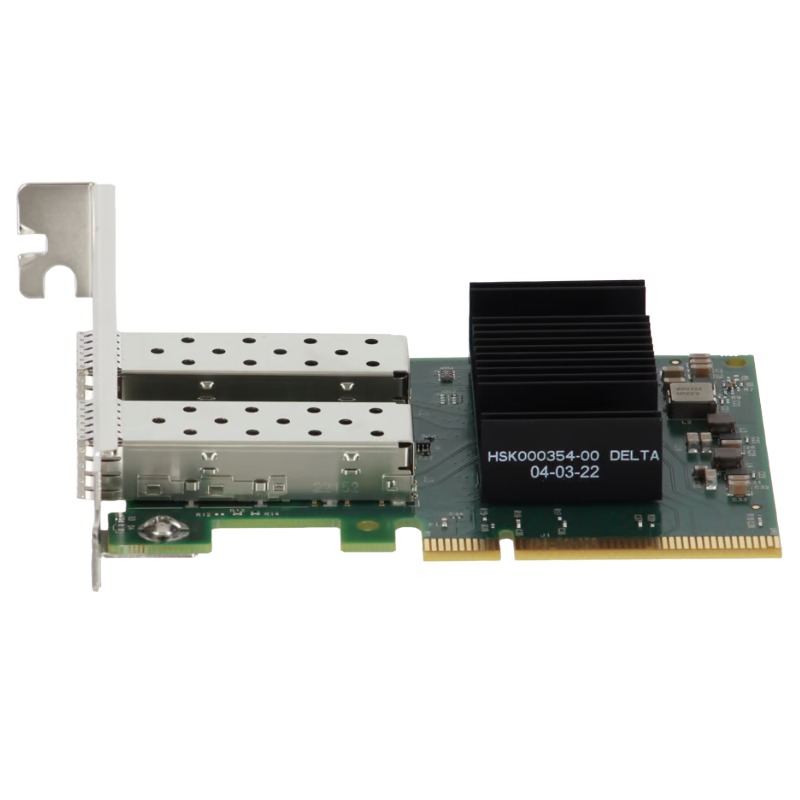

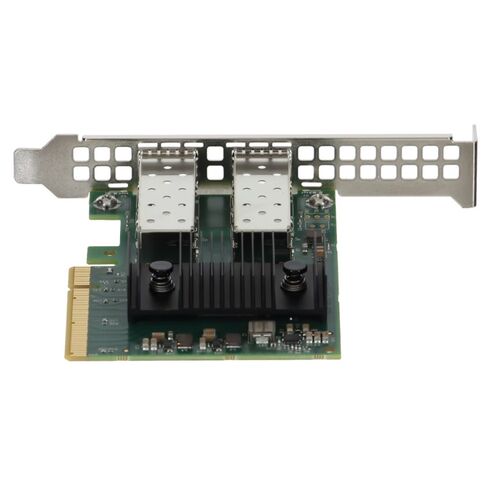

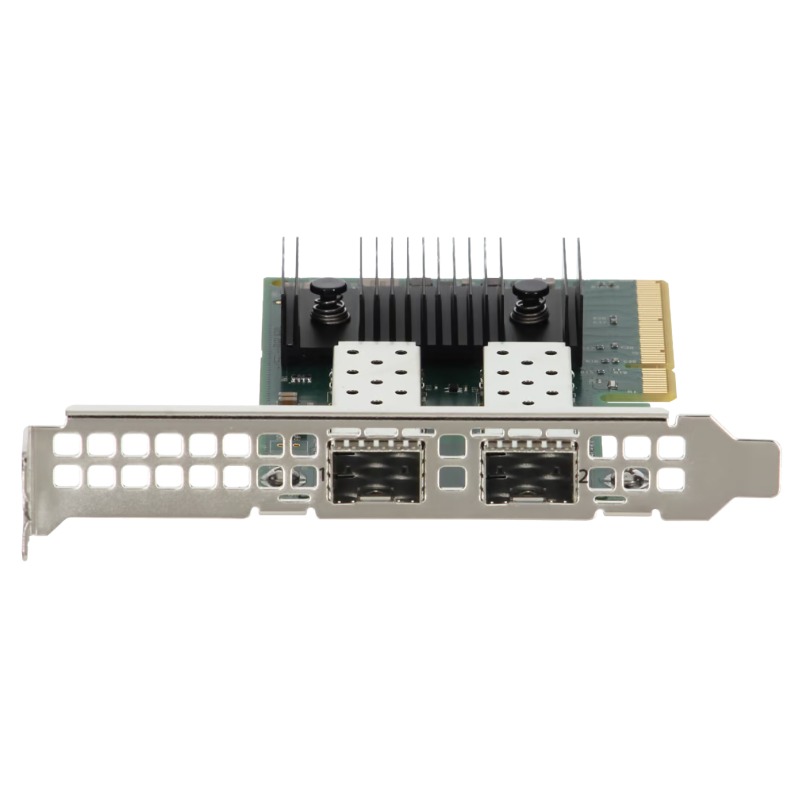

540-BDJD Dell Nvidia Connectx-6 Lx Dual Port 10/25GbE SFP28 PCIE Adapter

Dell 540-BDJD Dual Port 10/25GbE SFP28 PCIe Network Adapter

High-Performance Networking Solution for Modern Data Centers

The Dell 540-BDJD NVIDIA ConnectX-6 LX is a next-generation dual-port Ethernet network adapter engineered to deliver ultra-fast connectivity, scalable throughput, and reliable performance for enterprise workloads. Designed for demanding server environments, it ensures efficient data transmission and low-latency communication across complex IT infrastructures.

Key Highlights of Dell 540-BDJD Adapter

• Manufacturer: Dell
• Part Number / SKU: 540-BDJD
• Device Category: Ethernet Network Adapter
• Interface Standard: PCI Express (PCIe) expansion card
• Port Configuration: Dual-port SFP28 interface
• Maximum Data Rate: Up to 25Gbps per port

Advanced Technical Specifications

Architecture and Form Factor

• Plug-in PCIe expansion card design for seamless server integration
• Optimized for high-bandwidth enterprise networking environments
• Supports scalable deployment in virtualized and cloud infrastructures

Connectivity and Throughput Features

• Dual SFP28 ports enabling flexible network configuration
• Supports 10GbE and 25GbE speeds for adaptive networking performance
• Low-latency packet processing for high-speed data exchange

Performance Advantages

• Enhanced data center efficiency with reduced bottlenecks
• Improved virtualization support for cloud-native workloads
• Optimized for HPC (High Performance Computing) environments
• Energy-efficient design for reduced operational costs

System Compatibility and Supported Platforms

Dell PowerEdge R Series Compatibility

• R440, R450, R540, R550
• R640, R650, R6515, R6525
• R660, R660xs, R6615, R6625
• R740, R740xd, R750, R750xa, R750xs
• R7515, R760, R760xd2, R760xs
• R7615, R7625
• R840, R860, R940xa, R960

Dell PowerEdge C Series Compatibility

• C6520, C6525, C6620

Dell PowerEdge HS Series Compatibility

• HS5610, HS5620

Dell PowerEdge XR Series Compatibility

• XR11, XR12, XR7620

Dell PowerEdge XE Series Compatibility

• XE9640

Dell 540-BDJD NVIDIA ConnectX-6 Lx Adapter

The 540-BDJD NVIDIA ConnectX-6 Lx Dual Port 10/25GbE SFP28 PCIe Adapter represents a next-generation networking solution engineered for modern data centers, cloud infrastructures, virtualization environments, and high-performance computing workloads. Built in collaboration with this advanced network interface card (NIC) delivers exceptional throughput, ultra-low latency, and hardware-accelerated networking features designed to meet the growing demands of bandwidth-intensive enterprise applications.

This adapter is optimized for dual-port 10/25GbE SFP28 connectivity and PCI Express architecture, enabling seamless integration into scalable server infrastructures. It is widely deployed in environments requiring high-speed data transfer, such as storage clustering, AI workloads, machine learning pipelines, virtualization clusters, and cloud-native application architectures.

Architecture and Core Design of ConnectX-6 Lx NIC

Advanced Network Interface Controller Technology

The ConnectX-6 Lx architecture is designed to provide intelligent offload capabilities, reducing CPU overhead while accelerating packet processing. Unlike traditional NICs, this adapter integrates hardware-based acceleration engines that handle network-intensive tasks such as encryption, packet steering, and virtualization offloads.

Hardware Acceleration Features

The adapter incorporates dedicated processing units for RDMA over Converged Ethernet (RoCE), TCP/UDP offloads, and virtualization acceleration. These enhancements significantly reduce latency while improving throughput consistency under heavy workloads.

Key Acceleration Functions

Features include checksum offload, Large Send Offload (LSO), Large Receive Offload (LRO), and stateless offloads that enable efficient CPU utilization. These functions allow servers to allocate more resources to application processing rather than network stack management.

PCIe Interface Integration

The PCIe interface ensures high-bandwidth communication between the network adapter and the host system. With support for PCIe Gen3 and Gen4 platforms (depending on server compatibility), the adapter achieves optimal data transfer rates required for modern enterprise workloads.

Low-Latency Data Path Design

The optimized PCIe data path minimizes bottlenecks and ensures predictable latency, making it suitable for financial trading systems, real-time analytics, and AI inference pipelines.

10/25GbE SFP28 Connectivity and Port Configuration

Dual-Port High-Speed Networking

The Dell 540-BDJD adapter features dual SFP28 ports supporting both 10GbE and 25GbE Ethernet speeds. This flexibility allows organizations to scale network performance based on workload requirements without requiring hardware replacement.

SFP28 Optical and Direct Attach Support

The SFP28 interface supports both optical transceivers and Direct Attach Copper (DAC) cables. This enables flexible deployment across short-range intra-rack connections and long-distance fiber-based data center links.

Deployment Flexibility

Organizations can deploy the adapter in leaf-spine architectures, top-of-rack switching environments, and hybrid cloud interconnect setups, ensuring compatibility with diverse infrastructure models.

Bandwidth Scalability

The ability to switch between 10GbE and 25GbE modes provides scalability for evolving enterprise needs. As workloads grow, administrators can upgrade switch infrastructure without replacing NIC hardware.

Data Center Optimization and Performance Efficiency

High-Density Server Environments

In modern hyperscale data centers, efficiency and density are critical. This adapter supports high-density deployments where multiple virtual machines and containers operate simultaneously, requiring consistent and predictable network throughput.

Traffic Optimization Mechanisms

Traffic balancing, flow steering, and congestion control mechanisms ensure that network resources are distributed efficiently across multiple workloads.

Multi-Queue Architecture

The adapter uses multiple transmit and receive queues to distribute network processing across CPU cores, enhancing parallel processing capabilities and reducing latency spikes.

Energy Efficiency in Large Deployments

Energy efficiency is a key concern in large-scale data centers. The ConnectX-6 Lx architecture is optimized to reduce power consumption while maintaining high throughput, making it suitable for sustainable infrastructure initiatives.

Virtualization and Cloud Computing Acceleration

SR-IOV and Virtual Function Support

Single Root I/O Virtualization (SR-IOV) allows the adapter to create multiple virtual functions, enabling direct network access for virtual machines. This reduces hypervisor overhead and improves network performance in virtualized environments.

Hypervisor Compatibility

The adapter is compatible with major hypervisors including VMware ESXi, Microsoft Hyper-V, and KVM-based Linux virtualization platforms. This ensures seamless integration into enterprise cloud ecosystems.

Virtual Machine Isolation

Each virtual function provides isolated bandwidth and secure communication channels, enhancing multi-tenant security in cloud environments.

Container Networking Acceleration

Containerized applications benefit from reduced network latency and improved throughput when deployed with this adapter. Kubernetes clusters can leverage enhanced networking performance for microservices communication.

RDMA, RoCE, and High-Performance Networking

Remote Direct Memory Access (RDMA)

RDMA enables direct memory-to-memory data transfer between systems without involving CPU intervention. This dramatically reduces latency and improves throughput for distributed computing applications.

RoCE v2 Support

RDMA over Converged Ethernet (RoCE v2) allows efficient data transport over Ethernet networks while maintaining low latency characteristics traditionally associated with InfiniBand systems.

Use in Storage Networks

RoCE is particularly beneficial for storage workloads such as NVMe over Fabrics (NVMe-oF), distributed storage systems, and hyper-converged infrastructure platforms.

Latency-Sensitive Workloads

Financial trading platforms, real-time analytics engines, and AI inference systems benefit significantly from RDMA-enabled networking, where microsecond-level latency improvements are critical.

Storage Networking and NVMe over Fabrics

Accelerated Storage Access

The adapter supports high-speed storage networking protocols that enable direct access to remote storage systems with minimal overhead. This improves performance for distributed databases and enterprise storage clusters.

NVMe-oF Optimization

NVMe over Fabrics allows storage devices to be accessed over network infrastructure with near-local storage performance. The adapter’s low latency design ensures optimal NVMe-oF performance.

Distributed Storage Systems

Ceph, VMware vSAN, and other distributed storage platforms benefit from the high-throughput, low-latency networking capabilities provided by this NIC.

Software Stack, Drivers, and OS Compatibility

Linux and Open-Source Ecosystem

The adapter is fully supported across major Linux distributions including Red Hat Enterprise Linux, Ubuntu Server, SUSE Linux Enterprise Server, and Debian-based environments.

Kernel-Level Optimization

Linux kernel modules are optimized for high-performance packet processing, enabling efficient integration with DPDK (Data Plane Development Kit) and other user-space networking frameworks.

Advanced Networking APIs

Support for RDMA Verbs API and kernel bypass technologies allows developers to build ultra-low latency networking applications.

Windows Server Support

Windows Server environments benefit from full driver support, enabling enterprise applications to leverage advanced networking features such as virtualization offloads and high-speed data transfer.

VMware Integration

VMware environments leverage optimized drivers to enhance ESXi performance, particularly in virtualized data center deployments requiring high I/O throughput.
