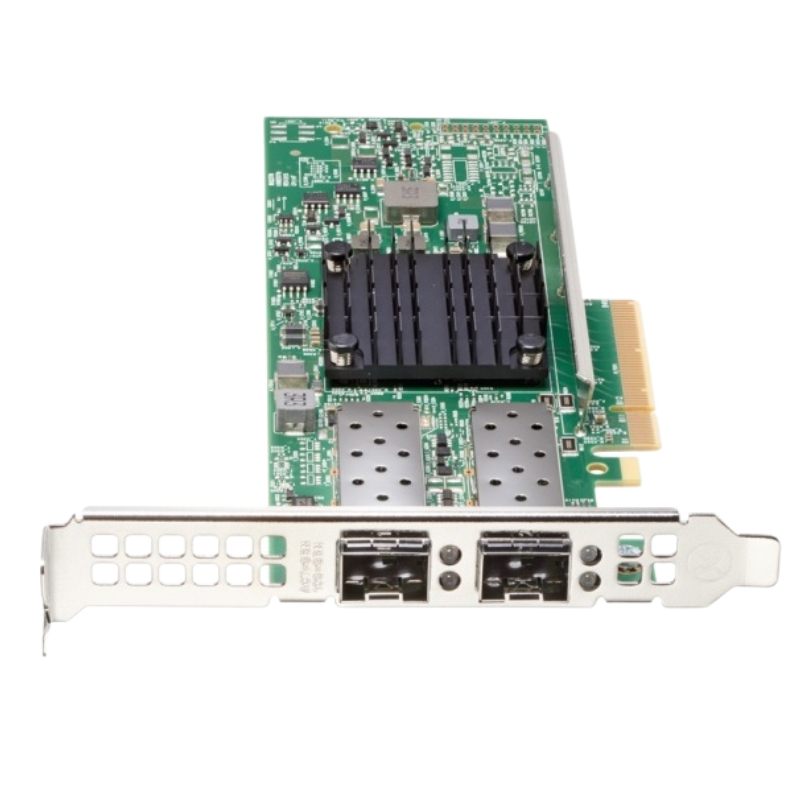

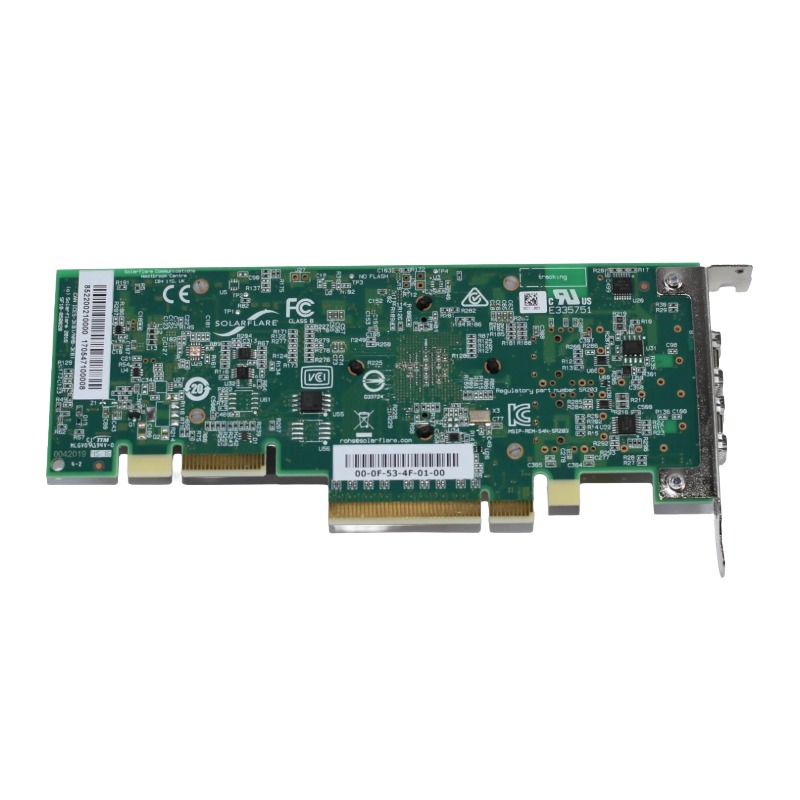

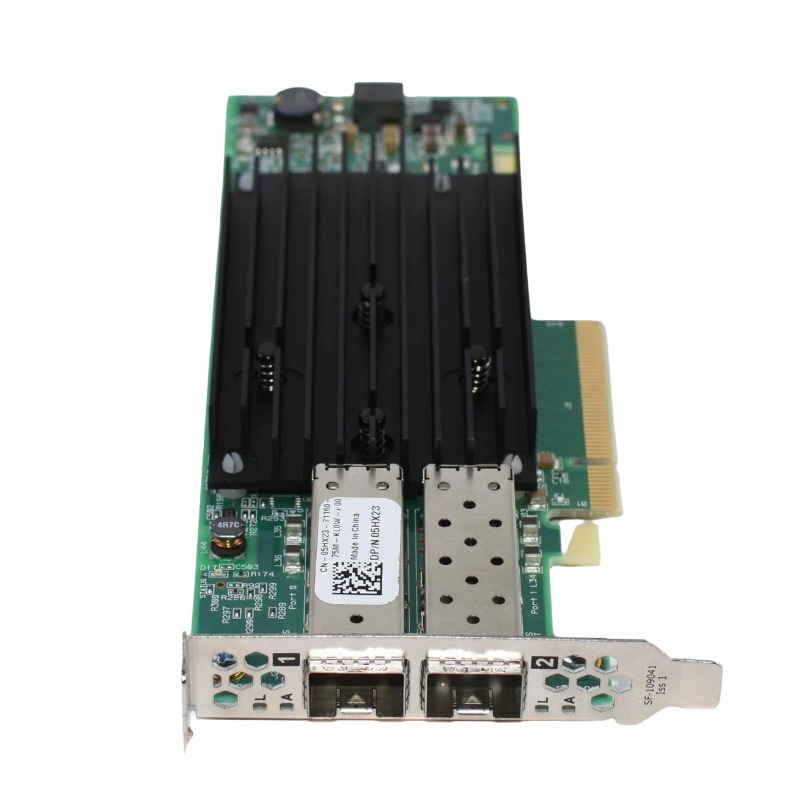

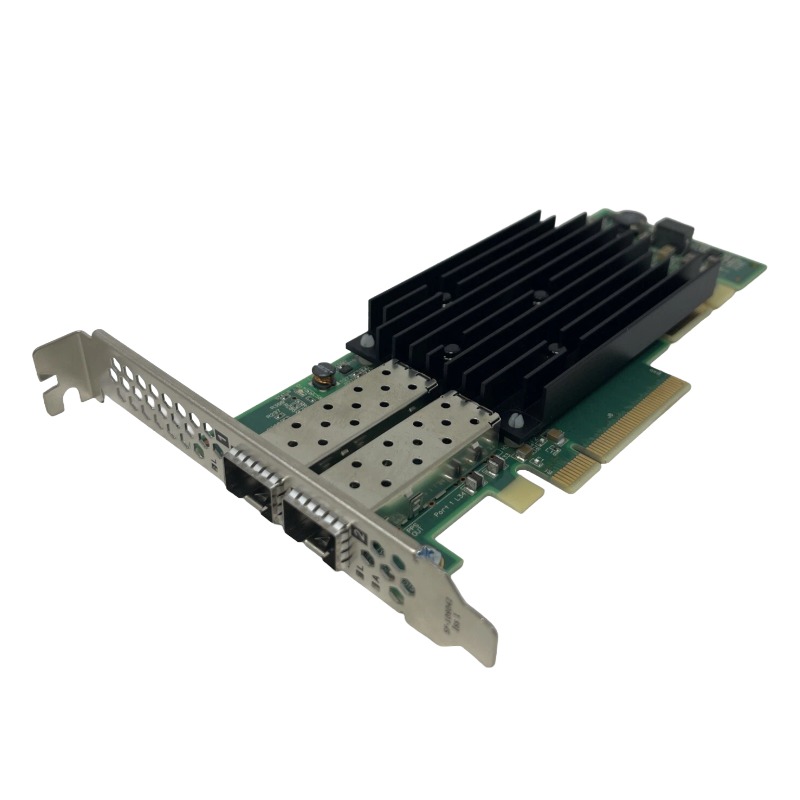

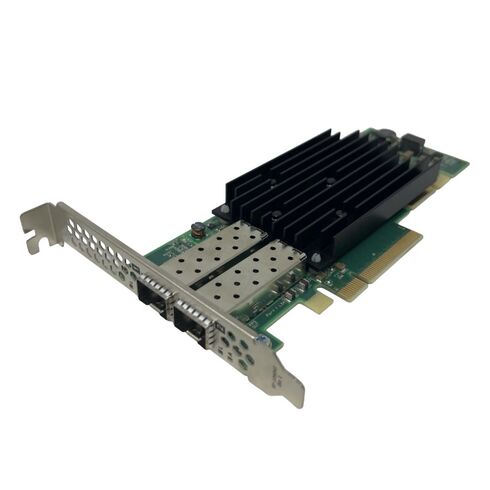

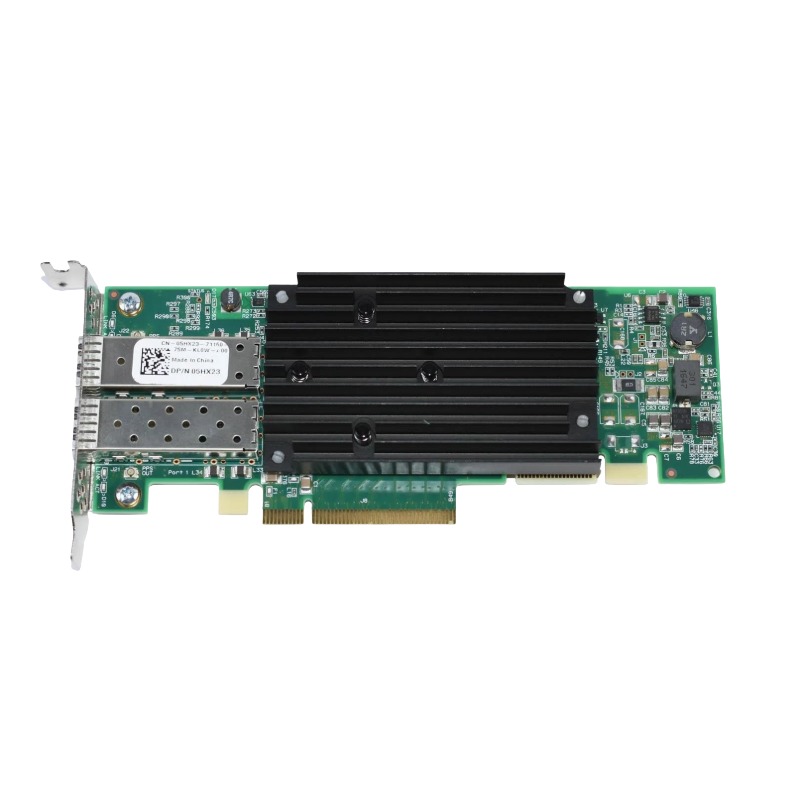

5HX23 Dell Solarflare 10GB 2 Port PCIE 3.1 X8 SFN8522 Server NIC

Dell 5HX23 Solarflare 10GB 2 Port PCIe 3.1 x8 SFN8522 Server NIC Overview

The Dell 5HX23, also known as the Solarflare SFN8522 10GbE Server NIC, is a high-performance dual-port network interface card designed for next-generation data centers and enterprise server environments. Engineered to deliver ultra-low latency, exceptional throughput, and maximum efficiency, this 10 Gigabit Ethernet adapter is ideal for demanding workloads including high-frequency trading (HFT), cloud computing, virtualization, and data-intensive operations. The Dell 5HX23 supports PCI Express 3.1 x8, ensuring a robust connection to server motherboards and delivering consistent, high-speed network access with minimal bottlenecks.

Key Features of the Dell 5HX23 10GB Solarflare SFN8522 Server NIC

• Dual-port 10 Gigabit Ethernet connectivity
• PCIe 3.1 x8 interface for enhanced bandwidth
• Solarflare SFN8522 controller for optimal performance
• Low-latency and high-throughput optimized architecture
• SR-IOV and virtualization support
• Advanced packet filtering and flow steering
• Support for both copper and fiber via SFP+ cages
• Energy-efficient Ethernet (EEE) for reduced power consumption

Enterprise-Grade Performance for Data Center Applications

Designed specifically for data centers and enterprise networks, the Dell 5HX23 NIC card ensures maximum throughput with dual 10GbE ports that operate independently or in a bonded configuration for load balancing and redundancy. The PCIe 3.1 x8 interface maximizes the data transfer capabilities, allowing for seamless high-speed connections between network nodes. Ideal for applications such as real-time analytics, storage area networks (SAN), and network-attached storage (NAS), this server NIC ensures high performance in critical environments.

PCIe 3.1 x8 Interface: Bandwidth and Compatibility

The PCI Express 3.1 x8 interface offers significant improvements in data throughput and latency over previous generations. With support for eight lanes and a theoretical bandwidth of up to 64Gbps, this NIC ensures that data packets flow without congestion. Backward-compatible with PCIe 3.0 and 2.0, the 5HX23 card ensures flexible integration into existing server hardware while enabling performance upgrades without overhauling infrastructure.

Optimized Signal Integrity and Reduced Latency

The PCIe 3.1 interface incorporates improved signal integrity and protocol optimizations, allowing the Dell 5HX23 to maintain ultra-low latency operations even under peak loads. This ensures consistent data transmission and rapid access in latency-sensitive environments like financial trading platforms or real-time simulation environments.

Solarflare SFN8522 Controller Architecture

At the heart of the Dell 5HX23 NIC lies the Solarflare SFN8522 controller. Renowned for its efficiency and reliability, this controller offers hardware-level packet processing capabilities, intelligent offloading features, and congestion control mechanisms. The Solarflare chipset is engineered for line-rate packet delivery, minimizing CPU overhead and enhancing system-level efficiency. Its integrated precision time protocol (PTP) support is especially valuable for time-sensitive applications requiring synchronized timestamps.

Hardware Offloads for Increased Efficiency

The SFN8522 supports a wide array of hardware offloading capabilities, including TCP/UDP checksum offload, TSO (TCP Segmentation Offload), LRO (Large Receive Offload), and Receive Side Scaling (RSS). These features allow data packets to be processed with minimal CPU intervention, freeing up processing power for applications and reducing overall latency and energy consumption.

Intelligent Flow Steering and Filtering

Advanced flow steering capabilities enable optimized data path selection within the server’s architecture. Through hardware-based packet classification and filtering, the NIC efficiently manages traffic based on source/destination IP, port, and application layer data. This ensures more predictable performance, enhances security, and facilitates bandwidth management across virtual machines and containers.

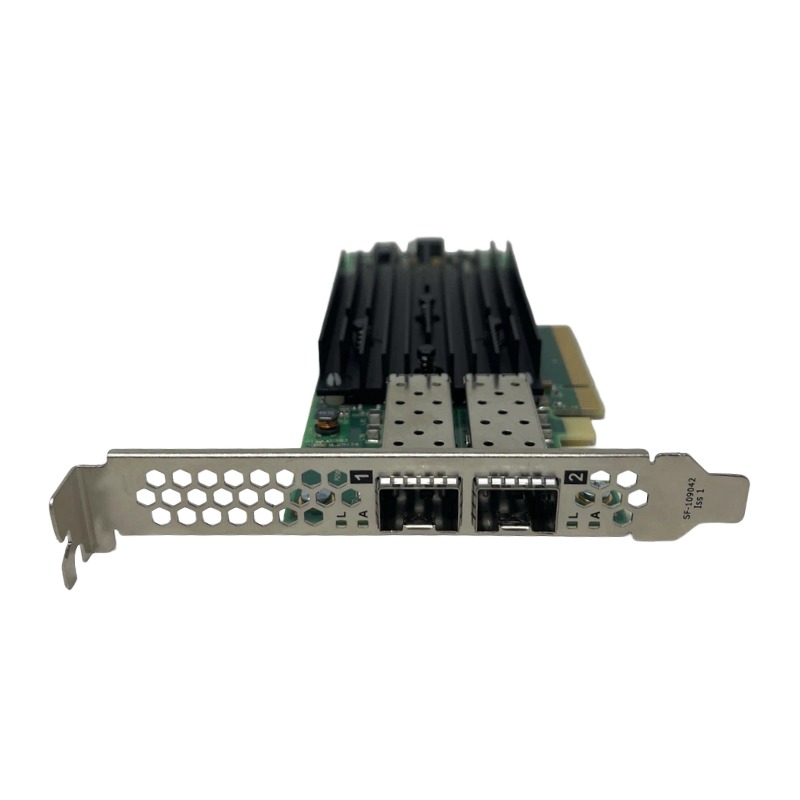

Dual 10GBE SFP+ Ports: Fiber and Copper Flexibility

The Dell 5HX23 features two SFP+ slots, supporting both fiber and Direct Attach Copper (DAC) transceivers. This flexible port configuration provides network administrators with the ability to customize their connectivity to suit operational requirements. Whether for short-range copper cabling in rack-level setups or longer-range fiber optics for inter-rack communication, this NIC offers unmatched adaptability.

Scalable Performance for Virtualized Environments

With support for Single Root I/O Virtualization (SR-IOV), the Dell 5HX23 is ideal for cloud environments and virtualized infrastructure. SR-IOV allows multiple virtual machines (VMs) to share a single NIC without compromising on performance. By assigning virtual functions (VFs) directly to VMs, it reduces overhead, enhances security isolation, and improves latency for hosted applications.

Virtual Machine Queue (VMQ) and Quality of Service (QoS)

VMQ helps in distributing network traffic load evenly among multiple CPU cores, preventing bottlenecks in multi-core systems. Combined with Quality of Service (QoS) features, the NIC ensures traffic prioritization and bandwidth guarantees, allowing critical applications to maintain consistent throughput even during network congestion.

Edge Computing and Container-Based Workloads

In environments running containerized applications or edge computing platforms, the Dell 5HX23 provides consistent performance with reduced jitter. Its ability to deliver deterministic networking is essential in microservices architectures where millisecond differences can impact system behavior.

High Reliability and Thermal Management

The robust design of the Dell 5HX23 NIC ensures high operational reliability even in continuous 24/7 workloads. The card is built with enterprise-grade components, reinforced PCB, and optimized heat dissipation mechanisms, including a built-in heat sink that facilitates effective thermal control. This thermal resilience translates to reduced risk of failure and extended service life in rack-mounted environments with limited airflow.

Energy-Efficient Ethernet and Smart Power Management

Energy efficiency is a key aspect of modern networking hardware. The 5HX23 NIC implements Energy-Efficient Ethernet (EEE) features compliant with IEEE 802.3az standards. It intelligently scales down power usage during periods of low data transmission without compromising link availability or network responsiveness.

Ideal Use Cases for the Dell 5HX23 NIC

This NIC is particularly suited for a wide range of demanding enterprise applications. Below are some of the most common use cases:

• Data Center Networking: Facilitates high-throughput interconnects between compute, storage, and core networking nodes.
• High-Frequency Trading: Supports ultra-low latency packet transmission for time-sensitive financial operations.
• Cloud Infrastructure: Ideal for large-scale deployments running hypervisors and virtual machines with high I/O needs.
• Storage Networking: Connects seamlessly with NAS and SAN systems for rapid data access and retrieval.
• High-Performance Computing (HPC): Used in cluster environments for fast data exchange between nodes.
• Edge Servers and Gateways: Delivers high-speed, reliable network access in distributed computing topologies.

Compatibility with Major Operating Systems and Virtual Platforms

The Dell 5HX23 is compatible with a broad range of operating systems and hypervisors, including:

• Windows Server 2016 / 2019 / 2022
• Linux distributions: RHEL, CentOS, Ubuntu, SUSE
• VMware ESXi 6.x / 7.x
• Citrix Hypervisor
• KVM and Proxmox VE

Driver Support and Firmware Updates

Dell provides ongoing support for firmware updates and driver packages to maintain hardware security and compatibility. Solarflare also contributes to upstream Linux driver development, ensuring reliable performance and timely patches across enterprise distributions.

Advanced Networking Technologies Enabled

The Dell 5HX23 leverages several cutting-edge networking technologies:

• TCP/IP Offload Engine (TOE)
• Data Center Bridging (DCB)
• VXLAN and NVGRE tunneling support
• IEEE 1588 PTP for time synchronization
• Layer 2 and Layer 3 packet filtering
• Support for iSCSI and FCoE traffic optimization

Security and Isolation Features

With support for VLAN tagging, secure boot, and hardware-level segmentation, the 5HX23 enables network segmentation and role-based traffic isolation. It allows IT administrators to implement security best practices without additional hardware investment.

MAC Address Filtering and Traffic Mirroring

MAC address filtering adds a layer of access control at the hardware level, and traffic mirroring enables packet analysis for security audits, intrusion detection, and performance monitoring in real time.

Installation and Maintenance

Installation of the 5HX23 card is straightforward, requiring a compatible PCIe x8 or x16 slot. The NIC is hot-swappable in supported chassis environments, allowing for minimal downtime during upgrades or replacements. Standard Dell tools and BIOS settings provide additional configuration flexibility post-installation.

Diagnostics and Monitoring Tools

Compatible diagnostic tools include Dell OMSA, Solarflare's SolarCapture, and standard SNMP-based utilities. These tools help monitor link status, port activity, traffic statistics, and error rates. Network administrators can quickly identify and resolve issues, keeping downtime to a minimum.
