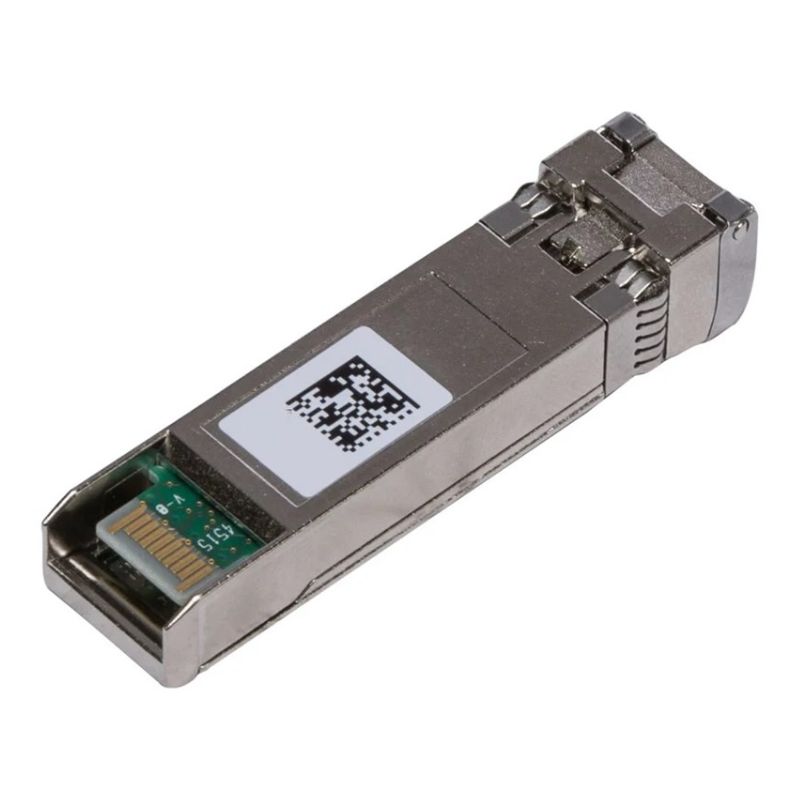

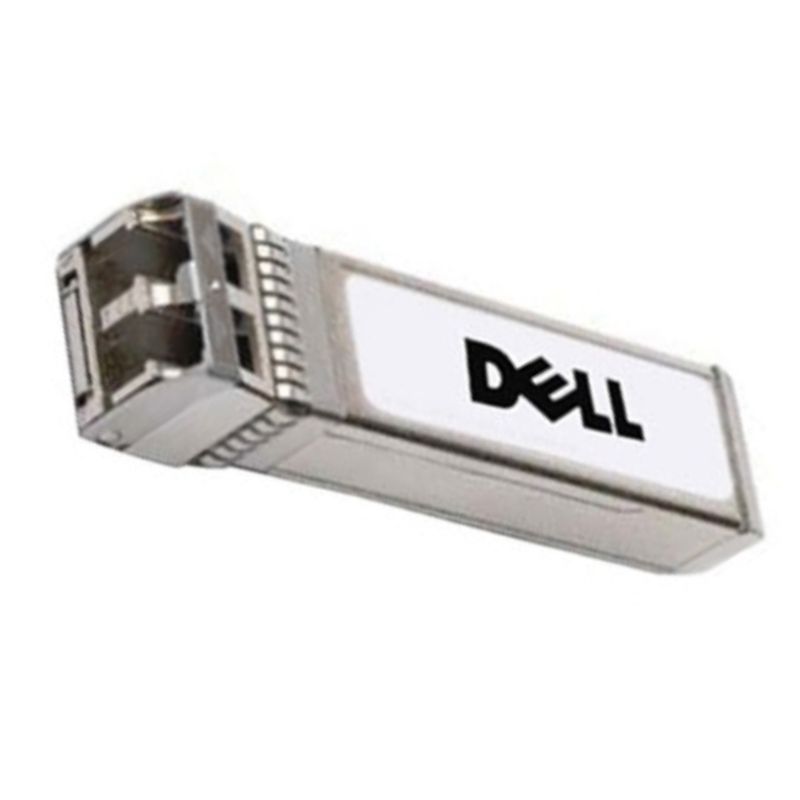

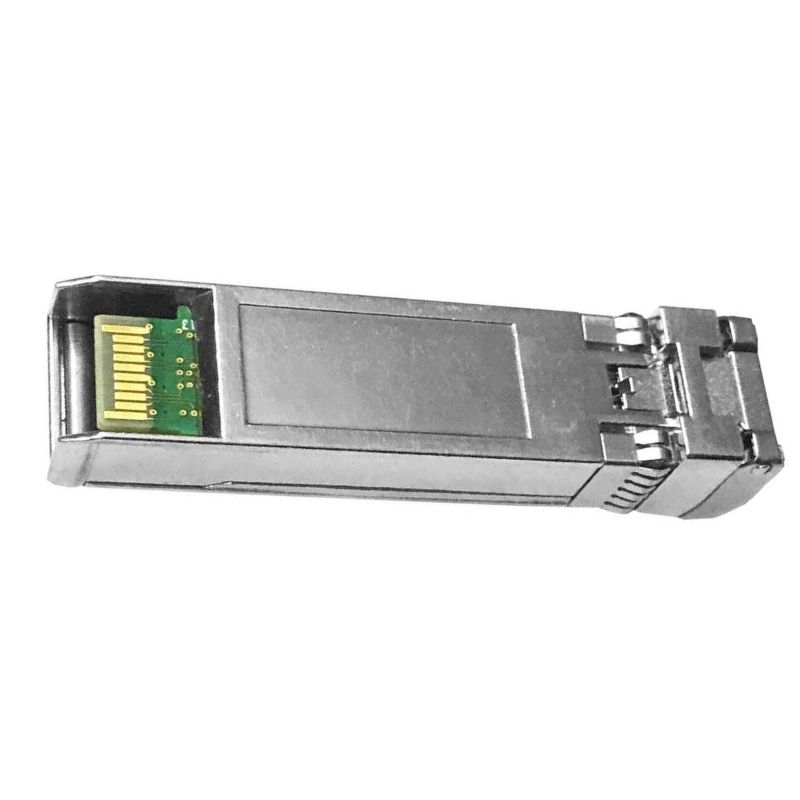

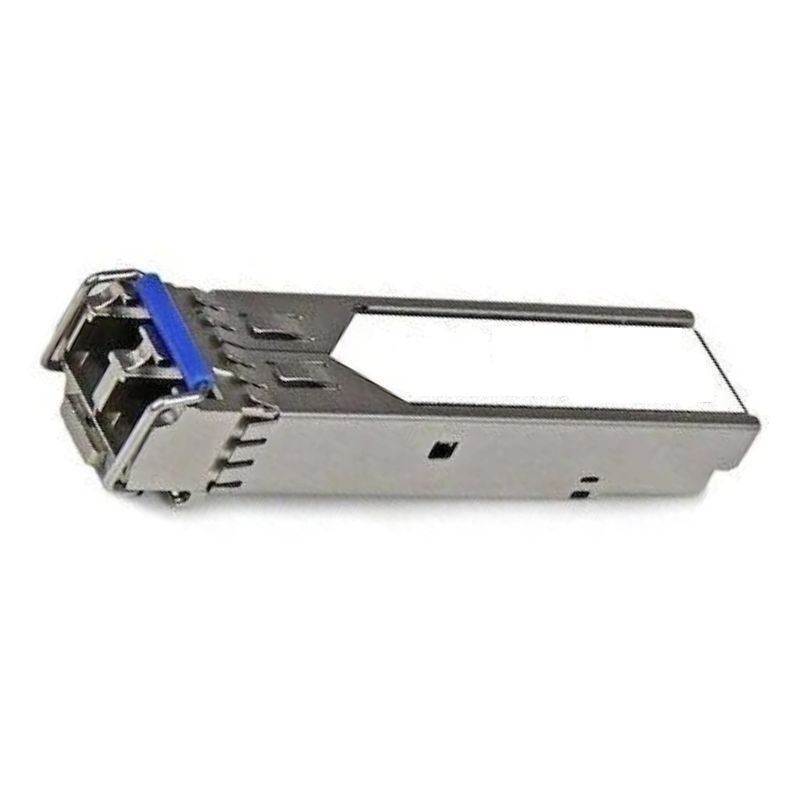

60F4J Dell SFP+ LR Optic 10GbE SM 1310nm 10GBASE-LR Transceiver Module

Overview of the Transceiver Module

The 60F4J Dell SFP+ LR Optic 10GbE SM 1310nm 10GBASE-LR Transceiver Module category represents a high-performance class of optical networking components designed for enterprise-grade and data center environments requiring long-range, high-speed data transmission. This category focuses on Small Form-Factor Pluggable Plus (SFP+) modules engineered for 10 Gigabit Ethernet (10GbE) connectivity over single-mode fiber (SMF) using a 1310nm wavelength optimized for long-reach communication. The LR (Long Reach) designation signifies its capability to support extended transmission distances, typically up to 10 kilometers, making it suitable for inter-building connections, metropolitan area networks, and large-scale data center interconnects.

Technical Specifications

• Form Factor: SFP+ plug-in module.
• Data Rate: 10 Gbps line speed.
• Dual Rate: Supports 1GbE fallback capability.
• Fiber Type: Single-Mode Fiber (SMF).
• Wavelength: 1310 nm optical frequency.
• Max Distance: 10 km transmission reach.
• Connector: Duplex LC optical interface.
• Core Standards: IEEE 802.3ae 10GBASE-LR.

Compatibility Information

• PowerEdge R-Series: R440, R540, R640, R740, R740xd.
• PowerEdge T-Series: T440, T640.
• PowerSwitch N-Series: N1524, N1548, N2024, N2048, N3024, N3048.
• PowerSwitch S-Series: S3124, S3148, S4128, S4148.
• PowerSwitch X-Series: X1052, X4012.

Dell SFP+ LR Optic 10GbE SM 10GBASE-LR Transceiver Module

Within modern networking infrastructures, the 60F4J Dell SFP+ LR Optic 10GbE SM 1310nm 10GBASE-LR Transceiver Module plays a critical role in ensuring seamless high-bandwidth data transfer between switches, routers, storage systems, and server nodes. This category is particularly important for organizations that require stable, low-latency, and scalable optical communication across distributed environments.

Core Functionality and Optical Networking Role

The primary function of the 10GBASE-LR SFP+ transceiver category is to convert electrical signals into optical signals and vice versa, enabling efficient transmission over single-mode fiber infrastructure. The 1310nm wavelength is widely used for long-distance communication due to its low attenuation characteristics and compatibility with standard single-mode fiber cabling. The 60F4J Dell module ensures reliable signal integrity over extended distances while maintaining compliance with IEEE 802.3ae 10GBASE-LR standards.

In enterprise environments, these modules are deployed in high-density switching systems where uplinks and backbone connections demand consistent 10GbE throughput. Their plug-and-play SFP+ form factor enables hot-swappable installation, minimizing downtime and simplifying network expansion. The category also supports Digital Optical Monitoring (DOM), which provides real-time diagnostics such as temperature, optical power, and voltage levels.

Specifications and Engineering Characteristics

The 60F4J Dell SFP+ LR Optic 10GbE SM 1310nm 10GBASE-LR Transceiver Module category is defined by precise optical and electrical parameters that ensure compatibility and performance consistency across networking environments. Typical specifications include a data rate of 10.3125 Gbps, operating wavelength centered at 1310nm, and transmission distance capability up to 10 km over OS2 single-mode fiber.

Optical Performance Attributes

The optical transmitter utilizes a laser diode optimized for 1310nm emission, which provides a balance between cost efficiency and long-range performance. The receiver section incorporates a high-sensitivity photodiode capable of accurately interpreting incoming optical signals even under varying attenuation conditions. This ensures minimal packet loss and high signal fidelity in dense network infrastructures.

Electrical Interface and SFP+ Compliance

The electrical interface conforms to the SFF-8431 and SFF-8432 standards for SFP+ modules, ensuring interoperability with compatible Dell networking equipment. The module supports low-power consumption modes, typically under 1.5W, contributing to improved energy efficiency in large-scale deployments.

Connector and Media Type

This category exclusively supports LC duplex connectors for single-mode fiber applications. The LC interface is widely adopted due to its compact size, high precision alignment, and reliability in high-density patch panel environments.

Network Architecture Integration and Deployment Scenarios

The 60F4J Dell SFP+ LR Optic 10GbE SM 1310nm 10GBASE-LR Transceiver Module category is commonly integrated into layered network architectures, including core, aggregation, and access layers. In enterprise data centers, these modules are often deployed in spine-leaf architectures to support east-west traffic flow between servers and storage systems. In metropolitan area networks (MANs), LR modules provide reliable connectivity between geographically separated facilities. This allows organizations to interconnect data centers, disaster recovery sites, and cloud infrastructure hubs while maintaining high bandwidth and low latency. Their long-range capability eliminates the need for intermediate signal regeneration, reducing infrastructure complexity and cost.

Compatibility with Dell Networking Infrastructure

The 60F4J Dell SFP+ LR Optic 10GbE SM 1310nm 10GBASE-LR Transceiver Module is designed for seamless compatibility with Dell networking hardware, including Dell PowerSwitch series, legacy Force10 switches, and enterprise-grade routing platforms. Dell-certified optics ensure firmware-level recognition, reducing the risk of compatibility issues commonly associated with third-party transceivers. Compatibility extends across a wide range of Dell environments, including virtualized data centers, cloud infrastructure nodes, and high-performance computing clusters. The module’s standardized design ensures consistent performance across supported Dell platforms, enabling predictable network behavior and simplified inventory management.

Single-Mode Fiber and 1310nm Wavelength Advantages

Single-mode fiber (SMF) is essential for the optimal performance of the 10GBASE-LR transceiver category. Unlike multimode fiber, SMF allows light to travel in a single path, significantly reducing modal dispersion and enabling long-distance transmission. The 1310nm wavelength is particularly effective in minimizing attenuation and chromatic dispersion over extended distances. This makes the category highly suitable for backbone connectivity, inter-campus networking, and service provider infrastructure. The combination of SMF and 1310nm optics ensures stable signal propagation even in environments with high electromagnetic interference or physical separation.

Performance Optimization and Network Efficiency

Optimizing performance in environments using the 60F4J Dell SFP+ LR Optic 10GbE SM 1310nm 10GBASE-LR Transceiver Module involves careful attention to fiber quality, connector cleanliness, and link budgeting. Proper optical power levels must be maintained to avoid receiver saturation or insufficient signal strength. Network administrators often implement link monitoring systems to track real-time optical performance. This ensures early detection of degradation caused by fiber aging, contamination, or physical stress. Additionally, maintaining proper cable management practices reduces bending losses and preserves signal integrity.

Digital Diagnostics Monitoring (DDM) Capabilities

A key feature of this category is Digital Diagnostics Monitoring (DDM), also referred to as DOM. This functionality provides real-time visibility into operational parameters such as transmitted optical power, received optical power, laser bias current, and internal temperature. By leveraging DDM, network operators can proactively identify potential failures before they impact network performance. This predictive maintenance capability is essential in mission-critical environments where downtime is unacceptable. The 60F4J Dell module integrates these diagnostics seamlessly into Dell network management systems.

Comparison with Other Optical Transceiver

The 10GBASE-LR SFP+ module category differs significantly from SR (Short Reach), ER (Extended Reach), and ZR (Ultra Long Reach) modules. SR modules typically operate over multimode fiber with distances up to 300 meters, while LR modules extend up to 10 kilometers over single-mode fiber.ER and ZR modules offer even greater distances but at higher cost and power consumption. The 60F4J Dell SFP+ LR Optic 10GbE SM 1310nm 10GBASE-LR Transceiver Module strikes an optimal balance between cost efficiency, power usage, and long-distance capability, making it one of the most widely deployed solutions in enterprise networking.

Enterprise Data Center Applications

In enterprise data centers, this category supports high-speed interconnects between top-of-rack (ToR) switches, aggregation switches, and core switching layers. The ability to maintain 10GbE throughput over long distances enables flexible data center design and efficient scaling. It is also commonly used in storage area networks (SANs), virtualization clusters, and cloud computing environments where consistent bandwidth and low latency are essential for workload distribution and data replication.

Telecommunications and Metropolitan Network Usage

Telecom operators leverage the 60F4J Dell SFP+ LR Optic 10GbE SM 1310nm 10GBASE-LR Transceiver Module category to build robust metro Ethernet networks. These modules facilitate connectivity between central offices, base stations, and aggregation points across cities and regions. Their long-reach capability reduces the need for costly signal regeneration equipment, simplifying network architecture and improving operational efficiency. This makes them ideal for service providers delivering high-speed internet, IPTV, and enterprise connectivity solutions.

Industry Standards and Compliance Frameworks

The 60F4J Dell SFP+ LR Optic 10GbE SM 1310nm 10GBASE-LR Transceiver Module category adheres to multiple industry standards, including IEEE 802.3ae for 10GbE Ethernet and SFP+ multi-source agreement (MSA) specifications. These standards ensure interoperability across vendors and consistent performance metrics. Compliance with RoHS environmental standards also ensures reduced hazardous material usage, making these modules suitable for environmentally conscious enterprise deployments.

Security, Reliability, and Network Stability

While optical transceivers are passive in terms of data processing, their reliability directly impacts network security and stability. Signal degradation or hardware failure can lead to data loss or downtime, making high-quality modules essential for secure network operations. Dell-certified optics provide enhanced reliability through rigorous testing and validation processes. This reduces risks associated with counterfeit or incompatible modules that may compromise network integrity.

Future-Proofing and Network Evolution Considerations

As network demands continue to evolve, the 60F4J Dell SFP+ LR Optic 10GbE SM 1310nm 10GBASE-LR Transceiver Module category remains relevant due to its balance of cost, performance, and compatibility. While higher-speed standards such as 25GbE and 100GbE are emerging, 10GbE LR modules continue to serve as a foundational technology in many enterprise environments. Their role in hybrid infrastructures ensures backward compatibility and gradual transition pathways for organizations upgrading their network architectures without complete infrastructure replacement.
