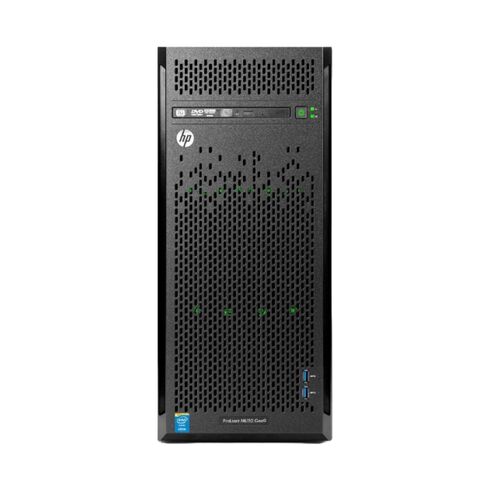

HPE Proliant Ml110 Gen9 Xeon E5-2603V3/1.6GHz DDR4 Server 4GB

Processor

The HPE ML110 Gen9 Server is equipped with a powerful Xeon 6-Core E5-2603V3/1.6GHz processor. This feature sets it apart from other servers in its class and brings numerous benefits to users.

Main Information of Gen9 Xeon

Manufacturer: Hewlett Packard Enterprise

Manufacturer Part Number: 777160-001

Product Name: Proliant ML110 Gen9 - 4.5U Tower Server (Entry Model)

Processor & Chipset

• Processor Type: Intel Xeon E5-2603v3, 1.6GHz
• QuickPath Interconnect: 6.4 GT/s
• Number of Cores: 6-core
• 64-bit Computing: Yes
• Compatible Processor Socket: FCLGA2011-3
• Installed Quantity: 1
• Max Supported Quantity: 1

Chipset Specifications

• Chipset Type: Intel C610 Series

Cache Memory

• Cache Type: Smart Cache
• Installed Size: 15 MB
• Cache Per Processor: 15 MB

Memory

• Installed Size: 4 GB (1 x 4 GB) / Up to 256 GB
• Technology: DDR4 SDRAM - Advanced ECC
• Memory Speed: 1600 MHz
• Memory Specification Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Features: Registered, Online Spare Memory, HP SmartMemory
• RAM Supported: PC4-17000 - 128 GB (Load-Reduced), PC4-17000 - 256 GB (Registered)

Storage

• Hard Drive: No HDD
• Optical Drive: None

Storage Controllers

• Storage Controller: Smart Array B140i
• Buffer Size: None
• Disk Drive: Up to 6 Gb/s SATA
• Connectors: 10 Internal SATA Connectors
• Server Interface: x4 PCIe 2.0
• SATA Speed: 6 Gb/s SATA Links
• Logical Drives Supported: Up to 8 Logical Volumes (6 Physical Drives)
• Host Memory Addressing: 64-bit, Supporting Greater Than 4 GB Server Memory Space
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50

Display & Graphics Controllers

• Graphics Processor: No Graphics

Network & Communication

• Networking Type: Integrated
• Interface (Bus) Type: PCI Express x2
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: HP 330i
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Power Description

• Device Type: Power Supply
• Installed Quantity: 1
• Max Supported Quantity: 2
• Nominal Voltage: AC 100-230V (50/60 Hz)
• Power Provided: 350 Watt

Expansion & Connectivity

• Total Expansion Bays (Free): 1 (Total) / 1 (Free) x External 5.25
• Total Internal Bays (Free): 4 (Total) / 4 (Free) x Internal 3.5 LFF

Expansion Slots

• Total DIMM Slots (Free): 8 (Total) / 7 (Free) x DIMM 288-pin
• Total CPU Slots (Free): 1 (Total) / 0 (Free)
• Total PCIe x8 Slots (Free): 2 (Total) / 2 (Free) x PCIe 3.0 x8 - Half-length, Full-height
• Total PCIe x4 Slots (Free): 2 (Total) / 2 (Free) x PCIe 3.0 x4 - Half-length, Full-height
• Total PCIe x16 Slots (Free): 1 (Total) / 1 (Free) x PCIe 3.0 x16 - Three-quarter-length, Full-height
• Total MicroSD Card Slots (Free): 1 (Total) / 1 (Free)

Interfaces & Ports

• VGA Port: 1 (Rear)
• LAN Ports (Gigabit Ethernet): 2
• HP iLO Port: 1
• USB 3.0 Ports: 5 (2 Front, 2 Rear, 1 Internal)
• USB 2.0 Ports: 3 (2 Rear, 1 Internal)

Dimensions & Weight

• Depth: 18.9 inches
• Width: 7.7 inches
• Height: 17.3 inches
• Weight: 27.6 lbs

Enhanced Performance

With the Xeon 6-Core E5-2603V3/1.6GHz processor, the HPE ML110 Gen9 Server delivers exceptional performance that can handle a wide range of workloads. Whether you are running resource-intensive applications or handling multiple virtual machines, this processor ensures smooth and efficient operations.

Increased Productivity

The powerful processing capabilities of the Xeon 6-Core E5-2603V3/1.6GHz processor enable faster data processing, reducing wait times and increasing overall productivity. Users can experience improved response times when accessing files and applications, enabling them to accomplish more in less time.

Optimized Resource Allocation

With the advanced architecture of the Xeon 6-Core E5-2603V3/1.6GHz processor, the HPE ML110 Gen9 Server can intelligently allocate resources to different tasks. This ensures that critical applications receive the necessary computing power while less demanding processes do not consume unnecessary resources. As a result, users can maximize resource utilization and achieve higher efficiency.

Seamless Scalability

The Xeon 6-Core E5-2603V3/1.6GHz processor supports advanced scalability features, allowing users to easily expand their server capabilities as their business grows. With this processor, the HPE ML110 Gen9 Server can accommodate increasing workloads without compromising performance, providing a future-proof solution for businesses of all sizes.

Reliability and Stability

The Xeon 6-Core E5-2603V3/1.6GHz processor is designed to deliver exceptional reliability and stability. Users can rely on this processor to handle mission-critical tasks without the risk of system failures or performance bottlenecks. This ensures uninterrupted operations and enhances the overall stability of the HPE ML110 Gen9 Server.

RAM

The HPE ML110 Gen9 Server is equipped with 4GB of RAM, which plays a crucial role in its performance and usability.

Faster Data Access

With 4GB of RAM, the HPE ML110 Gen9 Server can store frequently accessed data in memory, enabling faster retrieval and reducing the need for constant access to disk storage. This results in improved response times and enhanced user experience.

Efficient Multitasking

The generous amount of RAM in the HPE ML110 Gen9 Server allows users to run multiple applications simultaneously without experiencing significant performance degradation. This enables efficient multitasking, empowering users to accomplish more in less time.

Seamless Virtualization

Virtualization is a critical feature for modern servers, and the 4GB of RAM in the HPE ML110 Gen9 Server provides an ideal environment for virtualized workloads. Users can create and manage virtual machines with ease, leveraging the server's resources to their fullest potential.

Scalability and Future-Proofing

While 4GB of RAM may be sufficient for current needs, it's important to consider future requirements. The HPE ML110 Gen9 Server offers ample room for expansion, allowing users to add more RAM as their needs evolve. This scalability ensures that the server can adapt to growing workloads and provide optimal performance in the long run.

Enhanced Reliability

The HPE ML110 Gen9 Server's 4GB of RAM contributes to its overall reliability. By providing sufficient memory resources, it helps prevent memory-related errors and ensures smooth operations, minimizing the risk of system crashes or performance slowdowns.

Part Number

The HPE ML110 Gen9 Server's part number is 777160-001, which holds significant importance for users.

Easy Identification and Ordering

The part number 777160-001 serves as a unique identifier for the HPE ML110 Gen9 Server. Users can easily reference this number when ordering or inquiring about the server. It simplifies the procurement process and helps ensure that the correct product is obtained.

Compatibility Assurance

By specifying the part number 777160-001, users can ensure compatibility when seeking additional components or accessories for the HPE ML110 Gen9 Server. This eliminates any uncertainty and guarantees that the purchased items will seamlessly integrate with the server, avoiding potential compatibility issues.

Efficient Troubleshooting

In the event of any technical issues or support requests, providing the part number 777160-001 allows support personnel to quickly identify the exact model of the HPE ML110 Gen9 Server. This expedites troubleshooting processes, as support teams can access specific documentation and resources tailored to this particular server model.

Documentation and Updates

HPE maintains comprehensive documentation and provides regular updates for its products. Part number 777160-001 serves as a reference point for accessing relevant documentation, such as user manuals, technical specifications, and firmware updates. Users can rely on these resources to fully leverage the features and capabilities of their HPE ML110 Gen9 Server.

Streamlined Maintenance and Service

When scheduling maintenance or service requests, users can simply provide the part number 777160-001 to ensure that the correct server model is addressed. This reduces confusion and helps service providers deliver efficient and accurate support, minimizing downtime and maximizing the server's uptime.
