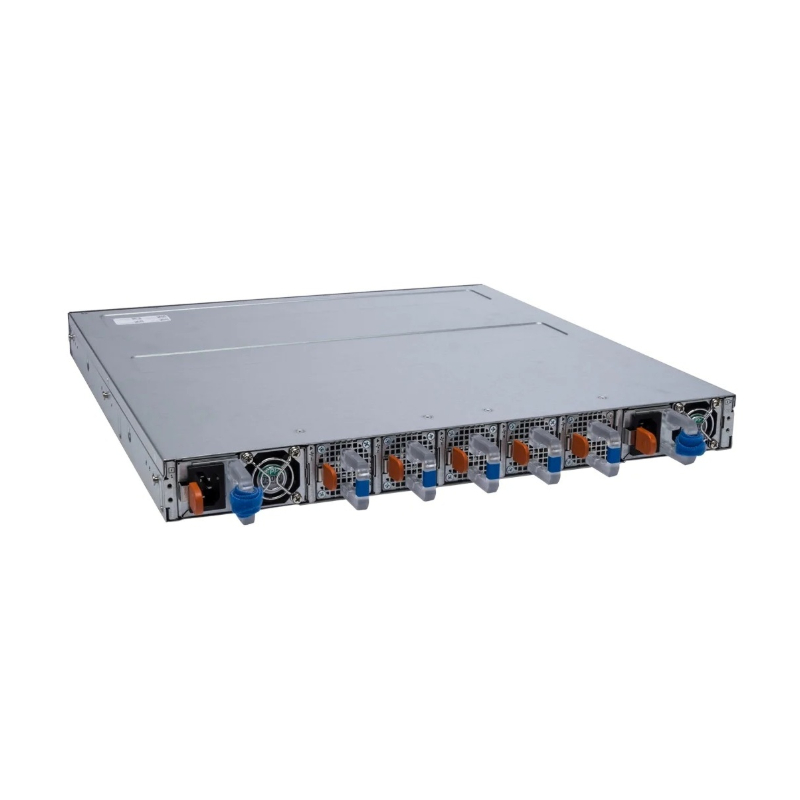

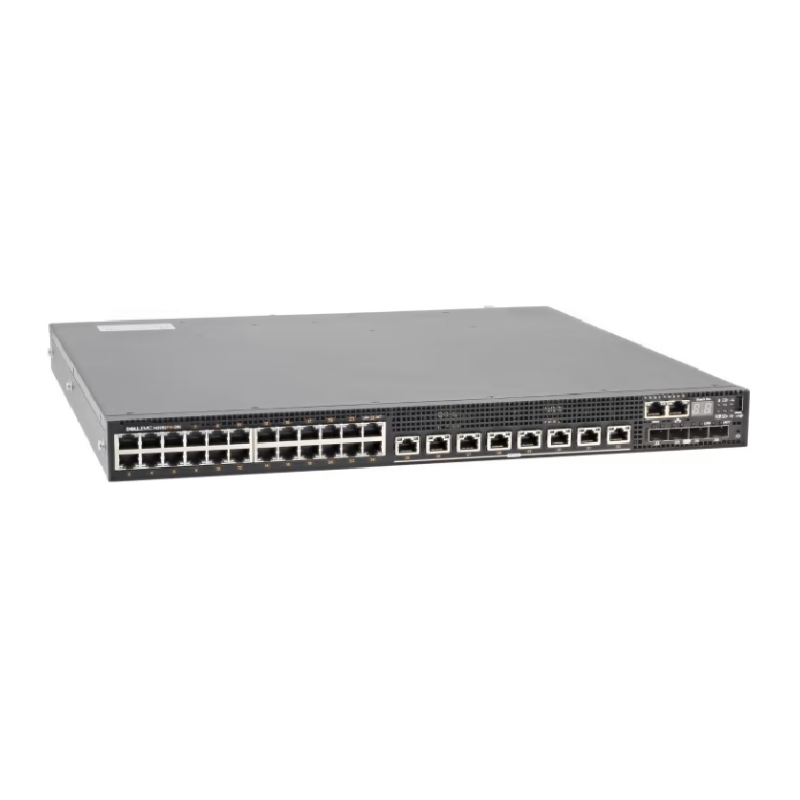

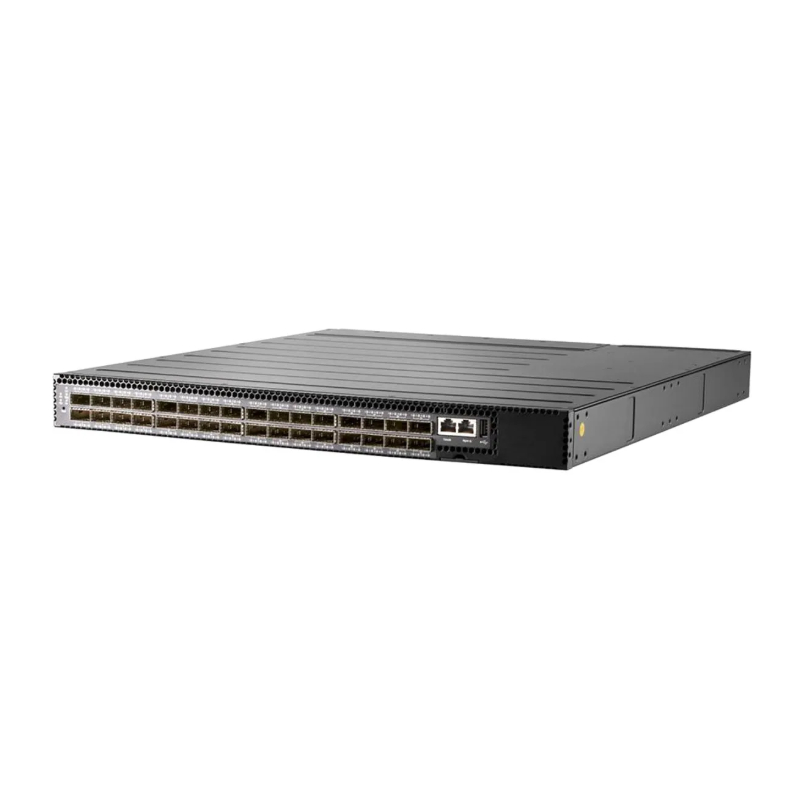

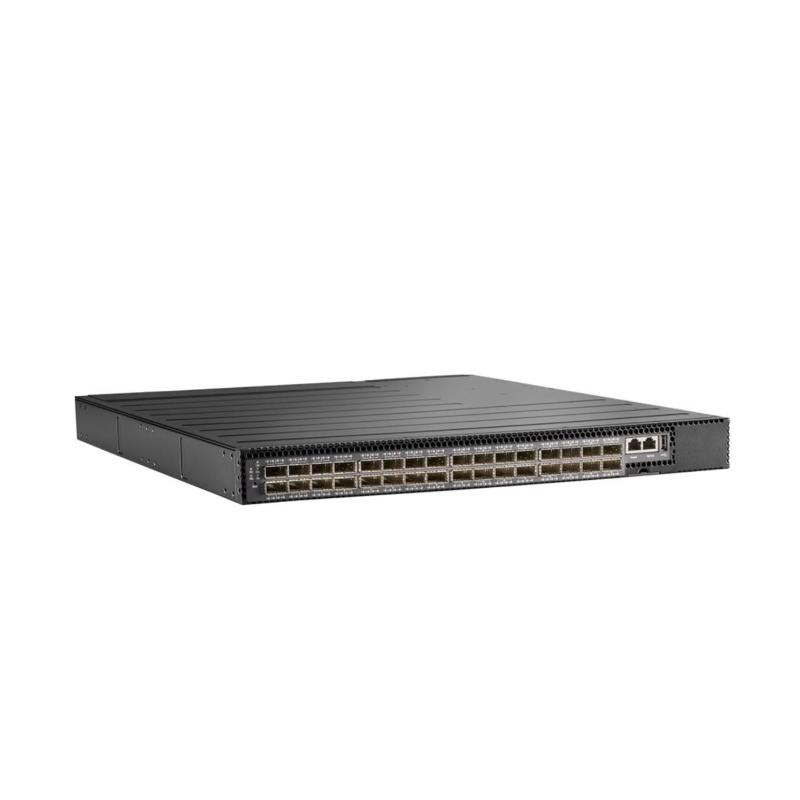

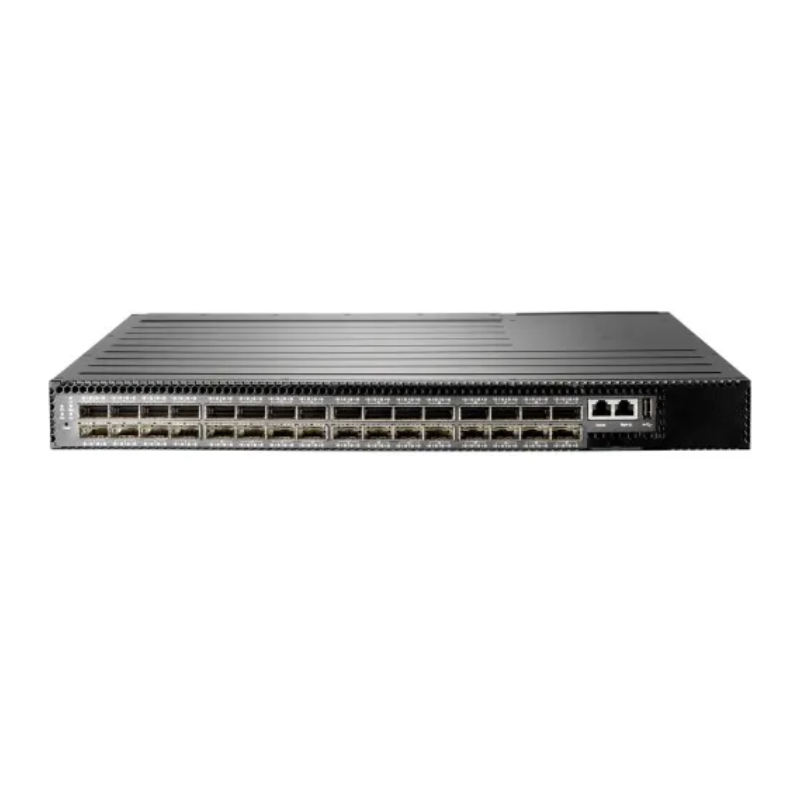

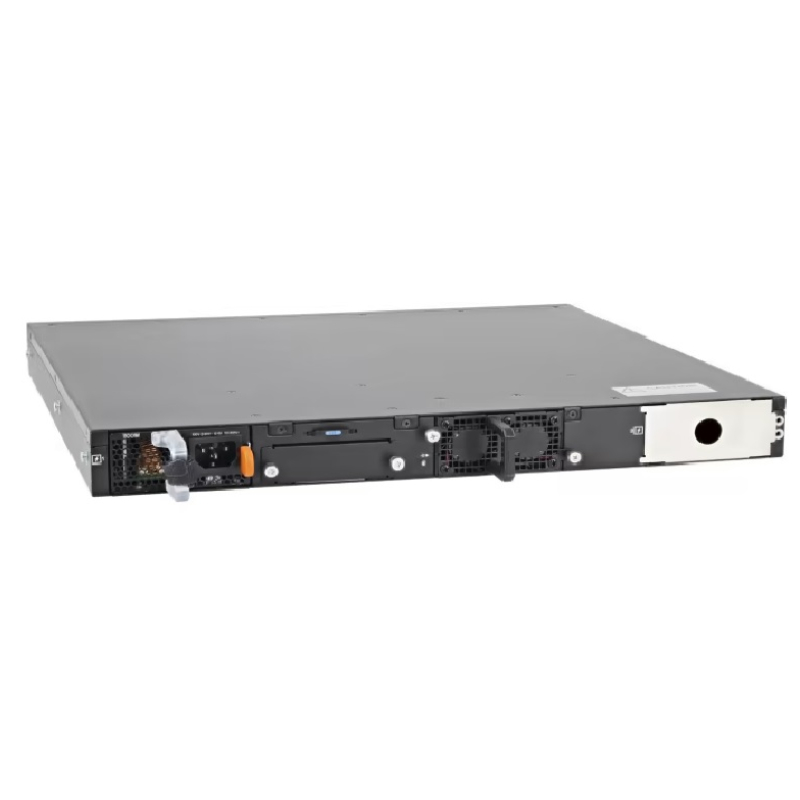

Dell EMC N3132PX-ON 32-Port Network Switch 7PXV8.

7PXV8
Hover on image to enlarge

Brief Overview of 7PXV8

Dell EMC 7PXV8 N3132PX-ON 32-Port Managed Rack-Mountable Network Switch. Excellent Refurbished with 6-Month Replacement Warranty

QR Code of Dell EMC N3132PX-ON 32-Port Network Switch 7PXV8.
$2,749.95
$1,358.00
You save: $1,391.95 (51%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPN7PXV8Availability✅ In StockProcessing TimeUsually ships same day ManufacturerDell Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Detailed Overview of Dell 7PXV8 Networking Switch

Core Features

The Dell N3132PX-ON is a highly efficient managed switch tailored for robust network environments, offering exceptional performance and versatility.

Device Classification

  • Type: 32-Port L3 Managed Stackable Switch
  • Form Factor: Rack-mountable, 1U
  • Network Subtype: Gigabit Ethernet

Port Configuration

  • 24 Ports: 10/100/1000 Mbps (PoE enabled)
  • 8 Ports: 100/1000/2.5G/5G (PoE enabled)
  • 4 Ports: 10 Gigabit SFP+

Performance Specifications

  • Switching Fabric Throughput: 328 Gbps
  • Forwarding Capacity: 428 Mpps

Capacity and Address Handling

  • MAC Address Support: Up to 32,000
  • Dynamic Aggregated Links: Maximum of 144
  • LAG Groups: 128
  • Queues per Port: 8
  • VLAN Capacity: 4094
  • ARP Entries: 6144
  • Maximum ACL Rules (Total): 4096
  • Ingress Rules (IPv4): 3072 per interface
  • Egress Rules (IPv4): 1024 per interface
  • Ingress Rules (IPv6): 1021 per interface
  • Egress Rules (IPv6): 512 per interface
  • Multicast Entries:
    • IPv4: 1536
    • IPv6: 512
  • OSPF Route Capacity: 8160

Routing and Management Features

  • Supported Routing Protocols: IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, MLDv2
  • Remote Management Protocols:
    • SNMP (Versions 2, 3)
    • RMON (1, 2, 3, 9)
    • Telnet, HTTP, TFTP, SSH-2

Security Features

  • Encryption Standards: AES, SSL, TLS 1.0
  • Authentication Methods: RADIUS, TACACS+, LDAP
Advanced Networking Capabilities

This switch is equipped with various features that enhance network efficiency and management:

  • MDI/MDI-X Switching Technology
  • Auto-negotiation for speed adjustments
  • Port mirroring and IP address filtering options
  • Quality of Service (QoS) management
  • LLDP support for network device discovery
  • Remote Switch Port Analyzer (RSPAN) capabilities
  • Time-sensitive Access Control Lists (ACLs)

Compliance with Industry Standards

This device meets a variety of established standards for reliable performance:

  • IEEE 802.2, IEEE 802.3 series, IEEE 802.1 series, ANSI/TIA-1057

Memory and Storage Specifications

  • RAM: 2 GB
  • Flash Memory: 512 MB

Expansion and Connectivity Options

  • Interface Options:
    • 24 x Gigabit LAN - RJ-45 - PoE
    • 8 x 5 Gigabit LAN - RJ-45 - PoE
    • 4 x 10 Gigabit LAN - SFP+
    • 1 x 1000BASE-T - RJ-45 - Management
    • 1 x USB - Type A

Power Specifications

  • Power Supply: Internal with hot-plug capability
  • Installed Power Units: 1 (installed) / 2 (maximum)
  • Power Output: 1100 Watts

Ports

The Dell EMC 7PXV8 N3132PX-ON Network Switch boasts an impressive 32 ports, making it an ideal choice for businesses that require high network capacity and connectivity. With this vast number of ports, users can connect multiple devices simultaneously, ensuring seamless and efficient communication within the network infrastructure.

Increased Connectivity

One of the primary benefits of the Dell EMC 7PXV8 N3132PX-ON Network Switch's 32 ports is the increased connectivity it provides. Whether you have a small office or an enterprise-level organization, this switch offers enough ports to accommodate all your networking needs. With each port capable of handling data at rapid speeds, you can connect multiple devices such as computers, printers, servers, and storage devices without compromising on performance.

Versatility and Flexibility

The abundance of ports on the Dell EMC 7PXV8 N3132PX-ON Network Switch offers versatility and flexibility in network design. It allows you to create complex network architectures without the need for additional switches or devices. This feature is especially crucial for businesses that rely heavily on data-intensive applications or have a large number of users who require simultaneous access to the network.

Scalability

Another significant advantage of having 32 ports on the Dell EMC 7PXV8 N3132PX-ON Network Switch is scalability. As your business grows, so does your network infrastructure. With this switch, you won't have to worry about running out of ports or investing in additional networking equipment to accommodate new devices or users. Its expandability ensures that your network can keep up with the demands of your evolving business.

Improved Network Performance

The Dell EMC N3132PX-ON Network Switch's 32 ports contribute to improved network performance. By distributing the workload across multiple ports, this switch helps prevent congestion and bottlenecks that can slow down data transfer speeds. It ensures that each connected device receives the necessary bandwidth to operate efficiently, resulting in a smooth and uninterrupted network experience for users.

Enhanced Redundancy and Resilience

With 32 ports, the Dell EMC 7PXV8 N3132PX-ON Network Switch offers enhanced redundancy and resilience. Redundancy is crucial in network design to ensure uninterrupted connectivity and minimize downtime. By providing multiple ports, this switch allows for redundant connections, enabling seamless failover and load balancing. In the event of a port failure, the other ports can automatically take over, ensuring uninterrupted network connectivity.

Streamlined Network Management

Managing a large network can be challenging, but the Dell EMC N3132PX-ON Network Switch simplifies the task with its 32 ports. With this switch, you can consolidate your network infrastructure by connecting multiple devices to a single switch, reducing the complexity of cable management and minimizing the number of devices to monitor. This streamlined network management saves time and resources while maximizing efficiency.

Cost-Effective Solution

The Dell EMC N3132PX-ON Network Switch's 32 ports offer a cost-effective solution for businesses. Instead of investing in multiple switches or networking equipment, this switch provides ample ports to meet your organization's requirements. By consolidating your network infrastructure into a single device, you can reduce hardware costs and simplify maintenance, resulting in significant savings over time.

In conclusion, the Dell EMC N3132PX-ON Network Switch's 32 ports provide a multitude of benefits for users. From increased connectivity and versatility to improved network performance and scalability, this switch offers a comprehensive solution for businesses of all sizes. With enhanced redundancy, streamlined management, and cost-effectiveness, it is a reliable choice for organizations seeking efficient and reliable networking solutions.
