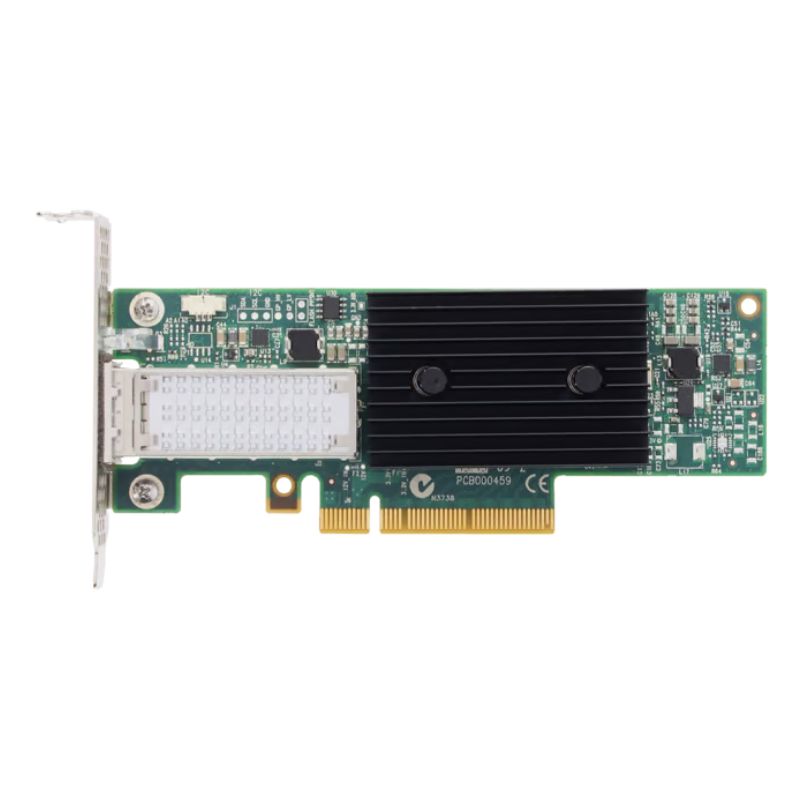

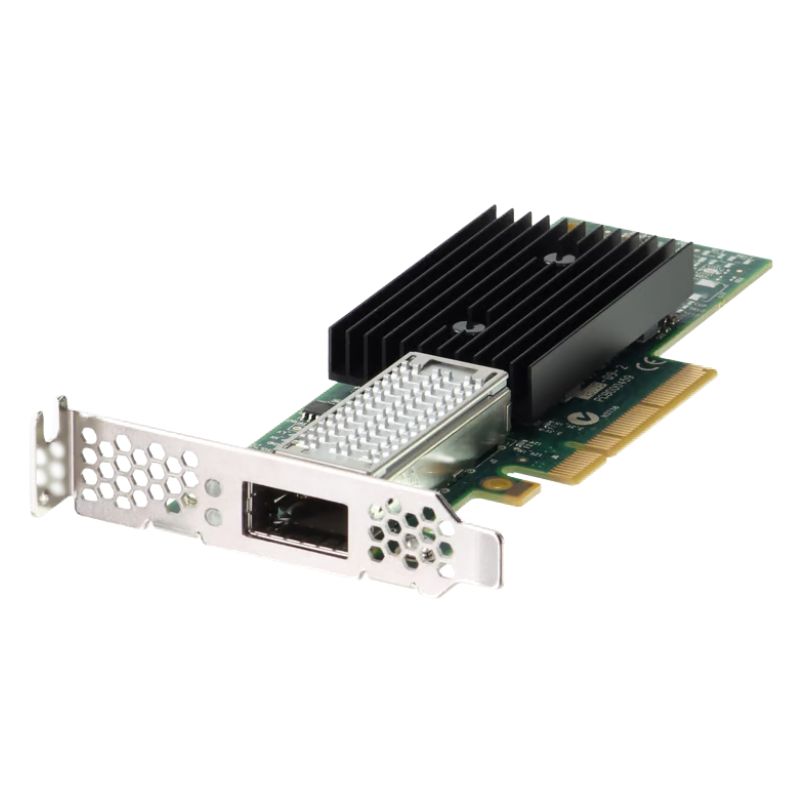

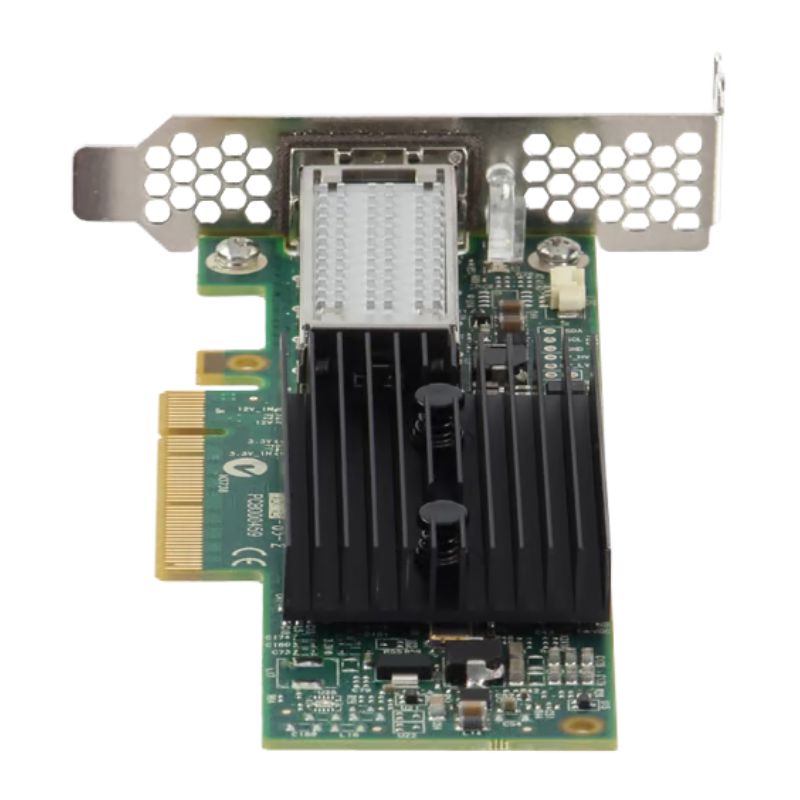

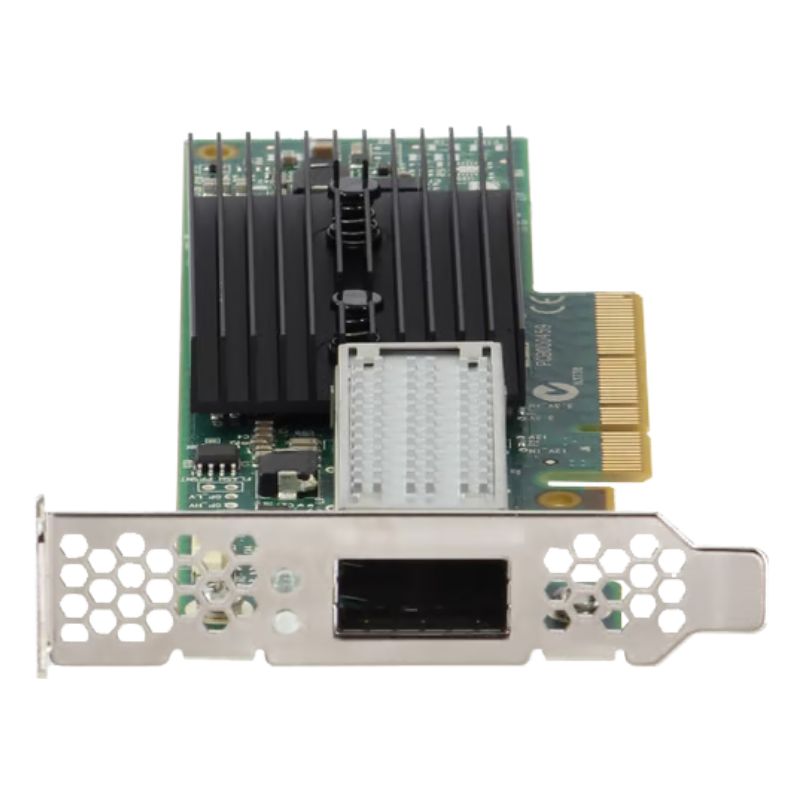

7TKND Dell ConnectX-6 Single Port HDR100 QSFP56 InfiniBand Adapter

High-Speed InfiniBand Single Port QSFP56 Adapter Overview

Enterprise-Class HDR100 Connectivity for Modern Data Centers

The Dell 7TKND Mellanox ConnectX-6 Single Port HDR100 QSFP56 InfiniBand Adapter belongs to an advanced class of high-performance networking solutions designed for compute-intensive environments where ultra-low latency, extreme bandwidth efficiency, and scalable architecture are essential. This category of InfiniBand adapters is engineered to support next-generation workloads across high-performance computing clusters, artificial intelligence training systems, deep learning infrastructures, and hyperscale cloud data centers. The HDR100 standard represents a significant leap in throughput capability, delivering up to 100Gb/s per port while maintaining consistent latency characteristics that are critical for synchronized distributed computing environments.

Positioning Within Dell Enterprise Networking Ecosystem

Within Dell’s enterprise networking portfolio, the 7TKND Mellanox ConnectX-6 adapter is positioned as a premium interconnect solution that bridges compute nodes with high-efficiency data transport layers. It is optimized for Dell PowerEdge servers and other compatible enterprise-grade infrastructures where scalable bandwidth and predictable performance are mandatory. The integration of Mellanox technology, now part of NVIDIA networking solutions, ensures that this adapter is built on a mature ecosystem of RDMA-enabled communication, hardware offloading engines, and intelligent traffic management systems that significantly reduce CPU overhead and improve system-wide throughput efficiency.

Mellanox ConnectX-6 Architecture and Design Principles

Advanced Network Interface Controller Architecture

The ConnectX-6 architecture is based on a highly optimized network interface controller design that focuses on maximizing packet processing efficiency while minimizing host CPU utilization. It incorporates advanced packet steering mechanisms, inline data processing capabilities, and enhanced transport offload engines that allow the system to handle massive parallel data streams without bottlenecking. This architecture is particularly beneficial in environments where thousands of parallel processes require synchronized communication with minimal delay variance.

Integrated Hardware Offload Engines

A defining characteristic of the ConnectX-6 series is its ability to offload complex networking tasks from the CPU to dedicated hardware engines. These include transport layer offload, encryption acceleration, and adaptive routing functionalities. By shifting these workloads away from the host processor, the adapter significantly increases overall system efficiency and ensures that compute resources remain dedicated to application processing rather than network management overhead.

Scalable Multi-Tenant Networking Support

The adapter is engineered to support multi-tenant environments where multiple virtual machines or containers share the same physical infrastructure. Through advanced isolation mechanisms and quality-of-service enforcement, it ensures predictable performance across workloads while maintaining secure segmentation of traffic streams. This capability makes it particularly valuable in cloud service provider environments and enterprise virtualization platforms.

HDR100 QSFP56 Interface and High-Bandwidth Transmission

QSFP56 Physical Layer Design

The QSFP56 interface utilized in this adapter represents one of the most advanced high-speed optical and copper connectivity standards available in enterprise networking. QSFP56 enables four high-speed lanes operating at 25Gb/s or higher per lane, combining to deliver aggregated bandwidth of up to 100Gb/s. This compact form factor allows for high port density within server chassis while maintaining thermal efficiency and power optimization.

Signal Integrity and Transmission Efficiency

Signal integrity in high-speed InfiniBand environments is critical, especially at HDR100 transmission rates. The adapter incorporates advanced equalization techniques and error correction mechanisms that ensure stable communication across varying cable lengths and data center configurations. These mechanisms are designed to reduce packet retransmission rates and maintain consistent throughput even under heavy network congestion scenarios.

Low-Latency Fabric Communication

One of the most important attributes of HDR100 InfiniBand technology is its extremely low-latency communication fabric. The architecture is optimized to deliver sub-microsecond latency performance, making it suitable for tightly coupled computational workloads such as distributed AI training and real-time scientific simulations. This ensures that node-to-node communication remains highly synchronized even in large-scale cluster deployments.

Key Optimization for High-Performance Computing

Remote Direct Memory Access Acceleration

Remote Direct Memory Access (RDMA) is a core feature of the ConnectX-6 adapter, enabling direct memory-to-memory data transfer between servers without involving the CPU or operating system kernel. This dramatically reduces latency and increases throughput efficiency, particularly in clustered environments where large datasets must be exchanged rapidly. RDMA support is essential for workloads such as high-frequency trading systems, AI model training, and real-time analytics pipelines.

GPUDirect Communication Enhancement

The adapter also supports GPUDirect technology, which allows direct data transfers between GPU memory and the network interface without intermediate copying through system memory. This significantly reduces data movement overhead and accelerates distributed GPU workloads. In AI and machine learning environments, this capability ensures faster training cycles and improved scalability across multi-node GPU clusters.

Distributed AI and Machine Learning Acceleration

In artificial intelligence infrastructures, the combination of RDMA and GPUDirect enables highly efficient scaling of training workloads across multiple compute nodes. Large neural networks can be trained faster due to reduced communication overhead between GPUs, allowing synchronized gradient updates with minimal delay. This results in improved model convergence times and more efficient utilization of compute resources.

Enterprise Data Center Integration

Compatibility with Dell Server Platforms

The Dell 7TKND Mellanox ConnectX-6 adapter is engineered for seamless integration with Dell enterprise server platforms, including high-density compute nodes and storage-optimized systems. Its firmware and driver ecosystem are optimized for compatibility with enterprise operating systems and hypervisors, ensuring stable deployment across diverse IT environments. This makes it a preferred choice for organizations standardizing on Dell infrastructure.

Virtualization and Software-Defined Networking Support

The adapter supports advanced virtualization technologies including Single Root I/O Virtualization (SR-IOV), which enables efficient partitioning of physical network resources into multiple virtual interfaces. This is particularly important in cloud environments where multiple tenants share the same hardware infrastructure. Software-defined networking integration further enhances flexibility, allowing dynamic traffic control and policy-based routing.

Containerized Workload Optimization

In modern containerized environments, networking efficiency plays a crucial role in application performance. The ConnectX-6 adapter supports high-speed container networking interfaces that ensure minimal overhead when routing traffic between microservices. This enables scalable Kubernetes deployments where network latency directly impacts application responsiveness and service reliability.

High-Performance Computing and AI Workloads

Massively Parallel Cluster Communication

In high-performance computing clusters, communication efficiency between nodes determines overall system scalability. The HDR100 InfiniBand architecture enables extremely fast inter-node communication, allowing thousands of compute nodes to function as a unified system. This is essential for workloads such as climate modeling, genomic sequencing, and large-scale physics simulations.

Artificial Intelligence Training Infrastructure

AI training workloads require continuous exchange of large gradient updates across multiple GPUs and servers. The ConnectX-6 adapter ensures that these exchanges occur with minimal delay, improving synchronization efficiency and reducing idle compute time. This leads to faster training cycles and improved resource utilization in distributed AI environments.

Deployment Architecture in Modern Data Centers

Leaf-Spine Network Topologies

The adapter is commonly deployed in leaf-spine network architectures where predictable latency and high bandwidth aggregation are essential. In such topologies, each server connects to multiple spine switches, enabling non-blocking communication paths across the data center. The HDR100 capability ensures that bandwidth remains consistent even as network scale increases.

High-Density Compute Rack Integration

In high-density rack environments, space and thermal efficiency are critical factors. The compact QSFP56 design allows multiple high-speed interfaces to be deployed within limited physical space while maintaining optimal airflow and cooling efficiency. This enables data centers to scale compute capacity without compromising energy efficiency or thermal stability.

Advanced Networking Features for Enterprise Environments

Traffic Management and Quality of Service

The adapter includes advanced traffic management capabilities that ensure fair bandwidth allocation across multiple workloads. Quality of Service mechanisms prioritize critical data streams while maintaining balanced resource distribution across less time-sensitive operations. This ensures consistent application performance even under heavy network load conditions.

Adaptive Routing and Congestion Control

Adaptive routing algorithms embedded within the ConnectX-6 architecture dynamically adjust data paths based on network congestion levels. This ensures optimal utilization of available bandwidth and prevents bottlenecks in large-scale distributed systems. Congestion control mechanisms further enhance stability in high-traffic environments.
