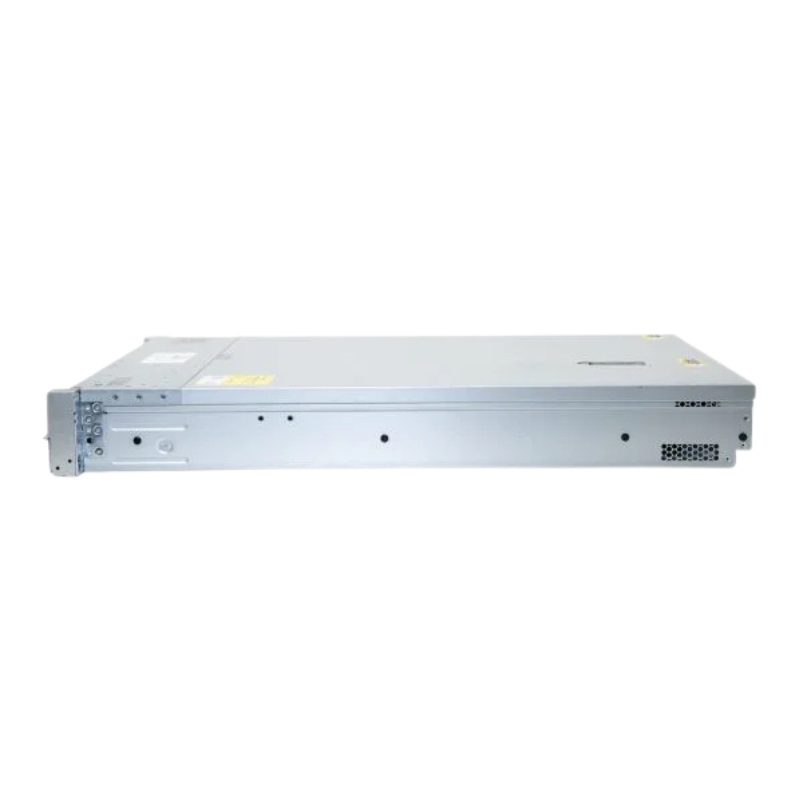

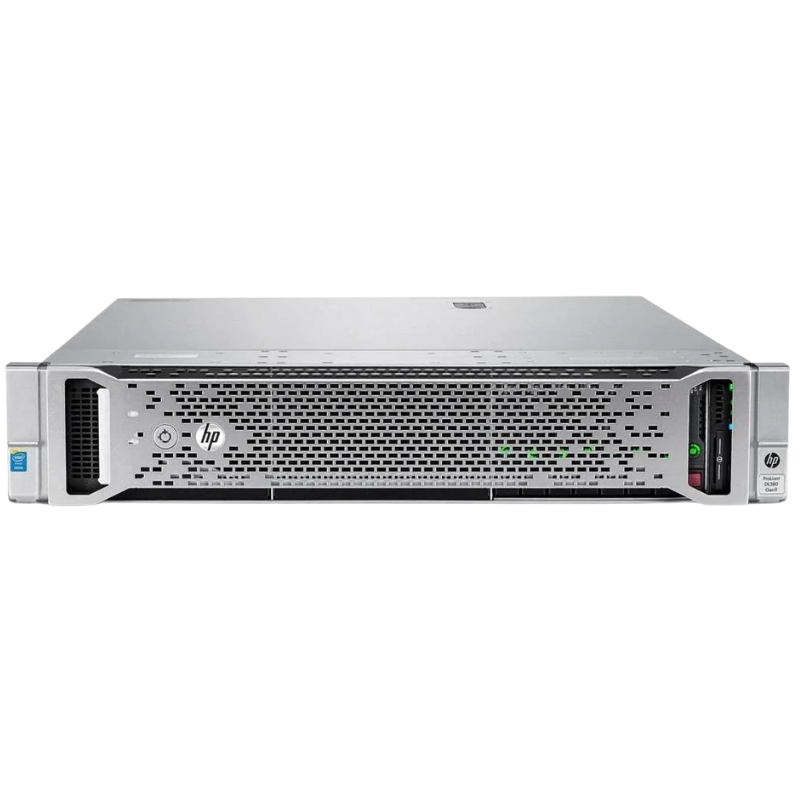

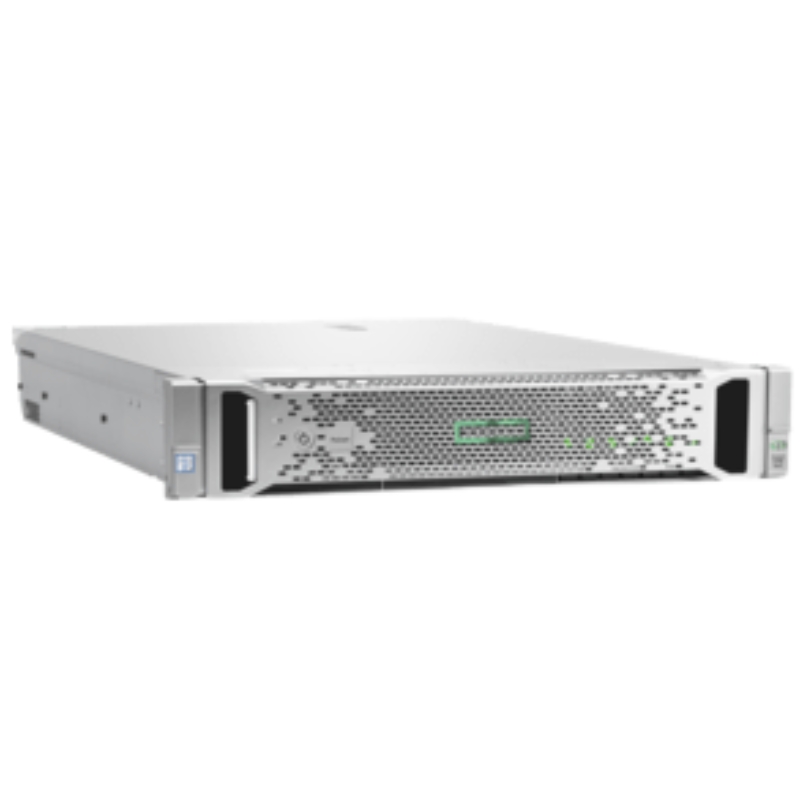

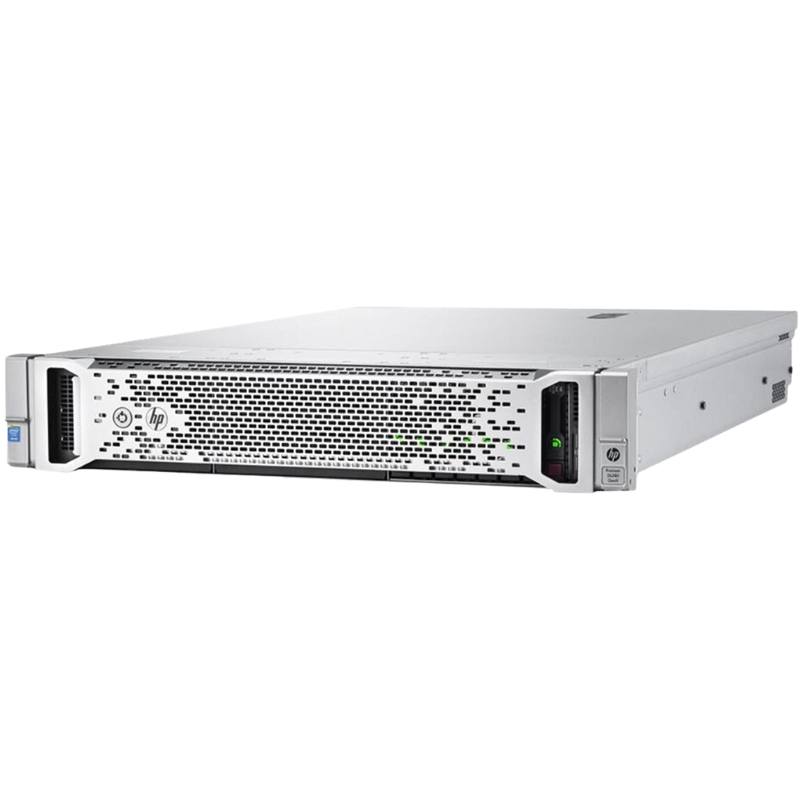

HPE 800077-S01 Proliant DL380 G9 S-Buy 2x Intel Xeon E5-2690v3/ 2.6GHz, 64GB DDR4 SDRAM, 2U Rack Server

Processor

The HPE Proliant Dl380 G9 S-Buy 2u Rack Server is equipped with a powerful processor that enhances its performance and efficiency. The server features 2x Intel Xeon 12-Core E5-2690v3 processors, each clocked at 2.6GHz. This processor configuration is designed to deliver exceptional speed and processing power, making the server ideal for demanding workloads and applications.

General Details

• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number: 800077-S01
• Product Name: ProLiant DL380 Gen9 - 2U Rack Mountable Server (S-buy)

Processor & Chipset Specifications

Processor Information

• Type: Intel Xeon E5-2690v3, 2.6GHz
• Max Turbo Speed: 3.5 GHz
• QuickPath Interconnect: 9.60 GT/s
• Cores: 12-core
• 64-bit Computing: Yes
• Compatible Socket: FCLGA2011-3
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Chipset Type: Intel C610 Series

Cache Memory

• Type: Smart Cache
• Installed Size: 60 MB
• Cache Per Processor: 30 MB

Memory Configuration

Installed Memory

• Size: 64 GB / Up to 384 GB
• Technology: DDR4 SDRAM - Advanced ECC
• Effective Speed: 2133 MHz
• Rated Speed: 2133 MHz
• Memory Specification Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Slots: 24 total / 20 empty
• Features: Registered, Online Spare Memory, Dual Rank, Quad Channel Memory Architecture, HP SmartMemory
• Configuration Example: 4 x 16 GB
• Supported RAM: PC4-17000 - 384 GB Registered, PC4-17000 - 1.5 TB Load-Reduced

Storage & Controllers

Storage Drives

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Controller Name: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Drive Compatibility: 12 GB/s SAS / 6 GB/s SATA
• SAS Port Link Rate: 12 GB/s per Physical Link Supported
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives Supported: Up to 26 Drives
• Logical Drives Supported: Up to 64 Logical Drives
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Graphics & Networking

Graphics Controller

• Processor: Matrox G200EH2
• Video Memory: 16 MB
• Video Interface: VGA

Network Connectivity

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Expansion Bays

• Total: 8 (all hot-swappable 2.5 SFF)

Expansion Slots

• Total (free):
  • 24 x DIMM 288-pin (20 free)
  • 2 x CPU (both occupied)
  • 2 x PCIe 3.0 x16 (half-length, full-height) (both free, in x8 mode)
  • 1 x PCIe 3.0 x8 (half-length, full-height) (free)
  • 1 x MicroSD Card (internal) (free)

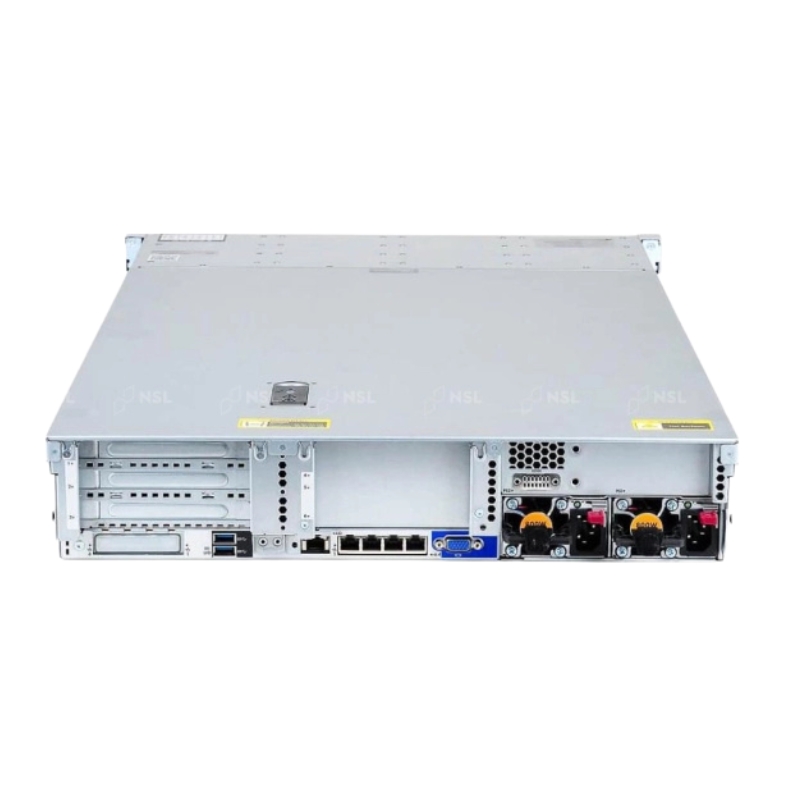

Interfaces & Ports

• 4 x LAN (Gigabit Ethernet) - RJ-45
• 1 x HP iLO - RJ-45
• 1 x VGA
• 5 x USB 3.0 (1 front, 2 rear, 2 internal)
• 2 x LAN (10 Gigabit Ethernet) (SFP+)

Additional Features

Included Accessories

• HP Easy Install Rails

Security & Management

• Administrator Password
• Power-on Password
• Keyboard Password
• Serial Port I/O Control
• Quicklock
• UEFI BIOS

Standards Compliance

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 9254
• ASHRAE
• CNS 13438

Power Specifications

• Device Type: Power Supply - Hot-plug
• Power Redundancy: Yes (1+1 Scheme)
• Installed Quantity: 2
• Nominal Voltage: AC 120/230 V
• Power Provided: 500 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Physical Dimensions

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.5 lbs

Benefits of the Intel Xeon Processor

The Intel Xeon 12-Core E5-2690v3 processor offers several benefits that are crucial for users seeking high-performance computing solutions.

1. Enhanced Multitasking

The server's processor enables efficient multitasking capabilities, allowing you to run multiple applications simultaneously without any lag or performance degradation. This is particularly beneficial in scenarios where you need to handle complex tasks or run resource-intensive software.

2. Improved Performance

With its 12 cores and 24 threads, the Intel Xeon processor delivers exceptional performance, ensuring that your server can handle demanding workloads efficiently. Whether you are running virtual machines, databases, or handling data-intensive tasks, the processor's power will ensure smooth operations.

3. Increased Efficiency

The Intel Xeon architecture is designed to optimize power consumption while maintaining high performance levels. This means that your server can deliver exceptional processing power while minimizing energy consumption, resulting in lower operational costs and reduced environmental impact.

4. Scalability and Future-Proofing

The HPE Proliant Dl380 G9 S-Buy server's processor offers scalability options, allowing you to upgrade your server's performance as your business needs grow. The Intel Xeon processors are known for their compatibility with future technologies, ensuring that your server remains relevant and capable of handling upcoming advancements.

Importance of the Processor

The processor is the heart of any server, and its capabilities significantly impact your overall system performance. Investing in a server with a powerful processor like the Intel Xeon 12-Core E5-2690v3 ensures that you have the necessary processing power to handle complex tasks efficiently.

Optimized Resource Allocation

The Intel Xeon processor enables efficient resource allocation, ensuring that your server dedicates the right amount of processing power to each application or task. This results in improved performance and responsiveness, as resources are allocated dynamically based on workload demands.

Future-Proofing Your Infrastructure

By choosing a server with a powerful processor, such as the HPE Proliant Dl380 G9 S-Buy, you are future-proofing your infrastructure. With advancements in technology and software becoming increasingly resource-intensive, having a server with sufficient processing power ensures that you can adapt and handle evolving workloads without the need for immediate upgrades.

Memory

The HPE Proliant Dl380 G9 S-Buy 2u Rack Server is equipped with 64GB(4x16) Ddr4 Sdram memory. This ample memory capacity ensures smooth and efficient operations, especially when handling memory-intensive applications or running multiple virtual machines concurrently.

Benefits of Ample Memory Capacity

Having sufficient memory capacity is crucial for ensuring optimal server performance. The following benefits highlight the importance of the HPE Proliant Dl380 G9 S-Buy's 64GB memory:

1. Enhanced Performance

With 64GB of DDR4 SDRAM, the server can handle large amounts of data without experiencing bottlenecks or performance degradation. This is particularly beneficial for tasks that require extensive data processing or when running memory-intensive applications.

2. Smooth Virtualization

The server's ample memory capacity enables efficient virtualization, allowing you to create and manage multiple virtual machines without compromising performance. Virtualization is crucial for businesses as it maximizes resource utilization, reduces hardware costs, and simplifies infrastructure management.

3. Improved Data Management

When dealing with large datasets or running memory-intensive applications, having sufficient memory is essential for efficient data management. The 64GB memory capacity of the HPE Proliant Dl380 G9 S-Buy ensures that data can be accessed and processed quickly, leading to faster decision-making and improved productivity.

4. Scalability and Flexibility

The server's memory capacity allows for future scalability and flexibility. As your business grows and demands increase, the 64GB memory can be expanded to accommodate higher workloads and additional applications. This scalability ensures that your server can adapt to changing requirements without the need for a complete system overhaul.

Importance of Sufficient Memory

Sufficient memory capacity plays a critical role in the overall performance and efficiency of a server. Here are a few key reasons why investing in a server with ample memory, such as the HPE Proliant Dl380 G9 S-Buy, is important:

Improved Application Performance

Memory-intensive applications, such as databases or analytics software, require a significant amount of RAM to operate efficiently. By having 64GB of DDR4 SDRAM, the HPE Proliant Dl380 G9 S-Buy ensures that these applications can access the necessary resources quickly, resulting in improved performance and responsiveness.

Efficient Virtualization

Virtualization has become a standard practice in modern IT environments, allowing businesses to consolidate their infrastructure and improve resource utilization. Having sufficient memory capacity is crucial for running multiple virtual machines simultaneously, ensuring that each virtual instance has enough resources to operate efficiently.

Future-Proofing Your Infrastructure

Investing in a server with ample memory capacity is essential for future-proofing your infrastructure. As applications become more memory-intensive and data volumes continue to grow, having a server with sufficient memory ensures that your system can handle increasing workloads without experiencing performance issues.

Networking

The HPE Proliant Dl380 G9 S-Buy 2u Rack Server comes equipped with the HPE 331i and 556flr-Sfp+ Adapter, providing robust networking capabilities. The networking features of this server are designed to enhance connectivity, improve data transfer speeds, and ensure seamless communication between systems.

Benefits of HPE Networking Features

The HPE Proliant Dl380 G9 S-Buy's networking features offer several benefits that are crucial for businesses seeking reliable and efficient network connectivity:

1. Enhanced Network Performance

The HPE 331i and 556flr-Sfp+ Adapter provide high-performance networking capabilities, ensuring that your server can handle demanding network traffic without any bottlenecks. This is particularly important for businesses that rely on real-time data processing or require extensive network communication between systems.

2. Improved Data Transfer Speeds

The server's networking features enable faster data transfer speeds, allowing for quick and efficient communication between devices. Whether you are transferring large files, streaming multimedia content, or accessing remote resources, the HPE Proliant Dl380 G9 S-Buy's networking capabilities ensure minimal latency and optimal performance.

3. Seamless Integration

The HPE networking features seamlessly integrate with existing network infrastructure, ensuring compatibility and ease of deployment. This allows businesses to leverage their current networking investments while benefiting from the enhanced capabilities of the HPE Proliant Dl380 G9 S-Buy.

4. Scalability and Flexibility

The networking features of the server offer scalability and flexibility, allowing businesses to adapt to changing network requirements. Whether you need to expand your network infrastructure or integrate new technologies, the HPE Proliant Dl380 G9 S-Buy's networking capabilities can accommodate your evolving needs.

Importance of Reliable Networking

Networking is a critical component of any IT infrastructure, and having reliable and efficient connectivity is essential for businesses. Here are a few key reasons why investing in a server with robust networking features, such as the HPE Proliant Dl380 G9 S-Buy, is important:

Optimized Data Transfer

In today's data-driven world, businesses rely on fast and reliable data transfer to ensure smooth operations. The HPE Proliant Dl380 G9 S-Buy's networking features enable high-speed data transfer, minimizing latency and ensuring that critical information is accessible when needed.

Improved Collaboration and Communication

Efficient networking capabilities facilitate seamless collaboration and communication between employees and systems. With the HPE Proliant Dl380 G9 S-Buy, your team can share resources, access shared files, and collaborate on projects without experiencing connectivity issues or delays.

Scalability for Growing Businesses

As businesses grow and expand, their networking needs evolve accordingly. Investing in a server with scalable networking features ensures that your infrastructure can accommodate increased network traffic, additional devices, and emerging technologies without compromising performance or security.

Drive Bays

The HPE Proliant Dl380 G9 S-Buy 2u Rack Server offers 8 SFF (Small Form Factor) drive bays, providing ample storage capacity for your data and applications. The server's drive bay configuration ensures efficient data management, easy scalability, and high-speed data access.

Benefits of 8 SFF Drive Bays

The 8 SFF drive bays in the HPE Proliant Dl380 G9 S-Buy server offer several benefits that are crucial for businesses requiring reliable and scalable storage solutions:

1. Ample Storage Capacity

With 8 SFF drive bays, the server offers ample storage capacity to accommodate your data and applications. This is particularly beneficial for businesses dealing with large datasets, multimedia files, or running applications that require significant storage space.

2. Easy Scalability

The drive bay configuration allows for easy scalability, enabling businesses to expand their storage capacity as their needs grow. Additional drives can be easily added to the server, ensuring that you have enough storage space to meet future requirements without the need for a complete system overhaul.

3. High-Speed Data Access

The HPE Proliant Dl380 G9 S-Buy's drive bays support high-speed data access, ensuring quick retrieval and transfer of information. This is essential for businesses that require fast access to their data or run applications that rely on efficient data storage and retrieval.

4. Efficient Data Management

The server's drive bays enable efficient data management by providing a centralized location for storing and organizing your data. This simplifies data retrieval, backup, and recovery processes, ensuring that your critical information is easily accessible and well-protected.

Importance of Ample Storage Capacity

Having sufficient storage capacity is crucial for businesses in today's data-centric world. Here are a few key reasons why investing in a server with ample drive bays, such as the HPE Proliant Dl380 G9 S-Buy, is important:

Scalability for Growing Data

As businesses generate and collect more data, their storage needs increase significantly. By investing in a server with multiple drive bays, you can easily scale your storage capacity to accommodate growing data volumes without compromising performance or availability.

Efficient Data Organization

The HPE Proliant Dl380 G9 S-Buy's drive bays enable efficient data organization, making it easier to manage and access your information. This ensures that you can quickly retrieve the required data, leading to improved productivity and faster decision-making.

Redundancy and Data Protection

Having multiple drive bays allows for implementing redundancy and data protection measures such as RAID configurations. By storing data across multiple drives, you can safeguard against drive failures and ensure that your critical information remains intact and accessible even in the event of hardware failures.

Power Supply

The HPE Proliant Dl380 G9 S-Buy 2u Rack Server is equipped with two 800W RPS (Redundant Power Supplies), providing reliable and efficient power delivery. The server's power supply configuration ensures uninterrupted operations, energy efficiency, and system reliability.

Benefits of Redundant Power Supplies

The redundant power supplies in the HPE Proliant Dl380 G9 S-Buy offer several benefits that are crucial for businesses seeking reliable and efficient power delivery:

1. Uninterrupted Operations

The server's redundant power supplies ensure uninterrupted operations by providing backup power in the event of a power supply failure. This redundancy minimizes downtime and ensures that your server remains online even if one of the power supplies malfunctions.

2. Energy Efficiency

The 800W RPS power supplies are designed to maximize energy efficiency, reducing operational costs and minimizing environmental impact. The power supplies optimize power usage based on workload demands, ensuring that energy is allocated efficiently without compromising performance.

3. Enhanced System Reliability

Redundant power supplies enhance system reliability by minimizing the risk of power-related failures. By having two power supplies, the HPE Proliant Dl380 G9 S-Buy ensures that the server can continue to operate even if one of the power supplies fails, preventing potential data loss or system instability.

4. Simplified Maintenance

The redundant power supply configuration simplifies maintenance procedures as it allows for hot-swapping of power supplies without interrupting server operations. This means that you can replace a faulty power supply while the server is running, minimizing downtime and ensuring continuous availability.

Importance of Redundant Power Supplies

Reliable and efficient power delivery is essential for any server infrastructure. Here are a few key reasons why investing in a server with redundant power supplies, such as the HPE Proliant Dl380 G9 S-Buy, is important:

Minimized Downtime and Data Loss

Power supply failures can result in server downtime and potential data loss. By having redundant power supplies, the HPE Proliant Dl380 G9 S-Buy ensures that your server remains online even if one of the power supplies fails, minimizing downtime and safeguarding against potential data loss.

Improved Energy Efficiency

Energy efficiency is a crucial consideration for businesses seeking to reduce operational costs and minimize their carbon footprint. The HPE Proliant Dl380 G9 S-Buy's redundant power supplies optimize energy usage, ensuring that power is allocated efficiently based on workload demands, resulting in reduced energy consumption.

Enhanced System Reliability

The redundant power supplies enhance system reliability by providing a fail-safe mechanism against power-related failures. This ensures that your server remains operational even if one of the power supplies malfunctions, preventing potential disruptions and ensuring continuous availability.

In conclusion, the HPE Proliant Dl380 G9 S-Buy 2u Rack Server offers powerful features that enhance its performance, scalability, and reliability. The processor configuration, memory capacity, networking capabilities, drive bays, and redundant power supplies contribute to the server's overall efficiency and suitability for demanding workloads. Whether you are running resource-intensive applications, handling large datasets, or require seamless connectivity, the HPE Proliant Dl380 G9 S-Buy is designed to meet your business needs.
