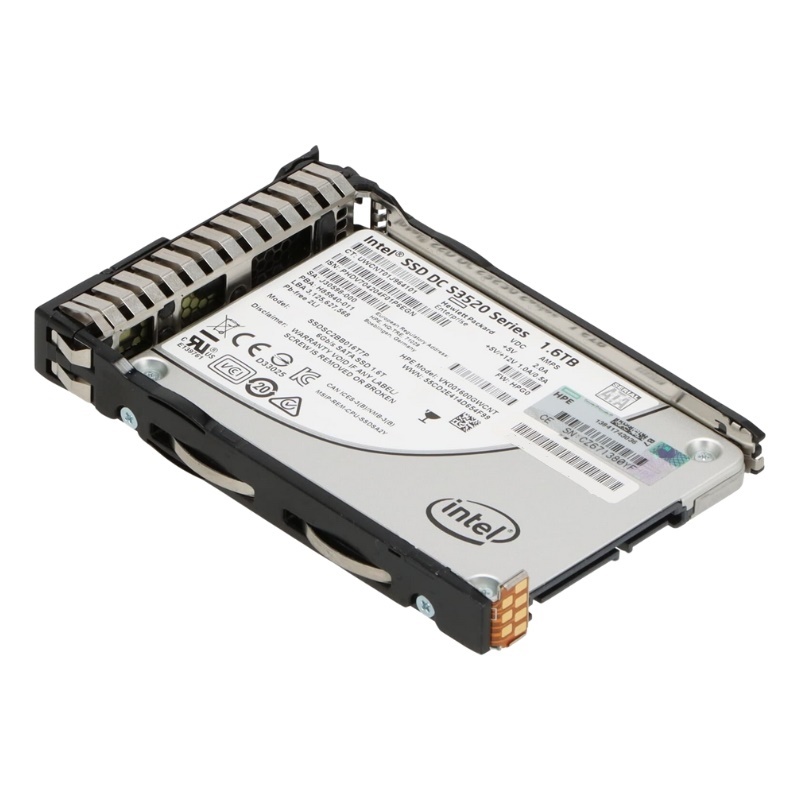

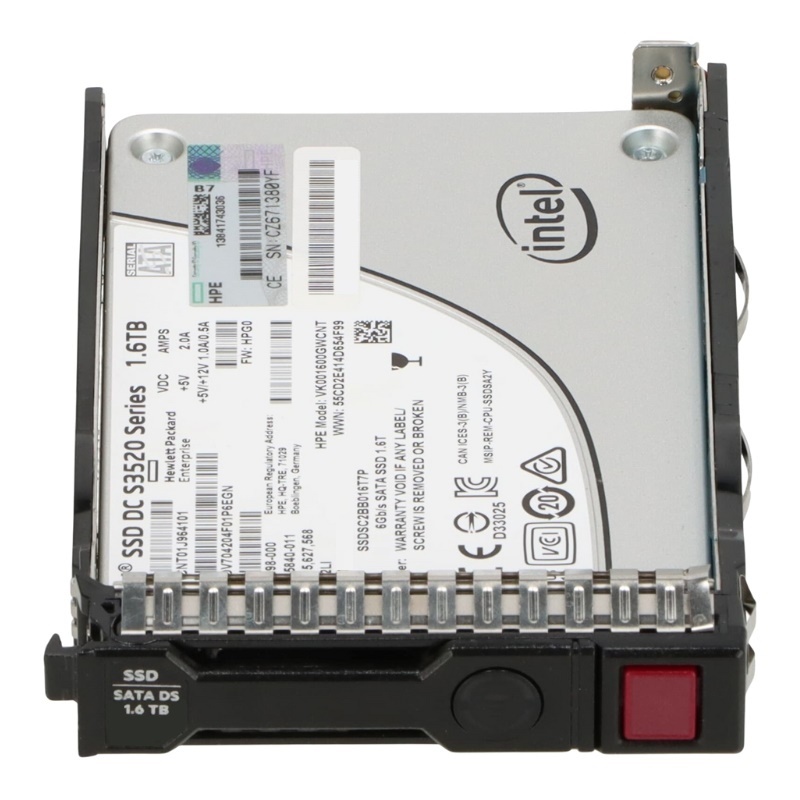

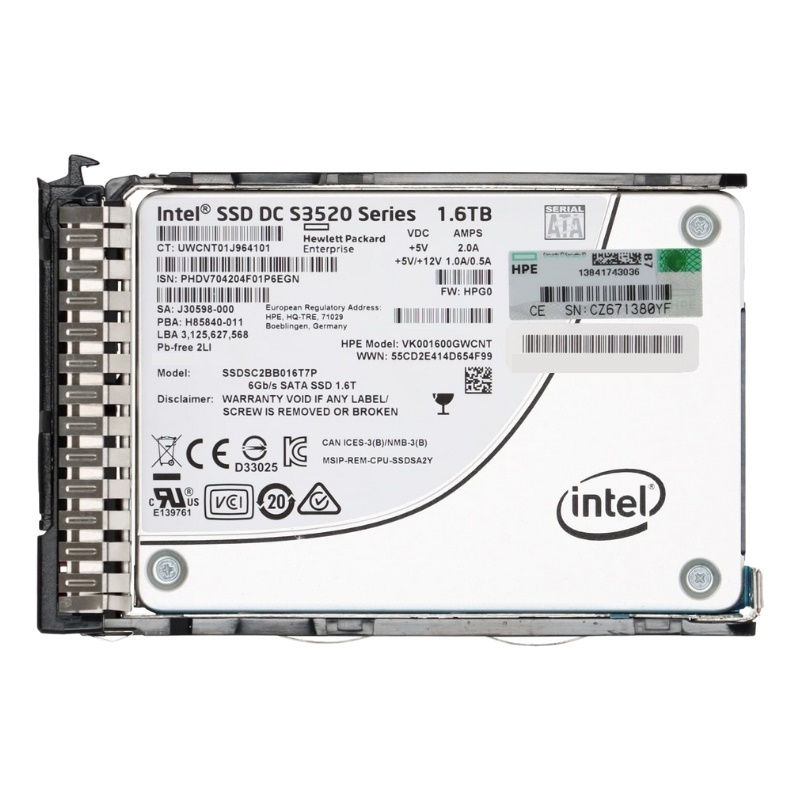

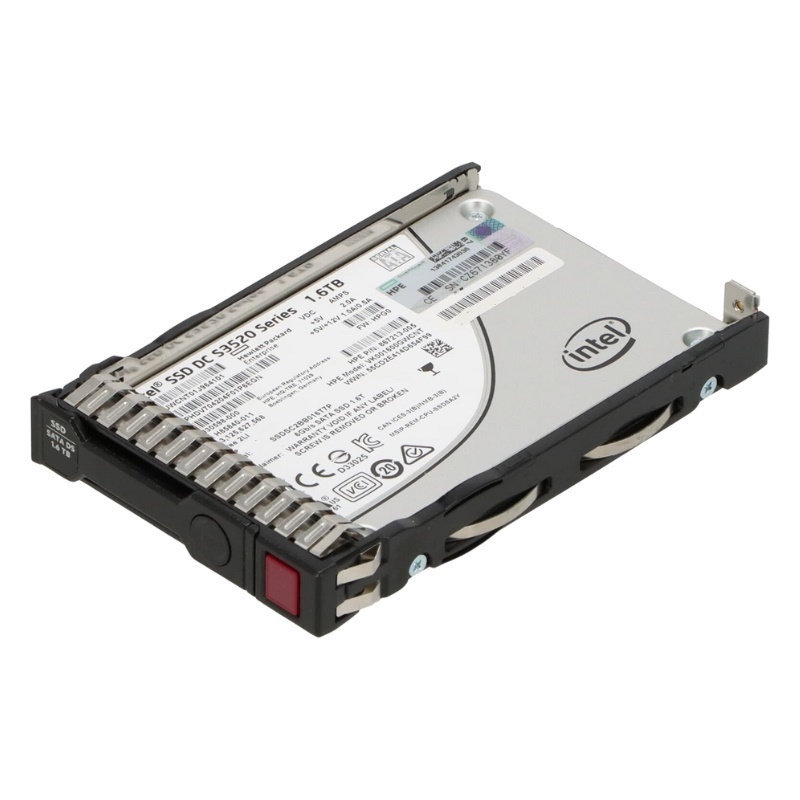

HPE 804634-B21 3.5" Mixed Use SCC SSD SATA 6GBPS 1.6TB

804634-B21
Hover on image to enlarge

Brief Overview of 804634-B21

HPE 3.5inch Mixed Use SCC SSD SATA 6GBPS 1.6TB 804634-B21. Excellent Refurbished with 6-Month Replacement Warranty
QR Code of HPE 804634-B21 3.5" Mixed Use SCC SSD SATA 6GBPS 1.6TB
$479.66
$420.00
You save: $59.66 (12%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPN804634-B21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Comprehensive Overview of the HPE 804634-B21 SSD

Key Specifications

  • Model Number: HPE 804634-B21
  • Storage Capacity: 1.6 TB
  • Form Factor: 3.5-inch Large Form Factor (LFF)
  • Interface Type: SATA 6Gbps
  • Hot-Pluggable Design for easy replacement
  • NAND Flash Memory: eMLC (Enterprise Multi-Level Cell)
  • Carrier Type: Smart Carrier Converter (SCC)
  • Workload Type: Mixed Use
  • Features: Power Loss Protection (PLP), Digitally Signed Firmware (DS)
  • Bundled With: HPE Smart Carrier Converter
  • Compatible Platforms: HPE ProLiant Rack/Tower/BladeSystem Servers and Synergy
  • Height: 15 mm

Performance Metrics of HPE 1.6TB SSD

  • Drive Writes Per Day (DWPD): 3
  • Drive Transfer Rate: 6 Gb/sec (external)
  • Maximum Sequential Reads Throughput: 535 MiB/s
  • Maximum Sequential Writes Throughput: 360 MiB/s
  • Random Read Average Latency (4KiB, Q1): 115 microseconds
  • Random Write Average Latency (4KiB, Q1): 50 microseconds
  • Random Read IOPS (4KiB, Q=16): 64,000
  • Random Write IOPS (4KiB, Q=16): 23,000
  • Max Random Read IOPS (4KiB): 71,000 at Queue Depth 32
  • Max Random Write IOPS (4KiB): 23,000 at Queue Depth 4
  • Random 70% Read / 30% Write Performance (IOPS): 44,000
  • Random 50% Read / 50% Write Performance (IOPS): 34,000

Physical Dimensions and Weight

  • Height: 5.63 inches
  • Width: 3.75 inches
  • Depth: 7.00 inches
  • Weight: 1.35 lbs

Power Consumption Details

  • Idle Power Usage: 1.20 Watts
  • Power During Random Read: 0.39 Watts
  • Power During Random Write: 0.39 Watts
  • Power During Sequential Read: 0.34 Watts
  • Power During Sequential Write: 6.69 Watts
  • Power During Random Read/Write: 0.39 Watts

Compatibility with HPE Systems

ProLiant BL Series Compatibility

  • BL420c (Gen8, Gen9)
  • BL460c (Gen8, Gen9)
  • BL465c (Gen8, Gen9)

ProLiant DL Series Compatibility

  • DL20 (Gen9)
  • DL60 (Gen9)
  • DL80 (Gen9)
  • DL120 (Gen8, Gen9)
  • DL160 (Gen8, Gen9)
  • DL180 (Gen8, Gen9)
  • DL320e (Gen8, Gen9)
  • DL360e (Gen8, Gen9)
  • DL360p (Gen8, Gen9)
  • DL380e (Gen8, Gen9)
  • DL380p (Gen8, Gen9)
  • DL388 (Gen9)

ProLiant ML Series Compatibility

  • ML110 (Gen8, Gen9)
  • ML150 (Gen8, Gen9)
  • ML310e (Gen8, Gen9)
  • ML350 (Gen8, Gen9)
  • ML350e (Gen8, Gen9)

ProLiant SL Series Compatibility

  • SL200t (Gen8, Gen9)
  • SL230s (Gen8, Gen9)
  • SL250s (Gen8, Gen9)
  • SL2500
  • SL4550 (Gen8, Gen9)
  • SL4545 (Gen8, Gen9)
  • SL454x

Compatibility with HPE Storage Solutions

  • HPE Storage Arrays: D3600, D3700
  • HPE StoreEasy Models: 1430, 1440, 1530, 1540, 1630, 1640

Form Factor: 3.5inch

The HPE 804634-B21 SSD is designed with a form factor of 3.5 inches, which offers several benefits and importance for users. This section will explore the advantages of this particular form factor and why it is a desirable feature for those in need of storage solutions.

Capacity: 1.6TB

The HPE 804634-B21 SSD boasts an impressive capacity of 1.6TB, offering significant benefits and importance for users in need of ample storage space. This section will delve into the advantages of this high capacity and explain why it is a valuable feature for various applications.

Optimal Fit and Compatibility

The 3.5-inch form factor of the HPE 804634-B21 SSD ensures that it fits perfectly into standard drive bays found in most servers and storage systems. This compatibility allows for seamless integration without the need for any additional modifications or adaptors. By choosing a storage solution with a 3.5-inch form factor, users can be confident that the SSD will easily fit into their existing infrastructure, saving time and effort.

Space Efficiency

In addition to compatibility, the 3.5-inch form factor offers excellent space efficiency. With the increasing demand for storing large amounts of data, maximizing storage capacity within limited physical space is crucial. The HPE 804634-B21 SSD's 3.5-inch form factor allows for higher storage density, enabling users to store more data within the same physical footprint. This space efficiency is especially valuable in data centers where floor space is often limited and expensive.

Easy Maintenance and Upgrades

Another advantage of the 3.5-inch form factor is its ease of maintenance and upgrades. Due to its size, accessing and replacing the HPE 804634-B21 SSD becomes a hassle-free process. IT administrators can quickly swap out drives or upgrade to larger-capacity SSDs without disrupting the operation of the server or storage system. This ease of maintenance ensures minimal downtime and enhances overall system reliability.

Enhanced Cooling and Heat Dissipation

The larger form factor of the HPE 804634-B21 SSD facilitates better cooling and heat dissipation. As storage devices generate heat during operation, efficient cooling is crucial to prevent overheating and ensure optimal performance. The 3.5-inch form factor allows for the inclusion of larger and more effective cooling mechanisms, such as fans or heat sinks, which can dissipate heat more efficiently. This feature helps to maintain the longevity and reliability of the SSD, even under heavy workloads.

Compatibility with Legacy Systems

Many legacy systems still rely on 3.5-inch drive bays, making the HPE 804634-B21 SSD an ideal choice for those who need to upgrade or replace older storage devices. By choosing a storage solution with a 3.5-inch form factor, users can seamlessly integrate the SSD into their existing infrastructure without the need for additional adapters or expensive system upgrades. This compatibility with legacy systems ensures a smooth transition and minimizes compatibility issues.

Technology: Mixed Use

The HPE 804634-B21 SSD features mixed-use technology, providing users with numerous benefits for their storage needs. This section will explore the advantages and importance of the mixed-use technology found in this SSD.

Increased Performance

Mixed-use technology combines elements of both read-intensive and write-intensive SSDs to deliver a balanced performance profile. The HPE 804634-B21 SSD is designed to handle a wide range of workloads, making it suitable for various applications and use cases. Whether it's handling heavy database workloads or running virtualized environments, this mixed-use technology ensures consistent performance, minimizing latency, and maximizing throughput.

Cost Efficiency

By offering a blend of read and write operations, mixed-use technology provides cost efficiency for users. Instead of investing in separate read-intensive and write-intensive SSDs, users can opt for the HPE 804634-B21 SSD, which offers a balanced performance at a more affordable price point. This cost-efficiency makes it an attractive choice for organizations looking to optimize their storage infrastructure without breaking the bank.

Flexibility and Versatility

The mixed-use technology of the HPE 804634-B21 SSD provides flexibility and versatility to accommodate varying workloads. With this SSD, users can easily adapt to changing storage requirements and allocate resources effectively. Whether the workload consists of predominantly read or write operations, the mixed-use technology ensures optimal performance and responsiveness. This flexibility allows users to make the most of their storage investment and adapt to evolving business needs.

Reliability and Endurance

Mixed-use SSDs are known for their durability and endurance due to their balanced design. The HPE 804634-B21 SSD's mixed-use technology ensures that both read and write operations are handled efficiently, reducing wear on individual cells and extending the overall lifespan of the drive. This enhanced endurance makes it suitable for demanding workloads that involve frequent data writes, such as virtualization or content delivery networks.

Improved User Experience

With its mixed-use technology, the HPE 804634-B21 SSD offers an improved user experience by delivering consistent and reliable performance across various workloads. Users can expect faster data access times, reduced latency, and improved system responsiveness. Whether it's booting up the operating system or launching resource-intensive applications, this SSD's mixed-use technology ensures a smooth and seamless user experience.

Interface: SATA 6GBPS

The HPE 804634-B21 SSD features a SATA 6Gbps, offering several benefits and importance for users. This section will explore the advantages of this interface and explain why it is a valuable feature for those seeking high-speed data transfer capabilities.

Compatibility and Ease of Integration

The SATA 6Gbps interface is widely supported across various systems, making the HPE 804634-B21 SSD compatible with a vast range of devices. Whether it's a desktop computer, a laptop, or a server, users can easily integrate this SSD into their existing infrastructure without the need for additional adapters or complex configurations. The compatibility and ease of integration offered by the SATA 6Gbps interface ensure a hassle-free experience for users during installation or upgrades.

Backward Compatibility

One of the significant advantages of the SATA 6Gbps interface is its backward compatibility with previous SATA versions. The HPE 804634-B21 SSD can be used in systems that support older SATA standards, such as SATA II (3Gbps) or SATA (1.5Gbps). This backward compatibility ensures that users can leverage the benefits of this high-speed interface while still being able to use the SSD with older systems that may not support the latest SATA standards.

Cost-Effectiveness

The SATA 6Gbps interface offers a cost-effective solution for users seeking high-speed data transfer capabilities. Compared to other interfaces, such as PCIe or SAS, SATA is generally more affordable without compromising on performance. The HPE 804634-B21 SSD's SATA 6Gbps interface provides users with an excellent balance between cost and performance, making it suitable for a wide range of applications and budgets.

Fast Data Transfer Speeds

The SATA 6Gbps interface of the HPE 804634-B21 SSD enables fast data transfer speeds. With a maximum transfer rate of 6 gigabits per second, this interface ensures swift and efficient data transmission between the SSD and the host system. Whether it's reading or writing large files, transferring data between drives, or running resource-intensive applications, the SATA 6Gbps interface minimizes bottlenecks and maximizes overall system performance.

Wide Availability

The SATA 6Gbps interface is widely available and supported by numerous manufacturers, ensuring a vast selection of compatible devices and accessories. Whether it's upgrading an existing system or building a new one from scratch, users can easily find SATA-compatible motherboards, cables, and other components. The wide availability of SATA devices and accessories adds convenience and flexibility for users, allowing them to customize their storage solutions according to their specific requirements.

Ample Storage for Large Datasets

The 1.6TB capacity of the HPE 804634-B21 SSD provides ample storage space for large datasets. Whether it's storing extensive databases, multimedia files, or virtual machine images, this high capacity allows users to consolidate their data in a single drive, simplifying management and enhancing accessibility. With more storage available, users can avoid the hassle of managing multiple drives or partitions, resulting in improved efficiency and reduced complexity.

Scalability and Future-Proofing

As data continues to grow exponentially, having a high-capacity storage solution is essential for scalability and future-proofing. The HPE 804634-B21 SSD's 1.6TB capacity ensures that users have enough room to accommodate their expanding data requirements without the need for immediate upgrades or additional drives. This scalability allows organizations to allocate resources efficiently and plan for future growth without worrying about running out of storage space.

Consolidation and Space Optimization

By offering a large capacity in a single drive, the HPE 804634-B21 SSD enables consolidation and space optimization. Instead of using multiple smaller drives, users can consolidate their data onto a single high-capacity SSD, freeing up physical space and reducing power consumption. This consolidation not only simplifies management but also contributes to cost savings in terms of hardware, maintenance, and power consumption.

Improved Performance and Responsiveness

The 1.6TB capacity of the HPE 804634-B21 SSD contributes to improved performance and responsiveness. With more storage available, users can better distribute their data, reducing the load on individual cells and improving overall drive performance. This increased capacity also allows for better wear leveling algorithms, which prolong the lifespan of the SSD while maintaining consistent performance. Additionally, the larger capacity enables faster random access times, ensuring quick retrieval of data even in demanding workloads.

Cost-Effective Storage Solution

The HPE 804634-B21 SSD's 1.6TB capacity offers a cost-effective storage solution for users who require significant storage space without breaking the bank. Compared to traditional hard disk drives (HDDs), SSDs provide faster access times, lower power consumption, and improved reliability. The 1.6TB capacity of this SSD ensures that users can enjoy the benefits of solid-state storage without sacrificing storage space or incurring excessive costs.

In conclusion, the HPE 804634-B21 SSD's form factor, technology, interface, and capacity play crucial roles in providing users with a high-performance and reliable storage solution. The 3.5-inch form factor ensures compatibility with standard drive bays while offering space efficiency and easy maintenance. The mixed-use technology delivers balanced performance, cost efficiency, flexibility, and reliability. The SATA 6Gbps interface provides fast data transfer speeds, compatibility, and cost-effectiveness. Lastly, the 1.6TB capacity offers ample storage space for large datasets, scalability, consolidation, and improved performance. With these features, the HPE 804634-B21 SSD is a versatile and powerful storage solution suitable for a wide range of applications and use cases.
