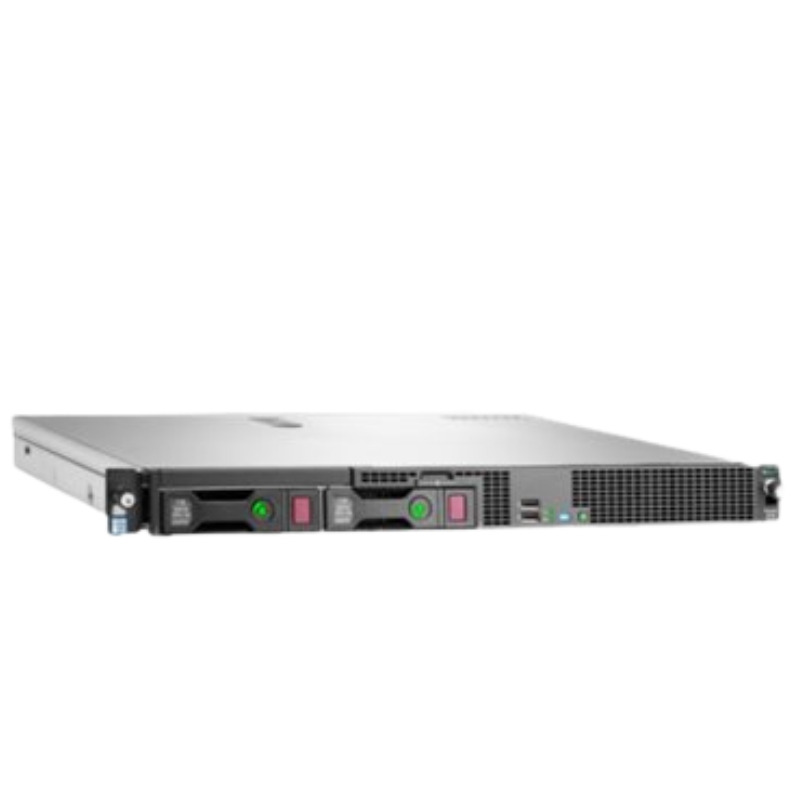

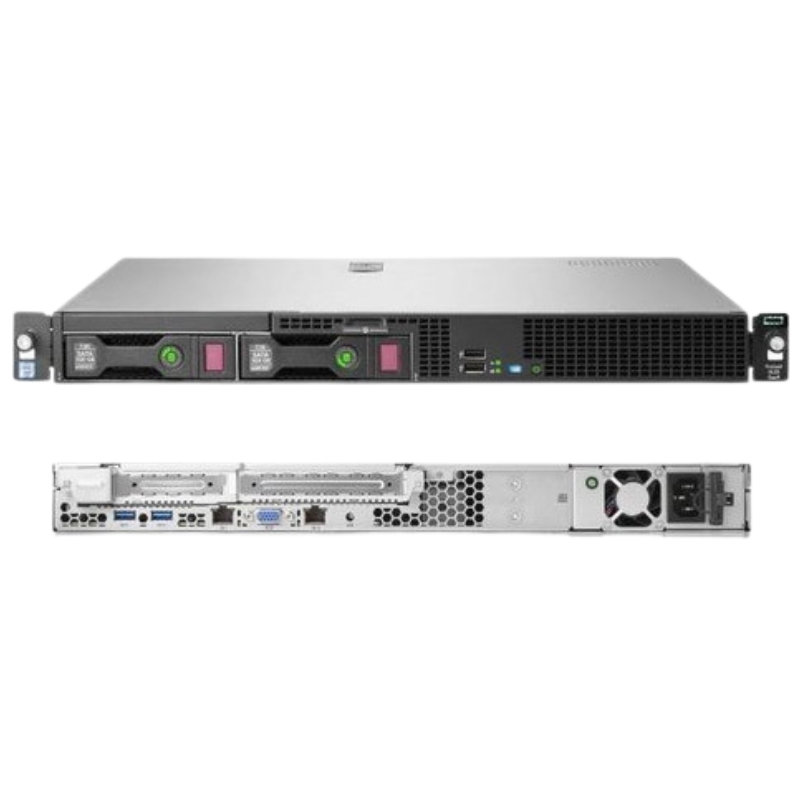

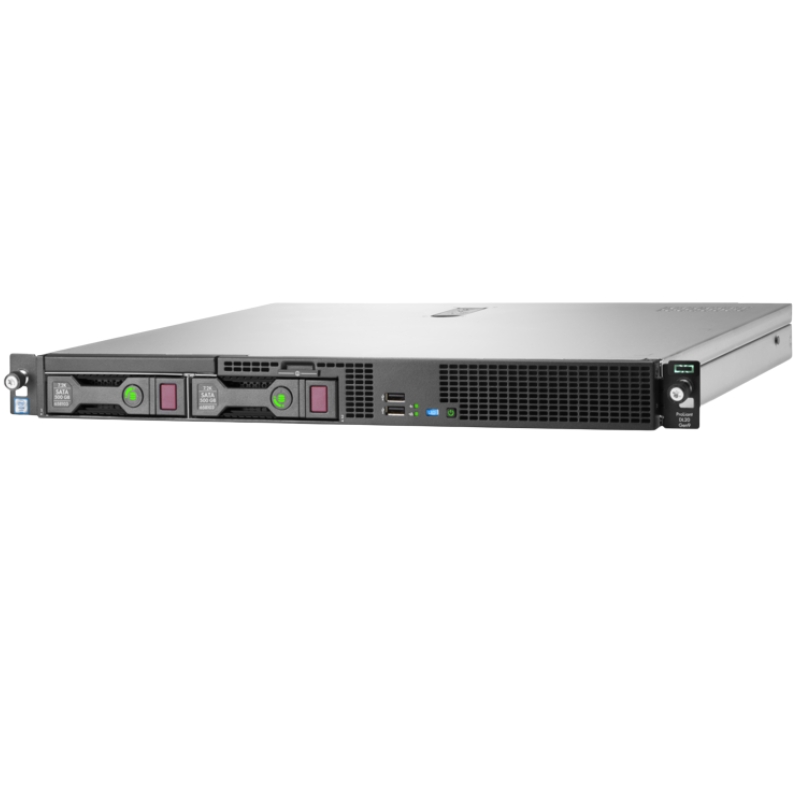

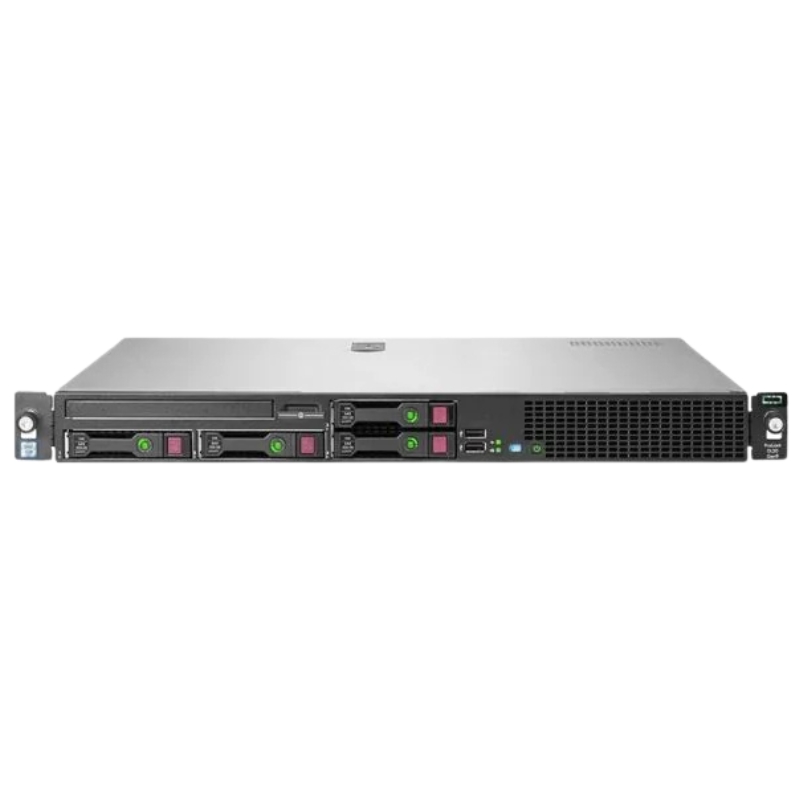

HPE 823562-B21 Proliant DL20 G9 Performance 3GHz 8GB DDR4 1GB 2 Port 332I Network Adapter 900W RPS 1U Rack Server Processor.
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Processor
The HPE Proliant Dl20 G9 Performance 1U Rack Server is equipped with a powerful 1X Intel Xeon Quad Core E3 1220V5 processor, running at a clock speed of 3GHz. This processor is designed to deliver exceptional performance and efficiency for a wide range of workloads.
General Overview
Manufacturer Details
- Manufacturer: Hewlett Packard Enterprise
- Part Number: 823562-B21
- Product Name: Proliant DL20 Gen9 - 1U Rack-Mountable Server (Performance Model)
Processor & Chipset
Processor Specifications
- CPU: Intel Xeon E3-1200 Series E3-1220v5 / 3.0 GHz
- Core Count: Quad-core
- CPU Quantity: 1
- Maximum CPU Quantity: 1
- CPU Upgradability: Upgradable
- CPU Socket: LGA1151
- Chipset: Intel C232
Cache Memory
Details
- Type: Smart Cache
- Installed Size: 8 MB
Memory Configuration
Specifications
- Installed Size: 8 GB (Expandable up to 64 GB)
- Memory Technology: DDR4 SDRAM
- Memory Speed: 2133 MHz
- Form Factor: DIMM 288-pin
- Features: Unbuffered, Dual Channel Memory Architecture
- Configuration: 1 x 8 GB
Storage Options
Drives
- Hard Drive: None
- Optical Drive: None
Storage Controllers
Controller Specifications
- Type: 1 x RAID - PCIe x8
- Interface: SATA 6 GB/s / SAS 12 GB/s
- Controller Name: HP H240 Smart Host Bus Adapter
- Channel Quantity: 4
- RAID Levels: RAID 0, RAID 1, RAID 5
Network & Communication
Network Interfaces
- Bus Type: PCI Express x2
- Ethernet Ports: 2 x Gigabit Ethernet
- Ethernet Controller: HP NC332i
- Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Controller: Integrated Lights-Out 4
- Features: Wake-on-LAN (WOL), PXE Support
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Expansion & Connectivity
Expansion Bays
- Total Bays: 4 (All Free)
- Internal 2.5 SFF Bays: 4
Expansion Slots
- DIMM 288-pin: 4 Total / 3 Free
- CPU: 1 Total / 0 Free
- PCIe 3.0 x8 - Half-length, Low-profile: 1 Total / 1 Free
- PCIe 3.0 x8 - Half-length, Full-height: 1 Total / 1 Free
- MicroSD Card: 1 Total / 1 Free
- FlexibleLOM: 1 Total / 1 Free
Interfaces & Ports
- VGA: 1
- LAN (Gigabit Ethernet): 2
- USB 2.0: 2 (Front)
- USB 3.0: 3 (2 Rear)
Miscellaneous
Included Accessories
- HPE Short Friction Rail Kit
Pricing Information
- Pricing Type: CTO (Configure-to-Order)
Power Description
Power Supply
- Type: Power Supply
- Nominal Voltage: AC 120/230 V (50/60 Hz)
- Power Provided: 900 Watts
Dimensions & Weight
Physical Specifications
- Width: 17.2 inches
- Depth: 15 inches
- Height: 1.7 inches
- Weight: 19.18 lbs
Enhanced Performance
The Intel Xeon Quad Core E3 1220V5 processor is built on advanced microarchitecture, featuring four cores and eight threads. This allows for efficient multitasking and improved performance, making it ideal for demanding applications such as virtualization, database management, and content delivery.
Increased Productivity
With its high clock speed of 3GHz, this processor ensures that tasks are executed quickly and efficiently. This results in increased productivity for businesses, as users can complete tasks faster and experience minimal delays or downtime. Whether you are running complex calculations or handling large datasets, the powerful processing capabilities of this server will help you accomplish more in less time.
Optimized Virtualization
Virtualization has become an essential aspect of modern computing infrastructure, enabling businesses to maximize resource utilization and reduce costs. The Intel Xeon Quad Core E3 1220V5 processor supports Intel Virtualization Technology (VT-x), which enhances virtual machine performance, improves security, and enables efficient management of virtualized resources. This ensures smooth and reliable operation of virtualized environments, making it an ideal choice for businesses looking to leverage the benefits of virtualization.
Economic Efficiency
The Intel Xeon Quad Core E3 1220V5 processor is designed to provide excellent performance while being energy-efficient. It features Intel's Turbo Boost Technology, which dynamically adjusts the processor's frequency based on workload demands. This results in optimal power usage and reduced energy consumption, helping businesses save on electricity costs and minimize their environmental footprint.
Reliability and Scalability
The Intel Xeon Quad Core E3 1220V5 processor is built with reliability and scalability in mind. It supports Intel Hyper-Threading Technology, which allows each core to handle two threads simultaneously. This improves overall system responsiveness and enables efficient resource allocation, ensuring that your server can handle increasing workloads and grow with your business needs.
Future-Proof Technology
Investing in a server with a powerful processor like the Intel Xeon Quad Core E3 1220V5 ensures that your infrastructure is future-proofed. As technology advances, software applications become more demanding, requiring greater processing power. This processor's capabilities ensure that your server can handle the evolving needs of your business, providing a solid foundation for future growth and expansion.
In summary, the HPE Proliant Dl20 G9 Performance 1U Rack Server's 1X Intel Xeon Quad Core E3 1220V5 processor offers enhanced performance, increased productivity, optimized virtualization, economic efficiency, reliability, scalability, and future-proof technology. With its powerful processing capabilities, this server is well-equipped to handle a variety of workloads and meet the needs of businesses seeking high-performance computing solutions.
