HPE Proliant DL380 Gen10 Xeon Bronze 8-Core 3106/1.7GHz Server

Processor: Xeon Bronze 8-Core 3106/1.7 GHz

Enhanced Performance and Efficiency

The HPE Proliant DL380 Server Gen10 is equipped with a powerful Xeon Bronze 8-Core 3106/1.7 GHz processor, delivering exceptional performance and efficiency to meet the demands of modern businesses. With its eight cores and a base clock speed of 1.7 GHz, this processor enables faster data processing and improved multitasking capabilities.

General Specifications

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 826564-B21
• Product Name: ProLiant DL380 Gen10 - 2U Rack Mountable Server (Entry SFF Model)

Processor and Chipset

Processor Details

• CPU: Intel Xeon Bronze 3106, 1.7 GHz
• Cores: 8-core
• Quantity: 1 (Up to 2 CPUs)
• Socket: FCLGA3647
• Chipset: Intel C621

Processor Features

• Hyper-Threading Technology
• Intel Turbo Boost Technology

Memory Specifications

Installed Memory

• Size: 16 GB (expandable up to 768 GB)
• Type: DDR4 SDRAM
• Effective Speed: 2133 MHz
• Rated Speed: 2666 MHz
• Form Factor: DIMM 288-pin

Memory Configuration

• Standard Configuration: 1 x 16 GB
• Supported RAM: PC4-20800 (up to 384 GB registered or 768 GB load-reduced)

Storage and Controllers

Storage

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Type: SATA
• Interface: SATA 6 Gb/s
• Controller: HPE Smart Array S100i SR Software
• Channels: 14

Networking and Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: SNMP 3, IPMI 2.0, SMASH CLP
• Controller: Integrated Lights-Out 5 (iLO 5)
• Features: Wake On LAN (WoL), PXE Support

Expansion and Connectivity

Expansion Bays

• Total: 1 x External, 8 x Hot-swap 2.5 SFF

Expansion Slots

• CPU Slots: 2 (1 free)
• DIMM Slots: 12 (11 free)
• FlexibleLOM Slot: 1 (1 free)
• PCIe 3.0 x16 Slot: 1 (1 free)
• PCIe 3.0 x8 Slots: 2 (2 free)
• MicroSD Card Slot: 1 (1 free)

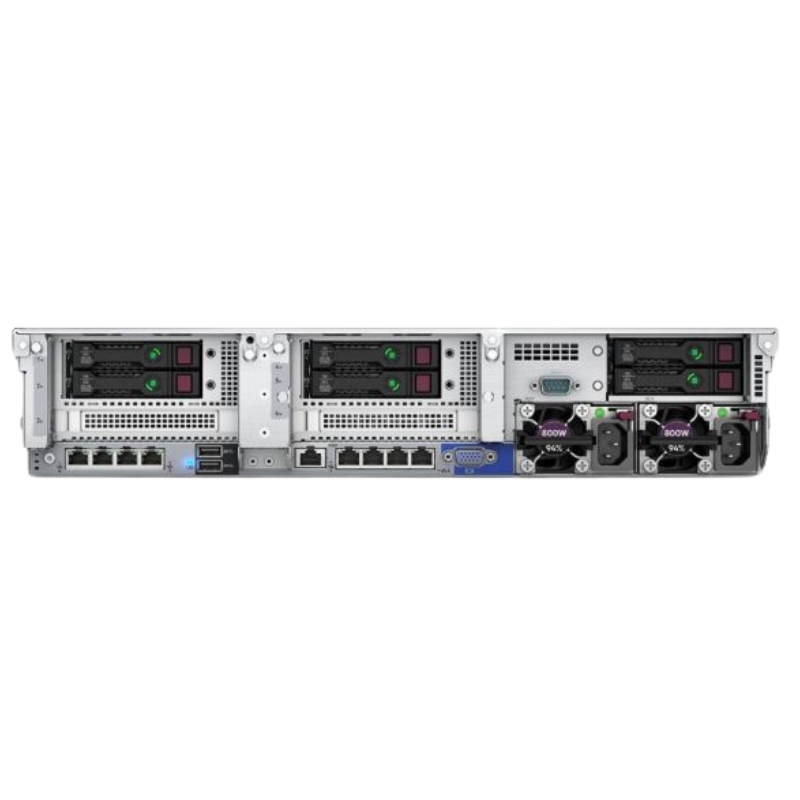

Interfaces and Ports

• HP iLO Type A: 1 (Front)
• USB 3.0 Ports: 5 (1 Front, 2 Rear, 2 Internal)
• Gigabit Ethernet Ports: 4 (Rear)
• HP iLO RJ-45: 1 (Rear)
• VGA Port: 1 (Rear)

Miscellaneous

Included Accessories

• High-performance Heatsink
• 4 Standard Fans

Cables

• Power Cable

Compliance Standards

• AES
• FIPS 140-2
• IPv6 Ready
• TLS V1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Power Specifications

• Type: Hot-plug Power Supply
• Redundancy: Optional
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 500 Watt
• Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions and Weight

• Width: 17.5 inches
• Depth: 28.8 inches
• Height: 3.4 inches
• Weight: 32.54 lbs

Efficient Workload Management

The Xeon Bronze 8-Core processor is designed to handle heavy workloads efficiently. It utilizes Intel Hyper-Threading technology, allowing each core to handle multiple threads simultaneously. This feature improves overall system responsiveness and enables smoother multitasking, ensuring that your server can handle demanding applications and workloads with ease.

Increased Productivity

With the Xeon Bronze 8-Core processor, users can experience enhanced productivity. The increased processing power and efficient workload management enable faster data analysis, quicker application response times, and reduced latency. This translates into improved productivity for businesses, enabling employees to work more efficiently and accomplish tasks in less time.

Scalability and Future-Proofing

The Xeon Bronze 8-Core processor offers scalability, allowing businesses to adapt to changing needs and expand their server capabilities as requirements grow. With its advanced architecture and support for virtualization technologies, this processor ensures that your server can handle increased workloads without compromising performance or stability. This scalability feature future-proofs your investment, providing long-term value and reducing the need for frequent hardware upgrades.

Improved Energy Efficiency

Energy efficiency is a crucial consideration in today's environmentally conscious world. The Xeon Bronze 8-Core processor is designed with power-saving features that help reduce energy consumption without sacrificing performance. This not only lowers operational costs but also contributes to a greener IT infrastructure, aligning with sustainable business practices.

Reliability and Stability

The Xeon Bronze 8-Core processor is built with enterprise-grade reliability and stability in mind. It undergoes rigorous testing and validation to ensure maximum uptime and minimize the risk of system failures. The advanced error-correcting code (ECC) memory technology detects and corrects memory errors in real-time, enhancing system stability and preventing data corruption.

Memory: 16GB DDR4 SDRAM

Efficient Data Processing

The HPE Proliant DL380 Server Gen10 is equipped with 16GB of DDR4 SDRAM, providing ample memory capacity for efficient data processing. The DDR4 technology offers higher data transfer rates and lower power consumption compared to its predecessors, enabling faster access to data and improved overall system performance.

Enhanced Multitasking

With 16GB of memory, the server can handle multiple tasks simultaneously without experiencing a significant performance drop. This means that users can run resource-intensive applications, virtual machines, and databases concurrently, ensuring smooth operations and minimizing downtime. The increased multitasking capability improves productivity and allows businesses to handle complex workloads efficiently.

Optimized Virtualization Performance

Virtualization has become an essential component of modern IT infrastructures, enabling businesses to consolidate their resources, improve scalability, and reduce costs. The 16GB DDR4 SDRAM allows for efficient virtual machine management, ensuring smooth operation and optimal performance for virtualized environments. This enables businesses to maximize their server utilization and achieve better return on investment.

Future-Proofing and Expandability

The 16GB memory capacity provides room for growth and future-proofing your server infrastructure. As your business expands and workloads increase, you can easily upgrade the memory to meet the growing demands. This flexibility ensures that your server can adapt to changing requirements without the need for a complete hardware overhaul, saving both time and money.

Reliability and Data Integrity

Data integrity is of utmost importance for businesses, especially when dealing with critical applications and sensitive information. The 16GB DDR4 SDRAM incorporates advanced error-correcting code (ECC) technology, which detects and corrects memory errors in real-time. This feature ensures data integrity, minimizing the risk of data corruption and system crashes, and enhancing overall server reliability.

Efficient Resource Allocation

The 16GB DDR4 SDRAM allows for efficient resource allocation within the server. With ample memory capacity, the server can allocate resources to different applications and processes effectively, ensuring that each task receives the necessary resources to perform optimally. This efficient resource utilization improves overall system performance and prevents bottlenecks, enabling smooth and uninterrupted operations.

Power Supply: 1X 500W FS PS

Reliable Power Delivery

The HPE Proliant DL380 Server Gen10 features a 500W FS PS power supply, ensuring reliable power delivery to all server components. A stable and dependable power supply is essential for maintaining the server's uptime and preventing data loss or system failures. The 500W FS PS provides consistent power output, minimizing the risk of power fluctuations or surges that could damage hardware components.

Energy Efficiency

In addition to its reliability, the 500W FS PS power supply is designed with energy efficiency in mind. It meets industry-leading energy efficiency standards, reducing power consumption and operating costs. By optimizing power usage, businesses can lower their environmental footprint and contribute to sustainability efforts while also saving on electricity bills.

Redundancy and Failover Protection

The 500W FS PS power supply offers redundancy and failover protection, ensuring uninterrupted server operation even in the event of a power supply failure. Redundancy is crucial for critical business applications that cannot afford any downtime. With a redundant power supply, the server can automatically switch to a backup power source in case of a primary power supply failure, minimizing disruptions and maintaining continuous operation.

Hot-Swappable Design

The 500W FS PS power supply is designed to be hot-swappable, allowing for easy replacement without shutting down the server. This feature reduces downtime during maintenance or component replacement, ensuring continuous availability of services. With hot-swappable power supplies, businesses can perform necessary maintenance tasks or replace faulty components without interrupting critical operations.

Scalability and Flexibility

The 500W FS PS power supply offers scalability and flexibility to accommodate changing server requirements. As businesses grow and their server needs increase, additional power supplies can be installed to meet the demand. This scalability feature allows businesses to expand their server infrastructure without the need for a complete overhaul, providing cost-effective and future-proof solutions.

Advanced Power Management

The 500W FS PS power supply incorporates advanced power management features to optimize energy usage and reduce wastage. It supports power capping, which allows businesses to set a limit on the maximum power consumption of the server. This feature enables efficient resource allocation and helps prevent power overloads. Additionally, the power supply includes active power factor correction (PFC), improving energy efficiency by reducing reactive power consumption.

Form Factor: 2U Rack

Space Efficiency

The HPE Proliant DL380 Server Gen10 is designed with a 2U rack form factor, making it an ideal choice for businesses with limited space. The compact size allows for efficient utilization of rack space, enabling businesses to maximize their server density without compromising performance or scalability. This form factor is particularly advantageous for data centers or server rooms with limited floor space.

Easy Installation and Maintenance

The 2U rack form factor simplifies the installation and maintenance process. The server can be easily mounted in a standard rack, allowing for quick deployment and easy integration into existing infrastructure. Additionally, the compact design facilitates better cable management, reducing clutter and improving airflow within the rack for optimal cooling.

Scalability and Flexibility

Despite its compact size, the 2U rack form factor offers scalability and flexibility. The server chassis provides ample room for expansion, allowing businesses to add additional components or storage devices as their needs grow. This scalability feature ensures that the server can adapt to changing requirements without the need for investing in a new infrastructure, providing long-term value and cost savings.

Improved Cooling Efficiency

Efficient cooling is crucial for maintaining optimal performance and extending the lifespan of server components. The 2U rack form factor is designed to promote better airflow management within the server chassis. The improved airflow helps dissipate heat more effectively, preventing overheating and ensuring that the server operates within recommended temperature ranges. This enhances overall system stability and reduces the risk of hardware failures due to heat-related issues.

Physical Security and Accessibility

The 2U rack form factor offers enhanced physical security for the server. By being mounted in a standard rack, the server is better protected against unauthorized access or tampering. The rack enclosure can also provide additional security features such as locking doors, further safeguarding the server from potential threats. Additionally, the rack-mounted design allows for easy accessibility to the server's components, simplifying maintenance and upgrades.

Standardization and Compatibility

The 2U rack form factor is a widely adopted industry standard, ensuring compatibility with various rack infrastructure and accessories. This standardization allows businesses to choose from a wide range of rack solutions, including racks, shelves, and cable management systems, to customize their server environment according to their specific needs. The compatibility ensures seamless integration and reduces the risk of compatibility issues when expanding or upgrading the server infrastructure.

Part Number: 826564-B21

Easy Identification and Tracking

The part number, 826564-B21, serves as a unique identifier for the HPE Proliant DL380 Server Gen10. It allows businesses to easily identify and track the specific model, simplifying inventory management and procurement processes. This part number also ensures accurate documentation and helps in troubleshooting or obtaining support for the server.

Compatibility and Spare Part Replacement

The part number plays a crucial role in ensuring compatibility when replacing or upgrading server components. By referring to the correct part number, businesses can be confident that the replacement parts are specifically designed for the HPE Proliant DL380 Server Gen10. This minimizes the risk of compatibility issues and ensures that the server operates optimally.

Technical Support and Documentation

The part number is essential when seeking technical support or accessing documentation related to the server. It enables businesses to identify the exact model and version, ensuring that they receive accurate and relevant information from the manufacturer or support team. This facilitates troubleshooting processes and simplifies communication with technical experts.

Warranty Coverage

The part number is often used to determine warranty coverage for the server. By referencing the correct part number, businesses can confirm the warranty duration and any specific terms and conditions associated with their particular model. This ensures that businesses can take full advantage of warranty services and obtain necessary repairs or replacements in case of hardware failures.

Simplified Maintenance and Upgrades

The part number facilitates maintenance and upgrades by providing accurate identification of server components. When businesses need to replace or upgrade specific parts, such as memory modules or hard drives, referencing the part number ensures that they select the correct components compatible with the HPE Proliant DL380 Server Gen10. This simplifies the maintenance process and reduces the risk of errors during upgrades.

Resale and Trade-In Value

The part number contributes to the resale and trade-in value of the server. When businesses decide to upgrade their server infrastructure or replace their existing servers, having the correct part number enhances the resale or trade-in process. Potential buyers or trade-in partners can easily identify the specific model and its specifications, ensuring a fair valuation and smooth transaction process.
