HPE Proliant DL380 Gen10 6148 2P Server 800W 64GB-R P408I-A 8SFF PS

Part Number: 875764-S01

When it comes to choosing a server for your business, the HPE Proliant DL380 Server Gen10 6148 2P 800W 64GB-R P408I-A 8SFF PS is a top-notch option. With its impressive specifications and features, it is designed to meet the demanding needs of modern businesses. One of the key features that make this server stand out is its part number: 875764-S01.

General Specification of Proliant DL380

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 875764-S01
• Product: Proliant DL380 Gen10 - 2U Rack Mountable Server (SMB NC Model)

Processor & Chipset

• Type: 1st Gen Intel Xeon Gold 6148
• Clock Speed: 2.4 GHz, Turbo Boost up to 3.7 GHz
• Cores: 20-core
• Quantity: 2 CPUs
• Socket Type: FCLGA3647
• Chipset: Intel C621
• Features: Hyper-Threading, Intel Turbo Boost Technology 2

Cache Memory

• Installed Size: L3 Cache - 55 MB
• Cache Per Processor: 27.5 MB

Memory Specifications

• Capacity: 64 GB standard, expandable up to 768 GB
• Technology: DDR4 SDRAM
• Effective Memory Speed: 2666 MHz
• Form Factor: DIMM 288-pin
• Slots: 24 total, 20 available
• Configuration: 4 x 16 GB
• Supported RAM: PC4-20800 up to 1.5 TB (Load-Reduced)

Storage Controllers

• Type: RAID
• Interface: SATA 6 Gb/s, SAS 12 Gb/s
• Controller Name: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Graphics Controller

• Video Memory: 16 MB
• Video Interface: VGA

Network & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP v3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake On LAN (WOL), PXE Support

Expansion & Connectivity

• External: 1 available
• Hot-Swap 2.5” SFF: 8 available

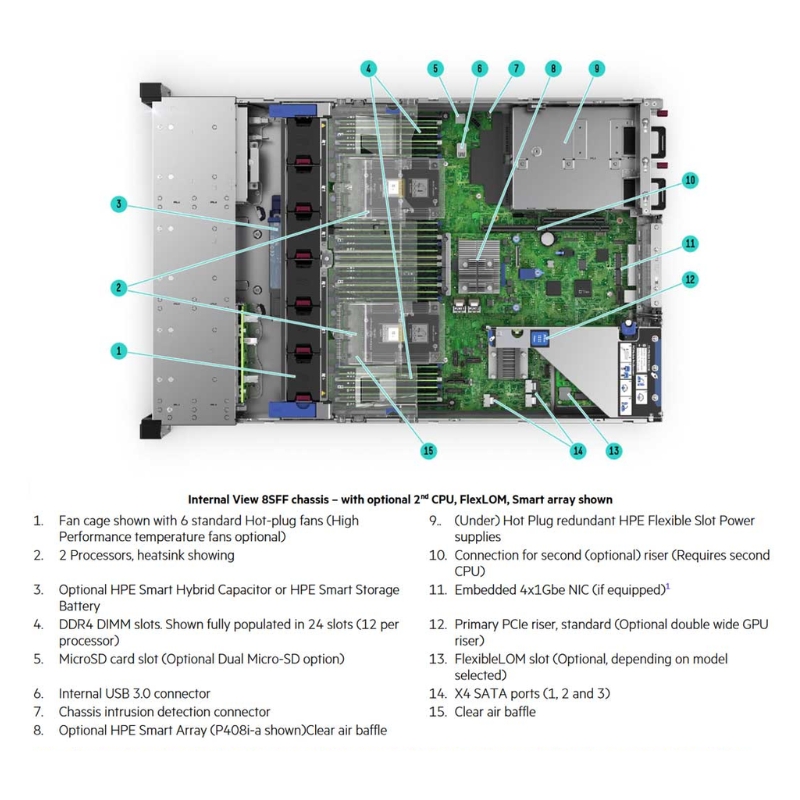

Slots

• CPU: 2 total, none available
• DIMM 288-pin: 24 total, 20 available
• FlexibleLOM: 1 available
• PCIe 3.0 x16: 2 total, 2 available (Half-length, Full-height)
• PCIe 3.0 x8: 4 total, 4 available (Half-length, Full-height)
• MicroSD Card (Internal): 1 available

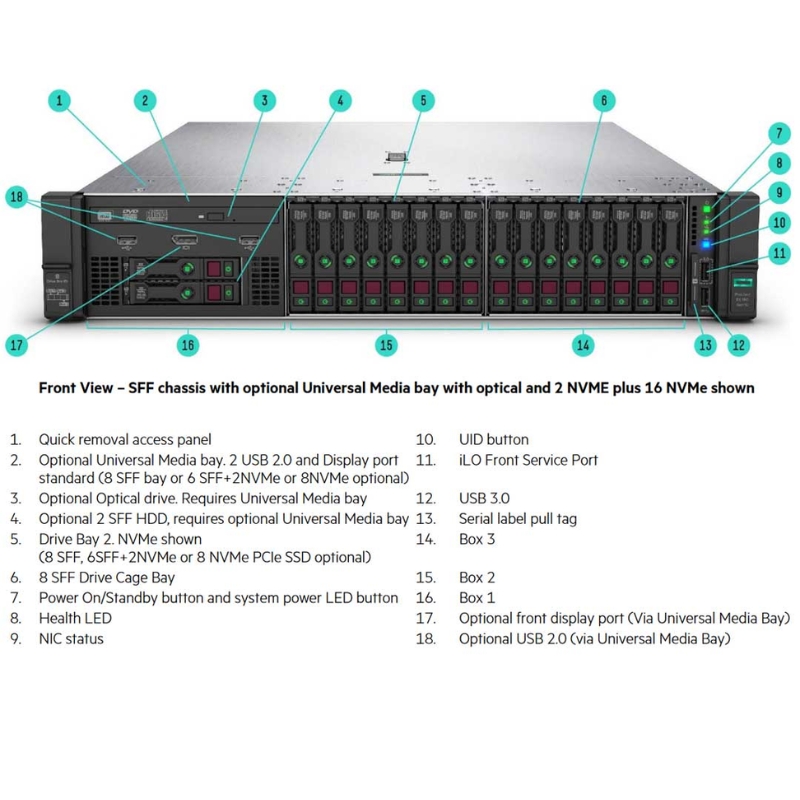

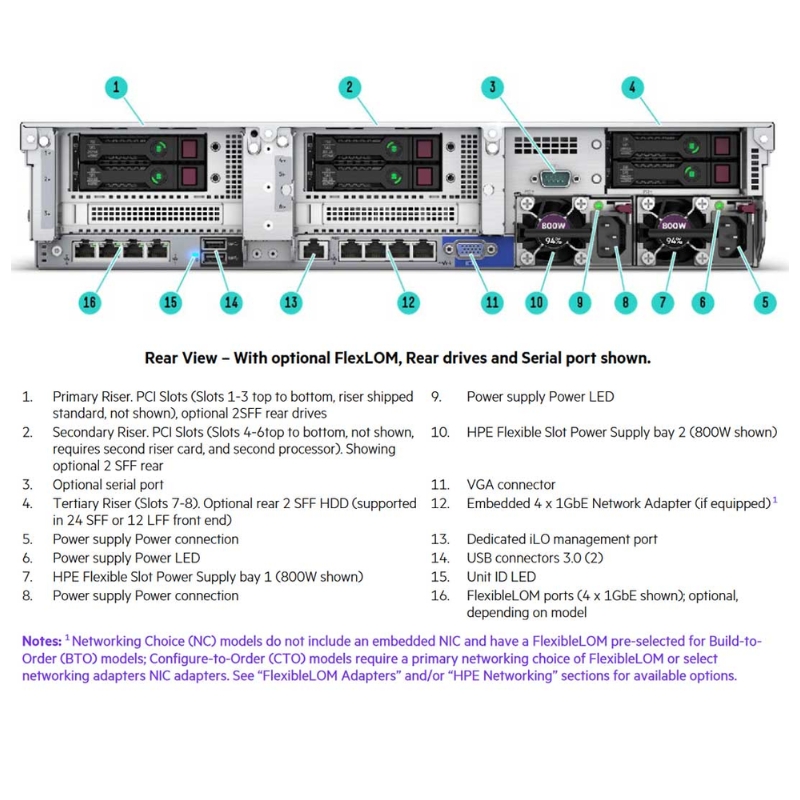

Interfaces

• LAN: 4 x Gigabit Ethernet (RJ-45)
• HP iLO: 1 x RJ-45 (Rear), 1 x Type A (Front)
• VGA: 1 x Rear
• SATA/SAS: 8 x SATA-600 / SAS 3.0
• USB 3.0: 5 total (1 Front, 2 Rear, 2 Internal)

Miscellaneous

• HPE Easy Install Rails
• 6 Standard Hot Plug Fans
• High-performance Heatsink

Compliant Standards

• AES
• FIPS 140-2
• IPv6 Ready
• PCI DSS
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Manufacturer Selling Program

• HPE Smart Buy

Power Description

• Type: Hot-plug Power Supply
• Redundancy: Optional, 1+1 (with Optional Power Supply)
• Installed Qty: 2
• Max Supported Qty: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watt
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.85 lbs

What is a Part Number?

A part number is a unique identifier assigned to a specific product by the manufacturer. It serves as a reference for ordering and identifying the exact version or model of a product. In the case of the HPE Proliant DL380 Server Gen10 6148 2P 800W 64GB-R P408I-A 8SFF PS, the part number 875764-S01 specifically refers to this particular configuration of the server.

Why is the Part Number Important?

The part number plays a crucial role in ensuring that you receive the exact product you want. It eliminates any confusion or ambiguity during the ordering process, ensuring that you get precisely what you need without any surprises. In the case of the HPE Proliant DL380 Server Gen10 6148 2P 800W 64GB-R P408I-A 8SFF PS, the part number allows you to confidently order this specific model, knowing that it meets your requirements.

Benefits of Part Number: 875764-S01

1. High Performance

The HPE Proliant DL380 Server Gen10 with part number 875764-S01 is equipped with powerful components that deliver exceptional performance. The server features the Intel Xeon 6148 processor, which boasts 20 cores and 40 threads. This processing power allows for smooth multitasking and efficient handling of resource-intensive applications, ensuring that your business operations run seamlessly.

2. Increased Memory Capacity

With a generous 64GB of RAM, the HPE Proliant DL380 Server Gen10 with part number 875764-S01 offers ample memory capacity to handle demanding workloads. Whether you're running multiple virtual machines, handling complex databases, or processing large datasets, this server can handle it all without compromising performance. The increased memory capacity ensures that your server can keep up with your business growth and evolving needs.

3. Versatile Storage Options

The HPE Proliant DL380 Server Gen10 with part number 875764-S01 features the P408I-A 8SFF Smart Array controller. This controller offers versatile storage options, allowing you to configure the server to meet your specific storage requirements. Whether you need high-performance SSDs for quick data access or large-capacity HDDs for storing vast amounts of data, this server can accommodate your needs.

4. Redundancy and Reliability

Business continuity is crucial, and the HPE Proliant DL380 Server Gen10 with part number 875764-S01 is designed with redundancy and reliability in mind. The server includes redundant power supplies, ensuring that your operations remain uninterrupted even in the event of a power supply failure. Additionally, it supports hot-swappable drives, allowing you to replace faulty drives without downtime.

Conclusion

In conclusion, the HPE Proliant DL380 Server Gen10 6148 2P 800W 64GB-R P408I-A 8SFF PS with part number 875764-S01 is a high-performance server that offers a range of benefits for modern businesses. From its powerful processing capabilities and generous memory capacity to its versatile storage options and built-in redundancy, this server is well-equipped to handle demanding workloads while ensuring reliability and business continuity. By considering part number 875764-S01, you can confidently order this specific model, knowing that it meets your requirements and provides the performance and features your business needs to thrive.
