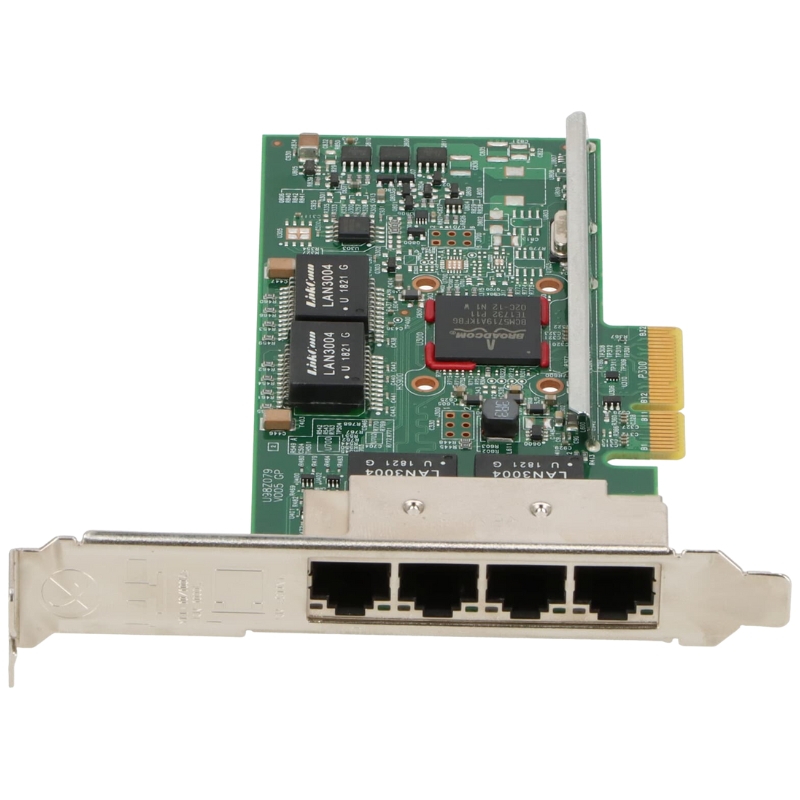

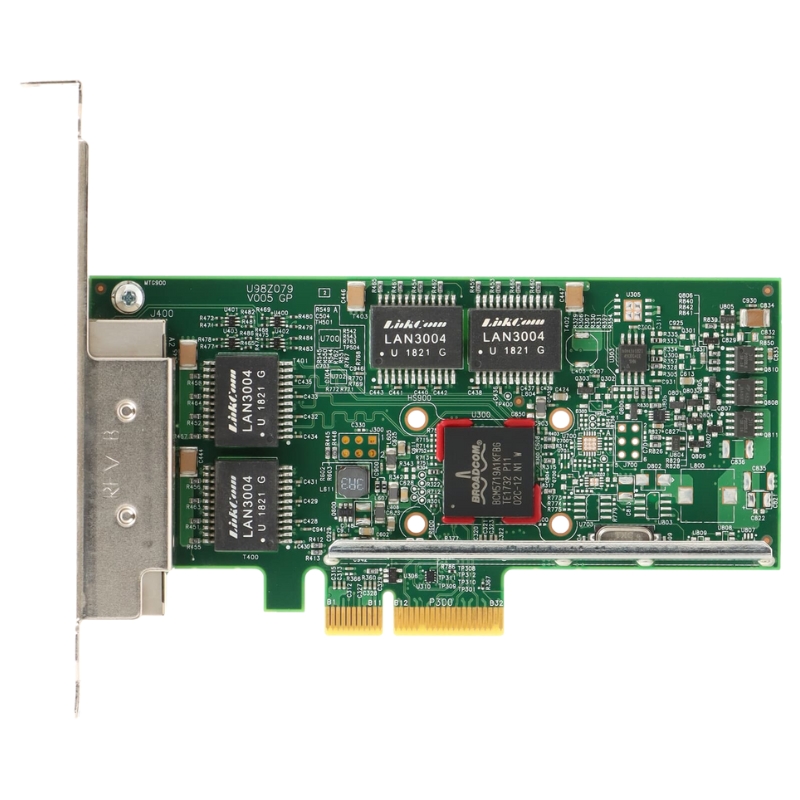

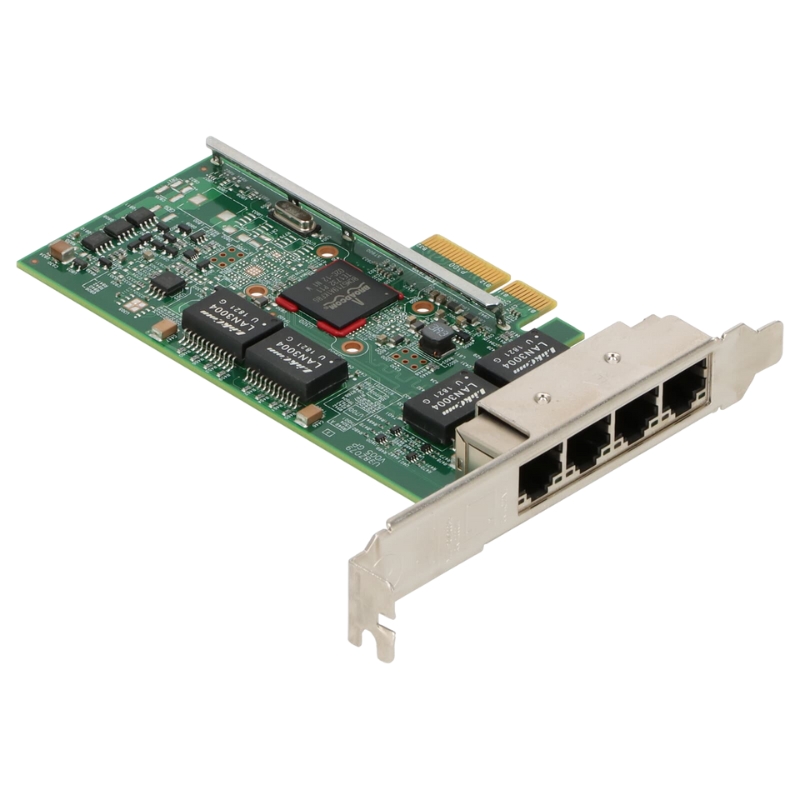

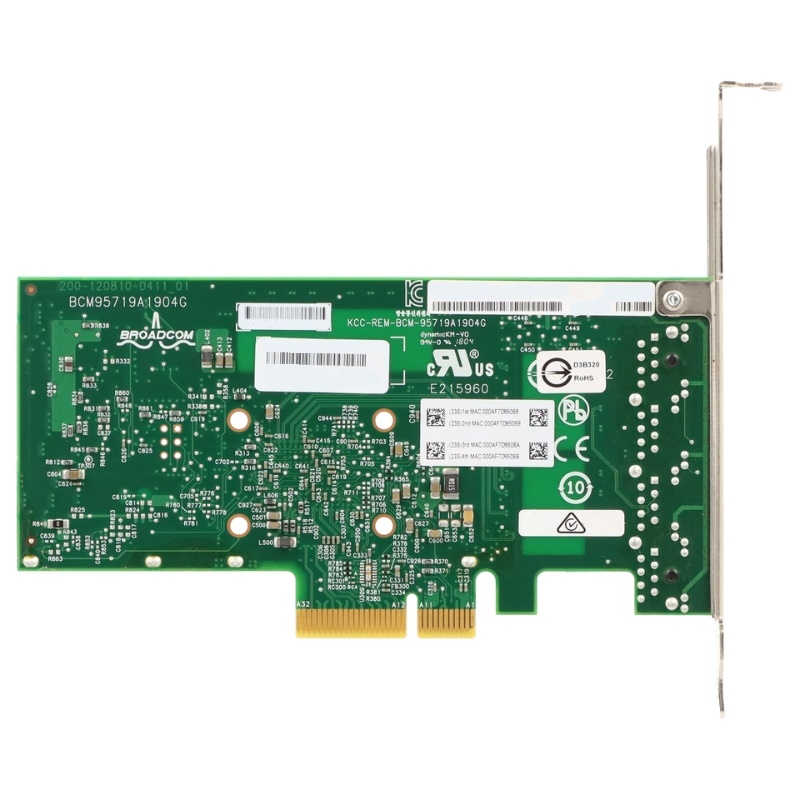

90Y9352 Lenovo Broadcom Netxtreme Quad Port Gigabit Ethernet Network Adapter

The Lenovo 90Y9352 Broadcom NetXtreme Quad Port Gigabit

The Lenovo 90Y9352 Broadcom NetXtreme Quad Port Gigabit Ethernet Network Adapter represents a high-performance server networking solution designed for enterprise-grade computing environments where reliability, scalability, and multi-port connectivity are essential. Built on Broadcom’s trusted NetXtreme architecture and integrated into Lenovo server ecosystems, this network adapter is engineered to deliver stable Gigabit Ethernet throughput across multiple channels simultaneously, making it suitable for virtualization hosts, storage networks, cloud infrastructure nodes, and high-demand data processing systems.

This quad-port adapter is specifically designed to optimize server connectivity by providing four independent Gigabit Ethernet interfaces on a single PCI Express expansion card. This configuration enables advanced network segmentation, load balancing, redundancy, and traffic isolation without requiring multiple separate NICs, thereby reducing hardware complexity while improving system efficiency.

Core Architecture and Broadcom NetXtreme Technology

At the heart of the Lenovo 90Y9352 adapter is the Broadcom NetXtreme chipset architecture, known for its enterprise-level stability and advanced networking features. NetXtreme controllers are widely used in data center environments due to their ability to handle high network loads while maintaining low latency and consistent throughput.

The architecture is optimized for multi-core server environments, allowing efficient distribution of network processing tasks across CPU cores. This reduces bottlenecks and ensures that network operations do not negatively impact application performance. The adapter also supports hardware-based offloading features that reduce CPU utilization by handling tasks such as TCP segmentation, checksum offloading, and interrupt moderation at the hardware level.

Quad Port and Multi-Channel

One of the defining features of this network adapter is its quad-port configuration. With four Gigabit Ethernet ports available on a single PCIe card, administrators gain flexibility in designing network architectures tailored to specific workloads. Each port operates independently, allowing multiple simultaneous network streams without contention.

This design is particularly beneficial in environments where network separation is required, such as isolating management traffic, storage traffic, backup systems, and production workloads. By assigning each port a distinct role, organizations can improve both security and performance.

Additionally, the quad-port design reduces the need for multiple single-port NICs, freeing up valuable PCIe slots for other expansion components such as storage controllers or GPU accelerators.

PCI Express Interface and System Integration

The Lenovo 90Y9352 adapter connects through a PCI Express interface, ensuring high-speed communication between the network controller and the server’s motherboard. PCIe architecture provides a scalable bandwidth channel that supports the demands of Gigabit Ethernet across multiple ports without saturation.

The adapter is designed for seamless integration into Lenovo server platforms, ensuring compatibility with enterprise hardware configurations. It supports plug-and-play installation in most modern server environments, though proper driver installation is required for full feature access.

Its low-profile design allows installation in both standard and compact server chassis, making it suitable for rack-mounted systems commonly used in data centers.

Performance Optimization

Performance is a critical aspect of the Lenovo 90Y9352 Broadcom NetXtreme adapter. Each of the four Gigabit Ethernet ports can deliver up to 1 Gbps throughput, enabling an aggregated potential bandwidth of up to 4 Gbps when all ports are utilized efficiently.

The adapter includes advanced traffic management features such as load balancing and failover support. Load balancing distributes network traffic evenly across multiple ports to prevent congestion, while failover ensures continuous connectivity in case one port or link fails.

These features make the adapter particularly suitable for mission-critical applications where downtime or network interruption can lead to significant operational disruptions.

Enterprise Use Cases and Deployment

The Lenovo 90Y9352 Broadcom NetXtreme Quad Port Gigabit Ethernet Network Adapter is widely used in enterprise and data center environments. Its flexibility and reliability make it ideal for a range of applications including virtualization hosts, database servers, storage area networks, and cloud infrastructure systems.

In virtualization environments, multiple network ports allow separation of virtual machine traffic, management traffic, and storage communication. This ensures efficient resource utilization and improved network performance for virtualized workloads.

In storage environments, the adapter supports high-speed data transfer between servers and storage arrays, reducing latency and improving data availability. For cloud infrastructure, it enables scalable networking configurations that support multi-tenant architectures.

Advanced Networking Features and Hardware

The Lenovo 90Y9352 adapter includes several advanced networking features designed to reduce CPU overhead and improve system efficiency. Hardware offloading capabilities allow the network adapter to handle tasks traditionally managed by the CPU.

These tasks include checksum calculation, TCP segmentation, and interrupt moderation. By offloading these processes, the server’s CPU is freed to focus on application-level workloads, improving overall system performance.

Additionally, support for jumbo frames allows larger data packets to be transmitted across the network, reducing overhead and improving throughput in high-bandwidth environments.

Data Center Optimization and Scalability

In modern data centers, scalability and efficiency are critical considerations. The Lenovo 90Y9352 Broadcom NetXtreme Quad Port Gigabit Ethernet Network Adapter supports scalable network architectures by enabling multiple simultaneous connections on a single hardware component.

This reduces the need for additional NICs and simplifies cable management within server racks. Fewer physical components also translate to reduced power consumption and improved thermal efficiency.

As data center workloads continue to grow, the ability to scale network capacity without significantly increasing hardware complexity becomes increasingly important.
