94Y5230 Lenovo Broadcom Netxtreme II Ml2 Dual Port 10GBE SFP+ System X Network Adapters

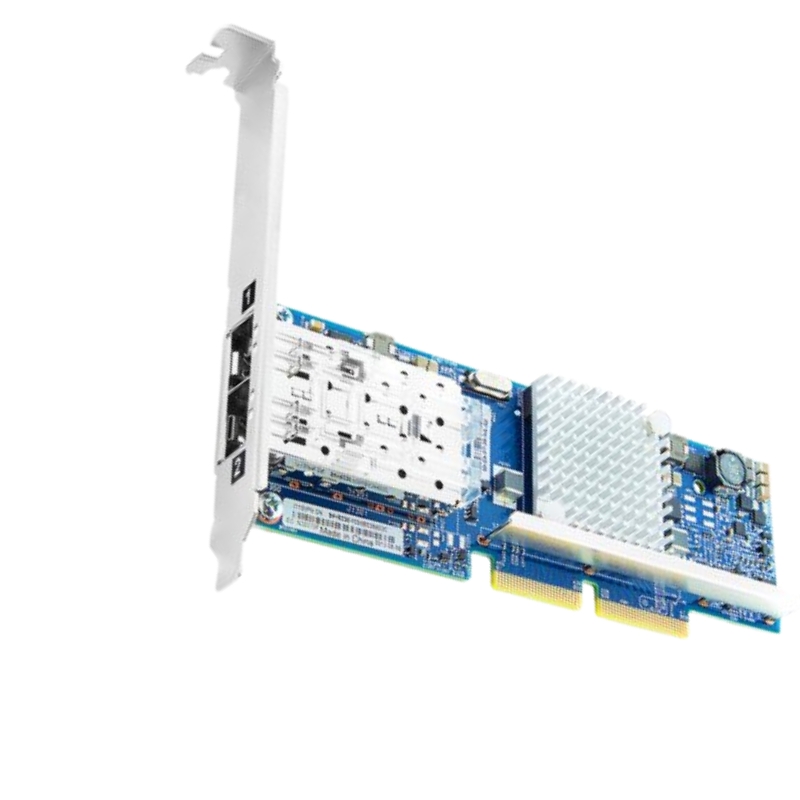

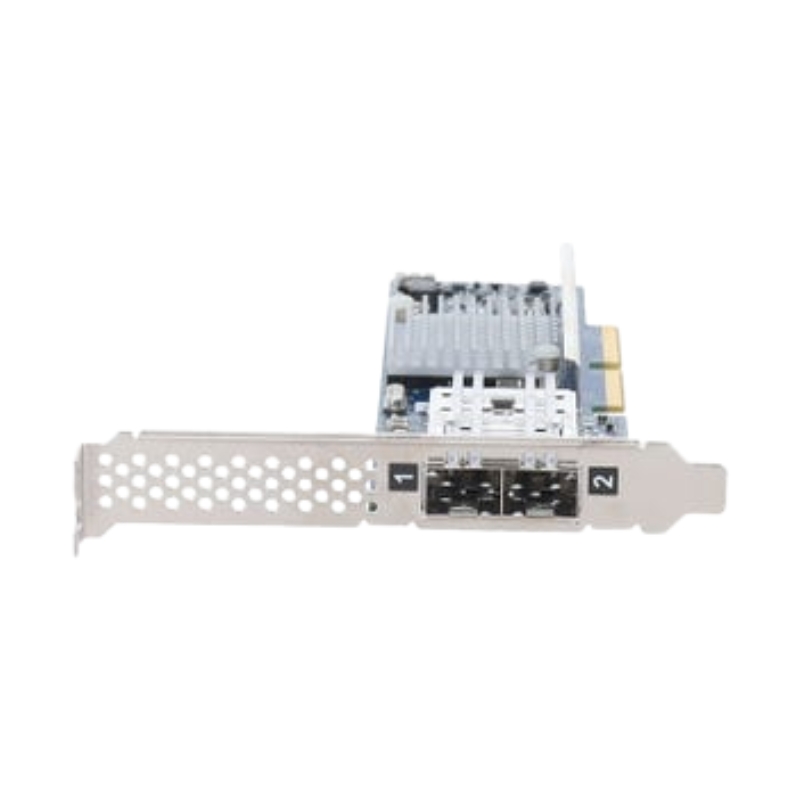

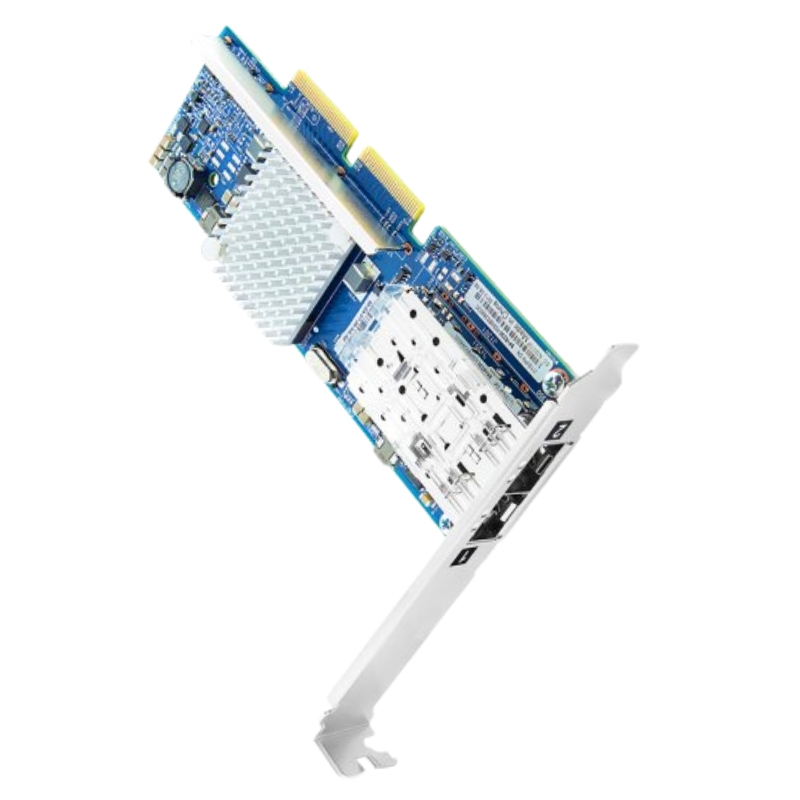

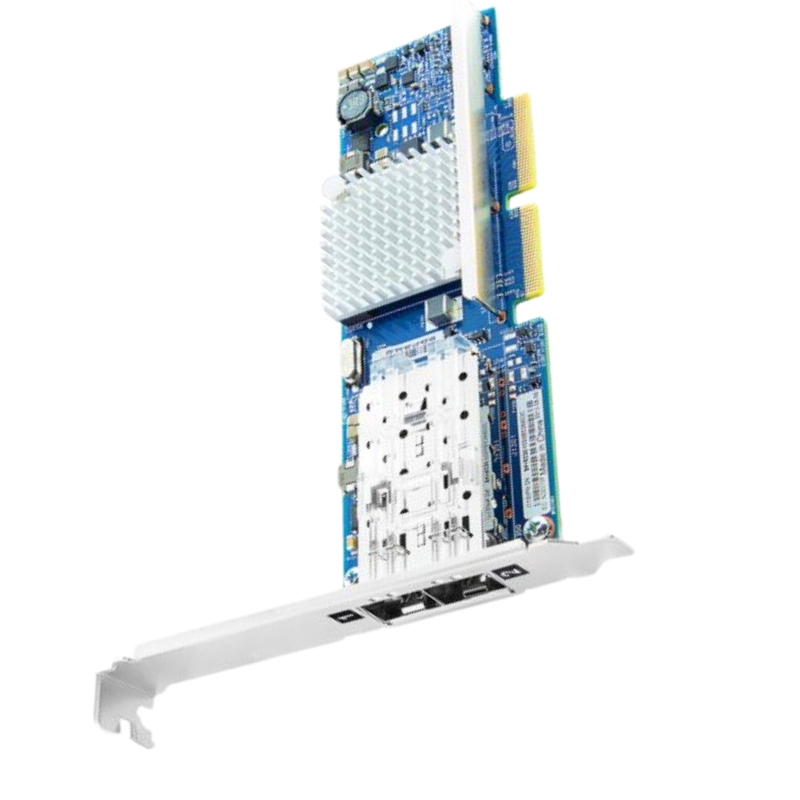

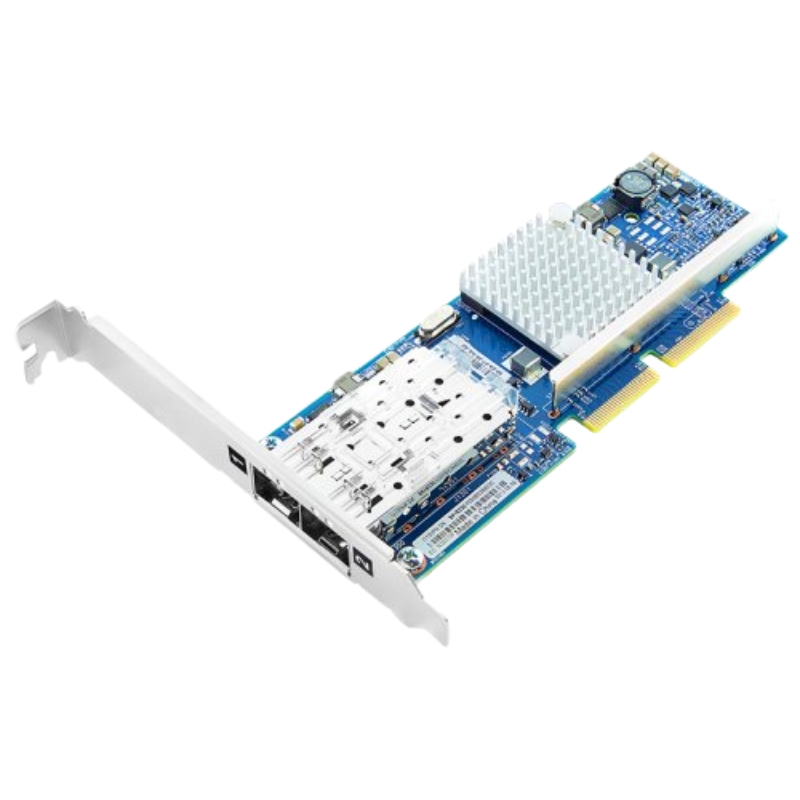

Lenovo 94Y5230 Broadcom 2 Port 10GbE SFP+ Network Adapter

The Lenovo 94Y5230 Broadcom NetXtreme II ML2 dual-port 10 Gigabit Ethernet adapter is engineered to deliver high-performance networking for enterprise-grade server environments. Designed specifically for System x architectures, this advanced network interface card enhances data throughput, minimizes latency, and ensures reliable connectivity for mission-critical workloads. With dual SFP+ ports and support for 10GbE speeds, it is an ideal solution for virtualization, cloud computing, and high-density data centers.

General Specifications

• Manufacturer: Lenovo
• Part Number: 94Y5230
• Device Type: High-speed network adapter

Form Factor and Build

• Form Factor: Plug-in card
• Interface Type: ML2 (LAN-on-Motherboard Generation 2)
• Compact dimensions for optimized server space utilization

Advanced Networking Capabilities

• Data Transfer Rate: Up to 10 Gigabits per second
• Dual SFP+ ports for redundancy and load balancing
• Ideal for bandwidth-intensive applications

Supported Protocols Include:

• 10 Gigabit Ethernet (10GbE)
• Enhanced networking for virtualization platforms

Broadcom Controller Performance

• Processor Model: Broadcom BCM57810S
• Optimized packet processing for reduced latency
• Enhanced offloading features for improved efficiency

Benefits of Broadcom NetXtreme II Technology

• Improved virtualization support
• Advanced traffic management
• Enhanced security features
• Reliable enterprise-grade networking

Compliance and Industry Standards

IEEE Standard Compatibility

• IEEE 802.1Q – VLAN tagging support
• IEEE 802.1P – Traffic prioritization
• IEEE 802.3X – Flow control for congestion management
• IEEE 802.3AE – 10 Gigabit Ethernet standard
• IEEE 802.1AU – Congestion notification

Compact Size for Efficient Deployment

• Width: 0.7 inches
• Depth: 6.6 inches
• Height: 2.7 inches

Compatibility and Server Integration

Designed for Lenovo System x Servers

• Fully compatible with the Lenovo System X infrastructure
• Optimized for enterprise workloads
• Seamless integration with server hardware

Enterprise Networking Benefits

• Supports link aggregation for increased bandwidth
• Enables failover protection for uninterrupted connectivity
• Flexible deployment options

Performance Optimization Features

Advanced Offloading Capabilities

• TCP/IP offload engine support
• Reduced CPU overhead
• Improved application performance

Low Latency Communication

• Fast data packet delivery
• Optimized for real-time workloads
• Enhanced responsiveness

Lenovo 94Y5230 2 Port 10GbE SFP+ Network Adapters Overview

The Lenovo 94Y5230 Broadcom NetXtreme II ML2 Dual Port 10GbE SFP+ System X Network Adapter represents a high-performance networking solution engineered for enterprise-grade servers that demand superior throughput, reduced latency, and exceptional reliability. Designed specifically for Lenovo System x platforms, this ML2 form factor adapter integrates advanced Broadcom NetXtreme II technology to deliver dual-port 10 Gigabit Ethernet connectivity through SFP+ interfaces. This enables organizations to meet the ever-growing data transfer requirements of virtualization environments, cloud infrastructures, database systems, and mission-critical applications.

Advanced ML2 Form Factor Integration

The ML2 (Mezzanine LAN on Motherboard) form factor is a proprietary design optimized for Lenovo System x servers. It allows seamless integration directly into the server motherboard, eliminating the need for traditional PCIe slots. This architectural advantage provides improved airflow, better cable management, and maximized expansion capability for additional components. By utilizing the ML2 slot, the Lenovo 94Y5230 adapter ensures efficient use of server resources while maintaining a compact and scalable hardware configuration.

Benefits of ML2 Architecture

The ML2 architecture offers numerous advantages in modern data centers. It enhances system reliability by reducing physical connections and potential failure points. Additionally, it contributes to energy efficiency by lowering power consumption compared to traditional expansion cards. The direct integration also simplifies maintenance and deployment, making it ideal for large-scale server environments where operational efficiency is critical.

Dual Port 10GbE Connectivity for High-Speed Networking

Equipped with dual 10 Gigabit Ethernet ports, the Lenovo 94Y5230 network adapter significantly enhances network performance by providing high bandwidth and redundancy. Each port supports SFP+ transceivers, allowing flexibility in choosing fiber or direct attach copper connections depending on infrastructure requirements. This dual-port configuration enables load balancing and failover capabilities, ensuring continuous network availability and optimized data traffic distribution.

Enhanced Throughput and Low Latency

The 10GbE capability dramatically improves data transfer speeds compared to traditional Gigabit Ethernet solutions. This is particularly beneficial for applications that require high throughput, such as big data analytics, virtualization, and storage area networks. The adapter is engineered to minimize latency, ensuring faster response times and improved application performance across enterprise environments.

Support for SFP+ Transceivers

The use of SFP+ interfaces provides flexibility and scalability for network deployment. Organizations can choose from a wide range of compatible transceivers, including short-range, long-range, and direct-attach copper cables. This adaptability allows seamless integration into existing network infrastructures while supporting future upgrades without requiring significant hardware changes.

Broadcom NetXtreme II Technology Advantages

The Lenovo 94Y5230 adapter is powered by Broadcom NetXtreme II technology, which is widely recognized for its reliability and performance in enterprise networking. This chipset incorporates advanced features such as TCP/IP offload engines, virtualization acceleration, and intelligent packet processing. These capabilities reduce CPU utilization on the host system, allowing servers to dedicate more resources to application workloads.

Hardware Offloading Capabilities

Hardware offloading is a critical feature that enhances overall system efficiency. By offloading tasks such as checksum calculations, segmentation, and packet processing to the network adapter, the server CPU is relieved from handling these operations. This results in improved system performance, particularly in high-traffic environments where network demands are substantial.

Virtualization Optimization

The adapter supports advanced virtualization technologies, including virtual machine queueing and network partitioning. These features enable efficient traffic management in virtualized environments, ensuring consistent performance across multiple virtual machines. This makes the Lenovo 94Y5230 an ideal choice for data centers that rely heavily on virtualization platforms.

Compatibility with Lenovo System x Servers

The Lenovo 94Y5230 network adapter is specifically designed for compatibility with Lenovo System x servers. This ensures seamless integration and optimal performance without the need for extensive configuration. The adapter supports a wide range of System x models, making it a versatile solution for various enterprise deployments.

Seamless Deployment

Installation of the ML2 adapter is straightforward due to its dedicated slot on compatible motherboards. This reduces deployment time and minimizes the complexity associated with traditional network card installations. System administrators can quickly integrate the adapter into existing infrastructures, enabling faster implementation of high-speed networking capabilities.

Firmware and Driver Support

The Lenovo 94Y5230 adapter is supported by comprehensive firmware and driver packages that ensure compatibility with major operating systems. Regular updates enhance performance, security, and stability, making it a reliable component in enterprise IT environments. These updates also ensure compatibility with evolving network standards and technologies.

Energy Efficiency and Thermal Optimization

The Lenovo 94Y5230 adapter is designed with energy efficiency in mind. Its ML2 form factor contributes to reduced power consumption while maintaining high performance. Additionally, the integrated design improves airflow within the server chassis, helping to maintain optimal operating temperatures.

Reduced Power Consumption

Energy-efficient components and intelligent power management features ensure that the adapter operates with minimal power usage. This not only reduces operational costs but also contributes to environmentally sustainable data center operations.

Improved Cooling Efficiency

By integrating directly into the motherboard, the adapter minimizes obstruction to airflow. This enhances cooling efficiency and reduces the risk of overheating, which can impact system performance and longevity.

Scalability for Modern

The Lenovo 94Y5230 network adapter is built to support the scalability requirements of modern data centers. Its high-speed connectivity and flexible configuration options make it suitable for growing network infrastructures. Organizations can easily scale their networking capabilities by deploying additional adapters or upgrading existing components.

Support for Large-Scale Deployments

The adapter is ideal for large-scale deployments where multiple servers require high-speed network connectivity. Its compatibility with various System x models allows for consistent performance across different server configurations, simplifying network management and maintenance.

Future-Proof Networking Solution

With support for 10GbE technology and SFP+ interfaces, the Lenovo 94Y5230 adapter is a future-proof solution that can adapt to evolving network demands. This ensures long-term value and reduces the need for frequent hardware upgrades.

Security Features and Data Integrity

Security is a key consideration in enterprise networking, and the Lenovo 94Y5230 adapter incorporates features designed to protect data integrity and prevent unauthorized access. Advanced packet filtering and secure data transmission protocols ensure that sensitive information is safeguarded during transfer.

Secure Data Transmission

The adapter supports secure communication protocols that protect data from interception and tampering. This is particularly important in industries where data security is paramount, such as finance, healthcare, and government sectors.

Advanced Filtering

Packet filtering capabilities allow administrators to control network traffic and prevent malicious data from entering the system. This enhances overall network security and reduces the risk of cyber threats.
