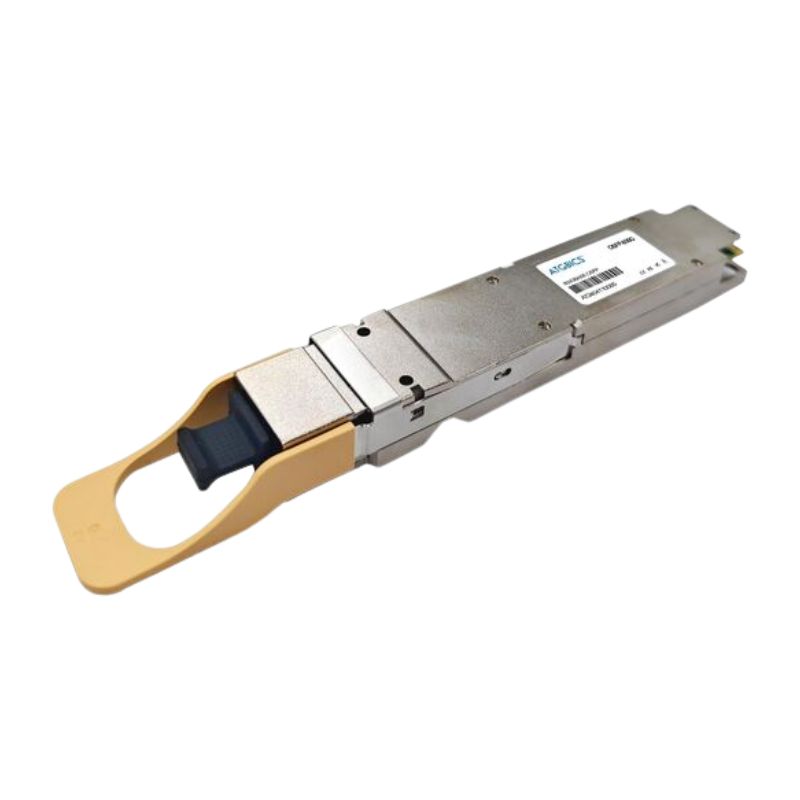

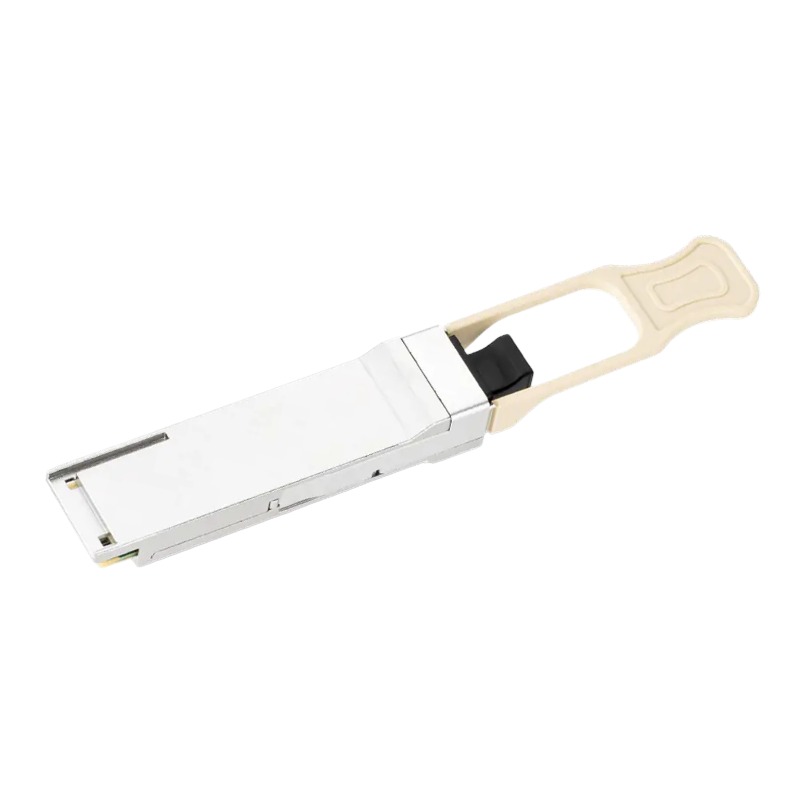

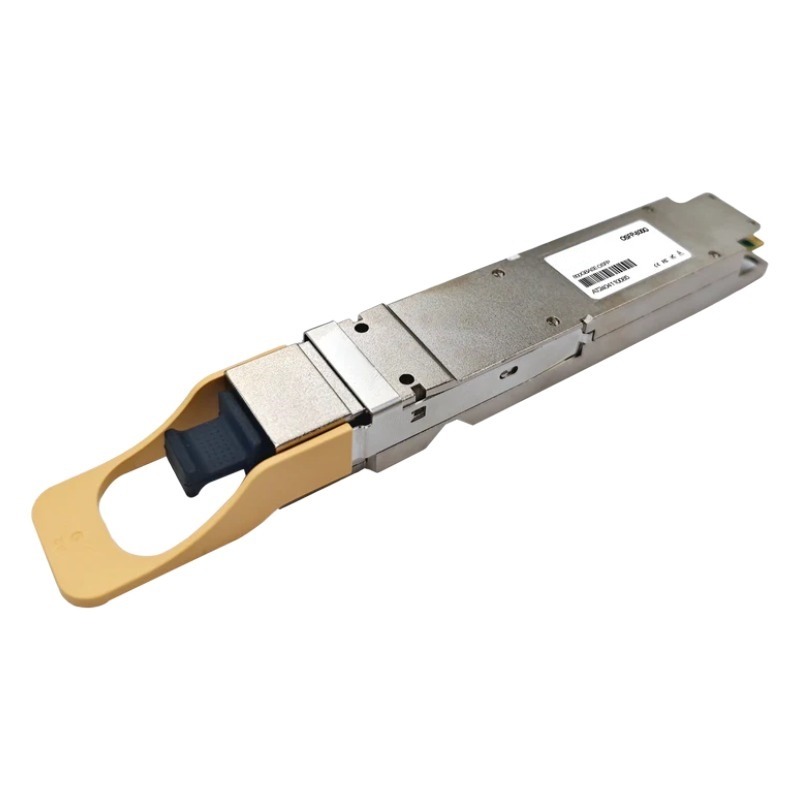

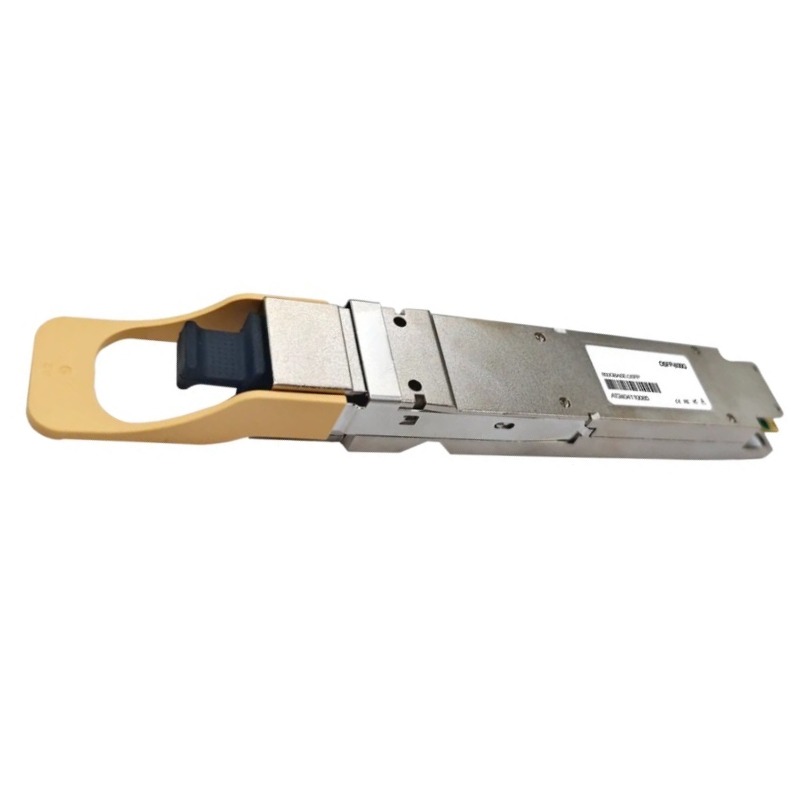

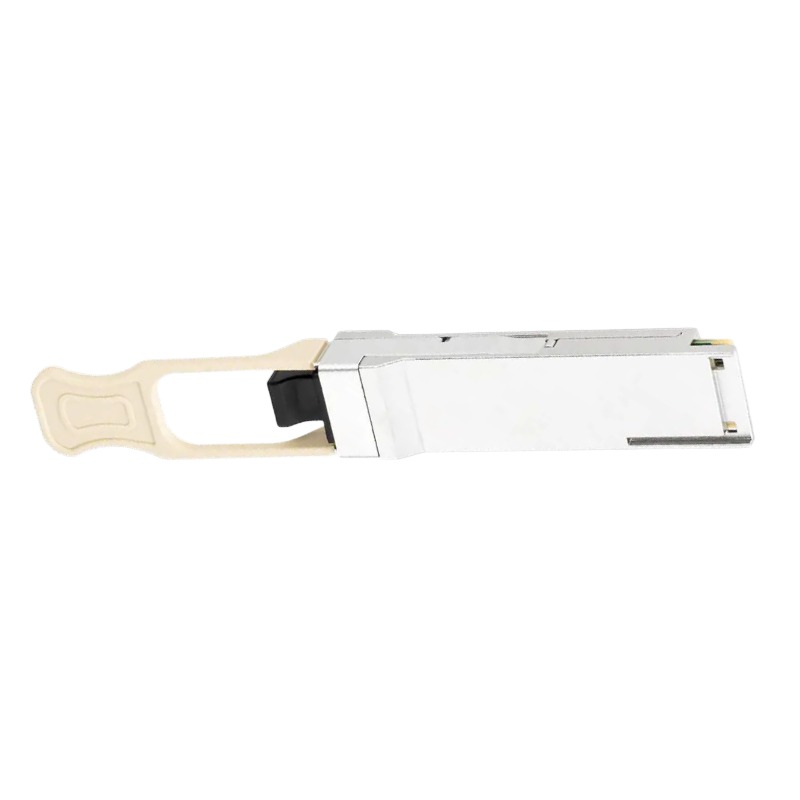

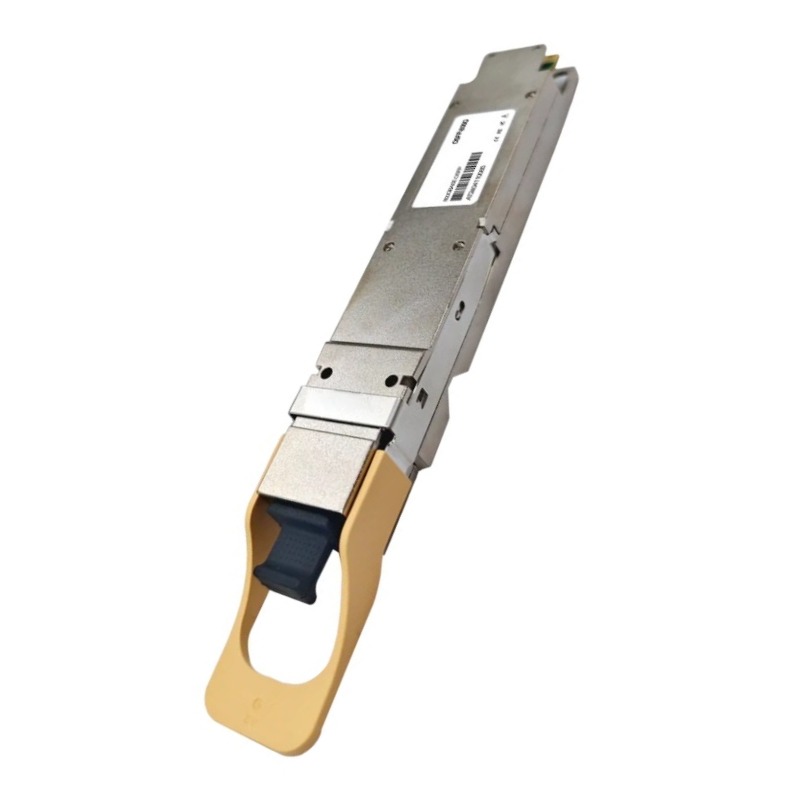

980-9I30H-00NM00 Nvidia 2x400G OSFP 800GBPS SMF100m Transceiver.

980-9I30H-00NM00 Nvidia 2x400G OSFP Transceiver Overview

The 980-9I30H-00NM00 Nvidia 2x400G OSFP 2xMPO/APC 1310nm 800GBPS SMF100m Transceiver is a cutting-edge optical transceiver module engineered for high-performance networking applications. Designed by Nvidia, a leader in AI, data center, and networking technologies, this transceiver provides reliable and ultra-fast connectivity, suitable for hyperscale data centers, high-performance computing (HPC), and enterprise-level cloud environments.

High-Bandwidth Optical Design

Featuring 2x400G OSFP ports and support for 800Gbps aggregated throughput, this transceiver enables seamless scalability for next-generation infrastructure. The module leverages 1310nm wavelength signaling over Single Mode Fiber (SMF) up to 100 meters, making it ideal for short-reach interconnects within high-density environments.

OSFP Form Factor Explained

The Octal Small Form-factor Pluggable (OSFP) is a modular transceiver form factor designed to support ultra-high bandwidths such as 400G and 800G. The OSFP in this model supports low power consumption and effective heat dissipation, crucial in tightly-packed switch and server racks. It also includes support for backwards compatibility via OSFP-to-QSFP adapter modules.

1310nm Laser Wavelength

The 1310nm laser wavelength ensures superior performance over short to medium distances on SMF. This center wavelength provides a balance between range and dispersion tolerance, allowing low signal loss and minimal latency – essential for real-time data processing in cloud computing and AI workloads.

2xMPO/APC Connector Interface

The transceiver utilizes dual MPO/APC (Angled Physical Contact) connectors, which support multiple optical fibers within a single connector housing. This configuration facilitates parallel fiber connectivity, crucial for 400G and 800G applications. MPO/APC connectors also reduce back reflection, ensuring signal integrity.

Understanding MPO vs MPO/APC

MPO connectors come in flat (UPC) and angled (APC) varieties. The APC version used in this module features an 8-degree angled endface to minimize optical return loss. This is especially important at high data rates, where return loss can severely impact transmission quality. MPO/APC is the preferred choice for modern transceivers operating in the 800G range.

Fiber Polarity and Performance

Proper fiber polarity is critical in 2x400G MPO deployments. The Nvidia 980-9I30H-00NM00 module follows the Type B polarity standard, ensuring proper alignment of transmit and receive channels. Using polarity-maintaining patch cords ensures reliable performance without the need for manual channel swapping.

Use Cases for the 980-9I30H-00NM00 2x400G Transceiver

Hyperscale Data Centers

In hyperscale environments where ultra-high throughput is non-negotiable, the Nvidia 980-9I30H-00NM00 transceiver supports core-to-core and spine-leaf architectures. Its 800G capacity over dual MPO/APC links helps achieve high port density with minimal infrastructure cost.

AI Workloads and GPU Clusters

GPU-intensive tasks demand low-latency, high-bandwidth communication between nodes. This transceiver facilitates interconnects between Nvidia DGX systems or across a Nvidia Quantum-2 InfiniBand network, enabling optimal throughput for AI/ML workloads.

Enterprise and Cloud Networking

Enterprises deploying private or hybrid cloud architectures can use this 2x400G transceiver to support east-west traffic within the data center. Its compliance with industry standards ensures interoperability with equipment from vendors like Cisco, Arista, Juniper, and more.

Performance and Compliance Standards

The 980-9I30H-00NM00 transceiver adheres to a range of industry standards to ensure optimal performance, safety, and interoperability. It is OSFP MSA-compliant, meeting specifications for signal integrity, mechanical design, and thermal behavior.

CMIS 5.2 Compatibility

The Common Management Interface Specification (CMIS) 5.2 enables standardized monitoring and management of this transceiver. Network administrators can view diagnostics such as real-time power levels, temperature, voltage, and receive alerts to prevent downtime.

IEEE 802.3bs and 802.3ck Standards

This transceiver supports signaling protocols defined in the IEEE 802.3bs (400GBASE) and 802.3ck (800GBASE) Ethernet standards. These ensure seamless compatibility with modern switches, routers, and host adapters operating at ultra-high speeds.

Plug-and-Play Deployment

The hot-swappable nature of the 980-9I30H-00NM00 makes installation and maintenance efficient. It can be inserted or removed without powering down the system, a critical feature for mission-critical environments like financial data centers and telecom switching stations.

Firmware and Monitoring

The module includes EEPROM and diagnostic monitoring functionality. Via Digital Diagnostics Monitoring Interface (DDMI), operators can monitor input/output power, laser bias current, and temperature in real-time using SNMP or proprietary network management tools.

Reliability and Environmental Tolerance

The transceiver is engineered to operate in rigorous conditions. Its mechanical and optical interfaces are rugged and thermally optimized to operate between 0°C and 70°C, suitable for indoor rack-mount deployments.

MTBF and Lifecycle

With a Mean Time Between Failures (MTBF) exceeding 1 million hours, the 980-9I30H-00NM00 offers unmatched longevity. This reduces operational expenditure and the need for frequent module replacements, crucial for large-scale rollouts.

Inventory and Availability

SKU Details and Manufacturer Part Number

This transceiver module is listed under the part number 980-9I30H-00NM00. As an official Nvidia product, it's distributed through certified resellers, system integrators, and network infrastructure providers. Bulk ordering options and discounts may be available for enterprise customers.

Supply Chain and Lead Time

Due to global demand in AI and cloud infrastructure, availability of 800G OSFP modules may vary. Inventory levels are updated frequently, and customers are encouraged to secure units early for large-scale deployment projects.

Advantages Over Competing Transceivers

Compared to alternative 800G transceivers on the market, the 980-9I30H-00NM00 offers superior Nvidia ecosystem integration, higher efficiency, and enhanced monitoring capabilities. Its dual MPO/APC setup also provides easier scalability than single-port modules.

Vendor-Neutral Interoperability

Despite being a Nvidia-manufactured device, this module offers multi-vendor compatibility. It adheres to industry standards and can interface with third-party switches and network equipment, reducing vendor lock-in risks.

Ordering Information and Deployment Tips

Compatible Cabling

This transceiver is optimized for OM5 and OS2-rated Single Mode Fiber cables. For best results, use factory-terminated MPO/MTP trunk cables with low insertion loss. Ensure all connectors meet IEC 61754-7-3 APC standards for maximum performance.

Deployment Best Practices

• Verify compatibility with host OSFP ports and software drivers
• Use APC cleaning tools before installation to reduce contamination
• Monitor real-time telemetry via CMIS interface post-deployment
• Ensure fiber routing adheres to bend radius and strain relief best practices
