A9K-8T/4-E Cisco 8-ports 10GE Medium Queue Line Card

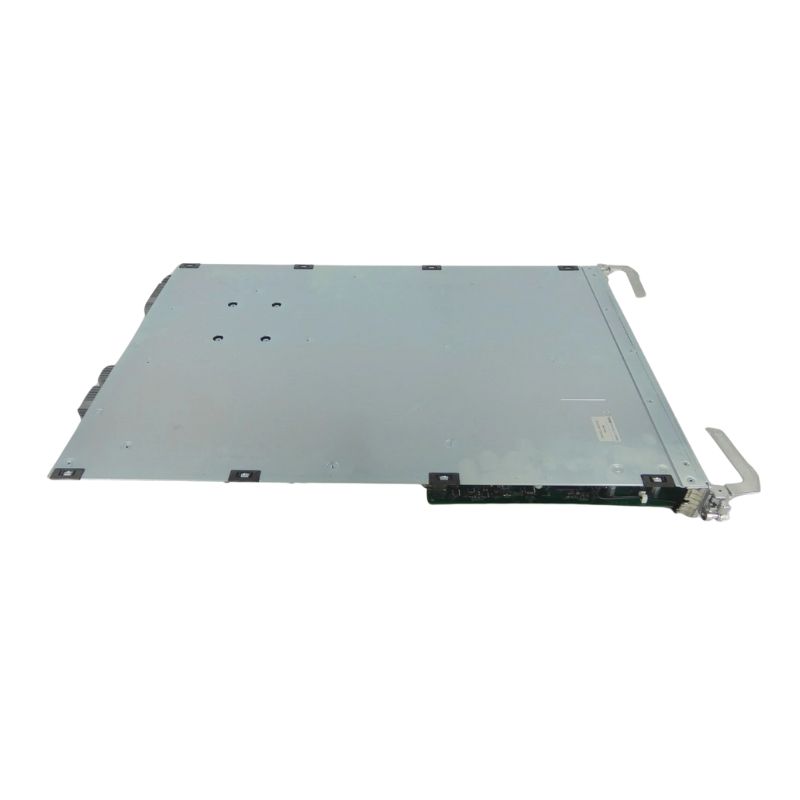

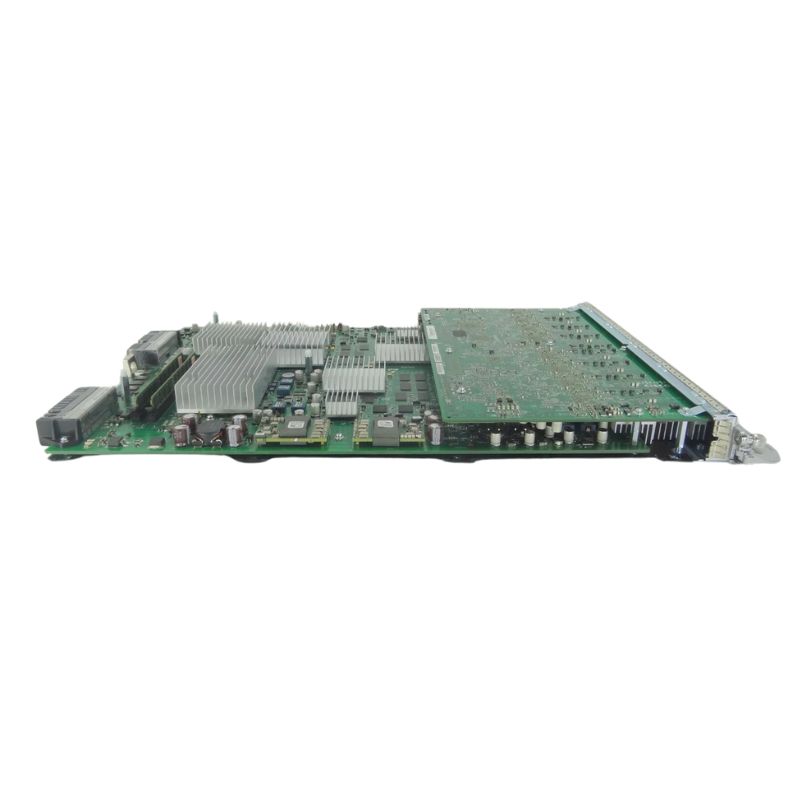

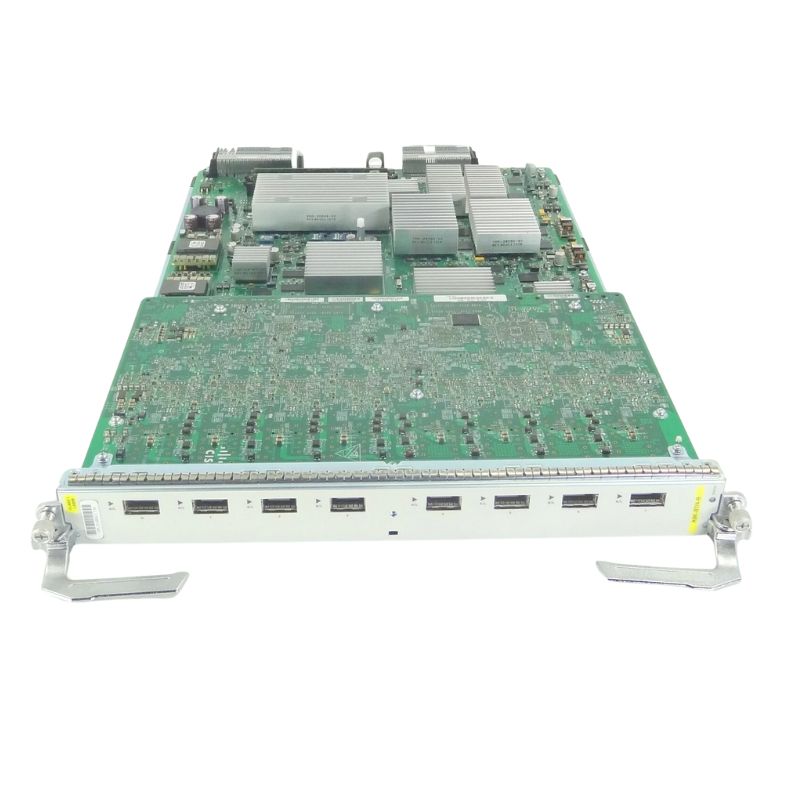

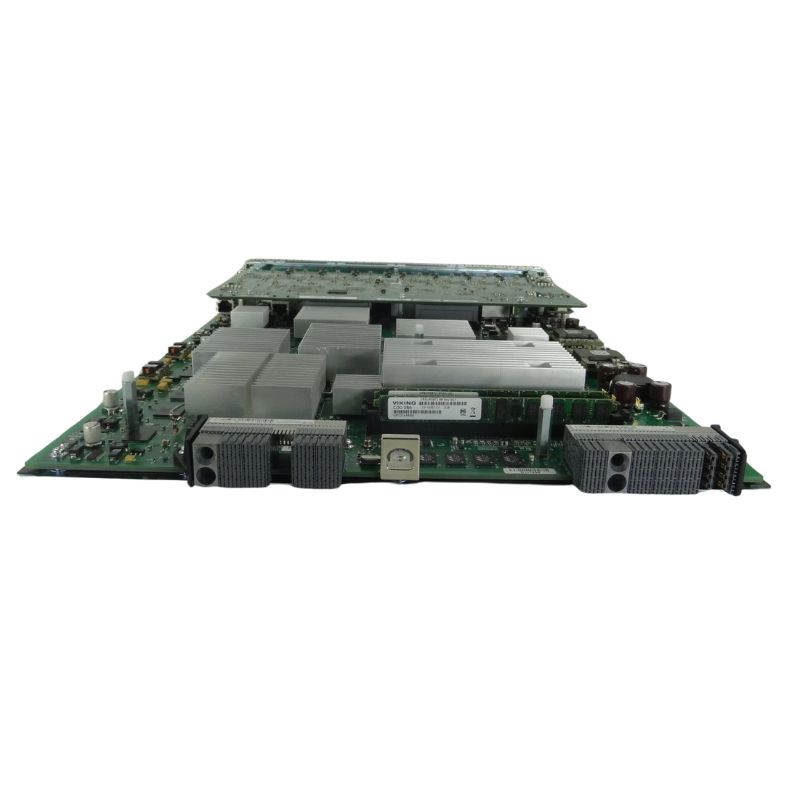

The Cisco A9K-8T/4-E 8-Port 10GE Oversubscribed Line Card

The Cisco A9K-8T/4-E is a high-performance modular line card designed for carrier-grade routing platforms within the Cisco ASR 9000 Series architecture. It provides eight ports of 10 Gigabit Ethernet connectivity with a medium queue oversubscribed forwarding model. This line card is engineered to meet the demanding requirements of service provider backbones, metro aggregation layers, and large-scale enterprise networks that require efficient traffic handling, scalable bandwidth distribution, and robust packet processing capabilities.

This hardware component is optimized for environments where high throughput and cost-efficient port density are essential. By using oversubscription techniques combined with advanced queuing mechanisms, it allows network operators to maximize port utilization while maintaining acceptable performance levels for diverse traffic patterns including video streaming, VoIP, cloud applications, and large data transfers.

Architectural and Internal Processing

The architecture of the Cisco A9K-8T/4-E line card is built around distributed forwarding and hardware-based packet processing. It integrates specialized forwarding engines that are capable of handling multiple flows simultaneously without creating bottlenecks in packet delivery. Each port is connected to a high-speed switching fabric that enables efficient traffic movement across the router chassis.

The line card uses a modular packet processing pipeline that includes ingress processing, classification, buffering, queuing, scheduling, and egress forwarding. This pipeline ensures that packets are processed in a deterministic manner, which is crucial for maintaining service level agreements in carrier environments. Hardware acceleration is heavily utilized to offload CPU-intensive tasks such as routing lookups and QoS classification.

Eight-Port 10 Gigabit Ethernet

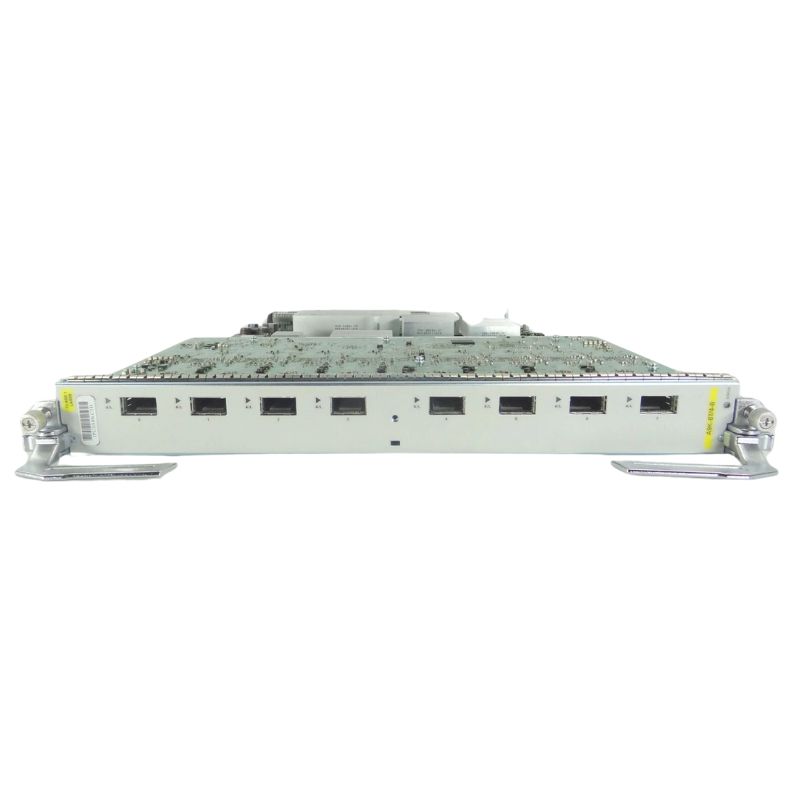

The Cisco A9K-8T/4-E provides eight independent 10 Gigabit Ethernet interfaces, enabling high-density connectivity in a compact form factor. Each port supports full-duplex transmission, allowing simultaneous send and receive operations at line rate under optimal conditions. These interfaces are typically used for uplinks, aggregation links, and high-capacity interconnections between network nodes.

The ports support a variety of optical transceivers, giving network operators flexibility in choosing short-range, long-range, or extended-range connectivity options. This adaptability makes the line card suitable for deployment across diverse network topologies, including metro ring architectures and backbone mesh designs.

Medium Queue Oversubscription

A defining feature of this line card is its medium queue oversubscription design. Oversubscription refers to the ratio between total input bandwidth and available switching or output bandwidth. In this case, the architecture is engineered to balance cost efficiency and performance by allowing a controlled level of oversubscription.

The medium queue structure ensures that buffering and scheduling mechanisms can absorb traffic bursts without immediate packet loss. When multiple ports experience simultaneous high traffic loads, the queueing system prioritizes packets based on configured policies, ensuring fairness and predictable performance across different services.

This model is particularly effective in service provider environments where traffic patterns are statistically multiplexed, meaning not all ports operate at maximum capacity at the same time. By leveraging this behavior, the line card delivers high aggregate throughput while maintaining efficient resource utilization.

Quality of Service

Quality of Service mechanisms are deeply integrated into the line card architecture. Traffic classification is performed at ingress, where packets are identified based on headers, protocols, and configured policies. Once classified, packets are assigned to appropriate queues for prioritized handling.

The scheduling system ensures that high-priority traffic such as voice and real-time video is transmitted ahead of best-effort traffic. Weighted fair queuing and priority queuing models are commonly applied depending on network requirements. These mechanisms help maintain low latency and jitter for critical applications.

Policing and shaping functions are also supported, allowing administrators to control bandwidth usage per interface or per service class. This ensures fair distribution of network resources across multiple users and applications.

Service Provider Network

The Cisco A9K-8T/4-E is widely used in service provider networks where high-capacity aggregation and backbone connectivity are essential. It is commonly deployed in metro Ethernet networks, core IP backbones, and edge routing platforms that connect customer networks to large-scale internet infrastructure.

Its ability to handle mixed traffic types makes it suitable for converged networks carrying voice, video, and data services simultaneously. Service providers benefit from its scalability, as it allows them to expand network capacity without redesigning core infrastructure.

Enterprise Edge Deployment Scenarios

In large enterprise environments, this line card is often deployed at the network edge where high-speed connectivity to data centers and external networks is required. Enterprises with cloud-heavy workloads benefit from its ability to handle large volumes of east-west and north-south traffic efficiently.

It is also used in campus aggregation layers where multiple building networks converge into a centralized routing system. The high port density ensures that multiple switches and access networks can be connected without requiring excessive hardware expansion.

Hardware and Build Quality

The physical design of the Cisco A9K-8T/4-E emphasizes durability, thermal efficiency, and modular integration. It is built to operate in high-density chassis environments where heat dissipation and power efficiency are critical considerations.

Advanced cooling mechanisms ensure stable operation even under sustained high traffic loads. The line card is also designed with redundant internal pathways to improve resilience against hardware failures.

Scalability in Modern Networks

Scalability is a core advantage of the Cisco A9K-8T/4-E line card. As network demand grows, additional line cards can be added to increase overall throughput and port density. This modular scaling approach reduces capital expenditure while allowing continuous network expansion.

The architecture supports both horizontal and vertical scaling strategies, enabling operators to adapt to evolving traffic demands in cloud computing, streaming services, and enterprise connectivity.

Reliability and Network Stability

Reliability is achieved through redundant hardware paths, robust error handling mechanisms, and continuous monitoring systems. The line card is designed to minimize packet loss and maintain consistent performance even in high-stress environments.

Fault detection systems ensure that potential hardware issues are identified early, allowing preventive maintenance before service disruption occurs. This level of reliability is essential for mission-critical networks.

Deployment Flexibility and Use Cases

The Cisco A9K-8T/4-E supports a wide range of deployment scenarios including backbone routing, metro aggregation, data center interconnect, and high-speed enterprise edge routing. Its flexibility makes it suitable for both legacy network upgrades and greenfield deployments.

It can be configured for different traffic engineering models depending on organizational needs, making it adaptable to changing network architectures and service demands.
