AIR-AP2802I-QK9 Cisco Aironet 2802I Wireless Access Point

Cisco AIR-AP2802I-Q-K9 Aironet 2802I Wireless Access Point

The AIR-AP2802I-QK9 is a high-performance enterprise wireless access point from Cisco's Aironet 2800 Series, designed for high-density business environments.  Delivering wireless speeds of up to 5.2 Gbps for reliable and efficient connectivity. Featuring internal antennas, dual Gigabit Ethernet ports, advanced RF optimization, and support for Cisco wireless controllers and Mobility Express, it is an ideal solution for offices, campuses, healthcare facilities, educational institutions, and other enterprise Wi-Fi deployments requiring secure, scalable, and high-capacity wireless networking.

General Information

• Manufacturer: Cisco Systems
• Part Number: AIR-AP2802I-QK9
• Device Type: Network Device

Technical Specifications

• Model: AIR-AP2802I-QK9
• Series: Cisco Aironet 2800 Series
• Product Type: Indoor Wireless Access Point
• Antenna Type: Internal Antennas for streamlined deployment
• Standard: IEEE 802.11a/b/g/n/ac Wave 2
• Wi-Fi Standard: IEEE 802.11ac Wave 2 (Wi-Fi 5)
• MIMO Technology: 4x4 MU-MIMO with 3 spatial streams
• Maximum Data Rate: Up to 5.2 Gbps
• Frequency Bands: 2.4 GHz and 5 GHz
• Channel Widths: 20 MHz, 40 MHz, 80 MHz, 160 MHz
• Beamforming: Supported for enhanced signal strength
• MRC: Maximal Ratio Combining supported
• Packet Aggregation: A-MPDU & A-MSDU
• DFS: Dynamic Frequency Selection supported

Connectivity Options

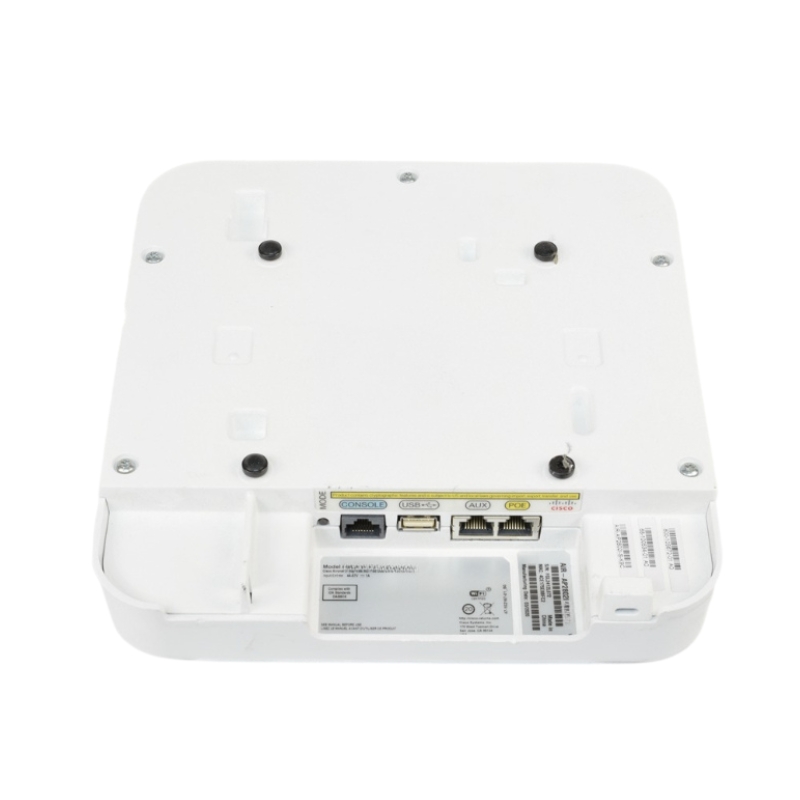

• Ethernet Ports: 2 × 10/100/1000 Gigabit RJ-45
• Console Port: 1 × RJ-45 Management Console
• USB Port: 1 × USB 2.0

Memory & Storage

• DRAM: 1 GB
• Flash Storage: 256 MB

Power Options

• IEEE 802.3at PoE+
• Cisco Universal Power over Ethernet
• Optional external power adapter

Physical Details

• Dimensions: 220 × 220 × 55 mm (8.66 × 8.68 × 2.17 inches)
• Weight: Approximately 1.6 kg (3.53 lbs)

Compatibility

• Cisco Wireless LAN Controller 2500 Series
• Cisco 5500 Series Wireless Controllers
• Cisco 8500 Series Wireless Controllers
• Cisco Flex 7500 Wireless Controller
• Cisco Virtual Wireless Controller
• Cisco Catalyst 3650 & 3850 Integrated Wireless Controller
• Cisco Mobility Express
• Cisco Unified Wireless Network Software Release 8.2.111.0 or later
• Cisco IOS XE Release 16.3 or later
• Compatible with IEEE 802.3at PoE+ switches
• Supports CAPWAP-based enterprise wireless deployments

Overview Cisco AIR-AP2802I-QK9 2802I Wireless Access Point

The Cisco AIR-AP2802I-QK9 Aironet 2802I Wireless Access Point is a high-performance enterprise-grade networking solution designed to deliver reliable connectivity across diverse environments. Built on the IEEE 802.11ac Wave 2 standard, this device supports dual-band operation at 2.4 GHz and 5 GHz, ensuring seamless coverage and optimal throughput for modern applications. With advanced MU-MIMO technology, the access point can serve multiple clients simultaneously, reducing latency and enhancing overall user experience in high-density deployments.

Design and Build Quality

The AIR-AP2802I-QK9 features a sleek and compact design that allows easy installation in enterprise offices, educational institutions, healthcare facilities, and retail environments. Its robust build ensures durability while maintaining a professional aesthetic suitable for ceiling or wall mounting. The internal antenna system is engineered to provide consistent signal distribution, minimizing dead zones and maximizing coverage across large areas.

Dual-Band Connectivity

Operating on both 2.4 GHz and 5 GHz frequency bands, the access point offers flexibility in managing wireless traffic. The 2.4 GHz band provides extended range and compatibility with legacy devices, while the 5 GHz band delivers higher speeds and reduced interference, making it ideal for bandwidth-intensive applications such as video conferencing, cloud computing, and real-time collaboration tools.

Wi-Fi 5 Performance

As a Wi-Fi 5 device, the Cisco AIR-AP2802I-QK9 leverages the benefits of 802.11ac Wave 2 technology, including support for wider channel bandwidths up to 160 MHz and advanced modulation schemes. This enables maximum data rates of up to 5.2 Gbps, ensuring smooth streaming, rapid file transfers, and uninterrupted access to cloud-based resources. The integration of beamforming technology further enhances signal strength and reliability by directing wireless signals toward connected devices.

MU-MIMO Technology

Multi-User Multiple Input Multiple Output technology allows the access point to communicate with multiple devices simultaneously. This reduces congestion and improves overall network efficiency, particularly in environments with a high density of users such as lecture halls, conference centers, and shopping malls. By supporting 4x4:3 MU-MIMO streams, the AIR-AP2802I-QK9 ensures that each client receives optimal bandwidth allocation.

CleanAir and ClientLink Features

CleanAir technology provides proactive interference detection and mitigation, ensuring that wireless performance remains stable even in environments with competing signals. ClientLink 4.0 enhances connectivity for legacy devices by optimizing signal strength and throughput, allowing older hardware to benefit from improved performance without requiring upgrades. Together, these features contribute to a more reliable and efficient wireless ecosystem.

DFS and Security Support

Dynamic Frequency Selection enables the access point to operate on additional channels in the 5 GHz spectrum, reducing congestion and improving performance. Security is reinforced through support for WPA2 and enterprise-grade encryption protocols, ensuring that sensitive data remains protected during transmission. Integration with Cisco’s Identity Services Engine allows for advanced policy enforcement and secure access management.

Deployment Scenarios

The Cisco AIR-AP2802I-QK9 is designed for versatile deployment across a wide range of industries. In corporate offices, it supports seamless collaboration by providing high-speed connectivity for video conferencing, VoIP, and cloud applications. In educational institutions, it enables digital learning platforms and supports large numbers of simultaneous connections in classrooms and auditoriums. Healthcare facilities benefit from secure and reliable wireless access for patient records, medical devices, and staff communication.

Retail and Hospitality Applications

Retail environments leverage the AIR-AP2802I-QK9 to provide customers with fast and secure Wi-Fi access, supporting point-of-sale systems, inventory management, and personalized shopping experiences. In hospitality settings such as hotels and resorts, the device ensures guests enjoy uninterrupted connectivity for streaming, browsing, and business activities, enhancing overall satisfaction and loyalty.

High-Density Environments

Designed to excel in high-density environments, the AIR-AP2802I-QK9 manages large numbers of concurrent connections without compromising performance. Stadiums, convention centers, and transportation hubs benefit from its ability to deliver consistent connectivity even during peak usage periods. The integration of advanced load-balancing mechanisms ensures that bandwidth is distributed efficiently among connected devices.

Integration with Cisco Infrastructure

The access point seamlessly integrates with Cisco Wireless LAN Controllers, Mobility Express, and Catalyst Wireless Controllers, providing centralized management and simplified deployment. Compatibility with Cisco Prime Infrastructure and Cisco DNA Center enables advanced monitoring, analytics, and automation, allowing IT administrators to optimize network performance and proactively address issues.

Power and Installation

The Cisco AIR-AP2802I-QK9 supports IEEE 802.3at Power over Ethernet Plus, simplifying installation by eliminating the need for separate power cables. This feature allows for flexible placement in areas where traditional power outlets may not be available. The device can be mounted on ceilings or walls, ensuring optimal coverage and minimal disruption to interior design aesthetics.

Environmental Considerations

Engineered for enterprise environments, the AIR-AP2802I-QK9 operates efficiently within standard temperature and humidity ranges. Its durable construction ensures reliable performance in diverse conditions, making it suitable for deployment in offices, classrooms, retail spaces, and healthcare facilities. The compact form factor minimizes visual impact while delivering powerful wireless coverage.

Enterprise Benefits

Organizations deploying the AIR-AP2802I-QK9 benefit from enhanced productivity, improved collaboration, and secure connectivity. The device’s ability to handle high traffic volumes and deliver consistent performance makes it a valuable asset for enterprises seeking to optimize their digital transformation initiatives. By providing reliable wireless access, businesses can support modern applications and maintain competitive advantage in fast-paced industries.
