AP4434A APC Netshelter Rack Automatic Transfer Switch

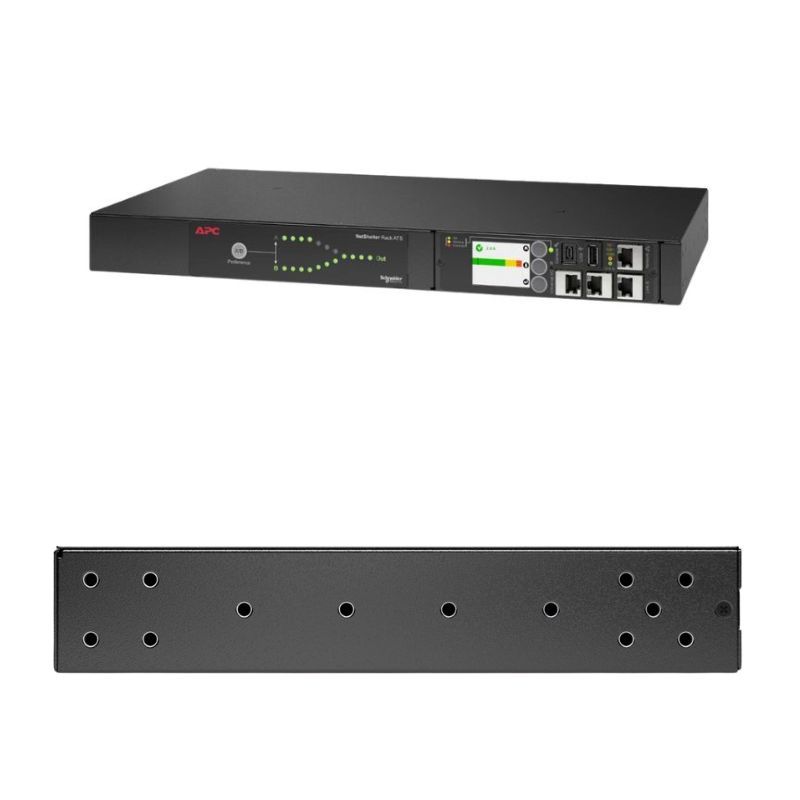

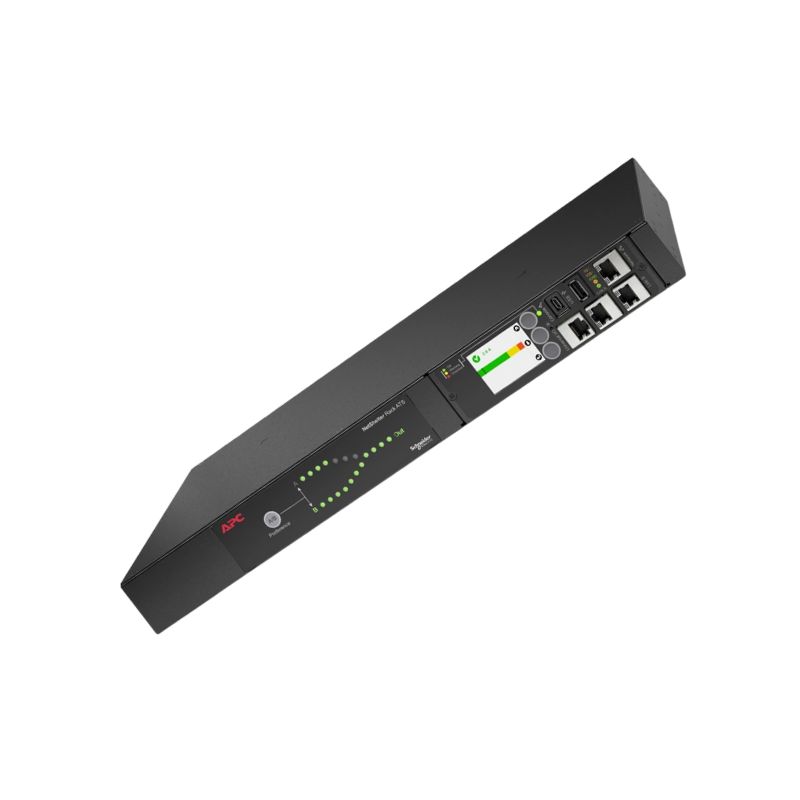

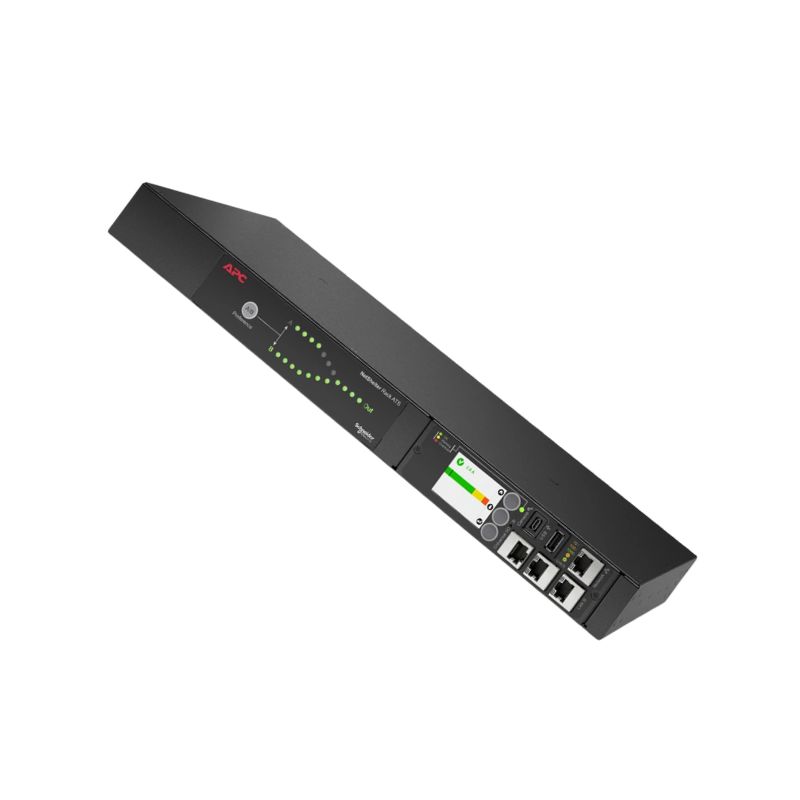

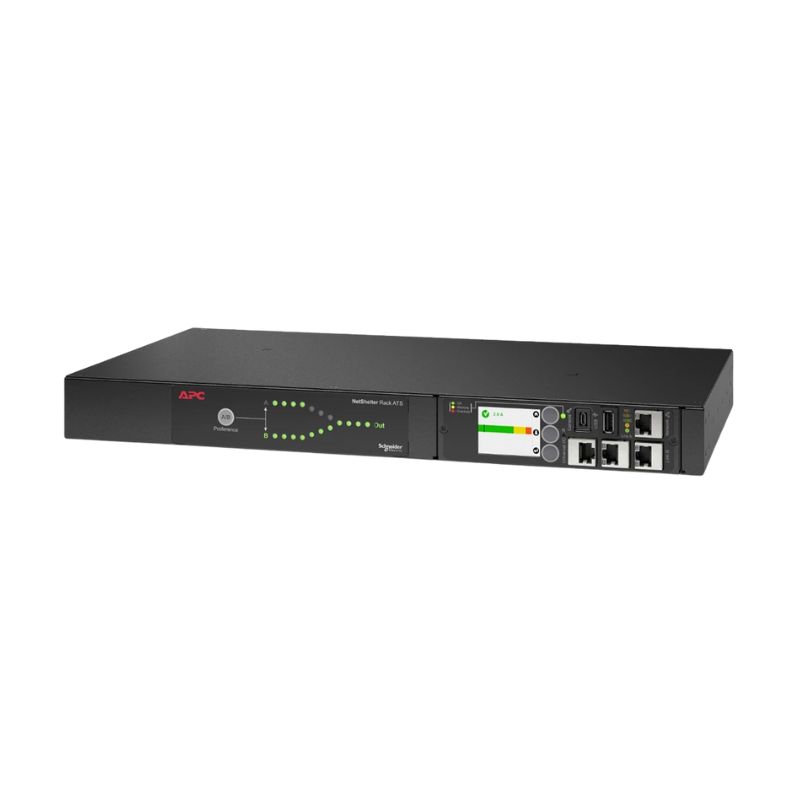

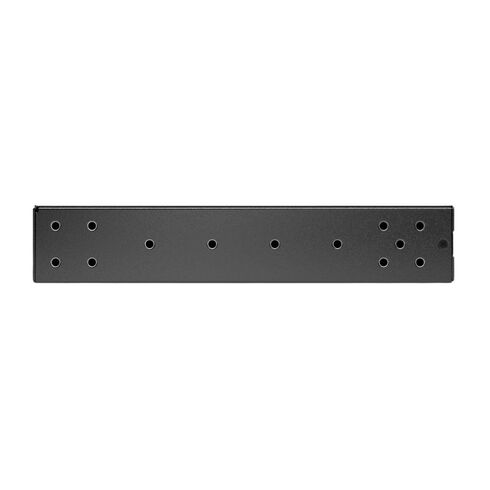

APC AP4434A NetShelter Rack Automatic Transfer Switch

The APC AP4434A NetShelter Rack Automatic Transfer Switch is an advanced rack-mounted power distribution and redundancy solution engineered for mission-critical IT infrastructure. Designed to maintain power continuity, this intelligent transfer switch automatically transitions connected equipment between two independent power sources. This functionality helps prevent downtime and protects valuable networking and server hardware from unexpected power disruptions.

Engineered for enterprise-grade server racks and data center environments, this device delivers consistent 208V AC single-phase output while supporting high-efficiency power load distribution. Its compact 1U rack form factor allows seamless installation into standard rack enclosures without consuming excessive vertical space.

Product Identification Details

• Manufacturer: APC
• Part Number: AP4434A
• Device Category: Rack Automatic Transfer Switch

Reliable Automatic Power Source Switching

• Dual input power source support
• Real-time monitoring of incoming power
• Fast switching response for uninterrupted operation
• Ideal for redundant power architecture deployment

Optimized Rack Integration

• Standard 19-inch rack compatibility
• Front or rear mounting flexibility
• Horizontal mounting orientation
• Includes rack mounting brackets and installation hardware

Technical Electrical Specifications

• Main input voltage: 208V AC single phase
• Input frequency: 50Hz to 60Hz
• Rated line current: 20 Amps
• Maximum line current: 20 Amps
• Input current limit protection: 20 Amps

Voltage Tolerance Range

• Acceptable voltage range: 187V to 228V AC
• Designed for stable operation in commercial electrical environments

Output Power Delivery Capabilities

• Total load capacity: 3300 VA
• Maximum current per phase: 20 Amps
• Circuit breaker integrated for protection

Power Outlet

• 8 × IEC 60320 C13 outlets (12A 2P+E)
• 1 × IEC 60320 C19 outlet (16A 2P+E)
• Supports servers, switches, storage arrays, and high-power equipment

Input Connector

• Connector standard: IEC 60320 C20
• Current rating: 16A 2P+E
• Industrial-grade connection reliability

Power Cord and Cable Specifications

• Cable length: Approximately 8 feet (2.4 meters)
• Provides flexible rack placement options
• Heavy-duty insulation for long-term durability

Mechanical and Physical Design Characteristics

Dimensions

• Height: 1.73 inches (4.4 cm)
• Width: 17.01 inches (43.2 cm)
• Depth: 9.29 inches (23.6 cm)

Weight and Structural Build

• Net weight: 8.25 lbs (3.74 kg)
• Solid metal chassis for durability
• Black finish suitable for enterprise rack aesthetics

Circuit Protection Mechanisms

• Built-in overload protection
• Prevents downstream device damage
• Enhances infrastructure reliability

Compliance and Regulatory Standards

• EN 55022 Class A electromagnetic compatibility
• FCC Part 15 Class A compliance
• Enterprise and commercial environment certified

Temperature Range

• Operating temperature: -5°C to 45°C (23°F to 113°F)
• Optimized for controlled data center environments

Humidity Tolerance

• Operating relative humidity: 5% to 95%
• Non-condensing environmental support

Operational Altitude

• Operating altitude: Up to 10,000 feet
• Suitable for high-altitude installations

Storage Conditions

• Storage temperature range: -25°C to 65°C (-13°F to 149°F)

Storage Humidity and Altitude

• Storage humidity: 5% to 95%
• Storage altitude: Up to 50,000 feet (15,240 meters)

Deployment Use Cases

• Server redundancy power switching
• High-availability rack power architecture
• Enterprise colocation environments

Network Operations Centers

• Continuous power for switches and routers
• Edge network redundancy implementation
• Telecommunications rack deployments

Enterprise IT Closets and Server Rooms

• Backup power transition for critical business systems
• Supports virtualization hosts and storage devices
• Ideal for distributed IT environments

Rack Power Continuity and Automatic Transfer Switching

The APC AP4434A NetShelter Rack Automatic Transfer Switch represents a critical component within modern data center and network infrastructure environments where power redundancy and uptime are essential. In rack-based deployments, power distribution is not only about delivering electricity to equipment but also about maintaining continuous operation during upstream power source interruptions. Automatic transfer switching technology ensures that connected devices receive uninterrupted power by switching between two independent power sources without manual intervention. This capability is particularly valuable in enterprise server rooms, telecom facilities, edge computing installations, and industrial control environments where downtime can lead to significant operational disruption and financial loss.

Role of Rack Automatic Transfer Switches in Modern IT Infrastructure

Rack automatic transfer switches function as intelligent power routing devices installed directly into standard 19-inch server racks. The 1U rack height form factor allows efficient use of vertical rack space while providing enterprise-grade switching performance. These devices continuously monitor two separate input power feeds and automatically select the optimal power source based on availability and stability. When the primary source fails or drops below acceptable thresholds, the switch instantly transitions to the secondary source. This process occurs rapidly enough to prevent connected equipment from losing power, which protects servers, storage arrays, network switches, and security appliances from unexpected shutdown events.

Importance in High Availability Data Centers

High availability architecture depends on eliminating single points of failure. Power redundancy remains one of the most critical design elements in Tier II, Tier III, and Tier IV data center models. Automatic transfer switches support redundant power supply strategies by allowing single-corded equipment to benefit from dual power source protection. Many enterprise IT devices support dual power supplies, but numerous network appliances, legacy systems, and specialized hardware only feature single power inputs. Rack ATS units bridge this gap by providing power path redundancy externally, ensuring broader infrastructure protection without requiring hardware replacement.

Integration with Power Distribution Units and UPS Systems

Automatic transfer switches are typically deployed alongside rack power distribution units and uninterruptible power supply systems. In this configuration, each input of the ATS can be connected to separate UPS units, separate power grids, or generator-backed circuits. This layered redundancy architecture creates multiple failover pathways. If a UPS system fails or requires maintenance, the ATS seamlessly shifts load to the alternate UPS or power source. This integration improves serviceability and allows maintenance tasks without impacting critical loads.

Electrical Performance Characteristics and Power Handling Capabilities

The APC AP4434A operates at 20A current capacity and supports 208V input power, which is commonly used in enterprise data center deployments and high-density rack environments. Higher voltage distribution improves electrical efficiency by reducing current draw for the same power output, which minimizes heat generation and cable losses. The device supports both 50Hz and 60Hz frequency environments, making it suitable for global deployment across multiple geographic regions. This flexibility allows multinational organizations to standardize on a single ATS model across various facilities.

Input and Output Connector Architecture

The presence of dual C20 input connectors supports independent power feeds from separate upstream circuits or power infrastructure layers. C20 connectors are widely used in high-capacity IT power applications and support higher current loads compared to standard C14 connectors. On the output side, the device includes multiple C13 outlets along with a C19 outlet, enabling compatibility with a wide range of enterprise equipment. C13 outlets typically power servers, switches, and storage devices, while C19 outlets support high-power devices such as blade chassis or high-performance computing hardware.

Thermal Management and Electrical Safety Design

Electrical devices installed in dense rack environments must maintain safe operating temperatures. The AP4434A is designed to operate efficiently within typical data center ambient temperatures. Internal components are engineered to minimize electrical resistance and heat generation. Protective circuitry helps guard against overcurrent, short circuit conditions, and abnormal power fluctuations. This design approach helps extend device lifespan and reduces the risk of unexpected failure during peak load conditions.

Mechanical Design and Rack Integration Efficiency

The APC AP4434A 1U rack-mounted design ensures that the ATS occupies minimal vertical space while providing maximum functional value. Modern data center rack space is highly valuable, and efficient equipment sizing contributes to higher compute density and improved airflow management. The compact mechanical design allows installation in standard EIA-310 compliant racks and cabinets. The device is engineered for front or rear mounting flexibility depending on rack layout and cable management strategy.

Cable Management Optimization

Proper cable routing is essential for maintaining airflow and simplifying maintenance operations. The connector placement design supports structured power cable routing paths. Organized cabling reduces airflow obstruction and improves cooling efficiency inside racks. It also simplifies troubleshooting procedures because power paths remain visually traceable. Facilities engineers can quickly identify power sources during maintenance windows or incident response scenarios.

Durability in Continuous Operation Environments

Data center power infrastructure devices operate continuously for years without interruption. The ATS mechanical structure is built using high-quality industrial materials that resist vibration, thermal expansion, and long-term wear. Connector retention strength ensures secure cable connections even in environments where racks experience mechanical vibration from cooling systems or nearby industrial machinery.

Power Redundancy Strategies in Enterprise and Edge Deployments

Organizations increasingly rely on distributed computing infrastructure to support digital services. Edge computing nodes, telecom base stations, and remote industrial monitoring systems often operate in environments where power quality is less predictable. Rack ATS devices enable these deployments to maintain uptime even when local utility power fluctuates or backup generator transitions occur.

Single Power Supply Equipment Protection

Many networking and security appliances still rely on single power input designs. Without redundancy protection, these devices become single points of failure. Automatic transfer switches provide an external redundancy layer that protects these assets. This capability extends the usable lifespan of legacy equipment while maintaining modern reliability standards.

Disaster Recovery Infrastructure Support

Disaster recovery facilities require independent power infrastructure to ensure operational readiness during primary site failures. ATS devices enable seamless transition between grid power, generator power, and UPS systems. This layered redundancy ensures business continuity during natural disasters, utility outages, or facility maintenance operations.

Hybrid Cloud and Colocation Environments

In colocation data centers, customers often receive dual power feeds from separate facility power distribution systems. Rack ATS devices allow customers to utilize these feeds efficiently while protecting single-corded devices. This capability simplifies deployment in shared infrastructure environments where electrical redundancy is already built into the facility design.

Event Logging and Alert Integration

Power switching events provide valuable diagnostic data. When correlated with facility monitoring systems, these events help infrastructure teams identify unstable power feeds or failing upstream equipment. Automated alert integration allows rapid response to power anomalies before they escalate into service disruptions.

Capacity Planning and Load Distribution Analysis

Understanding load distribution across power infrastructure helps prevent overload conditions. Historical data from ATS devices can support infrastructure planning decisions. This includes determining when additional circuits are required or when power distribution rebalancing should occur.

Operational Compliance and Audit Support

Many industries require detailed operational logging for compliance purposes. Automatic transfer switches contribute to compliance documentation by providing records of power source availability and failover performance. This data supports regulatory audits and service level agreement reporting.

Use Cases Across Industry Verticals

APC AP4434A Rack automatic transfer switches support a wide range of industries including finance, healthcare, telecommunications, manufacturing, and government infrastructure. Each industry relies on continuous digital operations, making power redundancy an essential infrastructure component.

Financial Services Infrastructure Protection

Financial transaction processing systems require continuous availability. Even brief outages can impact transaction integrity and customer trust. Automatic transfer switches ensure trading platforms, payment processing systems, and financial databases remain online during upstream power transitions.

Energy Efficiency and Sustainability Considerations

Energy efficiency remains a growing priority in data center design. Higher voltage power distribution, such as 208V systems, improves overall electrical efficiency. Reduced current flow lowers heat generation and reduces cooling requirements. Automatic transfer switches support these efficiency goals by enabling stable multi-source power distribution without requiring additional conversion stages.

Reducing Power Waste Through Intelligent Source Selection

Some power environments include multiple sources with different efficiency characteristics. Automatic transfer switches can be configured to prioritize the most efficient source under normal conditions while maintaining backup readiness.

Reliability Engineering and Failure Prevention Design Principles

Automatic transfer switches incorporate reliability engineering practices designed to minimize failure risk. Component selection focuses on high endurance switching elements and robust internal power pathways. Redundant sensing circuitry helps ensure accurate detection of power anomalies.

Fast Switching Performance for Equipment Protection

Switching speed directly impacts equipment protection. High performance ATS devices transition between power sources rapidly enough to prevent server shutdown or data corruption events.

Electrical Noise and Signal Integrity Considerations

Stable power delivery reduces electrical noise that can impact sensitive computing hardware. Automatic transfer switches help maintain clean power transitions that protect electronic components.

Testing and Validation Standards

Enterprise power infrastructure devices typically undergo rigorous testing to validate performance under load, temperature variation, and electrical stress conditions. This testing ensures consistent performance in real world deployment environments.

Regional Power Infrastructure Compatibility

Global enterprises require infrastructure components that operate reliably across multiple regions. Support for both 50Hz and 60Hz power systems allows deployment across Asia, Europe, North America, and other regions without requiring hardware modification.

Standardized Connector Ecosystem

Using widely adopted connector standards ensures compatibility with existing power cables and infrastructure components. This simplifies global logistics and spare parts availability.

Regulatory Compliance Across Markets

Enterprise power devices typically comply with international electrical safety and electromagnetic compatibility standards. This allows safe deployment in regulated environments such as government facilities and financial institutions.
