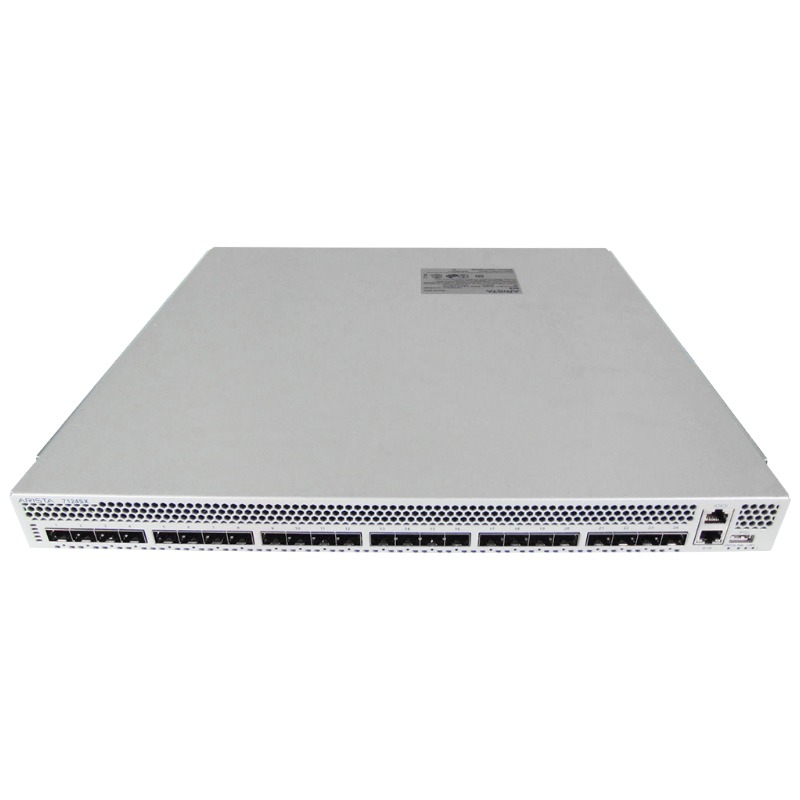

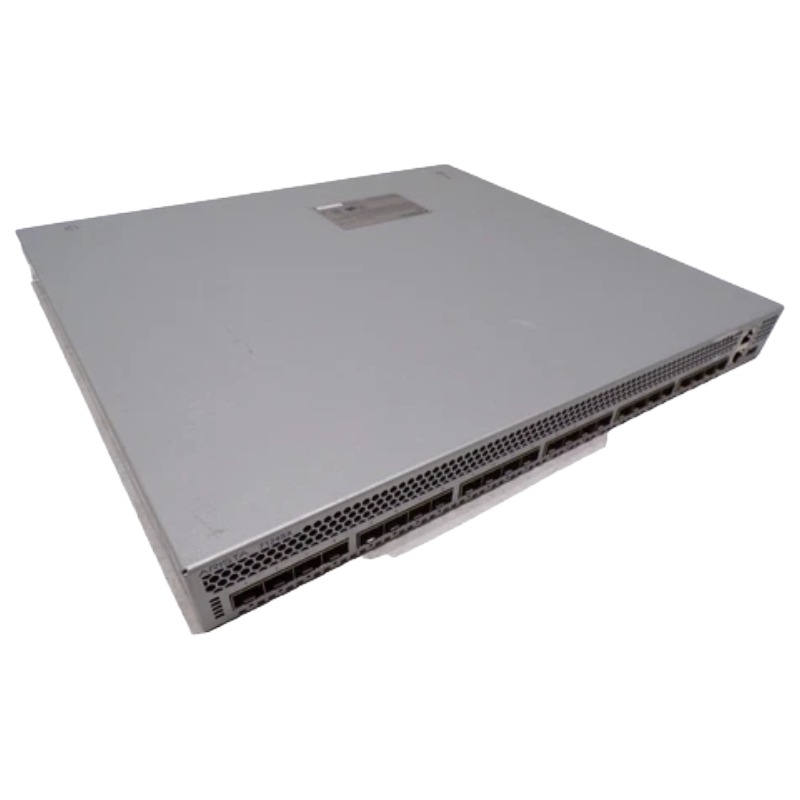

DCS-7124SX-R Arista 10GbE SFP+ Airflow 24 Ports Manageable Switch

Overview of the Arista DCS-7124SX-R Manageable Switch

The Arista DCS-7124SX-R is a high-density, enterprise-grade data center switch designed to deliver ultra-low latency, high throughput, and scalable Layer 2, Layer 3, and Layer 4 networking capabilities. Built under the Arista 7100 Series, this platform is optimized for cloud-scale deployments, high-frequency trading environments, and large enterprise infrastructures requiring consistent wire-speed performance.

General Information

• Manufacturer: Arista
• Part Number: DCS-7124SX-R
• Product Type: 24 Ports Manageable Switch

Technical Information

• Switching Capacity: 480 Gbps full-duplex bandwidth
• Forwarding Performance: Wire-speed Layer 2 and Layer 3 forwarding
• Architecture Type: Non-blocking switching fabric
• Series: Arista 7100 Series
• L2 MAC Entries: Up to 16,000 entries
• IPv4 Routes: 16,000 routing entries
• IPv6 Routes: 4,000 routing entries
• VLAN Capacity: Supports up to 4,094 VLANs

Enhanced Traffic Optimization Features

• Optimized packet forwarding for low-latency workloads
• Efficient handling of mixed L2/L3 environments
• Designed for high-density rack deployments

Advanced LACP and ECMP Capabilities

• Link Aggregation Standard: IEEE 802.3ad LACP
• Maximum Ports per LAG: 16 ports
• Maximum LAG Groups: 256 per system
• ECMP Support: 16-way Equal-Cost Multi-Path routing

Traffic Distribution Advantages

• Improved bandwidth utilization across multiple uplinks
• Redundant path selection for high availability
• Efficient load balancing in spine-leaf architectures

Loop Prevention and Redundancy Protocols

• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• RPVST+ compatibility for enhanced VLAN-based redundancy

Advanced Multicast Capabilities

• IGMP v1, v2, and v3 snooping
• Protocol Independent Multicast - Sparse Mode (PIM-SM)
• Anycast Rendezvous Point (RP) support

Supported Routing Protocols

• BGP (Border Gateway Protocol)
• OSPF (Open Shortest Path First)
• Static routing configurations
• VRRP (Virtual Router Redundancy Protocol)
• VARP (Virtual ARP)

Data Center Optimization Features

• Per-Priority Flow Control (PFC)
• Data Center Bridging Extensions (DCBX)
• Traffic policing and rate limiting mechanisms

Network Stability Enhancements

• Storm control for broadcast and multicast protection
• Congestion-aware packet scheduling

Authentication and AAA Services

• TACACS+ authentication support
• RADIUS integration
• AAA (Authentication, Authorization, Accounting) framework

Energy and Cooling Efficiency

• Maximum Power Consumption: 210W
• Fan Configuration: 4x N+1 redundant hot-swappable fans

Airflow Design Options

• Rear-to-front airflow (DCS-7124SX-R model)
• Front-to-rear airflow (DCS-7124SX-F variant)

Arista DCS-7124SX-R 24-Port 10GbE SFP+ Switch

The Arista DCS-7124SX-R is a high-density 10 Gigabit Ethernet switch engineered for enterprise networking environments, virtualization infrastructures, aggregation layers, and high-performance data center deployments. Designed with twenty-four dedicated 10GbE SFP+ interfaces, this manageable Layer 2 and Layer 3 switching platform delivers low-latency forwarding, advanced traffic management, and scalable network intelligence for demanding workloads. The rear-to-front airflow configuration supports optimized thermal management in hot aisle and cold aisle cabinet deployments, making the platform suitable for modern rack integration standards. Built around high-throughput packet processing technology, the switch delivers wire-speed forwarding across all interfaces while supporting enterprise-class routing protocols, network segmentation features, and automation capabilities. The compact rack-mountable design allows organizations to maximize port density without sacrificing cooling efficiency or network resiliency.

24 Dedicated 10GbE SFP+ Interfaces

The twenty-four SFP+ interfaces provide flexible support for fiber optic transceivers and direct attach copper connectivity options. Organizations can deploy short-range, long-range, and passive cabling solutions depending on network topology requirements. These interfaces support ultra-fast server uplinks, storage traffic, virtualization clusters, and aggregation connectivity for high-bandwidth environments. The switch architecture enables simultaneous full-rate transmission across all ports, ensuring consistent throughput during peak operational periods. The SFP+ design also enhances scalability by allowing administrators to select transceiver types based on distance requirements, fiber standards, and deployment objectives.

Support for Multiple Optical Standards

The Arista DCS-7124SX-R supports compatibility with various optical modules, enabling flexible deployment across enterprise and data center infrastructures. Administrators can integrate multimode fiber, single-mode fiber, and direct attach copper solutions for optimized connectivity across different rack layouts and switching tiers. This flexibility improves deployment adaptability in environments requiring inter-rack communication, server aggregation, storage networking, or virtualization traffic separation. The SFP+ architecture also simplifies future upgrades by supporting modular transceiver replacement without replacing the entire switching platform.

Wire-Speed Performance

The switching platform delivers wire-speed packet forwarding across all twenty-four interfaces. This architecture minimizes bottlenecks and ensures consistent application performance for latency-sensitive workloads such as virtual machine migration, storage replication, cloud applications, and real-time analytics. High-performance packet switching allows organizations to maintain stable throughput even during heavy east-west traffic conditions within large-scale virtualization environments. The low-latency forwarding engine contributes to reduced transmission delays and improved application responsiveness.

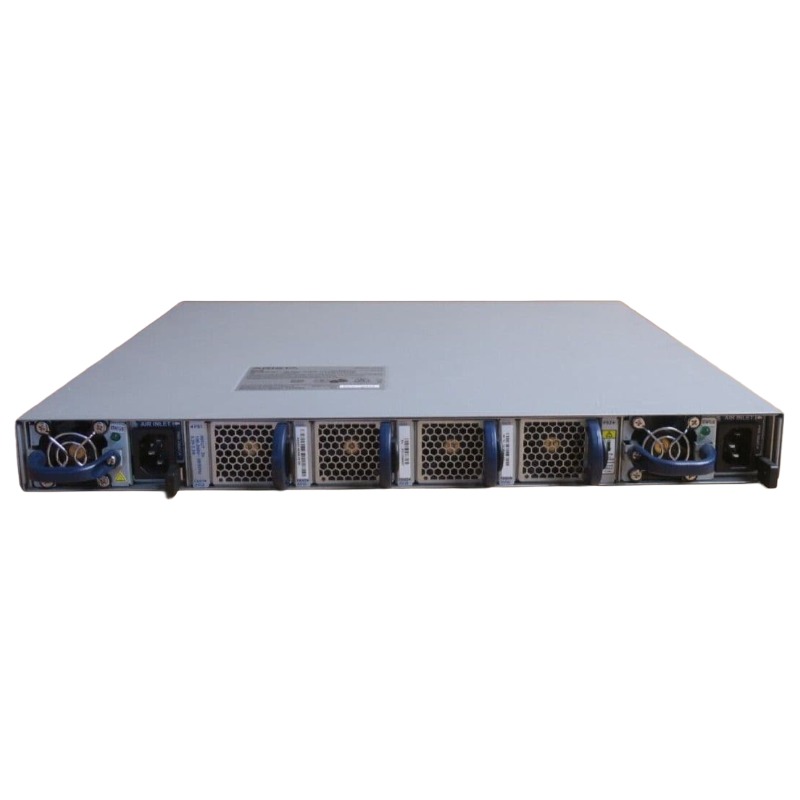

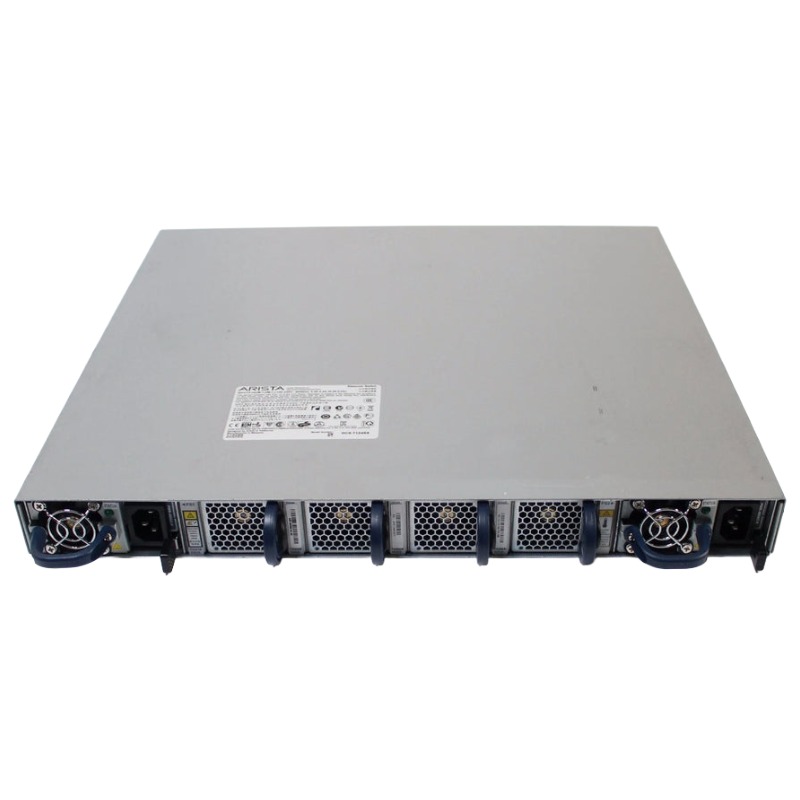

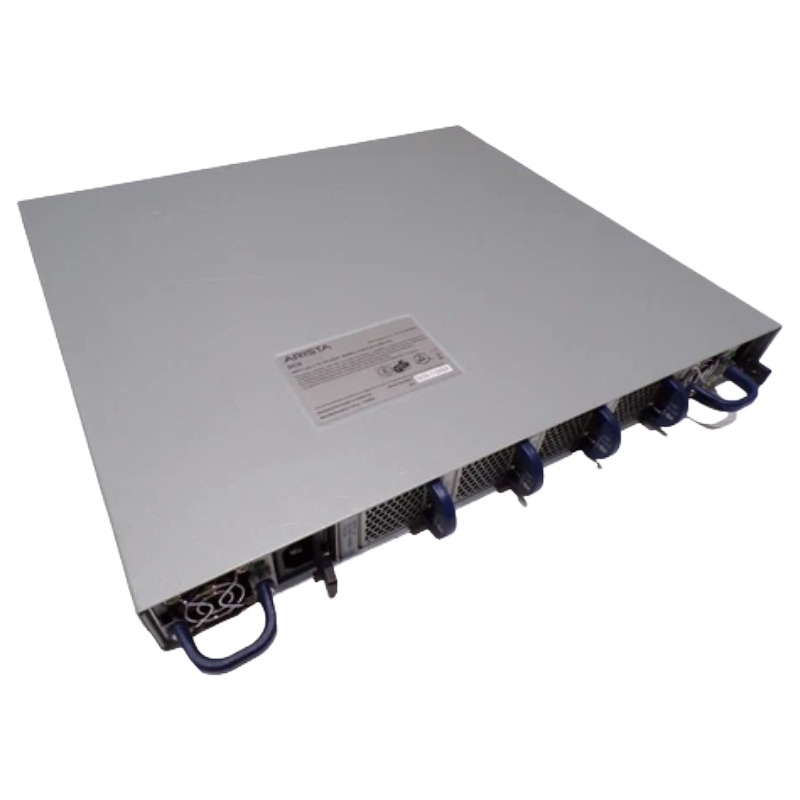

Rear-to-Front Airflow Design

The rear-to-front airflow configuration is specifically engineered for structured data center airflow management. This cooling orientation aligns with hot aisle and cold aisle deployment strategies commonly used in enterprise and hyperscale facilities. Efficient airflow direction helps maintain stable operating temperatures while reducing thermal accumulation inside networking cabinets. Rear-to-front cooling is particularly beneficial in high-density rack environments where airflow consistency directly impacts equipment reliability and operational efficiency. By supporting proper thermal distribution, the switch contributes to lower cooling strain and improved hardware longevity.

Optimized Thermal Efficiency

Advanced cooling mechanisms within the Arista DCS-7124SX-R maintain reliable operational temperatures under sustained traffic loads. Intelligent fan management and optimized internal airflow pathways help ensure continuous performance in demanding network environments. Thermal optimization becomes increasingly important in virtualized infrastructures and high-density server deployments where elevated network utilization can generate significant heat output. The switch cooling system is designed to sustain performance stability while supporting continuous enterprise operations.

Data Center Rack Compatibility

The airflow orientation supports standardized rack deployment practices across modern enterprise facilities. This compatibility allows network architects to integrate the switch seamlessly into structured cabinet arrangements without disrupting existing thermal management strategies. Efficient rack integration improves maintainability and enables simplified expansion planning for organizations scaling their infrastructure over time. The switch can operate effectively alongside other rear-to-front airflow hardware components, helping preserve consistent cooling patterns throughout the rack.

Enterprise-Class Layer 2 Switching Features

The Arista DCS-7124SX-R includes a comprehensive collection of Layer 2 networking features designed for scalable enterprise connectivity. These capabilities support traffic segmentation, broadcast management, redundancy, and intelligent switching operations across large network environments.

Virtual LAN Segmentation

VLAN support enables organizations to segment traffic into isolated broadcast domains for improved security, performance, and traffic management. Administrators can separate departments, applications, storage networks, and virtualization traffic while maintaining centralized network administration. Network segmentation improves bandwidth allocation efficiency and reduces unnecessary broadcast traffic across critical infrastructure components. VLAN implementation also contributes to enhanced compliance management and operational control in enterprise environments.

Spanning Tree Protocol Support

The switch supports advanced spanning tree technologies that help prevent Layer 2 loops while maintaining redundant network paths. Intelligent loop prevention mechanisms improve infrastructure resiliency and support uninterrupted communication during link failures or topology changes. Redundant network design becomes essential in mission-critical environments where uptime and availability are primary operational objectives. Spanning tree functionality helps ensure consistent network stability while maintaining scalable deployment flexibility.

Advanced Layer 3 Routing Capabilities

The manageable switch platform includes Layer 3 functionality that enables intelligent routing between network segments. Integrated routing features support scalable enterprise architectures while simplifying infrastructure management and reducing dependency on external routing hardware.

Static and Dynamic Routing Support

The Arista DCS-7124SX-R supports static routing configurations as well as dynamic routing protocols for adaptive traffic management. These capabilities allow organizations to optimize path selection, improve network efficiency, and maintain resilient connectivity across distributed infrastructures. Dynamic routing improves scalability in growing enterprise networks by automatically adjusting forwarding decisions based on topology changes. This automation reduces administrative overhead while supporting high-availability networking environments.

Inter-VLAN Routing

Inter-VLAN routing functionality allows communication between segmented network environments while maintaining centralized policy enforcement. Organizations can securely connect application environments, user groups, storage networks, and virtualization infrastructures through controlled routing policies. This functionality simplifies network architecture by enabling routing directly on the switching platform rather than relying entirely on external routers. Reduced latency and improved traffic efficiency contribute to optimized enterprise application performance.

Scalable Network Intelligence

Integrated Layer 3 intelligence enables the switch to adapt to evolving enterprise networking requirements. The routing architecture supports expanding workloads, virtualization growth, and increasing bandwidth demands while maintaining operational stability. Scalable network intelligence is particularly important for organizations implementing private cloud infrastructures, software-defined networking initiatives, and large-scale virtualization deployments.

Low-Latency Data Center Networking

The Arista DCS-7124SX-R is optimized for environments requiring ultra-low latency packet delivery and deterministic network performance. High-speed switching capabilities contribute to improved responsiveness for real-time applications, storage systems, and virtualized workloads.

High-Speed

Dedicated packet forwarding hardware ensures rapid traffic handling across all active interfaces. The switching engine is designed to process substantial traffic volumes while minimizing forwarding delays and maintaining stable throughput levels. Efficient packet processing becomes critical in environments supporting database clusters, cloud computing platforms, financial applications, and high-performance computing workloads. The switch architecture helps reduce network-induced latency that can impact application responsiveness.

Consistent Throughput Under Load

The switch maintains reliable forwarding performance during periods of heavy utilization. Advanced buffering mechanisms and traffic management technologies help preserve throughput consistency even in congested networking scenarios. Consistent throughput contributes to predictable application performance and helps eliminate network bottlenecks that can disrupt enterprise productivity or service delivery.

Reduced Network Congestion

Traffic management capabilities improve bandwidth utilization and help reduce congestion across high-demand network environments. Intelligent forwarding decisions optimize packet delivery efficiency while supporting balanced traffic distribution. Reduced congestion is particularly valuable in storage networking, virtualization environments, and cloud infrastructure deployments where simultaneous high-bandwidth communication occurs across multiple systems.

Virtualization and Cloud Infrastructure

The Arista DCS-7124SX-R is designed to support virtualization platforms, cloud computing infrastructures, and software-defined networking environments. High-density 10GbE connectivity enables efficient communication between virtual machines, hypervisors, and storage resources.

Virtual Machine Mobility

High-speed Ethernet interfaces facilitate rapid virtual machine migration across physical hosts within clustered environments. Low-latency connectivity improves migration efficiency while minimizing service interruption during workload balancing operations. Virtual machine mobility is essential for modern enterprise infrastructure strategies focused on scalability, availability, and resource optimization. The switch architecture supports these objectives through high-bandwidth communication capabilities.

Cloud Networking Integration

The switch platform supports cloud-oriented networking architectures by delivering scalable bandwidth, segmentation features, and automated traffic handling capabilities. These features simplify integration into private cloud and hybrid cloud infrastructures. Cloud-ready networking enables organizations to adapt infrastructure resources dynamically while maintaining secure and efficient data flow between virtualized workloads and physical network components.

Scalable Data Center Aggregation

The Arista DCS-7124SX-R serves effectively as an aggregation switch for enterprise and data center environments requiring concentrated 10GbE connectivity. High port density and manageable networking features support scalable infrastructure expansion.

Top-of-Rack Deployment Flexibility

The compact rack-mountable design makes the switch suitable for top-of-rack deployment scenarios in structured data centers. Twenty-four high-speed ports provide efficient server aggregation while minimizing rack space consumption. Top-of-rack architectures improve cable management efficiency and reduce network complexity within high-density infrastructure environments. The switch supports simplified connectivity between servers, storage systems, and core networking layers.

Aggregation Layer Performance

As an aggregation platform, the switch delivers stable high-throughput connectivity between access layers and upstream network infrastructure. High-speed packet forwarding ensures efficient data transport across enterprise environments. Reliable aggregation performance becomes essential in organizations supporting virtualization clusters, storage networking environments, and distributed application infrastructures with significant bandwidth requirements.

Infrastructure Expansion Support

The scalable design enables organizations to expand network capacity while preserving operational efficiency. Additional switches can be integrated into larger architectures to support growing workloads and increasing user demands. Scalable expansion capability helps enterprises adapt to evolving digital transformation initiatives, cloud adoption strategies, and increasing application performance requirements.

Reliability and High Availability Features

The Arista DCS-7124SX-R is engineered for enterprise-grade reliability with features that support continuous operation and infrastructure resilience. Stable hardware architecture and intelligent networking technologies contribute to long-term operational dependability.

Redundant Network Path Support

Redundancy technologies allow organizations to maintain connectivity during hardware failures or link disruptions. The switch supports resilient networking topologies that minimize downtime and preserve service continuity. High-availability infrastructure design is essential for enterprises operating mission-critical applications, cloud services, and data-intensive workloads that require uninterrupted communication.

Security and Traffic Control Features

The Arista DCS-7124SX-R incorporates security-oriented networking capabilities that help organizations protect sensitive data, regulate traffic flow, and maintain controlled access across enterprise infrastructures.

Access Control Mechanisms

Access control technologies enable administrators to define policies governing traffic permissions and network resource accessibility. These capabilities improve security enforcement across segmented enterprise environments. Controlled network access reduces the risk of unauthorized communication while supporting regulatory compliance and internal security policies.

Space-Efficient Network Integration

The streamlined chassis supports high-density networking deployments where space optimization is critical. Organizations can deploy substantial 10GbE connectivity within limited rack environments without compromising performance. Efficient space utilization becomes increasingly important in modern facilities supporting dense virtualization clusters and large-scale server infrastructures.

Professional Data Center Appearance

The switch design complements professional enterprise infrastructure standards with organized port layouts, structured airflow orientation, and manageable cable routing characteristics. Professional rack integration improves maintenance accessibility and simplifies infrastructure management procedures within enterprise networking environments.

Flexible Deployment Possibilities

The manageable switch can be deployed in aggregation layers, top-of-rack environments, virtualization clusters, enterprise cores, and storage networking architectures. Flexible deployment support allows organizations to adapt the platform to evolving operational requirements. Versatile deployment compatibility enhances long-term infrastructure value by supporting changing bandwidth demands, virtualization growth, and evolving enterprise networking strategies.
