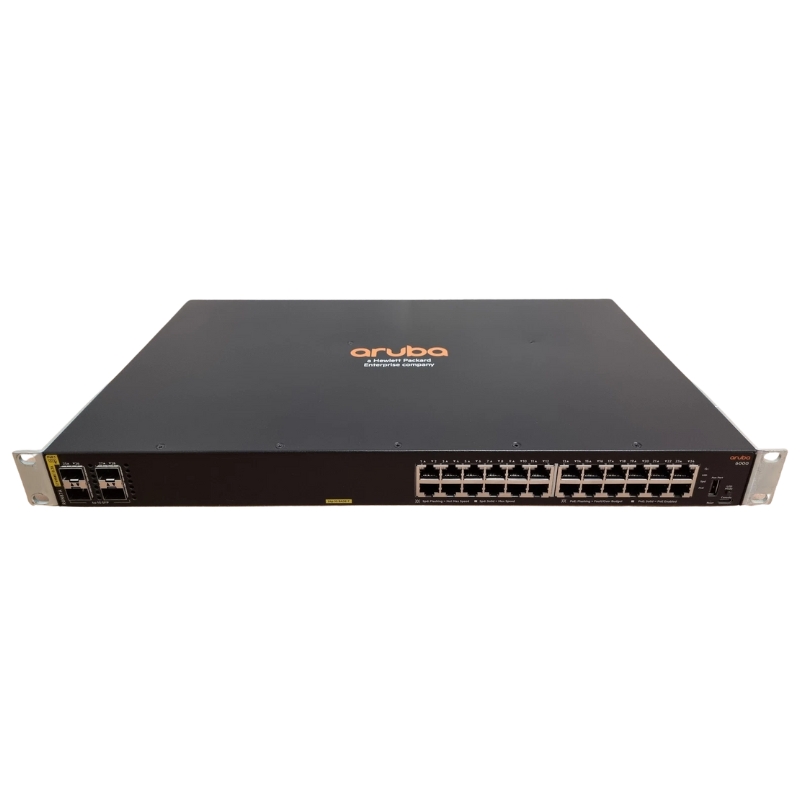

HPE Aruba 6000 24G 4SFP R8N88A Rack-mountable Switch

R8N88A
Hover on image to enlarge

Brief Overview of R8N88A

Aruba 6000 24G 4SFP Rack-mountable 24 Ports Switch HPE R8N88A. New (Box Not Sealed) with 1-Year Replacement Warranty

QR Code of HPE Aruba 6000 24G 4SFP R8N88A Rack-mountable Switch
$668.25
$504.00
You save: $164.25 (25%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNR8N88AAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Manufacturer Warranty1 Year Warranty Original Brand Product/Item ConditionNew (Box Not Sealed) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Key Specifications of the HPE R8N88A Layer 3 Switch

Manufacturer and Model

  • Manufacturer: HPE
  • Model Number: R8N88A
  • Product Type: Layer 3 Switch

Performance Overview of

Throughput and Latency

  • Packet Buffer Capacity: 12.38 MB
  • Throughput: 41.6 Million Packets Per Second (Mpps)
  • Switching Capacity: 56 Gbps
  • Latency (1 Gbps): 1.5 microseconds

Routing and Network Capacity

  • Switched Virtual Interfaces (SVIs): 16
  • ARP Entries: 1024
  • IPv4 Routes (Unicast): 512
  • IPv6 Routes (Unicast): 512
  • IGMP Groups: 512
  • MLD Groups: 512
  • IPv4 ACL Entries (Ingress): 256
  • IPv6 ACL Entries (Ingress): 128
  • MAC ACL Entries (Ingress): 256
  • MAC Address Table Size: 8192 Entries
  • Jumbo Frame Support: Up to 9198 Bytes

Supported Routing and Management Protocols

Routing Protocols

  • IGMPv2, IGMPv3, and IGMP support

Remote Management Options

  • SNMP Versions: SNMP v1, v2c, v3
  • RMON 1, 2, 3, and 9 Support
  • HTTP, CLI, ICMP, DHCP, and Radius Support

Encryption and Authentication

  • SSL Encryption
  • Secure Shell (SSH), SSH v2, Radius, and TACACS+ Authentication

Advanced Features

Network Management and Security

  • VLAN, Diffserv, and IPv6 Support
  • SNMP, TFTP, and LLDP Support
  • Access Control Lists (ACL) and MLD Snooping
  • Trusted Platform Module (TPM) Support
  • Rapid Reconfiguration of Spanning Tree (RSTP)
  • Any Source Multicast (ASM) Support

Compliance and Standards

  • IEEE 802.1p, 802.1q, 802.3, 802.3ab, and 802.3x
  • IEEE 802.3ad (LACP), 802.1d, 802.1w, 802.1s, 802.3az

Processor and Memory

Processor Specifications

  • Processor: 1x ARM A9 at 1.016 GHz
  • RAM: 4 GB DDR3 SDRAM
  • Flash Memory: 16 GB

Expansion and Connectivity Options

Port Configuration

  • 24 x 10/100/1000 Base-T RJ-45 Ports
  • 4 x Gigabit LAN SFP Ports
  • 1 x USB Type-A Port
  • 1 x USB-C Console Port

Power Requirements

Power Supply and Consumption

  • Power Device: Internal Power Supply
  • Voltage: AC 100–127V / 200–240V (50/60 Hz)
  • Operational Power Consumption: 33 Watts
Ports

The HPE Aruba 6000 Rack-mountable Switch is equipped with 24 ports, making it an ideal choice for businesses and organizations that require a high-performance networking solution. These ports provide a reliable and efficient way to connect various devices and enable seamless communication within the network.

Increased Connectivity Options

With 24 ports, the HPE Aruba 6000 allows users to connect a wide range of devices simultaneously. Whether it's computers, printers, servers, or other network devices, this switch provides ample connectivity options. This feature is particularly beneficial for businesses that have numerous devices requiring network access.

Scalability and Flexibility

The 24 ports on the HPE Aruba 6000 Rack-mountable Switch offer scalability and flexibility to accommodate the changing needs of a growing business. As your organization expands, you can easily connect additional devices without the need for additional switches or complex configurations. This scalability ensures that your network remains efficient and cost-effective.

Improved Performance

Having 24 ports allows for improved network performance. With more ports available, data can be transmitted and received simultaneously, reducing congestion and improving overall network speed. This is especially important in environments where large amounts of data are transferred regularly, such as in data centers or multimedia production studios.

Interfaces

One of the standout features of the HPE Aruba 6000 Rack-mountable Switch is its 4 SFP interfaces. These interfaces provide users with enhanced connectivity options and open up a wide range of possibilities for network expansion and optimization.

Versatility

The 4 SFP (Small Form-factor Pluggable) interfaces on the HPE Aruba 6000 allow users to connect fiber optic cables directly to the switch. This enables long-distance communication and makes it possible to connect devices that are located far away from the switch itself. The versatility offered by these interfaces is particularly useful in large office spaces or buildings where wired connections may be challenging to implement.

Increased Bandwidth and Speed

The use of SFP interfaces provides users with increased bandwidth and speed capabilities. Fiber optic cables can transmit data at much higher speeds compared to traditional copper cables, resulting in faster and more reliable network connections. This is especially beneficial for organizations that rely on high-speed data transfers, such as video streaming, large file transfers, or data backup.

Future-proofing

Investing in a network switch with SFP interfaces, like the HPE Aruba 6000, ensures future-proofing your network infrastructure. As technology advances and the demand for higher bandwidth continues to grow, having the ability to connect fiber optic cables will become increasingly important. By choosing a switch with SFP interfaces, you'll be ready to take advantage of faster and more advanced networking technologies without the need for significant hardware upgrades.

Part Number

The part number of the HPE Aruba 6000 Rack-mountable Switch is R8N88A. This unique identifier plays a crucial role in identifying and distinguishing this specific model from other switches in the market.

Easy Identification

The part number serves as a quick and easy way to identify the HPE Aruba 6000 Rack-mountable Switch in inventory or when communicating with technical support. By simply referencing the part number, you can ensure that you are discussing the correct model and avoid any confusion that may arise from similar product names or variations.

Compatibility Assurance

Knowing the part number of a product is essential for ensuring compatibility with other hardware or software components within your network infrastructure. By referring to the part number, you can verify whether the HPE Aruba 6000 is compatible with existing network devices, such as routers or firewalls. This helps in avoiding potential compatibility issues and streamlines the integration process.

Warranty and Support

The part number also serves as a reference when it comes to warranty and support services. By providing the part number, you can easily register your product, initiate warranty claims, or seek technical support from the manufacturer or authorized service providers. This ensures that you receive the necessary assistance for maintenance, troubleshooting, or any other issues that may arise during the lifespan of your HPE Aruba 6000 Rack-mountable Switch.

In conclusion, the HPE Aruba 6000 Rack-mountable Switch offers a multitude of benefits and features that cater to the needs of modern businesses and organizations. With its 24 ports, users can enjoy increased connectivity options, scalability, and improved network performance. The 4 SFP interfaces provide versatility, increased bandwidth, and future-proofing capabilities. Lastly, the unique part number ensures easy identification, compatibility assurance, and access to warranty and support services. The HPE Aruba 6000 Rack-mountable Switch is a reliable and efficient networking solution that empowers businesses to meet their connectivity demands effectively.

Features
Manufacturer Warranty:
1 Year Warranty Original Brand
Product/Item Condition:
New (Box Not Sealed)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
