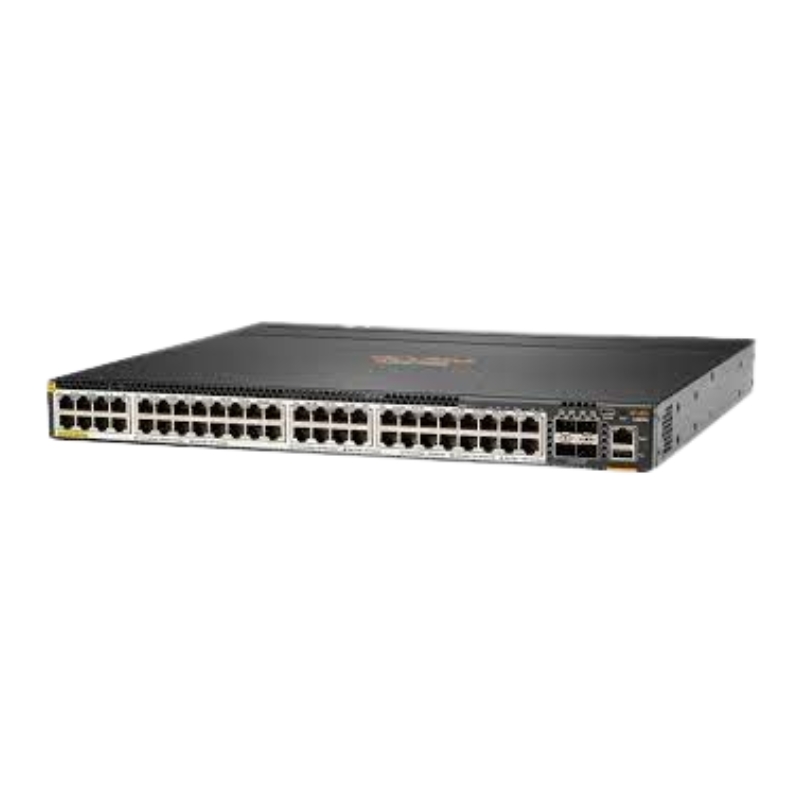

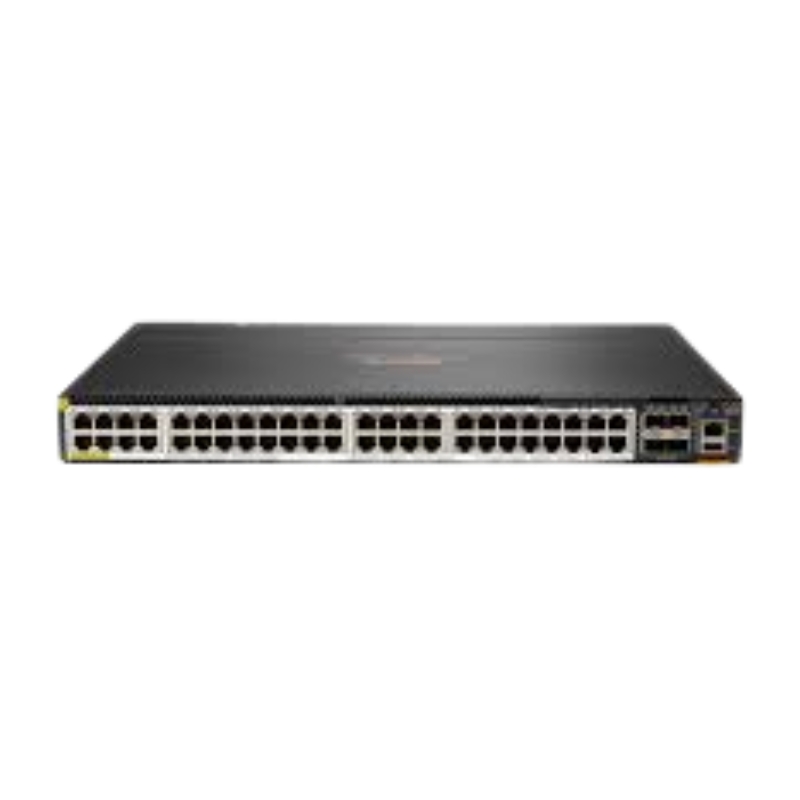

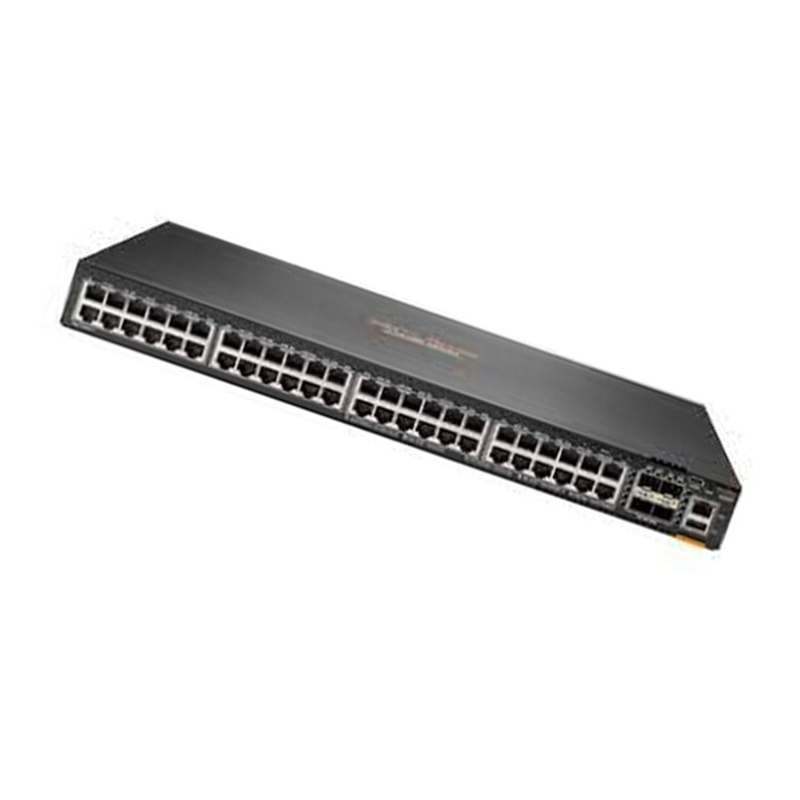

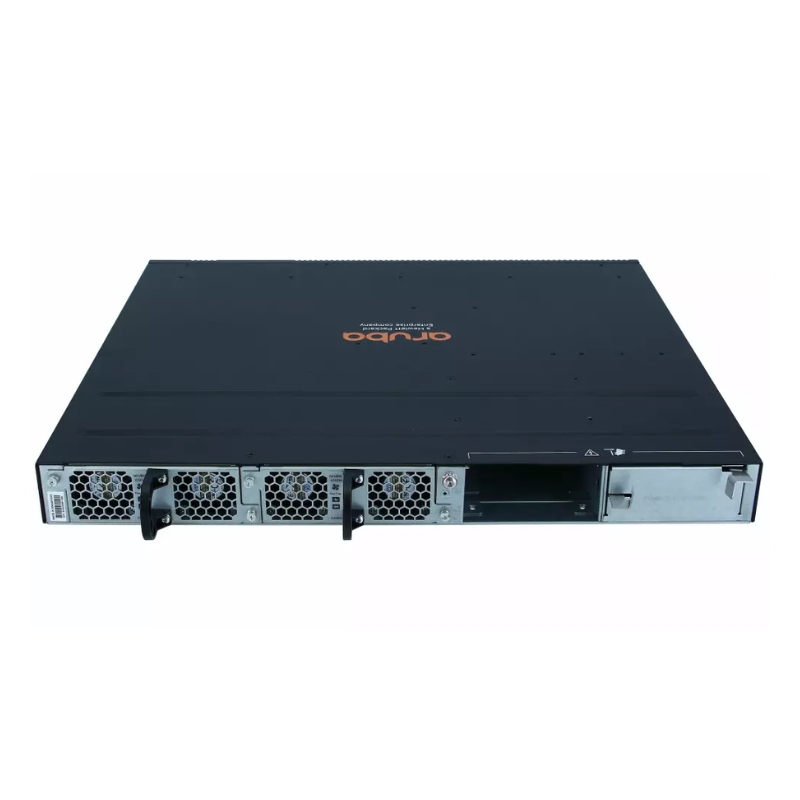

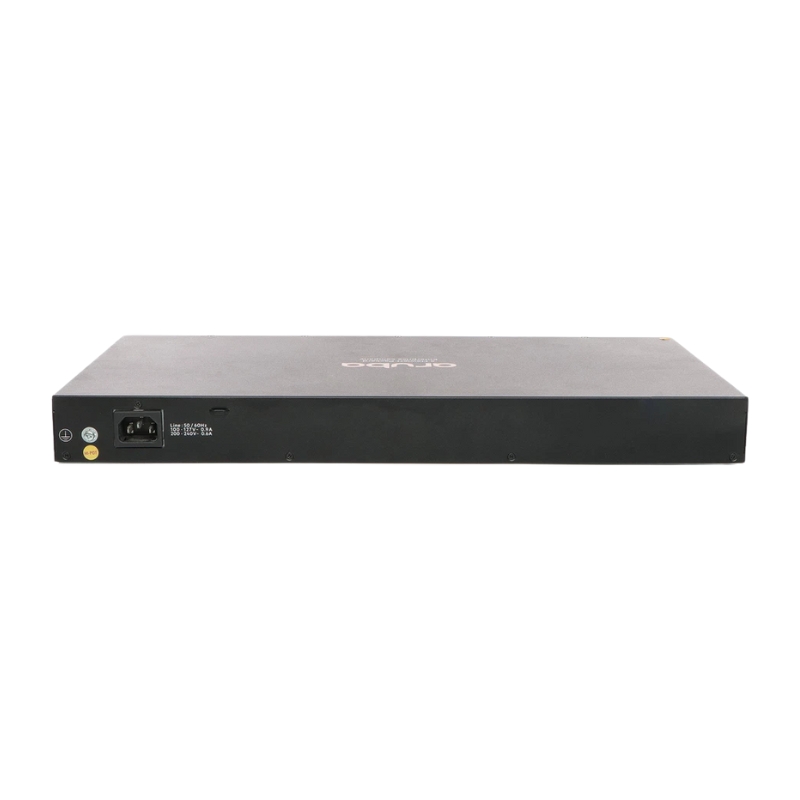

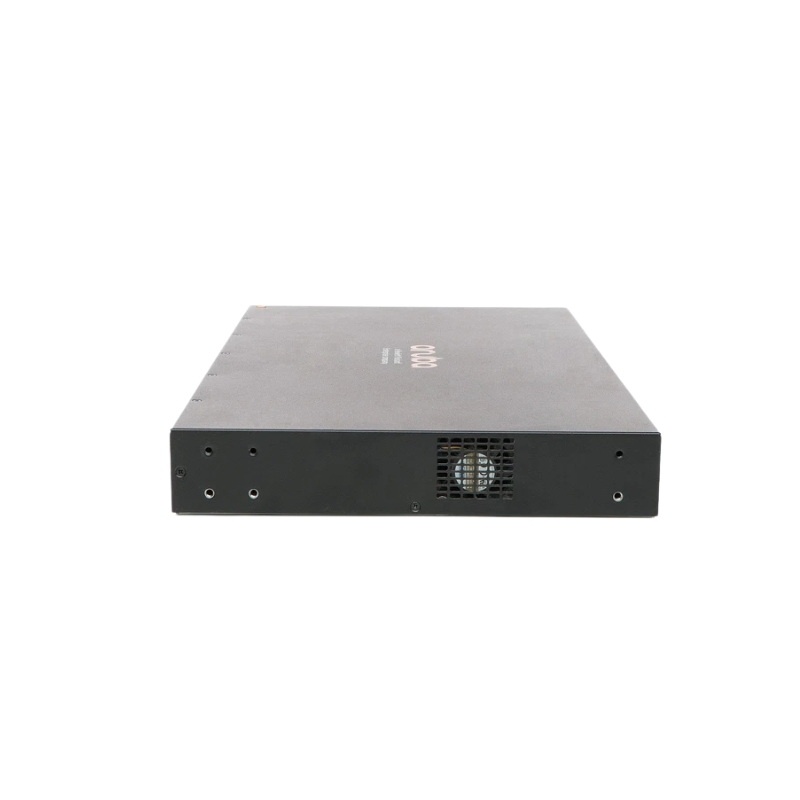

Aruba 6300M JL659A#ABA 48 Ports POE Switch Optical Fiber Rack-mountable SFP Ethernet

JL659A#ABA
Hover on image to enlarge

Brief Overview of JL659A#ABA

Aruba 6300M HPE JL659A#ABA 48 Ports Switch POE Optical Fiber Rack-mountable SFP Ethernet. New (Box Not Sealed) with 1-Year Replacement Warranty

QR Code of Aruba 6300M JL659A#ABA 48 Ports POE Switch Optical Fiber Rack-mountable SFP Ethernet
$4,762.80
$3,439.00
You save: $1,323.80 (28%)
Ask a question
+
Quote

Additional 7% discount at checkout

SKU/MPNJL659A#ABAAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Product/Item ConditionNew (Box Not Sealed) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Product Overview

HPE JL659A#ABA Aruba 6300m Switch

Discover the advanced capabilities of the HPE JL659A#ABA Aruba 6300m switch, designed to provide robust network solutions with 48 ports and Class 6 PoE+ support. This high-performance switch is ideal for environments requiring scalable connectivity and efficient power management.

Specifications

Key Features

  • Manufacturer: HPE
  • Model Number: JL659A#ABA
  • Device Type: 48-Port Managed L3 Switch
  • Form Factor: Rack-Mountable 1U
  • Ethernet Type: 5 Gigabit Ethernet
  • Port Configuration:
    • 48 x 100/1000/2.5G/5G (PoE+)
    • 4 x SFP56 (1G/10G/25G/50G)
  • Power Over Ethernet: PoE+
  • Power Budget: 2880 W

Performance Metrics

  • Switching Capacity: 880 Gbps
  • Throughput: 654 Mpps
  • Latency:
    • 1 Gbps: 4.24 μs
    • 10 Gbps: 1.5 μs
    • 25 Gbps: 2.91 μs
    • 50 Gbps: 3.49 μs
  • Stacking Bandwidth: 200 Gbps

Capacity Specifications

  • Switched Virtual Interfaces (SVIs): 1000
  • IPv4 Host Table: 32,000 Entries
  • IPv6 Host Table: 32,000 Entries
  • IPv4 Routes (Unicast): 64,000
  • MAC Address Table Size: 32,000 Entries
  • Jumbo Frame Support: 9198 Bytes

Routing and Management

  • Supported Protocols: EGP, BGP-4, IGMPv2/v3, VRRP, OSPFv2/v3
  • Remote Management: SNMP, HTTPS, SSH, Telnet
  • Authentication Methods: RADIUS, TACACS+

Advanced Features

  • DHCP and ARP Support
  • VLAN Configuration and Management
  • High Availability and Load Balancing
  • Quality of Service (QoS)
  • Storm Control and Protection Features

Connectivity Options

Expansion Interfaces

  • 48 x 100/1000/2.5G/5G RJ-45 PoE+ Ports
  • 4 x SFP56 Uplink Ports
  • 1 x USB-C Console Port
  • 1 x Management Port
  • 1 x USB Type A Port

Power Specifications

Power Supply Details

  • Power Device: Internal Power Supply (Minimum 1 Required, Max 2)
  • 80 Plus Certification: 80 Plus Silver
  • Energy Star Certified: Yes
  • Max PoE Power: 2880 W
  • Supported PSU Models: JL086A, JL087A, JL670A

Compliance and Standards

  • IEEE 802.1 Series Compliance (d, q, p, etc.)
  • IEEE 802.3 Series Compliance (af, at, etc.)

Hardware Specifications

  • Processor: 1 x ARM Cortex-A72 @ 1.78 GHz
  • RAM: 8 GB DDR4 SDRAM
  • Flash Memory: 32 GB

Ports

The HPE Aruba 6300M Switch is equipped with an impressive 48 ports, making it a highly versatile and powerful networking solution for businesses of all sizes. This feature alone sets it apart from other switches in the market, providing users with a multitude of benefits and advantages.

Increased Connectivity

With 48 ports, the HPE Aruba 6300M Switch offers an extensive range of connectivity options. This enables users to connect multiple devices simultaneously, including computers, printers, servers, and other network-enabled devices. Whether you are setting up a small office network or a large enterprise infrastructure, the abundance of ports ensures that you have the flexibility to connect all necessary devices without any limitations.

Scalability

The 48 ports on the HPE Aruba 6300M Switch also contribute to its scalability. As your business grows and expands, you may need to add more devices to your network. With this switch, you can easily accommodate additional devices without the need for additional infrastructure investments. The availability of multiple ports allows for seamless expansion, ensuring that your network can keep up with the demands of your growing business.

Improved Performance and Efficiency

Having 48 ports on the HPE Aruba 6300M Switch leads to improved performance and efficiency. The ample number of ports prevents network congestion by distributing the workload across multiple connections. This ensures that each device connected to the switch receives optimal bandwidth and speed, resulting in faster data transfer and reduced latency. With improved performance, your employees can work more efficiently and productivity is enhanced.

Redundancy and High Availability

The HPE Aruba 6300M Switch's 48 ports also offer redundancy and high availability. By connecting critical devices to different ports, you can create redundant paths within your network. In the event of a port failure or network disruption, traffic can be automatically rerouted through an alternate path, ensuring uninterrupted connectivity. This redundancy feature minimizes downtime and helps maintain business continuity.

Flexibility in Network Design

The abundance of ports on the HPE Aruba 6300M Switch provides flexibility in network design. You can segment your network into different VLANs (Virtual Local Area Networks) using the numerous ports available. This allows you to create separate networks for different departments or groups within your organization, enhancing security and improving network performance by isolating traffic. The flexibility in network design empowers you to customize your network infrastructure according to your specific requirements.

POE

One of the standout features of the HPE Aruba 6300M Switch is its support for Power over Ethernet (PoE). With PoE capabilities, this switch can deliver power to compatible devices through the Ethernet cable, eliminating the need for separate power cables and adapters. This feature provides significant benefits and importance to users in various scenarios.

Simplified Deployment and Installation

The PoE feature of the HPE Aruba 6300M Switch simplifies the deployment and installation of network devices. By delivering power through the Ethernet cable, you can easily connect devices such as IP phones, wireless access points, and security cameras without the need for a nearby power outlet. This eliminates the hassle of running power cables to each device, reducing installation time and cost.

Flexibility in Device Placement

With PoE support, you gain flexibility in device placement. Since devices can be powered through the Ethernet cable, you are not limited by the proximity of power outlets. This allows for more strategic positioning of devices based on optimal coverage or functionality. For example, you can place wireless access points in areas with the best signal strength or security cameras in strategic locations for optimal surveillance coverage. The flexibility in device placement enhances the overall effectiveness and efficiency of your network infrastructure.

Cost Savings

Implementing the HPE Aruba 6300M Switch's PoE feature can result in significant cost savings. By eliminating the need for separate power cables and adapters, you can reduce the amount of cabling required, lowering installation and maintenance expenses. Additionally, PoE allows for centralized power management, enabling you to monitor and control power usage more efficiently. This can lead to energy savings and reduced electricity costs over time.

Remote Power Management

Another benefit of the PoE feature is remote power management. The HPE Aruba 6300M Switch provides advanced power management capabilities, allowing you to monitor and control the power usage of connected devices remotely. This feature enables you to turn devices on or off, adjust power levels, and even schedule power cycles, all from a central management interface. Remote power management enhances efficiency, reduces energy waste, and simplifies troubleshooting by providing greater control over your network devices.

Optical Fiber

The HPE Aruba 6300M Switch offers a dedicated optical fiber feature, which provides users with enhanced connectivity options and improved network performance. With the ability to support optical fiber connections, this switch delivers several benefits that are crucial for modern networking environments.

High Bandwidth and Speed

Optical fiber connections provide significantly higher bandwidth and speed compared to traditional copper-based Ethernet connections. The HPE Aruba 6300M Switch's support for optical fiber allows for faster data transfer rates, enabling seamless transmission of large files and high-definition multimedia content. This is particularly beneficial in scenarios where high-speed data transfer is required, such as video conferencing, streaming media, or data-intensive applications.

Longer Distance Coverage

Unlike copper-based Ethernet connections, optical fiber offers much longer distance coverage without signal degradation. The HPE Aruba 6300M Switch's optical fiber feature enables you to extend your network connectivity over greater distances, making it suitable for large-scale deployments or environments with physically dispersed devices. This capability eliminates the need for additional networking equipment, saving costs and simplifying network architecture.

Enhanced Security

Optical fiber connections provide inherent security advantages over traditional copper-based connections. Since optical signals are transmitted through light pulses instead of electrical signals, they are less susceptible to electromagnetic interference and eavesdropping. This makes optical fiber connections more secure and less vulnerable to data breaches or unauthorized access. By utilizing the HPE Aruba 6300M Switch's optical fiber feature, you can enhance the overall security of your network infrastructure.

Future-Proofing

The support for optical fiber in the HPE Aruba 6300M Switch ensures future-proofing of your network infrastructure. As technology continues to advance, the demand for higher bandwidth and faster speeds will increase. Optical fiber provides the scalability required to meet these future demands, allowing you to adapt and upgrade your network without the need for extensive infrastructure changes. Investing in a switch that supports optical fiber ensures that your network is ready for future growth and technological advancements.

Rack Mountable

The HPE Aruba 6300M Switch's rack mountable design is a valuable feature for users looking to optimize space utilization and streamline network management. This feature offers several benefits and importance in terms of organization, accessibility, and scalability.

Space Optimization

With its rack mountable design, the HPE Aruba 6300M Switch enables efficient use of rack space in data centers or server rooms. By mounting the switch on a standard rack, you can consolidate multiple networking devices into a compact and organized layout. This reduces clutter and frees up valuable floor space, allowing for better airflow and improved cooling within the rack. The space optimization provided by the rack mountable design is especially crucial in environments where space is limited or expensive.

Easy Accessibility and Cable Management

The rack mountable design of the HPE Aruba 6300M Switch ensures easy accessibility and effective cable management. When mounted on a rack, the switch is positioned at a convenient height, allowing for easy access to the front panel ports and controls. This simplifies maintenance tasks, such as connecting or disconnecting cables, troubleshooting, or performing firmware updates. Additionally, the rack mountable design facilitates organized cable routing, minimizing cable clutter and improving overall network aesthetics.

Scalability and Expandability

The rack mountable design also contributes to scalability and expandability. As your network infrastructure grows, you can easily add more switches to the rack, expanding your network capacity without requiring additional floor space. This modular approach to network expansion simplifies management and reduces costs associated with acquiring new racks or cabinets. The ability to scale and expand your network infrastructure seamlessly ensures that your organization can adapt to evolving business needs.

SFP

The HPE Aruba 6300M Switch features a dedicated Small Form-factor Pluggable (SFP) interface, which enhances the versatility and compatibility of the switch. With SFP support, users gain numerous benefits in terms of flexibility, scalability, and connectivity options.

Flexibility in Connectivity

The SFP interface provided by the HPE Aruba 6300M Switch offers flexibility in connectivity options. SFP modules enable you to connect various types of network media, including optical fibers or copper cables, depending on your specific requirements. This versatility allows you to mix and match different SFP modules based on the distance, bandwidth, or medium needed for each connection. The flexibility in connectivity offered by the SFP interface ensures that you can adapt your network infrastructure to different environments or technologies.

Scalability and Future-Proofing

The support for SFP in the HPE Aruba 6300M Switch contributes to scalability and future-proofing. SFP modules can be easily replaced or upgraded, allowing you to adapt your network to changing technology standards or evolving business needs. As technology advances, new SFP modules with higher speeds or greater capabilities can be installed without the need for replacing the entire switch. This scalability ensures that your network infrastructure remains up-to-date and capable of handling future demands.

Long-Distance Connectivity

SFP modules also provide the ability to establish long-distance connections within your network infrastructure. By utilizing optical fiber SFP modules, you can extend your network connectivity over greater distances without signal degradation. This is particularly advantageous in scenarios where devices are physically dispersed or when connecting different buildings within a campus environment. The long-distance connectivity enabled by the SFP interface allows for seamless integration of remote devices into your network architecture.

Interoperability and Compatibility

The SFP interface promotes interoperability and compatibility with a wide range of networking equipment. Since SFP modules adhere to standardized specifications, you can easily integrate the HPE Aruba 6300M Switch into existing network infrastructures. This compatibility ensures that you can leverage existing networking investments and seamlessly connect with other devices, such as routers, switches, or servers, from various vendors. The interoperability provided by the SFP interface simplifies network integration and reduces potential compatibility issues.

Ethernet

The HPE Aruba 6300M Switch's Ethernet feature is a fundamental component that forms the backbone of modern networking infrastructures. With its support for Ethernet connectivity, this switch delivers essential benefits and importance in terms of speed, reliability, and compatibility.

High-Speed Data Transfer

Ethernet connectivity ensures high-speed data transfer within your network infrastructure. The HPE Aruba 6300M Switch's Ethernet feature supports Gigabit Ethernet, which provides data transfer rates of up to 1 gigabit per second (Gbps). This high-speed connectivity is essential for bandwidth-intensive applications, such as video streaming, large file transfers, or real-time collaboration. The ability to transfer data quickly and efficiently enhances productivity and user experience.

Reliable and Stable Connectivity

Ethernet connections offer reliable and stable connectivity, ensuring that your network devices can communicate consistently without interruptions. The HPE Aruba 6300M Switch's Ethernet feature provides a robust and proven technology that has been widely adopted in networking environments worldwide. With its support for Ethernet connectivity, this switch delivers reliable and stable connections, minimizing downtime and ensuring continuous access to network resources.

Compatibility with Existing Infrastructure

The Ethernet feature of the HPE Aruba 6300M Switch ensures compatibility with existing network infrastructure. Ethernet has become the de facto standard for local area networks (LANs) and wide area networks (WANs), making it highly compatible with a wide range of networking devices. Whether you need to connect computers, servers, printers, or other network-enabled devices, the Ethernet feature provides seamless integration into your existing network architecture. This compatibility simplifies network management and reduces potential compatibility issues.

Scalability and Interconnectivity

Ethernet connectivity supports scalability and interconnectivity within your network infrastructure. The HPE Aruba 6300M Switch's Ethernet feature allows you to connect multiple switches together to create larger networks or expand existing ones. This enables you to scale your network infrastructure as your business grows or as new devices are added. Additionally, Ethernet connections facilitate interconnectivity between different network segments or VLANs, allowing for efficient communication and resource sharing. The scalability and interconnectivity provided by the Ethernet feature ensure that your network can adapt to changing business demands.

Features
Product/Item Condition:
New (Box Not Sealed)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
