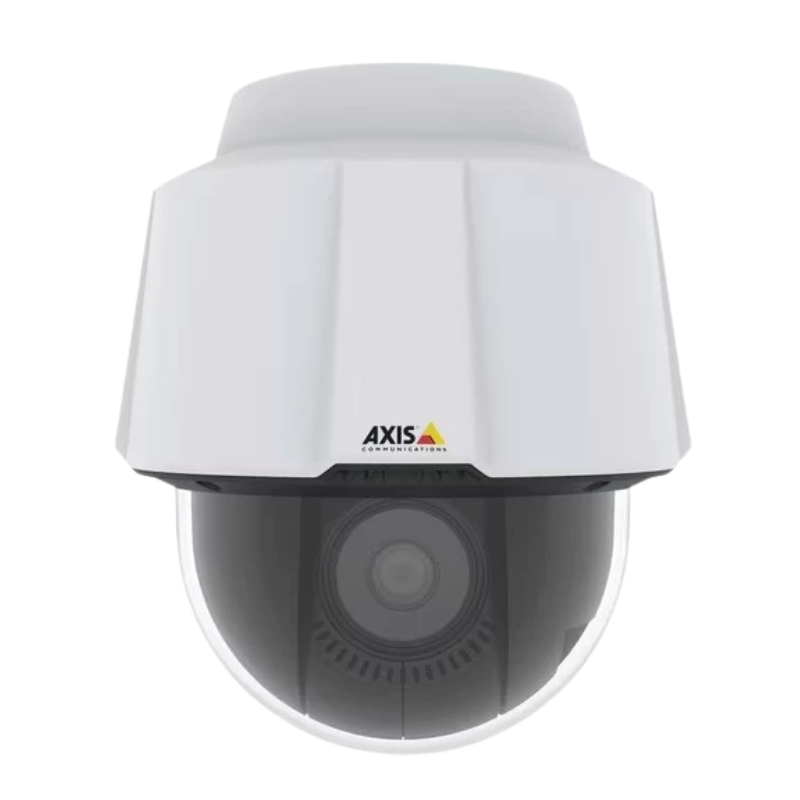

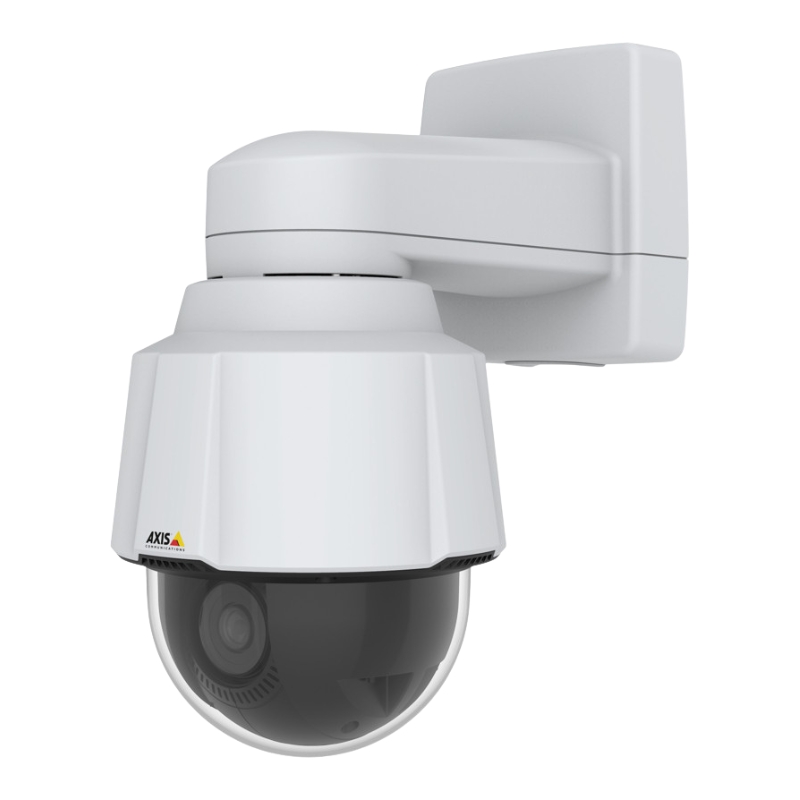

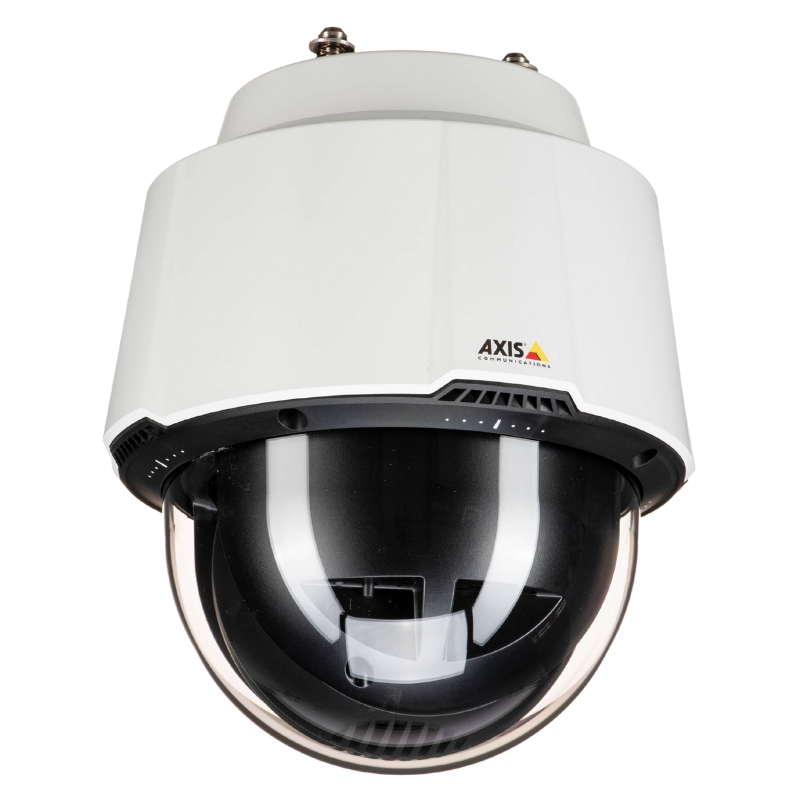

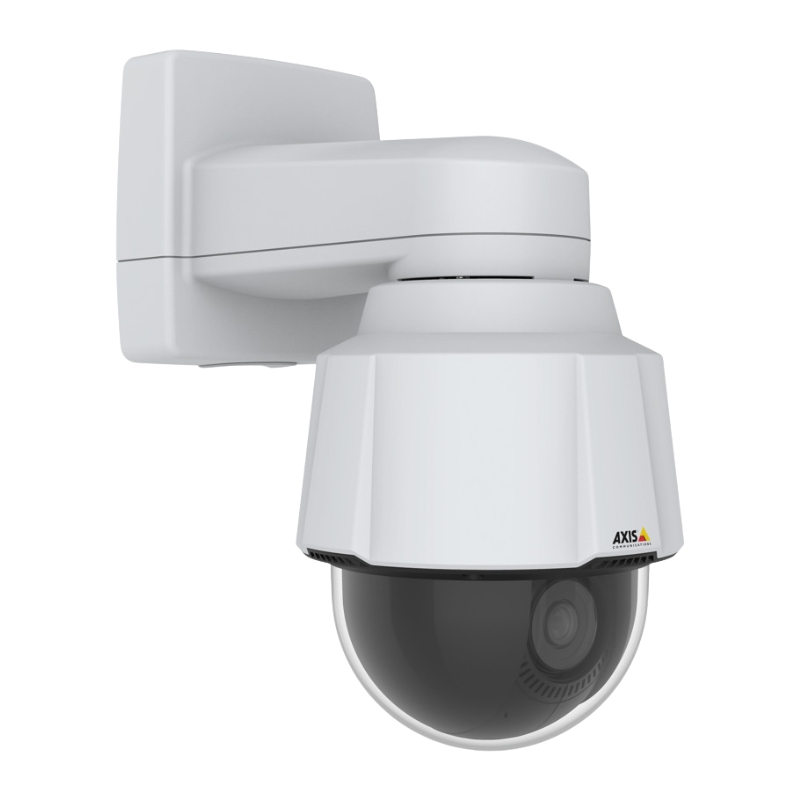

01682-004 Axis P5655-E 60Hz PTZ Network Camera

Product Overview of 01682-004 Axis 60Hz PTZ Camera

The Axis 01682-004 P5655-E PTZ Network Camera is a high-performance surveillance solution designed for professional security environments. With advanced pan-tilt-zoom functionality, Full HD recording, and reliable wired connectivity, this camera delivers sharp video quality and precise control for indoor and outdoor monitoring.

General Specifications

• Brand: Axis Communications
• Model: P5655-E PTZ Network Camera
• Manufacturer Part Number: 01682-004
• Frequency: 60Hz

Interfaces & Connectivity

• RJ-45 Ethernet network interface for stable wired connections
• Supports remote device management over the network

Storage Capabilities

• Integrated memory card support for local video storage
• Flexible recording options for backup and redundancy

Display & Imaging Technology

Image Sensor Details

• RGB CMOS image sensor for accurate color reproduction
• Full color video support for clear visual identification

Network & Communication Features

• Wired connectivity technology ensures consistent data transfer
• Designed for professional IP surveillance systems

Recording & Video Performance

Video Recording Capabilities

• Full HD video recording support
• Maximum resolution of 1920 × 1080 pixels
• Smooth video capture at up to 60 frames per second

Supported Video Compression Formats

• H.265 / HEVC (MPEG-H Part 2)
• H.264 / AVC (MPEG-4 Part 10)
• Motion JPEG
• H.264 Baseline Profile

Lens & Zoom Functionality

Lens Specifications

• Varifocal lens included for flexible field of view
• Powerful 32x optical zoom for long-distance monitoring

Focal Length Range

• Minimum focal length: 4.30 mm
• Maximum focal length: 137.60 mm

Core Technology of Modern PTZ Cameras

Understanding the technological pillars of this category is key to appreciating the performance of a model like the Axis 01682-004 P5655-E. These cameras integrate several advanced systems into a single, environmentally sealed housing.

Optical & Sensor Performance

At the heart of any PTZ camera is its imaging system. High-end models feature progressive scan CMOS sensors, often with resolutions of 1080p Full HD, 4K, or even higher, delivering crisp, detailed images essential for forensic review.

High-Resolution Sensors

These sensors capture fine details across a wide dynamic range, ensuring clarity in both bright and shadowed areas of a scene simultaneously. The 60Hz specification, as seen in the P5655-E, indicates a superior capture rate, delivering smoother, more fluid video of fast-moving subjects—critical for traffic monitoring or identifying license plates on moving vehicles.

Advanced Zoom Capabilities

Axis 01682-004 PTZ cameras typically feature a varifocal or optical zoom lens, with 20x, 30x, or even greater magnification. This allows operators to zoom in on a person's face or a vehicle's license plate from hundreds of meters away while maintaining full image resolution, a capability known as "digital detail retention."

Precision Pan-Tilt Mechanism

The robotic movement system is what defines the PTZ functionality. High-torque, precision motors enable smooth, silent, and rapid movement across wide areas.

360-Degree Continuous Pan

Most professional Axis 01682-004 PTZ cameras can pan continuously in a full circle, eliminating blind spots. The tilt range is typically extensive, allowing the camera to look from nearly straight down to directly up, providing comprehensive vertical coverage.

Preset Positions & Guard Tours

Operators can program specific coordinates as "presets"—exact combinations of pan, tilt, zoom, and focus. The camera can then instantly snap to these positions upon an alarm trigger or cycle through them in a scheduled "guard tour," automating the surveillance of multiple critical points with a single device.

Network Integration & Cybersecurity

As IP (Internet Protocol) devices, these cameras are nodes on a data network. This brings immense flexibility but also requires robust design for reliability and security.

Power over Ethernet (PoE+)

Models like the Axis 01682-004 P5655-E often support IEEE 802.3at PoE+ (Power over Ethernet). This simplifies installation dramatically, as a single Ethernet cable provides both network connectivity and electrical power, reducing wiring costs and complexity, especially for cameras mounted in challenging locations.

Cybersecurity Fundamentals

Axis Communications and other leading manufacturers build cybersecurity into the hardware and firmware. Key features include secure boot, signed firmware, encrypted communication (HTTPS, TLS), user access management with multi-level passwords, and adherence to standards like ONVIF for secure interoperability with Video Management Systems (VMS). Regular firmware updates are crucial to address emerging threats.

Intelligent Video Analytics: From Recording to Understanding

The modern PTZ camera category is defined not just by what it sees, but by what it understands. Built-in analytics transform raw video into actionable intelligence.

Detection and Classification

Advanced algorithms can detect moving objects and classify them as a person, vehicle, or other object. This allows for rule-based actions—for example, sending an alert only when a person enters a restricted area after hours, while ignoring animals or blowing debris, drastically reducing false alarms.

Automatic Tracking

A standout feature in high-end PTZ cameras is automatic tracking. When a person or vehicle is detected within a defined zone, the camera can automatically pan, tilt, and zoom to keep the subject centered in the frame as it moves, providing continuous tracking without operator intervention.

Audio Capabilities & Two-Way Communication

Many PTZ cameras in this class include integrated microphones and even speakers, enabling a full audiovisual solution.

The camera can detect atypical sounds (like breaking glass or aggressive voices) and trigger recordings or alarms. With a speaker, security personnel can issue live audio warnings to intruders or provide instructions to visitors, making the camera an interactive part of the security infrastructure.

Environmental Durability & Application-Specific Design

Professional PTZ cameras are built to perform reliably in the environments they are intended for, which are often harsh and unforgiving.

Ingress Protection (IP) & Vandal Resistance

Housings are rated using IP codes (e.g., IP66, IP67). A rating of IP66, common in this category, signifies complete protection against dust and powerful water jets, making the camera suitable for outdoor use in all weather conditions. Many models also feature IK10+ vandal resistance, meaning the housing can withstand significant physical impact.

Thermal Operation & Heater/Blower

For extreme climates, cameras may include an integrated heater and blower. This internal climate control ensures the lens does not fog in cold, humid conditions and prevents overheating in direct desert sun, guaranteeing operational integrity from sub-zero to high temperatures.

Integration & Management in a Complete Security System

A PTZ camera like the Axis 01682-004 is a powerful component, but its value is fully realized when seamlessly integrated into a broader security ecosystem.

Video Management System (VMS) Compatibility

These cameras are designed to work with professional-grade VMS software, such as Axis Camera Station, Milestone XProtect, or Genetec Security Center. The VMS provides the interface for live viewing, playback, evidence export, and management of all cameras on the network. Support for open standards like ONVIF Profile S ensures broad compatibility.

System Scalability

Investing in a high-quality, feature-rich PTZ camera is a long-term decision. These devices are built to be scalable and future-proof. Their open standards support ensures they can work with new VMS platforms as technology evolves. The powerful onboard processing means they can support new, more advanced analytics applications via firmware updates, protecting the initial investment for years to come.
