01752-004 Axis Q6075-e PTZ 2 Megapixel Outdoor Full HD Camera

Deep Dive: Axis 01752-004 Q6075-e PTZ Camera Specifications

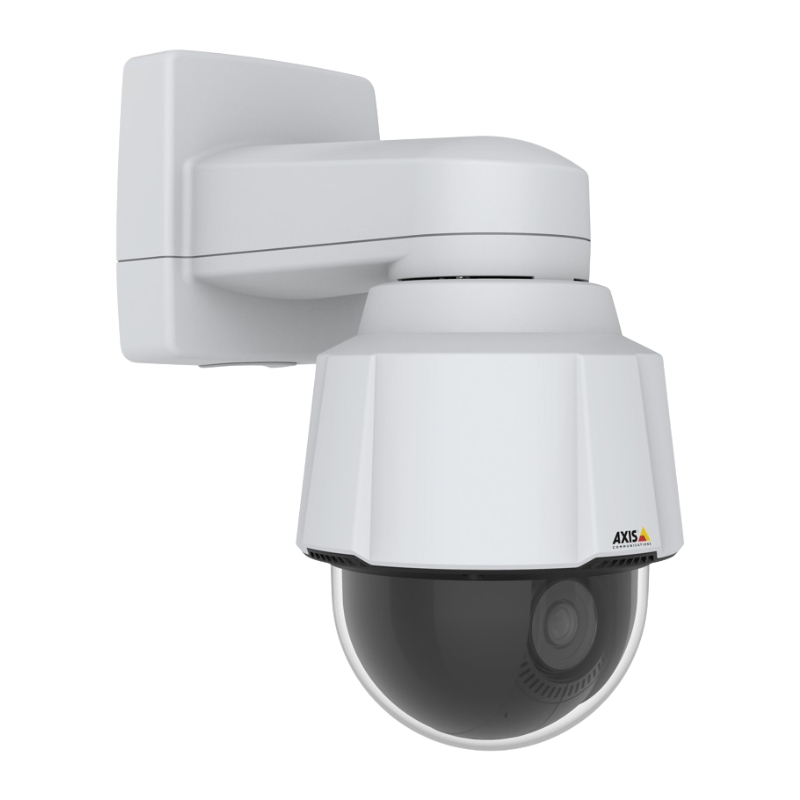

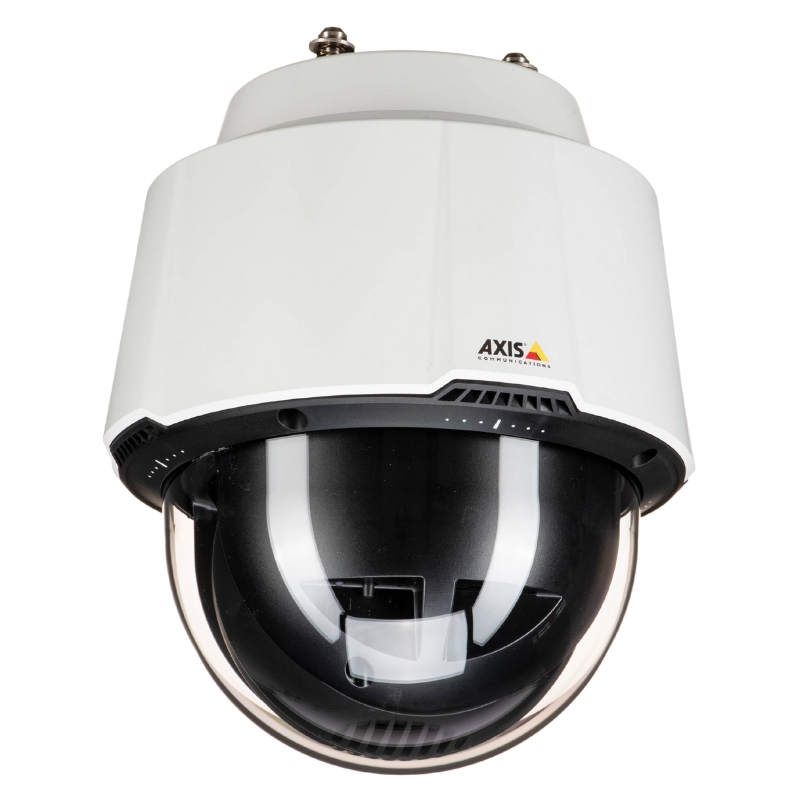

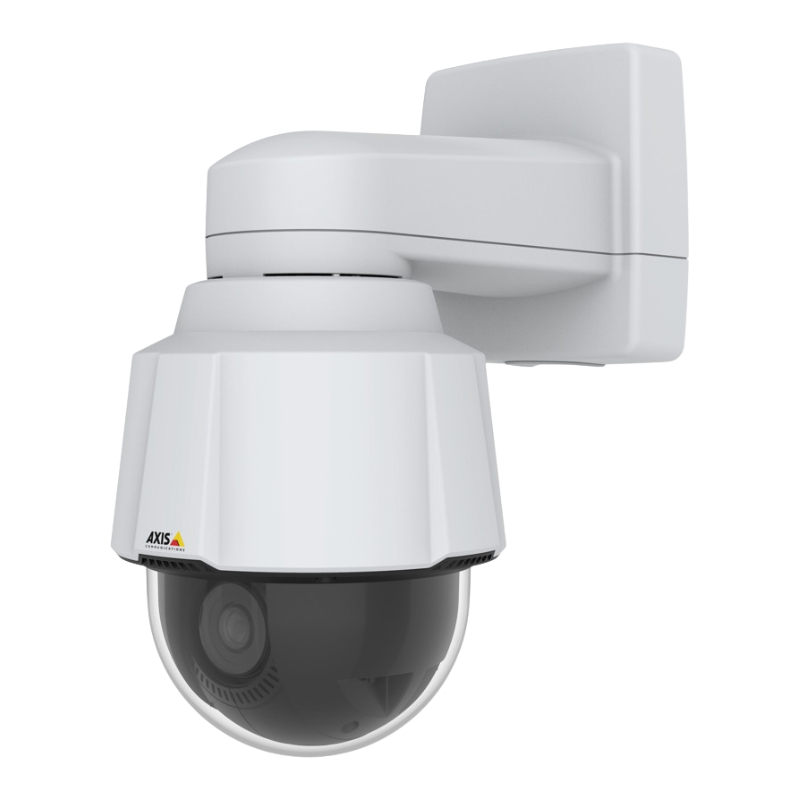

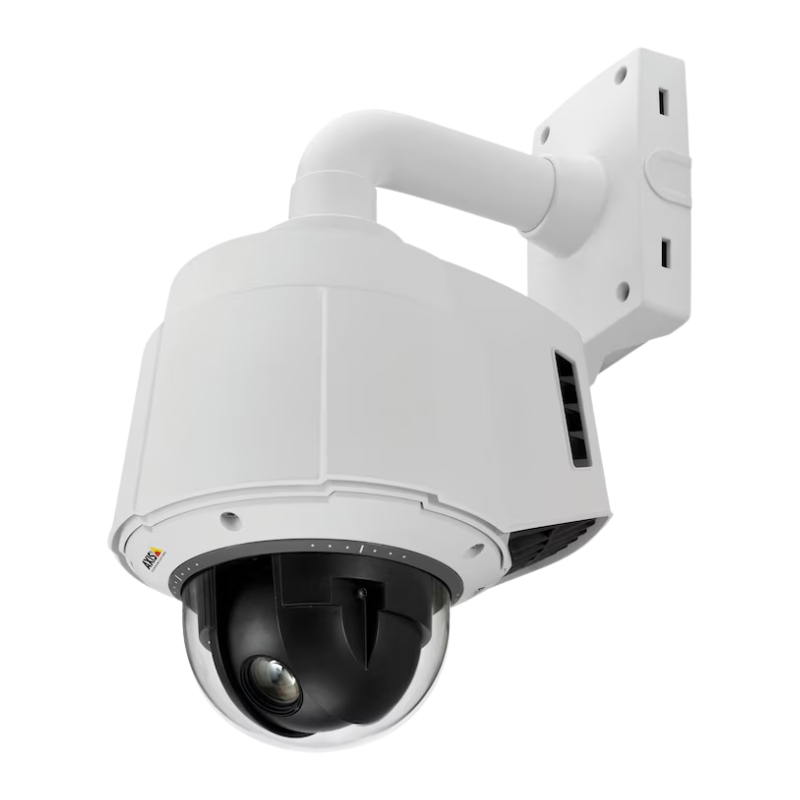

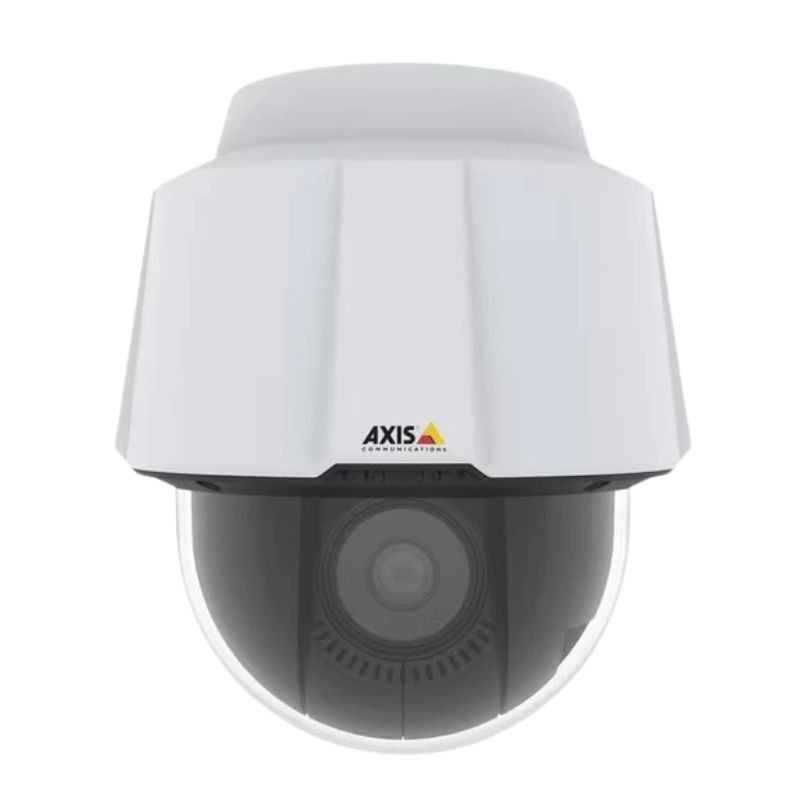

The Axis Q6075-e is a benchmark in its class, encapsulating the key requirements for demanding outdoor PTZ surveillance. Its design philosophy balances exceptional image quality, reliable mechanical performance, and environmental durability, all managed through a versatile network interface.

Visual Performance and Lens Specifications

This camera features a 2-megapixel progressive scan CMOS sensor that outputs crisp Full HD (1920x1080) video at up to 30 frames per second. The star of the visual system is its 30x optical zoom lens, offering a vast focal range that allows for wide-area overviews and extreme telephoto close-ups without degrading image quality through digital zoom. Advanced Wide Dynamic Range (WDR) technology manages challenging backlight and high-contrast scenes, ensuring details are visible in both shadows and highlights simultaneously.

Precision PTZ Mechanics and Performance

The integrated PTZ mechanism is engineered for both speed and silence. With a pan speed of up to 300 degrees per second, the camera can rapidly respond to alerts or operator commands. Preset positions can be configured and recalled with exceptional accuracy (within 0.1 degrees), enabling automated tours that cover multiple points of interest. The tilt range, typically from -90 to +40 degrees, provides comprehensive coverage from ground level to distant horizons.

Intelligent Functions: Auto tracking & Privacy Zones

A standout feature is its on-camera auto tracking. When enabled, the camera autonomously detects, locks onto, and follows moving objects within its field of view, keeping them centered in the frame. Complementing this, configurable privacy masks can be applied to specific areas (e.g., neighboring windows) within the video stream, blurring or blocking them at the source to comply with privacy regulations.

Engineered for the Elements: Outdoor Durability & Protection

An outdoor PTZ camera's value is nullified if it cannot withstand the environment it observes. This category demands rigorous protection against weather, vandalism, and extreme temperatures.

IP66 and IK10+ Ratings Decoded

The Axis Q6075-e carries an IP66 rating against ingress. The "6" in dust means it is totally protected against dust ingress. The "6" in water signifies protection against powerful water jets from any direction. Furthermore, its IK10+ rating for vandal resistance indicates it can withstand an impact of up to 20 joules—equivalent to a direct strike from a heavy object or deliberate vandalism attempts. This robust construction ensures continuous operation in harsh conditions, from coastal salt spray to industrial dust storms.

Operational Temperature Range and Heater

To function in climatic extremes, these cameras are built with wide operational temperature ranges. The Q6075-e, for instance, operates from -40 °C to 50 °C (-40 °F to 122 °F). Crucially, it includes an integrated heater and fan system. The heater prevents condensation and frost on the camera dome in cold environments, while the fan dissipates heat during high-temperature operation, ensuring component reliability and consistent image quality year-round.

Corrosion Resistance and Material Science

The housing is typically constructed from corrosion-resistant materials such as aluminum alloy with a polycarbonate dome. Critical metal components are treated with coatings to resist corrosion from polluted urban atmospheres or coastal environments rich in salt. This attention to material science extends the product's lifespan far beyond that of consumer-grade hardware.

Network Integration and Cybersecurity Foundations

As a network camera, the Axis Q6075-e is an IoT device on the security network. Its design emphasizes seamless integration, efficient bandwidth usage, and robust cybersecurity from the ground up.

Power over Ethernet (PoE+)

Support for IEEE 802.3at PoE+ simplifies installation dramatically. A single CAT-6 cable run provides data connectivity and sufficient power (up to 30W) for all camera functions, including pan/tilt/zoom movements, heater operation, and infrared illumination. This eliminates the need for and cost of a separate power line and outlet at the mounting location, a significant advantage in remote or elevated installations.

Video Stream Management and Compression

To optimize network bandwidth and storage without sacrificing quality, the camera employs advanced video compression codecs like H.264 and H.265 (HEVC). These codecs significantly reduce file sizes. Features such as multiple, configurable video streams allow the camera to send a high-resolution main stream for recording and a lower-resolution sub-stream for live viewing or mobile monitoring, adapting to available network resources intelligently.

Axis Edge Vault and Hardware-Protected Security

In an era of heightened cyber threats, the camera category now includes hardware-based security. The Axis Q6075-e PTZ can be equipped with Axis Edge Vault technology. This creates a hardware-protected environment within the camera for storing cryptographic keys and certificates, enabling secure device identity, signed firmware, and encrypted data. It prevents unauthorized firmware installation and ensures the camera is a trusted node on the network.

Strategic Applications and Use Cases for Outdoor PTZ Cameras

The flexibility of a PTZ camera makes it suitable for a diverse array of applications where situational awareness and investigative capability are paramount.

Critical Infrastructure Protection

For utilities, water treatment plants, and energy substations, perimeter security is non-negotiable. A network of PTZ cameras can be programmed to run automated preset tours, covering vast, remote perimeters. Upon an alarm from a fence sensor or radar, cameras can automatically swing to the preset location, providing instant visual verification and enabling security teams to assess the threat and coordinate an appropriate response, all without dispatching personnel blindly.

Urban Security and Smart City Initiatives

In city centers, public parks, and transportation hubs, PTZ cameras assist in public safety and traffic management. Their ability to zoom in on incidents provides law enforcement with critical details. Integrated with city-wide command and control systems, they become tools for monitoring crowd density, identifying abandoned objects, and managing major events, contributing to the broader ecosystem of a smart, safe city.

Retail Loss Prevention and Operations

Large retail parking lots are prime areas for theft and property crime. A strategically placed outdoor PTZ can monitor hundreds of parking spaces. If a car break-in is reported, security can pan, tilt, and zoom to the vehicle's location and use the high-quality video to identify suspects and vehicles. Furthermore, analytics can monitor queue lengths at drive-throughs or curbside pickup zones, providing operational data beyond pure security.

Industrial and Logistics Yard Management

In ports, freight yards, and manufacturing plants, PTZ cameras oversee loading bays, storage areas, and gate entries. They verify container numbers, monitor compliance with safety protocols (like wearing hard hats), and track the movement of assets. The autotracking feature is invaluable for following a vehicle or individual as they move through a large, open site, maintaining a continuous visual record.

Key Considerations When Selecting an Outdoor PTZ Camera

Choosing the right model requires evaluating technical specifications against operational needs and environmental challenges.

Optical Zoom Ratio vs. Resolution

A higher optical zoom (e.g., 30x, 35x) provides greater forensic detail at distance but must be paired with sufficient sensor resolution. A 2-megapixel sensor with 30x zoom, like in the Q6075-e, offers a balanced performance. For extremely long ranges, a higher megapixel sensor may be necessary, but this increases bandwidth and storage demands. The "zoom and crop" capability is directly tied to this relationship.

Illumination and Night Performance

True 24/7 operation depends on low-light capability. Key specifications include the minimum illumination rating (in lux) and the type of integrated illumination. Many PTZ cameras feature powerful integrated infrared (IR) LEDs or separate white light illuminators. The Q6075-e includes an IR illuminator with a range exceeding 150 meters, ensuring clear monochrome video in total darkness. The ability to control focus and exposure optimally in low-light is critical.

Integration with VMS and Analytics Platforms

The camera must be compatible with the existing or chosen Video Management Software (VMS). Axis cameras are compliant with open standards like ONVIF, ensuring broad interoperability. Furthermore, consider whether advanced analytics will run on the camera (edge-based) or on the VMS server. Edge-based analytics, as found in this category, reduce server load and network traffic, enabling faster, more scalable deployments.

The Evolving Landscape: Future Trends in PTZ Surveillance

The category continues to evolve, driven by advancements in artificial intelligence, sensor fusion, and connectivity.

Multi-Sensor and 360-Degree Solutions

While traditional PTZ offers a single, movable field of view, new designs incorporate multiple fixed sensors providing a 360-degree panoramic overview, with a co-located PTZ unit for detailed investigation. This gives operators both a complete, lossless situational awareness view and the ability to dive into details without losing context, all from one physical unit.

Enhanced Cybersecurity as Standard

Hardware-based security features, like Axis Edge Vault, will become standard in professional-grade cameras. As regulations tighten and cyber threats grow, built-in secure boot, signed firmware, and hardware-protected identities will be minimum requirements for any network-connected surveillance device in critical applications.

Integration with Broader IoT Ecosystems

PTZ cameras will increasingly act as sensor nodes within larger IoT networks. Data from the camera's analytics can trigger lighting systems, access control points, or public address announcements. Conversely, alarms from other sensors (e.g., gunshot detection, license plate readers) can direct the PTZ camera to a specific preset, creating a truly integrated and automated security environment.
