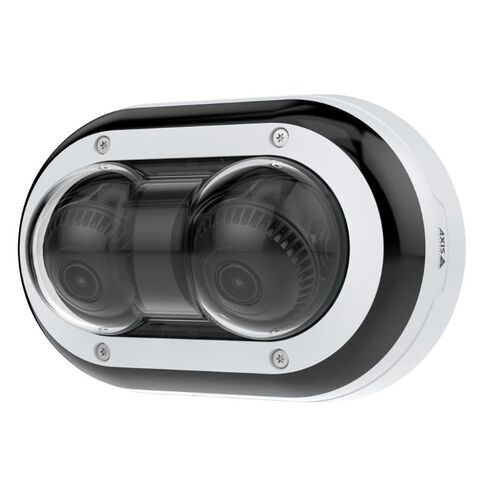

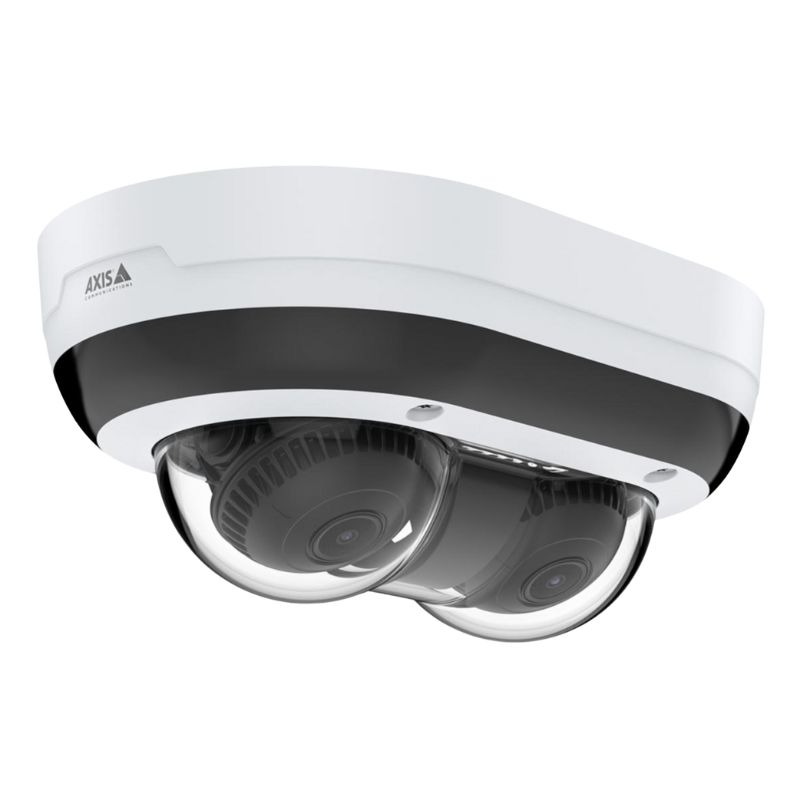

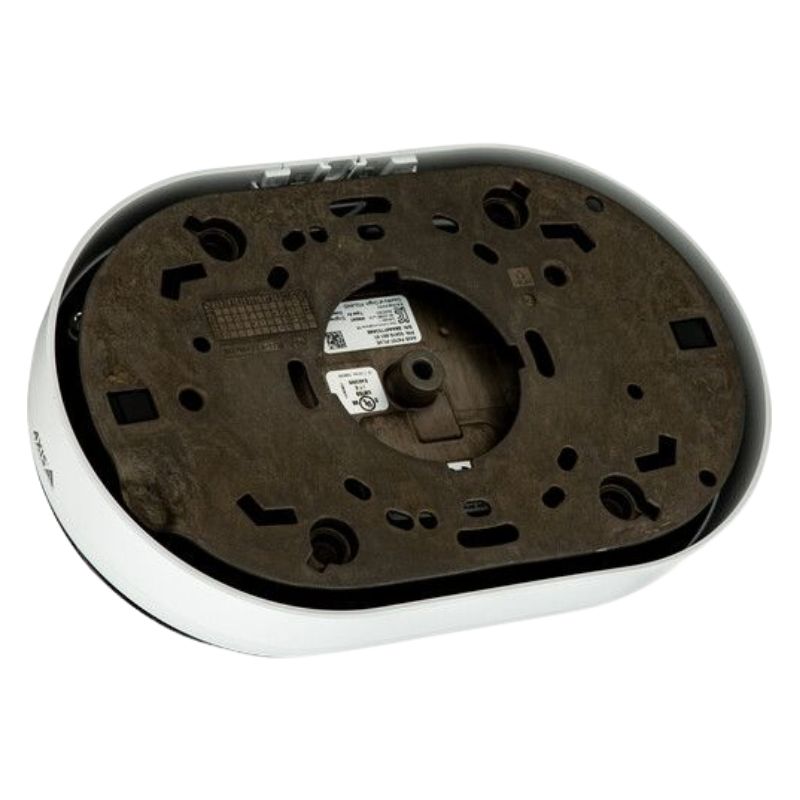

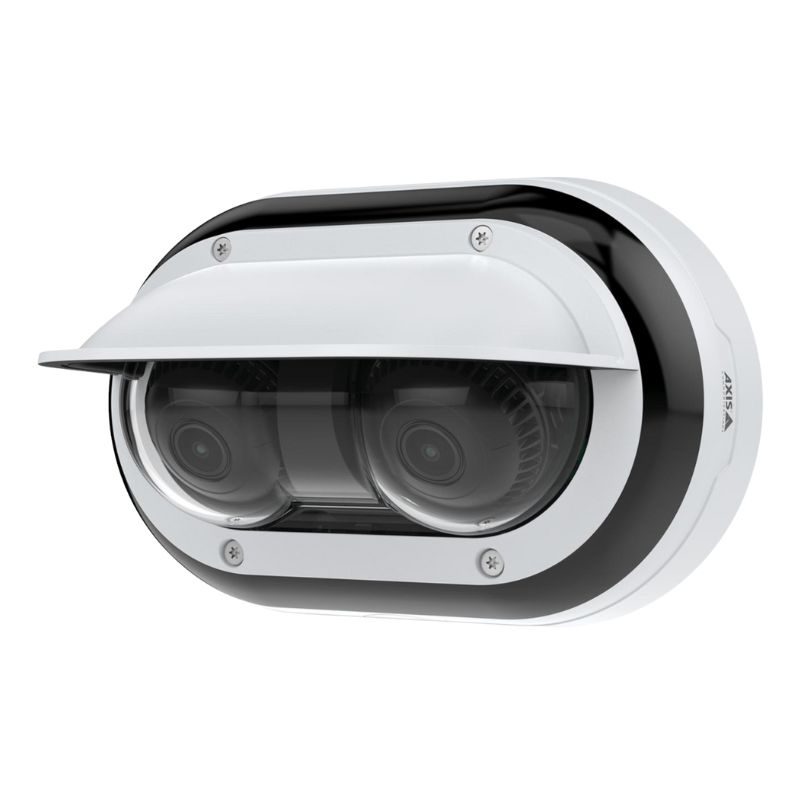

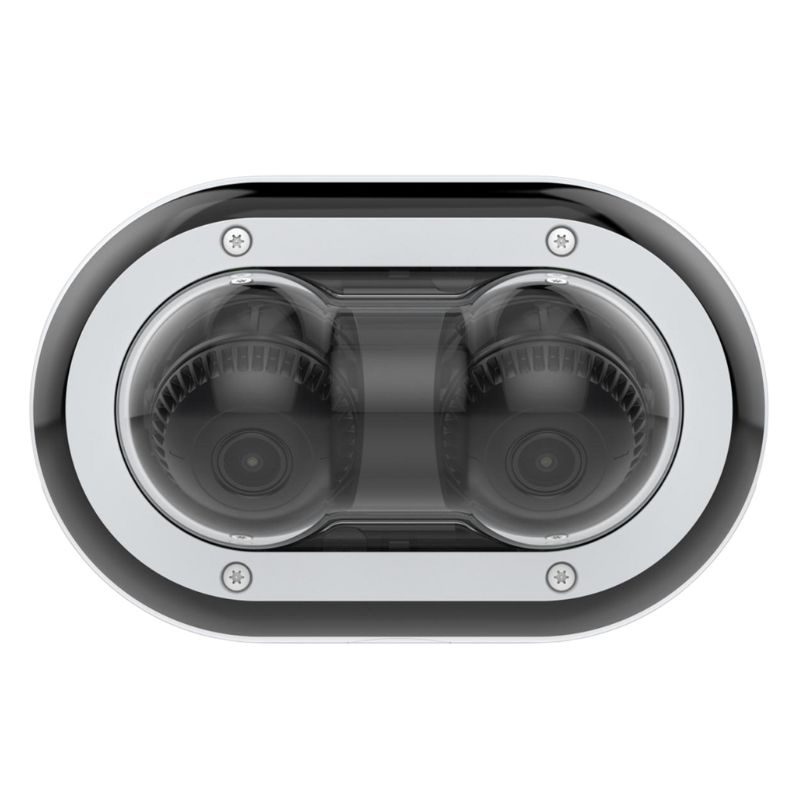

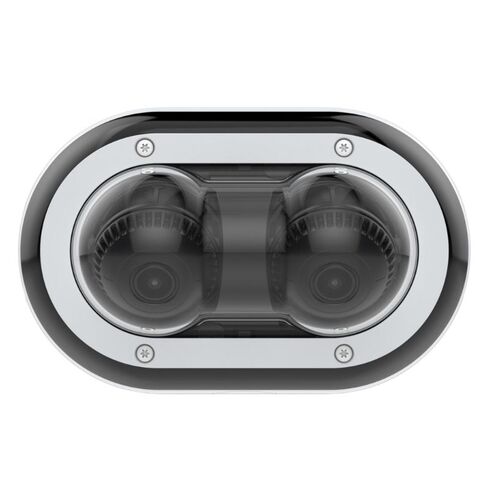

02416-001 AXIS P4707-plve 5 Megapixel Network Camera.

AXIS 02416-001 P4707-PLVE Network Camera Overview

Discover the high-performance AXIS P4707-PLVE 5 Megapixel Network Camera designed for professional outdoor surveillance. Available in sleek white and black color options, this dome camera delivers crystal-clear imaging with advanced infrared night vision up to 49.21 ft, ensuring security in low-light conditions.

Key Specifications

• Manufacturer: AXIS
• Part Number / SKU: 02416-001
• Camera Type: Network Camera
• Model Name: P4707-PLVE

Technical Details

Physical Properties

• Form Factor: Panorama Dome Camera
• Designed For: Outdoor Surveillance
• Weight: 3 lbs

Connectivity

• Ethernet: 1 x RJ45 Connector
• Wireless: Not Supported

Optical Features

• Resolution: 2560 x 1440 (5 MP)
• Focal Length: 3.3 mm – 8.1 mm Varifocal Lens
• Optical Zoom: 2.5x
• Horizontal Field of View: 98° – 36°
• Vertical Field of View: 69° – 27°

Performance

• Frame Rate: 25 fps
• Video Compression: Axis Zipstream, H.264, H.264b, H.264m, H.264h, H.265, Motion JPEG
• High Dynamic Range: WDR for better contrast in challenging light conditions
• Light Sensitivity: Axis Lightfinder technology
• Infrared Support: Yes, for night vision up to 49.21 ft

Memory & Storage

• Memory Slot: microSD / microSDHC / microSDXC card

Power & Security

• Power Supply: PoE+ (802.3at)
• Protection Rating: IK10, IP66, IP67 – Rugged and Weatherproof

Included Accessories

• Weather Shield
• Windows Decoder License

Outstanding Features

• Advanced Video Compression: Axis Zipstream reduces bandwidth and storage requirements
• Superior Low-Light Performance: Lightfinder ensures vivid colors even in darkness
• Wide Dynamic Range (WDR): Handles challenging lighting conditions effortlessly
• Durable Design: IK10 vandal-resistant housing and IP66/IP67 weatherproof rating

Professional Network Dome Camera Category

The professional network dome camera category represents a critical segment of modern IP-based video surveillance systems, designed to deliver high-resolution imaging, advanced analytics support, and reliable performance across diverse indoor and semi-outdoor environments. Devices in this category, including the AXIS 02416-001 P4707-PLVE 5 Megapixel Network Camera, are engineered for enterprise-grade security deployments where image clarity, low-light performance, bandwidth efficiency, and long-term operational stability are essential. These cameras are commonly deployed in corporate offices, retail environments, healthcare facilities, educational institutions, transportation hubs, hospitality venues, and industrial sites that demand consistent monitoring without compromising network resources.

Network dome cameras within this category emphasize discreet aesthetics combined with robust functionality. The dome form factor minimizes visual intrusion while providing tamper-resistant protection, making it suitable for public-facing spaces. High-resolution sensors, such as 5-megapixel imaging capabilities, enable detailed scene capture that supports identification, situational awareness, and post-event forensic analysis. This category continues to evolve with the integration of intelligent compression technologies, flexible lens options, and multi-codec support that align with modern video management systems and cloud-based monitoring platforms.

High-Resolution Imaging and 5 Megapixel Performance

High-resolution imaging is a defining characteristic of advanced network cameras in this category. A 5-megapixel resolution, delivering up to 2592 x 1944 pixels, provides significantly more detail than standard HD cameras. This enhanced resolution enables wider coverage areas without sacrificing clarity, allowing security teams to monitor larger spaces with fewer devices. The increased pixel density is particularly valuable in environments where facial recognition, object identification, and detailed scene analysis are required.

Within this category, cameras are optimized to maintain image integrity across varying lighting conditions. Advanced image processing ensures accurate color reproduction during daytime operation while preserving contrast and sharpness in complex scenes. The ability to capture fine details such as text, textures, and subtle movements makes 5-megapixel dome cameras a preferred choice for high-security and compliance-driven installations.

Frame Rate Optimization and Smooth Video Streaming

Professional network cameras in this category support frame rates of up to 30 frames per second, ensuring smooth and natural video playback. A higher frame rate is essential for capturing fast-moving subjects, reducing motion blur, and improving the overall usability of recorded footage. This capability is particularly relevant in retail loss prevention, transportation monitoring, and industrial safety applications where real-time responsiveness and accurate motion representation are critical.

The combination of high resolution and optimized frame rates reflects a balance between image quality and network efficiency. Cameras are designed to dynamically adjust streaming parameters based on scene complexity, available bandwidth, and storage policies, ensuring consistent performance without overwhelming network infrastructure.

Advanced Varifocal Lens Technology

Varifocal lens technology is a core feature within this category, offering installation flexibility and precise field-of-view control. A lens range of 3.30 mm to 8.10 mm with 2.5x optical zoom allows installers to fine-tune coverage based on the specific requirements of each location. This flexibility eliminates the need for multiple fixed-lens camera models, simplifying inventory management and deployment planning.

The ability to adjust focal length enables cameras to capture wide-angle views for general surveillance or narrower fields of view for focused monitoring of entrances, corridors, or critical assets. Optical zoom preserves image quality during adjustment, ensuring that detail is maintained without digital artifacts. This adaptability makes varifocal dome cameras suitable for both initial installations and future reconfigurations as security needs evolve.

Precision Focus and Scene Optimization

Precision focus mechanisms within this category allow for accurate alignment during installation and maintenance. Advanced autofocus and remote adjustment capabilities reduce setup time and minimize the need for on-site intervention. These features are especially valuable in large-scale deployments where efficiency and consistency are paramount.

Scene optimization technologies further enhance image quality by automatically adjusting exposure, white balance, and contrast based on environmental conditions. This ensures reliable performance across diverse lighting scenarios, from bright indoor areas to dimly lit corridors and transitional spaces.

Infrared Night Vision and Low-Light Performance

Infrared night vision is a fundamental requirement for modern surveillance cameras, and this category delivers robust low-light capabilities with infrared illumination reaching up to 49.21 feet. Integrated IR LEDs enable clear monochrome imaging in complete darkness, ensuring continuous monitoring regardless of ambient light conditions. This capability is essential for after-hours security, perimeter monitoring, and 24/7 operational environments.

Advanced IR management technologies prevent overexposure and hotspots, maintaining uniform illumination across the scene. The seamless transition between color and infrared modes ensures consistent coverage without manual intervention. Cameras in this category are designed to handle challenging lighting conditions, such as mixed light sources and reflective surfaces, without compromising image usability.

True Day and Night Imaging Capabilities

True day and night functionality enhances surveillance effectiveness by optimizing image capture across the full spectrum of lighting conditions. During daytime operation, cameras deliver accurate color representation, supporting situational awareness and visual verification. As light levels decrease, automatic switching mechanisms activate infrared illumination and adjust sensor sensitivity to maintain clarity.

This dual-mode performance ensures that security teams receive reliable visual information at all times, reducing blind spots and enhancing overall system effectiveness. The ability to maintain consistent image quality in low-light environments distinguishes professional-grade network cameras from entry-level alternatives.

Multi-Codec Support and Video Compression Efficiency

Efficient video compression is critical in large-scale surveillance deployments, and this category supports a wide range of industry-standard codecs, including H.264, H.265, Motion JPEG, and multiple H.264 profiles such as H.264b, H.264m, and H.264h. This comprehensive codec support ensures compatibility with a broad array of video management systems and recording platforms.

H.265 and H.264 compression technologies significantly reduce bandwidth and storage requirements while preserving image quality. This efficiency enables organizations to extend retention periods, reduce infrastructure costs, and support higher camera densities without network congestion. Motion JPEG remains available for applications requiring frame-by-frame analysis or integration with legacy systems.

Zipstream Technology and Intelligent Bandwidth Optimization

Zipstream technology represents a key innovation within this category, intelligently optimizing video streams by analyzing scene content and prioritizing important details. Static areas of the image are compressed more efficiently, while regions with motion or critical activity retain higher quality. This approach delivers substantial reductions in bitrate without sacrificing forensic value.

Intelligent bandwidth optimization supports scalable deployments and remote monitoring scenarios, where network capacity may be limited. By reducing unnecessary data transmission, cameras can operate effectively over existing infrastructure, supporting both on-premises and cloud-based surveillance architectures.

Secure IP Surveillance and Network Integration

Network dome cameras in this category are designed for seamless integration into IP-based security ecosystems. They support standard network protocols and are compatible with leading video management software platforms. This interoperability enables centralized management, remote access, and streamlined system expansion.

Security is a core consideration, with features such as encrypted communication, secure boot processes, and robust authentication mechanisms. These safeguards protect video data from unauthorized access and ensure compliance with organizational security policies. The ability to integrate with access control systems, analytics platforms, and alarm systems further enhances the value of network cameras within this category.

Scalable Architecture for Enterprise Deployments

Scalability is essential for organizations planning long-term surveillance strategies. Cameras in this category are built to support incremental expansion, allowing additional devices to be added without major infrastructure changes. Centralized configuration tools simplify management across large camera fleets, reducing administrative overhead.

This scalable architecture supports diverse deployment models, from single-site installations to multi-location enterprises with centralized monitoring centers. The flexibility to adapt to changing security requirements makes this category suitable for organizations of all sizes.

Dome Design, Aesthetics, and Physical Durability

The dome design featured in this category combines aesthetic discretion with physical resilience. Available in neutral finishes such as white and black, these cameras blend seamlessly into a variety of architectural environments. The low-profile dome housing reduces visual impact while providing protection against tampering and accidental damage.

Durable construction materials ensure reliable operation in demanding environments. Dome cameras are often selected for indoor and semi-outdoor applications where durability, ease of cleaning, and vandal resistance are important considerations. The enclosed design also minimizes dust accumulation and protects sensitive optical components.

Installation Flexibility and Mounting Options

Installation flexibility is a key advantage of dome cameras in this category. They are designed to support multiple mounting configurations, including ceiling and wall installations. Compact form factors simplify placement in confined spaces, while adjustable mounting mechanisms enable precise alignment.

Efficient installation processes reduce labor costs and deployment time, making these cameras a practical choice for both new installations and system upgrades. The ability to reposition and reconfigure cameras as needs change enhances long-term value.

Use Cases Across Industries and Environments

The professional network dome camera category serves a wide range of industries and applications. In retail environments, high-resolution imaging supports loss prevention and customer behavior analysis. In corporate offices, discreet surveillance enhances security without disrupting workplace aesthetics. Healthcare facilities benefit from reliable monitoring of public areas, while educational institutions use dome cameras to improve campus safety.

Transportation hubs, hospitality venues, and industrial facilities also rely on this category for continuous monitoring and incident documentation. The combination of advanced imaging, low-light performance, and efficient compression ensures consistent operation across diverse operational contexts.

Future-Ready Surveillance Technology

As surveillance technology continues to evolve, network dome cameras in this category are designed to support future enhancements through firmware updates and software integrations. Compatibility with analytics, artificial intelligence, and cloud-based services positions these cameras as long-term investments.

The focus on image quality, efficiency, and security ensures that this category remains relevant in an increasingly connected and data-driven security landscape. Organizations selecting cameras within this segment gain access to a robust foundation for advanced video surveillance solutions.
