SSD-HDD TraysBCM957504-N1100G Broadcom 1-Port Ethernet PCI Express SFF Network Adapter
BCM957504-N1100G
Hover on image to enlarge
Brief Overview of BCM957504-N1100G
Broadcom 1-Port Ethernet PCI Express SFF Network Adapter - BCM957504-N1100G. Factory-Sealed New in Original Box (FSB)
with 3-Year Replacement WarrantyOur Advantages
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
Payment Options
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
Delivery
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Please sign in so that we can notify you about a reply
Description

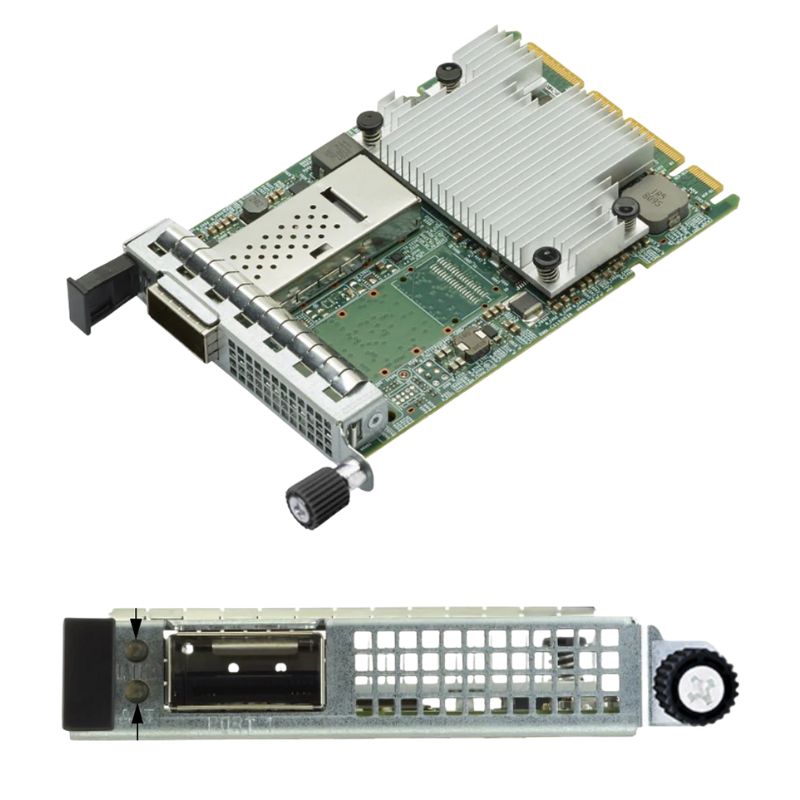

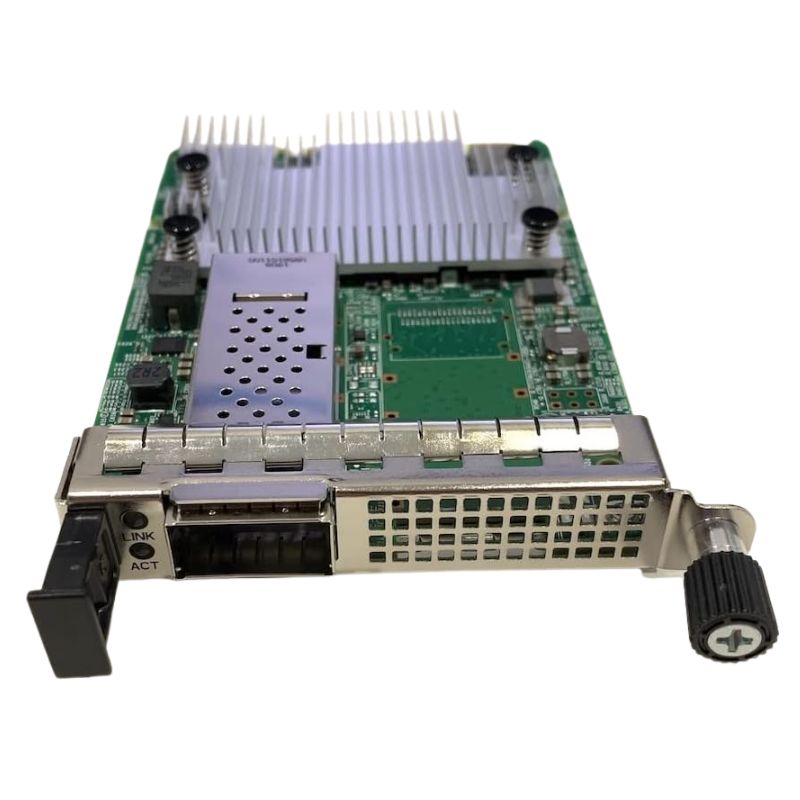

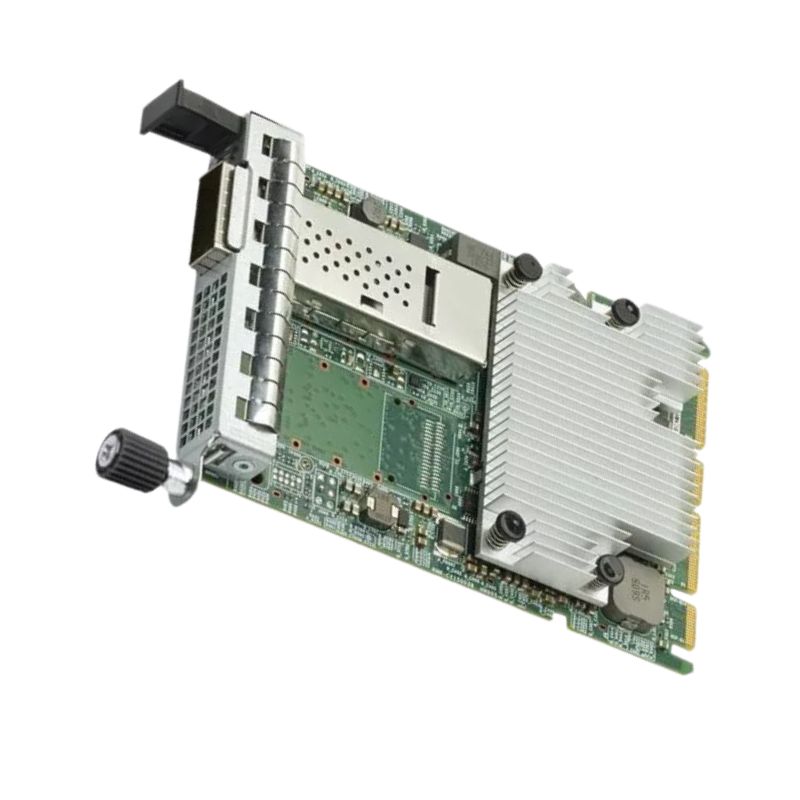

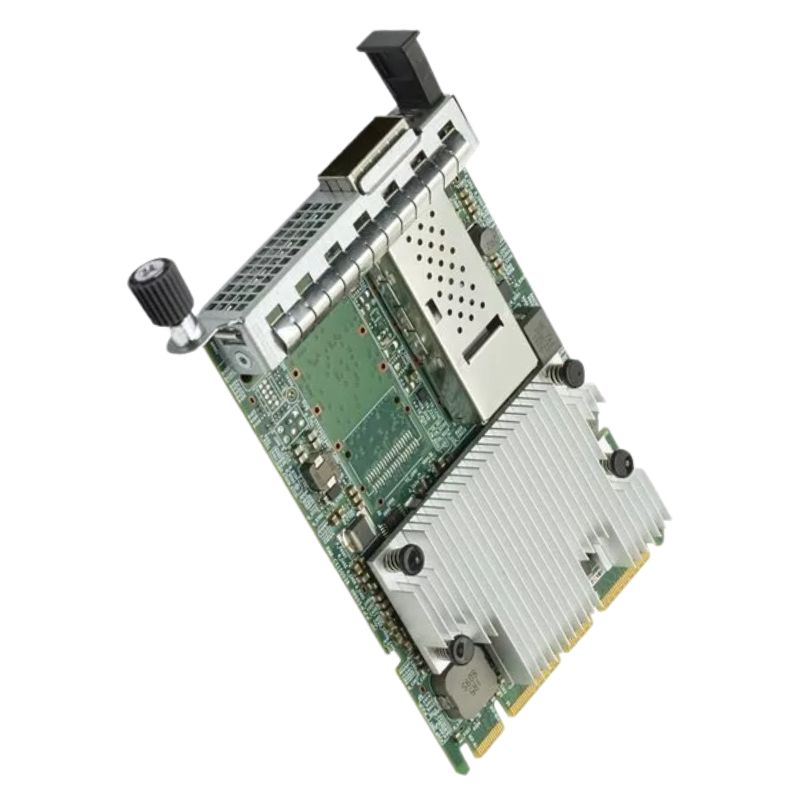

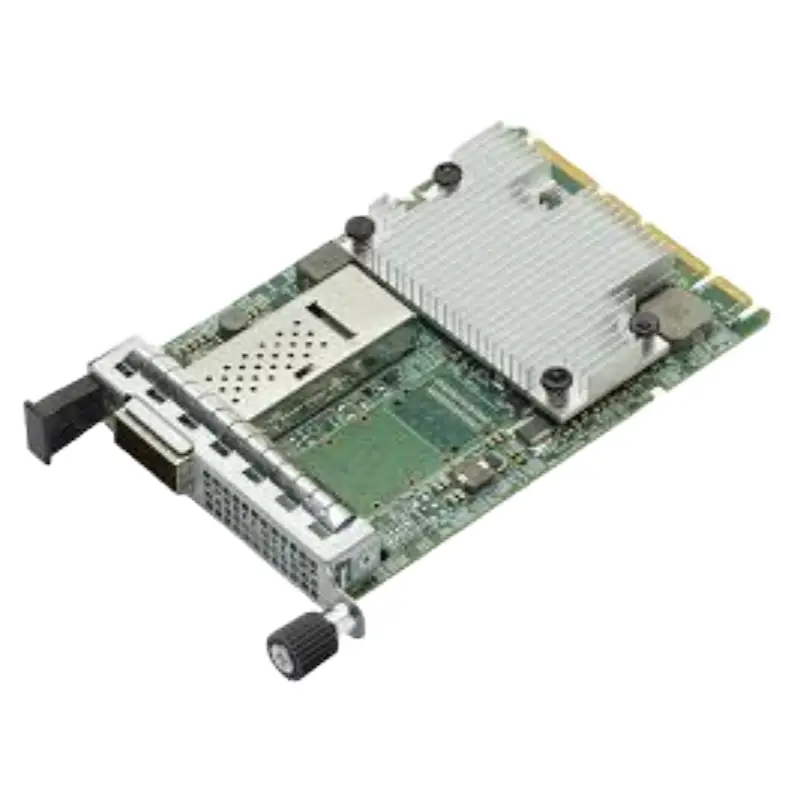

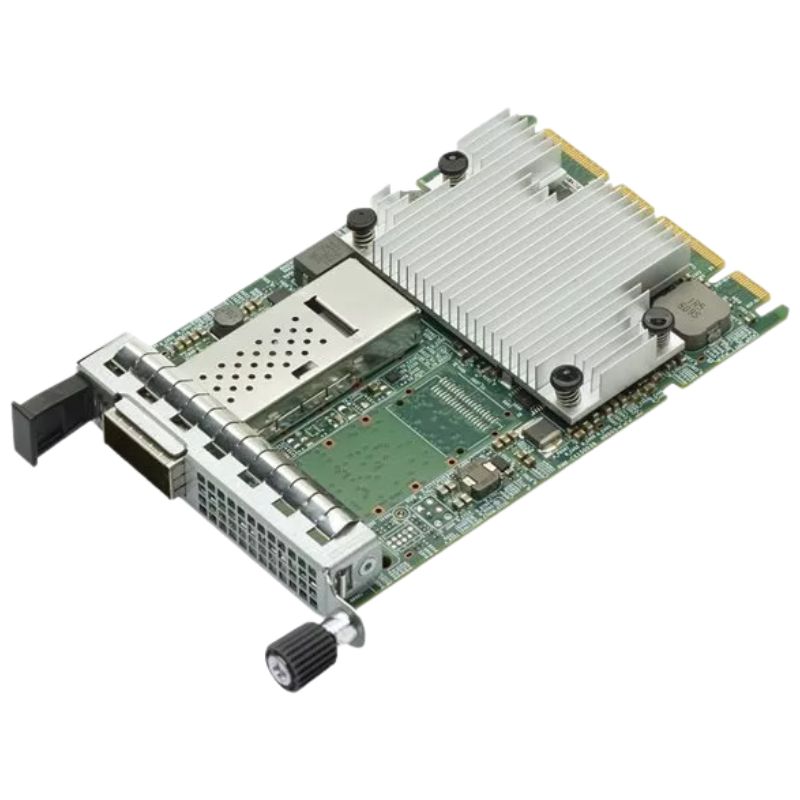

Product Overview Of Broadcom BCM957504-N1100G
The BROADCOM BCM957504-N1100G is a high-performance, single-port 100 Gb/s network adapter, designed for OCP (Open Compute Project) systems. It operates with a PCI Express 4.0 x16 interface, ensuring optimal data throughput and connectivity. Featuring a Qsfp56 network connector, this adapter supports a range of optical and copper connections, making it a versatile solution for modern data centers and enterprise networks.
Key Features
- Single-port Pluggable Media Interface: Compatible with Qsfp56, Qsfp28, and Qsfp+ optical transceivers or copper direct-attach cables, providing flexibility in deployment.
- Advanced Security: Built with BROADCOM's Broadsafe technology, offering the most secure PCIe adapter solution available.
- Ethernet Signaling Support: Supports Ethernet 50G PAM-4 and 25G/10G NRZ signaling for superior data transfer rates and reliability.
- Multi-host Capability: Allows up to four hosts to connect to a single network adapter for enhanced scalability.
- OCP 3.0 Compatibility: Fully conforms to the Open Compute Project 3.0 design specification, ensuring seamless integration with OCP-based systems.
Performance and Scalability
- PCI Express 4.0 x16 Compliance: Ensures high-speed data transfer and low-latency communication between the network and host systems.
- SR-IOV Support: Up to 1,000 Virtual Functions (VFs) for high-density virtualized environments.
- Function-Level Reset (FLR): Allows independent reset of individual functions, enhancing system stability and uptime.
- Advanced Congestion Management: Supports Jumbo Frames up to 9KB, along with advanced congestion avoidance mechanisms to optimize data flow.
Network Management and Offloads
- Network Offloading: Supports offloads for IPv4/IPv6, TCP, UDP, IP checksum, and Large Send/Receive Offload (LSO/LRO), reducing CPU load and improving throughput.
- Virtualization Enhancements: Features VxLAN, NVGRE, Geneve, and GRE encapsulation/decapsulation, providing efficient virtual network termination and VSwitch acceleration.
- Rdma Over Converged Ethernet (RoCE): Facilitates high-speed remote direct memory access for low-latency data transfer in high-performance computing (HPC) environments.
Additional Features
- DCB Support: Includes support for Priority Flow Control (PFC), Enhanced Transmission Selection (ETS), Quantized Congestion Notification (QCN), and DCBX for optimized traffic management.
- Wake-on-LAN (WOL): Enables remote system wake-up via Ethernet for efficient power management.
- SMBus 2.0 and MCTP Over SMBus: Allows for enhanced system monitoring and management through the SMBus interface.
- PXE and ISCSI Boot: Supports network booting, allowing for flexible system deployment without local storage requirements.
Specification Compliance
- OCP 3.0 FRU Support: Fully compliant with the OCP 3.0 FRU (Field Replaceable Unit) specification, ensuring smooth integration and field servicing.
- Fully Conforms to OCP 3.0 Design Specifications: Meets the OCP 3.0 Design Specification Version 1.00, ensuring compatibility with OCP-based systems.
Applications
- Data Centers: Ideal for use in high-performance computing (HPC) environments, cloud computing, and large-scale enterprise data centers.
- Enterprise Networks: Provides exceptional network connectivity and throughput for mission-critical enterprise applications.
- High-Bandwidth Networks: Perfect for environments requiring 100 Gb/s Ethernet speeds, such as scientific research, media production, and financial services.
Ports
The Broadcom BCM957504-N1100G Ethernet PCI Express SFF Network Adapter comes equipped with 1 port, making it an essential component for users seeking to expand their network connectivity options.
Increased Connectivity
With its 1 port, this network adapter allows users to connect a single device to their network. Whether it's a server, workstation, or any other compatible device, the availability of this port ensures seamless integration into existing networks. The ability to connect one device is particularly beneficial for small businesses or home networks where multiple devices need reliable and fast internet access.
Efficient Data Transfer
The single port on the Broadcom BCM957504-N1100G Ethernet PCI Express SFF Network Adapter guarantees efficient data transfer between the connected device and the network. By providing a dedicated channel for data transmission, users can enjoy high-speed performance without worrying about bottlenecks or interruptions. This is especially crucial for bandwidth-intensive tasks such as video streaming, online gaming, or large file transfers.
Streamlined Network Management
Having just one port simplifies network management processes. With a single point of connection, administrators can easily monitor and maintain the network's performance. Troubleshooting becomes more straightforward as there is only one physical connection to inspect. This streamlined management approach saves time and effort, allowing network administrators to focus on optimizing network efficiency rather than getting lost in a web of tangled cables.
Cost-Effective Solution
The inclusion of a single port in the Broadcom BCM957504-N1100G Ethernet PCI Express SFF Network Adapter offers a cost-effective solution for users who require basic network connectivity. For smaller setups or instances where multiple ports are unnecessary, investing in a network adapter with only one port eliminates the need to pay for additional ports that may go unused. This cost-saving aspect makes the adapter an ideal choice for budget-conscious users without compromising on performance.
Flexibility and Scalability
While the Broadcom BCM957504-N1100G Ethernet PCI Express SFF Network Adapter features only 1 port, it still offers users flexibility and scalability. The adapter can be easily integrated into existing network infrastructures, allowing users to expand their networks without the need for significant reconfigurations. Users can add multiple adapters with a single port each, ensuring seamless scalability as their network demands grow over time.
Space-Saving Design
The compact form factor of the Broadcom BCM957504-N1100G Ethernet PCI Express SFF Network Adapter with its 1 port makes it an ideal choice for environments where space is limited. The smaller footprint enables easy installation in tight spaces, such as small server racks or compact workstations. This space-saving design ensures efficient utilization of available resources without sacrificing network performance.
In conclusion, the Broadcom BCM957504-N1100G Ethernet PCI Express SFF Network Adapter's 1 port offers numerous benefits and importance for users. It provides increased connectivity options, efficient data transfer, streamlined network management, and cost-effective solutions. Additionally, its flexibility, scalability, and space-saving design make it a versatile choice for various network setups.
Features
Product/Item Condition:
Factory-Sealed New in Original Box (FSB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
