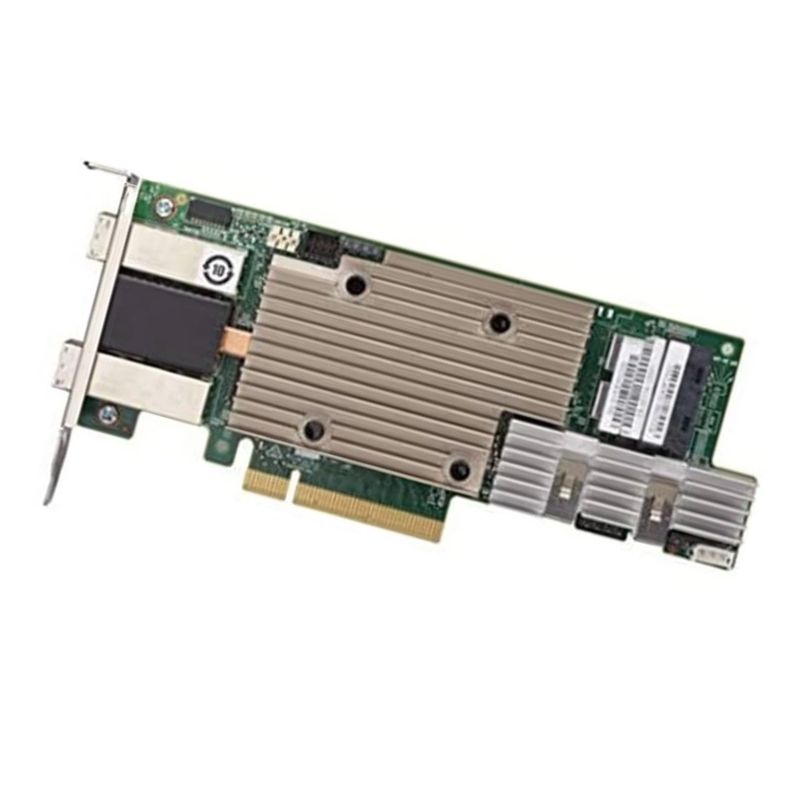

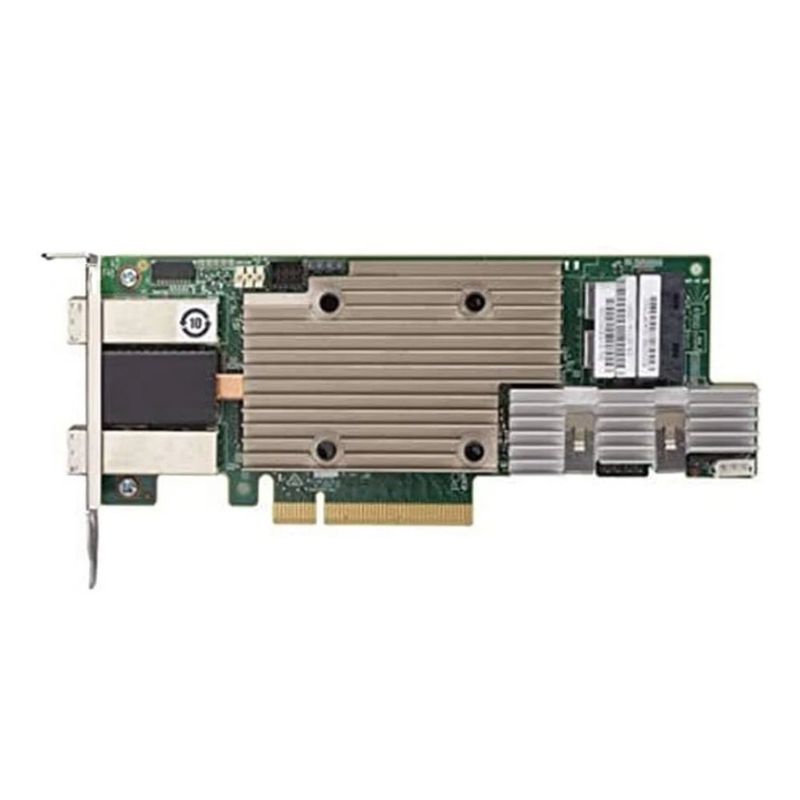

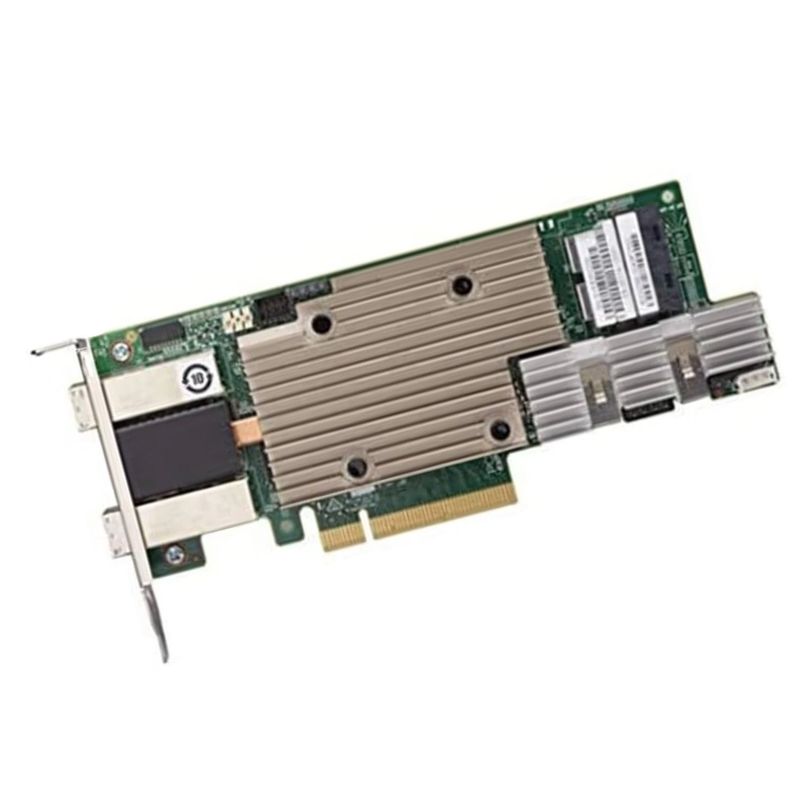

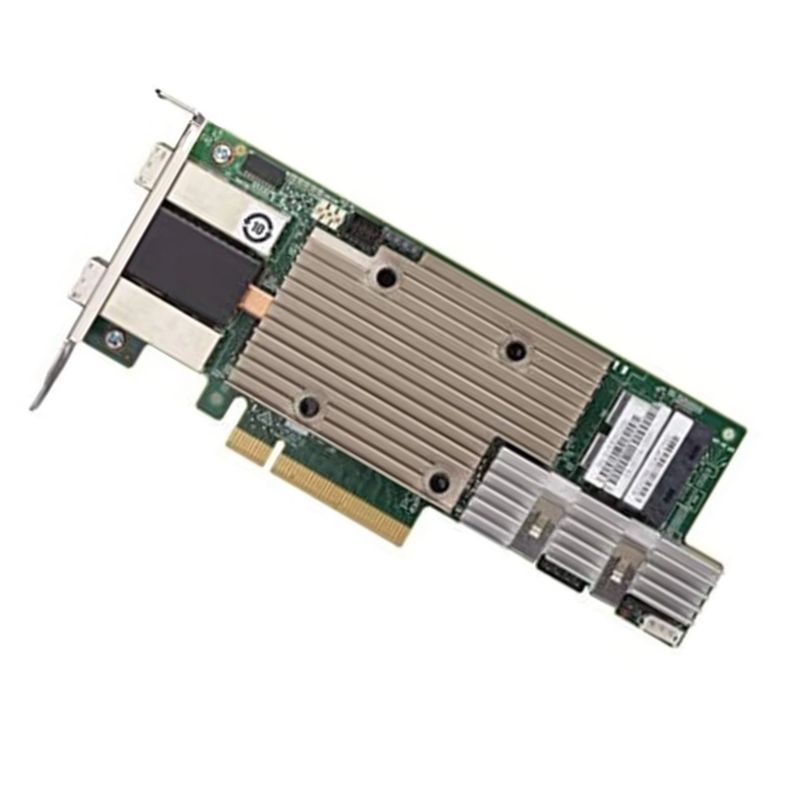

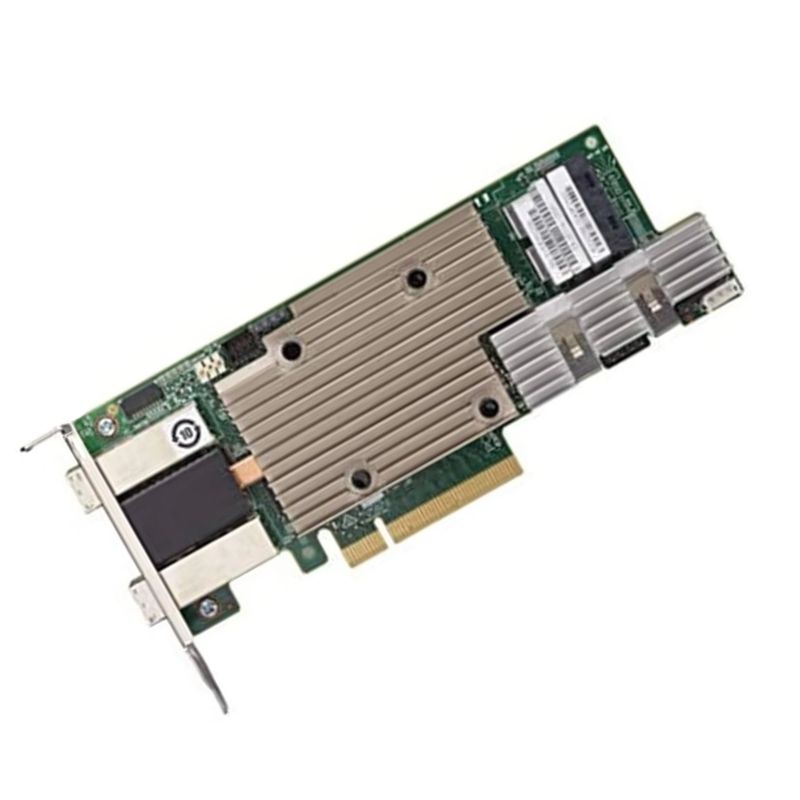

05-25716-00 Broadcom Megaraid SAS Raid Controller

Overview of the Raid Controller

This advanced RAID-on-chip controller is engineered to deliver exceptional speed, scalability, and reliability for modern data storage environments. Designed for demanding workloads, it combines powerful processing capabilities with flexible connectivity to support large-scale SAS and SATA infrastructures.

Main Information

• Part: 05-25716-00
• Brand: Broadcom
• Product Type: Raid Controller

Core Architecture and Performance

• Dual-core RAID-on-chip architecture optimized for intensive storage operations
• 12 Gb/s generation technology for ultra-fast data throughput
• Up to 12 Gb/s transfer speed per port for consistent performance
• Support for up to 240 SAS and/or SATA drives in complex storage setups

Connectivity and Expansion Options

• 8 external ports for scalable storage expansion
• 2 Mini-SAS HD SFF-8644 connectors for high-bandwidth external connections

Internal Interface

• 8 internal ports for direct drive integration
• 2 Mini-SAS HD SFF-8643 connectors for efficient internal connectivity

Host Interface and System Integration

• PCI Express® 3.0 x8 lane host bus interface for rapid communication with the system
• Optimized for enterprise servers and high-performance computing environments

Memory and Cache Capabilities

• 2 GB DDR3 SDRAM cache operating at 1866 MHz
• CacheVault power module support for enhanced data protection
• Improved write performance and data integrity during power interruptions

Reliability and Durability

• Mean Time Between Failures exceeding 2,500,000 hours
• Designed for long-term enterprise-grade reliability

Power Specifications

• Maximum ambient operating temperature of 55 °C
• Stable operation with optional CacheVault accessory at the same temperature threshold
• Operating voltage support for +3.3V and +12V power rails

Compatibility

• Broad support for Microsoft Windows platforms
• Compatibility with Linux distributions including Red Hat, SUSE, Oracle, Debian, Fedora, CentOS, and Canonical
• Support for VMware virtualization environments
• Integration with Solaris, FreeBSD, and Citrix systems
