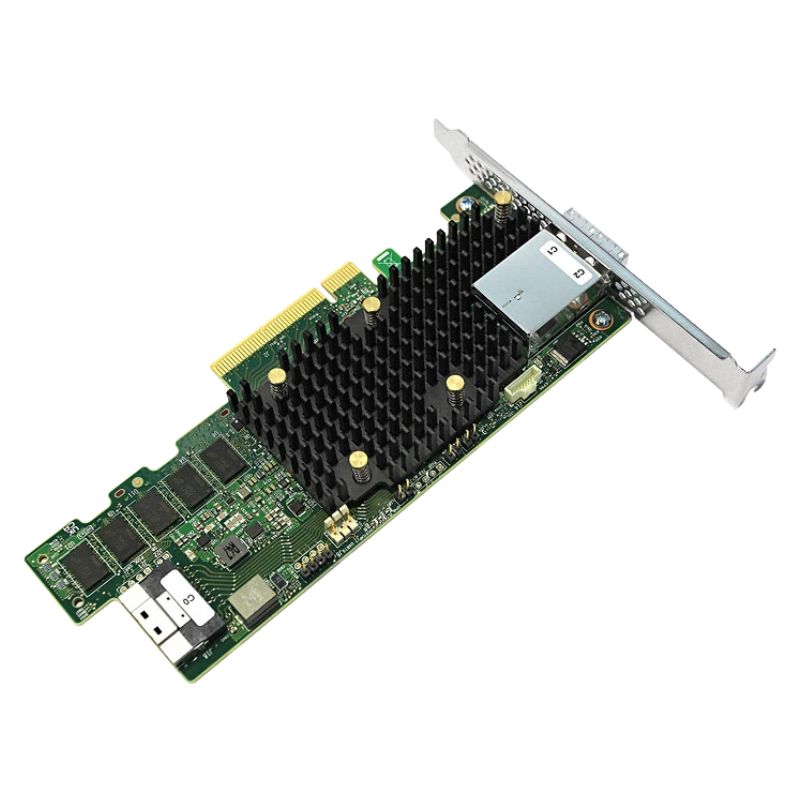

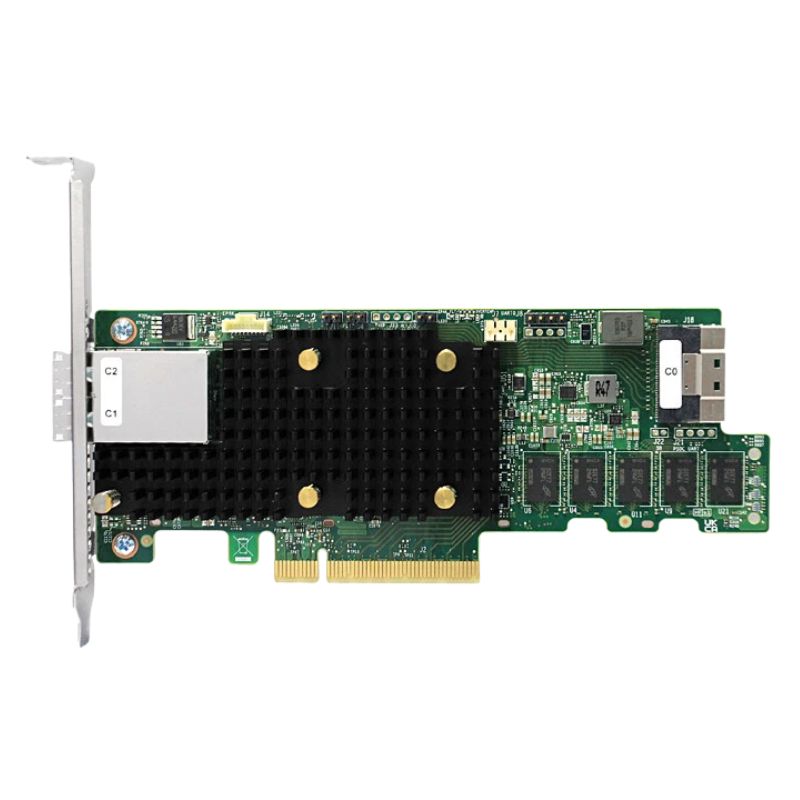

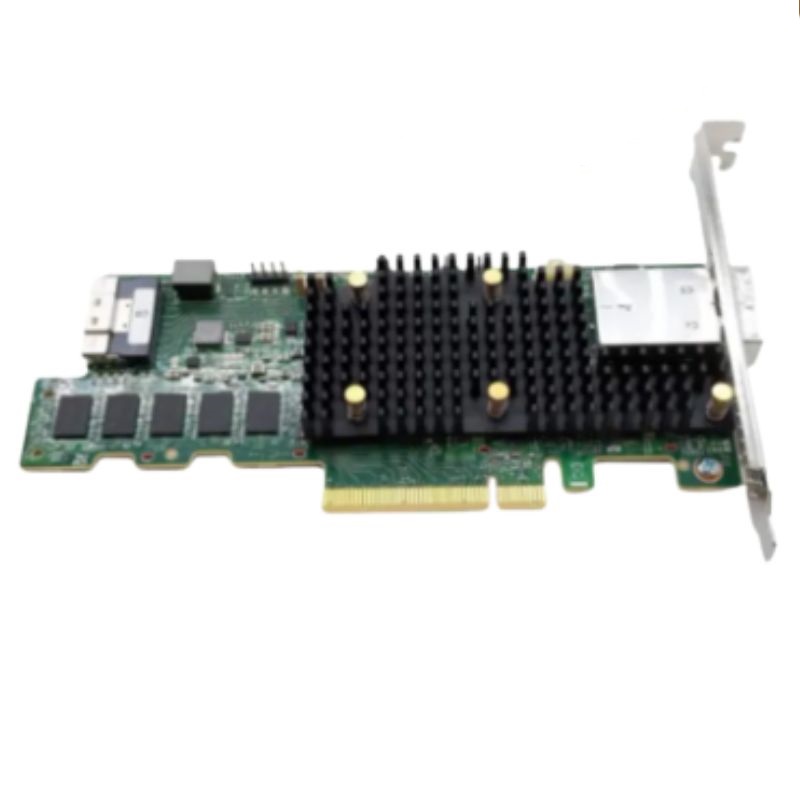

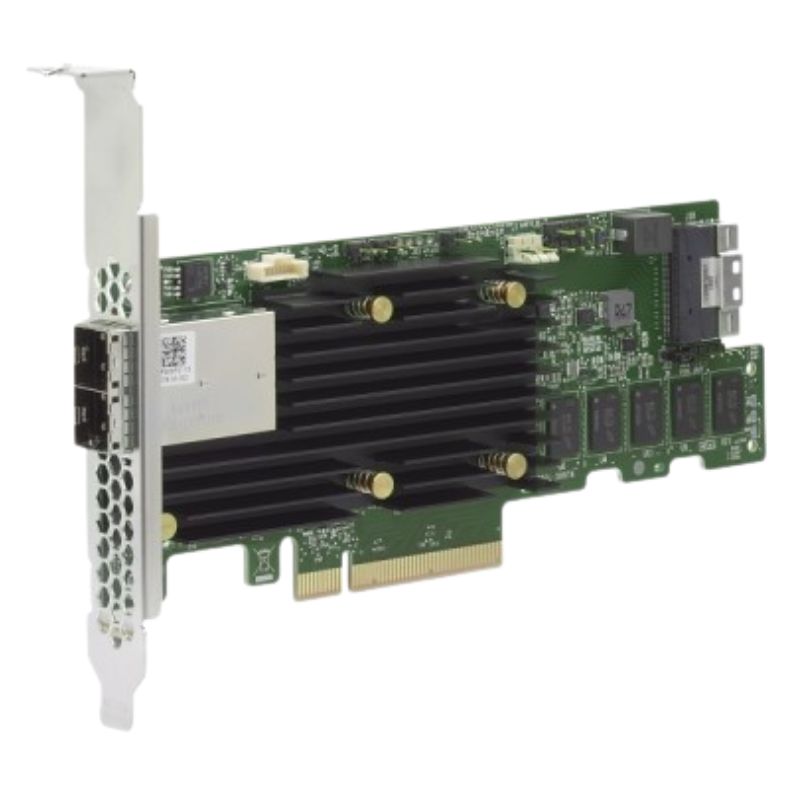

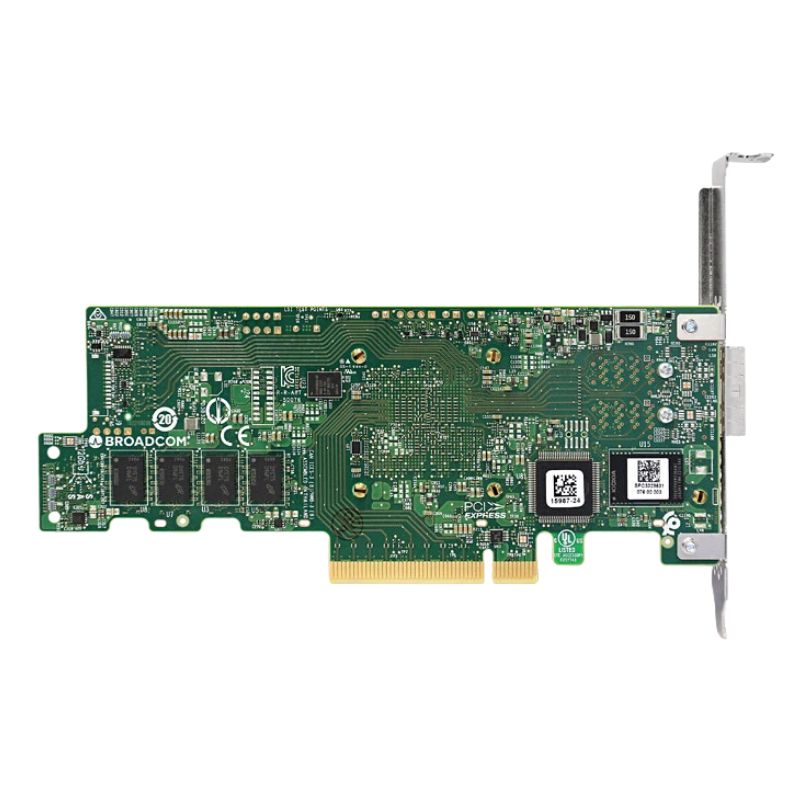

9580-8I8E Broadcom Megaraid 9500 PCI-E Gen 4.0 Adapter

The Broadcom 9580-8I8E MegaRAID 9500 PCIe Gen4 Tri-mode Storage Adapter is a high-performance, enterprise-grade storage controller designed for modern data center demands. This adapter belongs to the MegaRAID 9500 family and combines next-generation PCI Express Gen4 bandwidth with tri-mode flexibility, enabling mixed-drive environments and simplifying the deployment of hybrid flash, SAS, SATA and NVMe architectures. Whether the priority is raw throughput, consistent low latency, or resilient RAID-level data protection, the 9580-8I8E is engineered to address those requirements while reducing CPU overhead and maximizing server I/O efficiency.

Tri-mode Flexibility: One Adapter, Multiple Drive Types

The defining feature of the 9580-8I8E is its tri-mode capability. Tri-mode means the controller can manage and present SAS, SATA, and NVMe devices to the host with native compatibility where appropriate. For IT teams this translates into a future-proof platform: existing SAS/SATA infrastructure investments remain useful while new NVMe flash can be added for performance tiers. Tri-mode makes tiered storage practical on a per-server basis rather than being forced into an all-or-nothing architecture. Tiering policies, hot data movement, and capacity planning all benefit from the freedom to mix device types on a single adapter and to take advantage of NVMe’s low-latency characteristics where they matter most.

Seamless Integration with Hybrid Arrays

Data centers that operate hybrid arrays — a combination of spinning media for capacity and flash for performance — will find the Broadcom 9580-8I8E a natural fit. The adapter can present a unified storage layer to the operating system and virtualization stack while enabling intelligent placement of key workloads on NVMe media. This supports application acceleration without sacrificing the cost-per-terabyte benefits of traditional hard drives. Broadcom’s tooling and firmware features further enable administrators to create and manage raid sets and logical volumes that map cleanly to business performance SLAs.

PCIe Gen4 Performance: Bandwidth and Latency

Leveraging PCI Express Gen4 delivers substantial advantages compared to previous generations. The increased bandwidth per lane reduces host bus contention, enabling the 9580-8I8E to drive more devices at full speed and to sustain higher IOPS under load. Beyond pure bandwidth, Gen4 also enables lower effective latency when paired with NVMe devices and optimized firmware, which means database queries, virtual machine boot storms, and analytics workloads experience measurable responsiveness improvements. By choosing a Gen4 controller such as the Broadcom 9580-8I8E, organizations can extract the full potential of modern flash media and NVMe-oF front-end architectures without being bottlenecked by older host bus limitations.

Practical Benefits for Common Workloads

Workloads that benefit immediately include virtualization, software-defined storage, high-frequency data analytics, and transactional databases. Virtualized environments often create many simultaneous, small I/O operations; NVMe-backed volumes delivered via a Gen4 tri-mode adapter can dramatically reduce I/O wait times and improve consolidation ratios. Software-defined storage stacks that rely on fast local media for caching or journaling will see lowered write latencies and faster recovery. For analytics, the ability to ingest and query large volumes of data with reduced latency speeds time-to-insight and reduces processing windows.

Data Protection and RAID Capabilities

At its core, the MegaRAID family is synonymous with advanced RAID capabilities, and the 9580-8I8E continues that legacy. The controller supports multiple RAID levels and data protection policies suitable for performance or capacity-focused configurations. Hardware-assisted RAID offloads parity and rebuild calculations from the CPU, reducing server host load and speeding rebuilds. Fast rebuilds are critical to maintaining resiliency in large-capacity arrays and help minimize the window of vulnerability after a drive failure. Additional enterprise-grade features commonly provided in this class include background patrol reads, online capacity expansion, and predictive drive monitoring to proactively identify at-risk devices.

Advanced Features for Reliability

Enterprise storage administrators will appreciate features that go beyond simple RAID. Integrated telemetry, support for SMART analytics, and event logging help teams diagnose and mitigate issues before they escalate. The 9580-8I8E typically includes firmware that supports drive health monitoring, error recovery controls, and configurable timeouts to optimize for various media types. These reliability features reduce unplanned downtime and improve serviceability in large-scale deployments where drive count and physical heterogeneity increase the probability of device faults.

Management, Monitoring and Software Ecosystem

Effective storage hardware requires a mature management ecosystem to be truly productive. Broadcom’s MegaRAID toolset historically includes graphical interfaces, command-line utilities, and agent-based monitoring that integrate with common data center management frameworks. Administrators can provision RAID arrays, monitor health and performance metrics, and schedule maintenance tasks through centralized consoles. Integration with standard monitoring systems enables alerting and automation so that storage events can be incorporated into broader incident response and capacity planning workflows. For service providers, API-driven management simplifies integration into provisioning platforms and allows programmatic control over storage lifecycle events.

Firmware and Driver Considerations

Keeping firmware and drivers current is a vital operational task for enterprise storage. The Broadcom 9580-8I8E benefits from firmware optimizations that improve NVMe handling, rebuild behavior, and interoperability with different operating systems and hypervisors. Administrators should coordinate firmware updates with their change control processes and test updates in staging before rolling out broadly. Driver compatibility is equally important, particularly in environments running custom kernels or older OS versions. Broadcom typically supplies tested driver packages and release notes that describe supported OS versions, firmware interactions, and known issues to guide deployment.

Scalability and Deployment Flexibility

Scalability is central to the value proposition of the 9580-8I8E. The adapter supports a wide range of deployment models, from single-server application acceleration to rack-scale storage nodes. Its tri-mode design simplifies migration strategies: organizations can incrementally add NVMe flash to existing SAS/SATA-heavy servers without wholesale platform changes. For environments running scale-out storage or distributed file systems, the controller provides a predictable I/O substrate that simplifies capacity planning and performance forecasting. Moreover, because the adapter reduces the need for multiple different controller types, procurement complexity and spare-part inventories are both reduced.

Use Cases That Benefit Most

Typical use cases where the Broadcom 9580-8I8E is particularly effective include converged infrastructure nodes, virtual desktop infrastructure, high-performance databases, and edge compute servers requiring low-latency storage. Converged infrastructure benefits from the ability to allocate fast NVMe tiers for hot data and use SAS/SATA for bulk storage on the same physical server. Virtual desktops benefit from faster boot storms and profile load times. Databases benefit from reduced transaction latency and faster checkpointing. At the edge, where space and power constraints limit hardware diversity, a single tri-mode adapter simplifies design and ensures that both performance-critical and bulk-storage needs are met.

Thermal, Power and Physical Integration

High-speed controllers and NVMe devices generate heat and demand careful thermal and power planning. The Broadcom 9580-8I8E is designed with data center-grade thermal profiles in mind, but proper airflow and chassis design remain essential to sustaining peak performance. System integrators should plan for adequate ventilation and ensure that fan curves and power budgets account for peak sustained workloads. Choosing compatible server chassis and power supplies helps avoid throttling or unexpected behavior under heavy I/O. In many deployments, vendor-validated configurations and integration guides provide the quickest route to a stable, high-performing system.

Maintenance and Serviceability

Serviceability considerations include ease of firmware updates, diagnostic access, and replacement procedures. The MegaRAID ecosystem typically includes tools to export logs and health reports that expedite troubleshooting. Hot-swap capable environments should be configured so that replacement drives automatically rebuild into existing arrays with minimal manual intervention. Data center operators should incorporate drive replacement policies and spare inventory plans into their maintenance schedules to minimize service disruption.
