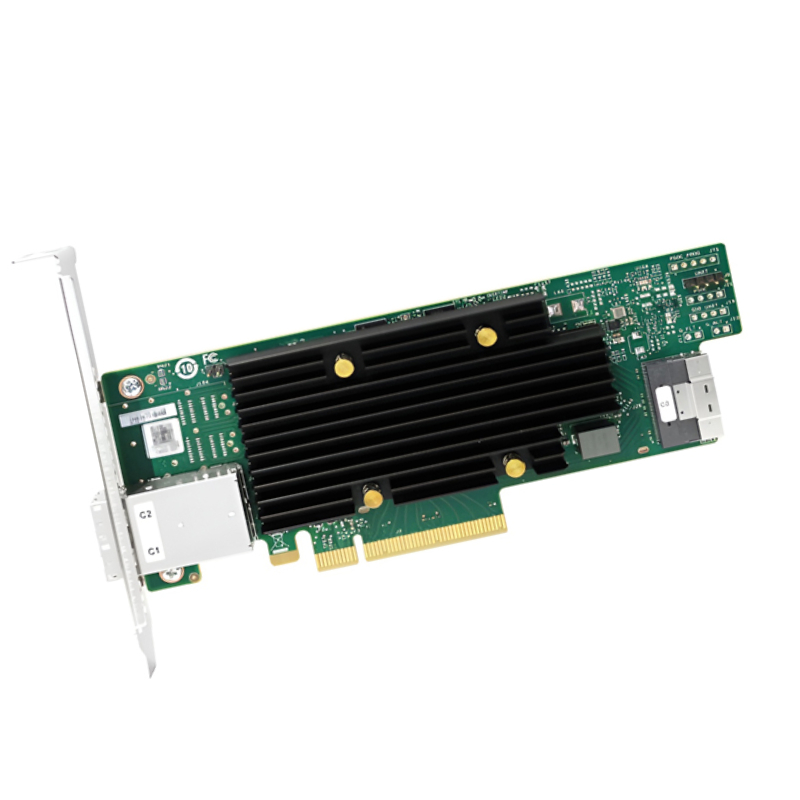

Broadcom 9600-8I8E Ehba Tri-mode PCI Express 4.0 X8 SAS/SATA Storage Adapter Card

Broadcom 9600-8I8E EHBA Tri-Mode PCIe 4.0 SAS/SATA Adapter

Key Attributes

• Model Number: 9600-8I8E
• Brand: Broadcom Logic

Advanced Performance Specifications

• Data Throughput: Up to 22.5Gb/s SAS, 12Gb/s SAS, and 6Gb/s SATA
• Connectivity: Supports up to 240 SAS/SATA devices and a maximum of 32 NVMe drives
• Technology: 24G SAS interface

Port and Connector Layout

External Interface

• Port Availability: 8 external connections
• External Ports: Dual x4 SFF-8644

Internal Connectivity

• Internal Port Count: 24
• Internal Connectors: Single x8 SlimSAS (SFF-8654)

Host Bus Interface

• PCIe Standard: PCI Express 4.0
• Lane Configuration: x8 interface

Reliability & Endurance

Mean Time Between Failures (MTBF)

• Operational Lifespan: Exceeds 5,000,000 hours at 40°C

Broadcom 9600-8I8E EHBA Tri-Mode PCIe 4.0 x8 SAS/SATA Storage Adapter Card

Overview of the Broadcom 9600-8I8E EHBA

The Broadcom 9600-8I8E is a high-performance enterprise-class storage adapter designed to support tri-mode connectivity, ensuring seamless integration with SAS, SATA, and NVMe storage devices. Built on PCIe 4.0 x8 architecture, this adapter card delivers exceptional data throughput, reduced latency, and advanced reliability features.

Key Features and Benefits

• Tri-Mode Functionality: Supports SAS, SATA, and NVMe connectivity for unparalleled flexibility.
• PCIe 4.0 x8 Interface: Delivers twice the bandwidth of PCIe 3.0, ensuring high-speed data transfers.
• 8 Internal and 8 External Ports: Enables high-capacity storage scalability.
• Advanced Data Protection: Features Broadcom’s cutting-edge security and reliability technologies.
• Optimized for Enterprise Workloads: Ideal for data centers, cloud storage, and high-performance computing environments.

Understanding Tri-Mode Storage Connectivity

SAS (Serial Attached SCSI) Integration

SAS support in the Broadcom 9600-8I8E provides enterprise-grade storage solutions with high reliability and performance. SAS drives offer superior error correction, dual-port redundancy, and support for extended storage arrays.

SATA (Serial ATA) Compatibility

The ability to connect SATA drives ensures cost-effective storage expansion while maintaining adequate performance for non-mission-critical applications. SATA connectivity is widely used in archival storage and backup systems.

NVMe (Non-Volatile Memory Express) Performance

With NVMe support, this adapter enables high-speed, low-latency data access, ideal for high-performance workloads such as AI, machine learning, and real-time analytics.

Technical Specifications

Interface and Connectivity

• Bus Interface: PCIe 4.0 x8
• Ports: 8 internal (SFF-8654) + 8 external (SFF-8654)
• Drive Compatibility: SAS, SATA, NVMe
• Maximum Drive Support: 255 devices

Performance and Scalability

• Data Transfer Rate: Up to 12Gbps for SAS, 6Gbps for SATA, 32Gbps for NVMe
• Power Consumption: Optimized for energy efficiency
• RAID Support: JBOD (Just a Bunch of Disks) configuration

Applications and Use Cases

Enterprise Storage Solutions

The Broadcom 9600-8I8E is well-suited for enterprise storage infrastructures, providing high-capacity scalability and efficient data transfer speeds. Businesses relying on high-speed transactional databases and data lakes benefit from its robust architecture.

Cloud and Data Center Implementations

Cloud environments demand high-speed, low-latency storage solutions. The tri-mode capability allows seamless storage management across different storage tiers, optimizing performance and cost efficiency.

AI and Machine Learning Workloads

AI-driven applications require rapid data access and processing. NVMe support ensures high IOPS and minimal latency, catering to data-intensive workloads.

Reliability and Security Features

Data Integrity and Redundancy

With enterprise-grade reliability, the Broadcom 9600-8I8E ensures data integrity through error correction, failover redundancy, and data recovery mechanisms.

Security Enhancements

Featuring Broadcom Secure Boot and advanced encryption options, this adapter protects sensitive data against unauthorized access and cyber threats.

Broadcom 9600-8I8E EHBA Installation and Compatibility

Installation Guidelines

• Ensure the PCIe 4.0 x8 slot is available on the motherboard.
• Connect appropriate SAS, SATA, or NVMe drives as required.
• Utilize Broadcom’s driver and firmware updates for optimal performance.

Operating System Compatibility

The Broadcom 9600-8I8E is compatible with major operating systems, including:

• Windows Server
• Linux Distributions
• VMware ESXi
