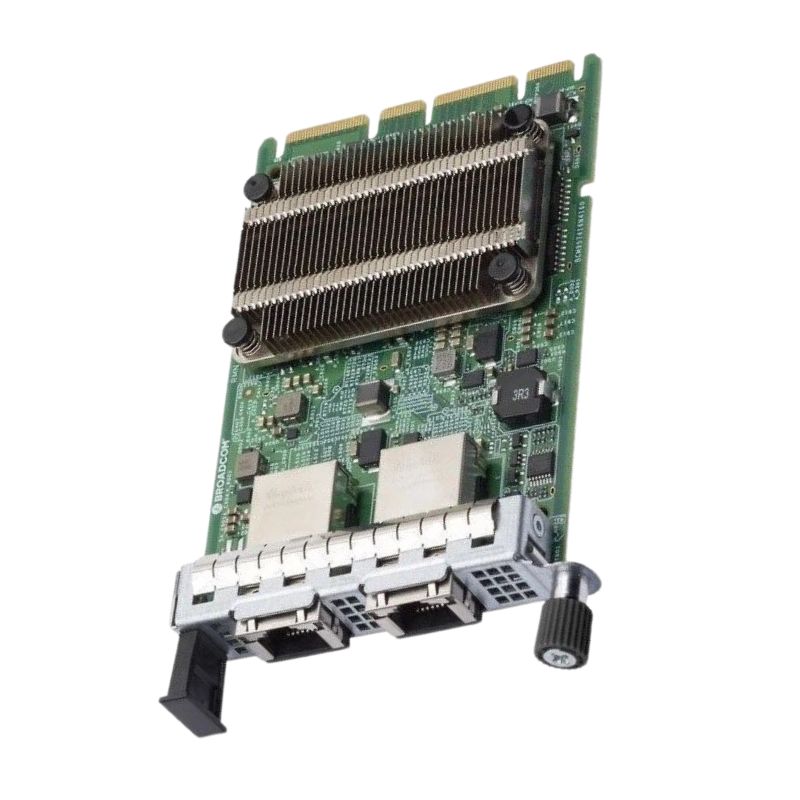

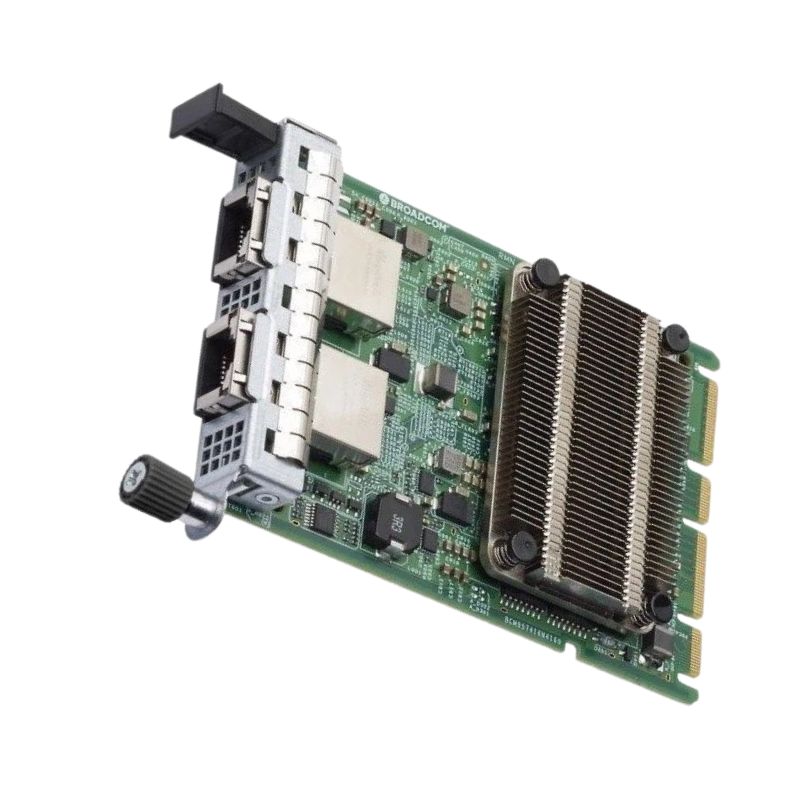

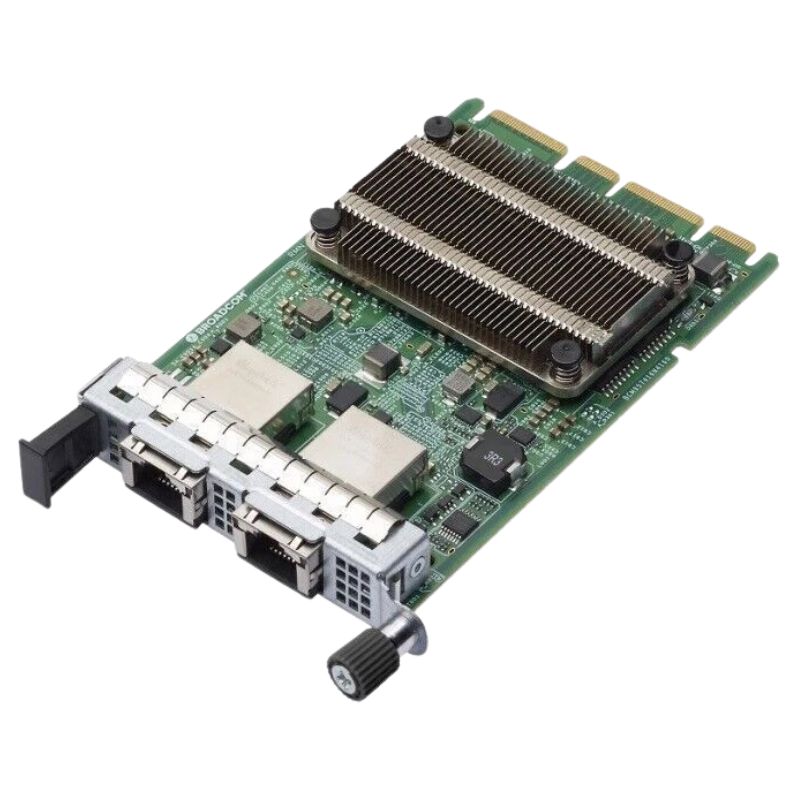

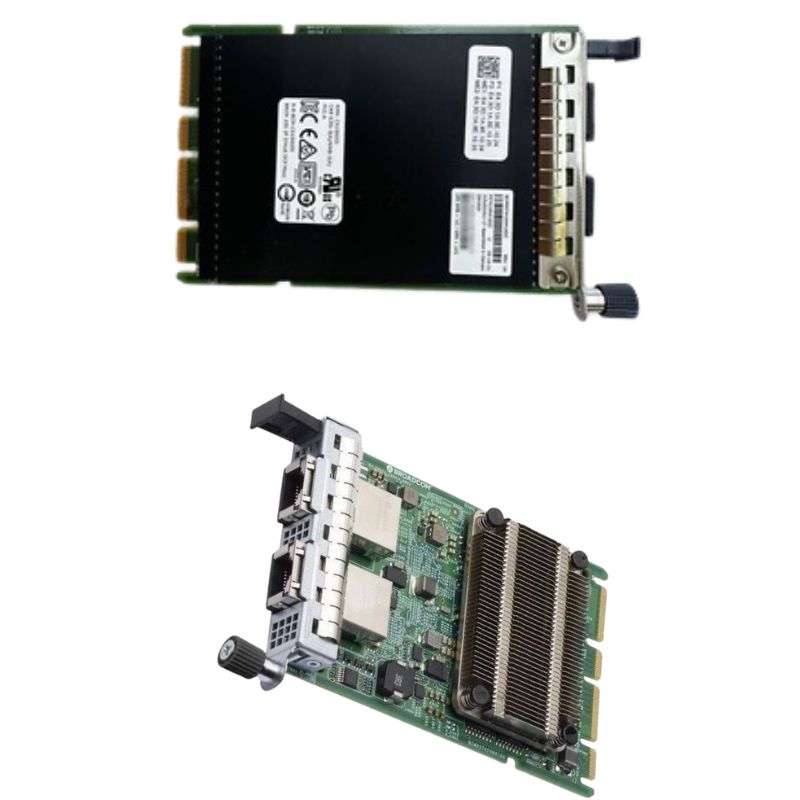

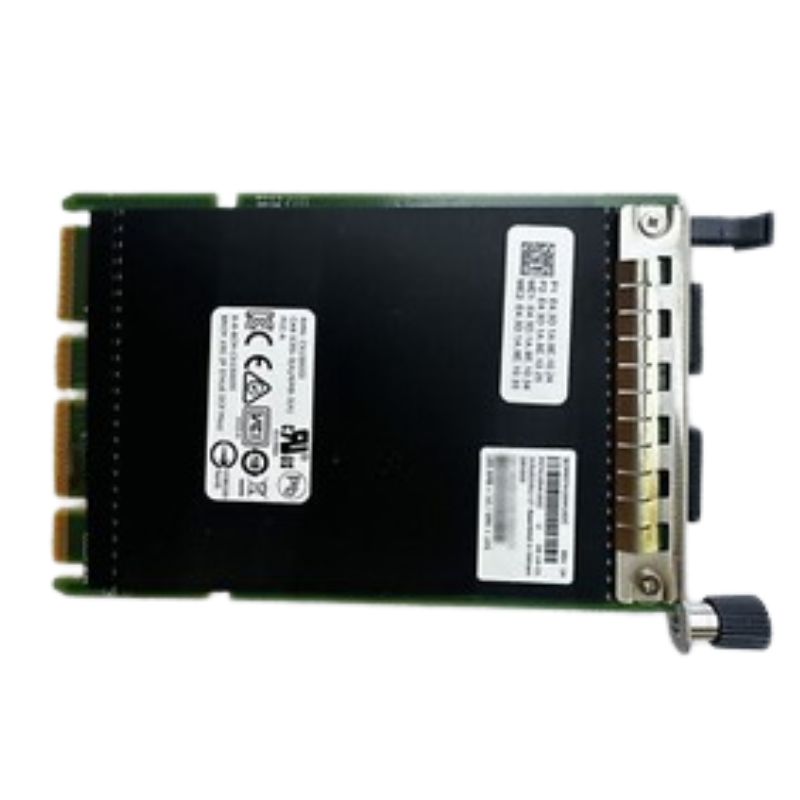

BCM957416N4160C Broadcom Dual-port 10GBASE-T Ethernet Pci-E Adapter

Overview of Broadcom BCM957416N4160C Dual-Port Adapter

The Broadcom BCM957416N4160C is a high-performance dual-port 10GBASE-T Ethernet network adapter designed for enterprise servers, cloud computing platforms, and hyperscale data center environments. Built on the Broadcom BCM57416 controller and engineered to meet Open Compute Project (OCP) 3.0 specifications, this compact small-form-factor adapter delivers reliable 10 Gigabit Ethernet connectivity, advanced virtualization capabilities, and exceptional network efficiency for modern workloads.

General Product Information

• Manufacturer: Broadcom
• Part Number: BCM957416N4160C
• Product Type: Network Adapter
• Interface: Dual-Port 10GBASE-T Ethernet

Technical Specifications

• Controller: Broadcom BCM57416 Ethernet Controller
• Bus Interface: PCI Express 3.0 x8
• Form Factor: OCP 3.0 Small Form Factor Card
• Network Ports: 2 x 10GBASE-T RJ-45

Ethernet Interface Technologies

• 10GBASE-T compliant with IEEE 802.3an
• 1000BASE-T compliant with IEEE 802.3ab
• Energy Efficient Ethernet (EEE) support
• Auto-sense mode and intelligent link negotiation
• Automatic MDI crossover detection and correction
• Pair skew and polarity correction capabilities
• IEEE Fast Retrain and link monitoring support

Dual-Port 10GBASE-T Connectivity

• Dual 10GbE RJ-45 network interfaces
• Supports both 10GBASE-T and 1000BASE-T Ethernet standards
• Compatible with Cat 5e, Cat 6, Cat 6A, and Cat 7 cabling
• Automatic speed detection and negotiation capabilities

Advanced OCP 3.0 Small Form Factor Design

• OCP 3.0 Design Specification Version 1.00 compliant
• Compact small-form-factor architecture
• Optimized for cloud and hyperscale deployments
• Efficient thermal management design

PCIe and Virtualization Features

• PCI Express 3.0 x8 compliant architecture
• SR-IOV support with up to 128 Virtual Functions (VFs)
• Function-Level Reset (FLR) support
• TRUFlow™ intelligent flow processing engine
• Network Controller Sideband Interface (NC-SI)

Performance Acceleration Technologies

Hardware Offload Capabilities

• IPv4 and IPv6 offload support
• TCP, UDP, and IP checksum offloading
• Large Send Offload (LSO)
• Large Receive Offload (LRO)
• TCP Segmentation Offload (TSO)
• Receive Side Scaling (RSS)
• Transmit Side Scaling (TSS)
• VLAN insertion and removal acceleration

Network Efficiency Features

• Jumbo Frames support up to 9 KB
• Advanced congestion avoidance technologies
• Multiqueue architecture support
• NetQueue and VMQ acceleration
• Interrupt coalescing for optimized CPU utilization

Management and Deployment Capabilities

Enterprise Management Interfaces

• SMBus 2.0 support
• MCTP over SMBus
• PCIe-based UART interface
• KCS management support
• MSI and MSI-X interrupt handling

Boot and Remote Deployment Features

• PXE network boot support
• UEFI boot compatibility
• iSCSI boot functionality
• Wake-on-LAN (WOL) support
• Remote server deployment capabilities

The Broadcom BCM957416N4160C 10GBASE-T Ethernet Adapter

The Broadcom BCM957416N4160C Dual-Port 10GBASE-T Ethernet PCI Express 3.0 X8 OCP 3.0 Small-Form-Factor Card is engineered to deliver high-speed connectivity with exceptional reliability. This advanced networking card is designed for modern data centers and enterprise environments where performance and scalability are critical. With dual-port 10GBASE-T support, it ensures seamless communication across multiple devices, reducing latency and enhancing throughput for demanding workloads.

PCI Express 3.0 X8 Interface Performance

The PCI Express 3.0 X8 interface of the Broadcom BCM957416N4160C provides a robust foundation for high-bandwidth applications. This interface ensures that data transfer between the card and the system is optimized for speed and efficiency. By leveraging PCIe 3.0 technology, the card achieves faster communication with the host system, supporting intensive tasks such as virtualization, cloud computing, and large-scale data processing without bottlenecks.

Dual-Port 10GBASE-T Connectivity Advantages

Dual-port 10GBASE-T connectivity offers significant advantages for enterprises seeking redundancy and scalability. The Broadcom BCM957416N4160C enables simultaneous connections, allowing for load balancing and failover protection. This ensures uninterrupted service even in the event of a port failure. The dual-port design also enhances flexibility, enabling administrators to configure networks for optimal performance and reliability.

OCP 3.0 Small-Form-Factor Design Benefits

The OCP 3.0 small-form-factor design of the Broadcom BCM957416N4160C makes it ideal for modern server architectures. Its compact size allows for efficient use of space within dense server environments. This design aligns with Open Compute Project standards, promoting interoperability and streamlined deployment across diverse hardware ecosystems. The small form factor also reduces power consumption and heat generation, contributing to overall system efficiency.

Enhanced Data Center Efficiency

Data centers benefit greatly from the efficiency of the Broadcom BCM957416N4160C. By providing high-speed dual-port connectivity, the card reduces network congestion and improves overall throughput. This efficiency translates into faster application performance, reduced latency, and improved user experiences. Enterprises can rely on this card to support mission-critical applications with consistent and reliable performance.

Virtualization and Cloud Computing

Virtualization and cloud computing environments demand robust networking solutions, and the Broadcom BCM957416N4160C delivers precisely that. Its dual-port 10GBASE-T connectivity ensures that virtual machines and cloud applications have the bandwidth they need to operate smoothly. The card supports advanced networking features that optimize traffic flow, making it an essential component for businesses leveraging cloud-based infrastructures.

High-Speed Data Transfer Capabilities

The Broadcom BCM957416N4160C excels in high-speed data transfer, enabling rapid communication between servers and storage systems. Its 10GBASE-T ports provide the bandwidth necessary for transferring large volumes of data quickly and efficiently. This capability is crucial for industries such as finance, healthcare, and research, where timely access to data can significantly impact operations and decision-making.

Reliability and Redundancy Features

Reliability is a cornerstone of the Broadcom BCM957416N4160C design. With dual-port redundancy, the card ensures continuous operation even if one port encounters issues. This failover capability minimizes downtime and maintains service availability. Enterprises can trust this card to deliver consistent performance, safeguarding critical applications and services against unexpected disruptions.

Modern Server Architectures

The Broadcom BCM957416N4160C is fully compatible with modern server architectures, making it a versatile choice for diverse environments. Its OCP 3.0 small-form-factor design ensures seamless integration with contemporary hardware. This compatibility simplifies deployment and reduces the need for extensive customization, allowing businesses to quickly implement the card within their existing infrastructure.

Energy Efficiency and Thermal Management

Energy efficiency and thermal management are key considerations in data center operations, and the Broadcom BCM957416N4160C addresses both effectively. Its small-form-factor design minimizes power consumption while maintaining high performance. Advanced thermal management features ensure that the card operates within safe temperature ranges, reducing the risk of overheating and extending the lifespan of the hardware.

Scalability for Growing Enterprises

Scalability is essential for enterprises experiencing growth, and the Broadcom BCM957416N4160C provides the flexibility needed to expand network capabilities. With dual-port 10GBASE-T connectivity, businesses can scale their networks to accommodate increasing demands. The card’s compatibility with modern architectures ensures that scaling can be achieved without significant infrastructure changes, making it a cost-effective solution for growing organizations.

Advanced Networking Features

The Broadcom BCM957416N4160C incorporates advanced networking features that enhance performance and security. These features include support for VLANs, QoS, and traffic management protocols. By leveraging these capabilities, enterprises can optimize network traffic, prioritize critical applications, and ensure secure communication across their infrastructure. These advanced features make the card a powerful tool for managing complex networking environments.

Support for Mission-Critical Applications

Mission-critical applications require reliable and high-performance networking solutions, and the Broadcom BCM957416N4160C is designed to meet these demands. Its dual-port redundancy, high-speed connectivity, and advanced features ensure that applications such as ERP systems, financial platforms, and healthcare solutions operate without interruption. Enterprises can depend on this card to support their most important operations with confidence.

Optimized for Enterprise Workloads

Enterprise workloads often involve complex and demanding tasks, and the Broadcom BCM957416N4160C is optimized to handle them efficiently. Its PCIe 3.0 X8 interface and dual-port 10GBASE-T connectivity provide the bandwidth and reliability needed for tasks such as big data analytics, machine learning, and high-performance computing. This optimization ensures that enterprises can achieve maximum productivity and efficiency.

Security Enhancements for Data Protection

Security is a critical concern in networking, and the Broadcom BCM957416N4160C includes enhancements to protect data. Features such as secure boot, encryption support, and advanced traffic management help safeguard sensitive information. These security measures ensure that enterprises can maintain compliance with industry standards and protect their data from unauthorized access or breaches.

Reduced Latency for Real-Time Applications

Real-time applications such as video conferencing, online gaming, and financial trading require minimal latency, and the Broadcom BCM957416N4160C delivers on this requirement. Its high-speed connectivity and optimized traffic management reduce latency, ensuring smooth and responsive performance. This capability is essential for businesses that rely on real-time communication and decision-making.

Future-Proof Networking Solution

The Broadcom BCM957416N4160C is a future-proof networking solution designed to meet the evolving needs of enterprises. Its compatibility with modern architectures, scalability, and advanced features ensure that it remains relevant as technology advances. Businesses can invest in this card with confidence, knowing that it will support their networking needs for years to come.

High-Density Environments

High-density environments such as large data centers benefit from the compact design and high performance of the Broadcom BCM957416N4160C. Its small-form-factor design allows for efficient use of space, while its dual-port connectivity ensures robust performance. This combination makes it an ideal choice for environments where maximizing space and performance is critical.

Broadcom BCM957416N4160C Deployment Flexibility

Deployment flexibility is a key advantage of the Broadcom BCM957416N4160C. Its compatibility with OCP 3.0 standards and modern server architectures allows for seamless integration into diverse environments. Enterprises can deploy the card in various configurations to meet their specific needs, whether for redundancy, scalability, or performance optimization.

Cloud Service Providers

Cloud service providers require reliable and high-performance networking solutions, and the Broadcom BCM957416N4160C is well-suited for this role. Its dual-port connectivity, scalability, and advanced features enable cloud providers to deliver consistent and efficient services. The card supports the demanding workloads of cloud environments, ensuring that providers can meet customer expectations with confidence.

Enterprise IT Infrastructure

Enterprise IT infrastructure relies on robust networking solutions, and the Broadcom BCM957416N4160C provides the performance and reliability needed. Its dual-port 10GBASE-T connectivity ensures seamless communication across the infrastructure, while its advanced features optimize traffic flow. This makes it an essential component for enterprises seeking to enhance their IT capabilities and support critical operations.
