BCM957608-N2200GQP00 Broadcom PCI-E 5.0 X16 200 Gigabit Qsfp112 X 2 Adapter.

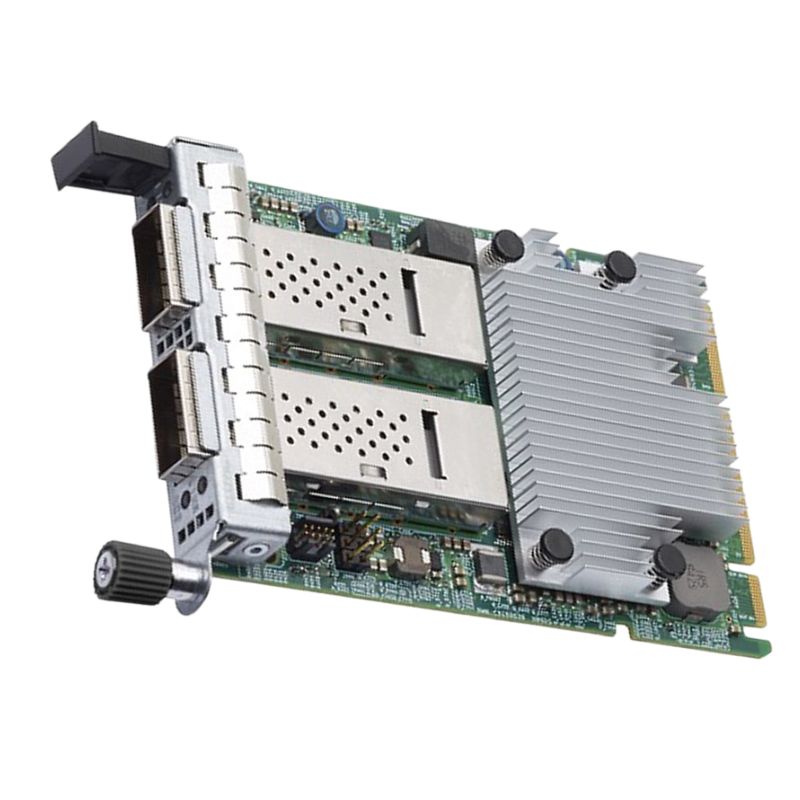

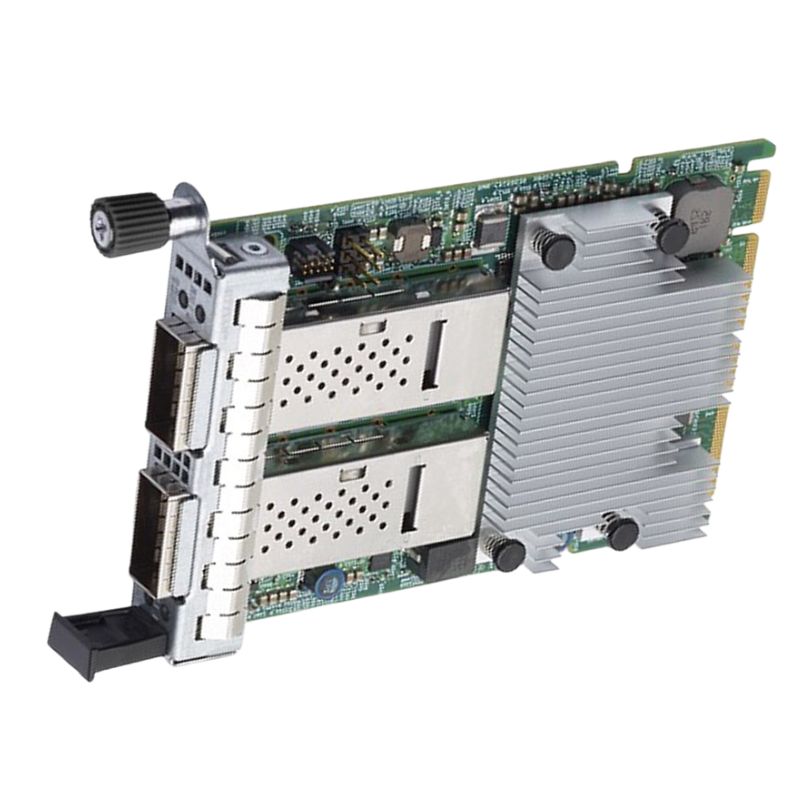

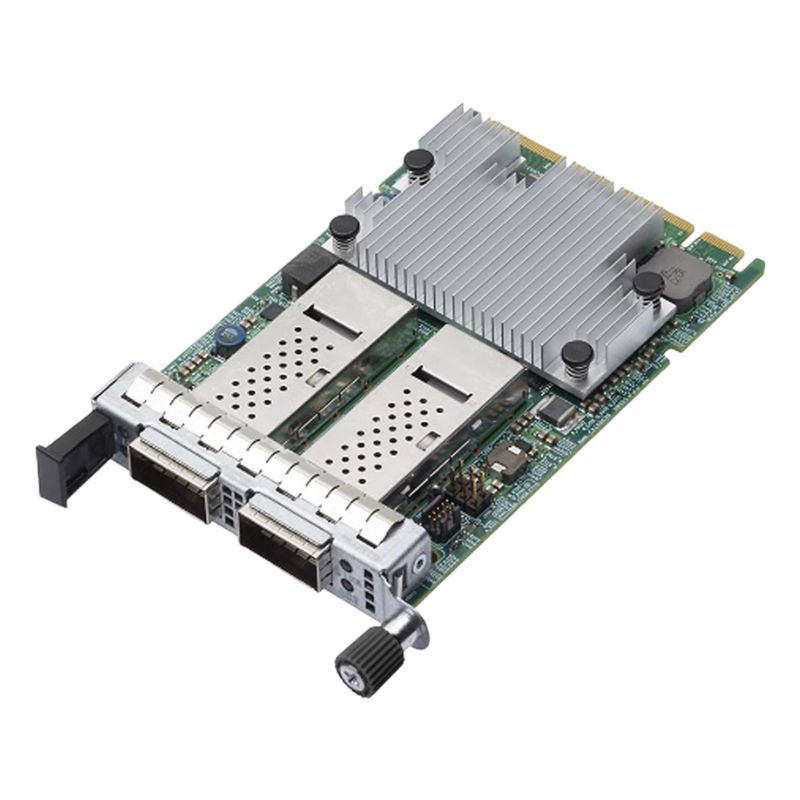

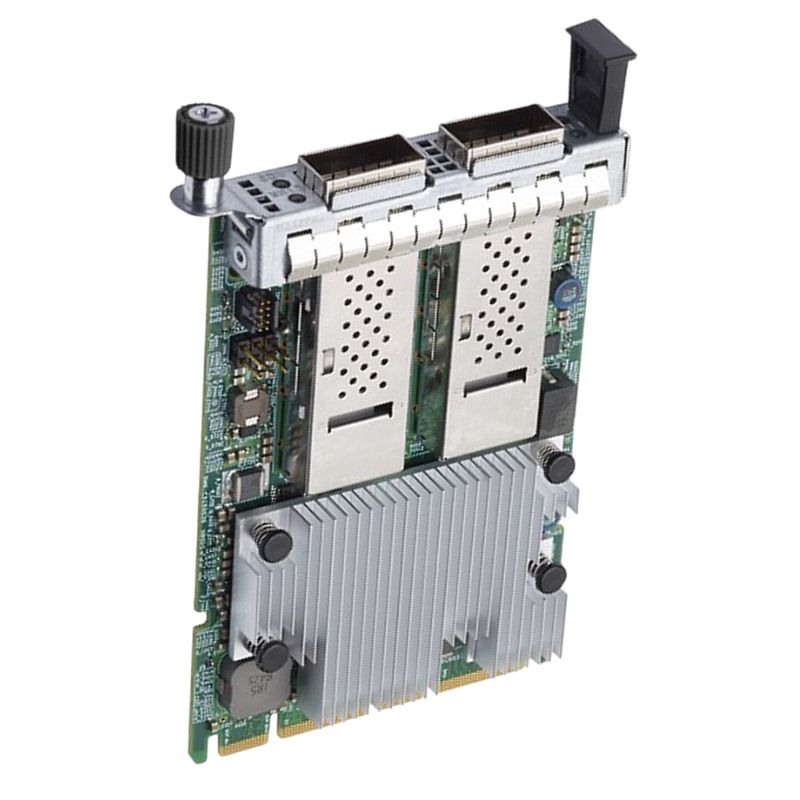

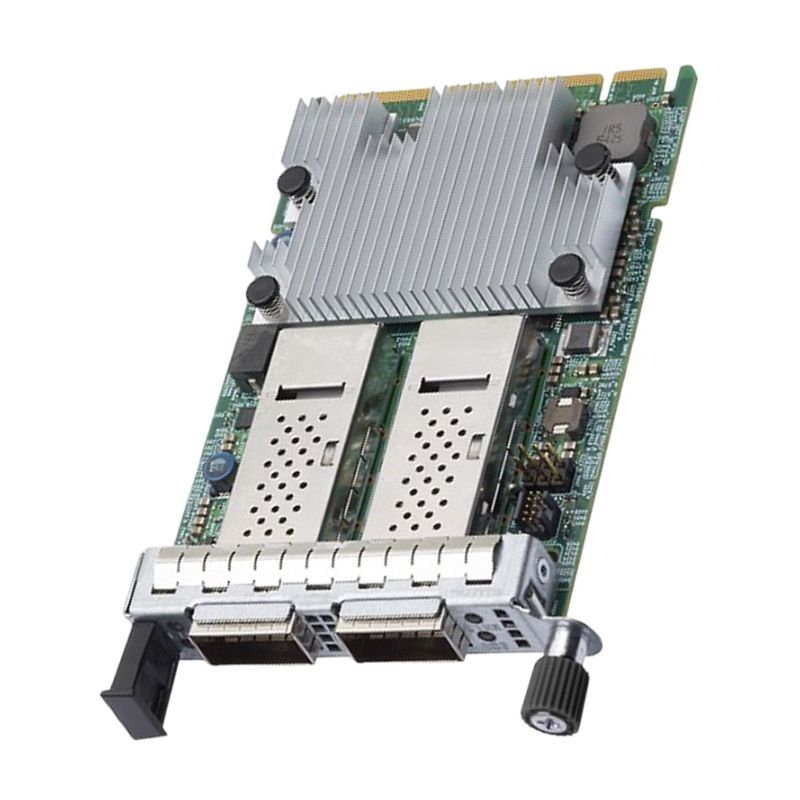

The Broadcom BCM957608-N2200GQP00 200GBE Adapter

The Broadcom BCM957608-N2200GQP00 is a next-generation high-performance OCP 3.0 network adapter designed to meet the demands of hyperscale data centers, cloud computing environments, AI workloads, and enterprise networking infrastructures. Featuring dual QSFP112 ports, PCI Express 5.0 x16 connectivity, and support for up to 400Gb/s aggregate bandwidth, this advanced Ethernet adapter delivers exceptional throughput, scalability, and efficiency for modern networking applications.

General Information

• Manufacturer: Broadcom
• Part Number: BCM957608-N2200GQP00
• Product Type: Network Adapter

Technical Specifications

• Interface: 200GBE OCP 3.0
• Form Factor: OCP 3.0 Plug-In Module
• Host Interface: PCI Express 5.0 x16
• Port Configuration: 2 x QSFP112 Ports
• Total Bandwidth: Up to 400Gb/s
• Backward Compatibility: PCIe Gen4, Gen3, Gen2, and Gen1

High-Speed 200GbE & 400GbE Connectivity

• Dual-port QSFP112 Ethernet interface
• Supports up to 400Gb/s aggregate bandwidth
• Configurable as dual-port 200GbE connectivity
• Can operate as a single-port 400GbE network solution
• Supports 100GbE, 50GbE, and 25GbE networking modes
• Optimized for ultra-low latency communication

PCI Express 5.0 Performance Benefits

Next-Generation PCIe Gen5 Architecture

• PCIe 5.0 x16 compliant design
• Enhanced server-to-network bandwidth
• Reduced communication bottlenecks
• Improved application responsiveness
• Future-ready infrastructure support

Scalable Enterprise Deployment

• Supports modern server platforms
• Ideal for high-density computing environments
• Optimized for large-scale virtualization
• Designed for cloud-native architectures

Advanced Ethernet Technology

QSFP112 Connectivity Advantages

• High-density networking connectivity
• Support for modern optical transceivers
• Flexible network scaling options
• Enterprise-class reliability and performance

Multi-Speed Ethernet Support

• 400 Gigabit Ethernet capability
• 200 Gigabit Ethernet support
• 100 Gigabit Ethernet compatibility
• 50 Gigabit Ethernet operation
• 25 Gigabit Ethernet connectivity

Advanced Physical Layer Technologies

High-Speed SerDes Architecture

• 100G PAM4 modulation support
• 50G PAM4 signaling technology
• 25G NRZ modulation support
• Enhanced signal quality and stability
• Optimized for next-generation networking environments

Efficient Data Transmission

• Improved bandwidth utilization
• Reduced transmission errors
• Enhanced network reliability
• Superior performance under heavy workloads

OCP 3.0 Design Benefits

Open Compute Project Compatibility

• Designed for OCP 3.0 server platforms
• Improved airflow and thermal efficiency
• Enhanced system integration
• Space-efficient deployment design
• Optimized power consumption characteristics

Future-Ready Infrastructure Support

• Supports next-generation networking standards
• Flexible upgrade path for enterprise environments
• Designed for evolving cloud architectures
• High scalability for future bandwidth requirements

Highlights of BCM957608-N2200GQP00 OCP 3.0 PCIe Adapter

The Broadcom BCM957608-N2200GQP00 200GBE OCP 3.0 Network Adapter PCI Express 5.0 X16 with dual QSFP112 ports is engineered to redefine enterprise networking performance. Designed for hyperscale data centers, cloud providers, and mission-critical enterprise workloads, this adapter delivers unmatched throughput, ultra-low latency, and advanced scalability. Its compliance with OCP 3.0 standards ensures seamless integration into modern infrastructures while PCIe 5.0 x16 bandwidth guarantees future-ready performance.

Dual QSFP112 Connectivity Advantages

Equipped with dual QSFP112 ports, the BCM957608-N2200GQP00 offers redundancy and scalability for enterprise networks. IT administrators can configure load balancing and failover protection to maintain continuous service availability. This dual-port design enhances flexibility, allowing enterprises to optimize traffic flow, ensure uninterrupted performance, and expand bandwidth capacity as network demands grow across diverse applications.

OCP 3.0 Small Form Factor Integration

The adapter complies with OCP 3.0 small form factor standards, ensuring interoperability with Open Compute Project systems. Its compact design optimizes space utilization in dense server environments, reducing infrastructure complexity. This compliance streamlines deployment, promotes modular integration, and supports hyperscale operators seeking efficiency and standardization in networking hardware.

PCIe 5.0 x16 Bandwidth Capabilities

The PCIe 5.0 x16 interface doubles the bandwidth compared to PCIe 4.0, enabling rapid communication between the adapter and host systems. This ensures smooth operation for virtualization, cloud computing, and high-performance applications without bottlenecks. Enterprises benefit from consistent throughput, reduced latency, and enhanced scalability, making the BCM957608-N2200GQP00 a powerful solution for next-generation environments.

SR-IOV Virtualization Capabilities

The BCM957608-N2200GQP00 supports SR-IOV with thousands of virtual functions, enabling efficient virtualization. This allows multiple virtual machines to share the adapter while maintaining high performance. Enterprises leveraging cloud and virtualized infrastructures benefit from optimized resource allocation, reduced overhead, and improved scalability for complex workloads.

Advanced Offload Features

Offload technologies such as TCP segmentation offload, large send offload, and receive-side scaling reduce CPU utilization. These capabilities improve system efficiency by handling networking tasks directly on the adapter. Enterprises achieve higher throughput, lower latency, and smoother performance for workloads such as AI, machine learning, and big data analytics.

TruFlow Flow Processing Engine

The TruFlow engine enhances packet processing efficiency, enabling advanced traffic management. It supports tunnel-aware stateless offloads and accelerates vSwitch operations. This ensures optimized performance for applications requiring complex traffic handling, such as VXLAN, NVGRE, and Geneve encapsulation, making the BCM957608-N2200GQP00 ideal for cloud-native environments.

RDMA over Converged Ethernet (RoCE)

RoCE support allows the BCM957608-N2200GQP00 to deliver low-latency, high-throughput communication for HPC and storage applications. This feature is critical for workloads requiring real-time responsiveness, such as AI training, scientific simulations, and large-scale analytics. Enterprises benefit from improved efficiency and reduced latency in distributed computing environments.

Data Center Bridging (DCB) Capabilities

DCB support includes priority flow control, enhanced transmission selection, and congestion notification. These features optimize traffic management in converged networks, ensuring reliable performance for storage and compute workloads. Enterprises achieve better quality of service, reduced packet loss, and improved efficiency in high-density data center deployments.

IPv4 and IPv6 Protocol Offloads

The BCM957608-N2200GQP00 supports IPv4 and IPv6 offloads, reducing CPU overhead for packet processing. This ensures efficient handling of modern networking protocols, enhancing scalability and performance. Enterprises benefit from seamless integration with dual-stack environments, ensuring compatibility with both legacy and next-generation infrastructures.

Jumbo Frame Transmission

Support for jumbo frames up to 9KB improves efficiency in transferring large data sets. This reduces overhead and enhances throughput for applications such as big data analytics, scientific computing, and media streaming. Enterprises achieve faster communication, reduced latency, and improved performance for bandwidth-intensive workloads.

Reliability for Mission-Critical Workloads

Reliability is a cornerstone of the BCM957608-N2200GQP00 design. Dual-port redundancy ensures continuous operation even if one port fails. This failover capability minimizes downtime and maintains service availability, safeguarding critical applications and services against unexpected disruptions in enterprise environments.

Future-Proof Networking Solution

The BCM957608-N2200GQP00 is designed as a future-proof solution, meeting evolving enterprise needs. Its compatibility, scalability, and advanced features ensure relevance as technology advances. Businesses can invest confidently, knowing the adapter will support networking requirements for years to come across diverse industries.

Flexible Network Boot Options

The adapter supports PXE, UEFI, and iSCSI boot, enabling flexible deployment in diverse environments. These options simplify provisioning and ensure compatibility with enterprise boot infrastructures. IT teams benefit from streamlined deployment, reduced configuration complexity, and improved manageability in large-scale environments.

Wake-on-LAN Remote Activation

Wake-on-LAN support allows remote activation of systems, enhancing manageability in large-scale environments. This feature reduces energy consumption by enabling systems to remain in low-power states until needed. Enterprises benefit from improved efficiency, reduced operational costs, and enhanced control over distributed infrastructures.

Function-Level Reset (FLR) Reliability

FLR support ensures that individual functions can be reset without impacting the entire system. This enhances reliability and simplifies troubleshooting in complex environments. Enterprises achieve improved uptime, reduced maintenance overhead, and enhanced resilience for mission-critical workloads requiring continuous availability.

Multiqueue and VMQ Optimization

Multiqueue and VMQ support optimize traffic distribution across multiple cores and virtual machines. This ensures balanced workloads and improved performance in virtualized environments. Enterprises benefit from efficient resource utilization, reduced bottlenecks, and enhanced scalability for diverse applications requiring consistent networking throughput.

Interrupt Coalescing Efficiency

Interrupt coalescing reduces CPU overhead by grouping multiple interrupts into fewer events. This enhances system efficiency and reduces latency for high-throughput workloads. Enterprises achieve smoother performance, improved scalability, and enhanced responsiveness for real-time applications requiring consistent low-latency communication.

Hyperscale Data Center Applications

The BCM957608-N2200GQP00 is ideal for hyperscale data centers requiring high-speed, secure, and scalable networking. Its advanced features support workloads such as AI, machine learning, cloud computing, and big data analytics. Enterprises benefit from reliable performance, future-ready infrastructure, and reduced total cost of ownership across global deployments.

Deployment Flexibility Across

Deployment flexibility is a key advantage of the BCM957608-N2200GQP00. Its OCP3.0 compliance and compatibility with modern architectures allow seamless integration into diverse environments. Enterprises can deploy the adapter in configurations tailored for redundancy, scalability, or performance optimization, ensuring adaptability to evolving business needs.
