P425G Broadcom 4 Port Ethernet NIC

Comprehensive Product Overview

This Broadcom P425G network interface card is engineered for high‑efficiency connectivity, offering a quad‑port SFP28/SFP+ design and robust PCIe 4.0 architecture. Its versatile construction supports modern data‑center workloads, cloud infrastructures, and virtualized environments.

General Attributes

• Manufacturer: Broadcom
• Part Number: P425G
• Device Type: Network Interface Card

Technical Highlights

• Quad-port design: Four high-speed 25GbE ports for dense server connectivity
• Pluggable media interface: Supports SFP28 and SFP+ optical transceivers
• Copper options: Compatible with copper direct-attach cables (DAC) for short-reach links
• Standards compliance: Fully compliant with the SFF-8402 specification for SFP28 modules
• PCIe generation: x16 PCI Express 4.0 interface for high bandwidth and low latency
• Multi-host capability: Dual-host x8 mode for shared adapter usage across multiple systems
• Secure PCIe solution: Built on Broadcom’s BroadSafe technology for enhanced adapter security

Security & Reliability Enhancements

• Broadcom Broadsafe technology delivering advanced PCIe adapter security.
• Function‑level reset (FLR) for reliable virtualization and device recovery.
• Firmware Root of Trust and FRU support for secure operational integrity.

Virtualization & Network Optimization

• SR‑IOV capability supporting up to 1,000 virtual functions.
• Trueflow flow‑processing engine for intelligent traffic handling.
• Virtual network termination for VXLAN, NVGRE, Geneve, and GRE encapsulation/decapsulation.
• VSwitch acceleration and tunnel‑aware stateless offloads for optimized virtual workloads.

Performance & Offload Capabilities

• DCB support including PFC, ETS, QCN, and DCBx.
• ROCE support for low‑latency RDMA operations.
• IPv4/IPv6 offloads, TCP/UDP/IP checksum offloads.
• Large Send Offload (LSO), Large Receive Offload (LRO), and TCP Segmentation Offload (TSO).
• RSS and TSS for balanced packet distribution across CPU cores.
• Interrupt coalescing for reduced CPU overhead.
• Jumbo frame support up to 9 KB.

Connectivity & Management Features

• NC‑SI and SMBus 2.0 management interfaces.
• MCTP over SMBus for modern management protocols.
• Multiqueue, NetQueue, and VMQ for virtual machine traffic optimization.
• VLAN insertion/removal for streamlined network segmentation.

Applications

Deployment Scenarios

This quad‑port 25‑GbE SFP28 adapter is ideal for:

• High‑density data‑center networking.
• Cloud computing platforms requiring scalable bandwidth.
• Virtualized infrastructures leveraging SR‑IOV and advanced offloads.
• Performance‑driven enterprise environments needing secure, low‑latency connectivity.

Optimized Use Cases

• High‑throughput server clusters.
• Hyper‑converged infrastructure nodes.
• Storage networks using iSCSI or RDMA.
• Multi‑tenant cloud workloads requiring traffic isolation and acceleration.

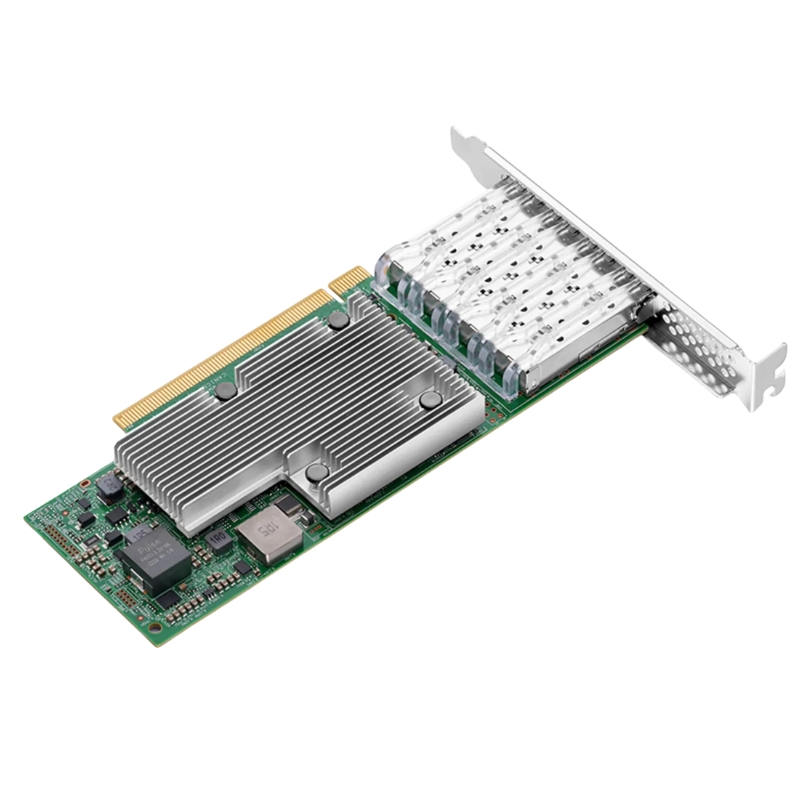

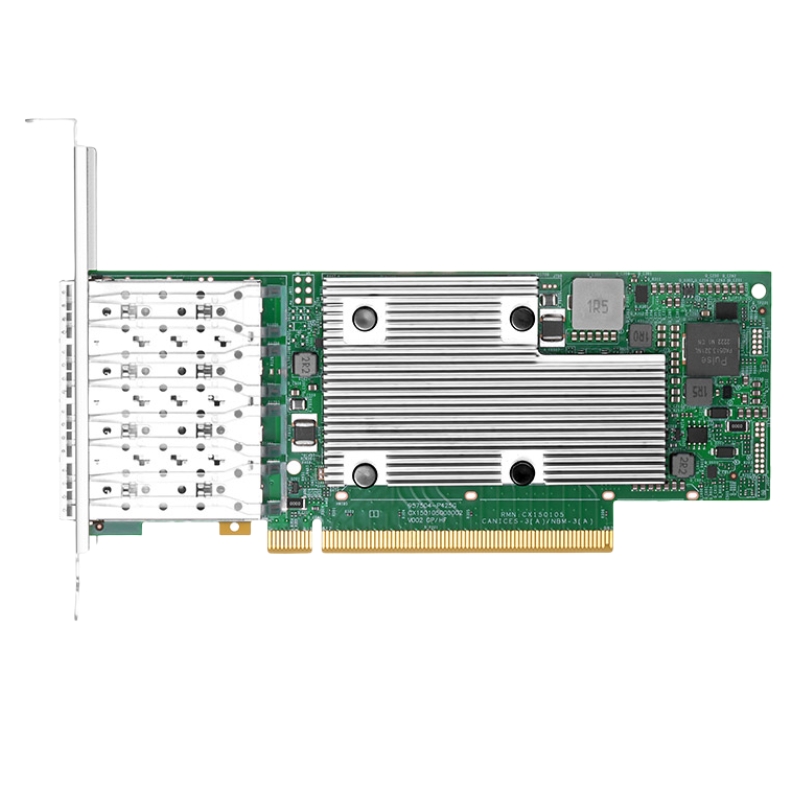

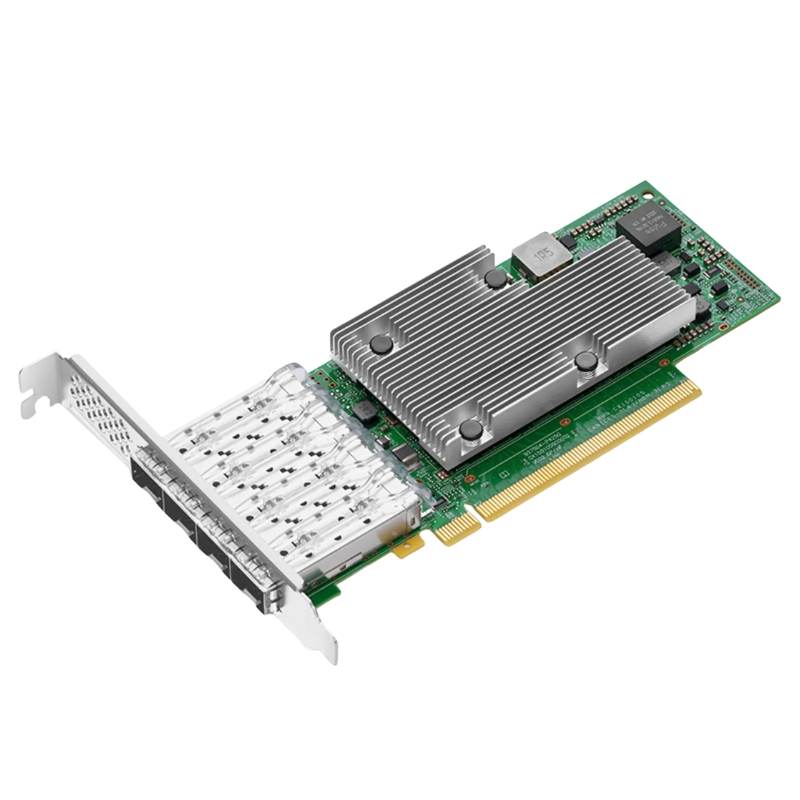

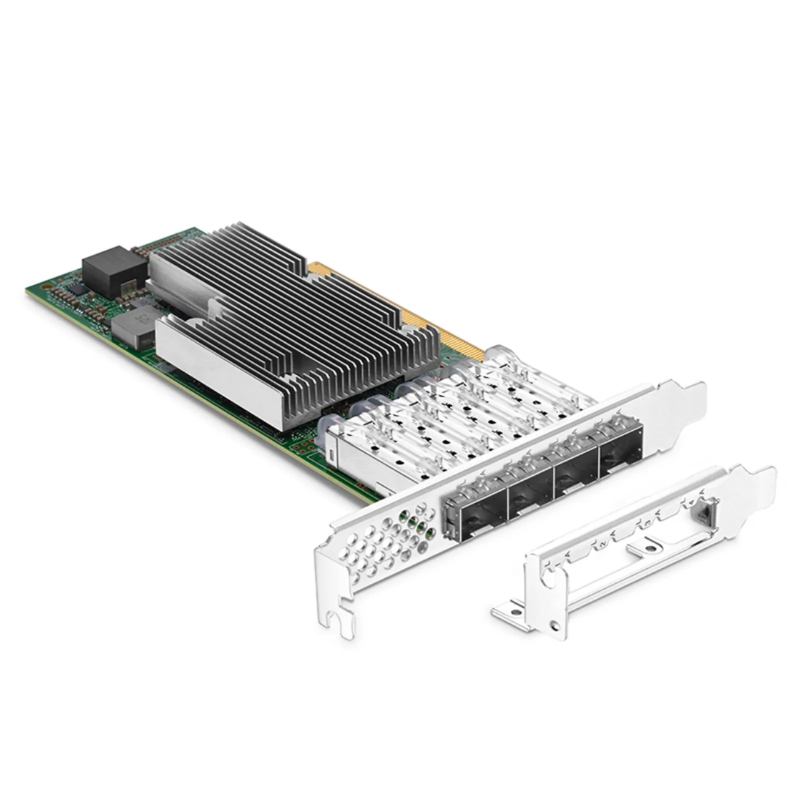

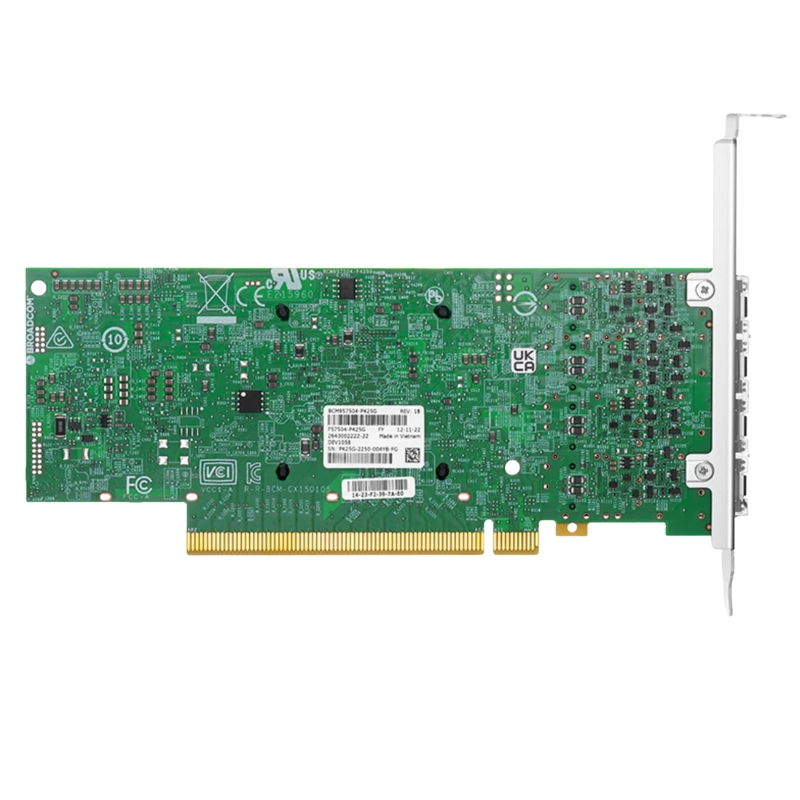

Broadcom P425G SFP28 PCI-E Network Interface Card

The Broadcom P425G Quad-Port 25Gb/s SFP28 Ethernet PCI Express 4.0 x16 Network Interface Card is a high-performance networking solution designed for modern enterprise servers, data centers, cloud computing environments, virtualization platforms, and high-bandwidth networking infrastructures. This advanced Ethernet adapter belongs to the category of 25 Gigabit Ethernet PCI Express network interface cards, providing organizations with a reliable method to upgrade server connectivity while supporting demanding workloads that require increased throughput, low latency communication, and efficient data transfer capabilities.

Designed with four SFP28 Ethernet ports, the Broadcom P425G enables multiple high-speed optical fiber connections through a single PCI Express expansion slot. The combination of PCI Express 4.0 x16 interface technology and quad-port 25Gb/s Ethernet capability allows this network adapter to deliver exceptional bandwidth density for servers and networking systems that require scalable connectivity. It is engineered to support data-intensive applications including cloud services, enterprise virtualization, software-defined networking, high-performance computing, database environments, and storage networking applications.

Advanced 25 Gigabit Ethernet Connectivity for Enterprise Networks

The Broadcom P425G Quad-Port 25Gb/s SFP28 Ethernet adapter provides four independent 25 Gigabit Ethernet ports, enabling high-speed network connections with excellent flexibility and performance. Each SFP28 port supports optical fiber networking, allowing integration with existing data center cabling infrastructures and providing extended transmission distances compared with traditional copper-based Ethernet solutions.

25Gb Ethernet technology represents a significant advancement over previous-generation network standards by delivering higher bandwidth while maintaining efficient infrastructure utilization. The Broadcom P425G allows organizations to achieve greater network capacity without requiring additional server expansion slots. By combining four 25Gb/s connections into one adapter, this network interface card provides an efficient solution for environments where rack density, power efficiency, and network scalability are critical considerations.

Quad-Port SFP28 Optical Fiber Interface

The four-port SFP28 configuration of the Broadcom P425G provides versatile optical connectivity for enterprise and data center networking applications. SFP28 ports are designed specifically for 25 Gigabit Ethernet communication and provide compatibility with a wide range of optical transceiver modules and fiber cabling solutions. This flexibility allows administrators to select appropriate optical modules based on distance requirements, network architecture, and infrastructure design.

Optical fiber connectivity offers several advantages for high-performance networking environments, including reduced electromagnetic interference, reliable signal transmission, and support for longer cable distances. The Broadcom P425G is optimized for environments where consistent, high-speed communication between servers, switches, storage systems, and network appliances is required.

High-Density Network Expansion for Modern Servers

The Broadcom P425G Ethernet PCI Express adapter provides a practical solution for expanding server networking capabilities without occupying multiple expansion slots. With four 25Gb/s ports integrated into a single PCI Express 4.0 x16 adapter, organizations can increase network bandwidth while preserving valuable server resources for additional hardware expansion.

This high-density design is particularly beneficial for data centers and enterprise environments where multiple servers require fast and efficient network communication. The adapter helps simplify server connectivity by consolidating multiple high-speed network interfaces into one reliable expansion card.

PCI Express 4.0 x16 Interface Performance

The Broadcom P425G utilizes a PCI Express 4.0 x16 host interface to provide the necessary bandwidth required for four high-speed 25 Gigabit Ethernet ports. PCI Express 4.0 technology delivers increased data transfer capability compared with previous PCI Express generations, ensuring that the network adapter can efficiently handle demanding traffic loads without creating unnecessary communication bottlenecks.

The PCI Express 4.0 x16 interface enables direct communication between the network controller and the server motherboard, improving overall system responsiveness and network performance. This architecture is well suited for applications that require continuous high-volume data movement, such as virtualization clusters, enterprise applications, cloud infrastructure, and distributed computing environments.

Optimized Bandwidth Utilization for Data Center Workloads

Modern IT environments increasingly depend on high-speed network connections to support growing volumes of data traffic. The Broadcom P425G addresses these requirements by providing multiple 25Gb Ethernet connections through a single PCI Express adapter. This capability allows servers to support demanding workloads while maintaining efficient network resource utilization.

Applications such as virtual machine migration, large-scale database processing, content delivery platforms, and enterprise storage environments benefit from the increased bandwidth provided by this network interface card. The adapter helps reduce network congestion and improves communication efficiency between connected systems.

Reliable Performance for Virtualized Infrastructure

Virtualized environments require powerful networking solutions capable of handling communication between multiple virtual machines, hosts, and external network resources. The Broadcom P425G supports the high throughput requirements of virtualization platforms by providing multiple high-speed Ethernet connections from a single adapter.

With four 25Gb/s ports, the network card enables administrators to dedicate network connections for different workloads, improve traffic separation, and enhance overall infrastructure organization. This makes it suitable for enterprise virtualization deployments where consistent network performance is essential.

Enterprise-Grade Network Acceleration

The Broadcom P425G is designed to accelerate network communication within enterprise computing environments. By providing high-speed Ethernet connectivity and efficient PCI Express integration, the adapter helps servers achieve improved application responsiveness and faster data exchange between networked systems.

The adapter is suitable for organizations looking to modernize their networking infrastructure and transition from older Ethernet technologies to higher-performance 25 Gigabit Ethernet solutions.

Broadcom Ethernet Adapter Technology

Broadcom network adapters are widely recognized for their performance, reliability, and compatibility with enterprise networking environments. The P425G Quad-Port 25Gb/s SFP28 Ethernet PCI Express 4.0 x16 Network Interface Card continues this tradition by providing advanced connectivity features designed for professional IT environments.

This adapter supports the requirements of modern data centers where network speed, reliability, and scalability are essential. Its quad-port architecture allows organizations to build flexible network configurations while maintaining efficient server connectivity.

High-Speed Networking for Cloud and Enterprise Infrastructure

Cloud computing environments require networking hardware capable of supporting large numbers of users, applications, and services simultaneously. The Broadcom P425G provides the bandwidth necessary for cloud infrastructure by enabling fast communication between servers, storage platforms, and networking equipment.

The adapter is suitable for private cloud deployments, enterprise cloud environments, and hybrid infrastructure solutions where reliable high-speed Ethernet connectivity is required. Its 25Gb/s networking capability helps improve resource utilization and supports the growing demands of modern cloud workloads.

Enhanced Connectivity for Storage and Computing Systems

High-performance storage environments depend on fast network connections to deliver efficient data access and transfer speeds. The Broadcom P425G supports storage networking applications by providing multiple high-bandwidth Ethernet interfaces suitable for connecting servers with storage systems and network fabrics.

Whether used in enterprise storage environments, distributed computing platforms, or high-performance applications, this Ethernet adapter provides the connectivity required to move large amounts of data quickly and efficiently.

Scalable Networking Solution for Future Growth

The Broadcom P425G provides organizations with a scalable networking foundation that supports future infrastructure expansion. As applications continue to generate increasing amounts of network traffic, 25 Gigabit Ethernet technology provides additional capacity to accommodate evolving business requirements.

The adapter enables businesses to upgrade server networking capabilities while maintaining compatibility with modern Ethernet architectures. Its combination of multiple SFP28 ports, PCI Express 4.0 technology, and optical fiber connectivity makes it a suitable choice for long-term enterprise networking strategies.

Optical Fiber Ethernet Connectivity

The optical fiber design of the Broadcom P425G provides dependable connectivity for professional networking environments. Fiber-based Ethernet connections are widely used in data centers because they support high-speed communication while maintaining signal integrity over longer distances.

The adapter’s SFP28 optical interfaces provide flexibility for different network designs, allowing administrators to select compatible fiber modules based on application requirements. This makes the network interface card adaptable to various enterprise and data center environments.

Flexible Deployment Across Networking Environments

The Broadcom P425G can be deployed across a wide range of enterprise applications, including server clusters, virtualization environments, cloud platforms, research computing systems, and high-performance networking installations. Its four-port configuration allows organizations to customize network connectivity according to operational requirements.

By supporting optical fiber Ethernet communication, the adapter provides a reliable solution for environments requiring high bandwidth, low latency, and consistent network performance.

Efficient Server Networking Upgrade

Organizations upgrading existing server infrastructures can benefit from the Broadcom P425G as a powerful networking expansion solution. The PCI Express 4.0 x16 interface allows installation into compatible server systems while providing substantial improvements in network capacity.

The adapter helps extend the capabilities of enterprise servers by adding multiple 25Gb Ethernet connections without requiring major infrastructure changes. This makes it an efficient choice for businesses seeking improved networking performance.

Professional Network Adapter for Demanding Applications

The Broadcom P425G Quad-Port 25Gb/s SFP28 Ethernet PCI Express 4.0 x16 Network Interface Card is designed for demanding professional applications where speed, reliability, and scalability are essential. Its combination of advanced Ethernet technology, optical connectivity, and high-bandwidth PCI Express architecture makes it suitable for modern enterprise computing environments.

With four 25Gb/s SFP28 ports, PCI Express 4.0 x16 connectivity, and support for optical fiber networking, this adapter delivers the performance required for next-generation data center operations. It provides organizations with a dependable networking solution capable of supporting current workloads while preparing infrastructure for future growth.
