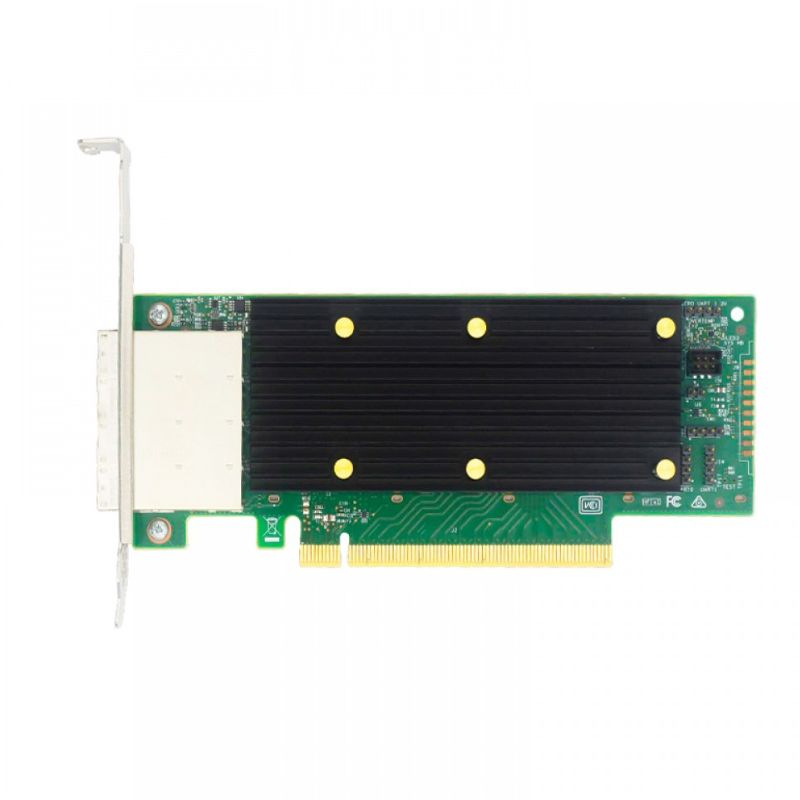

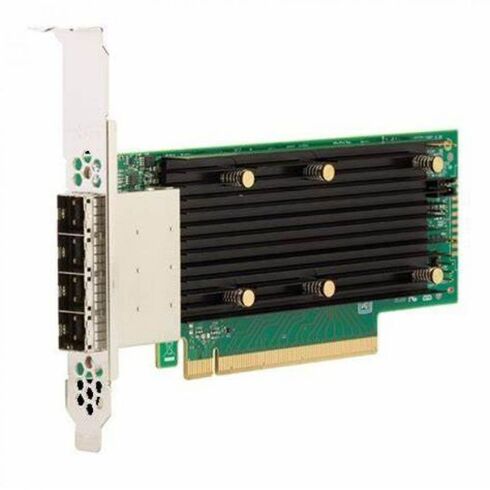

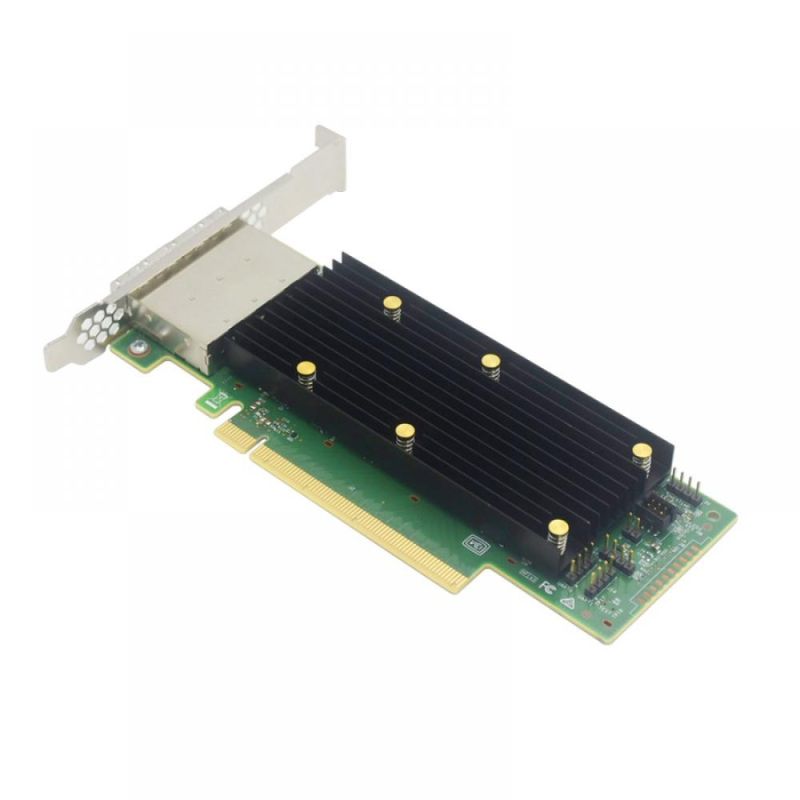

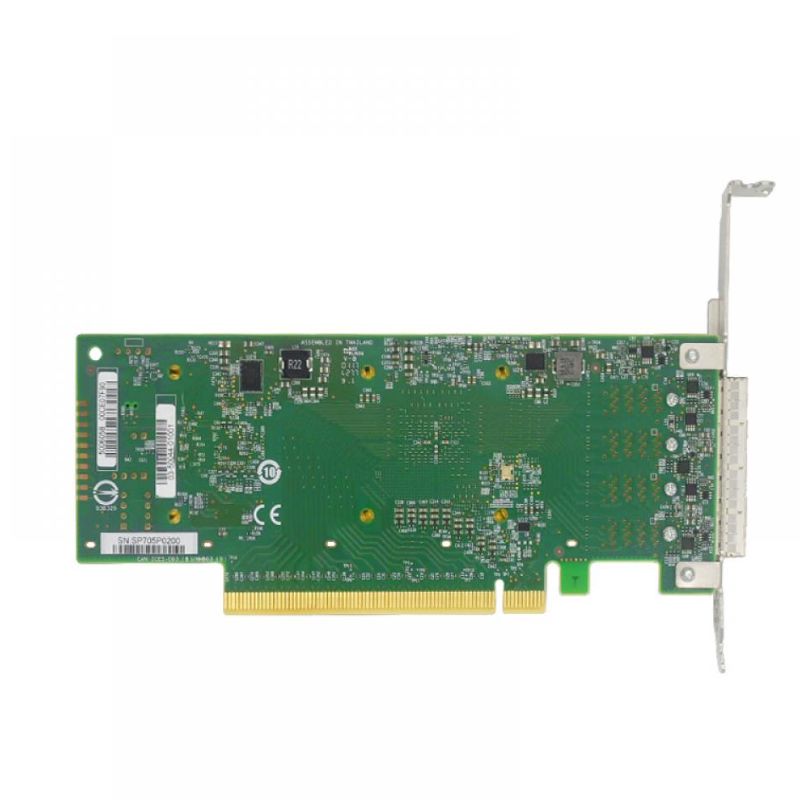

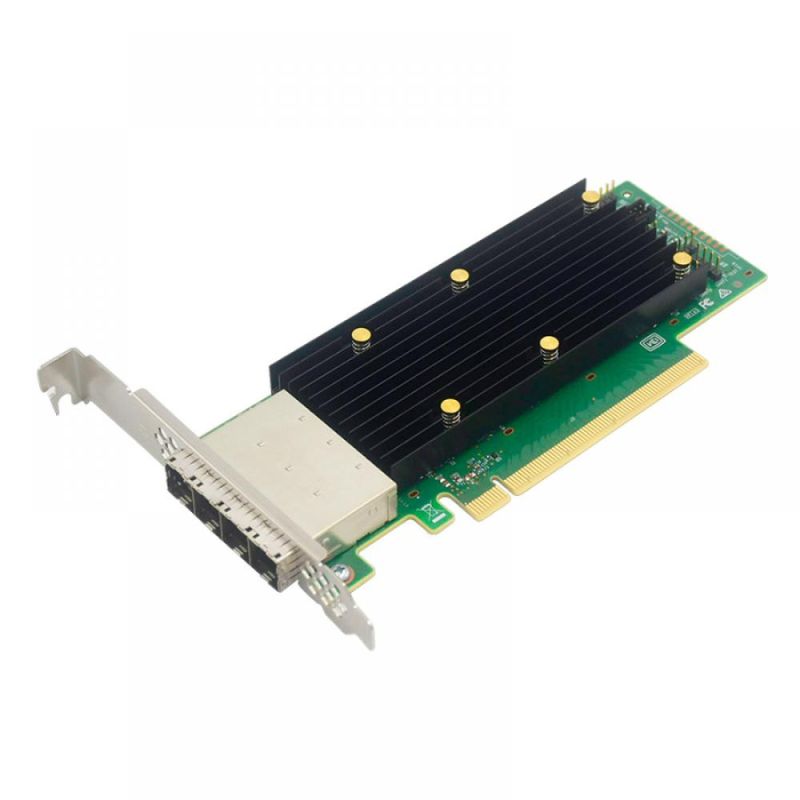

SAS9405W-16E Broadcom 12GBPS SAS-SATA PCI-E (NVMe) Tri-Mode HBA

Overview of Broadcom SAS9405W-16E Tri-Mode HBA

The Broadcom SAS9405W-16E is a high-performance 12Gb/s tri-mode host bus adapter engineered to support SAS, SATA, and PCIe (NVMe) storage technologies within a single, low-profile PCIe card. Designed as the industry’s first single-chip x16 external HBA, this adapter addresses the growing demand for extreme bandwidth, scalable storage expansion, and simplified management in enterprise and data-center environments.

General Specification

• Manufacturer: Broadcom
• Part Number: SAS9405W-16E
• Product Type: Tri-Mode Host Bus Adapter

Multi-Protocol Storage Interface Support

• Native compatibility with SAS, SATA, and PCIe NVMe devices
• Optimized data paths for high-throughput and low-latency workloads
• Flexible deployment across heterogeneous storage environments

Device Support Limits

• Up to 1,024 SAS or SATA devices per controller
• Support for as many as 24 NVMe devices
• Ideal for PCIe JBODs and SAS JBOD deployments

Optimized for Performance-Critical Use Cases

• Ultra-high-definition video processing and streaming platforms
• Medical imaging systems requiring rapid data access
• Big data analytics and large-scale data processing
• High-end servers supporting virtualization and cloud workloads

Benefits of Integrated Controller Architecture

• Lower power consumption with optimized performance per watt
• Reduced component count for improved thermal characteristics
• Consistent, predictable I/O behavior under heavy workloads

Mechanical and Electrical Details

• Card dimensions: 6.600” x 2.712” (167.65 mm x 68.90 mm)
• Power consumption: approximately 14.0 W
• Operating voltage: +12V ±8% and 3.3V ±9%

Supported Cable Types

• Passive copper cables for short-range connections
• Active copper cables for extended reach
• Active optical cables for long-distance, high-speed links

Environmental Operating Parameters

• Operating temperature range: 0°C to 55°C
• Storage temperature range: -45°C to 105°C
• Humidity tolerance: 20% to 80% operating, non-condensing
• Required airflow: 200 LFM

Reliability Metrics

• MTBF greater than 4,500,000 hours at 40°C
• Built for 24/7 enterprise workloads

Supported Platforms

• Microsoft Windows Server environments
• Major Linux distributions
• VMware virtualization platforms
• Oracle Solaris support available through Oracle channels

Operational Advantages

• Simplified storage administration across multiple protocols
• Reduced deployment time for external storage solutions
• Scalable design aligned with future storage expansion needs

Outline of Enterprise-Class Tri-Mode Host Bus Adapter

The Broadcom SAS9405W-16E 12Gbps SAS-SATA PCI Express Tri-Mode Host Bus Adapter represents a modern category of enterprise storage connectivity solutions designed to unify multiple storage protocols within a single, high-performance interface. This category focuses on host bus adapters that are capable of handling SAS, SATA, and NVMe devices simultaneously, enabling organizations to simplify infrastructure design while maintaining exceptional throughput, low latency, and scalability. The SAS9405W-16E belongs to a class of adapters engineered for data-intensive workloads where flexibility, reliability, and forward compatibility are critical operational requirements.

Tri-mode host bus adapters are distinguished by their ability to support traditional SAS hard drives, SATA solid-state drives, and high-speed NVMe storage devices over a common PCI Express interface. This architectural approach eliminates the need for multiple dedicated controllers, reducing hardware complexity and improving system airflow, power efficiency, and manageability. The Broadcom SAS9405W-16E is purpose-built for enterprise servers, storage arrays, and software-defined storage environments that demand consistent performance under sustained workloads.

Unified SAS, SATA, and NVMe Connectivity

Within this category, the defining feature is unified protocol support. The Broadcom SAS9405W-16E provides seamless interoperability between SAS and SATA devices while also extending native NVMe connectivity through PCIe. This allows system architects to design hybrid storage systems that combine capacity-focused HDDs, cost-efficient SATA SSDs, and ultra-low-latency NVMe drives without redesigning the backplane or replacing the host adapter. The result is a highly adaptable storage platform that can evolve alongside changing workload demands.

By supporting multiple protocols at the hardware level, tri-mode adapters minimize translation overhead and maximize throughput. This is particularly important in enterprise deployments where transactional databases, virtualization platforms, and analytics workloads operate concurrently. The SAS9405W-16E ensures that each protocol operates at its optimal performance level while sharing the same physical adapter, contributing to efficient resource utilization.

12Gbps SAS Performance and Scalability

The 12Gbps SAS capability of the Broadcom SAS9405W-16E places it firmly within the high-performance segment of the host bus adapter category. This bandwidth enables rapid data transfer between the host system and connected storage devices, making it suitable for applications that require sustained sequential throughput and high IOPS. The adapter is designed to maintain signal integrity across extended cable lengths and complex backplane configurations, which is essential in enterprise rack-mounted servers and external storage enclosures.

Scalability is a central consideration in this category. The SAS9405W-16E supports a large number of devices through expanders, allowing storage environments to grow without replacing the core connectivity hardware. This scalability aligns with the needs of data centers that anticipate incremental expansion and long hardware lifecycles.

External Connectivity and High-Density Deployments

The external port configuration of the SAS9405W-16E makes it particularly suitable for high-density storage deployments and external JBOD enclosures. This category of adapters is frequently used in environments where storage is separated from compute resources, such as shared storage clusters and centralized backup systems. External connectivity enables flexible cable management, easier maintenance, and improved thermal characteristics compared to internal-only solutions.

High-density deployments benefit from the adapter’s ability to maintain consistent performance across multiple attached enclosures. This ensures predictable behavior even as the number of connected drives increases, which is critical for maintaining service-level agreements in enterprise environments.

PCI Express Integration and System Compatibility

The Broadcom SAS9405W-16E category is defined by deep integration with modern PCI Express architectures. Utilizing a high-bandwidth PCIe interface, this class of host bus adapters ensures that the data path between the CPU and storage devices is not a bottleneck. PCIe integration also supports advanced features such as lane aggregation and efficient interrupt handling, which contribute to lower latency and higher throughput.

Compatibility with a wide range of server platforms is a key attribute of this category. The SAS9405W-16E is designed to operate across multiple operating systems and hypervisors, making it suitable for heterogeneous data center environments. This broad compatibility reduces deployment risk and simplifies procurement decisions for organizations standardizing on a single adapter family.

Optimized for Virtualization and Cloud Infrastructure

Tri-mode host bus adapters like the SAS9405W-16E are increasingly deployed in virtualized and cloud-based infrastructures. Their ability to handle mixed workloads and diverse storage media aligns with the dynamic nature of virtual machines and containerized applications. By providing consistent performance across different storage tiers, this category of adapters helps ensure predictable application behavior even in highly consolidated environments.

Virtualization platforms benefit from the adapter’s low-latency characteristics and efficient queue management. These features reduce contention between virtual machines and improve overall system responsiveness. As cloud infrastructures continue to scale, the flexibility offered by tri-mode connectivity becomes an essential component of storage architecture design.

NVMe Enablement and Future-Proof Design

NVMe support is a defining characteristic of modern host bus adapter categories. The Broadcom SAS9405W-16E enables direct attachment of NVMe devices, allowing organizations to take advantage of the performance benefits of PCIe-based storage without deploying separate NVMe controllers. This unified approach simplifies system design and reduces capital expenditure.

Future-proofing is an important consideration in enterprise hardware selection. By supporting emerging storage technologies alongside established standards, the SAS9405W-16E category ensures that investments remain relevant as storage media continues to evolve. This adaptability is particularly valuable in long-term deployments where hardware refresh cycles may span several years.

Latency Optimization and Throughput Efficiency

Latency optimization is a critical metric for high-performance storage adapters. The SAS9405W-16E category emphasizes efficient data paths, minimal protocol overhead, and intelligent buffering to reduce response times. These characteristics are especially beneficial for transactional workloads, real-time analytics, and latency-sensitive applications.

Throughput efficiency is maintained through advanced link management and error handling mechanisms. This ensures that the adapter can sustain high data rates even under heavy load, contributing to consistent performance across a wide range of use cases.

Reliability, Data Integrity, and Enterprise Features

Enterprise-class host bus adapters are expected to deliver exceptional reliability and data integrity. The Broadcom SAS9405W-16E category incorporates robust error detection and correction mechanisms to ensure that data is transmitted accurately between the host and storage devices. This focus on reliability makes these adapters suitable for mission-critical environments where data loss or corruption is unacceptable.

Advanced firmware and driver support further enhance reliability by providing stable operation across different system configurations. Regular updates and broad ecosystem support ensure compatibility with new operating system releases and hardware platforms.

Thermal Management and Power Efficiency

Thermal management is an important consideration in dense server environments. The SAS9405W-16E category is designed to operate efficiently within constrained airflow conditions, reducing the risk of thermal throttling and extending component lifespan. Power efficiency is also emphasized, helping organizations manage energy consumption and operational costs.

Efficient power usage does not come at the expense of performance. Instead, intelligent power management features dynamically adjust resource utilization based on workload demands, ensuring optimal balance between performance and efficiency.

Security and Data Protection Capabilities

Security is an integral aspect of enterprise storage connectivity. Host bus adapters in this category support secure firmware, authenticated updates, and compatibility with system-level security frameworks. These features help protect against unauthorized access and ensure that the storage infrastructure remains resilient against emerging threats.

Data protection capabilities extend beyond security to include support for redundancy and failover configurations. By integrating seamlessly with SAS expanders and redundant paths, the SAS9405W-16E category supports high-availability storage architectures.

Use Cases and Deployment Scenarios

The Broadcom SAS9405W-16E category is widely adopted across diverse deployment scenarios. In enterprise data centers, these adapters are commonly used to connect large-scale storage arrays, backup systems, and archival solutions. Their ability to handle mixed storage media makes them ideal for tiered storage architectures that balance performance and capacity.

In high-performance computing environments, the low-latency and high-throughput characteristics of this category support data-intensive simulations and analytics workloads. The flexibility of tri-mode connectivity allows researchers and engineers to optimize storage configurations for specific application requirements.

Software-Defined Storage and Hyper-Converged Systems

Software-defined storage platforms rely on flexible and reliable connectivity to deliver performance and scalability. The SAS9405W-16E category aligns well with these requirements by providing consistent access to diverse storage devices. This enables software-defined solutions to dynamically allocate resources and optimize data placement.

Hyper-converged systems benefit from the adapter’s ability to consolidate storage connectivity within a single component. This reduces hardware footprint and simplifies system architecture, contributing to easier deployment and management.

Backup, Archival, and Data Protection Workloads

Backup and archival systems demand high capacity, reliability, and sustained throughput. The SAS9405W-16E category supports these workloads by enabling efficient connection to large numbers of drives and external enclosures. Consistent performance during long backup windows ensures that data protection objectives are met without impacting production workloads.

Archival deployments also benefit from the adapter’s support for cost-effective SATA drives alongside higher-performance options, enabling flexible storage tiering.

Media Streaming and Content Delivery Applications

Media streaming and content delivery platforms require predictable throughput and low latency to ensure smooth playback and fast access to large media files. The Broadcom SAS9405W-16E category provides the necessary bandwidth and reliability to support these applications at scale.
