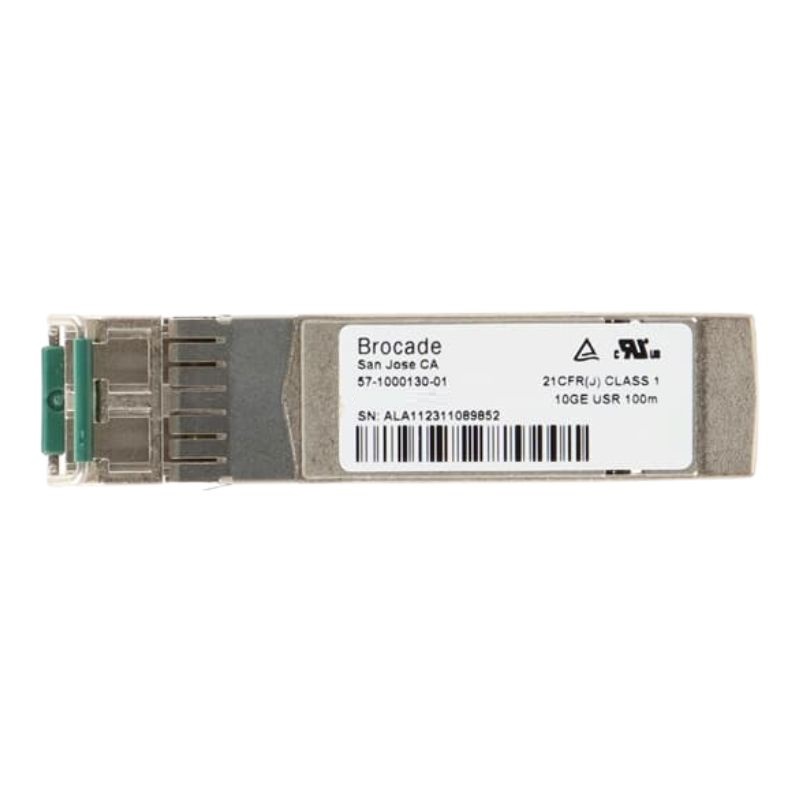

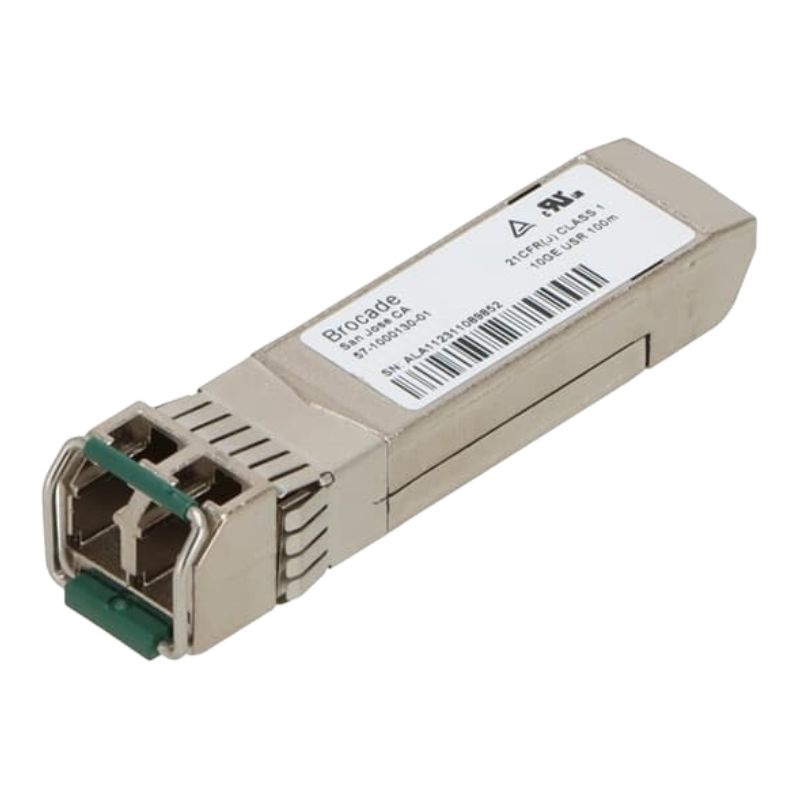

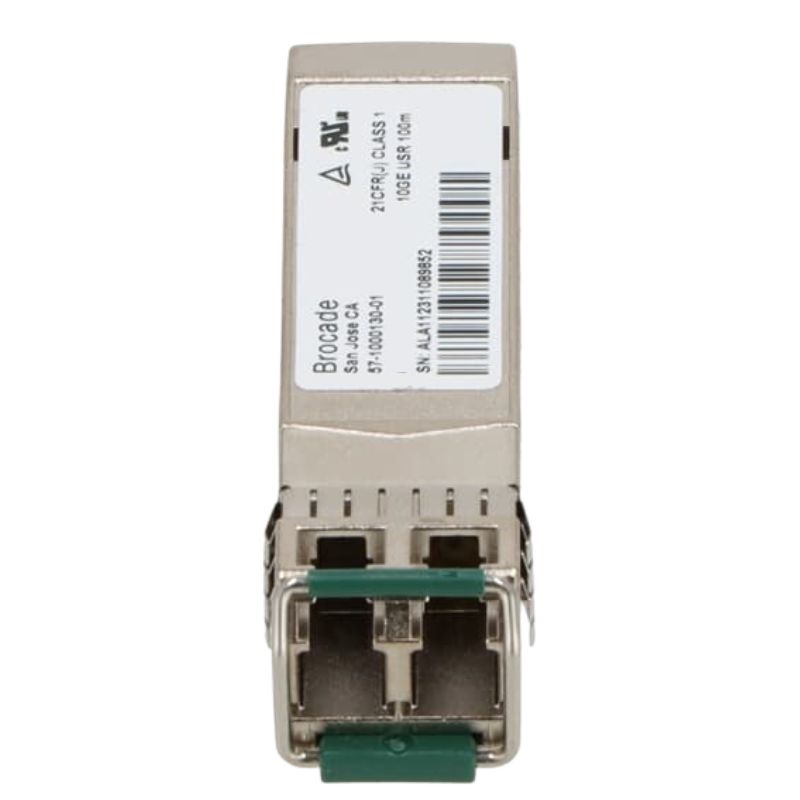

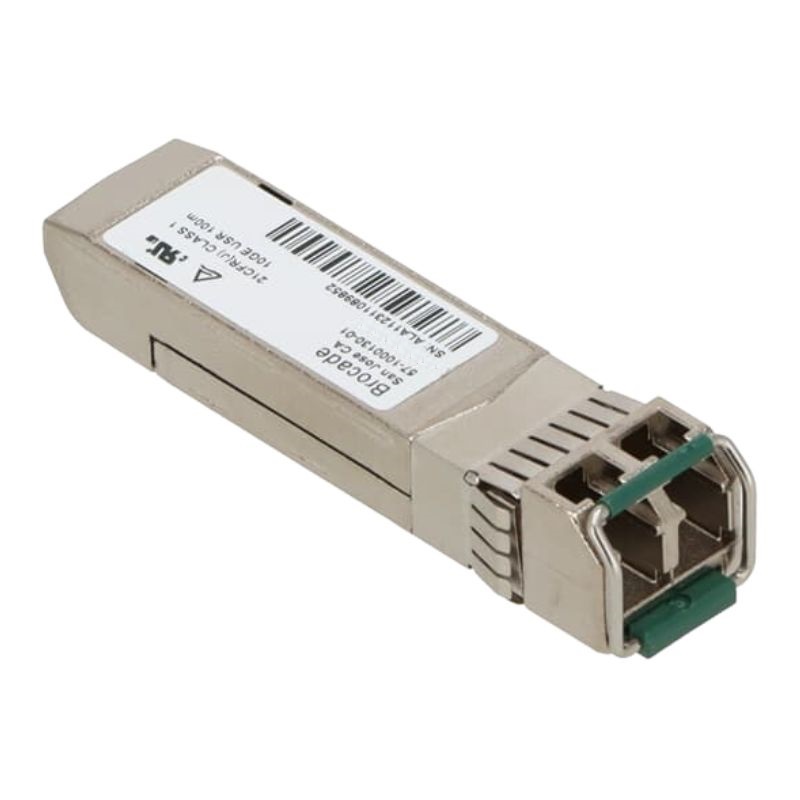

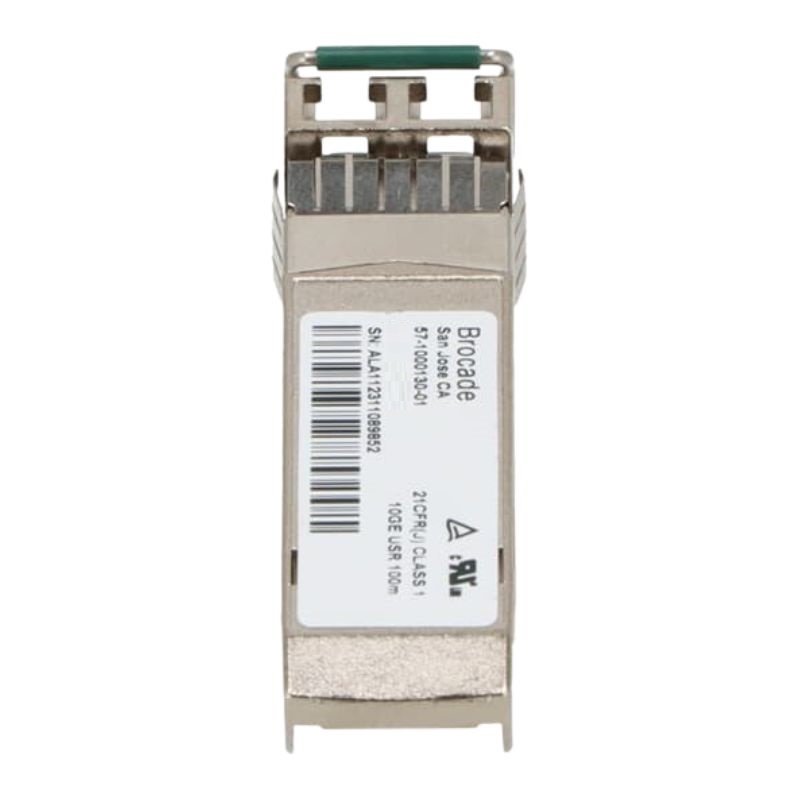

10G-SFPP-USR Brocade Duplex Sfp+ 10GBPS Transceiver

Understanding the Role of 10G SFP+ Optical Transceivers in Modern Networking

The Brocade 10G-SFPP-USR Duplex SFP+ 10Gbps 100m MMF DDM 850nm Transceiver Module belongs to a highly specialized category of optical networking components designed to enable high-speed data transmission across fiber optic infrastructure. In modern enterprise and data center environments, 10 Gigabit Ethernet connectivity has become a foundational requirement for handling bandwidth-intensive workloads, virtualization, cloud computing operations, and high-performance storage networks. The SFP+ form factor, which stands for Small Form-Factor Pluggable Plus, is widely adopted because of its compact size, low power consumption, and flexibility in supporting multiple media types including multimode fiber (MMF) and single-mode fiber (SMF) depending on module specifications.

Within this category, the Brocade 10G-SFPP-USR module is specifically engineered for short-range optical communication over multimode fiber using an 850nm wavelength VCSEL laser source. The designation “USR” typically refers to Ultra Short Reach or specialized short-range optimization, making it suitable for interconnects within racks, adjacent racks, and confined data center zones where transmission distances do not exceed approximately 100 meters under optimal fiber conditions.

Importance of 10Gbps Duplex SFP+ Modules in Data Center Architecture

The adoption of 10Gbps duplex SFP+ transceivers such as the Brocade 10G-SFPP-USR has significantly transformed data center architecture by enabling scalable, high-throughput network fabrics. These modules facilitate full-duplex communication, meaning data can be transmitted and received simultaneously, thereby reducing latency and improving overall network efficiency. In environments where east-west traffic dominates, such as distributed applications and microservices architectures, the performance of optical interconnects directly impacts system responsiveness and throughput.

The duplex LC connector interface used in this module category ensures stable optical alignment and minimal signal loss. Combined with multimode fiber infrastructure, it allows organizations to deploy cost-effective high-speed networking without the higher expense associated with long-range single-mode fiber systems.

Technical Architecture of the Brocade 10G-SFPP-USR

850nm VCSEL Laser Technology and Signal Transmission

At the core of the Brocade 10G-SFPP-USR module is an 850nm Vertical Cavity Surface Emitting Laser (VCSEL) technology. VCSELs are widely used in short-range optical communication due to their efficiency, low power consumption, and ability to operate reliably at high data rates. The 850nm wavelength is optimized for transmission through multimode fiber, where light propagates through multiple modes or paths within the fiber core.

This optical design allows the transceiver to achieve 10Gbps data rates with minimal signal degradation over short distances. The performance characteristics are carefully engineered to ensure signal integrity, even in environments with moderate electromagnetic interference, which is common in densely packed server racks and network cabinets.

Signal Encoding and Data Integrity Mechanisms

The module utilizes advanced signal encoding techniques to maintain data integrity during transmission. These mechanisms help reduce bit error rates and ensure reliable communication between network devices. Error correction and signal conditioning are integrated into the module's architecture, allowing it to maintain stable performance even under fluctuating environmental conditions such as temperature variations and electromagnetic noise.

Duplex LC Interface and Physical Connectivity Design

The duplex LC connector system used in this category provides two fiber strands, one for transmitting data and one for receiving data. This separation ensures full-duplex communication without interference between upstream and downstream signals. The compact LC interface is designed for high-density networking environments where space optimization is critical.

The Brocade 10G-SFPP-USR module’s mechanical design ensures a secure latch mechanism that prevents accidental disconnection, which is essential in mission-critical network infrastructures where downtime must be minimized.

Multimode Fiber (MMF) Compatibility and Deployment Scenarios

Optimizing Performance with OM3 and OM4 Fiber Infrastructure

The Brocade 10G-SFPP-USR transceiver is optimized for multimode fiber cabling, commonly categorized as OM2, OM3, and OM4 fiber types. Among these, OM3 and OM4 fibers are most commonly used in 10Gbps deployments due to their enhanced modal bandwidth and reduced attenuation characteristics. The module’s 100-meter reach specification is typically achieved when used with high-quality OM3 or OM4 fiber under optimal installation conditions.

Multimode fiber systems are widely deployed in enterprise environments because they offer a cost-effective balance between performance and scalability. The larger core diameter compared to single-mode fiber allows for easier alignment and lower installation costs, making it ideal for intra-building and intra-data-center connectivity.

Distance Limitations and Real-World Performance Considerations

While the theoretical maximum reach of the Brocade 10G-SFPP-USR module is approximately 100 meters, actual performance can vary depending on cable quality, connector cleanliness, splicing conditions, and environmental factors. Proper cable management and adherence to fiber installation best practices are essential for achieving optimal performance and avoiding signal degradation.

Use Cases in Short-Range Network Topologies

This transceiver category is particularly well-suited for top-of-rack (ToR) switching architectures, where servers within a rack connect to a centralized switch located at the top of the rack. It is also widely used in end-of-row (EoR) and middle-of-row (MoR) deployments where network equipment is concentrated within a confined physical space. These deployment scenarios benefit from the module’s low latency and high bandwidth capabilities.

Enhancing Network Reliability Through Predictive Diagnostics

The integration of DDM technology enables intelligent network management by providing granular visibility into transceiver performance. When optical power levels deviate from expected thresholds, administrators can take corrective action such as cleaning connectors, replacing cables, or adjusting network configurations. This proactive approach reduces the likelihood of unexpected outages and extends the operational lifespan of network infrastructure components.

Integration with Brocade Networking Ecosystem

The Brocade 10G-SFPP-USR module is designed for seamless integration with Brocade switching platforms and networking equipment. This compatibility ensures optimal performance and full feature support when deployed within Brocade-based network environments. However, the module also adheres to industry-standard SFP+ specifications, allowing it to function in many third-party networking devices that support 10Gbps SFP+ optics.

Performance Optimization and Network Efficiency

Latency Reduction and High-Speed Data Transmission

In high-performance computing and enterprise networking environments, latency is a critical factor influencing application performance. The Brocade 10G-SFPP-USR module is engineered to minimize latency by providing direct optical transmission without unnecessary signal conversion or processing delays. This makes it suitable for applications such as real-time analytics, financial trading systems, and large-scale virtualization platforms.

The consistent 10Gbps throughput ensures that large data sets can be transferred efficiently between servers, storage systems, and network appliances. This level of performance is essential for maintaining productivity in modern IT infrastructures where data volume continues to grow exponentially.

Power Efficiency and Thermal Management

Another important aspect of this module category is power efficiency. The SFP+ form factor is inherently designed to consume less power compared to older transceiver technologies. The Brocade 10G-SFPP-USR module leverages efficient VCSEL technology and optimized circuitry to maintain low power consumption while delivering high-speed performance.

Thermal management is also a key consideration in dense data center environments. The module is engineered to operate within a defined temperature range, ensuring stable performance even under continuous high-load conditions. Effective heat dissipation contributes to improved reliability and longer service life.

Enterprise and Data Center Use Cases

Cloud Infrastructure and Virtualized Environments

In cloud computing environments, where virtual machines and containerized workloads generate significant network traffic, the Brocade 10G-SFPP-USR module plays a vital role in maintaining connectivity between compute nodes and storage systems. High-speed interconnects ensure that data replication, backup operations, and live migration processes occur seamlessly without performance bottlenecks.

High-Performance Storage Networking

Storage Area Networks (SANs) and Network Attached Storage (NAS) systems rely heavily on fast and reliable network connections. The 10Gbps bandwidth provided by this module category supports rapid data access and synchronization across distributed storage arrays. This is particularly important for organizations managing large databases or multimedia content repositories.

Enterprise Backbone Connectivity

Within enterprise campuses, the Brocade 10G-SFPP-USR module is often used to connect aggregation switches, distribution layers, and core network infrastructure. Its ability to deliver consistent performance over short distances makes it ideal for backbone connectivity within buildings or data center facilities.

Standards Compliance and Industry Interoperability

Adherence to IEEE 10G Ethernet Standards

The Brocade 10G-SFPP-USR module is designed in compliance with IEEE 802.3ae standards for 10 Gigabit Ethernet over optical fiber. This ensures interoperability across a wide range of networking equipment and guarantees adherence to globally recognized performance benchmarks.

Multi-Vendor Network Environments

In modern IT infrastructures, multi-vendor environments are common, requiring networking components that can interoperate seamlessly. The standardized SFP+ interface ensures that this module category can be deployed across different platforms, provided compatibility requirements are met.

Future Trends in 10G SFP+ Optical Transceiver Technology

Evolution Toward Higher Bandwidth Networking

Although 10Gbps modules such as the Brocade 10G-SFPP-USR remain widely used, the industry is gradually transitioning toward higher bandwidth standards such as 25Gbps, 40Gbps, and 100Gbps. However, 10G SFP+ modules continue to play a critical role in legacy systems and cost-sensitive deployments where full infrastructure upgrades are not yet feasible.

Ongoing Relevance in Hybrid Network Architectures

Hybrid network architectures often combine multiple generations of networking technology. In such environments, 10G SFP+ modules serve as a stable and cost-effective foundation layer, bridging older systems with newer high-speed infrastructure components.
