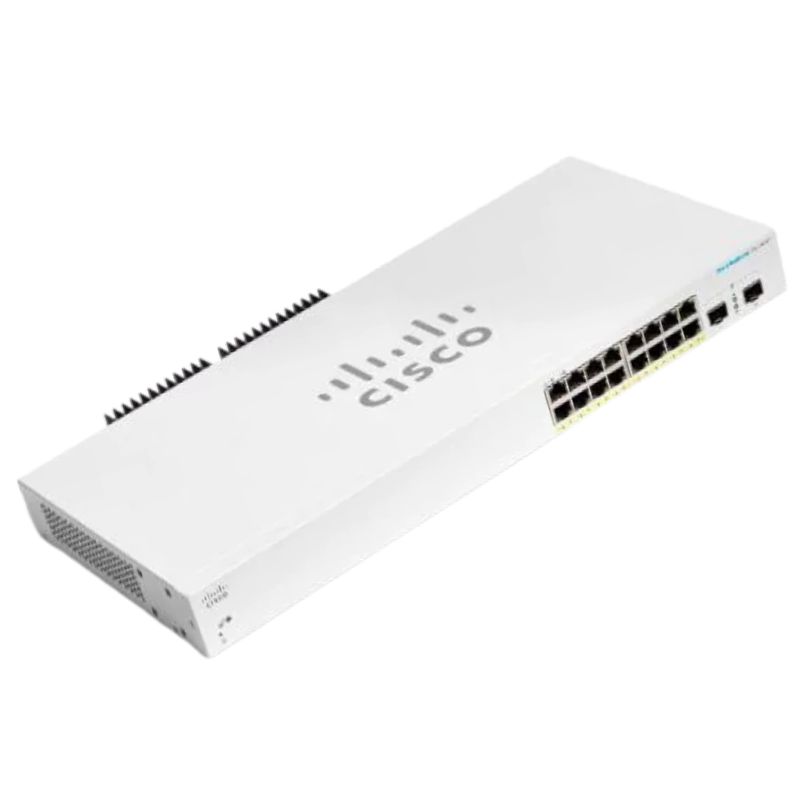

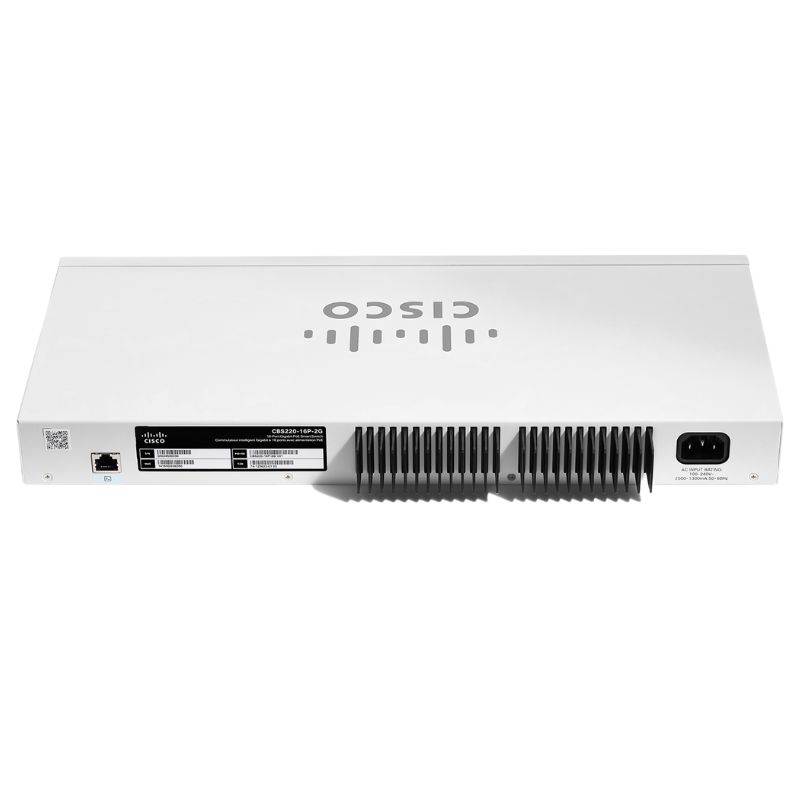

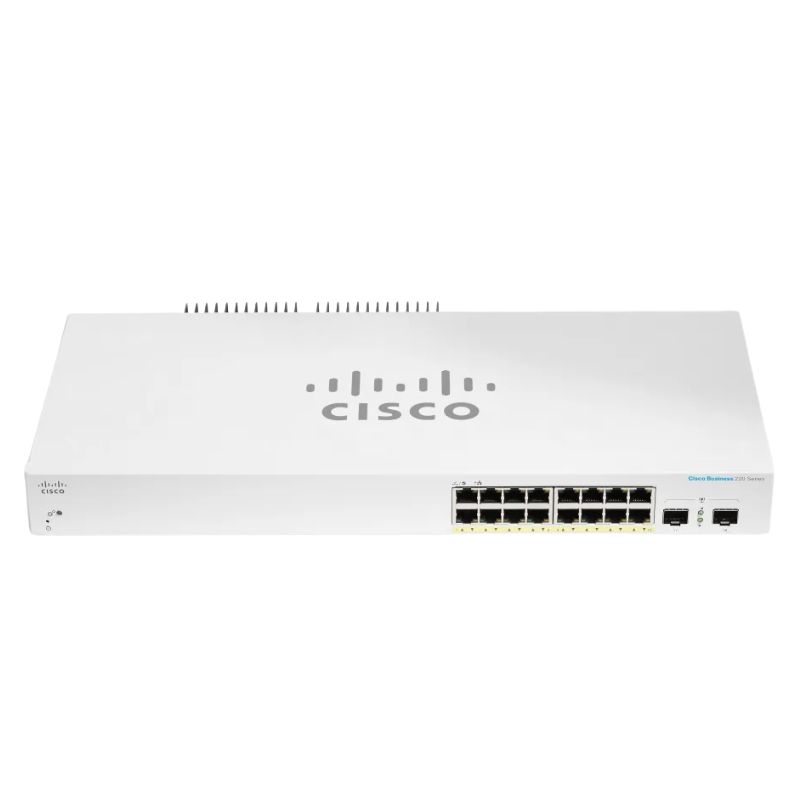

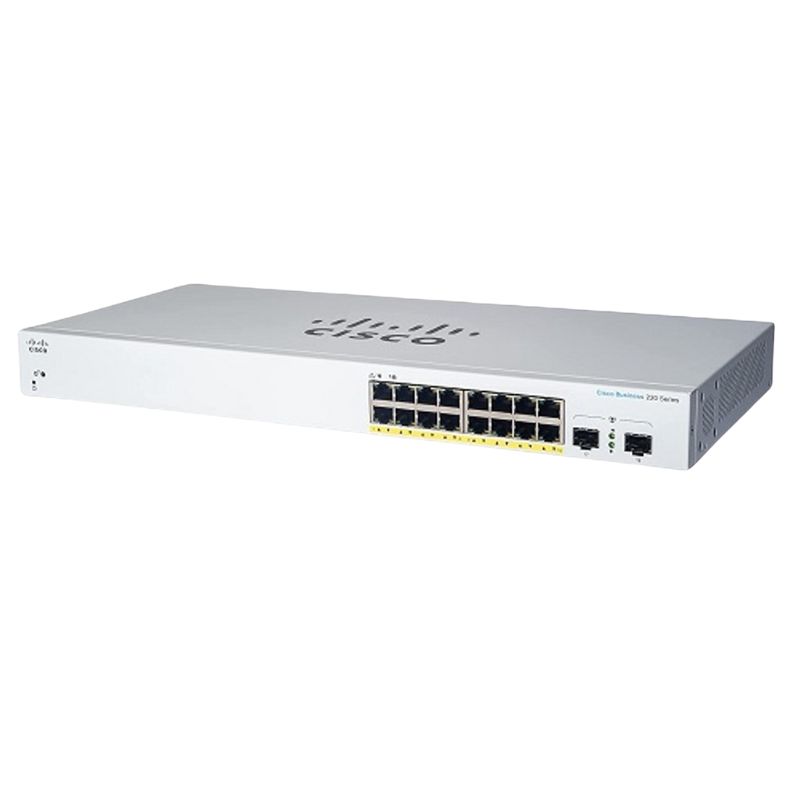

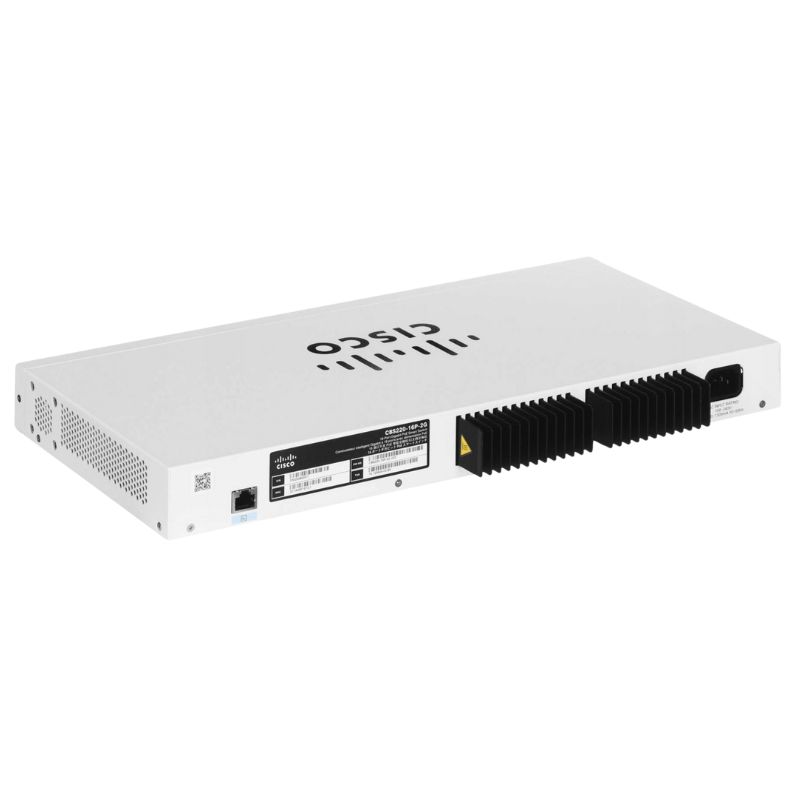

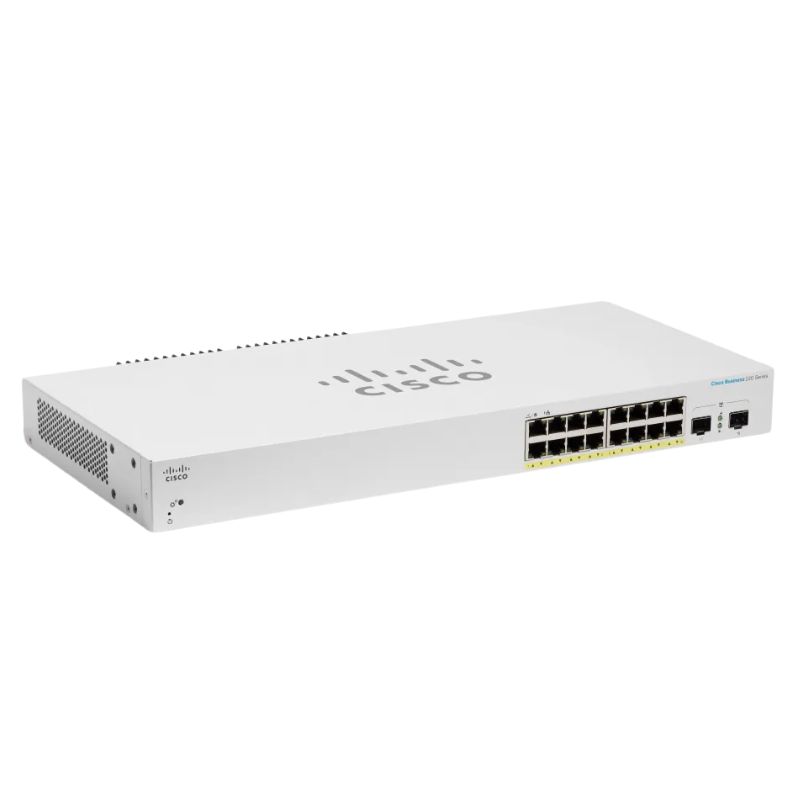

Cisco CBS220-16P-2G Business 220 Ethernet Switch

Overview of Cisco CBS220-16P-2G Ethernet Switch

• Brand: Cisco
• Model Number: CBS220-16P-2G
• Product Line: Business
• Series: 220
• Product Name: Business CBS220-16P-2G Ethernet Switch

Device Type and Features

• Type: Smart Rack-Mountable Switch
• Ports: 16 x 10/100/1000 (PoE+), 2 x Gigabit SFP (Uplink)
• Enclosure: Rack-Mountable
• Subtype: Gigabit Ethernet
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 130 W

Forwarding and Switching

• Forwarding Performance (64-byte Packet Size): 26.78 Mpps
• Switching Capacity: 36 Gbps

Capacity Specifications

• MSTP Instances: 16
• Supported VLANs: 256
• ACL Rules: 512
• Buffer Capacity: 4.1 MB
• MAC Address Table Size: 8192 Entries
• Jumbo Frame Support: Up to 9216 Bytes

Routing Protocols

• IGMPv2, IGMP, IGMPv3
• MLDv2, MLD
• MSTP, RSTP, STP

Remote Management

• SNMP 1, SNMP 2c, SNMP 3
• RMON, Telnet, HTTP, HTTPS
• TFTP, SSH, SSH-2, CLI
• SCP, ICMP, DHCP, TACACS+, RADIUS

Network Ports

• Total Ports: 16
• Uplink Port: Yes
• Modular: Yes

Port and Expansion Slots

• Gigabit Ethernet Ports: 16 PoE Ports
• Expansion Slots: 2 x Gigabit Ethernet SFP Slots

Media and Performance

• Supported Media Types: Optical Fiber, Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T, 1000Base-X

Power Details

• PoE (RJ-45) Port: Yes
• PoE Budget: 130 W
• Input Voltage: 120 V AC, 230 V AC
• Power Source: Power Supply
• Power Consumption: 18.30 W

Included in the Package

• Business CBS220-16P-2G Ethernet Switch
• Power Cord
• Mounting Kit
• Quick Start Guide

Environmental Impact

• Environmentally Friendly: Yes
• Certification: WEEE

Ports

The Cisco CBS220-16P-2G Ethernet Switch is equipped with 16 ports, making it a versatile and powerful networking solution. These ports provide connectivity for a wide range of devices, allowing businesses to expand their network infrastructure and accommodate the growing demands of the digital age.

Increased Connectivity

With 16 ports, this Ethernet switch provides ample connectivity options for various devices such as computers, servers, printers, and IP cameras. Businesses can easily connect multiple devices to the network without the need for additional switches or routers. This simplifies network management and reduces the cost and complexity associated with setting up a large-scale network infrastructure.

Furthermore, the Cisco CBS220-16P-2G supports Power over Ethernet (PoE) on all 16 ports. This means that not only can devices be connected to the network, but they can also receive power directly from the switch. This eliminates the need for separate power supplies or adapters, reducing clutter and providing a more streamlined setup.

Improved Network Performance

The 16 ports of the Cisco CBS220-16P-2G Ethernet Switch offer Gigabit Ethernet speeds, providing blazing-fast data transfer rates of up to 1000 Mbps. This ensures that data can be transmitted quickly and efficiently between connected devices, resulting in improved network performance and reduced latency.

Whether it's transferring large files, streaming high-definition media, or running bandwidth-intensive applications, the 16 ports allow for seamless data flow without bottlenecks or interruptions. This is particularly advantageous for businesses that rely heavily on data-intensive operations or require real-time communication between devices.

Enhanced Network Flexibility

The Cisco CBS220-16P-2G Ethernet Switch offers advanced features that enhance network flexibility. The 16 ports can be configured to support various network topologies, including traditional wired networks, virtual LANs (VLANs), and Power over Ethernet (PoE) deployments.

VLANs allow businesses to segment their network into multiple virtual networks, providing improved security, efficiency, and management. With 16 ports, businesses can allocate different VLANs to specific devices or departments, ensuring that traffic remains isolated and secure. This level of flexibility enables businesses to optimize their network infrastructure according to their specific requirements.

Scalability and Future-Proofing

The 16 ports of the Cisco CBS220-16P-2G Ethernet Switch provide scalability for businesses to expand their network infrastructure as needed. With the ability to connect multiple devices simultaneously, this switch allows businesses to grow without limitations. Whether it's adding more devices or accommodating increased network traffic, the 16 ports ensure that the network can adapt and scale accordingly.

Furthermore, the Cisco CBS220-16P-2G Ethernet Switch supports advanced technologies such as IPv6. As the world transitions from IPv4 to IPv6, having a switch that supports the latest networking protocols ensures future-proofing and compatibility with emerging technologies.

Reliability and Redundancy

Having 16 ports on the Cisco CBS220-16P-2G Ethernet Switch offers redundancy and increased network reliability. Businesses can connect critical devices or set up link aggregation to distribute network traffic across multiple ports. In the event of a port failure or congestion, the remaining ports can seamlessly handle the traffic, minimizing downtime and ensuring uninterrupted connectivity.

Additionally, the Cisco CBS220-16P-2G Ethernet Switch incorporates advanced Quality of Service (QoS) features. These features prioritize certain types of traffic, ensuring that critical applications or services receive the necessary bandwidth and are not affected by other non-essential network traffic. This further enhances network reliability and performance.

Cost-Effectiveness

The 16 ports of the Cisco CBS220-16P-2G Ethernet Switch offer cost-effectiveness for businesses. By providing a high number of ports in a single device, businesses can reduce the need for additional switches or routers, which can be expensive and require additional power and management resources.

Consolidating multiple devices into a single switch not only saves on hardware costs but also simplifies network management. With fewer devices to manage, businesses can allocate resources more efficiently and reduce the complexity of their network infrastructure.

In conclusion, the Cisco CBS220-16P-2G Ethernet Switch's 16 ports provide increased connectivity, improved network performance, enhanced flexibility, scalability, reliability, and cost-effectiveness. Whether it's for small businesses or large enterprises, the 16 ports offer a versatile networking solution that meets the demands of modern-day connectivity requirements.
