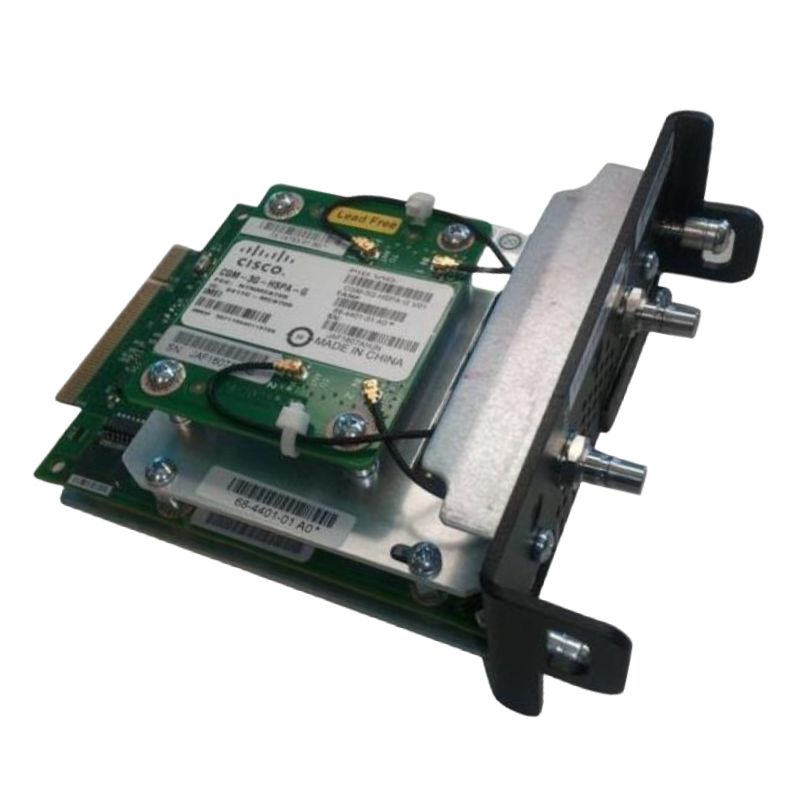

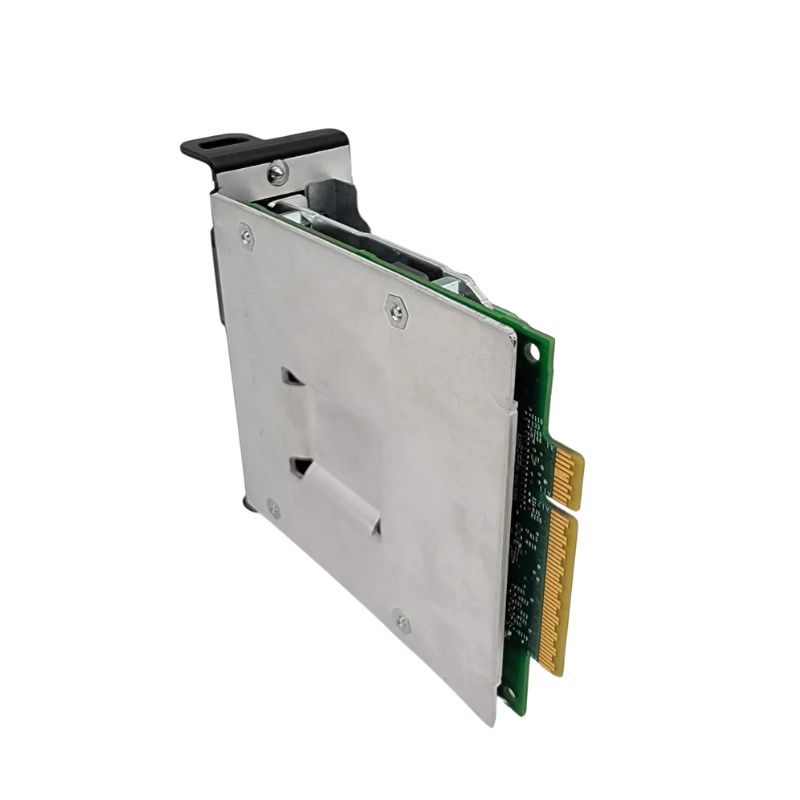

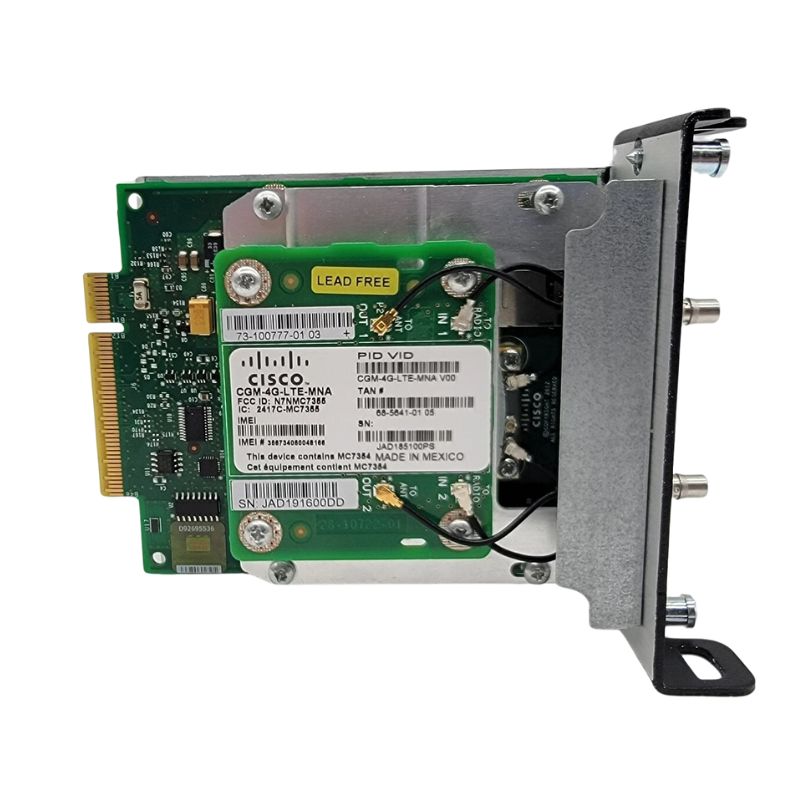

CGM-4G-LTE-MNA Cisco 4G LTE Connected Grid Module

Details of Cisco 4G LTE Connected Grid Module

The Cisco CGM-4G-LTE-MNA Connected Grid Module is a high-performance expansion card engineered for industrial-grade networking. It provides reliable 4G LTE connectivity with seamless fallback options, ensuring consistent communication in utility and smart grid environments.

General Information

• Manufacturer: Cisco
• Part Number: CGM-4G-LTE-MNA
• Device Type: Connected Grid Module

Technical Specifications

• Delivers download speeds up to 100 Mbps and upload speeds up to 50 Mbps for fast and efficient data transfer.

Supported Frequency Bands

• Band 2
• Band 4
• Band 8
• Band 13
• Band 17
• Band 25

Fallback Connectivity

• 3G HSPA+
• EV-DO Rev A
• CDMA 1x
• GSM/EDGE

Coexistence Filter

• Integrated 915 MHz filter minimizes interference with ISM mesh networks, enhancing stability.

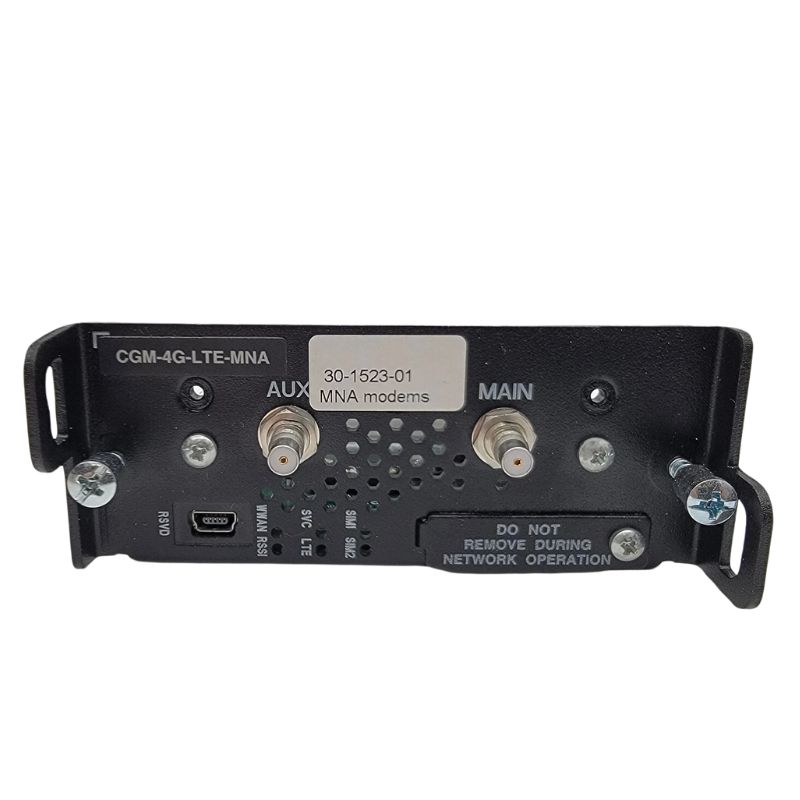

Antenna Interfaces

• 2 x QMA female RF connectors (Main + Diversity)

SIM Card Support

• Dual Mini-SIM (2FF) slots provide carrier failover for enhanced reliability.

Durability and Reliability

• Certified under IEC 61850-3 Class 2 standards for deployment in power substations.

Temperature Range

• Operates in extreme climates from -40°C to +65°C (-40°F to 140°F).

LED Diagnostics

• RSSI (Signal Strength) indicator
• Network Service status light

Cisco CGM-4G-LTE-MNA 4G LTE Connected Module Overview

The Cisco CGM-4G-LTE-MNA 4G LTE Connected Grid Module represents a specialized communication component engineered for high-reliability grid networking environments where continuous connectivity, remote monitoring, and secure data transmission are essential. Designed for integration into industrial and utility infrastructure, this module extends the capabilities of connected grid systems by enabling robust 4G LTE communication support across distributed assets, substations, and field-deployed networking equipment. Its architecture focuses on delivering stable cellular connectivity in mission-critical deployments where wired connections may be impractical or unavailable.

Core Architecture and Functional Design Principles

Embedded LTE Communication Framework

The embedded LTE framework within the Cisco CGM-4G-LTE-MNA module is built to facilitate seamless integration into grid routers and industrial networking platforms. It operates as an extension interface that enhances communication redundancy and provides failover capability in environments where network uptime is a priority. The LTE subsystem is optimized for wide-area coverage, ensuring consistent connectivity even in remote or geographically challenging installations.

Hardware Integration and Form Factor Engineering

This module is designed with a compact yet rugged form factor that allows it to be embedded directly into compatible Cisco Connected Grid routers and industrial gateways. Its engineering emphasizes vibration resistance, thermal stability, and long operational lifecycle support. The hardware layout ensures minimal signal interference and efficient power usage, making it suitable for long-term deployment in harsh environmental conditions.

Power Efficiency and Operational Stability

Power efficiency is a key design consideration for the Cisco CGM-4G-LTE-MNA module. It is optimized to operate within constrained energy environments typically found in utility infrastructure deployments. The module maintains stable performance while minimizing energy consumption, which is crucial for remote installations powered by limited or shared electrical resources.

Industrial Use Cases and Deployment Scenarios

Smart Grid Communication Infrastructure

Substation Connectivity Enhancement

Within smart grid ecosystems, the module plays a vital role in enabling secure communication between substations and centralized control systems. It supports real-time telemetry data exchange, allowing operators to monitor voltage levels, power distribution efficiency, and fault conditions without delay. This enhances situational awareness and improves grid reliability.

Distributed Energy Resource Integration

The increasing adoption of distributed energy resources such as solar panels and wind turbines requires flexible communication systems. The Cisco CGM-4G-LTE-MNA module supports connectivity between distributed nodes and grid management platforms, ensuring synchronized data flow and efficient energy balancing across the network.

Remote Monitoring of Field Equipment

Field-deployed infrastructure such as transformers, switches, and sensor nodes benefit significantly from LTE-based connectivity. This module enables continuous remote monitoring, reducing the need for manual inspections and enabling predictive maintenance strategies based on real-time data analytics.

Utility and Industrial Network Expansion

Rural and Remote Area Connectivity

In rural regions where wired broadband infrastructure is limited or non-existent, the LTE module provides a critical communication bridge. Utilities can deploy networked equipment in isolated areas while maintaining centralized visibility and control through cellular connectivity.

Emergency Communication Resilience

During natural disasters or infrastructure failures, traditional communication networks may become unreliable. The module ensures backup connectivity through LTE networks, allowing emergency systems to remain operational and enabling rapid restoration efforts.

Network Performance and Communication Capabilities

High-Speed LTE Data Transmission

Optimized Bandwidth Utilization

The Cisco CGM-4G-LTE-MNA module supports efficient bandwidth utilization over 4G LTE networks, ensuring smooth transmission of telemetry data, control signals, and diagnostic information. It is engineered to handle variable network conditions while maintaining stable throughput performance.

Low-Latency Communication Channels

Low latency is essential in grid automation systems, and this module is designed to minimize communication delays between devices and control centers. It supports near real-time data exchange, which is critical for fault detection and automated response systems.

Network Redundancy and Failover Support

Seamless Connectivity Switching

The module provides redundancy by enabling automatic switching between primary wired connections and LTE networks when disruptions occur. This ensures uninterrupted communication flow and enhances overall system resilience.

Reliable Uplink and Downlink Stability

Both uplink and downlink communication channels are optimized for stability, allowing consistent data transmission regardless of network fluctuations. This reliability is essential for mission-critical applications where data loss or delay is unacceptable.

Security Architecture and Data Protection Features

Secure Communication Protocols

Encrypted Data Transmission Layers

The Cisco CGM-4G-LTE-MNA module incorporates encrypted communication protocols that safeguard data integrity during transmission over public LTE networks. This ensures that sensitive grid information remains protected from unauthorized interception.

Authentication and Access Control Mechanisms

Access control mechanisms are embedded into the module to validate authorized communication sessions. These mechanisms help prevent unauthorized device access and ensure that only trusted endpoints can interact with the grid infrastructure.

Cybersecurity Resilience in Industrial Networks

Threat Mitigation Strategies

Industrial networks face increasing cybersecurity threats, and this module is designed to mitigate risks through layered security architecture. It helps isolate communication channels and restricts exposure to external vulnerabilities.

Secure Firmware and System Integrity

The module supports secure firmware operations, ensuring that system updates and configurations are validated before deployment. This reduces the risk of malicious firmware injection or system compromise.

Deployment Flexibility and System Compatibility

Integration with Cisco Connected Grid Platforms

Native Compatibility with Grid Routers

The Cisco CGM-4G-LTE-MNA module is engineered for native compatibility with Cisco Connected Grid routers, enabling seamless integration without requiring complex configuration changes. This ensures faster deployment cycles and simplified system management.

Modular Expansion Capabilities

The modular design allows operators to expand network capabilities by adding LTE connectivity to existing infrastructure. This scalability makes it suitable for evolving grid environments that require incremental upgrades.

Adaptability to Industrial Communication Standards

Interoperability with Legacy Systems

The module supports interoperability with legacy communication systems commonly used in utility networks. This allows organizations to modernize infrastructure without fully replacing existing systems.

Multi-Protocol Communication Support

It supports multiple communication protocols used in industrial automation, ensuring seamless integration across diverse operational environments and equipment types.

Performance Optimization in Smart Utility Networks

Real-Time Data Processing Support

Efficient Data Flow Management

The module supports efficient handling of real-time data streams from sensors and control systems. This ensures that critical operational data is transmitted without bottlenecks or delays.

Adaptive Network Performance Tuning

Adaptive mechanisms within the module allow it to adjust communication parameters based on network conditions, ensuring optimal performance across varying signal strengths and traffic loads.

Scalability in Large-Scale Deployments

Support for Expanding Grid Infrastructure

As utility networks expand, the module provides scalable connectivity solutions that accommodate increasing numbers of connected devices and endpoints without degrading performance.

Centralized Management Compatibility

It supports centralized management systems that allow operators to monitor and control multiple connected modules across distributed locations efficiently.

Operational Efficiency and Network Intelligence

Enhanced Visibility into Grid Operations

Comprehensive Telemetry Collection

The module facilitates extensive telemetry collection from connected devices, enabling detailed insights into system performance, load distribution, and operational efficiency metrics.

Data-Driven Decision Support

Collected data supports analytical platforms that assist in decision-making processes related to energy distribution, fault detection, and infrastructure planning.

Automation Enablement in Utility Systems

Support for Intelligent Grid Automation

By enabling reliable communication pathways, the module supports automation systems that optimize energy distribution and respond dynamically to grid conditions.

Integration with Control Systems

It integrates with control systems that manage switching, load balancing, and emergency response functions across utility networks.
