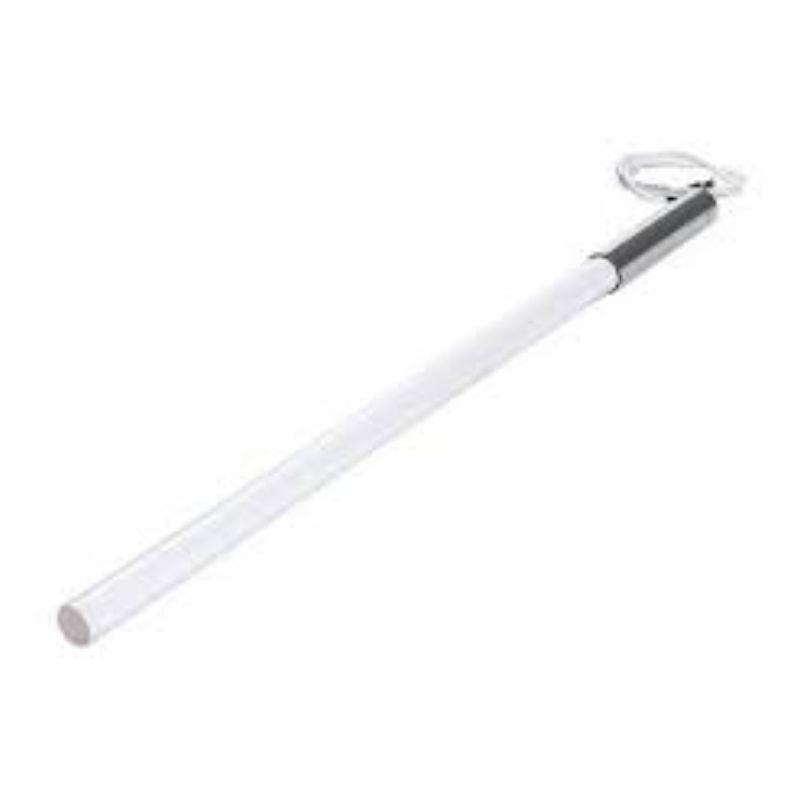

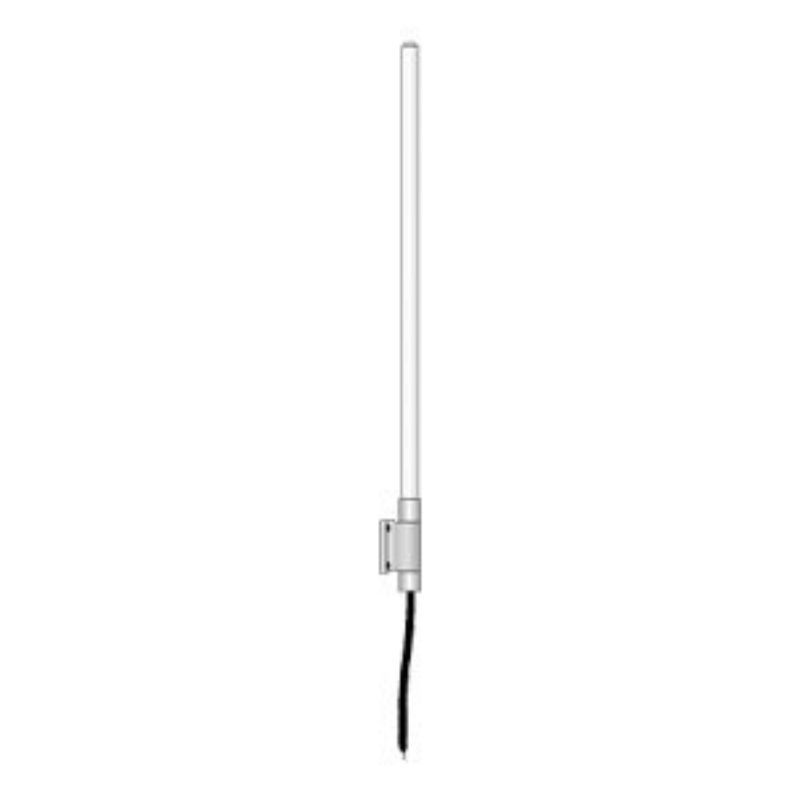

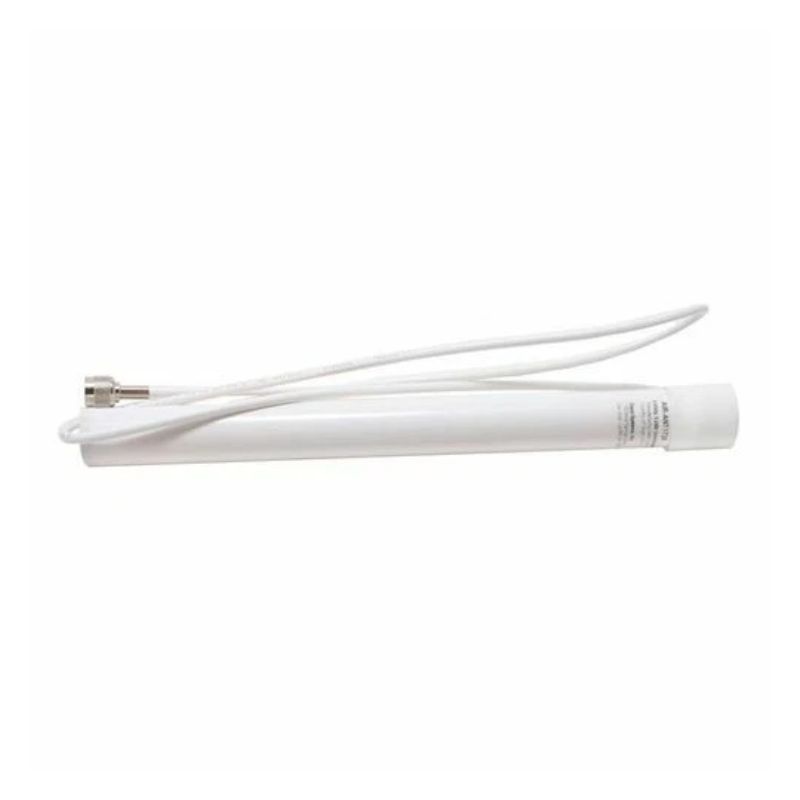

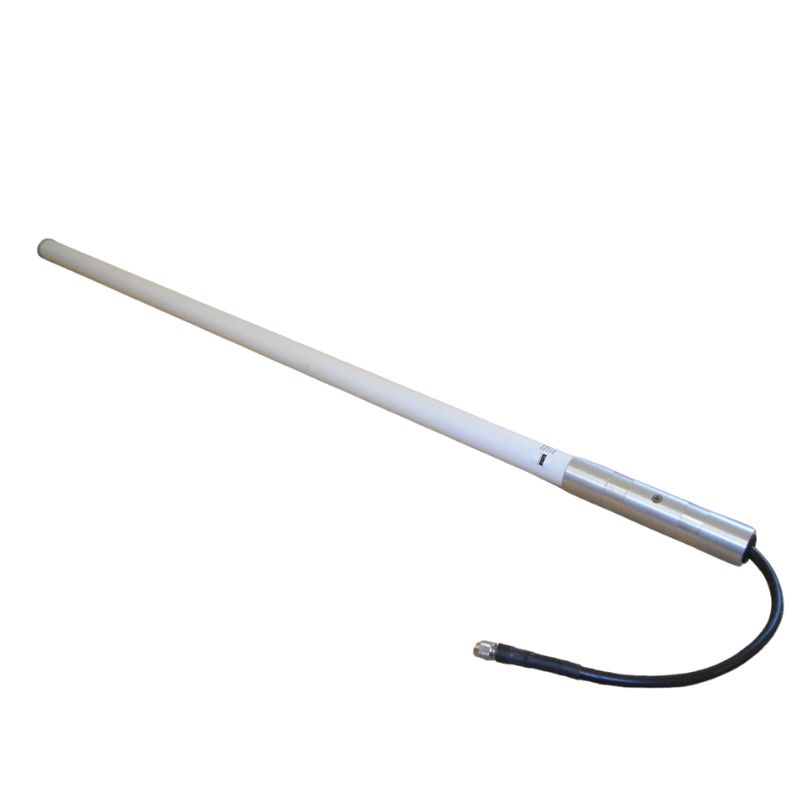

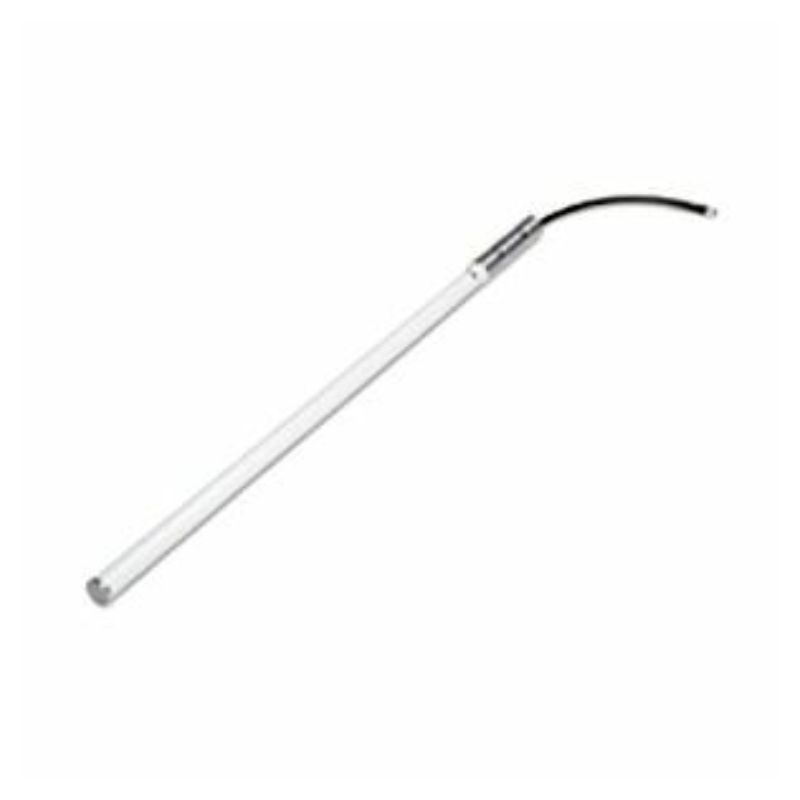

Cisco AIR-ANT24120 Omni Antenna

Cisco Aironet AIR-ANT24120: Essential Antenna Specifications

• Manufacturer: Cisco
• Model: AIR-ANT24120
• Product Line: Aironet
• Product Name: Aironet Omnidirectional Antenna
• Type: High-performance Antenna

Technical Information for AIR-ANT24120

• Directivity: Omni-directional for comprehensive wireless coverage
• Maximum Range: Up to 15.8 miles for extended signal reach
• Frequency Range: Supports UHF frequencies from 2.4 GHz to 2.5 GHz
• Gain: Delivers 12 dB antenna gain to boost signal strength
• Impedance: Rated at 50 Ohm for optimal performance

Connector & Port Details

• Connector Type: RP-TNC connector ensures reliable connectivity

Miscellaneous Information: Use Cases & Contents

• Primary Application: Optimized for Wireless Data Networks, enhancing signal distribution
• Package Includes:
• 12 dBi High Gain Omnidirectional Antenna
• Antenna grooves for easy mounting
• Jam nuts for secure assembly
• Durable sand-cast bracket
• 5/16 x 18 U-bolt for robust installation
• Hex bolts and nuts for additional stability

Product Strengths & Key Features

• Engineered for extended-range wireless communication
• Supports UHF frequency range, ensuring consistent network coverage
• The omni-directional design maximizes signal in all directions
• Ideal for outdoor and long-distance network setups
• Rugged construction, designed for durability in varied environments

Cisco Aironet AIR-ANT24120

• High gain (12 dB) for superior signal transmission and reception
• Dependable performance, particularly in enterprise-grade network deployments
• Includes necessary installation hardware for straightforward setup

Frequency

The Cisco AIR-ANT24120 Omni-directional Antenna operates at a frequency of 2.4 GHz, making it suitable for a wide range of wireless communication applications. This frequency range is commonly used for Wi-Fi networks and is supported by most wireless devices, including laptops, smartphones, and tablets.

Enhanced Coverage

The 2.4 GHz frequency offers excellent coverage capabilities, allowing the Cisco AIR-ANT24120 Antenna to provide reliable and stable wireless connections over a large area. With this antenna, users can enjoy seamless connectivity throughout their home or office without any dead zones or signal dropouts.

Improved Penetration

One of the key advantages of the 2.4 GHz frequency is its ability to penetrate obstacles such as walls, floors, and furniture. This means that the Cisco AIR-ANT24120 Antenna can deliver strong and consistent signals even in environments with multiple obstructions. Users can experience uninterrupted internet access and smooth data transfer regardless of their physical surroundings.

Compatibility with Legacy Devices

The 2.4 GHz frequency is widely supported by older wireless devices, making the Cisco AIR-ANT24120 Antenna compatible with a wide range of equipment. This allows users to upgrade their existing network infrastructure without having to replace their existing devices, resulting in cost savings and a seamless transition to higher performance.

Gain

The Cisco AIR-ANT24120 Omni-directional Antenna features a gain of 12 dBi, which amplifies the signal strength and extends the reach of wireless networks. This high-gain capability provides numerous benefits for users in terms of coverage, performance, and flexibility.

Extended Range

The 12 dB gain of the Cisco AIR-ANT24120 Antenna allows it to transmit and receive signals over longer distances compared to antennas with lower gain values. This enables users to establish connections in areas that would otherwise be out of reach, such as large outdoor spaces or multi-story buildings.

Improved Signal Quality

A higher gain antenna like the Cisco AIR-ANT24120 can deliver stronger and cleaner signals, resulting in improved signal quality. This translates into faster data transfer speeds, reduced latency, and better overall network performance. Users can enjoy lag-free streaming, smooth online gaming, and rapid file transfers without any interruptions or buffering.

Flexibility in Deployment

The increased gain of the Cisco AIR-ANT24120 Antenna allows for more flexibility in network deployment. With its extended range, users have the freedom to position their wireless access points in optimal locations without compromising signal strength. This means that users can strategically place their devices for maximum coverage and performance, adapting to the specific layout and requirements of their environment.

Connector

The Cisco AIR-ANT24120 Omni-directional Antenna is equipped with an RP-TNC connector, which ensures a secure and reliable connection between the antenna and the wireless device or access point. The RP-TNC connector offers several advantages in terms of compatibility, durability, and ease of installation.

Broad Compatibility

The RP-TNC connector is widely used in the networking industry, making it compatible with a variety of devices from different manufacturers. Whether it's a Cisco Aironet wireless access point or a third-party router, users can be confident that the Cisco AIR-ANT24120 Antenna will seamlessly integrate with their existing network equipment.

Durable Connection

The RP-TNC connector is designed to provide a secure and reliable connection, ensuring that the antenna stays firmly attached to the device or access point. This eliminates the risk of signal loss or disconnection, even in high-traffic environments or areas with strong vibrations. Users can have peace of mind knowing that their wireless network will remain stable and consistent.

Easy Installation

The RP-TNC connector is user-friendly and straightforward to install. It requires no specialized tools or expertise, allowing users to quickly and effortlessly connect the Cisco AIR-ANT24120 Antenna to their wireless devices. This convenience saves time and effort during installation, making it an ideal choice for both professional installers and casual users.

Polarization

The Cisco AIR-ANT24120 Omni-directional Antenna features linear polarization, which plays a crucial role in optimizing signal performance and minimizing interference. Linear polarization offers several benefits for users in terms of signal quality, range, and reliability.

Signal Consistency

Linear polarization helps maintain a consistent signal by reducing the impact of external factors such as reflections and multipath interference. The Cisco AIR-ANT24120 Antenna's linear polarization ensures that the transmitted signals align with the receiving antennas, minimizing signal distortion and maximizing signal strength. This results in a more stable and reliable wireless connection for users.

Increased Range

Linear polarization allows for better signal propagation over longer distances compared to other polarization types. The Cisco AIR-ANT24120 Antenna's linear polarization enables it to transmit signals in a specific direction, minimizing signal loss and maximizing coverage range. This is particularly beneficial in scenarios where long-range connectivity is required, such as outdoor deployments or large-scale networks.

Interference Mitigation

Linear polarization helps mitigate interference issues that may arise from other wireless devices operating nearby. By transmitting and receiving signals in a specific polarization plane, the Cisco AIR-ANT24120 Antenna can minimize signal overlap and reduce the impact of co-channel interference. This ensures a cleaner and more reliable wireless connection, even in crowded environments or areas with multiple wireless networks.

Compatibility

The Cisco AIR-ANT24120 Omni-directional Antenna is specifically designed to be compatible with Cisco Aironet wireless access points. This compatibility offers numerous benefits for users in terms of seamless integration, simplified installation, and optimized performance.

Seamless Integration

Being specifically designed for Cisco Aironet wireless access points, the Cisco AIR-ANT24120 Antenna seamlessly integrates with these devices without any compatibility issues or configuration challenges. Users can simply connect the antenna to their Cisco access point, and it will start functioning immediately, providing enhanced coverage and performance.

Simplified Installation

The compatibility between the Cisco AIR-ANT24120 Antenna and Cisco Aironet access points simplifies the installation process. The antenna can be easily attached to the access point using the RP-TNC connector, ensuring a secure and reliable connection. This eliminates the need for additional adapters or modifications, saving time and effort during setup.

Optimized Performance

The Cisco AIR-ANT24120 Antenna is specifically optimized for use with Cisco Aironet access points, ensuring maximum performance and compatibility. By using this antenna in conjunction with a Cisco access point, users can leverage the full capabilities of their network infrastructure, resulting in improved signal quality, extended coverage range, and enhanced overall network performance.
