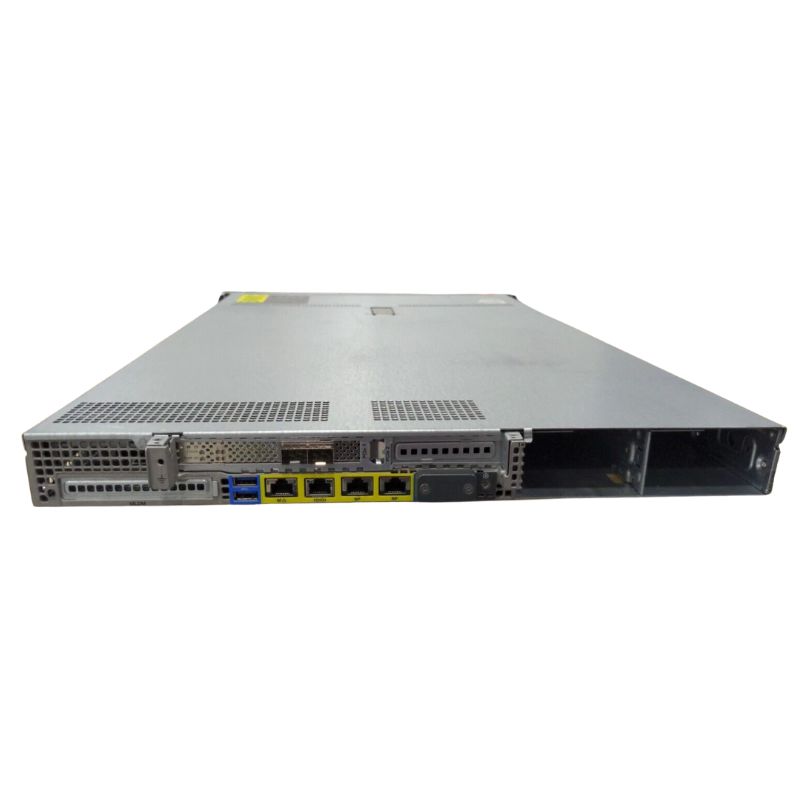

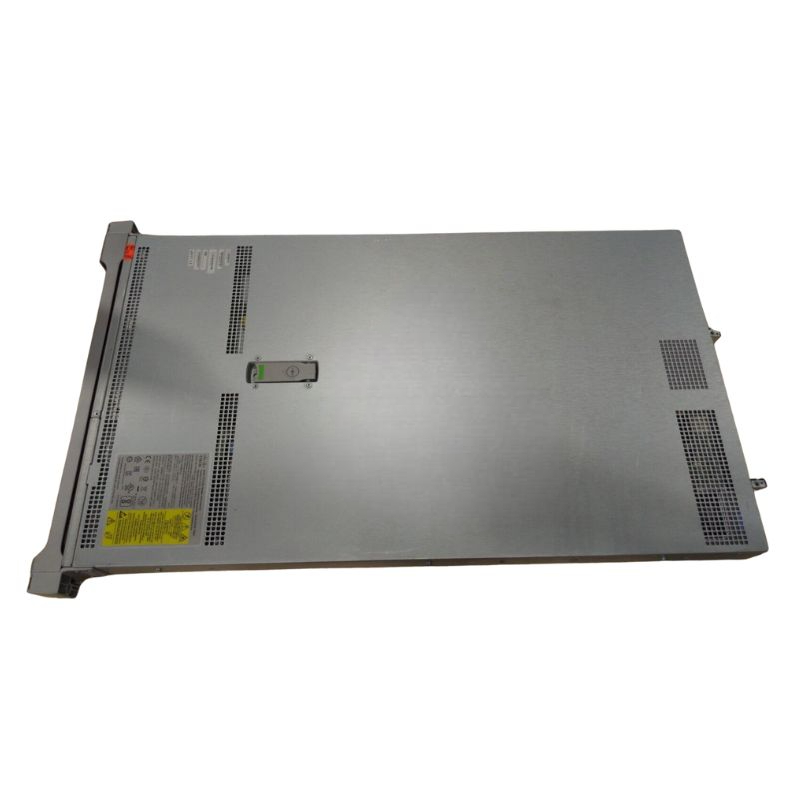

Cisco AIR-CT5520-50-K9 10G Wireless LAN Controller

Product Details

• Manufacturer: Cisco
• Part Number: AIR-CT5520-50-K9
• Series: 5500
• Type: Wireless LAN Controller

Technical Specifications

Wireless Connectivity

• Wireless Standard: IEEE 802.11ac
• Transmission Speed: Up to 10 Gbps
• Maximum Access Points: Supports up to 50

Ports and Interfaces

• Ethernet Ports: Yes
• Fast Ethernet Port: Yes
• Gigabit Ethernet Port: Yes
• Network Ports (RJ-45): 2
• PoE (Power over Ethernet): No
• VGA Port: No
• HDMI Port: No
• USB Port: No
• Powerline Connectivity: No
• Management Port: Yes

Environmental Conditions

Operating Temperature

• Range: 41°F to 104°F (5°C to 40°C)
• Altitude Adjustment: Reduce maximum temperature by 1.0°C per 1000 ft. (305m) above sea level

Nonoperating Temperature

• Range: -40°F to 149°F (-40°C to 65°C)

Humidity Levels

• Operating: 10% to 90% (non-condensing) at 82°F (28°C)
• Nonoperating: 5% to 93% at 82°F (28°C)

Altitude

• Operating: Up to 3000m (10,000 ft.)
• Nonoperating: Up to 12,192m (40,000 ft.)

Power Requirements

Electrical Input

• AC Input Frequency: 47 to 63 Hz
• Voltage Range: 90 VAC to 264 VAC
• Maximum Power Consumption: 190W
• Input kVA: 0.090 kVA to 0.700 kVA
• Heat Dissipation: 650 BTU/hr
• Sound Power Level: 49.3 dBA at 77°F (25°C)

Management Protocols

• SNMP Versions Supported: v1, v2c, v3
• Telnet: RFC 854
• TFTP: RFC 1350
• HTTP: RFC 2616
• Syslog: RFC 3164
• Additional MIBs: Various Cisco private MIBs

Compliance and Safety

Safety Standards

• UL: 60950-1 Second Edition
• CAN/CSA: C22.2 No. 60950-1 Second Edition
• EN: 60950-1 Second Edition
• IEC: 60950-1 Second Edition
• AS/NZS: 60950-1
• GB4943: 2001

EMC Emissions Standards

• 47CFR Part 15 (CFR 47): Class A
• AS/NZS CISPR22: Class A
• EN55022: Class A
• ICES003: Class A
• VCCI: Class A
• EN61000-3-2: Compliance
• EN61000-3-3: Compliance
• KN22: Class A
• CNS13438: Class A

EMC Immunity Standards

• EN55024: Compliance
• CISPR24: Compliance
• EN300386: Compliance
• KN24: Compliance

Data Transfer Rate

The Cisco AIR-CT5520-50-K9 Wireless LAN Controller is a powerful network device that offers an impressive data transfer rate of 10 Gigabits per second (Gbps). This high-speed data transfer rate is essential for businesses and organizations that rely heavily on their wireless networks for day-to-day operations.

Improved Network Performance

With a data transfer rate of 10 Gbps, the Cisco AIR-CT5520-50-K9 ensures that your wireless network operates at peak performance. The increased speed allows for faster data transmission and reduces latency, ensuring a seamless user experience. Whether you are streaming high-definition videos, transferring large files, or conducting video conferences, the high data transfer rate of this controller ensures that your network can handle the demands of your business without any performance issues.

Enhanced User Experience

A fast and reliable wireless network is crucial for delivering an exceptional user experience. With the Cisco AIR-CT5520-50-K9's 10 Gbps data transfer rate, users can enjoy seamless connectivity and uninterrupted access to critical resources. Whether it's employees accessing company resources or customers connecting to your guest network, the high data transfer rate ensures that everyone can access the network quickly and efficiently.

Reduced Downtime

Network downtime can be costly for businesses. With a slower data transfer rate, networks can become congested, leading to connectivity issues and potential downtime. However, with the 10 Gbps data transfer rate of the Cisco AIR-CT5520-50-K9, the chances of network congestion are significantly reduced. This means fewer disruptions, improved productivity, and ultimately, reduced downtime for your organization.

Scalability

As businesses grow and expand, so does their need for a robust wireless network. The 10 Gbps data transfer rate of the Cisco AIR-CT5520-50-K9 ensures that your network can easily scale to accommodate increasing demands. Whether you need to support more devices or handle higher data volumes, this controller has the capacity to handle it all. This scalability is crucial for businesses that anticipate growth and want a future-proof solution that can adapt to their changing needs.

Support for Bandwidth-Intensive Applications

Modern businesses rely on bandwidth-intensive applications for day-to-day operations. From cloud-based services to video conferencing and virtual reality applications, these bandwidth-hungry applications require a network infrastructure that can handle their requirements. The 10 Gbps data transfer rate of the Cisco AIR-CT5520-50-K9 ensures that your network can support these applications without experiencing bottlenecks or performance degradation.

Future-Proof Investment

Investing in a wireless LAN controller with a high data transfer rate is a wise decision for businesses looking for a long-term solution. As technology continues to advance, the demand for faster and more reliable wireless networks will only increase. By choosing the Cisco AIR-CT5520-50-K9 with its 10 Gbps data transfer rate, you are future-proofing your network infrastructure and ensuring that it can keep up with the evolving needs of your business.

Maximum Supported Access Points

Another standout feature of the Cisco AIR-CT5520-50-K9 Wireless LAN Controller is its ability to support up to 50 access points (APs). This impressive capacity makes it an ideal choice for businesses and organizations of all sizes.

Seamless Network Expansion

As your business grows, you may need to expand your wireless network to accommodate more users and devices. The maximum supported access points feature of the Cisco AIR-CT5520-50-K9 allows for seamless network expansion without the need for additional controllers. This scalability ensures that your network can grow alongside your business, saving you both time and money.

Efficient Resource Management

Managing a large number of access points can be a complex task. However, the Cisco AIR-CT5520-50-K9 simplifies this process with its maximum supported access points feature. With the ability to handle up to 50 APs, you can efficiently manage and monitor your entire wireless network from a single centralized controller. This centralized management not only saves you time and effort but also improves network security and reduces the risk of configuration errors.

Enhanced Network Performance

By supporting up to 50 access points, the Cisco AIR-CT5520-50-K9 ensures that your network can handle high-density environments with ease. Whether you have a large office space, a conference center, or a crowded public venue, this controller provides the necessary capacity to maintain optimal network performance. With more access points, users can connect seamlessly without experiencing network congestion or reduced speeds.

Flexibility and Versatility

The ability to support up to 50 access points gives businesses the flexibility to design their wireless network infrastructure according to their specific needs. Whether you need to cover a large area or create separate networks for different departments, the Cisco AIR-CT5520-50-K9 offers the versatility required to achieve your desired network architecture.

Cost-Effective Solution

Investing in a wireless LAN controller that supports a sufficient number of access points is a cost-effective solution for businesses. By choosing the Cisco AIR-CT5520-50-K9 with its support for up to 50 APs, you can avoid the need for additional controllers, reducing both upfront costs and ongoing maintenance expenses. This makes it an ideal choice for businesses looking for a scalable and cost-effective wireless network solution.

In conclusion, the Cisco AIR-CT5520-50-K9 Wireless LAN Controller offers a remarkable data transfer rate of 10 Gigabits per second and can support up to 50 access points. These features provide businesses with improved network performance, enhanced user experience, reduced downtime, scalability, support for bandwidth-intensive applications, and a future-proof investment. With its ability to handle high data volumes and accommodate growing networks, the Cisco AIR-CT5520-50-K9 is an excellent choice for businesses of all sizes.
