Cisco ASA5515-IPS-K9 Firewall Appliance with 6 Ports and IPS

Cisco ASA5515-IPS-K9 Security Appliance

Product Specifications

• Manufacturer: Cisco
• Model Number: ASA5515-IPS-K9
• Product Line: ASA
• Product Series: 5500
• Model: ASA 5515-X
• Product Name: ASA 5515-X IPS Edition
• Product Type: Security Appliance

Interfaces and Expansion

• Total Ports: 6
• DSL Port: Not Available
• USB Ports: Yes
• Management Port: Yes
• Form Factor: Rack-Mountable

Virtualization and Performance

• IPsec VPN Peers: 250
• Premium AnyConnect VPN Peers: 2
• Concurrent Connections: 250,000
• New Connections Per Second: 15,000
• Virtual Interfaces (VLANs): 100
• Security Contexts: 2

Firewall Protection Features

• Antivirus Protection
• Anti-Spyware
• Intrusion Prevention System
• Remote Access Authentication
• Access Control
• Content Filtering
• Application Layer Filtering
• Worm Scanning
• Malware Protection
• Deep Packet Inspection
• Encryption Standards: 3DES, AES, DES

Networking and Communication

• Ethernet Technology: Gigabit Ethernet
• Network Standard: 10/100/1000Base-T
• Wireless LAN: Not Supported

Expansion and Management

• Total Expansion Slots: 1
• Manageable: Yes
• Memory:
  • Standard Memory: 8 GB
  • Flash Memory: 8 GB

Power and Environmental Specifications

• Input Voltage: 110 V AC, 220 V AC
• Power Source: Internal Power Supply
• Power Redundancy: Optional
• Redundancy Scheme: 1+1 (with optional power supply)

Environmental Conditions

• Operating Temperature Range: 32 °F to 104 °F
• Operating Humidity Range: 5 – 90% (non-condensing)
• Storage Temperature Range: -4 °F to 149 °F
• Storage Humidity Range: 5 – 95% (non-condensing)

Compliance and Safety

• IEC 60950-1: 2005
• EN 60950-1:2006+A11: 2009
• UL 60950-1:2007 2nd Edition
• CSA C22.2 No. 60950-1-07, 2nd Edition

Electromagnetic Compatibility

• CE: EN55022 2006+A1: 2007 Class A; EN55024 1998+A1:2001+A2:2003; EN61000-3-2 2009; EN61000-3-3 2008
• FCC: CFR 47, Part 15 Subpart B Class A 2010, ANSIC63.4 2009; ICES-003 ISSUE 4 FEBRUARY 2004
• VCCI: V3/2011.04
• C-TICK: AS/NZS CISPR 22, 2009
• KC: KN22 & KN24

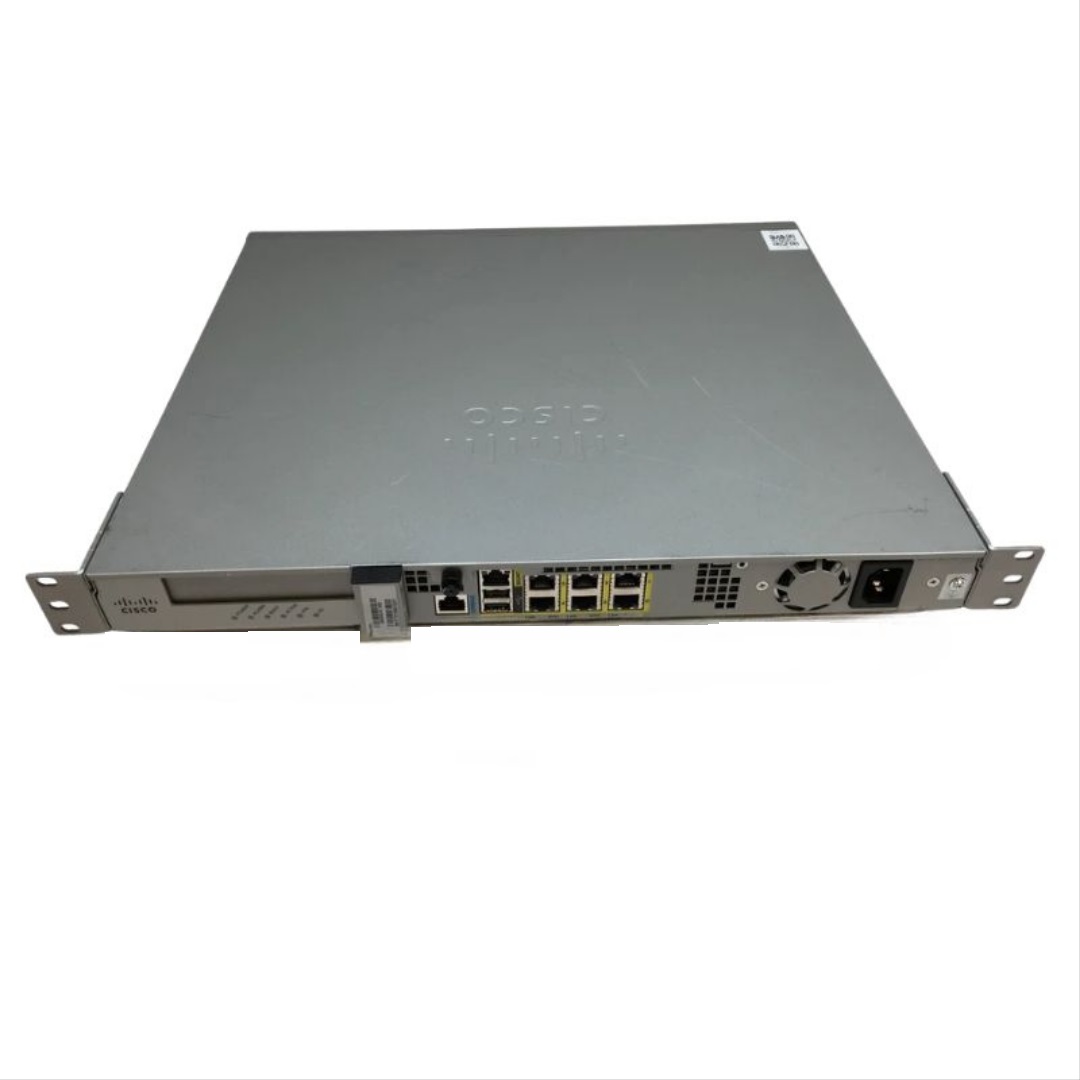

Ports

The Cisco ASA 5515-X Firewall Appliance is equipped with 6 ports, providing users with a versatile and flexible network connectivity solution. These ports serve various purposes and play a crucial role in ensuring smooth data transmission and secure network connectivity. Let's explore the benefits and importance of each port in detail.

Gigabit Ethernet Ports

The Cisco ASA 5515-X Firewall Appliance features four Gigabit Ethernet ports, offering high-speed connectivity for your network infrastructure. These ports support data transfer rates of up to 1 Gbps, allowing for rapid and efficient transmission of large files, multimedia content, and data-intensive applications. Whether you need to connect multiple devices or handle bandwidth-intensive tasks, these Gigabit Ethernet ports provide the necessary speed and reliability.

Benefits:

- Enhanced Performance: With Gigabit Ethernet ports, you can experience seamless connectivity without any bottlenecks or performance limitations.
- High-Speed Data Transfer: These ports enable quick data transfer between devices, promoting productivity and reducing latency.
- Future-Proof Solution: The Gigabit Ethernet standard is widely adopted and offers compatibility with a wide range of devices, ensuring long-term network compatibility.

Importance for Users:

For businesses or organizations that heavily rely on data transfer and network connectivity, the presence of four Gigabit Ethernet ports is essential. It allows for efficient handling of large workloads, smooth streaming of multimedia content, and seamless collaboration among team members. Moreover, these ports offer the scalability required to accommodate future growth and higher bandwidth demands.

Management Port

The Cisco ASA 5515-X Firewall Appliance includes a dedicated management port that provides out-of-band management capabilities. This port allows network administrators to access the firewall appliance remotely for configuration, monitoring, and troubleshooting purposes without interfering with regular network traffic.

Benefits:

- Simplified Network Management: The management port simplifies the administration of the firewall appliance by providing a dedicated interface for remote access and management tasks.
- Enhanced Security: By separating management traffic from regular network traffic, the management port reduces the risk of unauthorized access and potential security breaches.
- Efficient Troubleshooting: The availability of a dedicated management port enables network administrators to quickly diagnose and resolve any issues without impacting the normal flow of network traffic.

Importance for Users:

The management port is indispensable for network administrators who need to efficiently manage and monitor their network infrastructure. It allows for seamless remote access, simplifies configuration and troubleshooting tasks, and enhances overall network security by isolating management traffic.

Features

One of the standout features of the Cisco ASA 5515-X Firewall Appliance is its Intrusion Prevention System (IPS). This powerful feature provides an additional layer of security by actively monitoring network traffic and identifying potential threats or malicious activities. Let's delve into the benefits and importance of the IPS feature in detail.

Real-Time Threat Detection

The IPS feature continuously analyzes incoming and outgoing network traffic in real-time, using advanced algorithms and signature-based detection methods. It actively monitors for known attack patterns, malware, viruses, and other malicious activities. By doing so, it can quickly identify and mitigate threats before they can cause any damage or compromise sensitive data.

Benefits:

- Proactive Threat Prevention: The IPS feature proactively identifies potential threats, enabling timely response and preventing attacks from infiltrating the network.
- Granular Traffic Analysis: With deep packet inspection capabilities, the IPS can analyze traffic at a granular level, ensuring accurate threat detection without impacting network performance.
- Protection Against Zero-Day Attacks: The IPS utilizes behavior-based analysis to detect unknown or zero-day attacks, providing an additional layer of security against emerging threats.

Importance for Users:

In today's threat landscape, where cyberattacks are becoming increasingly sophisticated, having an IPS is crucial for network security. The real-time threat detection capabilities of the Cisco ASA 5515-X Firewall Appliance IPS ensure that potential threats are identified and neutralized promptly, safeguarding sensitive data, preventing downtime, and minimizing the risk of financial and reputational damage.

Customizable Security Policies

The Cisco ASA 5515-X Firewall Appliance IPS allows users to define and enforce customized security policies tailored to their specific network requirements. This flexibility enables organizations to adapt their security measures based on their unique needs and industry-specific compliance regulations.

Benefits:

- Customized Protection: By allowing users to create their own security policies, the IPS ensures that the firewall appliance is aligned with the specific security needs of the organization.
- Compliance Readiness: Organizations operating in regulated industries can easily configure the IPS to meet industry-specific compliance requirements, ensuring continuous adherence to security standards.
- Reduced False Positives: Customizable security policies help minimize false positives by fine-tuning the IPS to focus on detecting genuine threats, reducing unnecessary alerts and administrative overhead.

Importance for Users:

The ability to customize security policies is highly valuable for organizations that require granular control over their network security. It allows them to tailor the IPS to their unique needs, ensuring a proactive and effective defense against threats while maintaining compliance with industry regulations.

Part Number

The part number of the Cisco ASA 5515-X Firewall Appliance with IPS functionality is ASA5515-IPS-K9. This alphanumeric identifier is essential for accurately identifying and procuring the specific model of the firewall appliance.

Model Identification

The part number ASA5515-IPS-K9 uniquely identifies the Cisco ASA 5515-X Firewall Appliance with IPS functionality. It serves as a reference for users, vendors, and support teams to ensure that the correct model is selected and deployed in the network infrastructure.

Benefits:

- Accurate Procurement: The part number allows for precise identification and procurement of the Cisco ASA 5515-X Firewall Appliance with IPS, ensuring compatibility and adherence to specific requirements.
- Seamless Support and Documentation: By using the correct part number, users can easily access relevant documentation, support resources, and firmware updates specific to their model, streamlining troubleshooting and maintenance processes.
- Simplified Inventory Management: The part number facilitates efficient inventory management by providing a standardized identifier for the Cisco ASA 5515-X Firewall Appliance with IPS, making it easier to track and manage network assets.

Importance for Users:

The part number ASA5515-IPS-K9 is vital for users who want to ensure they are procuring the correct model of the Cisco ASA 5515-X Firewall Appliance with IPS functionality. It simplifies inventory management, enables accurate support and documentation access, and ensures seamless compatibility within the network infrastructure.

In conclusion, the Cisco ASA 5515-X Firewall Appliance offers an array of features that enhance network connectivity, security, and management. With its 6 ports, including Gigabit Ethernet ports and a dedicated management port, users can enjoy high-speed data transfer and simplified administration. The IPS feature provides real-time threat detection and customizable security policies to safeguard against potential threats effectively. Furthermore, the part number ASA5515-IPS-K9 allows for accurate identification and procurement of the specific model. Overall, the Cisco ASA 5515-X Firewall Appliance provides a comprehensive solution for organizations looking to strengthen their network security and optimize their network infrastructure.
